## I System Model

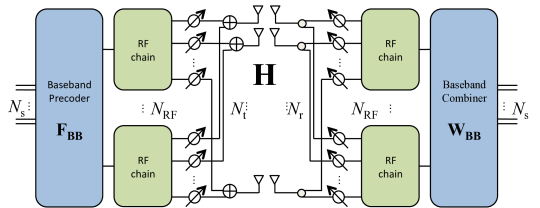

We consider a mmWave MIMO link to send data streams using a transmitter with antennas and a receiver with antennas. Both the transmitter and the receiver use a fully-connected hybrid MIMO architecture as shown in Fig. 1, with and RF chains. A hybrid precoder is used, with , where is the analog precoder and the digital one. The RF precoder and combiner are implemented using a fully connected network of phase shifters, as described in [1].

The MIMO channel between the transmitter and the receiver is modeled as a matrix denoted as , which is assumed to be a sum of the contributions of spatial clusters, each contributing with rays. This matrix is given by [1]

 H =  ⎷NrNtρL∑Cc=1RcC∑c=1Rc∑r=1αc,raR(ϕc,r)a∗T(θc,r), (1)

where denotes the path loss, is the number of scattering clusters, is the number of rays for -th cluster, is the complex gain of the -th ray within -th cluster, and are the angles of arrival and departure (AoA/AoD), respectively of the -th ray within -th cluster, and and are the array steering vectors for the receive and transmit antennas respectively. This matrix can be written in a more compact way as

 H = ARGA∗T, (2)

where is diagonal with non-zero complex entries, and and contain the receive and transmit array steering vectors and , respectively. can be approximated using the extended virtual channel representation [mmWavetutorial] as

 H≈~ARGv~A∗T (3)

where is a sparse matrix which contains the path gains of the quantized spatial frequencies in the non zero elements. The dictionary matrices and contain the transmitter and receiver array response vectors evaluated on grids of sizes and . Assuming that the receiver applies a hybrid combiner , with the analog combiner, and the baseband combiner, the received signal at discrete time instant can be written as

 r[n]=W∗HFs[n]ej2πΔfn+v[n], (4)

for .The signal , is a training sequence known to the receiver, is the unknown carrier frequency offset (CFO), and

is the circularly symmetric complex Gaussian distributed additive noise vector.

We consider that the training sequence can be expressed as , with a spatial filter consisting of normalized QPSK symbols. Let us define , and , where is the Cholesky factor of , i.e., . Then, if we stack the samples of the received signal in (4) we obtain the signal model

 (5)

such that . Then, the vector of parameters to be estimated is .

We define the Signal to Noise Ratio (SNR) for the -th signal , as

 γi=α2iσ2. (6)

Furthermore, the average Signal to Noise Ratio at digital level can be defined as well. Let us define as . Therefore, if the SNR at baseband level is denoted as , it can be written as

 SNR=1LrLr∑i=1γi=trace{ΛΛ∗}Lrσ2, (7)

which is just the average of the post-combining at each RF chain.

## Ii Regularity Condition

For the CRLB to exist, the regularity condition must be fulfilled by the probability density function (pdf) of the data. This condition states

[2]

 E{∂lnp(r;ξ)∂ξi}=0,for all ξi∈ξ. (8)

The pdf of the vector is written as

 p(r;ξ)=1πNLrdet(σ2INLr)e−1σ2(r−M(α,Δf)t)∗(r−M(α,Δf)t), (9)

and the log-likelihood function (LLF) as

 lnp(r;ξ)=−NLrlnπσ2−1σ2(r∗r−2Re{t∗M∗(α,Δf)r}++t∗M∗(α,Δf)M(α,Δf)t). (10)

Before computing the gradient of the LLF, it is important to note that

 t∗M(α,Δf)M(α,Δf)t=N−1∑n=0sC[n]α∗Ω∗nΩnαs[n]=N−1∑n=0sC[n]trace{P}s[n]=Ntrace{P}, (11)

where .

Therefore, for ,

 (12)

Now, for ,

 ∂lnp(r;ξ)∂σ2=−NLrσ2+1σ4∥r−M(α,Δf)t∥22=−NLrσ2+1σ4N−1∑n=0E{∥wn[n]∥2}=−NLrσ2+1σ4N−1∑n=0Lr∑i=1(σ2E{wI,i[n]2}+E{wQ,i[n]2)}=0. (13)

For ,

 ∂lnp(r;ξ)∂Δf=−1σ2(−2Re{t∗∂M∗(α,Δf)∂Δfr})=−1σ2(−2N−1∑n=0Re{sC[n]α∗(−j2πn)Ω∗nΩnαs[n]})=−1σ2(−2N−1∑n=0Re{trace{P}(−j2πn)})=0 (14)

Finally, for ,

 ∂lnp(r;ξ)∂βi=−1σ2(−2Re{t∗∂M∗(α,Δf)∂βir})=−1σ2(−2N−1∑n=0Re{sC[n]αi(−j)e−jβieTiΩ∗nΩnαs[n]})=−1σ2(−2N−1∑n=0Re{α2i(−j)})=0, (15)

since the term inside brackets is also purely imaginary.

Thus, since the regularity condition holds, the CRLB is to be found in the next section.

## Iii Cramér-Rao Lower Bound

Since the model for the received signal is Gaussian, the Slepian-Bangs formula can be used to find the elements in the Fisher Information Matrix. This formula is given by [2]

 Fi,j(ξ)=2Re{∂μ∗(ξ)∂ξiC−1(ξ)∂μ(ξ)∂ξj}+trace{C−1(ξ)∂C(ξ)∂ξiC−1(ξ)∂C(ξ)∂ξj}. (16)

Thus, the elements in the FIM can be found as

 Fαi,αi(ξ)=2σ2Re{t∗∂M∗(α,Δf)∂αi∂M(α,Δf)∂αit}. (17)

The partial derivative of is given by

 (18)

being a vector of zeros with a single one in the -th position. Therefore,

 Fαi,αi(ξ)=2σ2N−1∑n=0Re{|s[n]|2}=2Nσ2. (19)

For the phase offset parameter,

 Fβi,βi(ξ)=2σ2Re{t∗∂M∗(α,Δf)∂βi∂M(α,Δf)∂βjt}, (20)

where

 (21)

Then, the Fisher Information for yields

 Fβi,βi(ξ)=2σ2N−1∑n=0Re{α2i|s[n]|2}=2Nα2iσ2. (22)

For the carrier frequency offset parameter,

 (23)

where

 ∂M∗(α,Δf)∂Δf∂M(α,Δf)∂Δf=trace{P}⎡⎢ ⎢ ⎢ ⎢ ⎢⎣(2π0)2(2π1)2⋱(2π(N−1))2⎤⎥ ⎥ ⎥ ⎥ ⎥⎦. (24)

Therefore,

 (25)

For the noise variance,

 Fσ2,σ2(ξ)=1σ4trace{INLr}=NLrσ4. (26)

For the non-diagonal elements in the FIM, it can be checked that all of them are zero-valued except for

 FΔf,βi(ξ)=2σ2Re{t∗∂M∗(α,Δf)∂Δf∂M(α,Δf)∂βit}, (27)

where

 ∂M∗(α,Δf)∂Δf∂M(α,Δf)∂βi=αiejβi⎡⎢ ⎢ ⎢ ⎢ ⎢⎣(2π0)α∗ei(2π1)α∗ei⋱(2π(N−1))α∗ei⎤⎥ ⎥ ⎥ ⎥ ⎥⎦. (28)

Therefore,

 FΔf,βi(ξ)=2σ2N−1∑n=0Re{(2πn)α2i}=2α2iσ2N−1∑n=0(2πn). (29)

Then, the FIM is found to be

 F(ξ)=[F1(ξ)00F2(ξ)], (30)

with

 F1(ξ)=diag{2Nσ21TLr,LrNσ4} (31)
 F2(ξ)=⎡⎢⎣2trace{P}σ2∑N−1n=0(2πn)22σ2∑N−1n=02πn1TLrP2σ2∑N−1n=02πnP1Lr2Nσ2P⎤⎥⎦. (32)

Finally, upon inverting the block diagonal matrix , the CRLB for the parameters is given by

 var{^αi}≥σ22N (33)
 var{ˆσ2}≥σ4LrN (34)
 var{ˆΔf}≥σ22⋅NLr(N(N−1)(2N−1)/6)trace{P}NLr−∑Lrk=1α2k(N(N+1)2/4)NLr (35)
 var{^βi}≥σ22⋅((N−1)(2N−1)/6)trace{P}NLr∏Lrj=1j≠iα2j−∑Lrck=1k≠iα4k((N+1)2/4)NLr∏Lrs=1s≠k,iα2s(N(N−1)(2N−1)/6)trace{P}NLr−∑Lrk=1α2k(N(N+1)2/4)NLr (36)

Finally, the in the -th RF chain can be distinguished from the average of the individual s of the different signals involved in the problem. If the of the -th signal is denoted by , then

 γi=α2iσ2 (37)
 SNR=trace{P}Lrσ2, (38)

for which, according to the Transformed Parameters Property, the CRLB can be found to be

 var{^γi}≥4γiN+γ2iN (39)
 var{ˆSNR}≥2SNRLrN+SNR2LrN. (40)

The last formulas provide a clear insight on how the estimation of actually works. For lower values of , the CRLB is dominated by the term growing linearly with the parameter, whereas for higher values the CRLB is dominated by the second term, making the estimation of the parameter much harder. The same happens for , although it actually depends on the different for the different streams.

Henceforth, our effort is focused on searching for suitable estimators of these parameters. Owing to the non-linear dependence between the data and the parameters, an efficient estimator cannot be found, in general. The practical approach to follow is to seek the ML estimators for these parameters, for which the next subsection is devoted.

## Iv Maximum Likelihood Estimation

The problem of finding the ML Estimator for the parameters in can be formalized as

 {^αi,ML,^σ2ML,^ΔfML,^βi,ML}i=1,…,Lr=argmaxξlnp(r;ξ), (41)

which involves a joint maximization over scalar variables. This problem can be solved in four different steps by splitting the original problem into four interconnected optimization problems.

### Iv-a MLE for the Phase Offset

Recall that the LLF is given by

 lnp(r;ξ)=−NLrlnπσ2−1σ2(r∗r−2Re{t∗M∗(α,Δf)r}+Ntrace{P}), (42)

such that the term that depends on is the second variable inside brackets. Therefore, the value that maximizes the function above is found from

 ^βi=argmaxβiRe{t∗M∗(α,Δf)r}. (43)

The first derivative of the function to maximize yields

 ∂lnp(r;ξ)∂β=N−1∑n=0Re{sC[n]αi(−j)e−jβieTiΩnr[n]} (44)
 ∂lnp(r;ξ)∂β=N−1∑n=0Im{sC[n]αie−jβie−j2πΔfnri[n]} (45)

Now the following result can be applied.

Lemma. Given two complex numbers, , , the imaginary part of their product is defined as

 Im{z1z2}=Re{z1}Im{z2}+Im{z1}Re{z2}.

Therefore, setting the previous derivative to zero allows us to obtain

 N−1∑n=0Im{sC[n]ri[n]e−j2πΔfn}Re{αie−jβi}=N−1∑n=0Re{sC[n]ri[n]e−j2πΔfn}Im{αie−jβi} (46)
 ^βi=tan−1{∑N−1n=0Im{sC[n]ri[n]e−j2πΔfn}∑N−1n=0Re{sC[n]ri[n]e−j2πΔfn}}, (47)

which can be interpreted as a matched-filtering operation with the training sequence after the carrier frequency offset has been corrected. Notice that the ML estimator of requires the knowledge of the true value . Since it is impossible to know the exact value of , the ML estimator of is to be substituted in (47) instead, such that the final estimator can be applied in a practical scenario.

### Iv-B MLE for the Amplitude

In this subsection we provide a closed-form expression for the amplitude parameters, which have already been denoted as . By inspection of the LLF

 lnp(r;ξ)=−NLrlnπσ2−1σ2(r∗r−2Re{t∗M∗(α,Δf)r}+Ntrace{P}), (48)

it can be seen that the terms that depend on this parameter are the two last within brackets. Therefore, the problem of finding is formalized as

 ^αi=argmaxαi2Re{t∗M∗(α,Δf)r}−Ntrace{P}. (49)

Taking the first derivative of the objective function yields

 ∂f(αi)∂αi=2N−1∑n=0Re{ri[n]sC[n]e−jβie−j2πΔfn}−2αiN, (50)

such that the value of that maximizes the function above is

 ^αi=1NN−1∑n=0Re{ri[n]sC[n]e−jβie−j2πΔfn}. (51)

From (51), it is clear that the statistic depends on and , similarly as with the estimator of . Therefore, the estimators of these parameters are to be substituted in (51) to find the ML estimator.

### Iv-C MLE for the Carrier Frequency Offset

In this subsection we will find the ML estimator of the carrier frequency offset. In (48), the only term that depends on is the second one. Therefore, the problem of finding the ML estimator for this parameter can be stated as

 ˆΔf=argmaxΔfRe{t∗M∗(α,Δf)r}. (52)

We can express the objective function in (52) as

 f(Δf)=Re{N−1∑n=0Lr∑i=1αiri[n]sC[n]e−jβie−j2πΔfn}, (53)

in which the statistics and are to be substituted. These are given by

 ^βi=∠{N−1∑n=0ri[n]sC[n]e−j2πΔfn} (54)
 ^αi=1N∣∣∣ri[n]sC[n]e−j2πΔfn∣∣∣, (55)

where the statistic follows from substituting (54) into (51). Therefore, (54) and (55) can be substituted into (53) to yield the value of that maximizes the objective function. This can be written as

 ^Δf=argmaxΔf⎧⎨⎩1NLr∑i=1∣∣ ∣∣N−1∑n=0ri[n]sC[n]e−j2πΔfn∣∣ ∣∣2⎫⎬⎭. (56)

Accordingly, the ML estimator for the carrier frequency offset can be understood as the bin corresponding to the maximum of the sum of the squared-periodograms of the received signals, after a temporal matched filter. Since the periodogram is defined as the Fourier Transform of the autocorrelation, it is necessary to find its maximum numerically, by using the Fast - Fourier Transform (FFT).

The FFT yields a sampled version of the DTFT, such that there is no guarantee that the carrier frequency offset falls within a specfic integer bin of the FFT. Thus, the three largest points in the FFT can be found and parabolic interpolation can be performed thereafter. The motivation behind this approach is trying to find the real maximum of the function. The actual maximum is not generally found, but an accurate estimate can be found, instead.

### Iv-D Quadratic Interpolation of Spectral Peaks

This subsection is meant to explaining how parabolic interpolation can be applied to obtain a better estimate of the carrier frequency offset. In general, assume that the shape of the Energy Spectral Density (ESD) of the received stochastic process is the one pictured in Figure 2. Then, the equation of a parabola is given by

 y(x)≜a(x−p)2+b, (57)

where is the interpolated peak location (in FFT bins). At the three nearest samples, the images of the parabola at these points are

 y(−1)=αy(0)=βy(1)=γ. (58)

Then, expressing the three samples in terms of the interpolating parabola, it is found that

 α=ap2+2ap+a+bβ=ap2+bγ=ap2−2ap+a+b. (59)

Therefore, the interpolated peak location in bins is given by

 p=12α−γα−2β+γ∈[−12,12], (60)

such that the amplitude at that bin is

 y(p)=β−14(α−γ)p. (61)

Finally, by using (60), an estimate of the interpolated peak location can be obtained. If denotes the FFT bin that yields the maximum value, then yields the absolute position of the interpolated bin. Then, the analog frequency estimate is expressed as

 ~ω=k∗+pNfs, (62)

where is the sampling frequency in Hertz and is the number of points in the FFT.

### Iv-E MLE for the Noise Variance

This subsection is devoted to find the MLE for the noise variance parameter, . Recalling the Log-Likelihood Function

 lnp(r;ξ)=−NLrlnπσ2−1σ2∥r−M(α,Δf)t∥22, (63)

the MLE for the noise variance can be easily found from

 ∂lnp(r;ξ)∂σ2=−NLrσ2+1σ4∥r−M(α,Δf)t∥22. (64)

The condition for the derivative to vanish is that

 ˆσ2=1NLr∥r−^M(α,Δf)t∥22, (65)

where is the estimate of the matrix that models how the signal energy is transferred from the transmitter to the receiver. The estimate is computed using the ML estimators of the previous parameters.

### Iv-F MLE for the Signal to Noise Ratio

This last subsection is devoted to provide the ML estimator for the metric. To find this statistic, the following property of ML estimation can be applied [2].

###### Lemma 1

Invariance Property of the MLE: The MLE of the parameter , where the pdf is parameterized by , is given by

 ^α=g(^ξ), (66)

where is the MLE of .

This nice property allows us to find the MLE for , which is simply

 ^γi=^α2iˆσ2, (67)

where and are the MLEs for and provided in the previous subsections. As a summary, the ML estimators for the parameters are

 ˆΔfML=argmaxΔfLr∑i=1∣∣∣N−1∑n=0sC[n]ri[n]e−j2πΔfn∣∣∣2^βi,ML=∠{N−1∑n=0sC[n]ri[n]e−j2πΔfn}^αi,ML=1N|N−1∑n=0sC[n]ri[n]e−j2πΔfn|ˆσ2ML=1LrN||r−^M(α,Δf)t||22^γi,ML=^α2iˆσ2ˆSNRML=trace{ˆP}Lrˆσ2, (68)

To assess the performance of the different estimators, some results are presented hereafter. In the simulations, a range from dB to dB has been considered for , which is a typical range in millimeter wave communications. The amplitude parameters are generated from a distribution. The phase-offsets are generated from a and the carrier frequency offset is generated as . The number of antennas is set to and , and the number of RF chains employed at both transmitter and receiver are set to and . The training sequence , contains normalized QPSK symbols, with time-domain samples. The results have been averaged over Monte Carlo realizations.

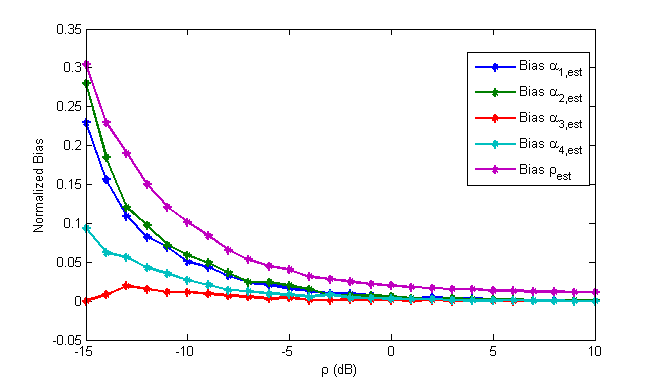

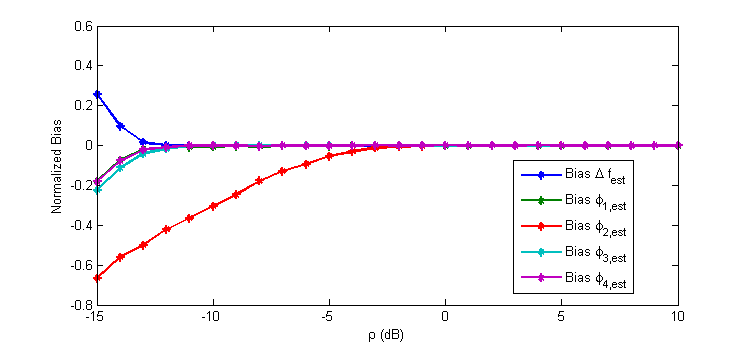

The normalized sample bias of the the different parameters is shown in Figure 4. As predicted by the Estimation Theory, at low regime the sample bias of the parameters is non zero whereas it decreases to zero asymptotically with . The estimators are, thereby, asymptotically unbiased.

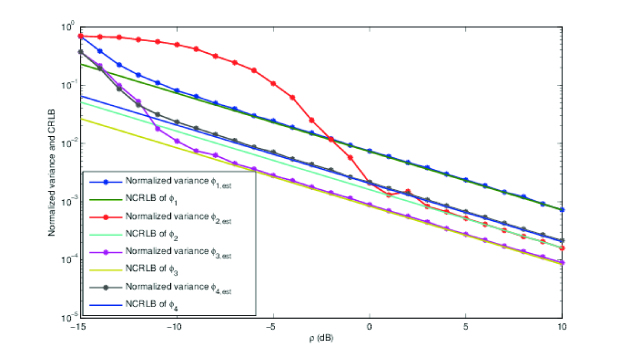

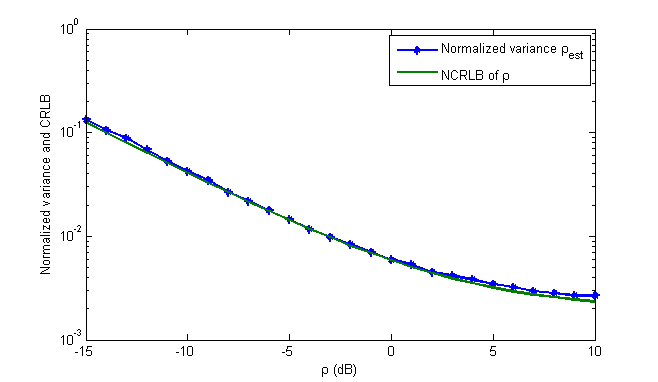

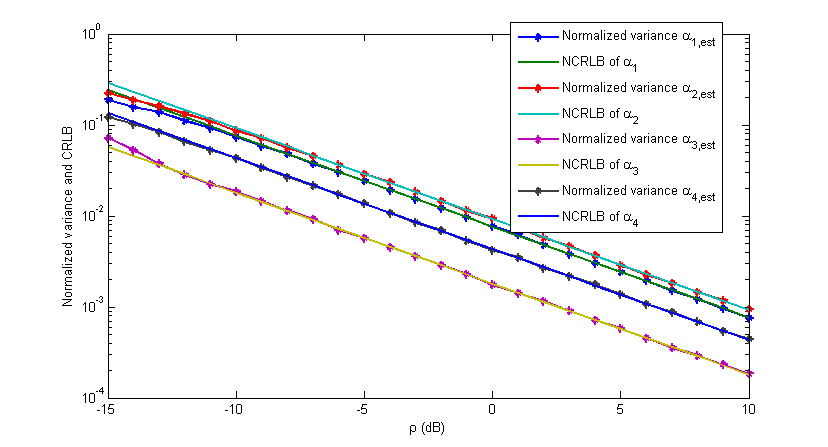

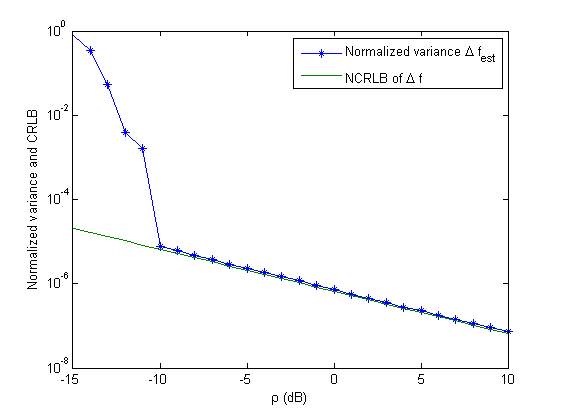

Now, the efficiency of the estimators is evaluated through the normalized sample variance. The normalized sample variances for the different estimators is shown in Figure 5, Figure 6, Figure 7 and Figure 8, along with their corresponding normalized CRLBs. It can be noticed that the normalized sample variance of the estimators does not lie within the NCRLB for low values of , as it is expected. Nevertheless, for high values of , the estimators present a normalized sample variance that lies within the NCRLB. Therefore, the estimators are asymptotically efficient.
