I Introduction

A wide range of applications will be enabled by the advent of Internet of Things (IoT) technology, among which smart cities, intelligent transportation systems and environmental monitoring. Given the expected proliferation of such IoT devices in the near future, providing tailored wireless communication protocols with high spectral efficiency and low power consumption is becoming more and more urgent. Indeed, many of these services will depend on the future IoT Wireless Sensor Networks (WSNs), supported by the newly developed Low-Power Wide-Area Network (LPWAN) technologies such as LoRa, SigFox or Ingenu [2, 3, 4, 5]. The LoRa physical layer uses the Chirp Spread Spectrum (CSS) modulation technique, where each chirp encodes values, for Spreading Factor (SF) to  [6], and which allows multiple end-devices to use the same channel simultaneously. Based on the LoRa physical layer, LoRaWAN defines the MAC layer protocol standardized by LoRa Alliance [7]. It is an increasingly used LPWAN technology, as it operates in the ISM unlicensed bands and enables a flexible adaptation of transmission rates and coverages under low energy consumption [6]. The LoRaWAN architecture is a star topology, where end-devices communicate with the network server through gateways over several channels based on ALOHA mechanism, with duty cycle limitations [4]. In LoRaWAN, smaller SFs provide higher data rates but reduced ranges, while larger SFs allow longer ranges but lower rates [5].

The main issue of LoRa-based networks such as LoRaWAN is the throughput limitation: the physical bitrate varies between 300 and 50000 bps [7]. In addition, collisions are very harmful to the system performance as the LoRa gateway is unable to correctly decode simultaneous signals sent by devices using the same SF on the same channel. Such interferences will be referred to as co-SF interferences. Although SFs were widely considered to be orthogonal among themselves, some recent studies have shown that this is not the case by experimentally evaluating the effects of inter-SF interferences [8, 9, 10]. Thus, authors in [11] have analyzed the effect of imperfect SF orthogonality, through the comparison of two scenarios, perfect and imperfect SF orthogonality. Authors in [12] also analyzed the achievable uplink LoRa throughput under imperfect SF orthogonality, and have demonstrated the harmful impact of both co-SF and inter-SF interferences on the overall throughput. More recently,  [10] also unveiled a significant drop in performance when taking into account the inter-SF interferences in high-density deployments. In [13], the authors proposed a model for analyzing the performance of a multi-cell LoRa system considering co-SF interference, inter-SF interference, and the aggregated intra and inter-cell interferences. They also highlighted the necessity for an SF allocation scheme accounting for these interferences.

In order to improve the LoRa system performance, a number of works have proposed resource optimization methods [14, 15, 16]. However, most papers, so far, have assumed perfect orthogonality among SFs. In particular, the authors in [14] designed a channel and power allocation algorithm that maximizes the minimal rate. However, no SF allocation nor SF-dependent rates were considered, despite the strong dependency of the rate to SFs. In addition, the solution of [14] requires instantaneous Channel State Information (CSI) feedback, which is not adapted to LoRa networks due to their energy consumption limitations [7]. In [15]

, a heuristic SF-allocation is proposed in addition to a transmit power control algorithm, where end-devices with similar path losses are simply assigned to the same channel with different SFs, according to their distance to the gateway. Although the issue of inter-SF interferences was highlighted, it was ignored in their proposed solution. The authors of

[16, 17] proposed a method for decoding superposed LoRa signals using the same SF, as well as a full MAC protocol enabling collision resolution, the combination of which was shown to drastically outperform LoRaWAN jointly in terms of network throughput, delay, and energy efficiency. Finally, reference [18] extended the channel allocation method of [14]

by investigating power allocation, and proposed an algorithm based on Markov decision process modeling.

Therefore, in this work, we jointly investigate the issues of SF and transmit power allocation optimization under both co-SF and inter-SF interferences. Unlike our preliminary work [1] which only considered SF allocation under fixed transmit power, and treated the cases of co-SF and inter-SF interferences separately, we now tackle the joint SF and power allocation under a generalized co-SF and inter-SF interference modeling. We focus on the problem of maximizing the minimum achievable short-term average rate in the uplink, whereby short-term average rate is defined as the average rate over random channel fading, but given a fixed position of end-devices.

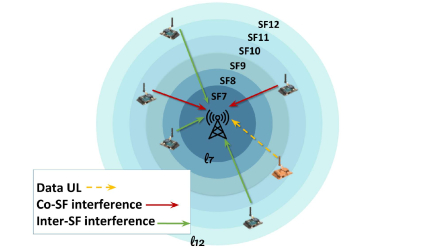

Fig. 1: LoRa network, with end-devices transmitting simultaneously on various SFs

This metric is especially suited for LoRa networks, since the end-devices will likely be fixed for a certain period of time (at least for a few seconds) in many applications, and their positions known at the gateway, as in conventional signal-strength-based SF allocation methods [7]. Firstly, we formulate a joint SF assignment and power allocation problem by modeling the achievable uplink short-term average rate under co-SF and inter-SF interferences, and power constraints. Next, given the mathematical intractability of this mixed-integer optimization problem, we split it into two sub-problems: SF assignment under fixed transmit power, then transmit power allocation given the previous SF assignment solution. To solve the first sub-problem, we propose an SF-allocation algorithm based on matching theory. We show its stability and convergence properties, and analyze its computational complexity. Next, we transform the second sub-problem into an equivalent feasibility problem with non-linear constraints. To make it tractable, we propose to approximate the constraints in two different ways: linear and quadratic. The numerical results demonstrate that, compared to baseline schemes, our proposed method not only provides larger minimum rates, but also jointly improves the network throughput and fairness level. Moreover, the proposed power control further improves the system’s performance in terms of minimum achievable rates and user fairness, while realizing massive power savings.

The remainder of this paper is organized as follows. Section II describes the system model. Section III presents our joint SF and transmit power allocation problem and its contraints. Section IV details a low-complexity many-to-one matching algorithm for the first sub-problem. Section V discusses our transmit power allocation scheme for the second sub-problem. Section VI studies the performance of the proposed algorithms. Finally, Section VII presents our conclusions.

Ii System Model

We consider a gateway located at the center of a circular cell or radius km and end-devices randomly distributed within it and simultaneously active, as depicted in Figure 1. We denote by the set of end-devices and by the set of SFs. We assume that all end-devices transmit on the same channel of bandwidth , with a duty cycle of 100% without loss of generality 222LoRaWAN imposes a duty cycle of 1% in some channels [7], in which case the theoretically achievable throughput would be 100-fold, see Section VI.. The data bit-rate of , is given by [6],

(1)

where is the coding rate, with .

Let be the channel gain between the end-device and the gateway, the carrier frequency and the deterministic path-loss [12]. Then, the uplink instantaneous Channel-to-Noise Ratio (CNR), , for end-device at is given by [12],

(2)

where is the distance from end-device to the gateway, is the path loss exponent and dBm is the Additive White Gaussian Noise (AWGN) and is the receiver noise figure. Assuming Rayleigh fading channels, the CNR

is modeled as an exponential random variable with mean

.

The area covered by each SF is given by the distance ranges in Table I [12],

(3)

where is the link budget of the defined as , given the receiver sensitivity of each in Table I and the maximal transmit power. Hence, larger SFs result in larger communication ranges, with .

SF Bit-rate [kb/s] Receiver sensitivity [6] [dBm] Reception thresh. [dB] InterSF thresh. [19] [dB] Distance ranges
7 5.47 -123 -6 -7.5 [0,]
8 3.13 -126 -9 -9 (,]
9 1.76 -129 -12 -13.5 (,]
10 0.98 -132 -15 -15 (,]
11 0.54 -134.5 -17.5 -18 (,]
12 0.29 -137 -20 -22.5 (,]
TABLE I: LoRa Characteristics at =125kHz [12]

Next, we denote the SF assignment by and define it as,

If there is only one end-device assigned to , this end-device is only subject to inter-SF interferences caused by end-devices using a different SF. Hence the inter-SF Signal-to-Interference-plus-Noise-Ratio (SINR) of end-device can be expressed as

(4)

where is the transmission power of the end-device at , and .

When there is more than one end-device assigned to a SF, these devices are subject to both inter-SF and co-SF interferences. Therefore, the co-SF SINR of device on is written as,

(5)

Note that this is a more general model as compared to that of [1], which assumed the dominance of co-SF interferences over inter-SF interferences. In conformity to LoRaWAN standards, instantaneous CSI feedback is not assumed, unlike [14]. Hence, the SF allocation is performed every period of time, during which the long-term fading instance, i.e., path loss, can be assumed to be fixed. This is well suited to a wide range of applications envisioned for IoT systems based on LoRa, expected to be static, or with low mobility [20]. Therefore, the achievable uplink short-term average rate for end-device at is given similarly to [12] by,

(6)

where

is the probability of successful reception analyzed in the following section.

Iii Problem Formulation

In this section, we formulate the joint SF and power allocation optimization problem in our considered LoRa-based system, under imperfect SF orthogonality. In particular, the goal will be to improve the overall fairness of the system by maximizing the minimal uplink average rate over end-devices and SFs, under co-SF and inter-SF interferences. We first derive the expression of the probability of successful reception, . Assuming , there are two cases:

Iii-1 One end-device at

end-device is only subject to inter-SF interferences. The transmission can be successfully decoded if the node satisfies the inter-SF as well as the signal reception conditions. In this case, inter-SF interferences are more critical than the signal reception condition since there are always inter-SF interferences for . Hence the probability of successful transmission can be written as,

(7)

where is given in (4) and is the inter-SF interference capture threshold for , defined in Table I. Using the random instantaneous CNR variables for all and marginalizing over them, it has been shown in [1] with similar calculations as in [12] that (7) can be written as,

(8)

Iii-2 More than one end-device at

in this case, the co-SF interferences as well as the inter-SF interferences largely dominate the signal reception condition [12]. Therefore, the success probability is expressed as in [21],

(9)

where is given in (5) and is the co-SF capture threshold which is equal to 6dB for all  [6, 21]. With similar calculations as in [1], we obtain

(10)

Given the above analysis, the joint SF and transmit power allocation optimization underlaying LoRaWAN network is formulated as follows (for ),

(11)

where the minimization is over the that are non-zero, and

(12)

where is the indicator function, i.e., it equals 1 if the condition is verified and 0 otherwise.

Finally, the overall optimization problem becomes

(13)
(13a)
(13b)
(13c)
(13d)
(13e)

Our objective function (13) expresses the maximization of the minimum data-rate over all served end-devices (i.e., for which ) and SFs. Constraint (13a) is the power budget, where the maximum transmit power per end-device is fixed to . Constraint (13b) defines the binary SF allocation variables . Constraints (13c) and (13d)333Setting enables to control the harmful effects of co-SF interferences, and reduces the computational complexity of the proposed method, as shown in Sections IV-D and VI-C. ensure that an end-device is assigned to at most one , and that the maximal number of end-devices sharing is . Finally,  (13e) ensures that if there are enough end-devices (), no SFs should remain unused, i.e., at least one end-device should be allocated to each SF. Clearly, is a mixed-integer problem with a non-convex objective function, as it includes both binary allocation variables and continuous power allocation variables . Such problems are known to be generally NP-hard [22]

, making them difficult to solve. We therefore propose to solve this problem by decomposing it into the following two optimization phases: (1) the discrete optimization phase of the allocation of binary variables

while keeping the power allocation variables fixed to , (2) the continuous optimization phase of the power allocation variables , where the allocation variables have been fixed to their previous solution. These two phases may be iterated until convergence, or until the maximum number of iterations has been reached.

Denoting by and

, the SF assignment vector and transmit power vector for all end-devices, respectively, Algorithm

1 provides the overview of the general proposal.

Initialization: SF assignment vector: , transmit power vector: .

1:.
2:do
3:     SF assignment: find , for fixed . (Sec. IV)
4:     Transmit power allocation: find , for fixed . (Sec. V)
5:while  or .
Algorithm 1 Proposed joint SF and transmit power allocation

In the next sections, we describe each of the optimization phases.

Iv Proposed Spreading Factor Allocation

Iv-a Formulation of the proposed SF allocation optimization

In this section, the problem of SF allocation is addressed. We assume that all end-devices transmit with the maximum transmission power, i.e., . This problem can be formulated as follows,

(14)
(14a)
(14b)
(14c)
(14d)

is an integer programming problem, given the binary variables , with a non-linear objective function, hence it is difficult to obtain its optimal solution. Therefore, we propose an optimized SF allocation method, using tools from matching theory.

Matching theory is a promising tool for resource allocation in wireless networks [23]. According to this theory, our considered allocation problem

can be classified as a many-to-one matching problem with conventional externalities and peer effects. There are two sets of players, the set of SFs and the set of end-devices, where each player of the one set seeks to be matched with players of the opposing set. An end-device prefers to be matched to the SF offering the highest utility, while each SF prefers to be matched with the group of end-devices with the highest utility. The difficulty of our problem is that there is an interdependency between nodes’ preferences, i.e., whenever an end-device is matched to an SF, the preferences of the other end-devices may change due to co-SF and inter-SF interferences. In addition to these conventional externalities (preference interdependency) and unlike the problem in

[14] where only orthogonal channels (not SFs) were considered, our problem exhibits peer effects that are caused by inter-SF interferences. That is, the preferences of an end-device depend not only on the identity of the SF and the number of end-devices assigned to it, but also on the assignment of end-devices to other SFs (since they cause inter-SF interferences). Therefore, to solve , we propose a many-to-one matching algorithm between the set of SFs and the set of end-devices. Next, we define the basic concepts of matching theory.

Iv-B Fundamentals of Matching Theory

In order to describe our proposed matching-based algorithm, we describe the basic concepts of matching theory that have been used in our algorithm:

  • Matching pair: a couple (, ) assigned to each other.

  • Quotas of a player: the maximum number of players with which it can be matched

    • Each end-device has a quota of 1 (14b),

    • Each has a quota of end-devices (14c).

  • Utility of an end-device: defined for our problem as its short-term average rate. If it is the only end-device at ,

    (15)

    If it shares the with other end-devices,

    (16)
  • Utility of an SF: defined for our problem as the minimum short-term average rate among the end-devices assigned to it. If is matched to one end-device only:

    (17)

    otherwise is given as

    (18)

    where is the set of end-devices assigned to .

  • Preference relation: a player prefers a player over the player , if the utility of is higher when it is matched to than when it is matched to .

  • Blocking pair: a matching pair is a blocking pair when or is higher when uses , than when they use their current matches, without lowering the utilities of any other end-device nor SF. In this case, will leave its current match to be matched to .

  • Two-sided exchange stable matching: a matching solution where there is no blocking pair.

Iv-C Proposed SF-Allocation algorithm

In this subsection, we describe the steps of the proposed matching-based algorithm which exploits matching techniques as in [14, 23], tailored to our specific problem. First, the gateway performs an initial matching between the set of SFs and the set of end-devices by the Initial Matching in Algorithm 2. Next, it swaps the matching pairs obtained in the previous step until reaching a two-sided exchange stable matching by the Matching Refinement in Algorithm 3. Details of these steps are given below.

Let denote the set of end-devices that are not allocated to any SF, the requests received by , and the set of end-devices assigned to . We suppose that the gateway knows its distance with all end-devices.

Initialization: the gateway starts by initializing the preference lists of end-devices and SFs. Each end-device with a distance to the gateway, can only use SFs if they are included in the coverage area () of the gateway for these SFs, therefore,

(19)

is sorted according to the increasing order of the distance threshold of the SFs (), i.e., an SF with higher achievable rate is preferred. On the other hand, only considers end-devices having a distance to the gateway lower than ,

(20)

is ordered such that a user is ranked before another user if is located in the ring of but not , or both are in the ring of but is closer to the gateway than .
Unmatched end-devices are added to .

Initial Matching: for each end-device in the unmatched list , if , requests its first preferred SF and removes it from , otherwise the end-device is removed from since all SFs it can use have already reached their quota. Then, each either accepts all current requests if its quota allows it, or it accepts the requests of its most preferred end-devices that fulfill its quota, if not. This process is repeated until becomes empty.

Matching Refinement: for each matching pair (), the algorithm calculates using (17) if it is only assigned to end-device and (18) in the other case. The utility of end-device is calculated by (15) if it is the only one at , and with (16) otherwise. Firstly, if there is an that is not assigned to any end-device that allows to increase , the end-device leaves to be matched with . Then, the algorithm calculates the utilities of every pair (), and makes a swap between () and () and determines their new utilities. Secondly, if () or () is a blocking pair, the algorithm makes a swap. This swapping step is repeated until reaching a two-sided exchange stable matching.

Initialization: Set of unmatched end-devices: ,

1:while  do
2:     for  do
3:          if  then
4:               ;
5:          else
6:               ; Favorite SF
7:               ;
8:               ;
9:     for  do
10:          if  then
11:               if  then
12:                    Accept all the requests and add the end-devices to ;
13:               else
14:                    Accept the requests of the most preferred end-devices;
15:                    Add them to ;
Algorithm 2 Initial Matching
1:changetrue;
2:while  do
3:     changefalse;
4:     for  do
5:          Calculate ; eq. (17) or eq. (18)
6:          for  do
7:               Calculate ; eq. (15) or eq. (16)
8:               for  do
9:                    if  then
10:                         Swap(,);
11:                         Calculate the new utility of ; eq. (15) or eq. (16)
12:                         if  then
13:                              Validate the Swap;
14:                              ;
15:                    else
16:                         Calculate ; eq. (17) or eq. (18)
17:                         for  do
18:                              Calculate ; eq. (15) or eq. (16)
19:                              Swap(,);
20:                              if  or is a blocking pair then
21:                                   Validate the Swap;
22:                                   ;
Algorithm 3 Matching Refinement

Iv-D Proposed SF-Allocation Algorithm Analysis

We now prove the stability and convergence of the proposed SF-Allocation algorithm, and analyze its computational complexity.

Proposition 1.

Stability: When the proposed algorithm terminates, it finds a two-sided exchange stable matching.

Proof.

Let us assume that the proposed SF-allocation algorithm terminates and the final matching is not two-sided exchange stable. Then, the matching contains at least one more blocking pair or where the utility of at least one player among , can be improved without lowering the others’ utility. Accordingly, the proposed algorithm would continue, thereby the matching would not be final, which contradicts the initial assumption. ∎

Proposition 2.

Convergence: After a finite number of swap operations, the algorithm eventually converges to a two-sided exchange stable matching.

Proof.

A swap operation occurs if it improves the utility of at least one player without decreasing the others’, hence the utilities can only rise. Additionally, the maximal throughput that can be achieved on an is upper-bounded by the data bit-rate , meaning that each and the end-devices assigned to it have utilities upper bounded by .
The number of potential swap operations is finite: end-device assigned to can make at most swap operations. The total number of swap operations is thus upper-bounded by . ∎

Proposition 3.

Complexity: The running time of our proposed algorithm is upper-bounded by , where .

Proof.

Initial matching complexity: in the worst case, all the end-devices have the same preference list, and they are located in the area covered by all the SFs. At round the gateway receives requests, at round it receives requests, at round it receives requests. Therefore, the total number of requests equals . The complexity of the initial matching is upper bounded by: .
Matching refinement complexity: in each iteration, for each , the algorithm considers at most end-devices and examines swap operations for each of these end-devices. Therefore, the number of swap operations that are examined in one iteration is upper bounded by . Let , thus the computational complexity of the matching refinement is upper bounded by .
In summary, the computational complexity of our algorithm is upper bounded by . ∎

Note that this complexity is not excessive as our algorithm is run at the gateway which is not computationally-limited.

V Proposed Power Allocation Optimization

Once the end-devices are assigned to SFs, we next optimize the power allocation variables in order to maximize the minimal throughput achieved on each SF. Given the fixed assignment variables from the previous step, the power allocation problem can be written as follows,

(21)
(21a)

It can be observed that the objective function of problem (14), unlike in previous works such as [14], is non-linear non-convex, for which a global optimum is difficult to obtain. This greatly increases the difficulty of this optimization problem. Instead, we seek for a near-optimal solution by transforming the initial problem as follows. Let be the set of transmit power vectors such that the minimum throughput over end-devices and SFs is above a certain parameter , namely

(22)

Since the minimal throughput value is above , all throughput values should be above as well. Hence, defining

(23)

we can write . Introducing a new variable , problem (21) is equivalent to the following optimization problem,

(24)
s.t. (24a)
(24b)

Therefore, we take the following approach: for a given , we solve the feasibility problem

Find (25)
s.t. (25a)

then is increased until no feasible can be found. In practice, parameter can be updated using the bisection method [14] as detailed in Algorithm 4, as follows. Initially, is lower-bounded by , upper-bounded by which is equal to the minimal bit-rate over allocated SFs and end-devices. First, setting as the midpoint of the interval , problem (25) is solved and if a feasible solution is found, it is denoted as and we update the lower bound as . Otherwise, if no feasible power vector is found, is set as . This procedure is iterated until the interval length is smaller than the desired accuracy .

Initialization: , , .

1:while  do
2:     ;
3:     Solve (25): find a transmit power vector satisfying the constraint in (25);
4:     if   then
5:          ;
6:          Calculate the utilities of each , using
7:          ;
8:     else
9:          ;
10:      ;
Algorithm 4 Power allocation optimization

However, contains non-linear inequalities, making it difficult to solve the feasibility problem (25). Hence, we devise two methods for making this problem tractable: linear approximation (A) and quadratic approximation (B) of these non-linear inequalities.

V-a Feasibility problem with linear approximation

In this subsection, in order to make problem (25) tractable, we first approximate the non-linear inequalities in the set by linear ones. We distinguish two cases, one where only a single end-device is assigned to and the second, where more than one end-devices are assigned to .

V-A1 Case 1

a single end-device is assigned to , hence is only subject to inter-SF interferences. Therefore, given (8), is given by,

(26)

Rearranging and taking the logarithm of both sides, the inequalities in (26) are equivalent to

(27)

The term is dominated by the inter-SF interference capture threshold , which takes very small values as can be observed from Table I. Thus, the term will be generally close to zero, as confirmed by the numerical evaluations in Section VI. Therefore, we can approximate the logarithmic term using the Taylor-Maclaurin series,

(28)

where denotes the remainder of the Taylor series.

By substituting by its approximation (28) in (27) and rearranging, we get the following linear inequalities,

(29)

V-A2 Case 2

if is shared by more than one end-device, from (10), the set is given by

(30)

Similarly to Case 1, we perform the following linearization in order to make problem (25) tractable. By rearranging the inequalities, we obtain for all ,

(31)

However, in this case, the co-SF interference capture threshold no longer induces small values of , since in practice, dB [21]. Therefore, we now make use of a different approximation based on Taylor’s theorem.

Let . Clearly, is a twice continuously differentiable function.

From Taylor’s theorem, we have
