# Joint Active and Passive Beamforming for Intelligent Reflecting Surface-Assisted Massive MIMO Systems

In this paper, we study the problem of joint active and passive beamforming for intelligent reflecting surface (IRS)-assisted massive MIMO systems, where multiple IRSs equipped with a large number of passive elements are deployed to assist a base station (BS) to simultaneously serve a small number of single-antenna users in the same time-frequency resource. Our objective is to maximize the minimum signal to interference plus noise (SINR) at users by jointly optimizing the transmit precoding vector at the BS and phase shift parameters at IRSs. We show that an interesting automatic interference cancelation (AIC) property holds asymptotically as the number of passive elements approaches infinity, i.e., when an IRS is optimally tuned to serve a certain user, this IRS will become interference-free to other users. By utilizing this property, the max-min problem can be converted into an IRS-user association problem, where the objective is to determine which IRSs are assigned for each user. An exhaustive search scheme and a greedy search scheme are proposed to solve the IRS-user association problem. Our theoretical analysis reveals that our proposed solution attains an SINR that scales quadratically with the number of reflecting elements. Also, our theoretical result suggests that even with a moderate number of active antennas at the BS, a massive MIMO like gain can be achieved by increasing the number of passive reflecting elements, thus significantly reducing the energy consumption at the BS. Simulation results are provided to corroborate our theoretical results and to illustrate the effectiveness of our proposed solution.

## Authors

• 19 publications
• 17 publications
• 30 publications
• 11 publications
02/14/2020

### Intelligent Reflecting Surface Assisted Massive MIMO Communications

In a practical massive MIMO (multiple-input multiple-output) system, the...
03/19/2019

### Large Intelligent Surface Assisted MIMO Communications

This work focuses on the downlink of a single-cell multi-user (MU) syste...
11/03/2021

### Performance Analysis under IRS-User Association for Distributed IRSs Assisted MISO Systems

Distributed intelligent reflecting surfaces (IRSs) deployed in multi-use...
12/26/2020

### Degrees of Freedom of the K-User Interference Channel in the Presence of Intelligent Reflecting Surfaces

In this paper, we study the degrees of freedom (DoF) region and sum DoF ...
07/20/2020

### Energy-Efficient Resource Allocation for IRS-Assisted Multi-Antenna Uplink Systems

In this paper, we study the resource allocation for an intelligent refle...
08/21/2020

### Location Information Aided Multiple Intelligent Reflecting Surface Systems

This paper proposes a novel location information aided multiple intellig...
03/17/2020

### A Single-RF Architecture for Multiuser Massive MIMO via Reflecting Surfaces

In this work, we propose a new single-RF MIMO architecture which enjoys ...
##### This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

## I Introduction

Massive multiple-input multiple-output (MIMO) is a promising technology to meet the ever growing demands for higher throughput and better quality-of-service of the fifth-generation (5G) and beyond wireless networks [20, 13, 16]. However, the high hardware complexity and cost required by massive MIMO systems are still the main roadblock that hinders its implementation in practice, especially in the high frequency band such as millimeter wave (mmWave) bands [2, 33]. Moreover, due to unfavorable propagation conditions, the link between the base station (BS) and users might be highly vulnerable to blockages, thus making the communication unstable and inefficient [23, 1]. Therefore, it is necessary to develop new spectrum and energy efficient technologies for massive MIMO systems.

In order to achieve high beamforming gains with low-cost systems, intelligent reflecting surface (IRS), also known as large intelligent surface (LIS), has been proposed as a promising technology in recent years [15, 9, 14, 30]. IRS is a planar array made of newly developed metamaterial, consisting of a large number of cost-effective and energy-efficient passive reflecting elements [30, 10]. Each reflecting element is controlled by a smart micro controller so that the incident signal can be reflected with reconfigurable amplitudes and phase shifts. By adaptively tuning the phase shifts of reflecting elements, IRSs are able to enhance the received signal power or suppress the co-channel interference for desired users, thus improving the coverage and performance of wireless systems [27].

IRS-aided wireless communications have attracted much attention recently [26, 25, 19, 28, 27, 7, 29, 24, 8, 11, 31, 4, 32, 21, 6, 17]. In [26, 25], it was shown that for a single-user scenario, the IRS-assisted system can obtain a received signal power gain in the order of , compared with the conventional massive MIMO system that achieves a received signal power gain in the order of . Here denotes the number of antennas at the transmitter and denotes the number of reflecting elements at the IRS. Such an improvement is due to the fact that IRS works as the receiver and transmitter simultaneously. In [19], authors studied the problem of maximizing the minimum signal-to-interference-plus-noise ratio (SINR) in a multi-user scenario. It was empirically shown that for the multi-user case, IRS-assisted systems can offer massive MIMO like gains with a much fewer number of active antennas. Most prior works on joint active and passive beamforming, e.g. [28, 27, 26, 19, 25, 7], either focus on the scenario where only a single IRS is employed or the scenario where multiple IRSs are deployed to serve a single user. The scenario where multiple IRSs are used to serve multiple users has been rarely investigated. The work [29] studied the joint beamforming problem in such a scenario, and their aim is to minimize the total transmit power under an individual SINR constraint for each user.

In this paper, we consider the scenario where multiple IRSs equipped with a large number of passive reflecting elements are deployed to assist the BS to simultaneously serve a small number of single-antenna users. Our objective is to maximize the minimum SINR at users by jointly optimizing the transmit precoding vector at the BS and phase shift parameters at IRSs. An important theoretical finding made in this paper is that when the phase shift parameters of an IRS are optimally tuned to serve a certain user, due to the asymptotic orthogonality among channel vectors associated with different users, this IRS will become interference-free to other users. Such a property is referred to as automatic interference cancelation (AIC), and is proved to hold valid asymptotically when for both the line-of-sight (LOS)-dominated IRS-user channel and the Rayleigh IRS-user channel. This property is important as it can help avoid complicated inter-IRS interference management. By utilizing this property, the max-min problem can be converted into an IRS-user association problem whose objective is to determine which IRSs are assigned for each user. Our theoretical analysis reveals that the proposed solution attains an SINR in the order of , i.e., it scales quadratically with the number of reflecting elements. Also, this result suggests that even with a moderate number of active antennas at the BS, increasing the number of passive reflecting elements can help achieve massive MIMO like gains, thus significantly reducing the energy consumption at the BS.

The rest of the paper is organized as follows. In Section II, the system model and the joint active and passive beamforming problem are discussed. The proposed joint active and passive beamforming method is provided in Section III. The automatic interference cancelation property is discussed and proved in Section IV. The theoretical analysis of our proposed solution is presented in Section V. Simulation results are provided in Section VI, followed by concluding remarks in Section VII.

## Ii System Model and Basic Assumptions

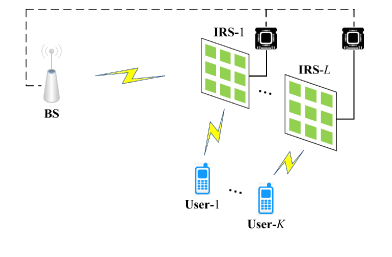

Consider an IRS-assisted massive MIMO system, where multiple IRSs are deployed to assist the BS equipped with antennas to simultaneously serve () single-antenna users in the same time-frequency resource. Suppose IRSs are employed, and the number of reflecting units at each IRS is denoted by (). Let denote the channel from the BS to the th IRS, and denote the channel from the th IRS to the th user. In this paper, we neglect the direct link from the BS to each user in order to simplify our analysis and better understand the impact of IRSs on the system performance. Also, in this paper, we assume
