JNR: Joint-based Neural Rig Representation for Compact 3D Face Modeling

07/14/2020 ∙ by Noranart Vesdapunt, et al. ∙ Microsoft 0

In this paper, we introduce a novel approach to learn a 3D face model using a joint-based face rig and a neural skinning network. Thanks to the joint-based representation, our model enjoys some significant advantages over prior blendshape-based models. First, it is very compact such that we are orders of magnitude smaller while still keeping strong modeling capacity. Second, because each joint has its semantic meaning, interactive facial geometry editing is made easier and more intuitive. Third, through skinning, our model supports adding mouth interior and eyes, as well as accessories (hair, eye glasses, etc.) in a simpler, more accurate and principled way. We argue that because the human face is highly structured and topologically consistent, it does not need to be learned entirely from data. Instead we can leverage prior knowledge in the form of a human-designed 3D face rig to reduce the data dependency, and learn a compact yet strong face model from only a small dataset (less than one hundred 3D scans). To further improve the modeling capacity, we train a skinning weight generator through adversarial learning. Experiments on fitting high-quality 3D scans (both neutral and expressive), noisy depth images, and RGB images demonstrate that its modeling capacity is on-par with state-of-the-art face models, such as FLAME and Facewarehouse, even though the model is 10 to 20 times smaller. This suggests broad value in both graphics and vision applications on mobile and edge devices.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 14

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Parametric face models are popular representations for 3D face reconstruction and face tracking, where the face geometry is represented in a lower dimensional space than raw vertices. 3D Morphable Face Model (3DMM) proposed in 1999 [10] is still the dominating representation, although there are a few more recent models such as BFM [4] and FLAME [31] which showed stronger modeling capacity with more training data. They all advocate learning the face model from a large number of high quality 3D scans. Collecting a large scan dataset, however, comes with a high cost along with the need for complicated and labor-intensive post processing such as cleanup, retopologizing and labeling to ensure accurate point to point correspondence before learning the face model. The previous state-of-the-art FLAME [31] model was learned from 33k registered scans which is obviously not easy to scale.

Model size is another important aspect to democratizing 3D face applications, which unfortunately has not received much attention. A cheap, efficient solution is required to support low memory 3D face reconstruction and tracking, especially on edge devices. Even on the cloud, efficiency is compelling as a means of saving cost. The highest capacity model from FLAME was shown with 300 identity basis which is over 4 million floating points, and while BFM [4] has fewer identity basis, the larger number of vertices increases the size to 32 million floating points. The challenging issues of collecting data and reducing model size lead us to explore a strong prior that can reduce the need for both of them.

A few recent works [40, 43] propose to learn a face model from massive wild images or videos. Although impressive results were shown, those models were primarily designed for RGB input. Moreover, the face model is implicitly embedded within the trained network, so it is unclear how it can be extracted to serve other purposes, such as fitting to depth data and interactive editing (such as ZEPETO [3] App). With the ubiquity of depth cameras (e.g., Microsoft Azure Kinect), fitting 3D face models to depth or point cloud data may be an increasingly important problem for both face reconstruction and tracking [44].

In this paper, we propose to use a new face representation that leverages a human designed, joint-based, parametric 3D face rig with learned skinning weights to model the shape variations. At the heart of our model, we bring human prior knowledge into the modeling which significantly reduces the data that would otherwise be needed to learn everything from scratch. Although joint-based representations receive little attention in literature, they are standard in the gaming and movie industries. To build our model, we used a standard low-poly base mesh whose topology supports anatomically plausible deformations with minimal artifacts. We created a deformation skeleton and skinned the mesh to it using hand-painted skinning weights (see Fig.1). Our model can be replicated easily using the details provided in supplementary materials, and it needs to be created only once. It can then be used in applications just like any other face models (FLAME [31], BFM [4], Facewarehouse [13], etc). Our technique is also compatible with joint-based face models publicly available on the internet. The model capacity is defined by the number of joints, their bind poses and the skinning weights, which are typically fixed. The skinning weights, however, do not need to be fixed and are a key to further increasing the representation capacity.

To learn skinning weights, we collected 94 high quality scans and retopologized them to our face topology. We took 85 of our scans as training data, then fit one fixed global skinning weight matrix across all the scans through an iterative optimizer. This shows noticeable improvement over the hand-painted skinning weights, and with this model we achieve lower error than FLAME 49 while being 30 times smaller. We then further increased our model capacity by training a neural network to encode the skinning weight space into 50 parameters. We test the effectiveness of the neural skinning weights on BU-3DFE neutral and we can approximate FLAME 300 scan-to-mesh error, while staying 20 times more compact. Our model also handles expressions out of the box, but we added a subset of expression blendshapes from

[14] to further increase capacity. Our final model is on-par with FLAME 300 while remaining 10 times more compact (evaluate on expressive scans from BU-3DFE). Our fitted face mesh enjoys the benefit of joint model as it facilitates accurate placement of mouth interior, eyes and accessories. Furthermore, the semantically meaningful parameters facilitate post-fit editing. We summarize our main contribution as following:

  1. We propose a new 3D face representation based on a joint-based face rig model that incorporates strong human prior. This allow us to reduce the required number of training scans, reduce the size of the model, accurately place mouth interior, eyes and hair, as well as support editing.

  2. We propose a neural skinning weight generator to significantly increase our joint-based model capacity. To preserve the compactness of our model, we design a group-wise fully connected layer to reduce the model size 51 times.

  3. We tested our model on BU-3DFE [47], retopologized scans, Azure Kinect depth dataset, 2D images with 2D landmarks, and retargeting. Results show that our model can achieve similar error with FLAME 300 [31] with 20 times smaller for neutral scans, and 10 times smaller for expressive scans.

2 Related Work

Linear 3D Face Modeling In 1999, Blanz and Vetter [10] are the first to introduce morphable model by learning PCA from 200 scans. Ten years later, Basel Face Model (BFM) [4] was built on another 200 scans using a nonrigid extension of iterative closest point algorithm (NICP) [6]. Recently, Large Scale Facial Model (LSFM) [11] built a large scale version of BFM by learning from 10k scans. Wu et al. [45] added a joint for jaw rotation to significantly reduce the number of required blendshapes. Inspire by [45], FLAME [31], added joints to allow eye, jaw and head rotation. FLAME was trained with 33k scans, and is considered to be the current state-of-the-art. While the trend is towards larger amounts of training data for building face models, we believe that it is hard to democratize such methods due to the high cost of data collection as well as privacy concerns. The authors of [41] propose to learn a geometry and texture correction in a PCA space based of 3DMM. JALI [20] proposes a face model specifically for speaking movement. Combined Face & Head Model (CFHM) [34] designed a combination of Liverpool-York Head Model (LYHM) [18] and LSFM [11] to achieve a face model that can perform well on both head and face region. York Ear Model [17] proposes an ear modeling. Muscle-based model [9] seeks to explain human movement anatomically similar to us, but express in blendshapes and jaw joint. We define our model anatomically purely in joints and introduce neural skinning weight to increase model capacity.

Nonlinear 3D Face Modeling Fernandez et al. [5] designs a convolutional encoder to decouple latent representation and apply a multilinear model as a decoder to output depth images. Non-linear 3DMM [43]

proposes to learn face model by convolutional neural network on 300W-LP

[39] with RGB input and the outputs are position map and texture in UV space. Face Model Learning from Videos (FML) [40]

learns face model on fully-connected layers to output shape and texture in the vertex space instead of UV space, and is designed to tackle the lack of training data through unsupervised learning on a large-scale video dataset (VoxCeleb2

[16]). FML is the closest work to ours in term of addressing limited 3D scan datasets, but it was not designed for point cloud fitting.

While autoencoder family [37, 28, 19, 30] achieves impressive error on retopologized mesh, which we call known-correspondence, it is unclear how to accommodate other tasks. We consider FLAME as a more complete face model as it can use nICP to fit unknown correspondence, and the authors demonstrate 2D fitting and retargeting in their paper. To make a fair comparison, we retrained COMA on our 85 training scans, but COMA [37] does not generalize to BU-3DFE at all. COMA [37] and Li et al. [30] require 20k scans to achieve their results. The model size is also larger, e.g., Dai et al. [19]’s decoder alone is 17.8M Floats and Jiang et al. [28]’s encoder alone is 14.0M Floats, while our entire model is only 0.2M Floats.

Personalized 3D Face Modeling High quality 3D face modeling is already possible if the model is for a specific person. Past works [46, 27] capture images from multiple views and apply multi-view stereo reconstruction to obtain 3D face mesh. Using videos instead of multiview [22], [23] is also popular for reducing the cost of camera rig. Using only internet photos is also possible in [38] where the authors personalize normal maps to obtain user’s mesh. Our work indirectly creates personalized 3D face models using the neural skinning weights.

Skinning Weight Learning Bailey et al. [8] and Neuroskinning [32] propose to learn skinning weight to replace manual effort in painting the skinning weight for character animation. Although the idea of using neural network in Neuroskinning is similar to ours, the goal is different as we wish to increase model capacity for face modeling. Moreover, Neuroskinning takes a 3D model as an input, while we train our network as a GAN. Perhaps a direct comparison would be inputting both 3D scan and joint transformation into our network, but the network will not generalize well due to the small amount of scans in training set. The network size is also directly counted towards face model size, so Neuroskinning’s network design would defeat the purpose of compactness of our joint model.

3 Methodology

We first define the plain joint-based model with linear blend skinning where the weights are fixed, then introduce an advanced version where we use a network to generate skinning weights adaptively though optimizing the latent code in section 3.2. Fig.2 illustrates the overview of our system pipeline.

3.1 Joint-based Rigging Model

3.1.1 Joint-based Face Representation

We use vertex based LBS similar to FLAME [31] with = 5236 vertices, but = 52 joints. This can be viewed as replacing the blendshapes in FLAME with 47 more joints which are defined as:

(1)

Where is a fixed 4x4 bind pose matrix and the fitting variables are rigid transformation , which includes Euler rotation (), translation () and scaling (). Our joint are defined hierarchically, where the global joint transformation is defined by recursive multiplications from the parent joint , to the root joint

(an identity matrix). We first define the root joint to allow global pose, and design all the other joints hierarchically such that each level covers a smaller area of the mesh and therefore finer detail. We then evaluate and visualize the fitting error on high quality scans and adjust the current joints and/or add smaller joints, and repeat the process until we reach desired level of morphing detail. As we only allow specific transformation on each joint, and we enforce bilateral symmetry in most cases, we end up with only 105 variables as opposed to 468 (9 DOF x 52 joints). The full details can be found in supplementary.

3.1.2 Linear Blend Skinning

We apply and LBS on each vertex.

(2)

Skinning weights () are defined in a 2-dimensional matrix, and is the vertex position. We first initialize with skinning weights created manually using the weight painting tool in Blender. Even with some expertise in the area, it is difficult to produce good results in regions influenced by many joints, and quite intractable to find weights that work well across a wide range of identities. Therefore, we took a data-driven approach and regressed over a set of ground-truth meshes, rather than tweaking them manually to fit all kinds of scans. As we design our joint to mainly model the local geometry variations, more than half of the joints only affect small regions of the face. While Dictionary 3DMM [21] uses sparse PCA to enforce local sparsity, our skinning weights are naturally very sparse. Similar to symmetry constraint in 3DMM [33], our joints are also bilaterally symmetrical, so too are the skinning weights. Sparsity and symmetry reduce the number of variables from to 8,990 floating points (30.3x). Fig.1 shows a sample of our skinning weights. As we only need 9k floats to represent skinning weights, we optimize them as unknown parameters and fit them across all the scans in the training set. As a result, the learned skinning weights do not produce sharp artifacts that would be difficult to fix manually.

3.1.3 Losses

In order to eliminate the correspondences error, we use the commercial tool Wrap3 [2] to manually register all the scans into our topology. Once we establish the dense point-point correspondences across all the scans and our model, the fitting is conducted by minimizing RMSE:

(3)

Where is the predicted vertex and is the ground-truth vertex. When fitting to depth test data, we use NICP to build the correspondences between predicted mesh and point cloud. Similar to mean face regularization, we initialize local transforms to identity transformation () and add a diminishing regularization term to limit joint transformations while NICP converges.

(4)

We manually limit the transformations to keep deformations within anatomically plausible bounds. This is similar to PCA coefficient limit, as FLAME also generates artifacts if the coefficients exceed [-2, 2].

(5)

Where is a substituted annotation for , , , and we have on all of them. We also follow the standard regularization in [13, 22, 38, 42, 46].

(6)

Where is a Laplacian operator between and to ensures the overall topology does not deviate too much. Our final loss is the summation of all losses.

(7)

We empirically set the weight for each loss with = 0.03, = = 0.3.

3.2 Neural Skinning Weight

3.2.1 Model Capacity

As we seek to further increase the capacity of our joint-based model, we could consider applying free form deformation or corrective blendshapes on top of the fitting result, but that would nullify the ability afforded by the joint-based rig to accessorize the mesh. Although a local region expression blendshapes is tolerable, identity blendshapes that effect the mesh globally will also break the accessorizing. We could also add more joints, either manually or through learning, but this begins to dilute the semantic meaning of the joints, and furthermore can lead to deformation artifacts caused by too many joints in close proximity. Instead, we chose to fit the skinning weights to each test subject thereby creating person-specific skinning weights. While we limit our skinning weight to be sparse and symmetrical, the 9k skinning weight parameters still have too much freedom, which without sufficient regularization can result in artifacts. This motivates us to use a lower dimensional latent space to model the skinning weights generation. This approach is similar in spirit to GANFit [24] who optimizes the latent code of a GAN [25] network.

3.2.2 Skinning Weight Synthesis

To train the skinning weight generator, we needed a set of ground-truth skinning weights. As our joint-based model generates meshes by joint transformation and skinning weight, if we perturb joint transformations, there should exist another set of skinning weights that result in about the same mesh. We generated 32k joint transformations by iteratively fitting joint transformations and skinning weights on scans. We saved these intermediate joint transformations and corresponding meshes during the fitting. We then froze the joint transformations and optimized skinning weights until they converged on each mesh. We end generating 32k sets of skinning weights ().

3.2.3 Network Design

After generating the training data, we first follow COMA [37]

by building an autoencoder to encode a latent vector. We remove the encoder at test time and freeze the decoder, then fit the latent vector to generate skinning weights for each test scan. We found that the fitted latent vector during testing could be very different from training because the skinning weight training data are quite closed (because they are generated from only a small number of scans), thus the latent vector does not need to use all the space. We then remove the encoder and fine-tune the decoder with random noise (

), similar to Generative Adversarial Network (GAN) to increase the coverage of space. We found that pre-training the autoencoder is important as training only the decoder in GAN style is not stable. We choose fully connected (fc) layers with swish activation [35] as our network block. While graph convolution [29] is a compelling alternative, there is no obvious design for connecting skinning weights across different joints, so we let the network learn these connections.

The encoder reduces the dimension from 8,990 to 50 (Fig.2), and the discriminator maps the dimension from 50 to 1. While the encoder and discriminator do not have to be compacted because we do not use them at test time, our decoder () maps from 50 to 8,990, and is suffering the large number of parameters, especially on the late fc layers. Reducing the feature dimension of these fc layers causes the network to struggle to learn, so we keep the dimension large, but reuse the fc layer weight on different portions of the feature. To be specific, let denote the input dimension into fc layer, and is the output dimension. Instead of learning weights, we split into groups of inputs and only learn a single weight to reuse on all the groups. This reduces the number of parameters by a factor of . We call this: group-wise fully connected layer inspired by group-wise convolution from MobileNet [26]. This can also be viewed as reshaping the 1D input into 2D shape of , and apply 2D convolution with filters of kernel size .

3.2.4 Losses

We follow WGAN [7] where the discriminator loss on batch size () is:

(8)

We also add sparsity loss to the generator to prevent our neural skinning weights () from deviating too far from the learned linear skinning weights from section 3.1.2. We use the sparsity loss weight: = 0.05 and adversarial loss weight: = 0.1 throughout the experiments. Our generator loss is:

(9)

The generator and discriminator loss remain the same on both autoencoder and generator. Only the input changes from skinning weight () to noise ().

3.3 Expression Modeling

Because our joints have semantic meaning, we can use 12 of them to model a subset of facial expressions directly. However, to make sure our model has enough capacity to model all other expressions (such as cheek puff), we simply add 24 of the 47 blendshapes from [14]

as each of them represents one specific expression. The full list of blendshapes can be found in the supplemental material. To apply expression blendshapes on top of the neural skinning weight model, we fit joint transformation and neural skinning weight iteratively, then fit expression coefficients, and repeat the whole process for a few cycles. We use the loss function from Eq.

7 through out every stage.

4 Expertimental Setup

4.1 Datasets

4.1.1 Retopologized scans:

We collected 94 scans, then manually retopologized them into our template. We then split 85 for training, 2 for validation and 7 for testing. These 85 scans were used to learn a global skinning weight in section 3.1.2. For neural skinning weights, we fit joint transformation with hand-painted skinning weights for 3k iterations, and saved these joint transformations on intermediate iterations. We did not use every iteration because if the iterations were too closed, the joint transformation had similar values. We then fit the global skinning weights across all the scans and refit joint transformations, then repeated the process for 5 cycles, resulting in 8k joint transformations. We sparsely perturbed them by 5% for 3 more times to collect 32k joint transformations in total. We fit skinning weights on these joint transformations until converge on each of the corresponding retopologized scan. We split these 32k skinning weights into 29k training set, 680 validation set, and 2.4k test set.

4.1.2 Separate testing scans

For external comparison, we evaluate the identity part of our model on BU-3DFE [47] 100 neutral scans, and evaluate the expressiveness of our model on 480 BU-3DFE scans (10 male and 10 female with all the scans except neutral). We setup a small rig with 1 Microsoft Azure Kinect (for depth) and 3 point grey cameras (for high-quality texture) and used it to collect, fit and visualize 70 scans to test the effectiveness of our model.

4.2 Evaluation Metric

We use point-to-point error on the retopologized test set as we already have the correspondences between predicted mesh and ground-truth scan. For BU-3DFE, we follow scan-to-mesh distance from FLAME. Unlike FLAME, our joint-based model automatically aligns with the root as part of fitting, so we do not need an extra alignment process.

4.3 Training Configuration

Our joint-based model was created by adding joints and painting skinning weights to a generic base mesh in Blender. We exported the model to .npz file and fit the parameters on Tensorflow. We use AdamOptimizer throughout the training. We fit joint transformations using a learning rate of

for 3k iterations. We fit the global skinning weights across the training set using a learning rate of and batch size of 85 for 3k iterations. We fit joint transformations and skinning weights iteratively for 5 cycles. On a single Nvidia V100, fitting joint transformations took 1 minute per scan (1.5 hours on training set), and fitting the skinning weights for 5 cycles took 20 hours. Neural skinning weights were trained using a learning rate of during the first phase of training the autoencoder, and learning rate of during the second phase of fine-tuning the decoder with a batch size of 85 for 30k iterations. It took 40 hours to train neural skinning weights on a V100 GPU. At test time, we built the correspondence on point clouds using NICP. We fit identity by fitting joint transformation for 500 iterations and for 500 iterations for 2 cycles, then fit expressions for 500 iterations, then repeated the iterative fitting between identity and expressions for 2 cycles. The fitting took 2 minutes with a Nvidia 1080Ti.

4.4 Neural Skinning Weight Architecture

Our neural skinning weights consists of encoder, decoder and discriminator (Fig.2). The basic building block is fc layer and swish activation. We use both fc layer weight and bias on the encoder and discriminator, but only use fc layer weight on the decoder. We remove fc layer bias from the decoder because if we initialize the input noise as zero, our block will always output zero. We then designed the final skinning weights to be a summation between learned linear skinning weights from section 3.1.2, and the residual from our neural network. At test time, we first set to zero and fit joint transformations to convergence, then fit to generate a new skinning weight and repeat the cycle. Another reason for removing fc layer bias is to decrease the network size by half.

As we do not use encoder and discriminator during the testing, they can be large. Each fc layer in our encoder reduces the dimensions by half from 8990 to 50. Our discriminator dimension goes from 50 to 256 in 4 layers, and another 4 layers to decrease the dimension to 1. The decoder contains 6 layers where the first 3 fc layers increase the dimension from 50 to 250, and the last 3 group-wise fc layers dimensions are 500 (=2), 1100 (=5) and 8990 (=10), where is the number of groups.

5 Results

5.1 Ablation Study

Known Correspondence We conduct our experiments in a control environment on high quality scans with known correspondence to eliminate external factors. Table 1 shows that, in this control environment, hand-painted skinning weight already achieves a reasonable error (i.e. 0.41mm), while learning the linear skinning weight across training scans generalizes to the test set and further reduces the error. However, with our learned neural skinning, the error is reduced drastically from 0.41 to 0.11, which indicates that our neural skinning indeed increases joint-based model capacity very significantly. This is because each of the scan can have their personalized skinning weight, instead of just a single skinning weight that is shared across all the scans. This is a clear conclusion on high quality, known correspondence dataset.

Model Error (mm)
(1) Hand-painted skinning 0.41 0.02
(2) Learned Linear skinning 0.34 0.02
(3) Learned Neural skinning 0.11 0.01
Table 1: Point-to-point error on known correspondence test set. Our learned skinning weights demonstrate improvement of model capacity on every step.

Unknown Correspondence To compare to external methods, we study our model on BU-3DFE scans which are noisier than our training set. The correspondence is not known, so it could introduce correspondence error from ICP. Nevertheless, Fig.2,3 show that the improvement gap between our proposed skinning weights still hold true. For neutral face fitting, thanks to the novel joint based representation, even with human manual design and no training data, hand-painted skinning weight performs better than Facewarehouse [12]. With linear skinning weight that learned from only 85 scans, we can achieve comparable performance with FLAME 49 while being 30x more compact (Table. 2), which is equivalent to only 1.6 PCA basis. With our neural skinning weight (solid blue curve), although the model size increases, it is still 20x more compact than FLAME 300 while having similar capacity (Fig.4).

On expressive scans, the error increases across all the face model due to the non-rigid deformation of human face, and the increase of scan noise, especially on the surface inside the mouth of surprise scans. In spite of error increase, we observe similar improvement on our propose skinning weight (Table 3 and Fig.3). Our neural skinning model supports 6 expression in BU-3DFE out of the box and can achieve 0.239mm error. Adding expression blendshapes improves the error to be comparable with FLAME 300 while remaining 10x more compact. We also outperform Nonlinear 3DMM [43] on BU-3DFE with Chamfer distance of 0.00083, 0.00075, 0.00077 for Nonlinear 3DMM, FLAME and ours respectively.

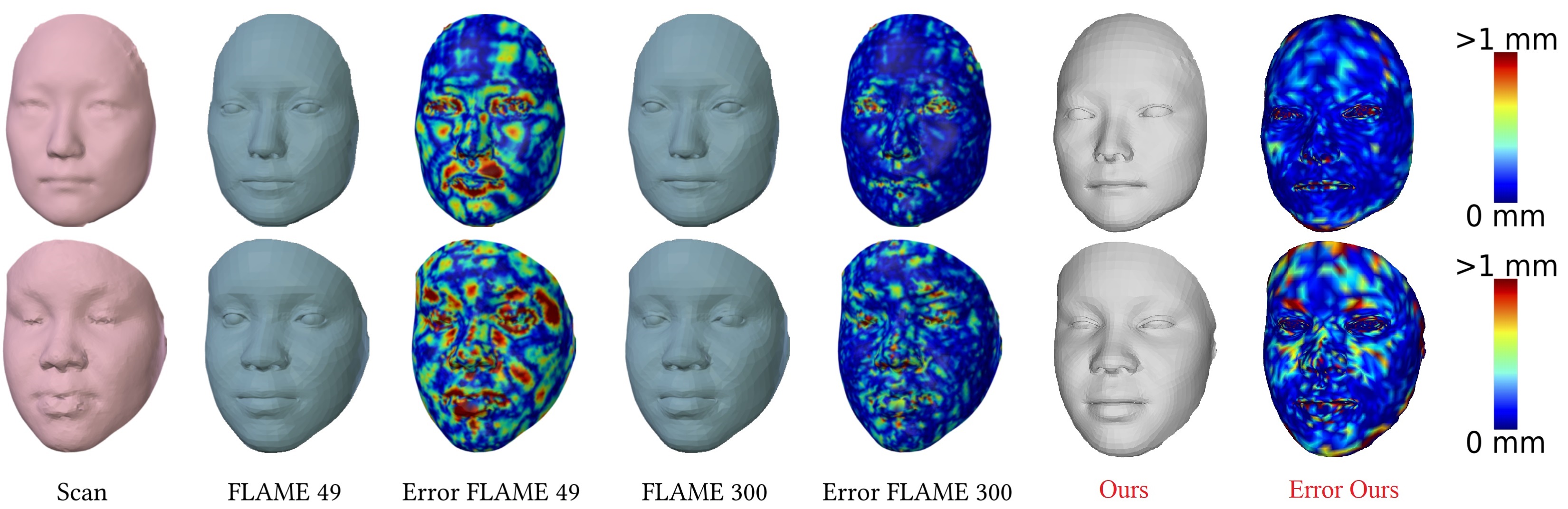

Figure 3: External comparison on BU-3DFE. Our model is much more compact than the counterpart model with about the same scan-to-mesh error. The improvement of each skinning weight learning step also holds true.
Model #Float vs (3) vs (1) Error (mm)
(1) FLAME 300 [31] 4.52M 0.16x 1x 0.158 0.172
(2) FLAME 49 [31] 738K 1x 6.1x -
(3) Facewarehouse [13] 1.73M 0.43x 2.61 0.437 0.474
(4) BFM full [4] 31.8M 0.02x 0.14x -
(5) Hand-painted skinning 24.7K 29.9x 183x 0.375 0.387
(6) Learned linear skinning 24.7K 29.9x 183x 0.338 0.346
(7) Learned neural skinning 225.4K 3.3x 20.1x 0.153 0.206

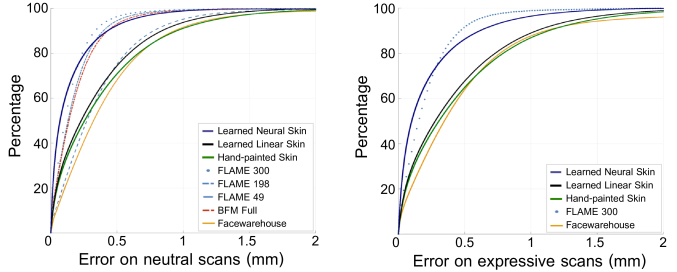

Table 2: Model size and RMS error on BU-3DFE neutral scans. Our neural skinning model is comparable to FLAME 300 with 20x smaller model size. We only count the identity part of the model in #Float.
Model #Float vs (1) Error (mm)
(1) FLAME 300 [31] 6.03M 1x 0.211 0.261
(2) Facewarehouse [13] 79.42M 0.08x 0.558 0.670
(3) Hand-painted skinning 401.7K 15x 0.432 0.518
(4) Learned linear skinning 401.7K 15x 0.405 0.494
(5) Learned neural skinning 602.4K 10x 0.218 0.289
Table 3: Model size and RMS error on BU-3DFE expressive scans. Our neural skinning model is comparable to FLAME 300 with 10x smaller model size.

5.2 Applications

As we proof the effectiveness and compactness of our model in the section 5.1, in this section, we show our results in real world applications.

Noisy Depth Fitting We demonstrate our result on consumer rig. We use depth from a single Microsoft Azure Kinect [1] which suffers from multipass issue (cause the nose to shrink), missing parts due to IR absorbant material, and the depth itself is noisy. As our model can recover the full head from single depth map (the missing area will be automatically imply from the joint-based model prior), we use 3 point-grey cameras only for extracting full frontal texture. Fig.6 illustrates the effectiveness of our fitting result. Capturing the subject takes a split second and fitting takes 2 minutes on our setting.

RGB Image Fitting Like any previous face models, our model also supports 2D image based 3D face reconstruction. We conducted such an experiment on RGB images from Facewarehouse [13]. We use 2D landmarks as the only loss to fit the geometry. Fig.7 shows a few fitting results. As we can see, our model can fit reasonably well for even large facial expressions.

5.3 Model Benefit

Editing & Accessorizing As our model is designed with comprehensible list of joints, artist can tweak the joints to edit facial mesh. Adding accessory (e.g., hat, glass) is also possible, as most of the industrial computer graphic software (e.g., Blender, Maya) supports skinning weight transfer in just a few click. The artist can bind the new accessory to one of our joint and transfer skinning weight from the closest vertex. Changing hairstyle, attaching teeth, beard, whisker and mustache are also doable as well. The pipeline figure for adding accessories, and more demo video can be found in supplemental material.

Retargeting As our joints and expression blendshapes have semantic meaning, we can transfer the expression and pose into puppet (Fig. 7) or other face scans.

6 Conclusion

We propose a new 3D face representation by using joint-based face rig as the face model. We designed our model to be very compact, yet, preserve strong capacity by learning neural skinning weights. We evaluate our model on retopologized scans, BU-3DFE, visualize on Azure Kinect, and 2D images. Our model enjoy the benefit of facial mesh editing and accessorizing. As we can reasonably fit our face model to point cloud and 2D image, our future work will be learning a neural network to directly predict face model parameters [15], so that it could be possible to speed up our reconstruction for real-time applications.

Figure 4: Visual comparison between FLAME and neural skinning model on BU-3DFE

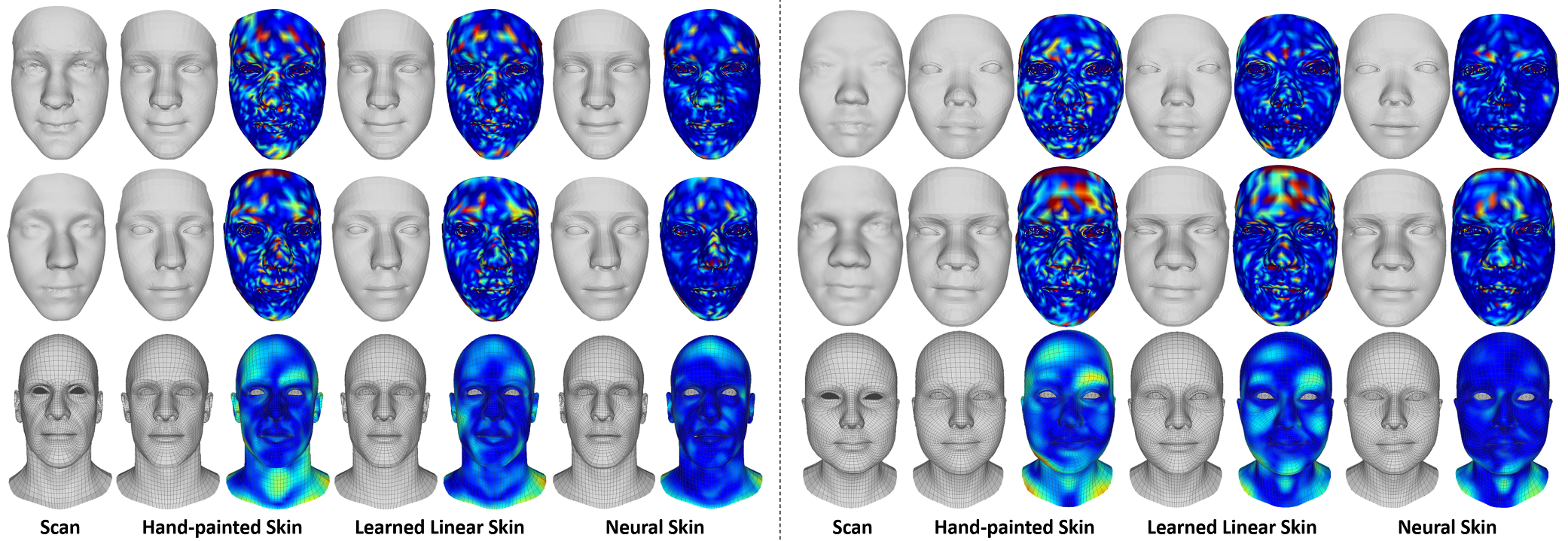

Figure 5: Visualization of each step of improvement. Top 2 rows are BU-3DFE (top row scans are female), last row is our retopologized scan (right is female).
Figure 6: Top: result on expressive scan from BU-3DFE (scan, result, error map). Bottom: result on Azure Kinect with point-grey cameras. Images are RGB (only for texture), depth (from Kinect), our fitted geometry, raycasted texture on our fitted geometry.
Figure 7: 3D face fitting from single 2D image by 2D landmark loss. Note that scan is only used for evaluation. The order is input, result, error map, and retargeting.
