1 Introduction

As deployment of machine learning systems in the real world has steadily increased over recent years, the trustworthiness of these systems is of crucial importance. This is particularly the case for safety-critical applications. For example, the vision system in a self-driving car should correctly classify an obstacle or human irrespective of their orientation. Besides being relevant from a security perspective, a measure for spatial invariance also helps to gauge interpretability and reliability of a model. If an image of a child rotated by

is classified as a trash can, can we really trust the system in the wild?

As neural networks have been shown to be expressive both theoretically

[18, 4, 15] and empirically [48], in this work we study to what extent standard neural networks predictors can be made invariant to small rotations and translations. In contrast to enforcing conventional invariance on entire group orbits, we weaken the goal to invariance on smaller so-called transformation sets. This requirement reflects the aim to be invariant to transformations that do not affect the labeling by a human. During test time we assess transformation set invariance by computing the prediction accuracy on the worst-case (adversarial) transformation in the (small) transformation set of each image in the test data. The higher this worst-case prediction accuracy of a model is, the more spatially robust we say it is. Importantly, we use the same terminology as in the very active field of adversarially robust learning [40, 29, 23, 33, 6, 26, 37, 39, 35, 44, 28], but we consider adversarial examples with respect to spatial instead of -transformations of an image.

Recently, it was observed in [11, 13, 34, 20, 14, 2] that worst-case prediction performance drops dramatically for neural network classifiers obtained using standard training, even for rather small transformation sets. In this context, we examine the effectiveness of regularization that explicitly encourages the predictor to be constant for transformed versions of the same image, which we refer to as being invariant on the transformation sets. Broadly speaking, there are two approaches to encourage invariance of neural network predictors. On the one hand, the relative simplicity of the mathematical model for rotations and translations has led to carefully hand-engineered architectures that incorporate spatial invariance directly [19, 24, 8, 27, 45, 43, 12, 41]. On the other hand, augmentation-based methods [3, 47] constitute an alternative approach to encourage desired invariances on transformation sets. Specifically, the idea is to augment the training data by a random or smartly chosen transformation of every image for which the predictor output is enforced to be close to the output of the original image. This invariance-inducing regularization term is then added to the cross entropy loss for back-propagation.

While augmentation-based methods can be used out of the box whenever it is possible to generate samples in the transformation set of interest, it is unclear how they compare to architectures that are tuned for the particular type of transformation using prior knowledge. Studying robustness against spatial transformations in particular allows us to compare the robust performance of these two approaches, as spatial-equivariant networks have been somewhat successful in enforcing invariance. In contrast, this cannot be claimed for higher-dimensional -type perturbations. In the empirical sections of this paper, we hence want to explore the following questions:

  1. To what extent can augmentation and regularization based methods improve spatial robustness of common deep neural networks?

  2. How does augmentation-based invariance-inducing regularization perform in case of small spatial transformations compared to representative specialized architectures designed to achieve invariance against entire transformation groups?

As a justification for employing this form of invariance-inducing regularization, we prove in our theoretical section 2 that when perturbations come from transformation groups, predictors that optimize the robust loss are in fact invariant on the set of transformed images. Although recent works show a fundamental trade-off between robust and standard accuracy in constructed perturbation settings [42, 49, 36], we additionally show that this is fundamentally different for spatial transformations due to their group structure.

For the empirical study, we implemented various augmentation based training methods as described in Sec. 3. In Sec. 4, we compare spatial robustness for augmentation-based methods and specialized neural network architectures on CIFAR-10 and SVHN. Although group-invariance should automatically imply robust predictions against all transformations in the group, group-equivariant networks have not been extensively evaluated using adversarially chosen, but rather random transformations. In experiments with CIFAR-10 and SVHN, we find that regularized methods can achieve relative adversarial error reduction compared to previously proposed augmentation-based methods (including adversarial training) without requiring additional computational resources. Furthermore, they even outperform representative handcrated networks that were explicitly designed for invariance.

2 Theoretical results for invariance-inducing regularization

In this section, we first introduce our notion of transformation sets and formalize robustness against a small range of translations and rotations. We then prove that, on a population level, constraining or regularizing for transformation set invariance yields models that minimize the robust loss. Moreover, when the label distribution is constant on each transformation set, we show that the set of robust minimizers not only minimizes the natural loss but, under mild conditions on the distribution over the transformations, is even equivalent to the set of natural minimizers.

Although the framework can be applied to general problems and transformation groups, we consider image classification for concreteness. In the following, are the observed images,

is the one-hot vector for multiclass labels and both are random variables from a joint distribution

. The function in function space

(e.g. deep neural network in experiments) maps the input image to a logit vector that is then used for prediction via a softmax layer.

2.1 Transformation sets

Invariance with respect to spatial transformations is often thought of in terms of group equivariance of the representation and prediction. Instead of invariance with respect to all spatial transformations in a group, we impose a weaker requirement, that is invariance against transformation sets, defined as follows. We denote by a compact subset of images in the support of that can be obtained by transformation of an image . is called a transformation set. For example in the case of rotations, the transformation set corresponds to the set of observed images in a dataset that are different versions of the same image , that can be obtained by small rotations of one another.

By the technical assumption on the space of real images that the sampling operator is bijective, the mapping is bijective. We can hence define , a set of transformation sets, by for a given transformation group. Importantly, the bijectivity assumption also leads to being disjoint for different images . The above definition is distribution dependent and partitions the support of the distribution. More details on the aforementioned concepts and definitions can be found in Sec. A.1 in the Appendix.

We say that a function is (transformation-)invariant if for all for all and denote the class of all such functions by . Using this notation, fitting a model with high accuracy under worst-case “small” transformations of the input can be mathematically captured by the robust optimization formulation [5] of minimizing the robust loss

(1)

in some function space . We call the solution of this problem the (spatially) robust minimizer. While adversarial training aims to optimize the empirical version of Eq. (1), the converged predictor might be far from the global population minimum, in particular in the case of nonconvex optimization landscapes encountered when training neural networks. Furthermore, we show in the following section that for robustness over transformation sets, constraining the model class to invariant functions leads to the same optimizer of the robust loss. These facts motivate invariance-inducing regularization which we then show to exhibit improved robust test accuracy in practice.

2.2 Regularization to encourage invariance

For any regularizer , we define the corresponding constrained set of functions as

where denotes the support of . When and is a semimetric111The weaker notion of a semimetric satisfies almost all conditions for a metric without having to satisfy the triangle inequality. on , we have . We now consider constrained optimization problems of the form

(O1)
(O2)

The following theorem shows that (O1), (O2) are equivalent to (1) if the set of all invariant functions is a subset of the function space .

Theorem 1.

If , all minimizers of the adversarial loss (1) are in . If furthermore , any solution of the optimization problems (O1), (O2) minimizes the adversarial loss.

The proof of Theorem 1 can be found in the Appendix in Sec. A.2. Since exact projection onto the constrained set is in general not achievable for neural networks, an alternative method to induce invariance is to relax the constraints by only requiring . Using Lagrangian duality, (O1) and (O2) can then be rewritten in penalized form for some scalar as

(2)
(3)

In Sec. 2.4 we discuss how ordinary adversarial training, and modified variants that have been proposed thereafter, can be viewed as special cases of Eqs. (2) and (3). On the other hand, the constrained regularization formulation corresponds to restricting the function space and is hence comparable with hand-crafted network architecture design as described in Sec. 3.1.

2.3 Trade-off between natural and robust accuracy

Even though high robust accuracy (1) might be the main goal in some applications, one might wonder whether the robust minimizer exhibits lower accuracy on untransformed images (natural accuracy) defined as [42, 49]. In this section we address this question and identify the conditions for transformation set perturbations under which minimizing the robust loss does not lead to decreased natural accuracy. Notably, it even increases under mild assumptions.

One reason why adversarial examples have attracted a lot of interest is because the prediction of a given classifier can change in a perturbation set in which all images appear the same to the human eye. Mathematically, in the case of transformation sets, the latter can be modeled by a property of the true distribution. Namely, it translates into the conditional distribution given , denoted by , being constant for all belonging to the same subset . In other words, is conditionally independent of given , i.e. . Under this assumption the next theorem shows that there is no trade-off in natural accuracy for the transformation robust minimizer.

Theorem 2 (Trade-off natural vs. robust accuracy).

Under the assumption of Theorem 1 and if holds, the adversarial minimizer also minimizes the natural loss. If moreover, has support for every and the loss is injective, then every minimizer of the natural loss also has to be invariant.

As a consequence, minimizing the constrained optimization problem (O1) could potentially help in finding the optimal solution to minimize standard test error. Practically, the assumption on the distribution of the transformation sets corresponds to assuming non-zero inherent transformation variance in the natural distribution of the dataset. In practice, we indeed observe a boost in natural accuracy for robust invariance-inducing methods in Sec. 4 on SVHN, a commonly used benchmark dataset for spatial-equivariant networks for this reason.

One might wonder how this result relates to several recent publications such as [42, 49] that presented toy examples for which the robust solution must have higher natural loss than the Bayes optimal solution even in the infinite data limit. On a fundamental level, perturbation sets are of different nature compared to transformation sets on generic distributions of . In the distribution considered in [42, 49], there is no unique mapping from to a perturbation set and thus the conditional independence property does not hold in general.

2.4 Different regularizers and practical implementation

In order to improve robustness against spatial transformations we consider different choices of in the regularized objectives (2) and (3) that we then compare empirically in Sec. 4. This allows us to view a number of variants of adversarial training in a unified framework. Broadly speaking, each approach listed below consists of first searching an adversarial example according to some mechanism which is then included in a regularizing function, often some weak notion of distance between the prediction at and the new example. The following choices of regularizers involve the maximization of a regularizing function over the transformation set

where is the KL divergence on the softmax of the (logit) vectors . In all cases we refer to the maximizer as an adversarial example that is found using defense mechanisms as discussed in Section 3.3. Note that for and the assumption in Theorem 1 is satisfied.

Instead of performing a maximization of the regularizing function to find the adversarial example , we can also choose in alternative ways The following variants are explored in the paper, two of which are reminiscent of previous work

The last regularizer suggests using an additive penalty on top of data augmentation, with either one or even multiple random draws, where the penalty can be any of the above semimetrics between and , such as the or distance. Albeit suboptimal, the experimental results in Section 4 suggest that simply adding the additive regularization penalty on top of randomly drawn data matches general adversarial training in terms of robust prediction at a fraction of the computational cost. In addition, Theorem 2 suggests that even when the goal is to improve standard accuracy and one expects inherent variance of nuisance factors in the data distribution it is likely helpful to use regularized data augmentation with instead of vanilla data augmentation. Empirically we observe this on the SVHN dataset in Section 4.

Adversarial example for spatial transformation sets Since is not a closed group and we do not even know whether the observation lies at the boundary of or in the interior, we cannot solve the maximization constrained to in practice. However, for an appropriate choice of set , we can instead minimize an upper bound of (1) which reads

(4)

where is the set of transformations that we search over and denotes the transformed image with transformation (see Sec. A.1 in the Appendix for an explicit construction of the transformation search set ). The left hand side in (4) is hence what we aim to solve in practice where the expectation is over the empirical joint distribution of . The relaxation of to a range of transformations of that is is also used for the maximization within the regularizers.

In Figure 1 one pair of example images is shown: the original image (panel (a)) is depicted along with a transformed version with (panel (b)) and the respective predictions by a standard neural network classifier.

3 Experimental setup

In our experiments, we compare invariance-inducing regularization incorporated via various augmentation-based methods (as described in Section 2.4) used on standard networks and representative spatial equivariant networks trained using standard optimization procedures.

3.1 Spatial equivariant networks

We compare the robust prediction accuracies from networks trained with the regularizers with three specialized architectures, designed to be equivariant against spatial transformations and translations: (a) G-ResNet44(GRN) [8]

using p4m convolutional layers (90 degree rotations, translations and mirror reflections) on CIFAR-10; (b) Equivariant Transformer Networks (ETN)

[41], a generalization of Polar Transformer Networks (PTN) [12]

, on SVHN; and (c) Spatial Transformer Networks (STN)

[19] on SVHN. A more comprehensive discussion of the literature on equivariant networks can be found in Sec. 5. We choose the architectures listed above based on availability of reproducible code and previously reported state-of-the art standard accuracies on SVHN and CIFAR10. We train GRN, STN and ETN  using standard augmentation as described in Sec. 3.4 (std) and random rotations in addition (). Out of curiosity we also trained a “two-stage” STN where we train the localization network separately in a supervised fashion. Specifically, we use a randomly transformed version of the training data, treating the transformation parameters as prediction targets. Details about the implementation and results can be found in Sec. B in the Appendix.

3.2 Transformations

The transformations that we consider in Sec. 4 are small rotations (of up to ) and translations in two dimensions of up to 3 px corresponding to approx. 10% of the image size. For augmentation based methods we need to generate such small transformations for a given test image. Although the definition of a transformation

in the theoretical section using the corresponding continuous image functions is clean, we do not have acccess to the continuous function in practice since the mapping is in general not bijective. Instead, we use bilinear interpolation, as implemented in TensorFlow and in a differentiable version of a transformer

[19] for first order attack and defense methods.

(a) (b)

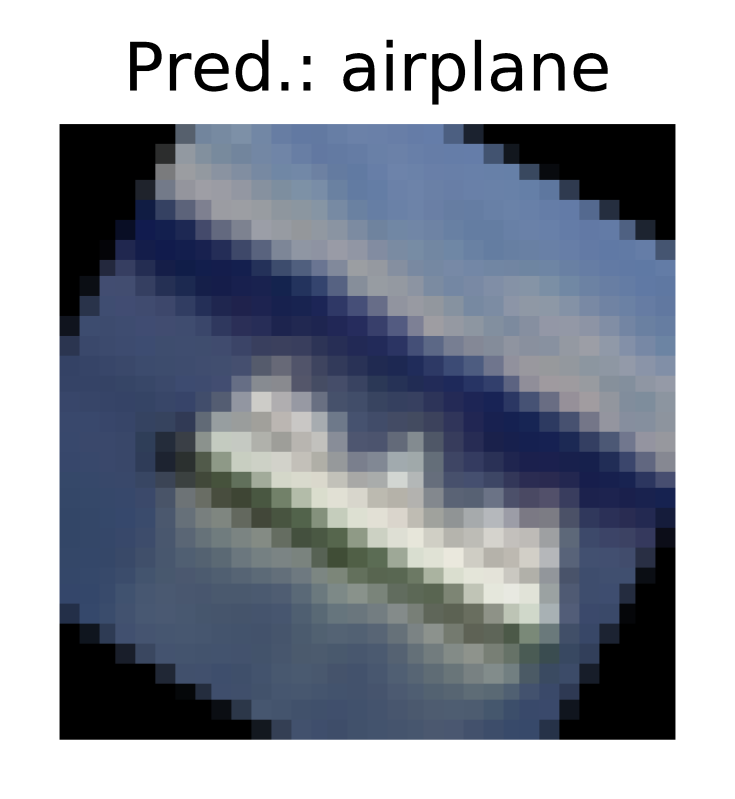

Figure 1: Example images and classifications by the Standard model. (a) An image that is correctly classified for most of the rotations in the considered grid. (b) One rotation for which the image shown in (b) is misclassified as “airplane”.

On top of interpolation, rotation also creates edge artifacts at the boundaries, as the image is only sampled in a bounded set. The empty space that results from translating and rotating an image is filled with black pixels (constant padding) if not noted otherwise. Fig. 1 (b) shows an example. [11]

additionally analyze a “black canvas“ setting where the images are padded with zeros prior to applying the transformation, ensuring that no information is lost due to cropping. Their experiments show that the reduced accuracy of the models cannot be attributed to this effect. Since both versions yield similar results, we report results on the first version of pad and crop choices, having input images of the same size as the original.

3.3 Attacks and defenses

The attacks and defenses we choose essentially follow the setup in [11]. The defense refers to the procedure at training time which aims to make the resulting model robust to adversarial examples. It generally differs from the (extensive) attack mechanism performed at evaluation time to assess the model’s robustness due to computational constraints.

Considered attacks First order methods such as projected gradient descent that have proven to be most effective for transformations are not optimal for finding adversarial examples with respect to rotations and translations. In particular, our experiments confirm the observations reported in [11] that the most adversarial examples can be found through a grid search. For the grid search attack, the compact perturbation set is discretized to find the transformation resulting in a misclassification with the largest loss . In contrast to the case of -adversarial examples, this method is computationally feasible for the 3-dimensional spatial parameters. We consider a default grid of 5 values per translation direction and 31 values for rotation, yielding 775 transformed examples that are evaluated for each . We refer to the accuracy attained under this attack as grid accuracy. How did we ensure the number of transformations in the grid are sufficient? Considering with a finer grid of 7500 transformations for a subset of the experiments, summarized in Table 11, showed only minor reductions in accuracy compared to the coarser grid. Therefore, we chose the latter for computational reasons.

Considered defenses For the adversarial example which maximizes either the loss or regularization function, we use the following defense mechanisms:

  • worst-of-: At every iteration , we sample different perturbations for each image in the batch. The one resulting in the highest function value is used as the maximizer. Most of our experiments are conducted with consistent with [11] as a higher only improved performance minimally (see Table 6).

  • Spatial PGD: In analogy to common practice for adversarial training as in e.g. [40, 26], the S-PGD  mechanism uses projected gradient descent with respect to the translation and rotation parameters with projection on the constrained set of transformations. We consider 5 steps of PGD, starting from a random initialization, with step sizes of (following [11]) for horizontal-, vertical translation and rotation respectively. A discussion on the discrepancy between S-PGD as a defense and attack mechanism can be found in Section C.2.

  • Random: Data augmentation with a distinct random perturbation per image and iteration. This can be seen as the most naive “adversarial” example as it corresponds to worst-of- with .

3.4 Training details

The experiments are conducted with deep neural networks as the function space and is the cross-entropy loss. In the main paper we consider the datasets SVHN [32] and CIFAR-10 [22]. For the non-specialized architectures, we train a ResNet-32 [16], implemented in TensorFlow [1]. For the Transformer networks STN and ETN we use a 3-layer CNN as localization according to the default settings in the provided code of both networks for SVHN and rot-MNIST. For a subset of the experiments we also report results for CIFAR-100 [22] in the Appendix.

We train the baseline models with standard data augmentation: random left-right flips and random translations of followed by normalization. Below we refer to the models trained in this fashion as “std”. For the models trained with one of the defenses described in Sec. 3.3, we only apply random left-right flipping since translations are part of the adversarial search. The special case of data augmentation (with translations and rotations, i.e. the defense “random”) without regularization is refered to as .

For optimization of the empirical training loss, we run standard minibatch SGD with a momentum term with parameter and weight decay parameter . We use an initial learning rate of which is divided by after half and three-quarters of the training steps. Independent of the defense method, we fix the number of iterations to for SVHN and CIFAR-10, and to for CIFAR-100. For comparability across all methods, the number of unique original images in each iteration is in all cases. For the baselines and Adversarial training, we additionally trained with a conventional batch size of and report the higher accuracy of both versions. For the regularized methods, the value of is chosen based on the test grid accuracy. All models are trained using a single GPU on a node equipped with an NVIDIA GeForce GTX 1080 Ti and two 10-core Xeon E5-2630v4 processors.

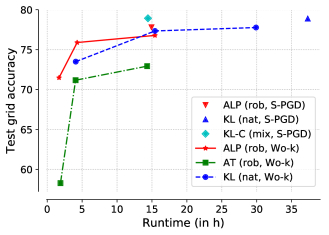

Figure 2: Mean runtime for different methods on CIFAR-10. The connected points correspond to Wo-  defenses with .

4 Empirical Results

We now compare the natural test accuracy (standard accuracy on the test set, abbreviated as nat) and test grid accuracy (as defined in Sec. 3.3, abbreviated as rob) achieved by standard and regularized (adversarial) training techniques as well as specialized spatial equivariant architectures described in Sec. 3.1. For clarity of presentation, the naming convention we use in the rest of the paper consists of the following components: (a) Reg: refers to what regularizer was used (AT, ALP, , KL, or KL-C as defined in Section 2.4); (b) batch: indicates whether the gradient of the loss is taken with respect to the adversarial examples (rob), natural examples (nat) or both (mix), and (c) def: the mechanism used to find the adversarial example, including random (rnd), worst-of- (Wo-) and spatial PGD (S-PGD) as described in Sec. 3.3. Thus, Reg(batch, def) corresponds to using Regas the regularization function, the examples defined by batch  in the gradient of the loss and the defense mechanism def  to find the augmented or adversarial examples.

In Table 1, we report results for a subset of the Reg(batch, def) combinations to facilitate comparisons. Tables with many more combinations can be found Tables 49

in the Appendix. We report averages (standard errors are contained in Tables

49

) computed over five training runs with identical hyperparameter settings. We compare all methods by computing absolute and relative error reductions (defined as

). It is insightful to present both numbers since the absolute values vary drastically between datasets.


std
AT  (rob,
Wo-)
KL  (rob,
Wo-)
 (rob,
Wo-)
ALP (rob,
Wo-)
KL-C (mix,
S-PGD)
ALP (rob,
S-PGD)
SVHN (nat) 95.48 93.97 96.03 96.13 96.53 96.30 96.14 96.11
   (rob) 18.85 82.60 90.35 92.71 92.55 92.04 92.42 92.32
CIFAR (nat) 92.11 89.93 91.76 90.41 90.53 90.11 89.98 89.85
   (rob) 9.52 58.29 71.17 77.47 77.06 75.9 78.93 77.80
GRN ETN STN
SVHN (nat) 96.07 95.05 95.53 95.57 95.61 95.55
   (rob) 25.12 84.9 13.15 84.21 36.68 79.28
CIFAR (nat) 93.39 93.08
   (rob) 16.85 71.64
Table 1: Mean accuracies of models trained with various forms of regularized adversarial training as well as standard augmentation techniques (top) and spatial equivariant networks (bottom). denotes standard augmentation plus random rotations. The highest accuracies per row are bolded.

KL  (nat, Wo-)   (nat, Wo-) ALP  (nat, Wo-)   (nat, rnd) KL  (nat, rnd)   (rob, rnd) KL  (rob, rnd) SVHN (nat) 96.00 96.05 96.39 93.97 96.34 96.16 96.09 96.23    (rob) 92.27 92.16 91.98 82.60 90.51 90.69 90.48 90.92 CIFAR (nat) 90.83 88.32 88.78 89.93 87.80 89.33 88.75 89.47    (rob) 77.34 75.64 75.43 58.29 71.60 73.50 71.49 73.22
Table 2: Mean accuracies of models trained with various forms of regularized adversarial training. Left: All adversarial examples were found via Wo-; right: unregularized () and regularized data augmentation where the optimum is bolded for each row.

Effectiveness of augmentation-based invariance-inducing regularization In Table 1 (top), the three leftmost columns represent unregularized methods which all perform worse in grid accuracy than regularized methods and the two right-most columns represent adversarial examples with respect to the classification cross entropy loss found via S-PGD. When considering the three regularizers (KL, , ALP) with the same batch  and def  (here chosen to be “rob” and Wo-) regularized adversarial training improves the grid accuracy from to on CIFAR-10 and to on SVHN, corresponding to a relative error reduction of and respectively. The same can be observed when comparing data augmentation and its regularized variants in Table 2. Together with Tables 5 and 6, S-PGD seems to be the more efficient defense mechanism compared to worst-of- even when is raised to , with comparable computation time.

Computational considerations In Figure 2, we plot the grid accuracy vs. the runtime (in hours) for a subset of regularizers and defense mechanisms on CIFAR-10 for clarity of presentation. How much overhead is needed to obtain the reported gains? Comparing AT(rob, Wo-) (green line) and ALP(rob, Wo-) (red line) shows that significant improvements in grid accuracy can be achieved by regularization with only a small computational overhead. What if we make the defense stronger? While the leap in robust accuracy from Wo- (also referred to as rnd) to Wo- is quite large, increasing to 20 only gives diminishing returns while requiring more training time. This observation is summarized exemplarily for both KL and ALP regularizer on CIFAR-10 in Table 7. Furthermore, for any fixed training time, regularized methods exhibit higher robust accuracies where the gap varies with the particular choice of regularizer and defense mechanism.

Comparison with spatial equivariant networks Although the rotation-augmented G-ResNet44  obtains higher grid (SVHN: , CIFAR-10: ) and natural accuracies (SVHN: , CIFAR-10: ) than the rotation-augmented Resnet-32 on both SVHN (grid: , nat: ) and CIFAR10 (grid: , nat: ), regularizing standard data augmentation (i.e. regularizers with “rnd”, see Table 2 (right)) using both the distance and the KL divergence matches the G-ResNet44  on CIFAR10 (: , KL: ) and surpasses it on SVHN on grid (: , KL: ) and natural accuracies by a relative grid error reduction of . The same phenomenon is observed for the augmented ETN and STN on SVHN.333We had difficulties to train both ETN and STN to higher than natural accuracy for CIFAR10 even after an extensive learning rate and schedule search so we do not report the numbers here. In conclusion, regularized augmentation based methods match or outperform representative end-to-end networks handcrafted to be equivariant to spatial transformations.

Trade-off natural vs. adversarial accuracy SVHN is one of the main datasets (without artificial augmentation like in rot-MNIST [25]) where spatial equivariant networks have reported improvements on natural accuracy. This is due to the inherent orientation variance in the data. In our mathematical framework, this corresponds to the assumption in Theorem 2 of the distribution on the transformation sets having support . Furthermore, as all numbers in SVHN have the same label irrespective of small rotations of at most 30 degrees, the first assumption in Theorem 2 is also fulfilled. Table 1 and  2 confirm the statement in the Theorem that improving robust accuracy may not hurt natural accuracy or even improve it: For SVHN, adding regularization to samples obtained both via Wo- adversarial search or random transformation (rnd) consistently not only helps robust but also standard accuracy.

Comparing the effects of different regularization parameters on test grid accuracy We study Tables 1 and 2 and attempt to disentangle the effects by varying only one parameter. For example we can observe that, computational cost aside, fixing any regularizer defense to Wo-, the robust regularized loss Reg(rob, Wo-) (i.e., ) does better (or not statistically significantly worse) than Reg(nat, Wo-) (i.e., ). Furthermore, the KL regularizer generally performs better than for a large number of settings. A possible explanation for the latter could be that upper bounds the squared

loss on the probability simplex and is hence more restrictive.

Choice of The different regularization methods peak at different in terms of grid accuracy. However, they outperform unregularized methods in a large range of values, suggesting that well-performing values of are not difficult to find in practice. These can be seen in Figures 4 and 5 in the Appendix.

There are many more interesting experiments we have conducted for subsets of the defenses and datasets illustrating different phenomena that we observe. For example we have analyzed a finer grid for the grid search attack and evaluated S-PGD as an attack mechanism. A detailed discussion of these experiments can be found in Sec. C.2.

5 Related work

Group equivariant networks There are in general two types of approaches to incorporate spatial invariance into the network. In one of the earlier works in the neural net era, Spatial Transformer Networks were introduced [19] which includes a transformer module that predicts transformation parameters followed by a transformer. Later on, one line of work proposed multiple filters that are discrete group transformations of each other [24, 27, 8, 51, 45]. For continuous transformations, steerability [43, 9] and coordinate transformation [12, 41] based approaches have been suggested. Although these approaches have resulted in improved standard accuracy performances, it has not been rigorously studied whether or by how much they improve upon regular networks with respect to robust test accuracy.

Regularized training Using penalty regularization to encourage robustness and invariance when training neural networks has been studied in different contexts: for distributional robustness [17], domain generalization [30], adversarial training [31, 21, 49], robustness against simple transformations [7]

and semi-supervised learning

[50, 46]. These approaches are based on augmenting the training data either statically [17, 30, 7, 46], ie. before fitting the model, or adaptively in the sense of adversarial training, with different augmented examples per training image generated in every iteration [21, 31, 49].

Robustness against simple transformations Approaches targeting adversarial accuracy for simple transformations have used attacks and defenses in the spirit of PGD (either on transformation space [11] or on input space projecting to transformation manifold [20]) and simple random or grid search [11, 34]. Recent work [10] has also evaluated some rotation-equivariant networks with different training and attack settings which reduces direct comparability with e.g. adversarial based defenses [11].

6 Conclusion

In this work, we have explored how regularized augmentation-based methods compare against specialized spatial equivariant networks in terms of robustness against small translations and rotations. Strikingly, even though augmentation can be applied to encourage any desired invariance, the regularized methods adapt well and perform similarly or better than specialized networks. Furthermore, we have introduced a theoretical framework incorporating many forms of regularization techniques that have been proposed in the literature. Both theoretically and empirically, we showed that for transformation invariances and under certain practical assumptions on the distribution, there is no trade-off between natural and adversarial accuracy which stands in contrast to the debate around -perturbation sets. In summary, it is advantageous to replace unregularized with regularized training for both augmentation and adversarial defense methods. With regard to the regularization parameter choice we have seen that improvements can be obtained for a large range of values, indicating that this additional hyperparameter is not difficult to tune in practice. In future work, we aim to explore whether specialized architectures can be combined with regularized adversarial training to improve upon the best results reported in this work.

7 Acknowledgements

We thank Ludwig Schmidt for helpful discussion, Nicolai Meinshausen for valuable feedback on the manuscript and Luzius Brogli for initial experiments. FY was supported by the Institute for Theoretical Studies ETH Zurich, the Dr. Max Rössler and Walter Haefner Foundation and the Office of Naval Research Young Investigator Award N00014-19-1-2288.
