1 Introduction

Imitation Learning (IL) offers an approach to train an agent to mimic the demonstration of an expert. Behavioral cloning (BC) is probably the simplest form of imitation learning

(pomerleau1991efficient)

. The promise of this method is to train a policy to predict the demonstrator’s actions from the states using supervised learning. However, despite its simplicity, behavioral cloning suffers from a compounding error problem if the data distribution diverges too much from the training set

(ross2011reduction). In other words, an initial minor error can result in severe deviation from the demonstrator’s behavior. On the other hand, inverse reinforcement learning (IRL) (abbeel2004apprenticeship; ng2000algorithms) aims at recovering a reward function from the demonstration, and then execute reinforcement learning (RL) on that reward function. However, even with many demonstrations, most state-of-the-art inverse reinforcement learning methods fail to outperform the demonstrator in high-dimensional environments, e.g., Atari domain.

In our quest to find a solution to this curse of dimensionality, the primary goal to train an agent to reach the expert-level performance with limited demonstration data. This goal is very challenging because, in our context, limited demonstration data means that the agent can only learn from the states and actions recorded from gameplay up until the demonstrator, i.e. the player, loses their first life. We call this a “one-life demonstration”. With currently-available approaches, it is unrealistic to expect an agent to even develop sufficient skills to match a player’s basic demonstration-level performance. Our ultimate goal for imitation learning is to build an agent that yields better-than-expert imitation performance from only a one-life demonstration. Figure

1 illustrates the three steps towards achieving this goal.

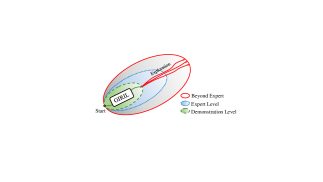

Figure 1: Generative intrinsic reward driven imitation learning (GIRIL) seeks a reward function to achieve three imitation goals. 1) Match the basic demonstration-level performance. 2) Reach the expert-level performance. and 3) Exceed expert-level performance. GIRIL performs beyond the expert by generating a family of intrinsic rewards for sampling-based exploration.

Most existing IRL methods fail to reach the first goal in Figure 1, i.e. the demonstration-level performance. This is because IRL methods seek a reward function that justifies demonstrations only. Given extremely limited state-action data in a one-life demonstration, the recovered reward can be biased. Executing RL on such reward usually results in an agent performing worse than the demonstration. To address this problem, we propose Generative Intrinsic Reward driven Imitation Learning (GIRIL), which seeks a family of intrinsic reward functions that enables the agent to do sampling-based exploration in the environment. This is critical to better-than-expert performance.

GIRIL operates by reward inference and policy optimization, and includes a novel generative intrinsic reward learning (GIRL) module based on a generative model. We chose variational autoencoder (VAE)

(kingma2013auto) as our model base. It operates by modeling the forward dynamics as a conditional decoder and the backward dynamics as a conditional encoder. The decoder learns to generate diverse future states from the action conditioned on the current state. Accordingly, the encoder learns to encode the future state back to the action latent variable (conditioned on the current state). In this way, our generative model performs better forward state transition and backward action encoding, which improves its dynamics modeling ability in the environment. Our model generates a family of intrinsic rewards, which enables the agent to do sampling-based exploration in the environment, which is the key to better-than-expert performance.

Within our chosen domain of Atari games, we first generated a one-life demonstration for each of six games and then trained our reward learning module on the corresponding demonstration data. Finally, we optimize the policy on the intrinsic reward that is provided by the learned reward module. Empirical results show that our method, GIRIL, outperforms several state-of-the-art IRL methods on multiple Atari games. Moreover, GIRIL produced agents that exceeded the expert performance for all six games and the one-life demonstration performance by up to 5 times. The implementation will be available online111https://github.com/xingruiyu/GIRIL.

2 Problem Definition and Related Work

Problem definition

The problem is formulated as a Markove Decision Process (MDP) defined by a tuple

, where is the set of states, is the set of actions, is the environment transition distribution, is the reward function, and is the discount factor (puterman2014markov). The expected discounted return of the policy is given by

where denotes the trajectory, , , and .

Inverse reinforcement learning was proposed as a way to find a reward function that could explain observed behavior (ng2000algorithms). With such a reward function, an optimal policy can be learned via reinforcement learning (sutton1998introduction)

techniques. In the maximum entropy variant of inverse reinforcement learning, the aim is to find a reward function that makes the demonstrations appear near-optimal on the principle of maximum entropy

(ziebart2008maximum; ziebart2010modeling; boularias2011relative; finn2016guided). However, these learning methods still seek a reward function that justifies the demonstration data only. And, since the demonstration data obviously does not contain information on how to be better than itself, achieving better-than-expert performance with these methods is difficult.

Generative Adversarial Imitation Learning (GAIL) (ho2016generative) treats imitation learning problem as a distribution matching based generative model, which extends IRL by integrating adversarial training technique (NIPS2014_5423). However, this also means that GAIL inherits some problems from adversarial training along with its benefits, such as instability in the training process. GAIL performs well in low-dimensional application, e.g., MuJoCo. However, it does not scale well to high-dimensional scenarios, such as Atari games (brown2019extrapolating). Variational adversarial imitation learning (VAIL) (peng2018variational) improves GAIL by compressing the information via variational information bottleneck. We have included both these methods as comparisons to our GIRIL in our experiments.

schroecker2019generative proposed to match the predecessor state-action distributions modeled by the masked autoregressive flows (MAFs) (papamakarios2017masked). Although they have demonstrated the advantages of their approach against GAIL and BC with robot experiments, their approach still requires multiple demonstrations to reach good performance levels and high-dimensional game environments were not included in their evaluations.

Despite their generative ability, GAIL and VAIL just match the state-action pairs from the demonstrations only. GIRIL also uses a generative model, but it does not depend on distribution matching. Rather, it simply improves the modeling of both forward and backward dynamics of MDP in the environment. Moreover, our method utilizes the generative model based reward learning to generate a family of intrinsic rewards for better exploration in the environment, which is critical for better-than-expert imitation.

Reward learning based on curiosity Beyond the aforementioned methods, reward learning is another important component of reinforcement learning research. For example, intrinsic curiosity module (ICM) is a state-of-the-art exploration algorithm for reward learning (pathak2017curiosity; burda2018large). ICM transforms high dimensional states into a visual feature space and imposes cross-entropy and Euclidean loss to learn the feature with a self-supervised backward dynamics model. The prediction error in the feature space becomes the intrinsic reward function for exploration. Although ICM has a tendency toward over-fitting, we believe it has potential as a good reward learning module and so have incorporated it to perform that function in the experiments. Accordingly, we have treated the resulting algorithm curiosity-driven imitation learning (CDIL) as related baseline in our experiments.

Reward learning for video games Most imitation learning methods have only been evaluated on low-dimensional environments, and do not scale well to high-dimensional tasks such as video games (e.g., Atari) (ho2016generative; finn2016guided; fu2017learning; qureshi2018adversarial). tucker2018inverse showed that state-of-the-art IRL methods are unsuccessful on the Atari environments. hester2018deep proposed deep Q-learning from demonstrations (DQfD), utilizing demonstrations to accelerate the policy learning in reinforcement learning. Since DQfD still requires the ground-true reward for policy learning, it cannot be considered as a pure imitation learning algorithm. ibarz2018reward proposed to learn to play Atari games by combining DQfD and active preference learning (christiano2017deep). However, it often performs worse than the demonstrator even with thousands of active queries from an oracle. brown2019extrapolating learns to extrapolate beyond the sub-optimal demonstrations from observations via IRL. However, their method relies on multiple demonstrations with additional ranking information. Our method outperforms the expert and state-of-the-art IRL methods on multiple Atari games, requiring only a one-life demonstration for each game. Moreover, our method does not require any ground-truth rewards, queries or ranking information.

3 Imitation Learning via Generative Model

Most of the existing IRL methods do not scale to high-dimensional space, and IL from a one-life demonstration is even more challenging. Our solution to address this challenge, Generative Intrinsic Reward driven Imitation Learning (GIRIL), seeks a reward function that will incentivize the agent to outperform the performance of the expert via sampling-based exploration. Our motivation is that the expert player’s intentions can still be distilled even from the extremely limited demonstration, like the amount of data collected prior to the player losing a single life in a Atari game. And when a notion of the player’s intentions is combined with an incentive for further exploration in the environment, the agent should be compelled to meet and exceed each of the three goals: par basic demonstration performance, par expert performance and, ultimately, better-than-expert performance. GIRIL works through two main mechanisms: intrinsic reward inference and policy optimization222Policy can be optimized with any policy gradient method..

Intrinsic Rewards Since hand-engineering extrinsic rewards are infeasible in complex environments, our solution is to leverage intrinsic rewards that enable the agent to explore actions that reduce the uncertainty in predicting the consequence of the states. Note, in ICM (pathak2017curiosity), a network-based regression is used to fit the demonstration data, it is likely to overfit to the limited state-action data drawn from a one-life demonstration. And ICM only produces deterministic rewards. These two problems limit its exploration ability. Empirically, CDIL can only outperform the basic one-life demonstration with the guide of limited exploration ability. Therefore, it is imperative to call for intrinsic reward inference with more powerful exploration ability to achieve better-than-expert performance.

Generative Intrinsic Reward Learning (GIRL) To empower the generalization of intrinsic rewards on unseen state-action pairs, our novel reward learning module is based on conditional VAE (sohn2015learning). As illustrated in Figure 2

, the module is composed of several neural networks, including recognition network

, a generative network , and prior network . We refer to the recognition network (i.e. the probabilistic encoder) as a backward dynamics model, and the generative network (i.e. the probabilistic decoder) as a forward dynamics model. Maximizing the following objective to optimize the module:

(1)

where is the latent variable, is the expert policy distribution, is the transformed latent variable, is a positive scaling weight.

The first two terms of the right-hand side (RHS) in Eq. (1) denote the evidence lower bound (ELBO) of the conditional VAE (sohn2015learning). These two terms are critical for our reward learning module to perform better forward state transition and backward action encoding. In other words, the decoder performs forward state transition by taking the action and output the reconstruction . On the other hand, the encoder performs backward action encoding by taking in the states and and producing the action latent variable . Additionally, we integrated the third term of the RHS in Eq. (1) to further boost the backward action encoding. The third term minimizes the KL divergence between the expert policy distribution and the action encoding distribution , where is transformed from the latent variable . In this way, we combine a backward dynamics model and a forward dynamics model into a single generative model.

Note that the full objective in Eq. (1) is still a variational lower bound of the marginal likelihood , which is reasonable to maximize as an objective of our reward learning module. Typically, we have , where is the reconstruction of . By optimizing the objective, we improve the forward state transition and backward action encoding. Therefore, our reward learning module can better model the dynamics in the environment. During training, we use the latent variable as the intermediate action .

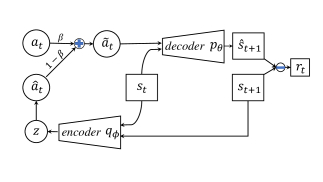

Figure 2: Illustration of the intrinsic reward inference procedure of the proposed GIRIL model.

Unlike GAIL and VAIL which fit state-action pairs only, the forward state transition in our GIRL captures the dynamics of the MDP; while its backward action encoding use states and to infer expert’s action information. These two parts are critical for improving the generalization of intrinsic rewards of GIRL on unseen state-action pairs in the environment, resulting in more effective exploration ability.

Sampling-based reward for exploration After training, we infer intrinsic reward with the trained reward module following the inference procedure in Figure 2. Each time we first sample a latent variable from the learned encoder by

and transform it into an action encoding . The Softmax transformation used here is continuous approximation of the discrete variable (i.e. action) for better model training (jang2016categorical). We then achieve an intermediate action data by calculating a weighted sum of the true action and the action encoding , i.e. , where is a positive weight. We use the learned decoder to generate the reconstruction from the state and the intermediate action . The intrinsic reward is calculated as the reconstruction error between and :

(2)

where denotes the norm, is a positive scaling weight, .

Policy Optimization Algorithm 1 summarizes GIRIL’s full training procedure. The process begins by training a reward learning module for epochs (steps 3-6). In each training epoch, we sample a mini-batch demonstration data with a mini-batch size of and maximize the objective in Eq. (1). Then in steps 7-9, we update the policy via any policy gradient method, e.g., PPO (schulman2017proximal), so as to optimize the policy with the intrinsic reward inferred by Eq. (2).

1:  Input: Expert demonstration .
2:  Initialize policy , encoder and decoder .
3:  for  do
4:     Sample a batch of demonstration .
5:     Train and to maximize the objective (1) on .
6:  end for
7:  for  do
8:     Update policy via any policy gradient method, e.g., PPO on the intrinsic reward inferred by Eq. (2).
9:  end for
10:  Output: Policy .
Algorithm 1 Generative Intrinsic Reward driven Imitation Learning (GIRIL)

A family of reward function for exploration Our method generates a family of reward functions instead of a fixed one. After training, we achieve a family of reward functions with where

denotes the Gaussian distribution. The mean

and variance

are the output of the encoding network, which is adaptively computed according to the state of environment. The reward inference procedure is shown in Figure 2. This provides more flexibility than a fixed reward function for policy learning. With the family of reward functions, the agent can perform sampling-based exploration in the environment, which is critical for the agent achieving better-than-expert performance from the limited data in a one-life demonstration.

Demonstration Length # Lives
Game One-life Full-episode available
Space Invaders 697 750 3
Beam Rider 1,875 4,587 3
Breakout 1,577 2,301 5
Q*bert 787 1,881 4
Seaquest 562 2,252 4
Kung Fu Master 1,167 3,421 4
Table 1: Demonstration lengths in the Atari environment.
encoder decoder policy network
States and Next States One-hot Actions and States States
dense Actions 64, LeakyReLU
concatenate States and Next States dense 64 1024, LeakyReLU
conv, 32 LeakyReLU deconv, 64 LeakyReLU

conv, 32, stride 4, ReLU

conv, 32 LeakyReLU deconv, 64 LeakyReLU conv, 64, stride 2, ReLU
conv, 64 LeakyReLU deconv, 32 LeakyReLU conv, 32, stride 1, ReLU
conv, 64 LeakyReLU deconv, 32 LeakyReLU dense 512
dense 1024 , dense 1024 concatenate with States Categorical Distribution
reparameterization Actions conv, 32 LeakyReLU
Latent Variable Predicted Next States Actions
Table 2: Architectures of encoder, decoder and policy network for Atari games.

4 Experiments and Results

4.1 Atari

We evaluate our proposed GIRIL on one-life demonstration data for six Atari games within OpenAI Gym (brockman2016openai). The games and demonstration details are provided in Table 1.

As mentioned, a one-life demonstration only contains the states and actions performed by a expert player until they die for the first time in a game. In contrast, one full-episode demonstration contains states and actions after the expert player losing all available lives in a game. Therefore, the one-life demonstration data is (much) more limited than an one full-episode demonstration. We have defined the performance tries as: basic one-life demonstration-level - gameplay up to one life lost (“one-life”), expert-level - gameplay up to all-lives lost (“one full-episode”), and beyond expert - “better-than-expert” performance. Our ultimate goal is to train an imitation agent that can achieve better-than-expert performance from the demonstration data recorded up to losing their first life.

4.1.1 Demonstrations

To generate one-life demonstrations, we trained a Proximal Policy Optimization (PPO) (schulman2017proximal) agent with the ground-truth reward for 10 million simulation steps. We used the PPO implementation with the default hyper-parameters in the repository (kostrikov2018repo). As Table 1 shows, the one-life demonstrations are all much shorter than the full-episode demonstrations, which makes for extremely limited training data.

4.1.2 Experimental Setup

Our first step was to train a reward learning module for each game on the one-life demonstration. The proposed reward learning module consists of an encoder and a decoder. The encoder

consists of four convolutional layers and one fully-connected layer. Each convolutional layer is followed by a batch normalization layer (BN)

(ioffe2015batch). The decoder is nearly an inverse version of encoder without the batch normalization layer, except that the decoder uses the deconvolutional layer and also includes an additional fully-connected layer at the top of the decoder and a convolutional layer at the bottom. For both the encoder and the decoder, we used the LeakyReLU activation (maas2013rectifier) with a negative slope of 0.01. Training was conducted with the Adam optimizer (kingma2014adam) at a learning rate of 3e-5 and a mini-batch size of 32 for 50,000 epochs. In each training epoch, we sampled a mini-batch of data every four states. We have summarized the detailed architectures of the encoder and the decoder network in Table 2.

To evaluate the quality of our learned reward, we used the trained reward learning module with a of 1.0 to produce rewards, and trained a policy to maximize the inferred reward function via PPO. We normalize and

to [-1,1] before calculating the reward. To further speed up the learning of value function, we performed standardization on the rewards by dividing the intrinsic rewards with a running estimate of the standard deviation of the sum of discounted rewards

(burda2018large). The same discount factor of 0.99 was used throughout the paper. We set for training our reward learning module. More experiments have been shown in the Appendix. Additionally, an ablation study in Section A.1 shows the impact of standardization.

We trained the PPO on the learned reward function for 50 million simulation steps to obtain our final policy. The PPO is trained with a learning rate of 2.5e-4, a clipping threshold of 0.1, an entropy coefficient of 0.01, a value function coefficient of 0.5, and a GAE parameter of 0.95 (schulman2015high). We compared game-play performance by our GIRIL agent against behavioral cloning (BC), and two state-of-the-art inverse reinforcement learning methods, GAIL (ho2016generative) and VAIL (peng2018variational). Additionally, we adopt the intrinsic curiosity module (ICM) (pathak2017curiosity; burda2018large) as a reward learning module, and also compare against with the resulting imitation learning algorithm CDIL. We have shown more details about the CDIL algorithm in the Appendix.

(a) Space Invaders.
(b) Beam Rider.
(c) Breakout.
(d) Q*bert.
(e) Seaquest.
(f) Kung Fu Master.
Figure 3: Average return vs. number of simulation steps on Atari games. The solid lines show the mean performance over five random seeds. The shaded area represents the standard deviation from the mean. The blue dotted line denotes the average return of expert. The area above the blue dotted line means performance beyond the expert.

For a fair comparison, we used an identical policy network for all methods. The architecture of the policy network is shown in Table 2. We used the actor-critic approach in the PPO training for all imitation methods except BC (kostrikov2018repo). The discriminator

for both GAIL and VAIL takes in a state (a stack of four frames) and an action (represented as a 2d one-hot vector with a shape of (

), where is the number of valid discrete actions in each environment) (brown2019ranking). The network architecture of GAIL’s discriminator is almost the same as the encoder of our method, except that it only outputs a binary classification value, and is the reward. VAIL was implemented following the repository of karnewar2018repo. The discriminator network architecture has an additional convolutional layer (with a kernel size of 4) as the final convolutional layer to encode the latent variable in VAIL. We used the default setting of 0.2 for the information constraint (karnewar2018repo). PPO with the same hyper-parameters was used to optimize the policy network for all the methods. For both GAIL and VAIL, we trained the discriminator using the Adam optimizer with a learning rate of 0.001. The discriminator was updated every policy step. The ablation study in Section A.1 will show the effects of different reward functions in GAIL and different information constraints in VAIL.

Expert Demonstration Imitation Learning Algorithms Random
Game Average Average GIRIL CDIL VAIL GAIL BC Average
Space Invaders 734.1 600.0 992.9 668.9 549.4 228.0 186.2 151.7
Beam Rider 2,447.7 1,332.0 3,202.3 2,556.9 2,864.1 285.5 474.7 379.4
Breakout 346.4 305.0 426.9 369.2 36.1 1.3 0.9 1.3
Q*bert 13,441.5 8,150.0 42,705.7 30,070.8 10,862.3 8,737.4 298.4 159.7
Seaquest 1,898.8 440.0 2,022.4 897.7 312.9 0.0 155.2 75.5
Kung Fu Master 23,488.5 6,500.0 23,543.6 17,291.6 24,615.9 1,324.5 44.9 413.7
Table 3: Average return of GIRIL, CDIL, BC and state-of-the-arts IRL algorithms, GAIL (ho2016generative) and VAIL (peng2018variational), with one-life demonstration data on six Atari games. The results shown are the mean performance over 5 random seeds with better-than-expert performance in bold.

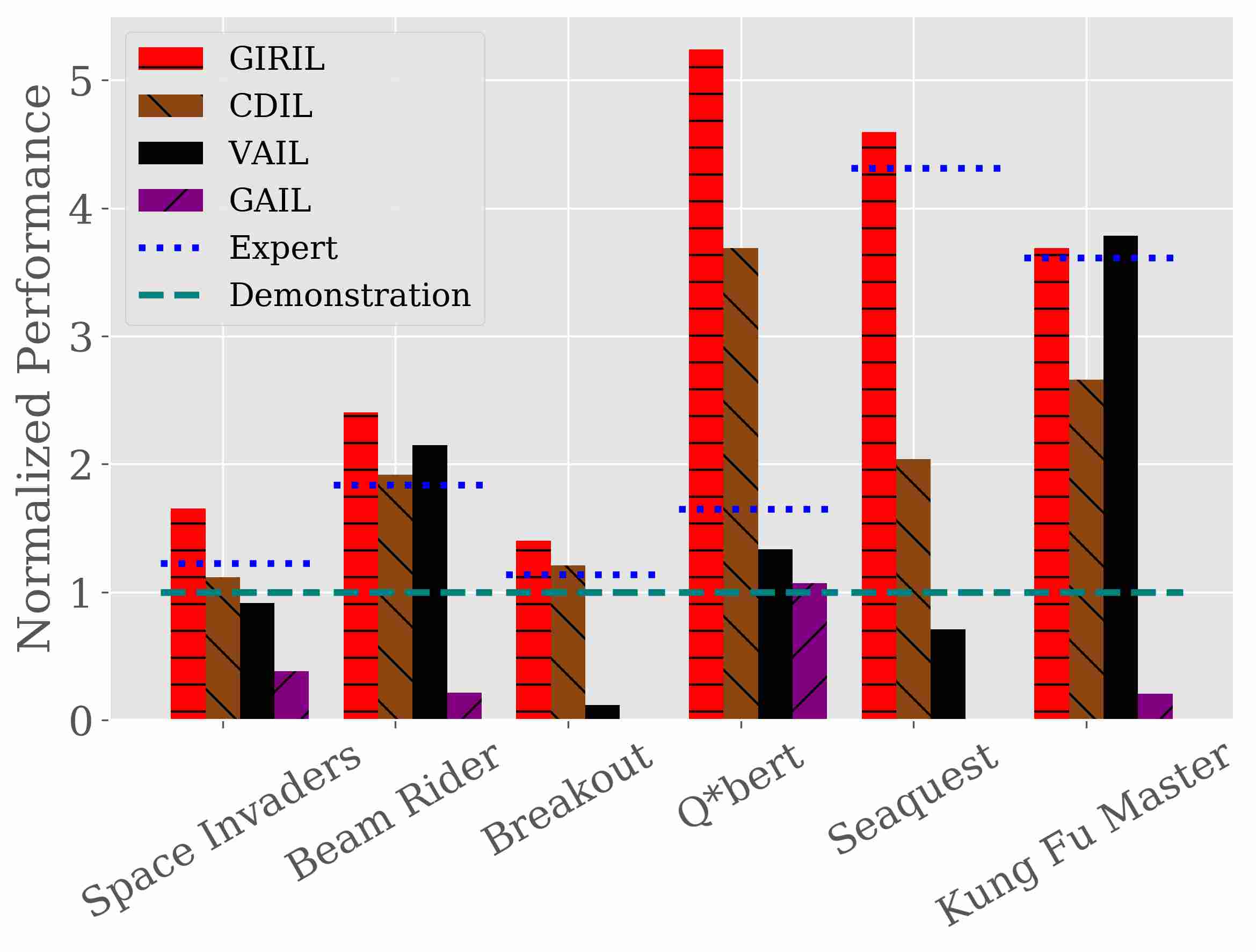

Figure 4: Performance improvement of GIRIL on six Atari games. The results are averages over 5 random seeds and reported by normalizing the one-life demonstration performance to 1.

4.1.3 Results

Figure 3 shows the average performance of the expert, demonstration and imitation learning methods with 5 random seeds. The results reported for all games with our method, with the exception of Seaquest, were obtained by offering the standardized intrinsic reward. The Seaquest results were obtained with the original reward to show that our method also works well without standardization, achieving better performance than other baselines on multiple Atari games. There is more discussion on the influence of standardizing rewards in the ablation study in Section A.1.

What we can clearly see from Figure 3 is that performance of the one-life demonstration is much lower than that of the expert. IL from such little data in a one-life demonstration is challenging. However, as shown in Figure 1, our first goal is to train an agent to outperform the player’s performance up to the point of losing one life. This is a start, but it is still a long way from building an agent that can ultimately succeed in the game. Therefore, the second goal is to equal the player’s performance across all lives. And, since we always want a student to do better than their master, the third goal is for the agent to outperform the expert player.

Better-than-expert Imitation Figure 3 shows that BC and random agent are hopelessly far from achieving the first goal. GAIL only manages to exceed the one-life demonstration for one game, Q*bert. VAIL did better than GAIL, achieving the first goal with three games and the second goal with two. CDIL managed to exceed one-life performance in all six games and even up to goal three, better-than-expert performance, on three games, while our GIRIL accomplished all three goals on all six games and often with a performance much higher than the expert player. A detailed quantitative comparison can be found in Table 3.

The full comparison of imitation performance is shown in Figure 4. To make the comparison more clear, we report the performance by normalizing the demonstration performance to 1. GIRIL’s performance excels the expert performance on all six games, and often beating the one-life demonstration by a large margin, for example, 2 times better on Beam Rider, 3 times better on Kung Fu Master, and 4 times better on Seaquest. More impressively, our GIRIL exceeds the one-life demonstration performance on Q*bert by more than 5 times and the expert performance by more than 3 times.

Overall, CDIL came in second our GIRIL. It outdid the one-life demonstration on all six games, but only the expert performance on three, Beam Rider, Breakout and Q*bert. It is promising to seed that both GIRIL and CDIL performed better than the two current state-of-the-arts, GAIL and VAIL. GAIL only stepped out of the lackluster performance with Q*bert. However, VAIL beat the one-life performance on Beam Rider, Q*bert and Kung Fu Master, and the expert performance on Beam Rider and Kung Fu Master. It is clear that, overall, VAIL performed better than GAIL in every game. We attribute VAIL’s improvements to the use of variational information bottleneck in the discriminator (tishby2015deep; alemi2016deep).

Comparison with generative model based imitation learning Although GAIL and VAIL are based on generative models just like our GIRIL, they do not have a mechanism for modeling the dynamics of the environment. Distribution matching is done by brute-force and, because one-life demonstration data can be extremely limited, direct distribution matching may result in an over-fitting problem. This is probably the most limiting factor over GAIL and VAIL’s performance. Our method, GIRIL, uses a generative model to better perform forward state transition and backward action encoding, which improves the modeling of both forward and backward dynamics of MDP in environment. Moreover, our method generates a family of intrinsic reward via the sampling-based reward inference. This enables the agent to do sampling-based exploration in the environment. As shown in Figure 3, GIRIL’s performance improves at a sharp rate to ultimately outperform the expert player. The difference between matching demonstration performance and delivering better-than-expert performance comes as a result of the enhanced ability to explore, which is also a benefit of our generative model. A final observation is that GIRIL was often more sample-efficient than the other baselines.

Expert Demonstration GIRIL with different .
Game Average Average 1.0 0.999 0.99 0.95 0.9
Space Invaders 734.1 600.0 992.9 1,110.9 997.3 1,032.1 1,042.6
Beam Rider 2,447.7 1,332.0 3,202.3 3,351.4 3,276.5 3,402.6 3,145.0
Breakout 346.4 305.0 426.9 397.5 419.3 416.0 361.5
Q*bert 13,441.5 8,150.0 42,705.7 25,104.9 29,618.8 23,532.2 38,296.1
Seaquest 1,898.8 440.0 2,022.4 526.4 443.3 433.4 355.6
Kung Fu Master 23,488.5 6,500.0 23,543.6 16,521.4 23,847.7 20,388.5 19,968.6
Table 4: Parameter Analysis of the GIRIL with different on Atari games. Best performance in each row is in bold.

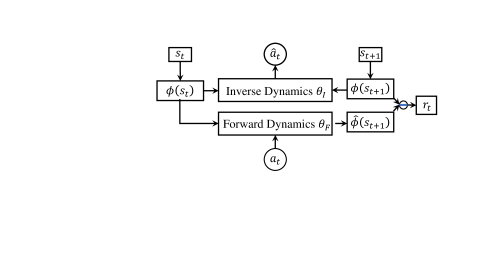

Comparison with curiosity-based reward learning The ICM reward learning module is also able to provide the imitation agent with an improved ability to explore. However, the limited demonstration data will give this model a tendency to overfit. Even so, CDIL exceeded the expert performance on three of the games: Beam Rider, Breakout and Q*bert. Granted, for Beam Rider and Breakout, the improvements were only negligible. However, GIRIL’s use of generative model to improve dynamics modeling clearly demonstrates the performance improvements to be gained from better exploration ability.

4.1.4 Ablation study of our method with different .

When , we construct a basic version of our reward using the decoder only. When blending actions with different values, we construct a complete version of our reward that uses both encoder and decoder. Table 4 reports results of our methods, GIRIL, on the six Atari games with different . The action sampling from the encoder enforces the agent with additional exploration. As a result, it potentially further improves the imitation performance versus , eg., improving 1.29% on Kung Fu Master with a of 0.99, improving 6.25% on Beam Rider with a of 0.95 and improving 11.88% on Space Invaders with a of 0.999. Overall, our method generates a family of reward functions, and enables the imitation agent to achieve better-than-expert performance on multiple Atari games. The full learning curves of our method with different have been shown in the Appendix.

4.2 Continuous control tasks

Except the above evaluation on the Atari games with high-dimensional state space and discrete action space, we also evaluated our method on continuous control tasks where the state space is low-dimensional and the action space is continuous. The continuous control tasks were from Pybullet333https://pybullet.org/ environment.

4.2.1 Demonstrations

To generate demonstrations, we trained a PPO agent with the ground-truth reward for 5 million simulation steps. We used PPO implementation in the repository (kostrikov2018repo) with the default hyper-parameters for continuous control tasks. In each task, we used one demonstration with a fixed length of 1,000 for evaluation.

4.2.2 Experimental Setup

Our first step was also to train a reward learning module for each continuous control task on the one demonstration. To build our reward learning module for continuous tasks, we used two-layer feed forward neural networks with tanh activation function as the model bases of the

encoder and decoder. Two addition hidden layers were added to the model base in encoder to output and , respectively. The dimension of latent variable is set to the action dimension for each task. Additionally, we used a two-layer feed forward neural network with tanh activation function as policy architecture. The number of hidden unit is set to 100 for all tasks. To extend our method on continuous control tasks, we made minor modification on the training objective. In Atari games, we used KL divergence to measuring the distance between the expert policy distribution and the action encoding distribution in Eq. (1). In continuous control tasks, we instead directly treated the latent variable as the action encoding and used mean squared error to measure the distance between the action encoding and the true action in the demonstration. We set the scaling weight in Eq. (1) to 1.0 for all tasks. Training was conducted with the Adam optimizer (kingma2014adam) at a learning rate of 3e-5 and a mini-batch size of 32 for 50,000 epochs. In each epoch, we sampled a mini-batch of data every 20 states.

To evaluate our learned reward, we used the trained reward learning module with a of 1.0 to produce rewards, and trained a policy to maximize the inferred reward function via PPO. States and were also normalized to [-1,1] before calculating rewards using Eq. (6). We trained the PPO on the learned reward function for 10 million simulation steps to obtain our final policy. The PPO is trained with a learning rate of 3e-4, a clipping threshold of 0.1, an entropy coefficient of 0.0, a value function coefficient of 0.5, and a GAE parameter of 0.95 (schulman2015high).

Demonstration Imitation Learning Algorithms
Task Average GIRIL CDIL VAIL GAIL BC
InvertedPendulum 1,000.0 990.2 979.7 113.6 612.6 36.0
InvertedDoublePendulum 9,355.1 9,164.9 7,114.7 725.2 1,409.0 241.6
Table 5: Average return of GIRIL, CDIL, BC and state-of-the-arts inverse reinforcement learning algorithms GAIL (ho2016generative) and VAIL (peng2018variational) with one demonstration data on continuous control tasks. The results shown are the mean performance over 3 random seeds with best imitation performance in bold.

For a fair comparison, we used a two-layer feed forward neural network with tanh activation function as the feature extractor in ICM, and the discriminator in GAIL and VAIL. The number of hidden layer was also set to 100. The reward function of GAIL and VAIL was chosen according to the original papers (ho2016generative; peng2018variational). The information constraint in VAIL was set to 0.5 for all tasks. In our experiments with continuous control tasks, we use mean squared error as the discrepancy measure in the objective of backward dynamics of ICM (in Eq. (3)). To enable fast training, we trained all the imitation methods with 16 parallel processes.

4.2.3 Results

Table 5 shows the detailed quantitative comparison of the demonstration and imitation methods. The results shown in the table were the mean performance over 3 random seeds. Under a fair comparison, our method GIRIL achieves the best imitation performance in both continuous control tasks, i.e. InvertedPendulum and InvertedDoublePendulum. CDIL also achieves performance that is close to the demonstration, while still slightly worse than our method. A comparison of full learning curves can be found in Figure 5.

(a) InvertedPendulum.
(b) InvertedDoublePendulum.
Figure 5: Average return vs. number of simulation steps on continuous control tasks.

4.3 Full-episode Demonstrations

Figure 6 shows the average return versus number of full-episode demonstrations on both Atari games and continuous control tasks. The results shows that our method GIRIL achieves the highest performance across different numbers of full-episode demonstrations. CDIL usually comes the second best, and GAIL is able to achieve good performance with more demonstrations in continuous control tasks. Detailed quantitative results have been shown in the Appendix.

(a) Breakout.
(b) Space Invaders.
(c) InvertedPendulum.
(d) InvertedDoublePendulum.
Figure 6: Average return vs. number of full-episode demonstrations on Atari games and continuous control tasks.

5 Conclusion

This paper focused on imitation learning from one-life game demonstration in the Atari environment. We propose a novel Generative Intrinsic Reward Learning (GIRL) module based on conditional VAE that combines a backward dynamics model and a forward dynamics model into one generative solution. Our generative model can better perform forward state transition and backward action encoding, which improves the modeling of both forward and backward dynamics of MDP in environment. The better dynamics modeling enables our model to generate more accurate rewards. Moreover, our model generates a family of intrinsic rewards, enabling the imitation agent to do sampling-based exploration in the environment. Such exploration enables our imitation agent to learn to outperform the expert. Empirical results show that our method outperforms all other baselines including a state-of-the-art curiosity-based reward learning method, two state-of-the-art IRL methods, and behavioral cloning. A comparative analysis of all methods shows the advantages of our imitation learning algorithm across multiple Atari games and continuous control tasks. An interesting topic for future investigation would be to apply our GIRL to a typical, but difficult, exploration task.

Acknowledgements

Ivor W. Tsang was supported by ARC DP180100106 and DP200101328. Xingrui Yu was supported by China Scholarship Council No. 201806450045.

References

Appendix A Appendix

a.1 Ablation study

a.1.1 Ablation study of our method with different - learning curves.

The full learning curves of our method with different have been shown on Figure 7.

(a) Space Invaders.
(b) Beam Rider.
(c) Breakout.
(d) Q*bert.
(e) Seaquest.
(f) Kung Fu Master.
Figure 7: Average return vs. number of simulation steps on Atari games. The solid lines show the mean performance over 5 random seeds. The shaded area represents the standard deviation from the mean. The blue dotted line denotes the average return of expert. The area above the blue dotted line means performance beyond the expert.

a.1.2 The effect of standardization in GIRIL and CDIL

Expert Demonstration GIRIL CDIL
Game Average Average Standardized Original Standardized Original
Space Invaders 734.1 600.0 992.9 565.5 668.9 532.7
Beam Rider 2,447.7 1,332.0 3,202.3 1,810.4 2,556.9 1,808.1
Breakout 346.4 305.0 426.9 375.2 369.2 369.7
Q*bert 13,441.5 8,150.0 42,705.7 21,080.3 30,070.8 12,755.4
Seaquest 1,898.8 440.0 731.8 2,022.4 897.7 775.4
Kung Fu Master 23,488.5 6,500.0 23,543.6 23,984.8 17,291.6 18,663.6
Table 6: Ablation study of standardized intrinsic reward on the GIRIL and CDIL. The results shown are the mean performance over 5 random seeds with better-than-expert performance in bold.

Table 6 compares GIRIL and CDIL trained via PPO with the standardized intrinsic reward and the original intrinsic reward. With the original intrinsic reward, CDIL was able to outperform the one-life demonstration on five out of six games, but only beat the expert on Breakout. With standardization, CDIL was able to surpass the expert in two more games, Beam Rider and Q*bert. GIRIL maintain its superior performance with better-than-one-life performance on five of six games, and better-than-expert performance on four. Notably, standardizing the reward gave GIRIL the power to outperform the one-life results with two more games and the expert results with one more game. Without standardization, GIRIL still outperformed other baselines.

a.1.3 The effects of in GAIL and in VAIL

We then compare GIRIL against GAIL with two different reward function (= and =, where is the discriminator) and VAIL with two different information constraints (=, and =). = and = are the default hyper-parameters in karnewar2018repo and peng2018variational, respectively. The results are provided in Table 7.

Expert Demonstration GIRIL VAIL () GAIL ()
Game Average Average Average 0.2 0.5
Space Invaders 734.1 600.0 992.9 549.4 426.5 228.0 129.9
Beam Rider 2,447.7 1,332.0 3,202.3 2,864.1 2,502.7 285.5 131.3
Breakout 346.4 305.0 426.9 36.1 27.2 1.3 2.5
Q*bert 13,441.5 8,150.0 42,705.7 10,862.3 54,247.3 8,737.4 205.3
Seaquest 1,898.8 440.0 2,022.4 312.9 1,746.7 0.0 28.9
Kung Fu Master 23,488.5 6,500.0 23,543.6 24,615.9 14,709.3 1,324.5 549.7
Table 7: Parameter Analysis of the GIRIL versus VAIL with different information constraints , and versus GAIL with different rewards , i.e. = and =. The results shown are the mean performance over 5 random seeds with better-than-expert performance in bold.

As the results show, GAIL with performed better than that with . VAIL showed similar performance no matter the information constraint. Both outplayed the expert on two games - an overall worse performance than CDIL with standardized reward and GIRIL with both types of reward.

a.1.4 The effect of the number of full-episode demonstrations.

We also evaluated our method with different number of full-episode demonstrations on both Atari games and continuous control tasks. Table 8 and Table 9 show the detailed quantitative comparison of imitation learning methods across different number of full-episode demonstrations in the games, Breakout and Space Invaders. The comparisons on two continuous control tasks, InvertedPendulum and InvertedDoublePendulum, have been shown in Table 10 and Table 11.

The results shows that our method GIRIL achieves the highest performance across different numbers of full-episode demonstrations, and CDIL usually comes the second best. GAIL is also able to achieve good performance with the increase of the demonstration number in both continuous control tasks.

# Demonstrations GIRIL CDIL VAIL GAIL
1 413.9 361.2 34.0 1.4
5 384.4 334.9 30.5 1.9
10 415.0 332.1 27.1 2.9
Table 8: Parameter Analysis of the GIRIL versus other baselines with different number of full-episode demonstrations on Breakout game. The results shown are the mean performance over 5 random seeds with best performance in bold.
# Demonstrations GIRIL CDIL VAIL GAIL
1 1,073.8 557.5 557.0 190.0
5 977.6 580.6 4.4 190.0
10 910.3 533.2 90.0 190.0
Table 9: Parameter Analysis of the GIRIL versus other baselines with different number of full-episode demonstrations on Space Invaders game. The results shown are the mean performance over 5 random seeds with best performance in bold.
# Demonstrations GIRIL CDIL VAIL GAIL
1 990.2 979.7 113.6 612.6
5 1,000.0 1,000.0 78.5 1,000.0
10 994.4 999.9 80.1 988.2
Table 10: Parameter Analysis of the GIRIL versus other baselines with different number of full-episode demonstrations on InvertedPendulum task. The results shown are the mean performance over 5 random seeds with best performance in bold.
# Demonstrations GIRIL CDIL VAIL GAIL
1 9,164.9 7,114.7 725.2 1,409.0
5 9,290.4 7,628.7 342.9 8,634.5
10 8,972.8 8,548.6 714.8 8,842.0
Table 11: Parameter Analysis of the GIRIL versus other baselines with different number of full-episode demonstrations on InvertedDoublePendulum task. The results shown are the mean performance over 5 random seeds with best performance in bold.

a.2 Details of the curiosity-driven imitation learning (Cdil)

The Intrinsic Curiosity Module (ICM) is a natual choice for reward learning in imitaiton learning. ICM is a state-of-the-art exploration method (pathak2017curiosity; burda2018large) that transforms high-dimensional states into a visual feature space and then impose a cross-entropy loss and a Euclidean loss to learn the features with a self-supervised inverse dynamic model. Further, the prediction error in the feature space becomes the intrinsic reward function for exploration. As illustrated in Figure 8, ICM encodes the states , into features and then the inverse dynamic model is trained to predict actions from the states features and . Additionally, the forward model takes a feature and an action as input and predicts the feature representation of state . The intrinsic reward is calculated as the curiosity, i.e. the prediction error in the feature space.

Figure 8: Intrinsic Curiosity Module (ICM).

In ICM, the inverse dynamic model is used to predict the action , and is optimized by:

(3)

where

is the loss function measures the discrepancy between the predicted and actual action. In our experiments, we use cross-entropy loss for Atari games and mean squared error (MSE) for continuous control tasks.

The forward dynamic model estimates the feature of next state , and is optimized by:

(4)

where is the norm.

ICM is optimized by minimizing the overall objective as follows:

(5)

The intrinsic reward signal is calculated as the prediction error in feature space:

(6)

where is the norm, and is a scaling weight. In all experiments, .

Thus, our solution combines ICM for reward learning and reinforcement learning. The full CDIL training procedure is summarized in Algorithm 2.

1:  Input: Expert demonstration data .
2:  Initialize policy , encoder and decoder .
3:  for  do
4:     Sample a batch of demonstration .
5:     Train and to optimize the objective (5) on .
6:  end for
7:  for  do
8:     Update policy parameters via any policy gradient method, e.g., PPO on the intrinsic reward inferred by Eq. (6).
9:  end for
10:  Output: Policy .
Algorithm 2 Curiosity-driven imitation learning (CDIL)

In brief, the process begins by training ICM for epochs (Steps 3-6). In each training epoch, we sample a mini-batch of demonstration data with a size of and maximize the objective in Eq. (5). Steps 7-9 perform policy gradient steps, e.g., PPO(schulman2017proximal), so as to optimize the policy with the intrinsic reward inferred with ICM using Eq. (6). We treated CDIL as a related baseline in our experiments, using the feature extractor with the same architecture as the encoder except for the final dense layer. We trained the ICM using the Adam optimizer (kingma2014adam) with a learning rate of 3e-5 and a mini-batch size of 32 for 50, 000 epochs. In each training epoch, we sample a mini-batch data every four states for Atari games and every 20 states for continuous control tasks.
