Intriguing properties of adversarial training

06/10/2019 ∙ by Cihang Xie, et al. ∙ 0

Adversarial training is one of the main defenses against adversarial attacks. In this paper, we provide the first rigorous study on diagnosing elements of adversarial training, which reveals two intriguing properties. First, we study the role of normalization. Batch normalization (BN) is a crucial element for achieving state-of-the-art performance on many vision tasks, but we show it may prevent networks from obtaining strong robustness in adversarial training. One unexpected observation is that, for models trained with BN, simply removing clean images from training data largely boosts adversarial robustness, i.e., 18.3 hypothesis that clean images and adversarial images are drawn from two different domains. This two-domain hypothesis may explain the issue of BN when training with a mixture of clean and adversarial images, as estimating normalization statistics of this mixture distribution is challenging. Guided by this two-domain hypothesis, we show disentangling the mixture distribution for normalization, i.e., applying separate BNs to clean and adversarial images for statistics estimation, achieves much stronger robustness. Additionally, we find that enforcing BNs to behave consistently at training and testing can further enhance robustness. Second, we study the role of network capacity. We find our so-called "deep" networks are still shallow for the task of adversarial learning. Unlike traditional classification tasks where accuracy is only marginally improved by adding more layers to "deep" networks (e.g., ResNet-152), adversarial training exhibits a much stronger demand on deeper networks to achieve higher adversarial robustness. This robustness improvement can be observed substantially and consistently even by pushing the network capacity to an unprecedented scale, i.e., ResNet-638.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 1

page 2

page 3

page 4

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Adversarial attacks Szegedy2014

can mislead neural networks to make wrong predictions by adding human imperceptible perturbations to input data. Adversarial training

Goodfellow2015 is shown to be an effective method to defend against such attacks, which trains neural networks on adversarial images that are generated on-the-fly during training. Later works further improve robustness of adversarially trained models by mitigating gradient masking Tramer2018

, imposing logits pairing

Kannan2018 , denoising at feature space Xie2019 , . However, these works mainly focus on justifying the effectiveness of proposed strategies and apply inconsistent pipelines for adversarial training, which leaves revealing important elements for training robust models still a missing piece in current adversarial research.

In this paper, we provide the first rigorous diagnosis of different adversarial learning strategies, under a unified training and testing framework, on the large-scale ImageNet dataset

Russakovsky2015 . We discover two intriguing properties of adversarial training, which are essential for training models with stronger robustness. First, though batch normalization (BN) Ioffe2015 is known as a crucial component for achieving state-of-the-arts on many vision tasks, it may become a major obstacle for securing robustness against strong attacks in the context of adversarial training. By training such networks adversarially with different strategies, , imposing logits pairing Kannan2018 , we observe an unexpected phenomenon — removing clean images from training data is the most effective way for boosting model robustness. We relate this phenomenon to the conjecture that clean images and adversarial images are drawn from two different domains. This two-domain hypothesis may explain the limitation of BN when training with a mixture of clean and adversarial images, as estimating normalization statistics on this mixture distribution is challenging. We further show that adversarial training without removing clean images can also obtain strong robustness, if the mixture distribution is well disentangled at BN by constructing different mini-batches for clean images and adversarial images to estimate normalization statistics, , one set of BNs exclusively for adversarial images and another set of BNs exclusively for clean images. An alternative solution to avoiding mixture distribution for normalization is to simply replace all BNs with batch-unrelated normalization layers, , group normalization Wu2018 , where normalization statistics are estimated on each image independently. These facts indicate that model robustness is highly related to normalization in adversarial training. Furthermore, additional performance gain is observed via enforcing consistent behavior of BN during training and testing.

Second, we find that our so-called “deep” networks (, ResNet-152) are still shallow for the task of adversarial learning, and simply going deeper can effectively boost model robustness. Experiments show that directly adding more layers to “deep” networks only marginally improves accuracy for traditional image classification tasks. In contrast, substantial and consistent robustness improvement is witnessed even by pushing the network capacity to an unprecedented scale, , ResNet-638. This phenomenon suggests that larger networks are encouraged for the task of adversarial learning, as the learning target, , adversarial images, is a much more complex distribution than clean images to fit.

In summary, our paper reveals two intriguing properties of adversarial training: (1) properly handling normalization is essential for obtaining models with strong robustness; and (2) our so-called “deep” networks are still shallow for the task of adversarial learning. We hope these findings can benefit future research on understanding adversarial training and improving adversarial robustness.

2 Related Work

Adversarial training.

Adversarial training constitutes the current foundation of state-of-the-arts for defending against adversarial attacks. It is first developed in Goodfellow2015 where both clean images and adversarial images are used for training. Kannan Kannan2018 propose to improve robustness further by encouraging the logits from the pairs of clean images and adversarial counterparts to be similar. Instead of using both clean and adversarial images for training, Madry Madry2018 formulate adversarial training as a min-max optimization and train models exclusively on adversarial images. However, as these works mainly focus on demonstrating the effectiveness of their proposed mechanisms, a fair and detailed diagnosis of adversarial training strategies remains as a missing piece. In this work, we provide a detailed diagnosis which reveals two intriguing properties of training adversarial defenders.

Normalization Layers.

Normalization is an effective technique to accelerate the training of deep networks. Different methods are proposed to exploit batch-wise (, BN Ioffe2015 ), layer-wise (, layer normalization Ba2016 ) or channel-wise (, instance normalization Ulyanov2016 and group normalization Wu2018 ) information for estimating normalization statistics. Different from traditional vision tasks where BN usually yields stronger performance than other normalization methods, we show that BN may become a major obstacle for achieving strong robustness in the context of adversarial training, and properly handling normalization is the essential key to improving adversarial robustness.

3 Adversarial Training Framework

As inconsistent adversarial training pipelines were applied in previous works Kannan2018 ; Xie2019 , it is hard to identify which elements are important for obtaining robust models. To this end, we provide a unified framework to train and to evaluate different models, for the sake of fair comparison.

Training Parameters.

We use the publicly available adversarial training pipeline111https://github.com/facebookresearch/ImageNet-Adversarial-Training to train all models with different strategies on ImageNet. We select ResNet-152 He2016 as the baseline network, and apply projected gradient descent (PGD) Madry2018 as the adversarial attacker to generate adversarial examples during training. The hyper-parameters of the PGD attacker are: maximum perturbation of each pixel = 16, attack step size

= 1, number of attack iterations N = 30, and the targeted class is selected uniformly at random over the 1000 ImageNet categories. We initialize the adversarial image by the clean counterpart with probability = 0.2, or randomly within the allowed

cube with probability = 0.8. All models are trained for a total of epochs, and we decrease the learning rate by 10 at the 35-th, 70-th, and 95-th epoch.

Evaluation.

For performance evaluation, we mainly study adversarial robustness (rather than clean image accuracy) in this paper. Specifically, we follow Kannan2018 ; Xie2019 where the targeted PGD attacker is chosen as the white-box attacker to evaluate robustness. The targeted class is selected uniformly at random. We constrain the maximum perturbation of each pixel = 16, set the attack step size = 1, and measure the robustness by defending against PGD attacker of 2000 attack iterations (PGD-2000). As in Kannan2018 ; Xie2019 , we always initialize the adversarial perturbation from a random point within the allowed -cube.

We apply these training and evaluation settings by default for all experiments, unless otherwise stated.

4 Exploring Normalization Techniques in Adversarial Training

4.1 On the Effects of Clean Images in Adversarial Training

In this part, we first elaborate on the effectiveness of different adversarial training strategies on model robustness. Adversarial training can be dated back to Goodfellow2015

, where Goodfellow mix clean images and their adversarial counterparts into each mini-batch for training. We choose this strategy as our starting point, and the corresponding loss function is:

(1)

where is the loss function, is the network parameter, is the ground-truth, and training pairs are comprised of clean images and their adversarial counterparts, respectively. The parameter balances the relative importance between clean image loss and adversarial image loss. We set following Goodfellow2015 . With our adversarial training framework, this model can achieve 20.9% accuracy against PGD-2000 attacker. Besides this baseline, we then study the effectiveness of two recently proposed adversarial training strategies Madry2018 ; Kannan2018 .

Ratio of clean images.

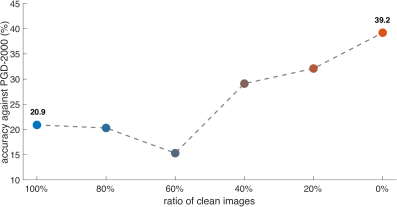

Figure 1: The relationship between model robustness and the portion of clean images used for training. We observe that the strongest robustness can be obtained by training completely without clean images, surpassing the baseline model by 18.3% accuracy against PGD-2000 attacker.

Different from the canonical formulation in Goodfellow2015 , the min-max version in Madry2018 involves no clean images for adversarial training. We hereby investigate the relationship between model robustness and the ratio of clean images used for training. Specifically, for each training mini-batch, we keep adversarial images unchanged, but removing their clean counterparts by 20%, 40%, 60%, 80% and 100%. We report the results in Figure 1. Interestingly, removing a portion of clean images from training data can significantly improve model robustness, and the strongest robustness can be obtained by completely removing clean images from the training set, , it achieves an accuracy of 39.2% against PGD-2000 attacker, outperforming the baseline model by a large margin of 18.3%.

Adversarial logits pairing.

For performance comparison, we also explore the effectiveness of an alternative training strategy, adversarial logits pairing (ALP) Kannan2018 . Compared with the canonical formulation in Goodfellow2015 , ALP imposes an additional loss to encourage the logits from the pairs of clean images and adversarial counterparts to be similar. As shown in Figure 2, our re-implemented ALP obtains an accuracy of 23.0% against PGD-2000 attacker222Surprisingly, we note our reproduced ALP result is significantly stronger than the result reported in the original ALP paper Kannan2018 , as well in an independent study Engstrom2018 . We identify this performance gap is mainly due to different settings of training parameter, and provide a detailed diagnosis in the supplementary material., which outperforms the baseline model by 2.1%. Compared with the strategy of removing clean images, this improvement is much smaller.

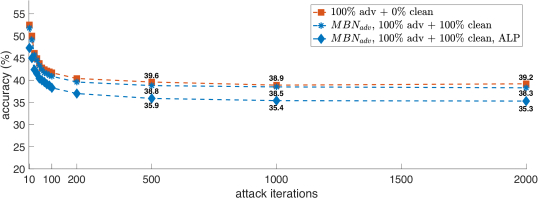

Figure 2: Comprehensive robust evaluation on ImageNet. For models trained with different strategies, we show their accuracy against a PGD attacker with 10 to 2000 iterations. Only the curve of 100% adv + 0% clean becomes asymptotic when evaluating against attackers with more iterations.

Discussion.

Given the results above, we conclude that training exclusively on adversarial images is the most effective strategy for boosting model robustness. For example, by defending against PGD-2000 attacker, the baseline strategy in Goodfellow2015 (referred to as 100% adv + 100% clean) obtains an accuracy of 20.9%. Adding an loss of logits pairing Kannan2018 (referred to as 100% adv + 100% clean, ALP) slightly improves the performance by 2.1%, while completely removing clean images Madry2018 ; Xie2019 (referred to as 100% adv + 0% clean) boosts the accuracy by 18.3%. We further plot a comprehensive evaluation curve of these three training strategies in Figure 2, by varying the number of PGD attack iteration from 10 to 2000. Surprisingly, only 100% adv + 0% clean can ensure model robustness against strong attacks, , performance becomes asymptotic by allowing PGD attacker to perform more attack iterations. Training strategies which involve clean images for training are suspicious to result in worse robustness, if PGD attackers are allowed to perform more attack iterations. In the next section, we will study how to make these training strategies, , 100% adv + 100% clean and 100% adv + 100% clean, ALP to secure their robustness against strong attacks.

4.2 The Devil is in the Batch Normalization

Two-domain hypothesis.

Compared to feature maps of clean images, Xie Xie2019 show that feature maps of their adversarial counterparts tend to be more noisy. Meanwhile, Li2017 ; Metzen2017 ; Feinman2017

demonstrate it is possible to build classifiers to separate adversarial images from clean images. These studies suggest that

clean images and adversarial images are drawn from two different domains333Or more precisely, “natural” images collected in the datasets and the corresponding adversarial images may come from two different distributions.. This two-domain hypothesis may provide an explanation to the unexpected observation (see Sec. 4.1) and we ask — why simply removing clean images from training data can largely boost adversarial robustness?

As a crucial element for achieving state-of-the-arts on various vision tasks, BN Ioffe2015 is widely adopted in many network architectures, , Inception Szegedy2015a , ResNet He2016 and DenseNet Huang2017 . The normalization statistics of BN are estimated across different images. However, exploiting batch-wise statistics is a challenging task if input images are drawn from different domains and networks fail to learn a unified representation on this mixture distribution. Given our two-domain hypothesis, when training with both clean and adversarial images, the usage of BN can be the key issue for causing the observed weak robustness in Figure 2.

Based on the analysis above, an intuitive solution arise: accurately estimating normalization statistics should enable models to train robustly even if clean images and adversarial images are mixed at each training mini-batch. To this end, we explore two ways, where the mixture distribution is disentangled at normalization layers, for validating this argument: (1) maintaining separate BNs for clean images and adversarial images; or (2) replacing BNs with batch-unrelated normalization layers.

Figure 3: Disentangling the mixture distribution for normalization secures model robustness. Unlike the blue curves in Figure 2, these new curves now become asymptotic when evaluating against attackers with more iterations, which indicate that the networks using MBNadv can behave robustly against PGD attackers with different attack iterations, even if clean images are used for training.

Training with Mixture BN.

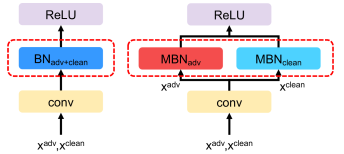

Figure 4: Standard BN (left) estimates normalization statistics on the mixture distribution. Our proposed MBN (right) disentangles the distribution by constructing different mini-batch for clean and adversarial images to estimate normalization statistics.

Current network architectures estimate BN statistics using mixed features from both clean and adversarial images, which leads to weak model robustness as shown in Figure 2. To disentangle the mixed distribution for accurate statistics estimation, we propose Mixture BN (MBN), which constructs different mini-batches for clean and adversarial images to estimate BN statistics (illustrated in Figure 4), , one set of BNs exclusively for adversarial images (referred to as MBNadv), and another set of BNs exclusively for clean images (referred to as MBNclean). We do not change the structure of other layers. We verify the effectiveness of this new architecture with two (previously less robust) training strategies, , 100% adv + 100% clean and 100% adv + 100% clean, ALP.

At inference time, whether an image is adversarial or clean is unknown. We thereby measure the performance of networks by applying either MBNadv or MBNclean separately. The results are shown in Table 1. We find the performance is strongly related to how BN is trained: when using MBNclean, the trained network achieves nearly the same clean image accuracy as the whole network trained exclusively on clean images; when using MBNadv, the trained network achieves nearly the same adversarial robustness as the whole network trained exclusively on adversarial images. Other factors, like whether ALP is applied for training, only cause subtle differences in performance. We further plot an extensive robustness evaluation curve of different training strategies in Figure 3. Unlike Figure 2, we observe that networks using MBNadv now can secure their robustness against strong attacks, , the robustness is asymptotic when increasing attack iterations from to .

The results in Table 1 suggest that BN statistics characterize different model performance. For a better understanding, we randomly sample 20 channels of a residual block and plot the corresponding running statistics of MBNclean and MBNadv in Figure 5

. It is shown that clean images and adversarial images induce significantly different running statistics, though these images share the same set of convolutional filters for feature extraction. This observation further supports that (1) clean images and adversarial images come from two different domains; and (2) current networks fail to learn a unified representation for both domains. Interestingly, we also find that adversarial images lead to larger running mean and variance than clean images. This phenomenon is also consistent with the observation that adversarial images produce noisy-patterns/outliers at feature space

Xie2019 .

As a side note, the MBN structure is also used for training generative adversarial networks (GAN) Goodfellow2014 . Chintala Chintala2016 suggest to construct each mini-batch with only real images or generated images when training discriminators, as generated images and real images belong to different domains at the early training stage. However, unlike our situation where BN statistics estimated on different domains remain divergent after training, a successful training of GAN, , able to generate natural images with high quality, usually learns a unified set of BN statistics on real and generated images.

Figure 5: Statistics of running mean and running variance of the proposed MBN on randomly sampled 20 channels in a ResNet-152’s res3 block. This suggests that clean and adversarial images induce significantly different normalization statistics.
training strategy clean image accuracy (%) 0% adv + 100% clean 78.9 MBNclean, 100% adv + 100% clean +0.4 MBNclean, 100% adv + 100% clean, ALP -0.5 training strategy PGD-2000 accuracy (%) 100% adv + 0% clean 39.2 MBNadv, 100% adv + 100% clean -0.9 MBNadv, 100% adv + 100% clean, ALP -3.9 Table 1: MBN statistics characterize model performance. Using MBNclean/MBNclean, the trained models achieve strong performance on clean/adversarial images. training strategy PGD-2000 accuracy (%) 100% adv + 0% clean 39.2 100% adv + 0% clean* +3.0 MBNadv, 100% adv + 100% clean 38.3 MBNadv, 100% adv + 100% clean* +1.6 MBNadv, 100% adv + 100% clean, ALP 35.3 MBNadv, 100% adv + 100% clean, ALP* +2.8 Table 2: Enforcing a consistent behavior of BN at the training stage and the testing stage significantly boosts adversarial robustness. * denotes that running statistics is used at the last 10 training epochs.

Training with batch-unrelated normalization layers.

Instead of applying the proposed MBN structure to disentangle the mixture distribution, we can also train with batch-unrelated normalization, which avoids exploiting the batch dimension to calculate statistics, for the same propose. We choose group normalization (GN) for this experiment, as GN can reach a comparable performance to BN on various vision tasks Wu2018 . Specifically, for each image, GN divides the channels into groups and computes the normalization statistics within each group. By replacing all BNs with GNs, the mixture training strategy 100% adv + 100% clean now can ensure robustness against strong attacks, , the model trained with GN achieves 39.5% accuracy against PGD-500, and increasing attack iterations to 2000 only cause a marginal performance drop by 0.5% (39.0% accuracy against PGD-2000). Exploring other batch-unrelated normalization in adversarial training remains as future work.

Exceptional cases.

There are some situations where models directly trained with BN can also ensure their robustness against strong attacks, even if clean images are included for adversarial training. Our experiments show constraining the maximum perturbation of each pixel to be a smaller value, , = 8, is one of these exceptional cases. Kannan2018 ; Mosbach2018 also show that adversarial training with clean images can secure robustness on small datasets, , MNIST, CIFAR-10 and Tiny ImageNet. Intuitively, generating adversarial images on these much simpler datasets or under a smaller perturbation constraint induces a smaller gap between these two domains, and therefore making it easier for networks to learn a unified representation on clean and adversarial images. Nonetheless, in this paper, we stick to the standard protocol in Kannan2018 ; Xie2019 where adversarial robustness is evaluated on ImageNet with the perturbation constraint = 16.

4.3 Revisiting Statistics Estimation of BN

Inconsistent behavior of BN.

As the concept of “batch” is not legitimate at inference time, BN behaves differently at training and testing Ioffe2015 : during training, the mean and variance are computed on each mini-batch, referred to as batch statistics; during testing, there is no actual normalization performed — BN uses the mean and variance pre-computed on the training set (often by running average) to normalize data, referred to as running statistics.

For traditional classification tasks, batch statistics usually converge to running statistics by the end of training, thus (practically) making the impact of this inconsistent behavior negligible. Nonetheless, this empirical assumption may not hold in the context of adversarial training. We check this statistics matching of models trained with the strategy 100% adv + 0% clean, where the robustness against strong attacks is secured. We randomly sample 20 channels from a residual block, and plot the batch statistics computed on two randomly sampled mini-batches, together with the pre-computed running statistics. In Figure 6, interestingly, we observe that batch mean is almost equivalent to running mean, while batch variance does not converge to running variance yet on certain channels. Given this fact, we then study if this inconsistent behavior of BN affects model robustness in adversarial training.

Figure 6: Comparison of batch statistics and running statistics of BN on randomly sampled 20 channels in a ResNet-152’s res3 block. We observe that batch mean can converge to running mean, while batch variance still differs from running variance.

A heuristic approach.

Instead of developing a new training strategy to make batch statistics converge to running statistics by the end of training, we explore a more heuristic solution: applying pre-computed running statistics for model training during the last 10 epochs. We report the performance comparison in Table

2. By enabling BNs to behave consistently at training and testing, this approach can further boost the model robustness by 3.0% with the training strategy 100% adv + 0% clean. We also successfully validate the generality of this approach on other two robust training strategies. More specifically, it can improve the model robustness under the training strategies MBNadv, 100% adv + 100% clean and MBNadv, 100% adv + 100% clean, ALP by 1.6% and 2.8%, respectively. These results suggest that model robustness can be benefited from a consistent behavior of BN at training and testing. Moreover, we note this approach does not incur any additional training budgets.

4.4 Beyond Adversarial Robustness

On the importance of training convolutional filters adversarially.

In Section 4.2, we study the performance of models where the mixture distribution is disentangled for normalization — by applying MBNclean or MBNadv, the trained models achieve strong performance on either clean images or adversarial images. This result suggests that clean and adversarial images share the same convolutional filters to effectively extract features. We further explore whether the filters learned exclusively on adversarial images can extract features effectively on clean images, and vice versa. We first take a model trained with the strategy 100% adv + 0% clean, and then finetune BNs using only clean images for a few epochs. Interestingly, we find the accuracy on clean images can be significantly boosted from 62.3% to 73%. These result indicates that convolutional filters learned solely on adversarial images can also be effectively applied to clean images. However, we find the opposite direction does not work — convolutional filters learned on clean images cannot extract features robustly on adversarial images (, 0% accuracy against PGD-2000 after finetuning BNs with adversarial images). This phenomenon indicates the importance of training convolutional filters adversarially, as such learned filters can also extract features from clean images effectively.

Limitation of adversarial training.

We note that our adversarially trained models exhibit a performance tradeoff between clean image accuracy and adversarial robustness — the training strategies that achieve strong model robustness usually result in relatively low accuracy on clean images. For example, 100% adv + 0% clean, MBNadv, 100% adv + 100% clean and MBNadv, 100% adv + 100% clean, ALP only report 62.3%, 64.4% and 65.9% of clean image accuracy. By replacing BNs with GNs, 100% adv + 100% clean achieves much better clean image accuracy, , 67.5%, as well maintaining strong robustness. We note that this tradeoff is also observed in the prior work Tsipras2018 . Training models adversarially with strong performance on both clean images and adversarial images remains an open question for future research.

Figure 7: Compared to traditional image classification tasks, adversarial training exhibits a stronger demand on deeper networks.

5 Going Deeper in Adversarial Training

As discussed in Section 4.2, current networks are not capable of learning a unified representation on clean and adversarial images. It may suggest that the “deep” network we used, , ResNet-152, still underfits the complex distribution of adversarial images, as well motivates us to apply larger networks for adversarial training. We simply instantiate the concept of larger networks by going deeper, , adding more residual blocks. For traditional image classification tasks, the benefits brought by adding more layers to “deep” networks is diminishing, , the blue curve in Figure 7 shows that the improvement of clean image accuracy becomes marginal once the network depth reaches ResNet-200.

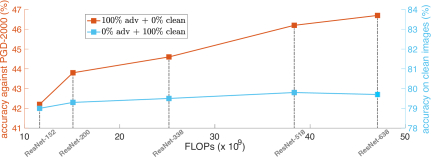

To better observe the possible underfitting phenomenon, we train deeper models exclusively on adversarial images. We apply the heuristic policy in Section 4.3 to mitigate the possible effects brought by BN. The results are reported in Figure 7. We observe that adversarial learning task exhibits a strong “thirst” on deeper networks to obtain stronger robustness. For example, increasing depth from ResNet-152 to ResNet-338 significantly improves the model robustness by 2.4%, while the corresponding improvement in the “clean” training setting (referred to as 0% adv + 100% clean) is only 0.5%. Moreover, this observation still holds even by pushing the network capacity to an unprecedented scale, , ResNet-638. These results indicate that our so-called “deep” networks (, ResNet-152) are still shallow for the task of adversarial learning, and larger networks should be used for fitting this complex distribution. This finding also coincides with the recent theoretical study Nakkiran2019 which argues that robust adversarial learning needs more complex classifiers.

Besides adversarial robustness, we also observe a consistent performance gain on clean image accuracy by increasing network depth. Our deepest network, ResNet-638, achieves an accuracy of 68.7% on clean images, outperforming the relatively shallow network ResNet-152 by 6.1%.

6 Conclusion

In this paper, we reveal two intriguing properties of adversarial training: (1) conducting normalization in the right manner is essential for training robust models; and (2) our so-called “deep” networks are still shallow for the task of adversarial learning. These discoveries may also be inherently related to our two-domain hypothesis — clean images and adversarial images are drawn from different distributions. We hope these findings can facilitate fellow researchers for better understanding of adversarial training as well as further improvement of adversarial robustness.

Acknowledgment

We would like to thank Kaiming He, Laurens van der Maaten, Judy Hoffman, Yuxin Wu, Yuyin Zhou, Zhishuai Zhang, Yingwei Li and Song Bai for valuable discussions.

References

Appendix A Diagnosis on ALP Training Parameters

In the main paper, we note that our reproduced ALP significantly outperforms the results reported in Kannan2018 , as well in an independent study Engstrom2018 . The main differences between our version and the original ALP implementation lie in parameter settings, and are detailed as follows:

  • learning rate decay: the original ALP decays the learning rate every two epochs at an exponential rate of 0.94, while ours decays the learning rate by 10 at the 35-th, 70-th and 95-th epoch. To ensure these two policies reach similar learning rates by the end of training, the total number of training epochs of the exponential decay setting and the step-wise decay setting are set as 220 and 110 respectively.

  • initial learning rate: the original ALP sets the initial learning rate as 0.045 whereas we set it as 0.1 in our implementation.

  • training optimizer: the original ALP uses RMSProp as the optimizer while we use Momentum SGD (M-SGD).

  • PGD initialization during training: the original ALP initializes the adversarial perturbation from a random point within the allowed cube; while we initialize the adversarial image by its clean counterpart with probability = 0.2, or randomly within the allowed the cube with probability = 0.8.

  • number of GPUs: the original ALP uses 50 GPUs for adversarial training, while ours uses 128 GPUs.

  • network backbone: the original ALP reports results based on Inception-v3 and ResNet-101, while our backbone is ResNet-152.

  • PGD-N for training: the original ALP uses PGD-10 for training, while we use PGD-30 for training.

PGD-N for network #GPUs PGD initialization optimizer initial lr lr decay accuracy (%)
training PGD-10 PGD-2000
10 ResNet-101 48 P(-cube) = 1.0 RMSProp 0.045 exponential 38.1 2.1
step-wise 47.0 2.7
0.1 50.2 0.8
M-SGD 48.2 0.7
P(-cube) = 0.8 P(clean) = 0.2 47.0 2.1
128 47.5 2.9
ResNet-152 47.3 3.3
30 48.8 23.0
Table 3: The results of ALP re-implementations under different parameter settings. We show that applying stronger attackers for training, , change from PGD-10 to PGD-30, is the most important factor for achieving strong robustness. Other parameters, like optimizer, do not lead to significant robustness changes.

By following the parameter settings listed in the ALP paper444For easier implementation, we apply 48 GPUs (which can be distributed over 6 8-GPU machines) for adversarial training, instead of using the original number, , 50 GPUs. , we can train a ResNet-101 with an accuracy of 38.1% against PGD-10. The ResNet-101 performance reported in the ALP paper is 30.2% accuracy against an attack suite555This attack suite contains 8 different attackers, including PGD-10. However, due to the vague description of parameter settings in this attack suite, we are not able to reproduce it.. This 8% performance gap is possibly due to different attacker settings in evaluation. However, by evaluating this model against PGD-2000, we are able to obtain results which are similar to Engstrom2018 , , Engstrom2018 reports ALP obtains 0% accuracy, and in our implementation the accuracy is 2.1%.

Given these different settings, we change them one by one to train corresponding models adversarially. The results are summarized in Table 3. Surprisingly, we find the most important factor for the performance gap between original ALP paper and ours is the attacker strength used for training — by changing the attacker from PGD-10 to PGD-30 for training, the robustness against PGD-2000 can be increased by 19.7%. Other parameters, like network backbones or the GPU number, do not lead to significant performance changes.

Appendix B Exploring the Impact of Parameter Settings in Adversarial Training

In this section, we explore the impact of different training parameters on model performance.

b.1 PGD-N for Training

As suggested in Table 3, the number of attack iteration used for training is an important factor for model robustness. We hereby provide a detailed diagnosis of model performance trained with PGD-{5, 10, 20}666For PGD-5 and PGD-10, we set the attack step size to be 4 and 2, respectively. for different training strategies (not limit to 100% adv + 100% clean, ALP). We report the performance in Table 4, and observe that decreasing the number of PGD attack iteration used for training usually leads to weaker robustness. Nonetheless, we note the amount of this performance change is largely related to training strategies. For strategies that cannot lead to models with strong robustness, , 100% adv + 100% clean and 100% adv + 100% clean, ALP, this robustness degradation is extremely severe (which is similar to the observation in Table 3). For example, by training with PGD-5, these two strategies obtains nearly no robustness, , 0% accuracy against PGD-2000. While for strategies that can ensure model robustness against strong attacks, changing from PGD-30 to PGD-5 for training lose robustness at a reasonable amount.

PGD-N for training accuracy against PGD-2000 (%)
100% adv + 0% clean 100% adv + 100% clean 100% adv + 100% clean, ALP MBNadv, 100% adv + 100% clean MBNadv, 100% adv + 100% clean, ALP
30 39.2 20.9 23.0 38.3 35.3
20 -1.0 -7.3 -3.8 -4.2 +0.5
10 -2.4 -17.7 -19.7 -5.5 -1.4
5 -3.3 -20.9 -22.7 -7.1 -2.4
Table 4: Robustness evaluation of models adversarially trained with PGD-{30, 20, 10, 5} attackers. We observe that decreasing the number of PGD attack iteration for training usually leads to weaker robustness, while the amount of degraded robustness is largely related to training strategies.

b.2 Applying Running Statistics in Training

In Section 4.3 (of the main paper), we study the effectiveness of applying running statistics in training. We hereby test this heuristic policy on more settings. Specifically, we consider 3 strategies, each trained with 4 different attackers (, PGD-{5, 10, 20, 30}), which results in 12 different settings. We report the result in Table 5. We observe this heuristic policy can boost robustness on all settings, which further supports the importance of enforcing BN to behave consistently at training and testing.

training strategy accuracy against PGD-2000 (%) PGD-5 PGD-10 PGD-20 PGD-30 100% adv + 0% clean 35.9 36.8 38.2 39.2 100% adv + 0% clean* +1.9 +2.4 +1.8 +3.0 MBN, 100% adv + 0% clean 31.2 32.8 34.1 38.3 MBN, 100% adv + 0% clean* +3.0 +3.3 +2.4 +1.6 MBN, 100% adv + 0% clean, ALP 32.9 33.9 35.8 35.3 MBN, 100% adv + 0% clean, ALP* +2.5 +2.8 +1.3 +2.8 Table 5: Validating the effectiveness of applying running statistics in training on more settings. We observe this heuristic policy can boost robustness on all settings. * denotes that running statistics is used at the last 10 training epochs. training accuracy against batch size PGD-2000 (%) 4096 42.2 512 -0.2 1024 +0.9 2048 +1.1 8192 -0.3 Table 6: Performance evaluation of models trained with different batch size. The best performance can be achieved by training with a batch size of 2048.

b.3 Batch Size in Training

The default number of training batch size is 4096. We hereby study the model performance when training with the batch size of {512, 1024, 2048, 8192}, respectively. Without loss of generality, we study the training strategy 100% adv + 0% clean. The heuristic policy in Section 4.3 (of the main paper) is applied to achieve stronger robustness. Compared to the default setting (, 4096 images/batch), training with smaller batch size leads to better robustness. For example, changing batch size from 4096 to 1024 or 2048 can improve the model robustness by 1%. While training with much smaller (, 512 images/batch) or much larger (, 8192 images/batch) batch size results in a slight performance degradation.

Appendix C Performance of Adversarially Trained Models

In the main paper, our study is driven by improving adversarial robustness (measured by the accuracy against PGD-2000), while leaving the performance on clean images ignored. For the completeness of performance evaluation, we list the clean image performance of these adversarially trained models in Table 7. Moreover, to facilitate performance comparison in future works, we list the corresponding accuracy against PGD-{10, 20, 100, 500} in this table as well.

network training PGD-N setting accuracy (%)
batch for clean PGD
size training 10 20 100 500 2000
ResNet-152 4096 30 100% adv + 100% clean, ALP 73.5 48.8 46.3 34.1 27.3 23.0
100% adv + 100% clean 78.0 56.2 53.0 35.6 26.6 20.9
100% adv + 80% clean 77.4 56.8 54.6 39.6 28.7 20.3
100% adv + 60% clean 75.5 54.6 52.1 40.3 23.5 15.3
100% adv + 40% clean 73.9 54.1 51.5 40.2 33.6 29.1
100% adv + 20% clean 68.0 54.6 51.5 40.6 34.6 32.1
100% adv + 0% clean 62.3 52.5 50.0 41.7 39.6 39.2
100% adv + 0% clean* 62.1 52.4 50.3 43.9 42.6 42.2
MBNadv, 100% adv + 100% clean 64.4 51.8 49.1 40.9 38.8 38.3
MBNadv, 100% adv + 100% clean* 64.2 52.5 50.0 42.1 40.5 39.9
MBNadv, 100% adv + 100% clean, ALP 65.9 47.3 45.0 38.3 35.9 35.3
MBNadv, 100% adv + 100% clean, ALP* 64.3 49.0 47.2 40.4 38.6 38.1
GN, 100% adv + 100% clean 67.5 52.1 49.3 41.9 39.5 39.0
20 100% adv + 100% clean, ALP 72.7 50.1 47.6 33.4 25.2 19.2
100% adv + 100% clean 78.4 55.9 52.5 31.7 20.0 13.6
100% adv + 0% clean 62.5 54.1 51.1 41.8 39.0 38.2
100% adv + 0% clean* 65.4 53.9 51.0 42.7 40.8 40.0
MBNadv, 100% adv + 100% clean 67.9 52.8 49.9 39.3 35.5 34.1
MBNadv, 100% adv + 100% clean* 67.2 52.7 49.9 40.2 37.2 36.5
MBNadv, 100% adv + 100% clean, ALP 68.1 48.8 46.7 39.5 36.7 35.8
MBNadv, 100% adv + 100% clean, ALP* 67.4 50.0 47.7 40.3 37.4 37.1
10 100% adv + 100% clean, ALP 74.9 47.3 47.1 22.4 7.3 3.3
100% adv + 100% clean 78.4 56.6 55.1 28.8 7.1 3.2
100% adv + 0% clean 66.0 53.6 50.9 41.1 38.0 36.8
100% adv + 0% clean* 65.9 53.5 50.7 42.3 39.9 39.2
MBNadv, 100% adv + 100% clean 68.7 53.5 49.9 38.7 34.3 32.8
MBNadv, 100% adv + 100% clean* 67.8 52.6 49.8 40.0 36.9 36.1
MBNadv, 100% adv + 100% clean, ALP 68.7 49.0 46.8 38.9 35.4 33.9
MBNadv, 100% adv + 100% clean, ALP* 67.7 50.0 47.7 40.2 37.4 36.7
5 100% adv + 100% clean, ALP 75.0 49.6 37.6 5.7 0.8 0.3
100% adv + 100% clean 78.6 41.5 17.6 0.2 0.0 0.0
100% adv + 0% clean 67.0 54.0 50.5 40.7 37.5 35.9
100% adv + 0% clean* 66.9 53.6 50.4 41.5 38.8 37.8
MBNadv, 100% adv + 100% clean 69.3 53.0 49.8 38.0 33.3 31.2
MBNadv, 100% adv + 100% clean* 68.9 53.1 49.8 39.8 35.9 34.2
MBNadv, 100% adv + 100% clean, ALP 69.2 49.6 46.8 38.9 34.9 32.9
MBNadv, 100% adv + 100% clean, ALP* 69.2 50.4 48.3 40.3 37.0 35.4
512 30 100% adv + 0% clean* 62.6 52.4 50.4 43.8 42.4 42.0
1024 63.1 53.3 51.0 44.6 43.5 43.1
2048 62.7 53.3 50.7 45.0 43.7 43.3
8196 61.8 52.1 49.8 43.4 42.3 41.9
ResNet-200 4096 63.5 53.8 51.4 45.1 43.9 43.8
ResNet-338 65.4 55.5 53.2 46.6 45.1 44.6
ResNet-518 66.7 56.7 54.4 48.1 46.4 46.2
ResNet-638 67.2 57.2 54.8 48.7 47.1 46.7
Table 7: For easier benchmarking in future works, we list the detailed performance of adversarially trained models. * denotes running statistics is used at the last 10 training epochs.
