1 Introduction

An information system (IS) is a socio-technical system [37] that encompasses people, technology, information, and actions people take based on that information [21]. Looking at the system as a whole, rather than just individual parts allows us to reason about systemic impacts of its structure, whether that is of its technology, people, or the informed actions they take—also when those impacts transcend beyond the original system’s boundaries.

Designing information systems and accounting for the complex situated networks [64] and social contexts [33] of human stakeholders is well researched. But the recent emergence and increasing popularity [22] of data-driven animal-centered technology—think, ‘FitBit’ for your dog, or smart feeding bowls that allow your pets to communicate with you when they are hungry, bring additional complexity as animals111While humans are of course animals, in this article I use ‘animal’ as a natural shorthand for ‘non-human animal’. become stakeholders and actors in their own right. Information systems that include animals have so far typically only seen them unintentional, emergent stakeholders [66] or even just as resources, such as farm [58, 28] or veterinary [43] information systems. In contrast, this newly emerging type of animal-centered technology enables humans to better understand animals, opening interspecies communication channels otherwise left implicit, or worse, misunderstood [63, 32]. I argue that by doing so, they give rise to an interspecies information system (IIS) where both human and animal are actor and stakeholder.

The design and use of an IIS may lead to unexpected real-world challenges that transcend beyond the people, animals, and technology they envelop, as existing research investigating the use of animal-centered technology has hinted at [71, 84, 70]. Dog activity trackers may indirectly capture unrelated bystanders’ behavior, impacting on privacy, while industrial technology for farm animals may unintentionally reveal commercially sensitive information. Rather than focus solely on people, animals, and technology, understanding the data these systems capture and process into actionable information which informs concrete behavior, is necessary to anticipate such challenges. For example, data-driven suggestions for animal care may be only based on incomplete or inaccurate data, or be misinterpreted. An IS point of view on the situated technology will aid in understanding and anticipating both the data flow throughout the system and what challenges may arise from it [35, 3]. Thus, this article serves as a manifesto calling for more research into IIS, by:

  • Constructing a conceptual model for IIS, elaborating on their key components, and showing how data-driven interspecies interventions are key to understanding impact; and

  • proposing a set of ongoing challenges specific to IIS following from the conceptual model and the flow of information through IIS.

The rest of this article is structured as follows. Section 2 discusses how and why research on animal-centered technology hitherto lacks an information systems perspective. Section 3 derives an initial conceptualization of what IIS are by analyzing ‘what’s on the market’, followed by a conceptualization of a model for the IIS in Section 4. We set out ongoing challenges that emerge from the information flow in IIS in Section 5, and conclude with opportunities for research and practice in Section 6.

2 Background & Motivation—the need for an information systems perspective

Human development of technology used with animals is not new in human history. Already thousands of years ago, farming tools such as plows were used, first by humans, then with animals to improve conditions for planting crops and thereby increase our yields. More recently, digital technology is increasingly designed and adopted that is also for animals [22]—it has become animal-centered. While often driven by commercial interests to e.g., increase farm animal productivity, such technology intentionally contributes to the well-being and welfare of individual animals. The market for such technology has risen greatly. In smart farming, the proliferation of increasingly diverse biosensor technology for farm animals to support animal health (and through doing so, productivity) has significant economic consequences [45, 25] all but requiring farmers to adopt such technology. Digital technology for pets is equally seen as particularly attractive to investors [77]. Research has noted how increased economic prosperity has brought with it increased pet ownership, and consumer attitudes have paved the way for big-data driven technology which aid in a consumer demand for health and well-being of their pets [77]. Adoption of such digital technology for pets can already be observed as pets increasingly consume larger shares of household energy [60].

Understandably, research has increasingly turned its focus on how to best design such technology and understand their impact and is equally diverse in the kinds of animals it investigates. Research has designed interactions to enrich farm animals’ physical and mental well-being [18], as well as adapted existing digital technology for captive zoo animals to increase public engagement and understanding [78] by allowing zoo visitors to observe animals interacting with technology familiar to them. Extensive work has also been done on the design of digital technology for working animals [6, 26], and the adaption of existing digital technology and algorithms to increase the relationship between humans and their pets [36, 50, 53, 31]. As a result, research on animal-centered technology has built an extensive understanding of how technology might serve animals and the people they interact with.

An important development in this context is the emergence of the field of animal-computer interaction (ACI) [39], deriving primarily out of human-computer interaction, which has promoted critical reflection on the way animals interact with digital technology. Much of the research focusing on this topic has subsequently approached the topic from a background of interaction design, Whether proposing theories for human-animal interaction design [79, 42, 73] or advocating for the application of user-centered design from the animal’s point of view to the technology per sé [46, 51, 19, 54, 57]. Indeed, a report on research methods employed within ACI [82] noted most methods employed within the field are effectively borrowed from interaction design, proposing extensions primarily borrowing other disciplinary methods to further ground interactions of animals with technology. A review of ACI research seven years after the publication of its manifesto similarly concluded its research has been largely born out of HCI and ethology, focused on interaction perspectives, calling for more synthesis with animal cognition and behavior [24].

Notably, ACI research has tended to focus on designing these interactions and technology from the ground up, sometimes eschewing technology already on the market in favor of novel prototypes, whether by researching usable interfaces for cat location trackers using research prototypes rather than commercially available and used technology [62], or the speculative analysis of the impact of such technology through the integration of fictional animal personas as stakeholders [17].

Yet, as popularity of animal-centered technology has soared over the recent years and consumers and industry alike increasingly use commercially available devices [22], there is now an ever increasing urgency to study how such technology is actually used and what impact they have on animals and their owners alike. Some research has done so, from investigating consumer motivations and barriers to the purchase of companion animal technology [52], to studies comparing motivations for specific types of technology like dog activity trackers [84], or contrasting consumer perceptions between technology with similar functionality for human and animal use [69]. Going beyond the interaction perspective, little research has considered the use of commercially available technology for working animals and companion animals to understand the importance of the data such technology capture and process. For instance, by showing differences in volunteer and organizational apprehension to using activity trackers for blind guide dog raising based on a fear of data protection compliance [83], to showing privacy concerns for pet location data is related to the kind of pet and strength of the bond between owner and pet [68], to how technology-supported dog parks could encourage community connections and animal behavioral awareness [30]

While the research discussed above indeed investigates the actual technology used on the market, it still lacks critical analysis and evaluation of how such technology is situated in a wider socio-technical context, which is a crucial for IS engineering [4, 9, 65, 80]. As a result, it is currently difficult to assess how such technology actually informs understanding of animal behavior and in turn steers human action. Thus, we propose the need for interspecies information systems (IIS), moving beyond the limited focus of investigating just the technology itself or how human and animal actors interact with them, and engaging in a more holistic analysis of how such technology give rise to an IS that steers and drives human behavior towards animals.

IIS, as a specialized field of study, thus ought to investigate the IS that emerge through the use of data-driven animal-centered technology by focusing on the:

  1. actual technology used on the market, investigating how and with what goal consumers use them;

  2. way they inform and steer behavior, investigating how animal data capturing and processing increases human understanding and leads to concrete behavior;

  3. impacts of these behaviors, by systematically understanding their impact on human and animal actors.

3 Understanding what interspecies information systems are

3.1 Examples from real-world use

The data-driven animal technology focusing on measuring and suggesting interventions that are on the market are primarily focused on domesticated animals, that is, animals with whom we as humans have a mutual relationship affecting caregiving and reproduction. This includes distinct categories like companion animals, such as dogs (canis familiaris) and cats (felis catus), and farm animals such as cows (bos taurus). The focus of such technology on such domesticated animals likely reflects our closer relationship to these species and the need for support in our interspecies caregiving.

These examples are based on extensive research and interactions with vendors of animal-centered technology, market analysis reports, and insights from recent research which has analyzed over 8000 Amazon reviews of commercially available animal-centered technology (activity trackers, location trackers, etc.) [69], and studies investigating users of commercially available animal wearables [84] and their perceived impact [71].

3.1.1 Companion animals

Companion animal wearables are a quickly growing sector in the companion animal industry and cover a variety of, often data-driven, technology. While such technology is primarily visible in the context of pets, they may be suitable for a given species regardless of it’s exact role. That is, technology designed for dogs may be equally useful and suited for pet dogs, working dogs (e.g., detection dog, search and rescue dog), or service dogs (e.g., blind guide dogs or emotional assistance dog). Pet wearables in particular have been noted as one of the top industries for aspiring entrepreneurs to enter, given a large and growing customer base, relatively low investment for entry, and fairly low competition [14]. It should be no surprise that there is a proliferation of different data-intensive animal-centered technology being released and promised. Indeed, a recent article in the New York Times [55] focused on AI-driven technology for pets discussed the diversity of technology under development and on the market for pets.

Not all of such technology will promote interaction between animals and humans and give rise to an IIS. For example, in 2016, Wagg Pet Foods produced a prototype of a television remote control [59] optimized for dog physiology (color schemes fitting to dog vision, buttons suited to dog physiology). This is an example of a technology developed for use by one species, but not capturing or sharing data with the dog’s human owner to inform their understanding of, say, the dog’s likes or dislikes for particular TV channels based on their interactions with the remote. It thus remains an isolated technology, rather than giving rise to an IIS.

More potential for an IIS to emerge comes from the growing number of interactive speakers and cameras developed to increase interaction between owners and pets when pets are left alone at home. An example of such devices is Petcube [49], marketed as an interactive assistant for ‘pet parents’. Research has shown that the core functionality of such devices makes sense, as pets are capable of interacting with their owners through such technology, such as e.g., dogs using Skype to communicate with their owners [56]. These devices, while not seemingly giving rise to an IIS yet, make an important first step by enabling interspecies interactions.

When such technology goes further, and captures and processes data to inform humans how to structure those interactions, and in doing so inform interspecies interactions, they become an IIS. A technology closely related to the interactive assistant shows just such an example. Smart food dispensers are based on such interactive assistants, representing more complex technology where a pet owner can see the amount of food currently in the bowl through a weight sensor, or receive a ‘communication’ from their dog, and in return instruct the technology to dispense food. Such technology may even aid in veterinary care by providing veterinarians with more objective diet information than owner reporting. This shows that such information flow may be both indirect and direct, either when a dog indirectly triggers the system to send a signal to its owner by emptying a bowl of its food, or by doing so directly by barking into the speaker, whereupon the owner may be stimulated to release food. If such interaction is intentional, interspecies communication is indeed enabled by the technology.

Consider one of the more prevalent types of technology for companion animals, pet wearables. The market is filled with devices to monitor location of pets, track their activity and fitness, or even provide detailed insights into their health. These wearables, similar to human wearables, typically exist of a piece of sensor-laden hardware, worn by the pet, and relevant controlling technology, usually in the form of an app for the owner’s smartphone. In the context of pet wearables, location trackers are typically based on GPS or RF-based solutions, while activity trackers are typically based on accelerometers, using Bluetooth or WiFi connectivity to share data with controlling devices [72]. A popular activity tracker such as FitBark [16], thus consists of a device worn by the dog, measuring its activity akin to a regular human wearable, whose data is processed into human readable form and accompanied by suggestions for interactions (e.g., walk the dog more). Information thus flows from raw captured accelerometer data, to processed human-readable descriptive data of daily activity, to normative instructions informing concrete interactions.

It is this exact information flow that gives rise to the IIS. This therefore goes beyond a simple set of technology or enabled interactions, where it also provides an information loop in which a data-driven system tells the human owner how to intervene in different aspects of their dog’s life, or, more accurately: suggests interventions to different processes affecting their caregiving to the dog. For example such as increasing or decreasing activity, increasing or decreasing food and calories based on that activity, and so on. An IIS has emerged, as visualized by the simplified data flow in Fig. 1 consisting of actors of different species, technology capturing data of one species, and processing it for consumption and acting upon by another species.

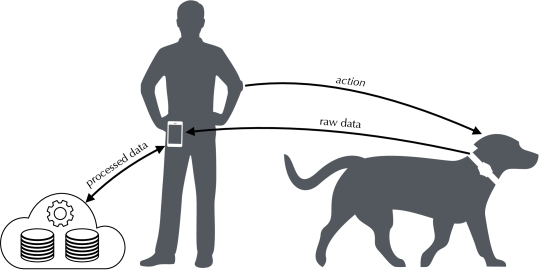

Figure 1: How use of pet wearables gives rise to an IIS: hardware worn by a dog sending data to a cloud via the owner’s phone, where software converts it into descriptive information and suggestions (e.g., walk more, eat less

3.1.2 Farm animals

Even before technology for companion animals became widespread, farm animals had been subject to increasing use of technology to optimize different processes.

Similar technology is available for farm animals, often at larger scales. Rather than individual food dispensers, auto-feeding solutions for livestock consist of sensor-driven systems which estimate the amount of food needed for farm animals based on their physiology and environmental conditions, such as e.g., determining feed during developmental stage when growing chicks for poultry meat. Such technology, however, do not give rise to an IIS as they are one-sided data-driven systems which automate the decision-making, taking the human out of the loop to decrease workload.

Yet, different systems built to optimize scaling and reduction of workload place the human central in the loop. For example, a sensor-based system for the monitoring of health and welfare data of dairy cows. Monitoring technology worn by each individual cow contains sensors which capture activity data and vital signs, sending this towards a central IS where it is processed and visualized for a farm operator to keep track of the physical and mental state of each cow. Based on data analysis, the software can inform the farm operator of cows which are showing indicators of factors that may impact the quality of their produced milk (e.g., stress levels, lameness, overheating), and, just as with companion animal systems we discussed before, inform them of concrete interactions that are required to correct this. In this context, this may be both one-on-one interactions between a human and an animal, such as stimulating a cow to walk around, or provide them with additional cognitive enrichment, while it may also be indirect technology mediated interactions, such as turning on air-conditioning to reduce overheating.

Here, just as with the case of pet wearables, an IIS emerges where a combination of technology measuring data of one species are processed to inform a human actor how to best intervene in the support of a particular process, as visualized in Fig. 2.

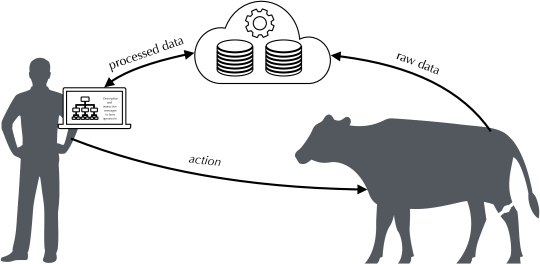

Figure 2: How use of sensor-driven systems for farm animals gives rise to an IIS: hardware worn by cows sending data to a central ‘command points’ in the farm, where an operator monitors the physical and cognitive status of each cow, and is instructed to make environmental changes where necessary (e.g., stimulate cows to be active to reduce lying around time, provide cognitive toys, turn on the AC to reduce heat stress)

3.1.3 Commonalities

Through these examples, we have established some important commonalities that IIS share regardless of functionality (e.g., activity tracking, health monitoring) or involved species (e.g., companion animals, farm animals). Specifically, that:

[roundcorner=10pt]

Commonalities of an IIS

  • an ISS enables a flow of information across species, typically informing human stakeholders of physiological or behavioral states of another species;

  • this information enables, often intentionally, informed interventions from one species to another, typically to affect their physiological or behavioral state; and

  • those interventions impact a species to aid in an external process (whether informal or well defined).

It is therefore important for the informed design and use of IIS that they understand in detail where and how information is created, and how it flows between components of the system. Below we discuss how these commonalities may be informed by, and grounded in, relevant theoretical frameworks, in turn informing a model of a general IIS.

3.2 Interspecies information flow

The flow of information between species in an IIS is typically meant to enable interactions, or communication between distinct species. From the microbial level to interaction of different mammalian species, interspecies communication has been studied extensively. From differences species of old world monkeys (cercopithecus) having mutually intelligible warning calls [85], play between chimpanzees (pan troglodytes) and bonobos (pan paniscus[38], to the well studied interspecies communication between dogs and humans, showing the formation of such communication even from a young age [12]. Research has suggested that we should not restrict ourselves solely to reciprocating communication, as unilateral ‘interactions’ play a major role in maintaining interspecies communities [44]. Kostan proposed a theory of interspecies communication [29]

based on assessment and management of information which provides insight into how the direction of information flow may enable interventions in increasing levels of reciprocity. It classifies interspecies communication into:

  1. Unidirectional assessment (one species acting upon another species’ intra-species communication)

  2. Bidirectional assessment (both species acting upon each other’s intra-species communication)

  3. Asymmetric communication (one species informing another species)

  4. Symmetric communication (two species information one another)

Assessment, whether uni- or bi-directional, are not relevant to understanding the information flow in an IIS as these constitute one-sided ‘consumption’ of information, where no interaction between species is enabled. For example, in the context of dogs, an example of unidirectional assessment could be a person hearing several dogs barking loudly in a street, and inferring that it must be a sign of danger, hence deciding to avoid walking down that street. As the enabling of communication is key for IIS to emerge, the primary distinction to make is thus whether such communication is asymmetric or symmetric. From the examples we have discussed above in Section 3.1, this shows for example:

[roundcorner=10pt]

Directionality in an IIS

Asymmetric communication: When an IIS enables an actor of one species to intervene in the behavior of another species.
For example, the monitoring of livestock, where a human operator monitors data of a herd of cows and intervenes where appropriately, while cows are unaware of the monitoring. Similarly, pet wearables present an asymmetric information flow, where a dog is monitored and software suggests how the owner may interact with them or intervene in their behavior, while dogs are unaware or engaging similarly in the IIS.

Symmetric communication: When an IIS enables actors of multiple species to intervene in each other’s behavior.
The examples of interactive assistants connected to feeding systems enable symmetric communication. A dog may share information and request action of their owner (e.g., barking to request food), while the human owner similarly may engage in interactions and request action of the dog through audio/video link.

It is thus important for the informed design and use of an IIS to account for the directionality that its information flow enables.

3.3 Interspecies interventions

The information flow within an IIS is meant to inform interventions from one species to another. It is thus important to understand how the key components like actors and technology within the IIS relate to each other to enable such interventions. As a start for theoretical grounding of how different components of an IIS are needed to enable interventions, we look towards the SHELL conceptual model that describes the interactions between the four main components of a socio-technical system: Software, Hardware, Environment, and Liveware [7]. Each of these components interacts in a given system, where here, in particular, the interactions of actors to other components are key to understanding how an interspecies intervention is enabled. As the examples in Sec. 3.1 already revealed, depending on the exact technology, actors of a given species may only interact with some of the hardware, and these interactions may be passive or active. This means that we need to explicitly distinguish the interactions that actors have with hardware, software, and each other, showing that interspecies interventions are effectively enabled as three successive interactions:

[roundcorner=10pt]

Key interactions in an IIS

Actor–hardware interactions can be active or passive, For example, with wearable technology, animal actors typically have a passive relation to the hardware, simply being made to wear it. Other technology, such as smart food dispensers show passive interactions between animal actors and the hardware, triggering a signal for more food simply by emptying the bowl. Human actors, however, will typically interact with both the hardware worn or used by animal actors in order to ensure its suitability and appropriate fit (e.g., ensuring the animal actor is not bothered by a wearable), as well as separate hardware used to control and monitor these devices.

Actor–software interactions, are the critical aspect enabling an interspecies intervention, as human actors consume information and suggestions how to interact with, or intervene in another animal actor’s behavior.

Actor–Actor interactions, finally, are the information-driven interventions that typically a human actor takes towards animal actors in the IIS to aid in an external process such as caregiving or quality management.

This emphasizes the importance of having a detailed view on what technology actors of different species interact with, and explicitly distinguishing between human and animal actors in terms of their interactions to other components of the IIS.

3.4 Interspecies impact

Many of the interventions that actors make across species boundaries informed by an IIS will lead to concrete impacts on an animal’s physical wellbeing, both on the short and long term. Over twenty-five years ago, Hirschheim et al. [23] already noted that IS design is “not merely a technical intervention but involves social and ethical dilemmas that affect the human, social and organizational domains.” Interspecies interventions enabled by an IIS showcase this complexity: both human and animal actors, as well as the wider societal and organizational environments in which both species co-exist are affected by the interventions that the IIS suggests. As interspecies relations are highly complex [5], it is therefore important to systematically treat the (potential) impact that actors have on actors of other species.

Understanding interspecies interventions enabled by an IIS as symbiotic relationships, allows us to distinguish between different levels of harm and benefit to the involved actors of different species [13], including relationships that are:

  1. Amensalistic (harming one species, while not affecting the other)

  2. Parasitic (benefiting one species, while harming the other)

  3. Commensalistic (benefiting one species, while not harming the other)

  4. Mutualistic (benefiting both species)

The impact of interventions enabled by an IIS through the subsequent interactions described before can thus be described in increasing levels of desirable symbiosis:

[roundcorner=10pt]

Impact levels in an IIS

Amensalistic impact, to a certain extent, may arise unintentionally during the design and use of an IIS if technology is designed without due regard for all involved actors. This may be linked to hardware, such as for example wildlife technology leading to unintentional death of its subjects [10]. Perhaps more critically for an IIS, software-linked harms may arise if interventions suggested by the IIS need are not accurate and appropriate. For example, a dog owner may unintentionally cause musco-skeletal injury in a dog through overtraining as a result of erroneous advice generated by an activity tracker.

Parasitic impact is unlikely to arise as an intended consequence of an individual interspecies intervention. However, as interventions are in the aid of external processes, we might critically assess whether the long-term benefits of processes supported or enabled by these interventions harm a species in the IIS, while benefiting another by e.g., trivializing their caring needs while giving a human owner a false sense of security in their caregiving capability.

Commensalistic impacts are seen in e.g., the examples of farm animal technology. The interventions that the IIS in Fig. 2 enables give direct relief to the cows by e.g., reducing their heat stress, or providing cognitive enrichment, but do not directly provide benefit to the human actor in the IIS. Rather, as a reverse of parasitic impacts, here benefit may more likely arise on the long-term as a result of the external processes that these interventions support by e.g., increasing the quality of the produced milk, which in turn brings commercial benefits.

Mutualistic impacts of an IIS are when an intervention benefits both species of actors. Pet wearables, activity trackers in particular, provide an example of such benefit. A typical concrete intervention that a dog activity tracker may suggest is to simply take the dog for a walk. As research into the motivations and actual use of dog activity trackers has shown, the use of these trackers leads to improved activity and potential health benefits not only for the dog, but to increased motivation for fitness of the human owner as well [84].

These examples emphasize the importance of anticipating and actively reflecting on the real-world use of an IIS in order to understand what harms and benefits its data-driven suggested interventions may bring to the actors involved.

4 Modeling interspecies information systems

Conceptual models are important to “represent phenomena in some domain” in order to “facilitate early detection and correction of system development errors” [76]. Rather than focus on underlying deep structures, like ontological reality [75] (additionally complicated with multiple species involved as stakeholders), we will take a pragmatic view to construct a model of an IIS that captures the key components identified in Section 3. Doing so will allow us to understand how the components interact and exchange data that eventually informs interspecies interventions.

As we have established that an IIS is a system where information flow enables interspecies intervention, which in turn have impact on actors of different species, the model visualized in Fig. 3 reflects these key elements and the relationships between them.

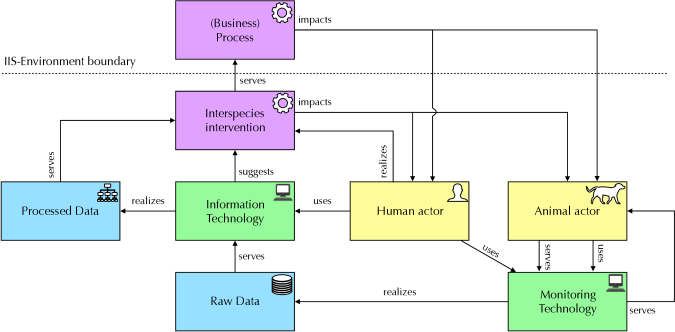

Figure 3: Key elements of data-driven interactions within a general IIS.
Element Definition Example: Dog activity tracking Example: Cattle management
Entities
Human actor human beings Fede the dog owner Dmitry the dairy farmer
Animal actor non-human beings Nunzio the Volpino Italiano A herd of dairy cattle
Monitoring technology technology capturing data FitWoof collar Worn accelerometer and vital sign sensors, temperature sensor in cow shed
Information Technology technology processing data Fede’s smartphone running the FitWoof app Dmitry’s computer running CowManager 2.0
Raw Data data captured by monitoring technology 3-axis accelerometer data showing average body acceleration on 1 minute intervals Raw data of time spent in feeding area, weight gain over time, vital signs, environment temperature
Processed Data data processed by information technology

Nunzio’s daily stepcounts, recommended activity levels

Assessment of caloric intake and expenditure by activity, acceptable temperature range for breed
Interspecies intervention an act realized by human actors affecting non-human actors Fede taking Nunzio for a 30 minute walk Reducing feed to account for caloric surplus, decrease environmental temperature to increase activity
Process an external process affected by interspecies interventions Increasing activity levels appropriate to breed Optimization of feed for breed and environmental conditions to reduce operating costs
Relationships
serves is input to Nunzio is input to FitWoof collar Cattle data is input to CowManager 2.0
uses interacts with Fede uses FitWoof app to see how active Nunzio has been today Dmitry uses CowManager 2.0 to assess optimization points
suggests suggests to perform FitWoof app shows Nunzio has been inactive most of the day and based on prior activity patterns suggests to take Nunzio for a 30 minute walk CowManager 2.0 suggests Dmitry to reduce feed release and turn on air-conditioning
realizes realizes Fede takes Nunzio for a 30 minute walk Dmitry reduces feed release and turns on air-conditioning
impacts has an impact {harmful, beneficial} on Sustained frequent activity has a beneficial impact on Nunzio’s physical fitness Turning on air-conditioning has a beneficial impact on cattle welfare; Optimization of feed has a beneficial impact on Dmitry’s operating costs
Table 1: Definitions of elements and relationships in the IIS model, explained with partial example instantiations of dog activity tracking and cattle management.

The model shown in Fig. 3 captures how the interactions between the components of the IIS enable a data flow which informs concrete interspecies interventions and affects processes outside its own boundaries. Animal actors ‘serve’ as input to the monitoring technology hardware, whether a wearable like dog activity trackers or cow vital sign sensors, or even an interactive assistant, which in turn captures raw data—such as accelerometer data, location, or audio/video recordings. The information technology, typically consisting of software running on a human’s smartphone or desktop computer realizes processed data and suggests interspecies interventions which are in turn realized by a human actor. These interventions both impact upon an external process, such as for example pet caregiving, as well as directly impact the animal actor and/or the human actor. Putting this in context of the examples analyzed in Section 3.1, Table 1 gives two more detailed examples of a partial instantiation of an IIS to support a specific process for a companion animal and farm animal scenario.

Figure 4 shows linearly how the flow of data from its initial capture by the monitoring technology, to eventual impact in the real world following a human actor’s actions, involves several steps of translation and interpretation. Thus, while it is the human actor who performs an interspecies intervention, they do so predicated upon data suggested by the IIS, which goes through several translation and interpretation steps.

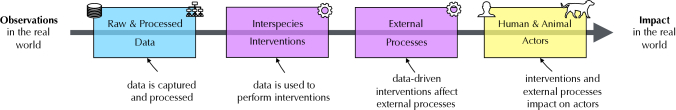

Figure 4: Flow of data through key components of the IIS as it transforms observations in the real world to impact.

This is important to consider, as limitations and biases may creep in at several stages which affect the interventions finally performed:

  1. First, raw data is captured by monitoring technology with a specific set of sensors, presenting a limited model of of the animal’s reality.

  2. Second, processed data is generated by information technology with a specific set of algorithms, presenting a further limited model of reality, and incorporating a potential set of biases by focusing solely on them.

  3. Third, the processed data is then presented in a particular form and suggested to a human actor, who needs to interpret it in order to make an interspecies intervention, presenting a further limitation according to their potential biases and willingness to accept the suggestion.

This poses a challenge to ensuring that the interspecies interventions suggested by the IIS are appropriate, and acted upon appropriately—these and more data-driven challenges we discuss in more detail below in Section 5.

5 Ongoing Challenges for engineering interspecies information systems

This section will focus on challenges that need to be considered during the engineering of an IIS222This article does not intend to reinvent the wheel when it comes to IS engineering in general, hence, I focus on challenges specific to the animal data flow that sets IIS apart, acknowledging the importance of understanding general IS success and failure factors [67, 81]. as visually summarized in Fig. 5. It sets out what challenges need ongoing considerations during the engineering of an IIS to ensure its success, and what other expertise is needed to achieve it.

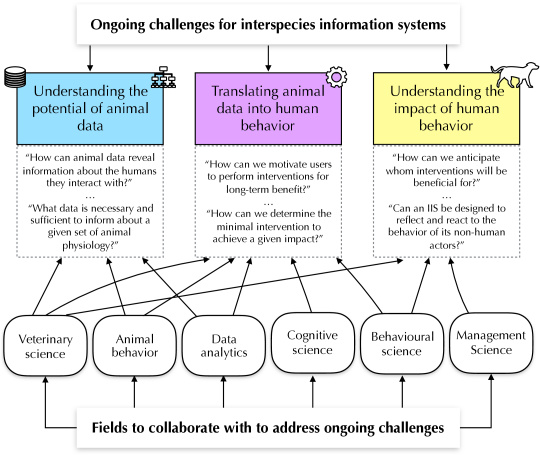

Figure 5: Ongoing challenges for ISS with example research questions and the fields of study needing to collaborate to tackle them.

Importantly, these are considered ongoing challenges in the sense that they are dependent on the socio-cultural and technical context in which the IIS operates. They are unlikely to be exhaustively solved, as new contexts like changing legislation, technology, insights on data, algorithms, cultures, or shifting attitudes, will continue to bring these challenges to the foreground. Thus, we propose these challenges to guide ongoing research on IIS and invite researchers to ensure IIS design and use always accounts for the human and animal stakeholders it serves.

5.1 Understanding the potential of animal data

The overarching question framing this challenge is what is contained in the animal data an IIS captures?

The immediate value of animal data to the IIS is to assist human actors in improving interspecies communication by allowing humans to understand and respond to animal signals they might not otherwise understand. Like other industries, the practical approach to designing sensor-driven systems for animal understanding has been understandably led by a “more, more, more” approach to what kind of data to capture. But with each additional type of data we capture and process in an IIS we need to carefully consider several points:

  1. What do data capture? If you want to measure activity, an accelerometer is likely enough, while precise location tracking will need GPS, and in turn health trackers will require more detailed bio-sensors. Determining what phenomena in the real world the IIS is meant to inform about is critical in considering what data and thus sensors are needed. Moreover, accurately classifying that data to objectively reflect the phenomena are important—accelerometer data without adequate classification algorithms brings no value.

  2. What else do data capture? Even if the IIS uses a minimal set of sensors to capture a particular phenomenon, like using an accelerometer to capture activity data, does not mean that more information cannot be gleaned from that data. Careful consideration of what else can be inferred is necessary to understand the value of the data to the IIS, and to other, potentially adversarial, stakeholders.

5.1.1 What do data capture?

The goal of an IIS determines what phenomena it should capture and inform about, making the question of what data could inform users about animal behavioral or physiological phenomena the first most important design concern. The technology within the IIS capturing that data, however, needs to still be worn and used by animals, which requires them to be as inobtrusive as possible in order not to interfere with the animal’s natural behavior which can lead to unnatural data or worse: harm to the animal or even death [10]. Therefore, in many cases it is not feasible to ‘just’ incorporate as many sensors as possible to capture as much data as possible. This means trade-offs need to be considered between on the one hand ensuring the design of the monitoring technology is unobtrusive and suits the animals physiology, while still enabling as much data-driven value to the IIS as possible. Finally, as the purpose of IIS is to stimulate actual technology being used on the market, rather than proposed scientific prototypes, simple business considerations need to be taken into account, to strike a balance between e.g., cost of sensors (and similar sensors of increased resolution, such as incorporating 9-axis instead of 3-axis accelerometers), and the additional data resolution they bring.

Moreover, when the hardware has been designed, and it can capture data, there is still work to be done to ensure it accurately reflects the phenomena it is meant to capture [34]. The value of classification algorithms (cf. [31]) cannot be understated, as the accurately and correctly processed sensor data forms the foundation for any further data processing into human-readable descriptions and suggestions for interspecies interventions. Thus, the design of the hardware and software that captures and processes the sensor data needs to be done in collaboration with those who understand animal physiology and behavior. Besides veterinary science, the emerging field of computational ethology [1] is fundamental to involve in the design of such algorithms, as it attempts to solve some of the challenges with classical ethology as the study of systematizing animal behavior by automating it to allow for more scaled, faster analysis, and increase objectivity by reducing reliance on human observers.

Some examples of questions that should be raised during the engineering and research into a novel IIS to address these matters thus include:

  • What data is necessary and sufficient to inform about a given set of animal behavior and/or physiology?

  • How can we systematically translate desired animal phenomena into sets of sensor (data)?

  • How can we strike a balance between maximizing captured data on the one hand, and the restrictions imposed by animal physiology and behavior, as well as business reality, on the other hand?

  • What computational ethology systems can accurately classify sensor data into accurate phenomena descriptions?

  • What value can longitudinal animal data bring for understanding and predicting situated animal health and behavior?

To do so will require IIS researchers to involve not just data analytics, but work together with experts from veterinary science and computational ethology to understand how data reflects real-world animal physiology and behavior.

5.1.2 What else do data capture?

It is often the case that a sensor-driven system captures more than just the phenomena it was designed to do so. Understanding what else the animal data captured within an IIS may reveal, whether directly, or by processing it further, is vital to understand both the potential added value of such data, and how sensitive it may be.

Data captured by smart farming solutions, for example, might be commercially sensitive and pose a threat to the viability of an agribusiness if it were to leak [20], although such considerations are also dependent on the socio-cultural makeup of the sector and to what extent data is freely shared among colleagues and competitors [70]. Perhaps more pressing as a challenge to the design and use of an IIS are the unexpected things that may be inferred from data. It has been argued that there ought to be a right to reasonable inferences [74] made from personal data. Animal data is just as critical here, as for example, dog activity data has been argued to be sensitive as it both reveals information about their owners, as well as their caregiving [71]. As companion animals like dogs often have close relationships to their owners, to the extent that their activity patterns may predict each other (e.g., making it trivial to derive when a dog owner typically leaves their house), but that the very nature of the dog-owner dyad may also mean inferred fitness of a dog may partially reveal fitness of their owner. Dog activity data, in turn, may thus become valuable for insurance companies who could use such information to optimize insurance premiums—not an unlikely future, as veterinary health groups have incorporated dog activity trackers [40], and vendors have published white papers describing their envisioned architecture to aggregate and share pet health data with third parties [48].

Data privacy concerns are shared by most data-driven systems. What makes the challenges discussed here unique to IIS engineering is their emergency out of the complex relationship between human and animal (e.g., the dog-human dyad and the behaviors that set it apart [41]), as such data can not be trivially broken down to reflecting only human or animal actors, and requires in-depth ethological knowledge of the human-animal behaviors that lead to novel privacy challenges. Perhaps because of this complexity, consumers seem to express little privacy concerns towards pet wearables or animal technology in general [69]. This may grow, though, as consumers tend to make such considerations only after having purchased something [15]. The growing consumer awareness on the risk of data breaches [27] and the value of their data, which continues to increase in significance [2], thus make it important that IIS designers anticipate whether any sensitive data will be inadvertently captured.

Some examples of questions that should be raised during the engineering and research into a novel IIS to address these matters thus include:

  • How can animal data hold commercially sensitive information about the environment in which the IIS operates?

  • How can animal data reveal information about the humans they interact with, both within and outside of the IIS?

  • What levels of protection are required for different kinds of animal data?

  • How can we find a balance between benefiting from unexpected additional value within data, and using such data responsibly?

To do so, will require IIS researchers to involve data analytics, and engage with other fields such as e.g., data privacy and management science in order to pro-actively assess what else may be captured by the technology used within the IIS, and what risks this may pose towards the consumer, as well as the designer and vendor of the system.

5.2 Transforming data into suggested interspecies interventions

The overarching question for this challenge is how does the animal data an IIS processes lead to behaviors in the real world?

The immediate value of animal data to the IIS is to aid human actors in better understanding and responding to animal actors as a result of their interaction with the monitoring technology. This means we need to carefully for processed information and suggested interventions:

  • How can they achieve concrete impacts? Both the descriptive data generated by the IIS to aid in a human actor’s understanding of the animals, as well as the suggestions it makes how to perform interspecies interventions need to be clear on what they will achieve, and how they will do so. As the IIS is meant to support humans in understanding and taking action, they should not require advanced animal behavioral knowledge. A dog owner should be told simple actions to take, just as a farm operator should be told what to do in the context of their experience.

  • How can they be motivating and persuasive? Suggested interventions are meant to intervene in the behavior or patterns of an animal based on objective foundations. They should thus be persuasive to the point that human actors will not second guess them or only partially execute them. At the same time, the impact of interventions may only arise on the long-term, through the result of accumulated interventions serving external processes. The IIS should thus actively motivate users if interspecies interventions do not readily have clear impacts, so that long-term benefits are not lost due to lack of action.

5.2.1 How can they achieve concrete impacts?

For suggested interventions to be actually performed, let alone well, they need to be understandable for their users. Such users may more more frequently laymen than not when it comes to animal behavior and physiology. This covers two important parts of the information processed by the information technology within an IIS: first the descriptive information, showing what the monitoring technology has measured and inferred, and second, the instructive information, suggesting what actions ought to be taken on basis of that information.

Consider a typical dog activity tracker. Visualizing a step count is a simply, informative way to inform the human users of the dog’s activity. But doing so without contextualizing this data in what is normal for a given breed of dog will invariably lead to misinterpretation with potentially dangerous side-effects of over- or under-training as users try to correct activity based on their own human context. Other challenges for generating descriptive information come with scale. Consider, in the farm animal domain, a given farm may have hundreds of cows all being monitored by the IIS. Simply showing sensor-data of all cows at the same time is not efficient, but transforming it into aggregate data or deciding how to bring individual cows to a user’s attention based on deviations in sensor values are far from trivial as well. Thus, significant effort needs to be taken to ensure that information generated by the IIS is cognitively effective and appropriate to the types and scale of animal(s) monitored by the IIS, that is, that the information can be readily comprehended by its users without conferring unintended additional information.

But an IIS does more than just describe. It suggests interspecies interventions on basis of the data it measures. These suggested interventions, equally, need to be made as simple as possible to maximize chances that a user can carry out it well and achieve the intended impact. A suggested interspecies intervention may require more than just a technology-mediated act (e.g., changing values for feed release or temperature sensors in a cow shed). Rather, it may involve direct interaction with an animal (e.g., exercising a dog or trimming a cow’s hoofs) or the animal’s environment (e.g., ensuring there are items to play and cognitively enrich with, evaluating walking surfaces to prevent injury). It may even involve suggestions for others to interact with the animal, like suggesting veterinary checkups or care. Thus, suggestions where users directly interact with an animal or its environment should be carefully designed in collaboration with experts from veterinary science and animal behavior, effectively guiding users through the act and instructing them what to do, and how to expect the animal to potentially react to it. Indeed, in order to ensure beneficial impact, such suggestions need to be more instructive than simply ‘perform this act’, but need to anticipate potential complications and instruct users when to withdraw from doing it (e.g., when a dog exhibits aggression to suggested interactions, or changes in farm animals’ environment leads to unexpected behavior from individual cows or the cattle).

Some examples of questions that should be raised during the engineering and research into a novel IIS to address these matters thus include:

  • How can we determine the minimal intervention to achieve a given desired impact?

  • How can we design the most cognitively effective means to convey animal behavior and physiology to people with different levels of understanding of such matters?

  • How can animal data be related to human actor’s experiences and worldviews?

This will require collaboration with veterinary science in order to understand what minimal actions might lead to concrete impact, as well as to determine what information is most salient to present to users, further use of data analytics to do so at scale for systems involving large numbers of animal actors, and importantly, consideration of cognitive science to understand how to best convey the intended information to the human actors who have to perform these interventions.

5.2.2 How can they be motivating and persuasive?

Descriptive information being understandable and concrete is an important first step. But the instructive information needs also to be persuasive. Suggestions grounded in veterinary science and animal behavior expert advice, and tailored to the individual animal, need to motivate and persuade users of the IIS to perform them.

For users to perform suggestions, it is important for the IIS and its suggestions to be perceived as useful and easy to perform [8]. Thus, suggestions need convince users that they will be useful to themselves and the animals they interact with, whether on the short-term (e.g., if you play with your dog its stress levels may go down [11], if you reduce the cow shed’s ambient temperature now, the cows will experience less heat stress), or on the long-term. Moreover, usefulness may be further framed in context of the user (e.g., if you play with your dog, your stress may go down [47], if you reduce the cow shed’s ambient temperature now, quality of produced milk may go up [61]). Such suggestive power is even more important when impact only arises on the long-term through the processes that interspecies interventions serve, whether by long-term health effects from increased activity and diet for a pet dog, or optimization of feed strategies for dairy cattle on operating costs. Thus, the content and tone of suggestions need to be carefully considered with both veterinary science and animal behavior experts and the real-world (business) context in which the IIS is situated to determine how to best convey mutually positive benefits for both human and animal.

Some examples of questions that should be raised during the engineering and research into a novel IIS to address these matters thus include:

  • How can we determine optimal content and format of suggested interventions for different kinds of users?

  • How can suggested interventions also inform users accurately of what impacts to expect?

  • How can we motivate users to perform interspecies interventions for long-term benefit?

This will require further collaboration with veterinary science and animal behavior experts, but also incorporate expertise from behavioral science to understand how motivational theories can inform persuasive interventions.

5.3 Understanding the impact of interspecies interventions

The overarching question for this challenge is how do interspecies interventions affect human and animal actors?

The interspecies interventions performed by human actors have concrete impacts on the other actors in the IIS. Such impact may be harmful or beneficial to different actors, and the impact itself may only materialize on the long-term. This means we need to carefully consider several points:

  1. What symbiosis is realized by impacts? The benefits of interspecies intervention may materialize for human actors (e.g., reduced operating costs in a farm animal context), animal actors (e.g., a pet’s loss of excess weight), or for both human and animal actors alike (e.g., increased health for a dog and owner from an increase in shared physical activities). Ideally, an IIS enables interventions which benefit all actors involved, regardless of their species. It is important to understand and anticipate what interventions lead to benefits for whom.

  2. Can bi-directional interspecies impact be realized? It is typically the human actor who performs an intentional interspecies intervention suggested by the IIS, and in doing so has an impact on the animal actors. Yet, impact from actions taken by animal actors towards human actors seems to arise as well, and may become part of intentional design.

5.3.1 What symbiosis is realized by impacts?

The impact of the interspecies interventions and the processes they serve may be harmful or beneficial for actors of different species within the IIS. Ideally, no IIS would suggest interspecies interventions that are actively harmful for an actor of any species (e.g., avoiding amensalistic or parasitic impacts). But understanding whether the immediately obvious short-term impacts of interspecies interventions on animal actors are beneficial or harmful is a complicated matter, which requires collaboration with veterinary and animal behavior experts. Similarly, understanding whether short-term impacts may be beneficial for business or organizational goals that the IIS contributes to (e.g., operating costs of a farm system) requires collaboration with business and management science experts through e.g., enterprise modeling efforts to predict long-term benefits of repeated short-term interventions.

An IIS, ideally, will allow its users to reflect on the impacts of the suggested interventions and reinforce those with positive benefits, while avoiding those with negative benefits (unless perhaps they are considered to lead to more important long-term benefits by veterinary experts). Through doing so, the IIS as a socio-technical system, may reflect on itself and rise to become a system of mutualistic benefit for all involved species.

Mutualistic impacts are beneficial not just to the (different species of) users within the IIS, but to its developers as well. For example, systems which consistently achieve mutualistic impacts may allow for additional marketing value of the IIS, as some dog activity trackers already do by emphasizing the joint human-dog benefits for physical and mental health their technology provide.

Some examples of questions that should be raised during the engineering and research into a novel IIS to address these matters thus include:

  • How can we anticipate whom an interspecies intervention will be beneficial for?

  • How can we clearly distinguish between symbiotic levels of impact (i.e., amensalistic, parasitic, commensalistic, mutualistic) of interspecies interventions?

  • How can we anticipate whether desired impacts (e.g., optimiziation of cost) may be antagonistic between species?

  • How can impacts of interspecies interventions be best observed and relayed to actors?

  • How can we design interspecies interventions to promote mutualistic impacts?

Doing so will require extensive analysis and design research from an IS point of view, working together with veterinary science and animal behavior experts to understand how impacts on animals ought to be understood, and with experts in behavioral and management science to understand how impacts on people and business ought to be understood.

5.3.2 Can bi-directional interspecies impact be realized?

Most of this article has focused on human actors realizing interspecies interventions towards animal actors. But, as some of the examples discussed in Section 3.1 noted, animal actors may also interact with the technology in the IIS to communicate with human actors and motivate them to act. The example of the audio/video-enabled feeding system where a dog could bark at the device, prompting their owners to release more food from a distance presents the possibility of animals learning how to interact with technology to motivate human actors to do things. This is, of course, not a data-driven intervention in the same vein as human actors performing interspecies interventions.

Yet, the potential of studying if and how animal actors manage to use the IIS directly to address their own needs may allow for richer behavioral data captured by monitoring technology which, in turn, can enrich the suggested interspecies interventions by adding an understanding of how the animal actor may react to certain interventions or the lack thereof.

Some examples of questions that should be raised during the engineering and research into a novel IIS to address these matters thus include:

  • How do we know when and whether animal actors can use the IIS to actively communicate needs to human users?

  • Can the socio-technical structure of an IIS be designed to actively reflect and react on the behavior of its animal actors?

Doing so will require extensive analysis of deployed IIS, working with data analytics experts to understand whether patterns of animals using the IIS to communicate needs towards humans have already occurred, and how they may be characterized. Moreover, if such patterns can be identified, the design of an IIS requires further collaboration with veterinary science and animal behavior experts to understand how to design the technology and actions people take in order to allow animal actors to be ‘equal citizens’ within the IIS.

6 Concluding outlook—the benefits of tackling interspecies information systems

Interspecies information systems bring many challenges in their design and use. Some of these challenges can be tackled in isolation as research has done so far: ensuring hardware fits with animal physiology, ensuring that technology is usable for all actors. But new data-driven challenges emerge when we take an information systems perspective and analyze how animal data flow throughout an IIS and informs human behavior towards animals.

This article has shown that designing technology which enables an IIS need to account for several challenges: understanding the potential of animal data, transforming it into suggested interspecies interventions, and understanding the impact of those interventions. Tackling these challenges requires an information systems approach that involves extensive inter-disciplinary work, collaborating with experts across fields that deepen our understanding of animals, the data they produce, and how this affects the real world, as summarized in Fig. 5.

The promise that animal-centered technology bring for our ability to ensure animal welfare, improve our care-giving or management of animals, and strengthen our our joint health and well-being cannot be denied. It should be imperative that we stimulate the use of animal-centered technology, but in doing so, carefully and systematically assess the challenges that the IIS that emerge through their use bring.

Acknowledgment

I am indebted to Anna Zamansky, Brittany I. Davidson, Irit Hadar, Ola Michalec, and Sybren de Kinderen for their constructive criticism and support.

References

  • [1] David J Anderson and Pietro Perona. Toward a science of computational ethology. Neuron, 84(1):18–31, 2014.
  • [2] Annie I Antón, Julia B Earp, and Jessica D Young. How internet users’ privacy concerns have evolved since 2002. IEEE Security & Privacy, 8(1), 2010.
  • [3] Richard L Baskerville and Michael D Myers. Information systems as a reference discipline. MIS Quarterly, pages 1–14, 2002.
  • [4] Gordon Baxter and Ian Sommerville. Socio-technical systems: From design methods to systems engineering. Interacting with computers, 23(1):4–17, 2011.
  • [5] Gwendolyn Blue and Melanie Rock. Trans-biopolitics: Complexity in interspecies relations. Health:, 15(4):353–368, 2011.
  • [6] Ceara Byrne, Clint Zeagler, Larry Freil, Allison Rapoport, and Melody Moore Jackson. Dogs using touchscreens in the home: a case study for assistance dogs operating emergency notification systems. In Proceedings of the Fifth International Conference on Animal-Computer Interaction, pages 1–10, 2018.
  • [7] Pascale Carayon. Human factors of complex sociotechnical systems. Applied ergonomics, 37(4):525–535, 2006.
  • [8] Siew H Chan. The roles of user motivation to perform a task and decision support system (dss) effectiveness and efficiency in dss use. Computers in human behavior, 25(1):217–228, 2009.
  • [9] Daniel Q Chen, Martin Mocker, David S Preston, and Alexander Teubner. Information systems strategy: reconceptualization, measurement, and implications. MIS Quarterly, 34(2):233–259, 2010.
  • [10] Bruno Cid, Rodrigo de C da Costa, Daniel de A Balthazar, Anderson M Augusto, Alexandra S Pires, and Fernando AS Fernandez. Preventing injuries caused by radiotelemetry collars in reintroduced red-rumped agoutis, dasyprocta leporina (rodentia: Dasyproctidae), in atlantic forest, southeastern brazil. Zoologia (Curitiba), 30(1):115–118, 2013.
  • [11] Crista L Coppola, Temple Grandin, and R Mark Enns. Human interaction and cortisol: can human contact reduce stress for shelter dogs? Physiology & behavior, 87(3):537–541, 2006.
  • [12] Nicole R Dorey, Monique AR Udell, and Clive DL Wynne. When do domestic dogs, canis familiaris, start to understand human pointing? the role of ontogeny in the development of interspecies communication. Animal Behaviour, 79(1):37–41, 2010.
  • [13] Angela E Douglas. The symbiotic habit. Princeton University Press, 2010.
  • [14] Sophie Downes and Graham Winfrey. 8 best industries for starting a business in 2020. https://www.inc.com/best-industries-2020.html, 2020. Accessed: 11-04-2020.
  • [15] Pardis Emami-Naeini, Yuvraj Agarwal, Lorrie Faith Cranor, and Henry Dixon. Exploring how privacy and security factor into IoT device purchase behavior. In Proceedings of the 2019 CHI Conference on Human Factors in Computing Systems. ACM, 2019.
  • [16] Fitbark. https://www.fitbark.com/, 2020. Online; accessed 24 April 2020.
  • [17] Jessica Katherine Frawley and Laurel Evelyn Dyson. Animal personas: acknowledging non-human stakeholders in designing for sustainable food systems. In Proceedings of the 26th Australian Computer-Human Interaction Conference on Designing Futures: the Future of Design, pages 21–30, 2014.
  • [18] Fiona French, Sofya Baskin, Billy Wallace, Adrian David Cheok, Anna Zamanzky, and Eleonora Nannoni. Farmjam 2017: Designing enrichment for farm animals. In Proceedings of the Fourth International Conference on Animal-Computer Interaction, pages 1–6, 2017.
  • [19] Fiona French, Clara Mancini, and Helen Sharp. Exploring research through design in animal computer interaction. In Proceedings of the Fourth International Conference on Animal-Computer Interaction, pages 1–12, 2017.
  • [20] Maanak Gupta, Mahmoud Abdelsalam, Sajad Khorsandroo, and Sudip Mittal. Security and privacy in smart farming: Challenges and opportunities. IEEE Access, 8:34564–34584, 2020.
  • [21] Ole Hanseth, Margunn Aanestad, and Marc Berg. Guest editors introduction: Actor-network theory and information systems. what’s so special? Information Technology & People, 2004.
  • [22] Peter Harrop, Emma Napier, Raghu Das, and Nadia Tsao. Wearable technology for animals 2017-2027: technologies, markets, forecasts. IDTechEx Research, 2016.
  • [23] Rudy Hirschheim, Heinz K Klein, and Kalle Lyytinen. Information systems development and data modeling: conceptual and philosophical foundations. Cambridge University Press, 1995.
  • [24] Ilyena Hirskyj-Douglas, Patricia Pons, Janet C Read, and Javier Jaen. Seven years after the manifesto: Literature review and research directions for technologies in animal computer interaction. Multimodal Technologies and Interaction, 2(2):30, 2018.
  • [25] Wataru Iwasaki, Nobutomo Morita, and Maria Portia Briones Nagata. Iot sensors for smart livestock management. In Chemical, Gas, and Biosensors for Internet of Things and Related Applications, pages 207–221. Elsevier, 2019.
  • [26] Melody Moore Jackson, Clint Zeagler, Giancarlo Valentin, Alex Martin, Vincent Martin, Adil Delawalla, Wendy Blount, Sarah Eiring, Ryan Hollis, Yash Kshirsagar, et al. Fido-facilitating interactions for dogs with occupations: wearable dog-activated interfaces. In Proceedings of the 2013 international symposium on wearable computers, pages 81–88, 2013.
  • [27] Sowmya Karunakaran, Kurt Thomas, Elie Bursztein, and Oxana Comanescu. Data breaches: user comprehension, expectations, and concerns with handling exposed data. In Symposium on Usable Privacy and Security (SOUPS), pages 217–234, 2018.
  • [28] Ö Köksal and B Tekinerdogan. Architecture design approach for iot-based farm management information systems. Precision Agriculture, 20(5):926–958, 2019.
  • [29] Karen M Kostan. The evolution of mutualistic interspecific communication: Assessment and management across species. Journal of Comparative Psychology, 116(2):206, 2002.
  • [30] K Cassie Kresnye, Alec Andrew Theisz, Lauren Trester, and Patrick C Shih. Barks & rec: A dog park socio-technical system. In Proceedings of the Sixth International Conference on Animal-Computer Interaction, pages 1–6, 2019.
  • [31] Cassim Ladha, Nils Hammerla, Emma Hughes, Patrick Olivier, and Thomas Ploetz. Dog’s life: wearable activity recognition for dogs. In Proceedings of the 2013 ACM international joint conference on Pervasive and ubiquitous computing, pages 415–418, 2013.
  • [32] Nelly N Lakestani, Morag L Donaldson, and Natalie Waran. Interpretation of dog behavior by children and young adults. Anthrozoös, 27(1):65–80, 2014.
  • [33] Roberta Lamb and Rob Kling. Reconceptualizing users as social actors in information systems research. MIS Quarterly, pages 197–236, 2003.
  • [34] Shaun Lawson, Ben Kirman, and Conor Linehan. Power, participation, and the dog internet. interactions, 23(4):37–41, 2016.
  • [35] Allen Lee. Inaugural editor’s comments. MIS Quarterly, 23(1):v–xi, 1999.
  • [36] Germain Lemasson, Sylvie Pesty, and Dominique Duhaut. Increasing communication between a man and a dog. In 2013 IEEE 4th International Conference on Cognitive Infocommunications (CogInfoCom), pages 145–148. IEEE, 2013.
  • [37] Luis F Luna-Reyes, Jing Zhang, J Ramón Gil-García, and Anthony M Cresswell. Information systems development as emergent socio-technical change: a practice approach. European Journal of Information Systems, 14(1):93–105, 2005.
  • [38] Heidi Lyn, Patricia Greenfield, and Sue Savage-Rumbaugh. The development of representational play in chimpanzees and bonobos: Evolutionary implications, pretense, and the role of interspecies communication. Cognitive Development, 21(3):199–213, 2006.
  • [39] Clara Mancini. Animal-computer interaction: a manifesto. interactions, 18(4):69–73, 2011.
  • [40] Mars petcare. https://www.mars.com/made-by-mars/petcare, 2020. Online; accessed 24 April 2020.
  • [41] Paul D McGreevy, Melissa Starling, NJ Branson, Mia L Cobb, and Debbie Calnon. An overview of the dog–human dyad and ethograms within it. Journal of Veterinary Behavior, 7(2):103–117, 2012.
  • [42] Daniel J Metcalfe et al. Multispecies Design. PhD thesis, University of the Arts London and Falmouth University, 2015.
  • [43] RS Morris. Information systems for animal health: objectives and components. Rev Sci Tech, 10(1):13–23, 1991.
  • [44] Akihiko Mougi. The roles of amensalistic and commensalistic interactions in large ecological network stability. Scientific Reports, 6:29929, 2016.
  • [45] Suresh Neethirajan. Recent advances in wearable sensors for animal health management. Sensing and Bio-Sensing Research, 12:15–29, 2017.
  • [46] Steve North and Clara Mancini. Frameworks for aci: Animals as stakeholders in the design process. Interactions, 23(4):34–36, 2016.
  • [47] Patricia Pendry and Jaymie L Vandagriff. Animal visitation program (avp) reduces cortisol levels of university students: A randomized controlled trial. AERA Open, 5(2):2332858419852592, 2019.
  • [48] PetCommunity. Petcommunity whitepaper v2.5. https://petcommunity.com/PetCommunity_WhitePaper_v10.pdf, 2018. Online; accessed 02 February 2019.
  • [49] Petcube. https://petcube.com/, 2020. Online; accessed 24 April 2020.
  • [50] Patricia Pons, Javier Jaen, and Alejandro Catala. Envisioning future playful interactive environments for animals. In More Playful User Interfaces, pages 121–150. Springer, 2015.
  • [51] Patricia Pons, Javier Jaen, and Alejandro Catala. Towards future interactive intelligent systems for animals: study and recognition of embodied interactions. In Proceedings of the 22nd International Conference on Intelligent User Interfaces, pages 389–400, 2017.
  • [52] Kopo M Ramokapane, Dirk van der Linden, and Anna Zamansky. Does my dog really need a gadget? what can we learn from pet owners’ amotivations for using pet wearables? In Proceedings of the Sixth International Conference on Animal-Computer Interaction, pages 1–6, 2019.
  • [53] Ingrid Richardson, Larissa Hjorth, Yolande Strengers, and William Balmford. Careful surveillance at play: human-animal relations and mobile media in the home. In Refiguring techniques in digital visual research, pages 105–116. Springer, 2017.
  • [54] Sarah E Ritvo and Robert S Allison. Challenges related to nonhuman animal-computer interaction: Usability and’liking’. In Proceedings of the 2014 Workshops on Advances in Computer Entertainment Conference, pages 1–7, 2014.
  • [55] Katie Robertson. With a.i., the secret life of pets is not so secret. https://www.nytimes.com/2020/04/08/technology/ai-pets-apps.html, 2020. Online; accessed 24 April 2020.
  • [56] Alexandre Pongrácz Rossi, Sarah Rodriguez, and Cassia Rabelo Cardoso dos Santos. A dog using skype. In Proceedings of the Third International Conference on Animal-Computer Interaction, pages 1–4, 2016.
  • [57] Luisa Ruge and Clara Mancini. A method for evaluating animal usability (meau). In Proceedings of the Sixth International Conference on Animal-Computer Interaction, pages 1–12, 2019.
  • [58] CG Sørensen, Spyrus Fountas, E Nash, Liisa Pesonen, Dionysis Bochtis, Søren Marcus Pedersen, B Basso, and SB Blackmore. Conceptual model of a future farm management information system. Computers and electronics in agriculture, 72(1):37–47, 2010.
  • [59] Camilla Sterne. Tv remote for dogs, by wagg. https://www.designweek.co.uk/inspiration/tv-remote-dogs-wagg/, 2016. Online; accessed 24 April 2020.
  • [60] Yolande Strengers, Larissa Nicholls, and Cecily Maller. Curious energy consumers: Humans and nonhumans in assemblages of household practice. Journal of Consumer Culture, 16(3):761–780, 2016.
  • [61] Andrea Summer, Isabella Lora, Paolo Formaggioni, and Flaviana Gottardo. Impact of heat stress on milk and meat production. Animal Frontiers, 9(1):39–46, 10 2018.
  • [62] Sanne Swagerman, Clara Mancini, and Frank Nack. Visualizing cat gps data: a study of user requirements. In Proceedings of the Fifth International Conference on Animal-Computer Interaction, pages 1–11, 2018.
  • [63] Gabriella Tami and Anne Gallagher. Description of the behaviour of domestic dog (canis familiaris) by experienced and inexperienced people. Applied Animal Behaviour Science, 120(3-4):159–169, 2009.
  • [64] Arthur Tatnall. Actor-network theory in information systems research. In Encyclopedia of Information Science and Technology, First Edition, pages 42–46. IGI Global, 2005.
  • [65] Rolf Alexander Teubner. Information systems strategy. Business & Information Systems Engineering, 5(4):243–257, 2013.
  • [66] Kjell Tryggestad, Lise Justesen, and Jan Mouritsen. Project temporalities: how frogs can become stakeholders. International journal of managing projects in business, 2013.
  • [67] Nils Urbach, Stefan Smolnik, and Gerold Riempp. The state of research on information systems success. Business & Information Systems Engineering, 1(4):315–325, 2009.
  • [68] Dirk van der Linden, Brittany I Davidson, and Anna Zamansky. The not so secret life of pets: pet owners’ privacy concerns for pet location data. In Proceedings of the Sixth International Conference on Animal-Computer Interaction, pages 1–6, 2019.
  • [69] Dirk van der Linden, Matthew Edwards, Irit Hadar, and Anna Zamansky. Pets without PETs: on pet owners’ under-estimation of privacy concerns in pet wearables. Proceedings on Privacy Enhancing Technologies, 2020(1):143–164, 2020.
  • [70] Dirk van der Linden, Ola Michalec, and Anna Zamansky. Cyber security for food security: socio-cultural context matters. submitted, 2020.
  • [71] Dirk van der Linden, Emma Williams, Irit Hadar, and Anna Zamansky. Some might freak out: What if your dog’s activity tracker were to have a data breach? In Proceedings of the Sixth International Conference on Animal-Computer Interaction, ACI’19. Association for Computing Machinery, 2019.
  • [72] Dirk van der Linden, Anna Zamansky, Irit Hadar, Barnaby Craggs, and Awais Rashid. Buddy’s wearable is not your buddy: Privacy implications of pet wearables. IEEE Security & Privacy, 17(3):28–39, 2019.
  • [73] Emīlija Veselova and ? İdil Gaziulusoy. Implications of the bioinclusive ethic on collaborative and participatory design. The Design Journal, 22(sup1):1571–1586, 2019.
  • [74] Sandra Wachter and Brent Mittelstadt. A right to reasonable inferences: re-thinking data protection law in the age of big data and ai. Colum. Bus. L. Rev., page 494, 2019.
  • [75] Yair Wand and Ron Weber. On the deep structure of information systems. Information Systems Journal, 5(3):203–223, 1995.
  • [76] Yair Wand and Ron Weber. Research commentary: information systems and conceptual modeling a research agenda. Information systems research, 13(4):363–376, 2002.
  • [77] Adele Waters. Why is the animal health market so buoyant? Veterinary Record, 186(9):261–261, 2020.
  • [78] Sarah Webber, Marcus Carter, Sally Sherwen, Wally Smith, Zaher Joukhadar, and Frank Vetere. Kinecting with orangutans: Zoo visitors’ empathetic responses to animals’ use of interactive technology. In Proceedings of the 2017 CHI Conference on Human Factors in Computing Systems, pages 6075–6088, 2017.
  • [79] Michelle Westerlaken and Stefano Gualeni. Digitally complemented zoomorphism: a theoretical foundation for human-animal interaction design. In Proceedings of the 6th International Conference on Designing Pleasurable Products and Interfaces, pages 193–200, 2013.
  • [80] Roel J Wieringa. Design science methodology for information systems and software engineering. Springer, 2014.
  • [81] Khim Teck Yeo. Critical failure factors in information system projects. International Journal of Project Management, 20(3):241–246, 2002.
  • [82] Anna Zamansky, Amanda Roshier, Clara Mancini, Emily C Collins, Carol Hall, Katie Grillaert, Ann Morrison, Steve North, and Hanna Wirman. A report on the first international workshop on research methods in animal-computer interaction. In Proceedings of the 2017 CHI Conference Extended Abstracts on Human Factors in Computing Systems, pages 806–815, 2017.
  • [83] Anna Zamansky and Dirk van der Linden. Activity trackers for raising guide dogs: Challenges and opportunities. IEEE Technology and Society Magazine, 37(4):62–69, 2018.
  • [84] Anna Zamansky, Dirk van der Linden, Irit Hadar, and Stephane Bleuer-Elsner. Log my dog: perceived impact of dog activity tracking. Computer, 52(9):35–43, 2019.
  • [85] Klaus Zuberbühler. Interspecies semantic communication in two forest primates. Proceedings of the Royal Society of London. Series B: Biological Sciences, 267(1444):713–718, 2000.
