Interpolation-based Correlation Reduction Network for Semi-Supervised Graph Learning

06/06/2022
by   Xihong Yang, et al.
11

Graph Neural Networks (GNNs) have achieved promising performance in semi-supervised node classification in recent years. However, the problem of insufficient supervision, together with representation collapse, largely limits the performance of the GNNs in this field. To alleviate the collapse of node representations in semi-supervised scenario, we propose a novel graph contrastive learning method, termed Interpolation-based Correlation Reduction Network (ICRN). In our method, we improve the discriminative capability of the latent feature by enlarging the margin of decision boundaries and improving the cross-view consistency of the latent representation. Specifically, we first adopt an interpolation-based strategy to conduct data augmentation in the latent space and then force the prediction model to change linearly between samples. Second, we enable the learned network to tell apart samples across two interpolation-perturbed views through forcing the correlation matrix across views to approximate an identity matrix. By combining the two settings, we extract rich supervision information from both the abundant unlabeled nodes and the rare yet valuable labeled nodes for discriminative representation learning. Extensive experimental results on six datasets demonstrate the effectiveness and the generality of ICRN compared to the existing state-of-the-art methods.

READ FULL TEXT VIEW PDF

page 1

page 8

12/29/2021

Deep Graph Clustering via Dual Correlation Reduction

Deep graph clustering, which aims to reveal the underlying graph structu...
02/24/2022

Interpolation-based Contrastive Learning for Few-Label Semi-Supervised Learning

Semi-supervised learning (SSL) has long been proved to be an effective t...
02/25/2022

Improved Dual Correlation Reduction Network

Deep graph clustering, which aims to reveal the underlying graph structu...
04/04/2022

GraFN: Semi-Supervised Node Classification on Graph with Few Labels via Non-Parametric Distribution Assignment

Despite the success of Graph Neural Networks (GNNs) on various applicati...
09/24/2021

GeomGCL: Geometric Graph Contrastive Learning for Molecular Property Prediction

Recently many efforts have been devoted to applying graph neural network...
05/14/2019

ActiveHNE: Active Heterogeneous Network Embedding

Heterogeneous network embedding (HNE) is a challenging task due to the d...
02/19/2020

Outcome Correlation in Graph Neural Network Regression

Graph neural networks aggregate features in vertex neighborhoods to lear...

1. Introduction

In recent years, with the strong representation learning capacity, graph learning methods have become a hot research spot in many fields of multimedia, including the recommendation system (Liu et al., 2021a)

, 3D estimation

(Hu et al., 2021; He et al., 2021), multi-modal dialog system (Zhang et al., 2021)

, and so on. Semi-supervised node classification, which aims to classify nodes in the graph with limited labels, is a crucial yet challenging graph learning task. Thanks to the powerful feature extraction capability, Graph Convolutional Network (GCN)

(Kipf and Welling, 2016) has recently achieved promising performance in this scenario. As a result, it has attracted considerable attention in this field, and many methods (Veličković et al., 2017; Klicpera et al., 2018; Xu et al., 2018; Chien et al., 2020) have been proposed.

(a) GCN (c) MVGRL (b) MixupForGraph (d) Ours
Figure 1.

Visualization of cosine similarity matrices in the latent space of GCN

(Kipf and Welling, 2016), MixupForGraph (Wang et al., 2021), MVGRL(Hassani and Khasahmadi, 2020) and our proposed method on the ACM dataset. The sample order is rearranged to make samples from the same cluster beside each other.

Although preferable performances have been achieved by the existing algorithms, in the semi-supervised node classification task, insufficient supervision has largely aggravated the problem of representation collapse in graph learning, leading to indiscriminative representation across classes. To solve the problem, a commonly used strategy is to path the supervision information from the labeled data to the unlabeled data according to the linkages within the adjacent matrix as guidance for network training (Kipf and Welling, 2016; Veličković et al., 2017; Xu et al., 2018; Hamilton et al., 2017). Moreover, in MixupForGraph (Wang et al., 2021), a graph mixup operation is designed to enhance the robustness and discriminative capability of the aggregated sample embedding over the labeled samples. Since the embedding of the labeled samples has integrated information of both the labeled sample and its unlabeled neighbors while pushing the predictions to their corresponding ground truth, the information of the unlabeled samples are also integrated for network training in a form of implicit regularization. Though valuable information is introduced, the performance of these methods could be significantly influenced by the inaccurate connections within the data. Recently, to alleviate the adverse influence of the inaccurate connections, MVGRL(Hassani and Khasahmadi, 2020)

introduces contrastive learning as an auxiliary task for discriminative information exploitation. In this method, the authors design an InfoMax loss to maximize the cross-view mutual information between the node and the global summary of the graph. Although large improvement has been made, the current data augmentation and loss function setting of MVGRL fails to exploit abundant intuitive information within the unlabeled data thus limiting its classification performance. This phenomenon can be witnessed in the cosine similarity matrix of latent representation illustration in Fig.

1. As we can see, although the categorical information is revealed by the learned representations to different extent, more discriminative information is needed for further performance enhancement.

To solve this issue, we propose a novel graph contrastive semi-supervised learning method termed Interpolation-based Correlation Reduction Network (ICRN), which improves the discriminative capability of node embedding by enlarging the margin of decision boundaries and improving the cross-view consistency of the latent representation among samples. To be specific, we first adopt an interpolation-based strategy to conduct data augmentation in the latent space and then force the prediction model to change linearly between samples as done in the field of image recognition

(Verma et al., 2019a). After that, by forcing the correlation matrix across two interpolation-perturbed views to approximate an identical matrix, we guide our network to be able to recognize whether two perturbed samples are the same samples or not. In this manner, the sample representations would be more discriminative, thus alleviating the collapsed representations. This could be clearly seen in Fig. 1 (d) that the similarity matrix generated by our method can obviously reveal the hidden distribution structure better than the compared methods. The key contributions of this paper are listed as follows:

  • We proposed a novel graph contrastive learning method to solve the representation collapse issue in the field of semi-supervised node classification.

  • An interpolation-based strategy is adopted to force the prediction model to change linearly between samples to enlarge the decision boundaries margin.

  • To further improve discriminative capability of representations, we design a correlation reduction mechanism to enable our network to tell apart the same sample against different samples across two interpolation-perturbed views.

  • Extensive experimental results on six datasets demonstrate the superiority of our method against the compared state-of-the-art method. The ablation study and module transferring experiments demonstrate the effectiveness and the generality of our proposed modules.

2. Related Work

2.1. Semi-supervised Node Classification

Semi-supervised node classification (Zhu, 2005; Wu et al., 2020; Zhou et al., 2020) aims to classify nodes in the graph with few human annotations. Recently, Graph Neural Networks (GNNS) have achieved promising performance for their strong representation capability of graph-structured data. The pioneer GCN-Cheby (Defferrard et al., 2016) generalizes CNN (LeCun et al., 1998) to graphs in the spectral domain by proposing the Chebyshev polynomials graph filter. Following GCN-Chey, GCN (Kipf and Welling, 2016) reveals the underlying graph structure by feature transformation and aggregation operations in the spatial domain. After that, GraphSage (Hamilton et al., 2017) generates embeddings by sampling and aggregating features from the node neighborhoods. GAT(Veličković et al., 2017) proposed graph attention networks on graph-structured data to improve the performance. JK-Net(Xu et al., 2018) flexibly leverages different neighborhood ranges to enable better structure-aware representation. In addition, SGC(Wu et al., 2019) simplifies GCN by removing feature transformation between consecutive layers. Furthermore, Geom-GCN(Pei et al., 2020) proposes a geometric aggregation scheme to overcome the issue of neighborhood node structural information loss. Different from them, PPNP/APPNP (Klicpera et al., 2018) separates the feature transformation from aggregation operation and enhances the aggregation operation with PageRank (Page et al., 1999). More recently, following PPNP/APPNP, GPRGNN(Chien et al., 2020) jointly optimizes sample feature and topological information by learning the aggregation weights adaptively.

In our proposed method, we adopt GPRGNN (Chien et al., 2020) as our backbone and further improve its discriminative capability by enlarging the margin of decision boundaries and improving the cross-view consistency of the latent representation.

2.2. Representation Collapse

Contrastive learning methods (Hjelm et al., 2018; Chen et al., 2020; Grill et al., 2020; Zbontar et al., 2021; Liu et al., 2022b) have achieved promising performance on images in recent years. Motivated by their success, contrastive learning strategies have been increasingly adopted to the graph data (Velickovic et al., [n.d.]; Hassani and Khasahmadi, 2020; Thakoor et al., 2021; You et al., 2020; Zhu et al., 2020; Bielak et al., 2021).

The pioneer DGI (Velickovic et al., [n.d.]) is proposed to learn node embedding by maximizing the mutual information between the local and global fields of the graph. GMI(Peng et al., 2020) and HDMI(Jing et al., 2021) improve DGI by regarding edges and node attributes, respectively, to alleviate collapse representation. Besides, MVGRL (Hassani and Khasahmadi, 2020) and InfoGraph (Sun et al., 2019) demonstrate the effectiveness of maximizing the mutual information to learn graph-level representations in the graph classification task. Subsequently, GraphCL (You et al., 2020) and GRACE (Zhu et al., 2020) first generate two augmented views and then learn node embeddings by pulling together the same node in two augmented views while pushing away different nodes. However, representation collapse is a common problem that, without the adequate guidance of human annotations, the model tends to embed all samples to the same representation (Liu et al., 2021b).

In order to alleviate representation collapse, BGRL (Thakoor et al., 2021) is proposed to learn node embeddings by two separate GCN encoders. Specifically, the online encoder is trained to pull together the same node from two views while the target encoder is updated by an exponential moving average of online encoder. More recently, G-BT (Bielak et al., 2021) is proposed to avoid representation collapse by reducing the redundancy of features. ICRN implicitly achieves the redundancy-reduction principle through an interpolation-based correlation reduction mechanism in the sample level, described in section 3.3 to solve the representation collapse issue in the semi-supervised node classification task.

2.3. Interpolation-based Augmentation

Mixup(Zhang et al., 2017; Verma et al., 2019b) is an effective data augmentation strategy for image classification (Lucas et al., 2018; Hendrycks et al., 2019; Guo, 2020; Guo et al., 2019; Yang et al., 2022). It generates synthetic samples by linearly interpolating random image pairs and their labels as follows:

(1)

where and

are the hyper-parameters of Beta distribution. Besides,

denotes the interpolation rate. Actually, Mixup incorporates the prior knowledge that interpolations of input samples should lead to interpolations of the associated targets (Zhang et al., 2017). In this manner, it extends the training distribution by constructing virtual training samples across all classes, thus improving the image classification performance (Verma et al., 2019b, a).

However, it is challenging to extend Mixup methods to the graph data, which contains many irregular connections. To solve this problem, GraphMixup (Wu et al., 2021) designs feature and edge Mixup mechanisms to improve the performance of class-imbalanced node classification. Besides, MixupForGraph (Wang et al., 2021) proposed the two-branch graph convolution to mix the receptive field sub-graphs for the paired nodes. Different from the previous methods, we propose a simple interpolation fashion. Specially, we interpolate the embeddings and associated labels directly.

Figure 2. Illustration of Interpolation-based Correlation Reduction Network (ICRN). In the graph interpolation module, with the generated embedding , we first adopt the interpolation-based strategy to conduct data augmentation in the latent space and then by guiding to approximate the prediction , we force the prediction model to change linearly between samples. Afterward, by guiding the cross-view correlation matrix to approximate the identity matrix, we enable the learned network to tell apart samples across two interpolation-perturbed views. In this manner, our network would be guided to learn the more discriminative embedding, thus alleviating representation collapse. In our model, the interpolation rate is set as to make sure that is a perturbation of .

3. Methodology

In this section, we proposed a novel graph contrastive learning method, termed Interpolation-based Correlation Reduction Network (ICRN), to improve the latent feature’s discriminative capability and alleviate the collapsed representation. As shown in Fig.2, our proposed method mainly contains two modules, i.e., the graph interpolation module and correlation reduction module. In the following subsections, we first define the main notations and the problem. Then we detail the two main modules and loss function of ICRN.

Notations Meaning
The Attribute Matrix
The Adjacency Matrix
The Degree Matrix
The Identity Matrix
The Node Embeddings
The Cross-view Sample Correlation Matrix
The Prediction Distribution
The Label Distrbution
Table 1. Notation summary.

3.1. Notations and Problem Definition

To an undirected graph with classes of nodes, the node set and the edge set are denoted as and , respectively. The graph contains an attribute matrix and an adjacency matrix , where if , otherwise . The degree matrix is denoted as and . The normalized adjacency matrix could be calculated through calculating , where is an identity matrix. Besides, denotes the -norm. In this paper, our target is to embed the nodes into the latent space and classify them in a semi-supervised manner. The notations are summarized in Table 1.

3.2. Graph Interpolation Module

Recent works (Zhang et al., 2017; Verma et al., 2019a) demonstrate that Mixup is an effective data augmentation for images to improve the discriminative capability of samples by achieving larger margin-decision boundaries. Different from images, the nodes in the graph are irregularly connected. Thus, the interpolation for the graph data is still an open question (Wang et al., 2021; Wu et al., 2021).

To overcome this issue, we propose a simple yet effective interpolation method on graph data as shown in the orange box in Fig.2. Specifically, we first encode the nodes into the latent space through Eq. (2).

(2)

Here, denotes the encoder of our feature extraction framework. In our paper, we take the encoder of GPRGNN (Chien et al., 2020), which learns node embeddings from node features and topological information for sample embedding.

Subsequently, we adopt a simple linear interpolation function to mix the node embeddings as formulated:

(3)

where denotes the -th view of the node embedding and is the interpolation rate. is the shuffle function that randomly permutes the input of the function and output the same samples with a new order. As , the interpolation function could be regarded as an operation that introduces perturbation to the principal embedding H. Similar to Eq. (3), the interpolated labels can be formulated as:

(4)

In this manner, we construct two perturbations as two different views of the principle sample batch in the latent space by mixing the node embeddings and the corresponding labels. Subsequently, we enhance the discriminative capability of the network by forcing the prediction model to change linearly between samples through the classification loss:

(5)

where denotes the Cross-Entropy loss (Murphy, 2012) and is the prediction of training data. According to (Zhang et al., 2017; Verma et al., 2019a), in image classification applications, the decision boundaries are pushed far away from the class boundaries by enabling the network to recognize the interpolation operation. Through minimizing in our paper, we can also acquire the larger-margin decision boundaries shown in Fig.5, thus alleviating the representation collapse problem.

3.3. Correlation Reduction Module

To further improve the discriminative capability of samples, we improve the cross-view consistency of the latent representation. Following this idea, as shown in the red box in Fig. 2, we propose a correlation reduction module, which pulls together the same samples while pushing away different samples from two interpolation-perturbed views. In this way, our network is encouraged to learn more discriminative embeddings, thus avoiding the representation collapse problem.

Concretely, the process of correlation reduction is divided into three steps. First, we utilize the proposed graph interpolation module to construct two interpolation-perturbed views of node embeddings, i.e., and in Fig. 2.

Second, the correlation matrix across two interpolation-perturbed views is calculated as:

(6)

where is the cosine similarity between -th node embedding of the first view and -th node embedding of the second view .

Furthermore, we force the correlation matrix Z to be equal to an identity matrix by minimizing the information correlation reduction loss, which could be presented as:

(7)

In detail, the first term in Eq. (7) forces the diagonal elements of Z to 1, which indicates that the embeddings of each node are forced to agree with each other in two views. Besides, the second term in Eq. (7) makes the off-diagonal elements of Z to approach 0 so as to push away different nodes across two views.

Input: An undirected graph ; Iteration number ; Hyper-parameters , .
Output: Class prediction and the trained network .

1:  for  to  do
2:     Encode the nodes with the feature extraction network to obtain the node embeddings H;
3:     Utilize the graph interpolation module to construct two interpolation-perturbed embeddings and ;
4:     Construct the interpolated labels with Eq. (4);
5:     Calculate the classification loss with Eq. (5);
6:     Calculate the correlation matrix Z with Eq. (6);
7:     Force Z to approximate an identity matrix and calculate information correlation reduction loss with Eq. 7;
8:     Update the whole network by minimizing in Eq. (8);
9:  end for
10:  Output the predicted classification result .
11:  return and
Algorithm 1 ICRN

By this decorrelation operation, we enlarge the distance between different samples in the latent space while preserving the view-invariance latent feature of each sample, thus keeping cross-view consistent of latent representation. Consequently, our network is guided to learn more discriminative features about input samples and further avoid the collapsed representation.

3.4. Loss Function

The proposed method ICRN jointly optimizes two losses: the classification loss and the information correlation reduction loss . In summary, the objective of ICRN is formulated as:

(8)

where is a trade-off hyper-parameter. The detailed learning procedure of ICRN is illustrated in Algorithm 1.

4. Experiment

4.1. Datasets & Metric

To verify the effectiveness of our proposed method, extensive experiments have been conducted on six benchmark datasets, including DBLP, ACM, AMAP, AMAC, CITESEER, and CORA

(Shchur et al., 2018; Liu et al., 2022a). Detailed dataset statistics are summarized in Table 2. The detail descriptions are summarized as follows:

  • DBLP (Bo et al., 2020)

    : This author network contains authors from four areas including information retrieval, machine learning, data mining, and database. The edge is constructed between two authors if they are the co-author relationship. The features of the authors are the bag-of-words of keywords.

  • ACM (Bo et al., 2020): It is a network of papers. An edge will be constructed between two papers if they are written by the same author. The features of the papers are the bag-of-words of the keywords. The papers published in MobiCOMM, SIGCOMM, SIGMOD, KDD are selected and divided into three classes, including data mining, wireless communication, and database.

  • AMAP (Tu et al., 2021): This is a co-purchase graph from Amazon. The nodes in the graph denote the products, and the features are the reviews encoded by the bag-of-words. The edges indicate whether two products are frequently co-purchased or not. The nodes are divided into eight classes.

  • AMAC (Tu et al., 2021): AMAC is extracted from Amazon co-purchase graph, where nodes represent products, edges represent whether two products are frequently co-purchased or not, features represent product reviews encoded by bag-of-words, and labels are predefined product categories.

  • CITESEER (Tu et al., 2021)

    : It consists of 3327 scientific publications classified into one of six classes. The citation network consists of 4732 links. Each publication in the dataset is described by a 0/1-valued word vector indicating the absence or presence of the corresponding word from the dictionary. The dictionary consists of 3703 unique words.

  • CORA (Tu et al., 2021): The Cora dataset consists of 2708 scientific publications classified into one of seven classes. The citation network consists of 5429 links. Each publication in the dataset is described by a 0/1-valued word vector indicating the absence/presence of the corresponding word from the dictionary. The dictionary consists of 1433 unique words.

For fairness, we follow GPRGNN (Chien et al., 2020) and adopt the sparse splitting (2.5% / 2.5% / 95% for train / validation / test) in the origin literature for all datasets. The classification performance is evaluated by the wide-used accuracy metric.

Dataset Sample Dimension Edges Classes
DBLP 4057 334 7056 4
ACM 3025 1870 26256 3
AMAP 7650 745 287326 8
AMAC 13752 767 491722 10
CITESEER 3327 3703 4732 6
CORA 2708 1433 5429 7
Table 2. Dataset summary
Method DBLP ACM AMAP AMAC CITESEER CORA
GCN-Cheby (Defferrard et al., 2016) 60.48±0.00 79.98±3.07 90.09±0.28 82.41±0.28 65.67±0.38 71.39±0.51
GCN (Kipf and Welling, 2016) 67.64±0.38 84.95±0.21 90.54±0.21 82.52±0.32 67.30±0.35 75.21±0.38
GraphSage (Hamilton et al., 2017) 29.49±0.03 37.65±0.01 90.51±0.25 83.11±0.23 61.52±0.44 70.89±0.54
APPNP (Klicpera et al., 2018) 67.75±0.44 74.61±0.67 91.11±0.26 81.99±0.26 68.59±0.30 79.41±0.38
JK-Net (Xu et al., 2018) 64.51±0.53 81.20±0.11 87.70±0.70 77.80±0.97 60.85±0.76 73.22±0.64
GAT (Veličković et al., 2017) 68.58±0.42 83.88±0.35 90.09±0.27 81.95±0.38 67.20±0.46 76.70±0.42
SGC (Wu et al., 2019) 53.66±2.15 72.99±2.96 83.80±0.46 76.27±0.36 58.89±0.47 70.81±0.67
GPRGNN (Chien et al., 2020) 67.84±0.30 80.93±2.26 91.93±0.26 82.90±0.37 67.63±0.38 79.51±0.36
MixupForGraph (Wang et al., 2021) 68.51±0.78 86.24±0.62 89.87±0.10 77.30±2.10 57.41±0.33 67.11±0.63
DGI (Velickovic et al., [n.d.]) 68.90±1.34 81.26±1.48 83.10±0.50 75.90±0.60 65.43±2.94 73.74±1.43
GCA (Zhu et al., 2021) 20.82±1.94 19.10±1.73 89.98±1.28 81.86±1.80 56.39±3.94 74.49±3.70
GRACE (Zhu et al., 2020) 68.88±0.04 85.93±0.56 90.60±0.03 72.76±0.02 66.54±0.01 78.62±0.62
MVGRL (Hassani and Khasahmadi, 2020) 67.89±0.34 83.78±0.27 79.37±0.03 70.22±0.02 67.98±0.05 78.06±0.07
ICRN Ours 70.60±0.76 87.88±0.54 92.64±0.24 83.99±0.90 69.18±0.43 80.89±0.95
Table 3. The average semi-supervised classification performance with mean±std on six datasets. The red and blue values indicate the best and the runner-up results, respectively.

4.2. Experiment Setup

All experiments are implemented with one NVIDIA 1080Ti GPU on PyTorch platform. To alleviate the influence of randomness, we run each method for 10 times and report the mean values with standard deviations. Besides, to all methods, we train them for 1000 epochs until convergence. For ACM and DBLP datasets, we adopt the code of compared methods and reproduce the results. For the performance of baselines on other datasets, we reported the corresponding values from GPRGNN

(Chien et al., 2020) directly. In our proposed method, we adopt GPRGNN as our feature extraction backbone network, and our network is trained with the Adam optimizer (Kingma and Ba, 2014). Besides, the learning rate is set to 1e-3 for CITESEER, 5e-2 for DBLP, 2e-2 for CORA and AMAC, 1e-2 for ACM and AMAP, respectively. The interpolation rate and the trade-off hyper-parameter are set to 0.9 and 0.5, respectively.

4.3. Performance Comparison

To demonstrate the superiority of our method, we conduct performance comparison experiments for our proposed ICRN and 9 baselines. Specially, classical GCN-base methods (Defferrard et al., 2016; Kipf and Welling, 2016; Hamilton et al., 2017; Xu et al., 2018; Veličković et al., 2017; Wu et al., 2019; Chien et al., 2020; Klicpera et al., 2018) path the supervision information from the labeled data to the unlabeled data according to the linkages within the adjacent matrix as guidance for network training. Besides, the Mixup-enhanced method (Wang et al., 2021) improves the robustness and discriminative capability of the aggregated sample embedding over the labeled samples. Moreover, we report the results of the contrastive methods (Velickovic et al., [n.d.]; Zhu et al., 2021, 2020; Hassani and Khasahmadi, 2020), which design auxiliary tasks for discriminative information exploitation.

From these results in Table 3, we observe and analyze as follows. 1) It could be observed that the classical GCN-based methods are not comparable with our proposed ICRN. For example, on CORA dataset, ICRN exceeds GCN (Kipf and Welling, 2016) by 5.68%. This is because these methods would suffer from the representation collapse problem caused by the inaccurate connections within data in the adjacency matrix. 2) Compared with the Mixup-enhance method MixupForGraph (Wang et al., 2021), ICRN achieves better classification performance. The reason is that MixupForGraph does not consider the contrastive learning method to improve the discriminative capacity in the semi-supervised node classification task. 3) Moreover, our ICRN consistently outperforms other contrastive learning methods including DGI(Velickovic et al., [n.d.]), GCA(Zhu et al., 2021), GRACE(Zhu et al., 2020) and, MVGRL(Hassani and Khasahmadi, 2020)). We conjecture that those methods fail to exploit abundant intuitive information within the unlabeled data, thus achieving sub-optimal performance.

Different from them, our method aims to alleviate collapsed representations by improving the discriminative capability of the latent space from two aspects. Firstly, we proposed a graph interpolation module to force the prediction model to change linearly between samples, thus enlarging the margin of decision boundaries. Besides, the proposed correlation reduction mechanism further improves the discriminative capability of the features by keeping the cross-view consistency of the latent representations. Consequently, the proposed ICRN alleviates collapsed representations and achieves the top-level performance on six datasets.

CORA CITESEER AMAC AMAP ACM DBLP

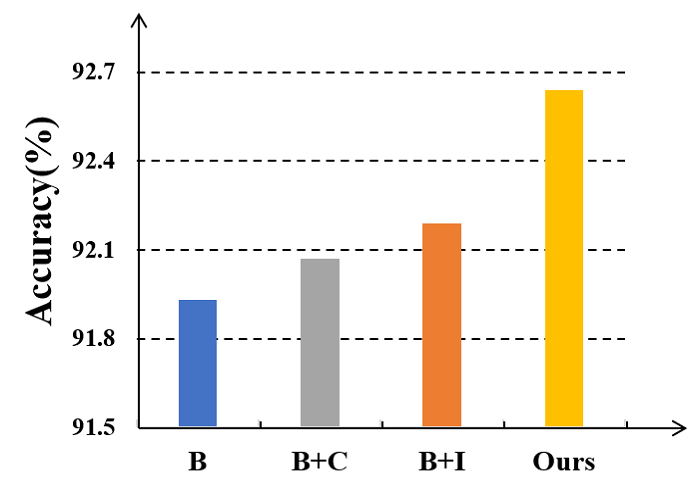

Figure 3. Ablation comparisons of the proposed modules on six datasets. “B”, “B+I”, “B+C” and “Ours” denote the baseline, the baseline with graph interpolation module, correlation reduction module and both, respectively.

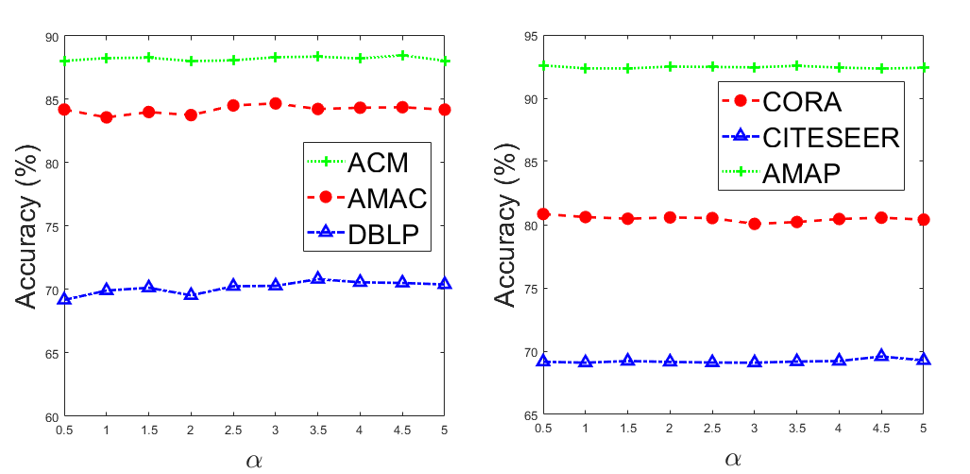

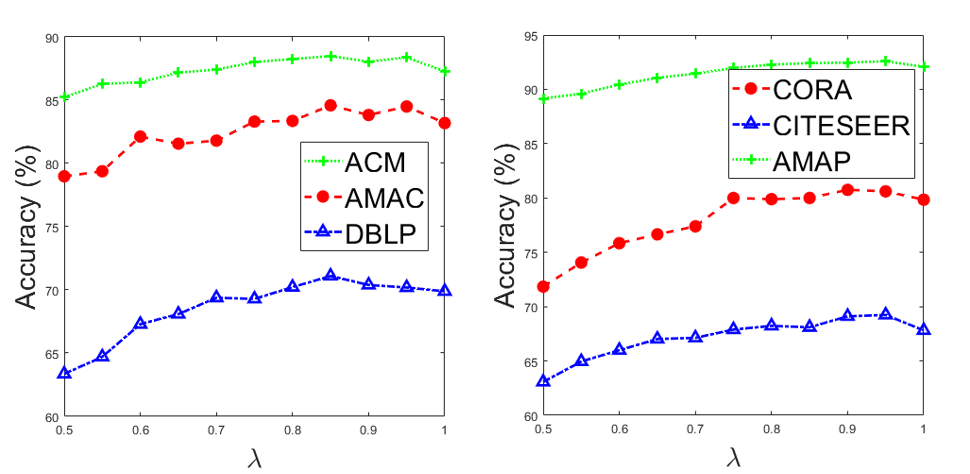

(a) The trade-off hyper-parameter (b) The interpolation rate
Figure 4. Testing of the effectiveness and sensitivity of hyper-parameter and . The result perturbation with the variation of the two parameters on all six datasets are illustrated in the figures.

4.4. Transferring Modules to Other Methods

To further investigate the effectiveness and the generality of our proposed modules, we transfer the graph interpolation module and correlation reduction module to five baselines including GCN-Cheby (Defferrard et al., 2016), GCN (Kipf and Welling, 2016), APPNP(Klicpera et al., 2018), JK-Net (Xu et al., 2018), GAT (Veličković et al., 2017). Table 4 reports the performance of the five methods with their variants on DBLP, ACM, CITESEER, and CORA dataset. Here, we denotes the baseline and the baseline with the two proposed modules as B and B-O, respectively.

From these results, we observed that, enhanced by our proposed modules, the baselines significantly achieve better performance. Specifically, our modules improve the classification accuracy of GCN by 4.79% on DBLP, 0.82% on ACM, 1.23% on CITESEER, 2.49% on CORA, respectively. The reason is that the two proposed modules enhance the discriminative capability of samples by enlarging the margin of decision boundaries and improving the cross-view consistency of the node representations. In this manner, the baselines alleviate the collapsed representation, thus achieving better classification performance.

Dataset GCN-Cheby GCN APPNP JKNet GAT
B B-O B B-O B B-O B B-O B B-O
DBLP 60.48±0 63.52±1.46 67.64±0.38 72.43±0.62 67.84±0.30 68.50±0.78 64.51±0.53 66.97±0.49 68.58±0.42 69.00±1.84
ACM 79.98±3.07 83.02±1.03 84.95±0.21 85.77±1.33 74.61±0.67 83.71±1.78 81.20±0.11 85.53±1.22 83.88±0.35 83.18±2.93
CITESEER 65.67±0.38 66.52±0.65 67.30±0.35 68.53±0.59 68.59±0.30 70.12±0.97 60.85±0.76 64.88±1.00 67.20±0.46 68.54±0.38
CORA 71.39±0.51 72.95±1.06 75.21±0.38 77.70±0.44 79.41±0.38 79.53±0.37 73.22±0.64 75.45±1.69 76.70±0.42 77.25±3.25
Table 4. Transferring our proposed modules to other models on four datasets. ’B’ and ’B-O’ represent the baseline and the baseline with our method, respectively. Boldface letters are used to mark the best results
ChebNet GCN JKNet MixupForGraph MVGRL GPRGNN Ours

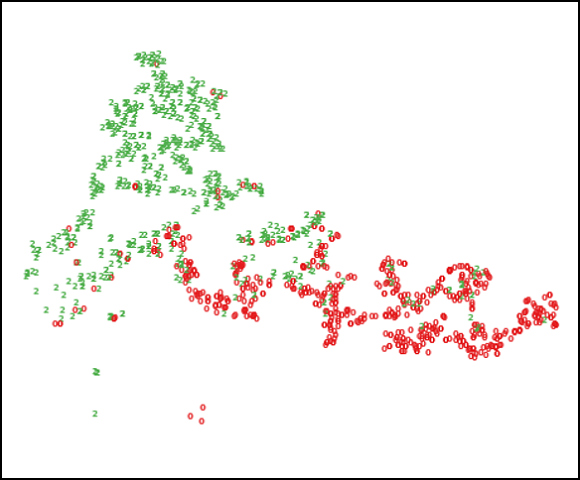

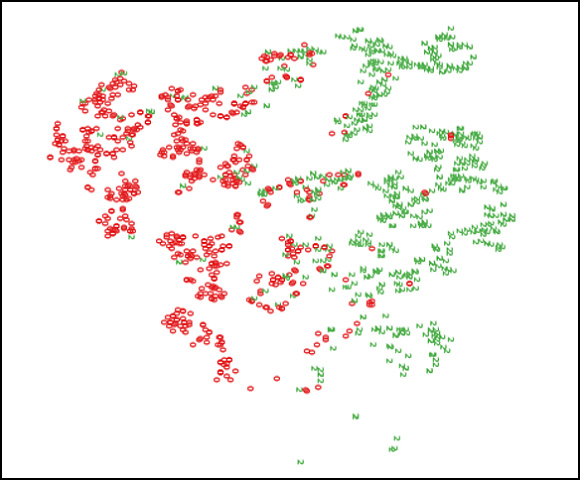

Figure 5. -SNE visualization of seven methods on two datasets. The first row and second row correspond to ACM and DBLP, respectively.

4.5. Ablation Studies

In this section, we first conduct ablation studies to verify the effectiveness of the proposed modules ,and than we analyze the robustness of ICRN to the hyper-parameters.

4.5.1. Effectiveness of the Proposed Modules

To investigate the effectiveness of the proposed graph interpolation module and correlation reduction module, extensive ablation studies are conducted in Fig. 3. Here, we adopt GPNGNN(Chien et al., 2020) as “Baseline”. Besides, “B”, “B+I”, “B+C” and “Ours” denote the baseline, the baseline with graph interpolation module, correlation reduction module and both, respectively. From these results, we have observed as follows. 1) Compared with “Baseline”, “B+I” has about 1.81% performance improvement on average of six datasets since the proposed graph interpolation module enlarges the margin of decision boundaries by forcing the prediction model to change linearly between samples. 2) Benefited from the correlation reduction module, the classification performance is improved. Taking the result on DBLP dataset for example, “B+C” exceeds “Baseline” by 2.05%. This demonstrates that the correlation reduction module improves the discriminative capability of samples by keeping the cross-view consistency of the latent representations. 3) Moreover, better performance of “Ours” indicates that both proposed modules are effective to guide the network to learn more discriminative latent features.

4.5.2. Hyper-parameter Analysis

Furthermore, we investigate the robustness of our proposed method to the hyper-parameters on six datasets. Specifically, to the trade-off hyper-parameter , we conduct ablation studies as shown in Fig. 4 (a). From these results, we observe that the classification accuracy will not fluctuate greatly when increasing. This demonstrates that our model ICRN is insensitive to the variation of the hyper-parameter . Besides, the accuracy of semi-supervised node classification with different values of the interpolation rate are illustrated in Fig. 4 (b). It’s observed that the performance of ICRN is decreased when is about less than 0.9 since controls the perturbation to the principal embedding H. It is worth mentioning that is set as 0.9 in all experiments.

GCN GPRGNN Ours

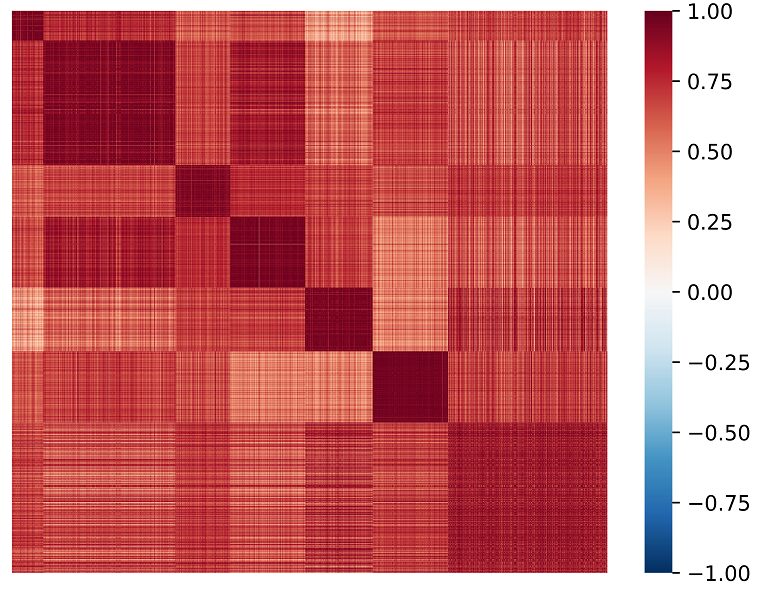

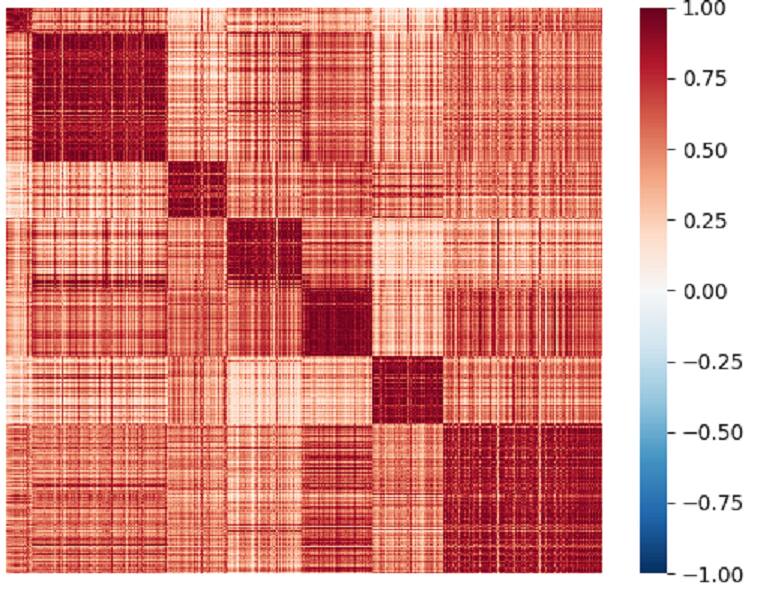

Figure 6. Visualization of sample similarity matrices on two datasets. The first row and second row correspond to DBLP and AMAP, respectively.

4.6. Visualization Experiment

4.6.1. -SNE Visualization of Classification Results

To intuitively show the superiority of ICRN, we visualize the distribution of the node embeddings H learned by ChebNet, GCN, GPRGNN and our ICRN on ACM and DBLP datasets via -SNE algorithm (Van der Maaten and Hinton, 2008). Here, we randomly select two categories of all samples so as to illustrate the margin of the corresponding decision boundaries clearly in Fig.5. From these results, we conclude that our proposed method has a larger margin of the decision boundaries compared with others.

4.6.2. Visualization of Node Similarity Matrices

We plot the heat maps of sample similarity matrices in the latent space to intuitively show the representation collapse problem in graph node classification methods and the effectiveness of our solution to this issue on DBLP and AMAP datasets. Here, we sort all samples by categories to make those from the same cluster beside each other. As illustrated in Fig. 6, we observe that GCN (Kipf and Welling, 2016) and GPRGNN (Chien et al., 2020) would suffer from representation collapse during the process of node encoding. Unlike them, our proposed method learns the more discriminative latent features, thus avoiding the representation collapse.

5. Conclusion

In this work, we propose a novel graph contrastive learning method termed Interpolation-based Correlation Reduction Network (ICRN) to alleviate the representation issue in semi-supervised node classification task. Specifically, we propose a graph interpolation module to force the prediction model to change linearly between samples, thus enlarging the margin of decision boundaries. Besides, the proposed correlation reduction module aims to keep the cross-view consistency of the embeddings. Benefited from these two modules, our network is guided to learn more discriminative representations, thus alleviating the representation collapse problem. Extensive experiments on six datasets demonstrate the superiority of our proposed methods.
