Intercept Graph: An Interactive Radial Visualization for Comparison of State Changes

08/19/2021
by   Shaolun Ruan, et al.
Singapore Management University
0

State change comparison of multiple data items is often necessary in multiple application domains, such as medical science, financial engineering, sociology, biological science, etc. Slope graphs and grouped bar charts have been widely used to show a "before-and-after" story of different data states and indicate their changes. However, they visualize state changes as either slope or difference of bars, which has been proved less effective for quantitative comparison. Also, both visual designs suffer from visual clutter issues with an increasing number of data items. In this paper, we propose Intercept Graph, a novel visual design to facilitate effective interactive comparison of state changes. Specifically, a radial design is proposed to visualize the starting and ending states of each data item and the line segment length explicitly encodes the "state change". By interactively adjusting the radius of the inner circular axis, Intercept Graph can smoothly filter the large state changes and magnify the difference between similar state changes, mitigating the visual clutter issues and enhancing the effective comparison of state changes. We conducted a case study through comparing Intercept Graph with slope graphs and grouped bar charts on real datasets to demonstrate the effectiveness of Intercept Graph.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

06/01/2006

A parent-centered radial layout algorithm for interactive graph visualization and animation

We have developed (1) a graph visualization system that allows users to ...
03/27/2017

A Visual Measure of Changes to Weighted Self-Organizing Map Patterns

Estimating output changes by input changes is the main task in causal an...
09/20/2017

VCExplorer: A Interactive Graph Exploration Framework Based on Hub Vertices with Graph Consolidation

Graphs have been widely used to model different information networks, su...
09/30/2020

Finding It at Another Side: A Viewpoint-Adapted Matching Encoder for Change Captioning

Change Captioning is a task that aims to describe the difference between...
03/19/2022

SD2: Slicing and Dicing Scholarly Data for Interactive Evaluation of Academic Performance

Comprehensively evaluating and comparing researchers' academic performan...
11/18/2018

A Study on 3D Surface Graph Representations

Surface graphs have been used in many application domains to represent t...
This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Preliminary Survey

There are few prior studies specifically investigating the visualization of state changes. Thus, to identify what visualizations have been applied to visualizing state changes, we conducted a preliminary survey to determine the mostly used visualization types for statistical change comparison. Following the methodology used by Segel and Heer [segel2010narrative], we first gathered figures from existing research papers that need to compare multiple state changes. We used the permutation of “state”, “change”, “comparison” as search keywords and manually harvested 100 top query results from Google Scholar. Since each study may include multiple figures for state change comparison, we further split them into 156 individual figure units. We then categorized all figure units into the five main groups (Table 1) introduced by Borkin et al. [borkin2013makes]. Note that the Heatmap category is designed to visualize changes with regard to spatial information such as the physical position, which is beyond the scope of our study and thus excluded from our survey.

Category Percentage
Bar Grouped Bar Chart 44.9%
Stacked Bar Chart 0.6%
Line Slope Graph 28.2%
Circle Pie Chart 3.8%
Donut Chart 0.6%
Grid & Matrix Heatmap 19.9%
Points Scatter Plot 1.9%
Table 1: Categories of figure units and respective percentages collected from related research papers.

2 related work

The related work of this paper can be categorized into two groups: state change visualization and radial visual design.

2.1 State Change Visualization

According to the preliminary survey shown in Table 1, we finally decide to target grouped bar charts and slope graphs due to their dominance in our harvested data set.

Slope graph [tufte1985visual] (Figure 1a) is an appropriate visual design when the nature of the task is to compare state changes across items based on comparing their line slope in time. A positive value of the slope implies that the dependent variable increases, while a negative value implies that the variable decreases. Grouped bar chart [beniger1978quantitative] (Figure 1c) is another approach to display state changes with the context of initial and final values, which encodes the initial and final values by respective categorical bars within each group. However, distractors between two target bar groups inevitably affect graphical perception when the amount of items exceeds its scalability [talbot2014four, doi:10.1198/106186002317375604], grouped bar chart is the most common method to show state changes.

Stacked bar chart [donnelly2009humongous] (Figure 1d) is the most straightforward solution when we previously interviewed domain experts, which indicates change counts by the stacked sub-bars on lower sub-bars denoting a context state. However, if the data set includes data items of both rise and drop trends, the representation may suffer from visual complexity with an increasing number of items, which would significantly affect the human perception. Also, viewers can not determine relative bar height accurately on such unaligned bar chart variants [cleveland1987graphical]. As shown in Table 1, researchers rarely utilize this visualization type to compare state changes.

In this paper, the state changes are encoded by the lengths of different line segments, which is more accurate than height difference (for grouped bar charts) and slopes (for slope graphs) [cleveland1987graphical, cleveland1986experiment, cleveland1985graphical]. Also, intuitive interactions are enabled in Intercept Graph to support a comparison of state changes with better graphical perception.

2.2 Radial Visual Design

Visual representations of data that are based on circular shapes are referred to as radial visualizations [burch2014benefits]. Draper et al. [draper2009survey] provided a comprehensive survey on radial visualization and categorize it into three visual themes: Polar Plot, Space Filling and Ring Based. The earliest use of a radial display in statistical graphics was the pie chart, which was proposed in William Playfair’s 1801 treatise, the Statistical Breviary [playfair1801statistical]. After that, radial visualization is becoming an increasingly pervasive metaphor in information visualization. Radviz [grinstein2002information] is a typical radial visualization-based approach to cluster multidimensional data. Hacıaliefendioğlu et al. [hacialiefendiouglu2020co] developed a radial technique that allows elaborate visualization of the interplay between different violence types and subgroups. Additionally, prior studies further discussed the strengths and weaknesses of radial visualization through various methodologies [diehl2010uncovering, goldberg2011eye].

According to the taxonomy presented by Draper et al. [draper2009survey], Intercept Graph belongs to the subtype Connected Ring Pattern under Ring Based. Accordingly, Intercept Graph preserves the advantages of radial visualization and further extends static radial methods via flexible interactions, making it available to compare items more accurately and effectively.

3 Visual Design

We describe the composition of Intercept Graph, the approach of adjusting the radius of the inner circular axis, and the user interaction.

3.1 Visualising an Intercept Graph

Intercept Graph uses line segments to facilitate the comparison of state changes across multiple data items. The inner and outer circular axes are used to locate “initial” and “final” states respectively. Note that Intercept Graph is not an intact dual-circle design, since the left and right semi-circular axis are separated apart intrinsically, which are used to visualize data items with drop and rise trends of state values respectively.

Line segments (e.g., Line AB, Line CD, Line EF in Figure 2a) are a set of lines generally drawn from the inner circular axis to the outer circular axis, which are used to implicitly encode the change quantity of each item. The central angle between radii representing initial and final values is proportional to the state changes as the scale of both inner and outer circular axes are linearly distributed. For example, suppose that there are two data items. One data item changes from 33 to 35 and the other from 37 to 40. Then the ratio of the central angles of Intercept Graph is 3:2 as shown in the angles and subtended to line segments AB and CD in Figure 2a. Also, following the Lows of Cosines, the line segment is determined as follows in terms of :

(1)

where constants denote the radii of the inner and outer circular axis respectively (as shown in the line segment EF in Figure 2a). denotes the central angle subtended to the line segment. Equation 1 is monotonic increasing in terms of , which indicates that the central angle of Intercept Graph is correlated positively with the line segment length. So, according to the two conclusions illustrated above, the line segment length is positively correlated with the change quantity.

Axis range is determined by the minimum and maximum of the “initial” and “final” states of all the data items. With such a setting, Intercept Graph can have more space to highlight the state changes, facilitating an easy comparison of different state changes. As shown in Figure 3c, both the left and right parts of Intercept Graph have a fixed radius of outer circular axis and adjustable radius for the inner circular axis.

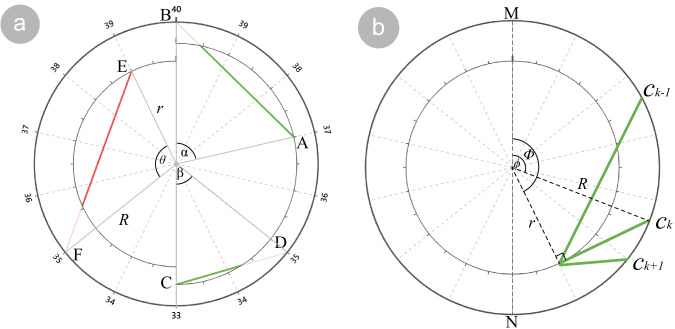

Figure 2: (a) An example showing that state changes are linearly encoded by central angles. (b) Analytic geometry diagram of Intercept Graph for the calculation of the radius of inner circular axis.

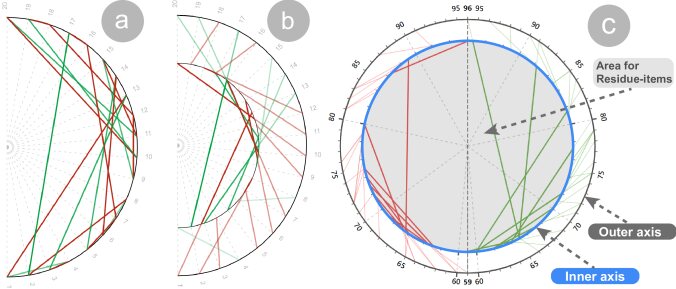

Figure 3: Alternative designs of Intercept Graph. (a) A draft with lines in the same semi-circular axis. (b) Extending (a) by introducing the inner circular axis for item filtering. (c) The final visual design.

Residue-items are the remaining data items indicated by the line segments who intersect with the inner circular axis, as shown by the line segments with a bold portion in Figure 3c. The set of residue-items varies according to the adjustment of the radius of the inner circular axis, which serves as a filter which keeps only the items with a relatively large change. More specifically, the smaller the inner circular axis, the fewer residue-items. Otherwise, more data items with relatively small state changes will also be kept.

Alternative designs: Before we come up with the current design, we also considered several alternative designs (Figures 3a and b). Figure 3a can visualize the initial and final states of multiple data items, but they cannot support interactively filter data items with a large change. Figure 3b enables interactive filtering of residue-items, but still suffers from serious visual clutter. Intercept Graph is preferred, as it mitigates the visual clutter by plotting increasing and decreasing data items in the left and right circular axes, respectively.

3.2 Radius of the Inner Circular Axis

With the decrease of radius of the inner circular axis, all the data items with a smaller state change will be excluded from the residue items, i.e., the state changes of all the residue-items are always larger than those excluded from the residue-items. Figure 2b provides an intuitive illustration for this. As introduced in Section 3.1, the line segment length is positively correlated with the change quantity. Suppose we decrease the inner circular axis outward until it is tangent to Line , which corresponds to the data item with -th largest state changes. Then, Line (representing the largest state changes) should always be included in the residue-items, while Line (representing the largest state changes) is already excluded from the residue-items.

Given the above properties of the radius of the inner circular axis, users can interactively adjust the radius of the inner circular axis to focus on the data items with higher state changes. Also, we provide an automated way to help users quickly filter the data items with top- state changes by automatically determining the corresponding radius of inner axis. As shown in Figure 2b, the corresponding radius of inner circular axis can be calculated as follows:

(2)

where denote the angles between the vertical separating line MN and the corresponding radii indicating the initial and final states of the data item with the -th largest state change.

3.3 User Interaction

The user interaction extends Intercept Graph from static radial visualization. Specifically, two features called large change accentuation and close change magnification are proposed to supports more advanced features over the basic nature plotting change counts.

Large change accentuation allows quick filtering for the data items with large state changes of user interests. For example, through shrinking the radius of the inner circular axis, items with larger change counts would be more likely to be filtered (the flow is shown from Figure 3a to Figure 3b). Otherwise, all data items will turn into residue-items when the inner circular axis radius is equivalent to that of the outer circular axis. This feature performs well with an increasing number of data items.

Close change magnification enhances the human graphical perception of state change comparison through amplifying the difference of similar change quantities interactively (as shown in pairwise items highlighted in dark blue and crimson in Figure Intercept Graph: An Interactive Radial Visualization for Comparison of State Changes). Through shrinking the inner circular axis inward, the ratio of pairwise line segments will be magnified, which makes the comparison of relative state changes more effective.

4 case studies

We conduct a case study on a basketball dataset to demonstrate the effectiveness of our proposed visual design. It contains 321 NBA player statistics, who are active players in both Season 2018 and 2019. We adopt the application as evaluating the progress of players is of great importance in the league, which is attributed to the foundation of the annual award Most Improved Player [martinez2019method]. Following the methodology proposed by Dumitrescu et al. [dumitrescu2000evolutionary], we use a rank-based statistical category Points per Game (abbreviated as PPG) instead of row data to address the discrepancy between players’ performance and the highly-aggregated PPG records.

The preceding conventional designs, such as slope graph (Figure Intercept Graph: An Interactive Radial Visualization for Comparison of State Changesb), shows a PPG trend story by connecting two PPG states of Season 2018 and 2019, while another target design grouped bar charts (Figure Intercept Graph: An Interactive Radial Visualization for Comparison of State Changesc) plots items with 321 clustered bars. Apparently, both designs have limitations to visualize PPG changes. First, they encode changes by ineffective visual channels. For slope graphs (Figure Intercept Graph: An Interactive Radial Visualization for Comparison of State Changesb), line slopes across different players are difficult to be compared, especially there are distractors between two target lines. Also, as shown in the detailed view of Figure Intercept Graph: An Interactive Radial Visualization for Comparison of State Changesc, bar height differences indicating PPG changes can not be perceived effectively. Furthermore, both designs are beyond their respective visual scalability to plot over 300 items. Specifically, for grouped bar charts, the perception suffers from the visual clutter in terms of the narrow width of bars and a variety of distractor bars. For slope graphs, serious line overlapping makes it hard to distinguish different lines and compare line slopes.

On the contrary, the proposed visual design Intercept Graph improves state comparisons in terms of better graphical perceptions. Figure Intercept Graph: An Interactive Radial Visualization for Comparison of State Changesa-left is used to visualize the top 30 players of rise and drop PPG changes by setting the residue-item number to 30 interactively. It is clear that the 30 residue-items for both rise and drop trends are arranged sparsely within the inner circular axes, which mitigates visual clutter issues significantly. If, instead, the user is interested in sets of top 10 candidates of MIP selection, simply setting the residue-item number to 10 will fulfill the needs (Figure Intercept Graph: An Interactive Radial Visualization for Comparison of State Changesa-right). Also, based on the length mapping of state changes, it is apparent to recognize that Kawhi Leonard (Line Kawhi L.) has a larger PPG progress than Stephen Curry (Line Stephen C.), both of which are plotted as red line segments due to the decrease of the rank values (e.g., from the third to the first), which actually indicates an improvement of their PPGs. Also, the PPG of Courtney Lee (Line Courtney L.) drops much more than that of DeMarcus Cousins (Line DeMarcus C.) due to the longer line segment length.

More interesting findings can be revealed by Intercept Graph. Here, we introduce a statistical measure percentage difference, according to a prior study [cole2017statistics], to reflect differences of two lengths of intercepted line segments. As shown in Figure Intercept Graph: An Interactive Radial Visualization for Comparison of State Changesb and Figure Intercept Graph: An Interactive Radial Visualization for Comparison of State Changesc, Line Walter L. JR. and Line R.J. H. (highlighted in dark blue annotations) have a percentage difference of slopes and bar height differences of 8.9% (213 and 234 places risen respectively) due to the linear visual mapping. However, our approach (Figure Intercept Graph: An Interactive Radial Visualization for Comparison of State Changesa-right) magnifies the length ratio of intercepted line segments to 18.3% (100.9 pixels to 123.4 pixels) through image software measurement. Another pair of target players Andrew H. and Tyreke E. for drop trend of PPG ranking (highlighted in crimson annotations) have the percentage differences of 8.1% (114 and 124 places dropped) and 19.2% (54.8 pixels to 67.8 pixels) for two preceding designs and our Intercept Graph respectively. It is clear that both results magnify the original linear mapping over two times, which makes the original linear mapping apparent enough to make judgments.

5 conclusion

In this paper, we present a novel visual design Intercept Graph for context-aware comparison of state changes. Instead of focusing on visualizing the exact change quantities, Intercept Graph is mainly designed for facilitating the comparison of state changes across multiple data items via more effective interaction. We compared Intercept Graph with widely-used established tools (i.e., slope graphs and grouped bar charts). A case study on a two-season basketball dataset shows that our design can quickly filter large state changes and amplify the difference of similar state changes for an accurate comparison through smooth interactions. In future work, we plan to conduct more case studies and user studies on real datasets to further evaluate the effectiveness of Intercept Graph. Also, it would be interesting to explore how to automatically determine the optimal default inner circular radius for more efficient comparison of state changes.

Acknowledgements.
This research was supported by the Singapore Ministry of Education (MOE) Academic Research Fund (AcRF) Tier 1 grant (Grant number: 20-C220-SMU-011). S. Ruan was partially supported by the National Natural Science Foundation of China (Grant No. 61872066 and U19A2078), and the Science and Technology project of Sichuan (No. 2020YFG0056).
