I Introduction
Intelligent reflecting surface (IRS) assisted wireless communication has recently emerged as a promising solution to enhance the capacity and energy efficiency for future wireless systems. Specifically, an IRS is able to establish favourable channel responses by controlling the wireless propagation environment through its reconfigurable passive reflecting elements (see e.g. [1, 2, 3, 4] and the references therein). However, the existing works on IRS mostly assume an ideal phase shift model with full reflection, i.e., unity amplitude at each reflection element regardless of the phase shift, which, however, is practically difficult to realize due to the hardware limitation.
The amplitude response of a typical passive reflecting element is non-uniform with respect to its phase shift. In particular, the amplitude exhibits its minimum value at the zero phase shift, but monotonically increases and asymptotically approaches unity amplitude at the phase shift of or . This is due to the fact that when the phase shift approaches zero, the image currents, i.e., the currents of a virtual source that accounts for the reflection, are in-phase with the reflecting element currents, and thus the electric field and the current flow in the element are enhanced. As a result, the dielectric loss, metallic loss, and ohmic loss increase dramatically, leading to substantial energy loss and hence low reflection amplitude [5]. Furthermore, these losses mainly come from the semiconductor devices, metals, and dielectric substrates used in the IRS, and thus are not avoidable in practice. In fact, this is a long standing problem for reflection-based metasurfaces [6]. In [7], amplifiers are integrated into the reflecting elements to compensate the energy loss, which is not suitable for passive IRS and also practically costly.
In [1, 2, 3], by assuming the ideal phase shift model, IRS reflection is designed to have the maximum phase alignment between the IRS-reflected and non-IRS-reflected signals at the designated receivers. In contrast, when the amplitude depends on the phase shift at each reflecting element, such an optimal reflection design is not feasible as each phase shift needs to be properly chosen to have a better balance between the amplitude and phase alignment. Therefore, if the IRS reflection is designed for a practical system based on the ideal phase shift model, it inevitably causes certain performance degradation. To the best of the authors’ knowledge, the practical phase shift model and corresponding beamforming optimization algorithm design for IRS-aided wireless systems has not been reported in the literature yet.
This thus motivates this letter, where we first propose a practical phase shift model and verify its accuracy with the experimental results reported in literature. Next, based on this model and considering an IRS-aided point-to-point communication system, we formulate a new problem to maximize its achievable rate by jointly optimizing the transmit beamforming and the IRS reflect beamforming. As this problem is non-convex, we propose a low-complexity algorithm to solve it sub-optimally by leveraging the alternating optimization (AO) technique. Simulation results are also presented to demonstrate the performance gain by the joint beamforming optimization based on the proposed practical phase shift model over the conventional ideal model.
Notations:
In this letter, scalars are denoted by italic letters, vectors and matrices are denoted by bold-face lower-case and upper-case letters, respectively. For a complex-valued vector
, , , and denote its -norm, conjugate transpose, and a diagonal matrix with each diagonal element being the corresponding element in , respectively. Scalar denotes the -th element of vector . For a square matrix , denotes its entry in the -th row and -th column. denotes the space of complex-valued matrices. denotes the imaginary unit, i.e., . For a complex-valued scalar , , , and denote its absolute value, phase, and complex conjugate, respectively. denotes the statistical expectation.Ii System Model

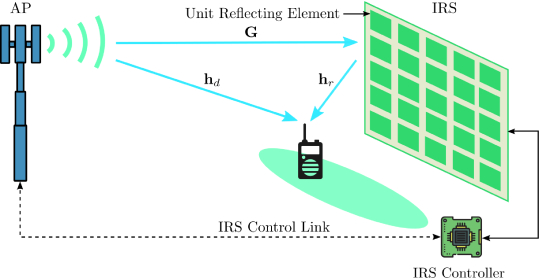

We consider a multiple-input single-output (MISO) wireless system where an IRS composed of reflecting elements is deployed to assist in the communication from an access point (AP) with antennas to a single-antenna user, as illustrated in Fig. 1. The IRS reflecting elements are programmable via an IRS controller. Furthermore, IRS controller communicates with the AP via a separate link for information exchange between the IRS and the AP on the channel state information (CSI) and other information needed for implementing the joint design of the AP transmission and IRS reflection. It is assumed that the signals that are reflected by the IRS more than once have negligible power due to substantial path loss and thus are ignored. In addition, we consider a quasi-static flat-fading model, where it is assumed that all the wireless channels remain constant over each transmission block.
Let , , and denote the baseband equivalent channels from the AP to user, from the IRS to user, and from the AP to IRS, respectively. Without loss of generality, let denote the reflection coefficient vector of the IRS, where and are the amplitude and the phase shift on the combined incident signal, respectively, for [2]. Note that for the ideal phase shift model considered in [1, 2, 3], , regardless of the phase shift, . The transmit signal at the AP is given by , where denotes the beamforming vector and denotes the transmit symbol, which is independent of
, and has zero-mean and unit variance (i.e.,
). We have dropped the time index for notational simplicity. The received baseband signal at the user is thus given by(1) |
where denotes the additive white Gaussian noise (AWGN) at the receiver with zero mean and variance .
In this letter, we aim to maximize the achievable rate or spectrum efficiency (SE) in bits per second per Hertz (bps/Hz) by jointly optimizing the AP beamforming vector and the IRS reflection vector . Accordingly, the achievable rate/SE is given by^{1}^{1}1Note that the considered system model can be also applied to wireless power transfer (WPT) [2] as the harvested radio-frequency (RF) energy at the receiver is generally modeled as an increasing function of the received signal power [8], i.e., the term given in (2).
(2) |
Iii Practical Phase Shift Model
Iii-a Equivalent Circuit Model
An IRS is typically constructed as a printed circuit board (PCB), where the reflecting elements are equally spaced in a two-dimensional plane. A unit reflecting element is composed of a metal patch on the top layer of the PCB dielectric substrate and a full metal sheet on the bottom layer [2]. Moreover, a semiconductor device^{2}^{2}2In practice, a positive-intrinsic-negative (PIN) diode, a variable capacitance (varactor) diode, or a metal-oxide-semiconductor field-effect transistor (MOSFET) can be used as the semiconductor device mentioned here [9, 6, 10]. , which can vary the impedance of the reflecting element by controlling its biasing voltage, is embedded into the top layer metal patch so that the element response can be dynamically tuned in real time without changing the geometrical parameters [10]. In other words, when the geometrical parameters are fixed, the semiconductor device controls the phase shift and amplitude (absorption level).
As the physical length of a unit reflecting element is usually smaller than the wavelength of the desired incident signal, its response can be accurately described by an equivalent lumped circuit model regardless of the particular geometry of the element [11]. As such, the metallic parts in the reflecting element can be modeled as inductors as the high-frequency current flowing on it produces a quasi-static magnetic field. In Fig. 2, the equivalent model for the -th reflecting element is illustrated as a parallel resonant circuit and its impedance is given by
(3) |
where , , , , and denote the bottom layer inductance, top layer inductance, effective capacitance, effective resistance, and angular frequency of the incident signal, respectively. Note that determines the amount of power dissipation due to the losses in the semiconductor devices, metals, and dielectrics, which cannot be zero in practice, and specifies the charge accumulation related to the element geometry and semiconductor device. As the transmission line diagram in Fig. 2 depicts, the reflection coefficient, i.e., in (1), is the parameter that describes the fraction of the reflected electromagnetic wave due to the impedance discontinuity between the free space impedance and element impedance [12], which is given by
(4) |
Since is a function of and , the reflected electromagnetic waves can be manipulated in a controllable and programmable manner by varying ’s and ’s.
To demonstrate this, Fig. 3 illustrates the behaviour of the amplitude and the phase shift, i.e., and , respectively, for different values of and . Note that to align with the experimental results in [6], is varied from pF to pF when nH, nH, , and . It is observed that a reflecting element is capable of achieving almost full phase tuning, while the phase shift and amplitude both vary with and in general. It is also observed that the minimum amplitude occurs near zero phase shift and approaches unity (the maximum) at the phase shift of or , which is explained as follows. When the phase shift is around or , the reflective currents (also termed as image currents) are out-of-phase with the element currents, and thus the electric field and the current flow in the element are both diminished, thus resulting in minimum energy loss and highest reflection amplitude. In contrast, when the phase shift is around zero, the reflective currents are in-phase with the element currents, and thus the electric field and the current flow in the element are both enhanced. As a result, the dielectric loss, metallic loss, and ohmic loss increase dramatically, leading to substantial energy dissipation and thus lowest reflection amplitude. Furthermore, it is worth noting that the numerical results illustrated in Fig. 3 are in accordance with the experimental results reported in literature (see [5] and Fig. 5 (b) in [6]), indicating that the circuit model given by (3) and (4) accurately captures the physics of a reflecting element in practice.
It is also worth noting that to obtain an ideal phase shift control, where , each reflecting element should exhibit zero energy dissipation. However, for practical hardware, energy dissipation is unavoidable^{3}^{3}3In [6], in each reflecting element due to the diode junction resistance, while in [5], although the reflecting element does not contain any semiconductor device, its amplitude response follows a similar shape to Fig. 3 due to the metallic loss and dielectric loss. and the typical behaviour of the reflection amplitude is similar to Fig. 3. Therefore, incorporating a practical phase shift model to design beamforming algorithms is essential to optimize the performance of IRS-aided wireless systems.
Iii-B Proposed Phase Shift Model
In order to characterize the fundamental relationship between the reflection amplitude and phase shift for designing IRS-aided wireless systems, we propose in this subsection an analytical model for the phase shift which is generally applicable to a variety of semiconductor devices used for implementing the IRS. Let with and respectively denote the phase shift and the corresponding amplitude. Specifically, can be expressed as
(5) |
where , , and are the constants related to the specific circuit implementation. As depicted in Fig. 4 (a), is the minimum amplitude, is the horizontal distance between and , and controls the steepness of the function curve. Note that for , (5) is equivalent to the ideal phase shift model, i.e., . In practice, IRS circuits are fixed once they are fabricated and these parameters can be easily found by a standard curve fitting tool.
Fig. 4 (b) illustrates that the proposed phase shift model closely matches the simulation results presented in Section III-A for a practical reflecting element. In the sequel, we adopt the model in (5) for beamforming design in IRS-aided wireless communication. Moreover, we assume that the circuits of the reflecting elements are all identical, and thus the same model parameters, i.e., , , and , apply to each of the elements.
Iv Beamforming Optimization
Iv-a Problem Formulation
We aim to jointly optimize and such that the achievable rate, given in (2), is maximized. The problem is formulated as
(6) | ||||
(7) | ||||
(8) | ||||
(9) |
where denotes the maximum transmit power constraint at the AP. Following similar steps as in [13], problem (P0) can be reformulated as
(10) | ||||
with . Although simplified, problem (P1) is non-convex and difficult to be optimally solved in general. In the next subsection, we solve (P1) by applying the AO technique.
Iv-B Proposed Algorithm
We propose an AO algorithm to find an approximate solution to (P1), by iteratively optimizing the phase shift of one of the reflecting elements with those of the others being fixed at each time, and repeatedly doing this procedure for all elements until the objective value in (10) converges. The convergence is guaranteed as the optimal value of (P1) is upper-bounded by a finite value. To this end, the problem for optimizing the reflection of the -th element is formulated as
(11) | ||||
(12) |
where , , and . Note that (11) is obtained by taking the terms associated with and in the expansion of (10), while the derivation is omitted due to the space limitation. The problem (P1-AO) is a single-variable non-convex optimization problem, where its approximate solution can be obtained numerically via a one-dimensional search over . The overall iterative algorithm to solve (P1) is given in Algorithm 1.
Remark 1: Note that for the ideal phase shift model considered in [1, 2, 3], and can be designed to maximize (11) by setting and . However, such an optimal reflection design is not feasible for a practical IRS due to the dependency of on as depicted in Fig. 3 (b). For instance, if , may not be a favourable phase design as it yields the lowest reflection amplitude. In this case, needs to be properly chosen to have a better balance between and .
Iv-C Initialization Method
For the proposed AO algorithm, it is desirable to have the initial value of to be close to the optimal solution of (P1). To this end, we initialize in this letter using the solution of the following problem, which assumes the ideal phase shift control, and its solution is given in [1].
(13) | ||||
(14) |
After solving (P2), we set , as the initial values for Algorithm 1.
V Simulation Results

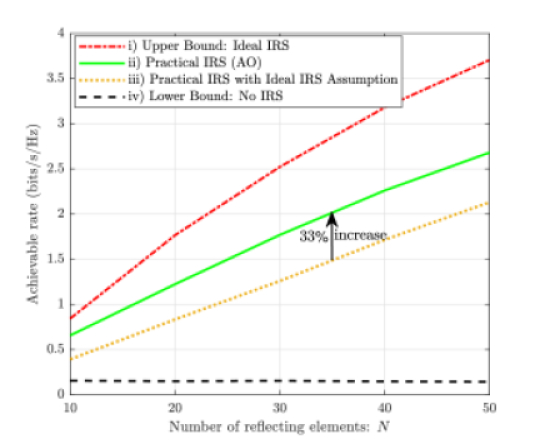

We consider a MISO downlink wireless system consisting of an AP with antennas and a single-antenna user. It is assumed that an IRS composed of reflecting elements is deployed in the vicinity of the user while the AP and IRS are assumed to be located meters (m) apart. Rayleigh fading is assumed for all the channels involved, and the signal attenuation at a reference distance of m is set as dB. The path loss exponents are set to , , and for the channels between AP-IRS, IRS-user, and AP-user, respectively, according to[1]. The total transmit power at the AP is dBm and dBm.
The user is assumed to lie on a horizontal line that is in parallel to that connecting the AP and IRS, with the vertical distance between these two lines equal to m. By varying the horizontal distance between the AP and user, denoted by , in Fig. 5, the achievable rate averaged over channel realizations is shown for the following schemes: i) Upper bound: solving (P2) by assuming the ideal phase shift model [1]; ii) Beamforming optimization by the AO algorithm under the proposed practical phase shift model with , , and ; iii) Beamforming optimization assuming the ideal phase shift model [1], while the practical phase shift model is used for computing the achievable rate. Note that this scheme also corresponds to using the initial phase shifts of the AO algorithm only; and iv) Lower bound: the system without using an IRS by setting .

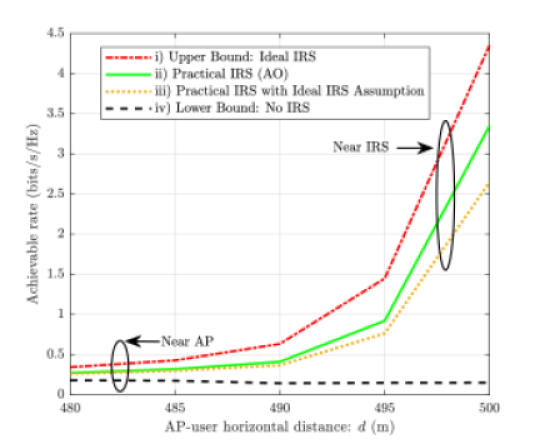

It is observed from Fig. 5 that when the user moves closer to the IRS, the performance gap between ii) and iii) increases. This is due to the fact that the user benefits from the stronger reflecting channel via IRS (), and therefore accurate reflection design at the IRS becomes more crucial. In contrast, when the user moves toward the AP, the performance gap between ii) and iii) decreases as the AP-user direct channel () becomes dominant and the effect of IRS reflection becomes less significant. Moreover, by fixing the user at m and varying the number of reflecting elements, , in Fig. 6, we plot the average achievable rate. It is also observed that the performance gap between ii) and iii) increases with as the IRS reflecting channel becomes stronger.
Vi Conclusion
In this letter, we proposed a practical IRS phase shift model. Based on this new model and considering an IRS-aided MISO system, we formulated and solved a joint transmit and reflect beamforming optimization problem to maximize the achievable rate, by applying the AO technique. Our simulation results validated our proposed analytical model and showed that beamforming optimization based on the conventional ideal phase shift model, which has been widely used in the literature, may lead to significant performance loss as compared to the proposed practical model. In future work, it is worth investigating such performance difference in more general IRS-aided wireless communication setups, such as multi-user systems [1, 3], OFDM-based system [14], physical layer security system [15], and so on.
References
- [1] Q. Wu and R. Zhang, “Intelligent reflecting surface enhanced wireless network via joint active and passive beamforming,” [Online]. Available: https://arxiv.org/abs/1810.03961.
- [2] Q. Wu and R. Zhang, “Towards smart and reconfigurable environment: Intelligent reflecting surface aided wireless networks,” [Online]. Available: https://arxiv.org/abs/1905.00152.
- [3] C. Huang, A. Zappone, G. C. Alexandropoulos, M. Debbah, and C. Yuen, “Large intelligent surfaces for energy efficiency in wireless communication,” [Online]. Available: https://arxiv.org/abs/1810.06934.
- [4] M. D. Renzo et al., “Smart radio environments empowered by reconfigurable AI meta-surfaces: An idea whose time has come,” EURASIP J. on Wireless Commun. and Networking, vol. 2019, no. 1, pp. 129–148, May 2019.
- [5] H. Rajagopalan and Y. Rahmat-Samii, “Loss quantification for microstrip reflectarray: Issue of high fields and currents,” in Proc. IEEE Antennas and Propag. Society Int. Symposium, Jul. 2008, pp. 1–4.
- [6] B. O. Zhu, J. Zhao, and Y. Feng, “Active impedance metasurface with full 360 reflection phase tuning,” Scientific reports, vol. 3, pp. 3059–3064, Oct. 2013.
- [7] M. E. Bialkowski, A. W. Robinson, and H. J. Song, “Design, development, and testing of X-band amplifying reflectarrays,” IEEE Trans. on Antennas and Propag., vol. 50, no. 8, pp. 1065–1076, Aug. 2002.
- [8] Y. Zeng, B. Clerckx, and R. Zhang, “Communications and signals design for wireless power transmission,” IEEE Trans. Commun., vol. 65, no. 5, pp. 2264–2290, May 2017.
- [9] W. Tang, X. Li, J. Y. Dai, S. Jin, Y. Zeng, Q. Cheng, and T. J. Cui, “Wireless communications with programmable metasurface: Transceiver design and experimental results,” [Online]. Available: https://arxiv.org/abs/1811.08119.
- [10] F. Liu et al., “Intelligent metasurfaces with continuously tunable local surface impedance for multiple reconfigurable functions,” Phys. Rev. Applied, vol. 11, no. 4, pp. 44 024–44 033, Apr. 2019.
- [11] S. Koziel and L. Leifsson, Surrogate-based modeling and optimization. Springer, 2013.
- [12] D. M. Pozar, Microwave Engineering (3th Edition). New York John Wiley & Sons, 2005.
- [13] Q. Wu and R. Zhang, “Beamforming optimization for intelligent reflecting surface with discrete phase shifts,” in Proc. ICASSP, May 2019, pp. 7830–7833.
- [14] Y. Yang, B. Zheng, S. Zhang, and R. Zhang, “Intelligent reflecting surface meets OFDM: Protocol design and rate maximization,” [Online]. Available: https://arxiv.org/abs/1906.09956.
- [15] M. Cui, G. Zhang, and R. Zhang, “Secure wireless communication via intelligent reflecting surface,” IEEE Wireless Commun. Letters, 2019, Early Access.
