Integration of 3D Object Recognition and Planning for Robotic Manipulation: A Preliminary Report

07/29/2013 ∙ by Damien Jade Duff, et al. ∙ 0

We investigate different approaches to integrating object recognition and planning in a tabletop manipulation domain with the set of objects used in the 2012 RoboCup@Work competition. Results of our preliminary experiments show that, with some approaches, close integration of perception and planning improves the quality of plans, as well as the computation times of feasible plans.



There are no comments yet.


page 1

page 2

page 3

page 4

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Consider what the eyes are doing when involved in the solving of a jigsaw puzzle. While the mind is darting about, imagining placement possibilities, considering combinations, and pondering strategies, the eyes too are darting from place to place over the puzzle, examining pieces relevant to a considered placement, checking edges for compatibility, and studying the layout. The eyes are responding to the deliberation of the mind, checking expectations and seeking out necessary information. They are assuring that the deliberation is rooted in the physical reality of the problem.

Many problems in robot manipulation require deliberation because of the large number of elements involved and their complicated interactions. It should be expected that in such problems a similar integration of deliberation with perception (and geometric reasoning) would be measurably beneficial, considering its apparent interleaving in human problem solving. Consider, for instance, moving objects around from one location to another on a workspace. These movements must take into account (1) whether some objects block the reachability of another object at a particular location, and (2) whether an object can be placed on top of another object while maintaining the stability of the stack of objects. To check the two conditions above, perception can be useful in identifying the orientation and shape of the object; in this way, perception can guide planning towards feasible plans.

Alternatively, planning may guide perception: rather than obtaining the details of all the objects in the scene, their shapes and so forth, planning may ask for the information about the relevant objects thus reducing the amount of computation for perception, and may further reduce the amount of perceptual knowledge needed to be considered by the planning. Such a top-down guidance of perception can be considered a rudimentary attentional mechanism.

In this paper, we investigate the usefulness of three different approaches to integrating perception with planning, in a similar way to Schüller et al. 2013 [1] who investigate integration of planning with geometric reasoning. The three approaches investigated are (Pre) preprocessing of perceptual data and its integration into the action domain, (Filt) filtering of plans by post-checking using perceptual processing, and (Repl) derivation of additional constraints from perception for subsequent replanning.

In the current work we describe experiments in a robotic manipulation domain with various industrially plausible objects used at the 2012 RoboCup@Work competition (Figure 1).

Figure 1: A subset of objects from the 2012 Robocup@Work mobile manipulation competition.

As with Erdem et al. 2011 [2], we describe the manipulation domain in the action language  [3], and use the reasoning system CCalc [4] to solve planning problems. We use an object segmentation and shape recognition system built on the Kinect RGBD (RGB plus depth) camera and Point Cloud Library [5]. Perceptual processing does a quick initial bottom-up run, finding candidate objects in the target scene, and subsequently provides information about the shape of these objects to the planner on demand.

2 Related Work

Various planning techniques have been used for efficient visual processing management in earlier studies [6, 7, 8, 9]. A survey of such works can be found in the context of the recent introduction of planning for perception in the context of cognitive robotics [10]. The current report distinguishes itself in that it is an empirical investigation of embedding of perceptual processing into a task planning problem, rather than an application of planning to perceptual processing and also aims to investigate how this integration might also improve efficiency of planning. In that sense, a more relevant related work reports a Prolog-based decision making system that utilizes external computations for generating and evaluating perceptual hypotheses, such as the missing objects on a table [11], though it should be emphasized that the current report is an empirical investigation of different ways of embedding such external computations.

3 Manipulation Domain Description

The robotic manipulation domain we consider in our experiments involves robot grasping, transport and placement of objects from a small set of industrially plausible objects (Figure 1) used at the Robocup@Work 2012 competition. The planning problem is to obtain a sequence of actions that transforms an initial configuration of these objects on a work area into a final configuration that satisfies some goal conditions. Perception is utilized in identifying the shape of objects to check the stability of stacks of objects and also their reachability.

In this work, to emphasize the integration of perception with planning, unlike at Robocup@Work 2012, the mobile aspect of the robot is not addressed.

We view the work area as a 53 grid, where each grid cell has a unique label. We assume that the objects are oriented in three different ways: horizontal to the axis, horizontal to the axis, or vertical with respect to the work area. Objects can be placed on top of each other or on the work area.

We describe this domain in the action language  [3] as follows.

States of the world are described by means of two fluents (i.e., atoms whose truth value may change over time): one describing the locations of objects on the work area or on other objects (), and the other describing their orientations ().

We represent an action of the robot moving an object to a location with an orientation by atoms of the form . This action involves both a pick of the object and its placement. In the following, range over objects, ranges over locations on the work area (i.e., grid cells or other objects), and ranges over the three possible orientations of objects.

3.1 Effects and preconditions of actions

The direct effects of the move action are described in  by the following causal laws:

The preconditions of this action are described by causal laws as well. For instance, we can represent that an object cannot be moved to a location if it is already there, by the causal law:

The precomputation (Pre) approach to integration also makes use of causal laws as a way of integrating external computation. The following causal law expresses that an object cannot be moved on top of another object if that would lead to an unstable stack.

Here, the stability of a stack of objects is checked “externally” by the “external predicate” , which utilizes perception to obtain the shape of the object (though object shape is not represented at the high level) and then checks the stability of the stack with respect to some geometric constraints which depend on object shape. An external predicate is a predicate whose truth value is determined by running arbitrary computation, the details of which are not represented in the high-level formalism from which it is accessed. External predicates are similarly utilized by Erdem et al. 2011 [2] to embed geometric reasoning into preconditions of actions.

Similarly, , another external predicate, is used to determine whether an object above a particular table location and orientation will block a reach to a second object above a different table location and orientation . This external predicate is used to forbid certain actions. In one case, if the object to be moved is currently blocked by another object, the move action is forbidden. In another, an object cannot be placed on an unreachable table location or on another object that is above an unreachable table location.

3.2 Constraints

State constraints ensure that two objects cannot be at the same location and an object cannot be below itself:

Here, is a derived predicate defined in terms of .

3.3 Planning

Given the domain description partially explained above, we can solve planning problems using the reasoning system CCalc [4] by means of “queries” like the following:

:- query
  maxstep :: 0..3;
  % Initial State
  0: is_at(sco2)=loc_0x0, ori_is(sco2)=vert,
     is_at(obj1)=loc_2x1, ori_is(obj1)=vert;
  % Goal
  maxstep: is_below(loc_0x0,obj1).

This query asks for a shortest plan whose length is at most 3, for a planning problem with:

  • Initial state: the object sco2 is placed on the work place at location loc_0x0 with a vertical orientation and the object obj1 is placed at location loc_2x1 with a vertical orientation, and

  • Goal: a configuration of objects such that obj1 is above location loc_0x0.

4 Object Recognition

Perceptual data comes in the form of a point cloud from a Kinect RGBD camera, which uses a structured infrared projector and camera to pick out dense depth as well as RGB images. The camera is mounted on the robot at an angle to gain a wide view of the workspace. The perceptual subsystem consists of two phases, the bottom-up and top-down phases.

In the first, bottom-up phase, candidate scene objects are segmented on the basis of disconnectedness in 3D space, and located with respect to a tabletop workspace. Orientation is determined by object principle extents. This requires a mapping of the perceptual data into the world coordinate system, using robot localization and calibration of sensor extrinsic parameters. The names of task-relevant objects are given in the task specification and simple data association is performed based on Euclidean distance. Other objects have automatically generated names that are forwarded on to the task planner.

The second, top-down phase is the object recognition phase, where the perceptual component provides the shapes of objects on request. It uses a database of CAD-like models and associated reference point clouds, and the shape is maintained as an identifier mapping into this database. Further orientation refinement is possible after recognition. The recognition phase proceeds by matching a simple global object descriptor, calculated from colors and principle axes, between available 3D reference point clouds and candidate object point clouds. Local shape descriptors are also robustly matched: Fast Point Feature Histograms [12]. Both global and local features are used because the small size of target objects and the sensor’s distance from them make local features unreliable.

5 Integration of Task Planning and Perception

We consider three approaches to integrating perception and task planning, in a similar way as geometric reasoning and task planning are integrated by [1].

5.1 Precomputation

Pre: In the precomputation approach, first all possible external computations (i.e., stability and reachability checks) involving perceptual processing (i.e., identifying shapes of all objects) are completed, and then the results of these computations are represented by means of external predicates used in the domain description. After that, feasible plans are computed.

For instance, shape information and information about possible occlusions returned from the perceptual system can be represented as Prolog facts as follows:


which then can be utilized in defining external predicates as follows:



The first rule states that a bolt can’t be stacked horizontally on top of an aluminium profile and the second that a vertical bolt will block a reach to any object behind it.

Because object shape is constant across the time domain, we do not here consider perception to produce only initial state (initial locations and orientations), but also can be used in causal laws that apply at all time points.

5.2 Filtering

Filt: In the filtering approach, a plan is computed first using the domain description without the causal laws that depend on external predicates, and then stability and reachability checks are performed to identify the feasibility of the plan; if the plan is not feasible a different plan is computed. This three step procedure is executed in a loop until a feasible plan is computed. In the Filt condition, external checks are not integrated into the domain description as external predicates as is done in Pre but are instead used after planning to evaluate the correctness of planner output; i.e. they are not formally part of the domain description.

External computations check plan feasibility as follows:

  • It is determined whether the computed plan attempts a stack, or a reach where an object may be blocking another. This provides a list of queries of one of the two forms: “Does putting the object at orientation on top of when it is at orientation make the objects unstable?” and “Does the object at orientation and table location block a reach action to the object when it is at orientation and table location ?”. Although not utilized in the domain theory, these queries have the same form as the external predicates referred to by the Pre method: The first query has the form and the second query has the form .

  • For each of these queries it is inferred which perceptual information is necessary to to answer it (it is determined for which objects to calculate shapes). The perception module is then queried for this information if it is not already cached.

  • The truth of the queries are ascertained with the new data. If no relevant unstackable or unreachable query returns true, the plan is deemed feasible.

5.3 Replanning

Repl: The replanning approach, as in the filtering approach, also follows the three step procedure in a loop. However, in the last step, the planning problem is constrained by new information obtained by perceptual processing and the planner restarted with the new planning problem.

Consider, for instance, the planning problem presented in Section 3.3. After the computation of an infeasible plan and identification of reasons for its infeasibility, the planning problem can be modified as follows, ensuring that no more infeasible plans with the same reasons for infeasibility are computed:

:- query
  maxstep :: 0..3;
  % Initial State
  0: is_at(sco2)=loc_0x0, ori_is(sco2)=vert,
     is_at(obj1)=loc_2x1, ori_is(obj1)=vert;
  % Constraints
  T=<maxstep-1 ->> (T: -move(sco2,obj1,PUT_ORI));
  T=<maxstep-1 ->> (T: ori_is(sco2)=vert
                    ->> -move(sco3,obj1,PUT_ORI));
  T=<maxstep-1 ->> (T: (is_below(loc_3x1,sco2);
                    ->> -move(OBJ,loc_3x2,BLOCKED_ORI));
  T=<maxstep-1 ->> (T: (is_below(loc_3x1,sco2),
                   ori_is(sco2)=vert, is_below(loc_3x2,OBJ))
                   ->> -move(OBJ,TARGET_LOC,PUT_ORI));
  % Goal
  maxstep: is_below(loc_0x0,obj1).

The first constraint expresses that object sco2 cannot be stacked on top of object obj1. The second constraint expresses that the converse stack is not possible if object sco2 is vertically oriented (because the perception module knows that object sco2 is a bolt). The third constraint expresses that it is not possible to move an object over location loc_3x2 if object sco2 is at location loc_3x1 and is vertical. The fourth constraint states that if object sco2 is at location loc_3x1 and is vertical, then no object above table location loc_3x2 is moveable.

6 Experimental Evaluation

In our experiments, we consider the three different approaches to integrating planning and perception as described above, considering three problem instances. RGBD images representing the perceptual input into the system for each of the three instances, and the planning problem as it is presented to the planner after the bottom-up perceptual processing, are presented in Figure 2.

Instance 1:

The initial configuration of objects in Instance 1, visible on the left of Figure 2, consists of a vertically oriented bolt at the front on the right, in front of a large nut. A second bolt is visible on the left. The aim of this scenario is to test the planner in minor clutter to see if gain is obtained from integrating perception and planning. The task is to move the nut to the center of the workspace (move obj1 from loc_0x1 to loc_2x1). This requires the bolt to be moved first, which ultimately requires its shape to be computed to calculate the reachability of the nut. An elided example of an expected output plan:

  0: move(sco1,loc_3x0,horiz_y).
  1: move(obj1,loc_2x1,horiz_y).
Figure 2: Left: Instance 1. Middle: Instance 2. Right: Instance 3. Top: Instance RGB images viewed from the robot-mounted camera before planning. Middle: Depth images from the same camera with overlayed task specification arrows. Bottom: Grid representation of the instance problems as provided to the planner after bottom-up perceptual processing. obj1, obj2 and obj3: objects automatically associated with the object from the task specification. sco1 and sco2: scene objects extracted during perception but not associated with any task-related object. The initial orientation is one of vert, hox, and hoy. The red arrows represent the task specification.

Instance 2:

The middle column of Figure 2 shows the second problem instance. This instance presents a scenario in which the planning needs to use minimal perceptual information as the objects in the scene are positioned such that objects apart from the object to be moved are far enough away that interactions are unlikely. The task is to move the bolt to the center of the workspace (move obj1 from loc_0x0 to loc_2x1), which does not require any other objects to be moved beforehand. For most plans, no stackability or reachability would need to be checked to determine their feasibility. A sample plan is as follows:

  0: move(obj1,loc_2x1,horiz_y).

Instance 3:

The aim of Instance 3 (Figure 2, rightmost column) is to present a scenario in which the stackability of objects is a concern. The task requires all objects to be moved to the front right of the table, and the planner must infer a plan that brings the objects there while respecting the stackability constraints that are inferred using appropriate perceptual information. The aluminium profiles are safely stacked horizontally and a single bolt is stackable on top of them as long as it is vertically oriented. The object currently at the front right of the table need be moved aside and the remaining objects stacked in the appropriate order. In general, all object shapes will need to be computed in order to verify a plan. A sample plan would be:

  0: move(sco1,loc_2x2,horiz_x).
  1: move(obj1,loc_0x0,horiz_y).
  2: move(obj2,loc_0x0,horiz_y).
  3: move(obj3,loc_0x0,vert).

7 Results

All experiments were performed on a Linux laptop with a 4-core 2.26GHz Intel i5-430M CPU and 4GB memory. For planning, we use CCalc (Version 2.0) with the SAT solver mChaff (version spelt3). For perception, we use an object segmentation and shape recognition system built on the Kinect RGBD camera and the Point Cloud Library [5] (PCL SVN revision 6849).

Instance 1 To FIRST feasible plan To 100 feasible plans
None Filt      Pre    Repl None Filt      Pre    Repl
# perception queries 0.0 2.0 3.0 1.6 0.0 3.0 3.0 1.4
# feasible plans 0.0 1.0 1.0 1.0 7.2 100.0 100.0 100.0
# infeasible plans 1.0 61.4 0.0 1.0 92.8 505.3 0.0 1.5
Instance 2 To FIRST feasible plan To 100 feasible plans
None Filt Pre Repl None Filt Pre Repl
# perception queries 0.0 0.0 3.0 0.0 0.0 1.2 3.0 0.8
# feasible plans 1.0 1.0 1.0 1.0 94.8 100.0 100.0 100.0
# infeasible plans 0.0 0.0 0.0 0.0 5.2 6.0 0.0 0.0
Instance 3 To FIRST feasible plan To 100 feasible plans
None Filt Pre Repl None Filt Pre Repl
# perception queries 0.0 4.0 4.0 4.0 0.0 4.0 4.0 4.0
# feasible plans 0.0 0.0 1.0 1.0 0.0 0.0 100.0 100.0
# infeasible plans 1.0 1759.7 0.0 1.0 100.0 1757.0 0.0 1.0
Table 1: Plan quality for the calculation of the FIRST feasible plan and 100 feasible plans for each of the three problem instances. Reported results are averaged over 5 runs.

For each of the three planning problem instances described above, we ask 1) for the FIRST feasible plan, and 2) for 100 feasible plans. We analyze the results both from the point of view of plan quality and from the point of view of computation time. We report the average number of perception queries, feasible plans and infeasible plans (Table 1), and average computation times over five runs (Figures 3 and 4). The timeout is set at 2000 seconds.

According to Table 1, considering quality of solutions (the proportion of number of feasible plans with respect to total number of feasible and infeasible plans), we can observe that all integration approaches give better results compared to None in almost all cases. Among the integration approaches, Pre performs the best, since all feasibility checks that are computed in advance are taken into consideration during task planning. On the other hand, Filt performs the worse, since all feasibility checks are done at the very end and no information is conveyed to replanning. Repl performs better than Filt because results of feasibility checks are considered while replanning by means of constraints.

With respect to the amount of perceptual processing necessitated, we can observe that the maximum average number of perception queries takes place in Pre. Comparing Filt and Repl, more perceptual processing is required by Filt due to a larger variety of infeasible plans checked.

As for computation times, as observed in Figures 3 and 4, due to the large number of infeasible plans generated, Filt takes the maximum time for finding feasible plans. For Instance 3, Filt cannot find a feasible plan within the timeout. Since all feasibility checks can be computed in a relatively short amount of time, Pre performs better than Repl on Instance 3, but performs worse than Repl in Instance 2 where Pre does unnecessary perceptual compuation that does not reduce the time spent calculating plans. On Instance 1, the increased time spent doing perceptual processing and loading the consequently larger domain for Pre is balanced against increased time loading constraints after planning for Repl.

These results are in line with observations by Schüller et al. 2013 [1], where geometric reasoning is integrated with task planning. According to that work, since for some domains computing all feasibility checks in advance is not possible, Pre may not be possible at all. This can happen in domains where all possible perceptual computations take too much time.

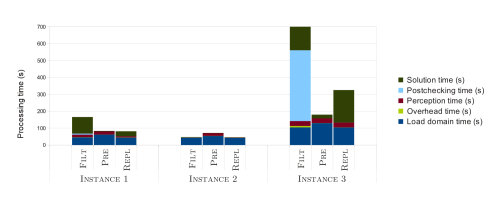

Figure 3: Empirical computation time for computing the FIRST feasible plan, averaged over 5 runs. The column for Filt in instance 3 is cut and it times out after 2000 seconds.

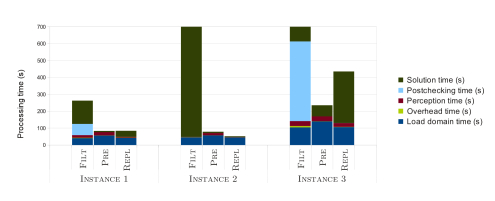

Figure 4: Empirical computation time for computing the 100 plans, averaged over 5 runs. The column for Filt in instance 2 and 3 are cut since they time out after 2000 seconds.

8 Discussion

We have investigated the usefulness of three different approaches to integrating planning and perception: Pre where all perceptual computations are done before planning to find a feasible plan, Filt where perceptual computations are done after planning to check the feasibility of the computed plan, and Repl where perceptual computations are done after planning to check the feasibility of the computed plan, and replanning is done with guidance by incorporating constraints in the planning problem.

Experiments comparing these three approaches consider three problem instances of a robotic manipulation domain that involves industrial objects used at RoboCup@Work 2012 competitions.

We have observed that in terms of quality of solutions (that is the rate of infeasible plans produced by the planning module) Pre performs the best. As for computation time, however, Pre also necessitates the maximum number of perceptual queries; the minimum amount of perceptual processing is demanded by Repl which also reduces the upfront computational cost during domain loading but spends extra time due to the overhead of restarting the planner. When a majority of the set of possible feasibility checks are required to find a plan and can be performed quickly in advance, Pre gives the best results; but as the number of external checks needed decreases with respect to the number of possible checks, Repl starts to perform better. We expect that as the number of objects increase, the number of feasibility checks will increase as well and thus Repl should continue to perform better, as observed in [1].


This work is partially supported by TUBITAK Grant 111E116. Damien J. Duff is supported by TUBITAK 2216 Research Fellowship.


  • [1] Schüller, P., Patoglu, V., Erdem, E.: A systematic analysis of levels of integration between low-level reasoning and task planning. In: Proceedings of the 2013 IEEE ICRA Workshop, Combining Task and Motion Planning (TAMP 2013), Karlsruhe, Germany (2013)
  • [2] Erdem, E., Haspalamutgil, K., Palaz, C., Patoglu, V., Uras, T.: Combining high-level causal reasoning with low-level geometric reasoning and motion planning for robotic manipulation. In: IEEE International Conference on Robotics and Automation, Shanghai, China, IEEE (2011)
  • [3] Giunchiglia, E., Lee, J., Lifschitz, V., McCain, N., Turner, H.: Nonmonotonic causal theories. Artificial Intelligence 153(1) (2004) 49–104
  • [4] McCain, N., Turner, H.: Causal theories of action and change. In: Proceedings of the National Conference on Artificial Intelligence, Providence, RI, USA (1997) 460–465
  • [5] Rusu, R.B., Cousins, S.: 3D is here: Point cloud library (PCL). In: IEEE International Conference on Robotics and Automation, Shanghai, China (2011) 1–4
  • [6] Gong, L.: Composition of image analysis processes through object-centred hierarchical planning. PhD thesis, Rutgers University (1992)
  • [7] Clouard, R., Elmoataz, A., Porquet, C., Revenu, M.: Borg: A knowledge-based system for automatic generation of image processing programs. IEEE Transactions on Pattern Analysis and Machine Intelligence 21(2) (1999) 128–144
  • [8] Chien, S., Fisher, F., Estlin, T.: Automated software module reconfiguration through the use of artificial intelligence planning techniques. In: IEE Proc. Software. Volume 147. (2000) 186–192
  • [9] Thonnat, M., Moisan, S.: What can program supervision do for program reuse? In: IEE Proc. Software. Volume 147. (2000) 179–185
  • [10] Sridharan, M., Wyatt, J., Dearden, R.: Planning to see: A hierarchical approach to planning visual actions on a robot using POMDPs. Artificial Intelligence 174(11) (2010) 704–725
  • [11] Pangercic, D., Tenorth, M., Jain, D., Beetz, M.: Combining perception and knowledge processing for everyday manipulation. In: IEEE/RSJ International Conference on Intelligent Robots and Systems, Taipei, Taiwan (2010) 1065–1071
  • [12] Rusu, R.B., Blodow, N., Beetz, M.: Fast point feature histograms (FPFH) for 3D registration. In: IEEE International Conference on Robotics and Automation, Kobe, Japan (2009) 3212–3217
