1. Introduction

Face analytics is essential for human-centric multimedia research and applications. Face analytics tasks include face detection

(Chen et al., 2016), facial landmark localization (Xiao et al., 2016; Zhang et al., 2014), face attribute prediction (Liu et al., 2015a), face parsing (Smith et al., 2013; Zhou et al., 2015), facial emotion recognition (Dhall et al., 2016; Li et al., 2016a), face recognition (Guo et al., 2016; Li et al., 2016b)etc.

Traditionally, different face analytics tasks are treated separately and performed by designing different models. But in some scenarios, people need to address multiple face analytics tasks. For example, for facial emotion recognition task, people also need to address facial landmark localization task as the input to facial emotion recognition task needs to be aligned by the detected facial landmarks. So it is attractive to design an integrated face analytics network which performs multiple tasks in one go.

In this work we propose an integrated face analytics network (named iFAN). Different from existing approaches where separate models are used for different tasks, iFAN is a powerful model to solve different tasks simultaneously, enabling full task interactions within the model. See Figure 1. In additon, the iFAN uses a novel cross-dataset hybrid training strategy to effectively learn from multiple data sources with orthogonal annotations, which solves the bottleneck of lacking complete training data for all involved tasks.

The proposed iFAN uses a carefully designed network architecture that allows for informative interaction between tasks. It consists of four components: a shareable feature encoder, feature decoders, feature re-encoders and a task integrator. The shareable feature encoder, which is the backbone network, learns rich facial features that are discriminative for different tasks. Each of the feature decoders produces the prediction on top of the learned features for one specific task. To promote interactions among different tasks within iFAN, the feature re-encoders and task integrator are introduced. The feature re-encoders in iFAN transform the task specific predictions back to feature spaces. We use the term “re-encoder” to stress the function of converting the predictions back to the feature space. Specifically the feature re-encoders take as input raw predictions and generate encoded features of the predictions. The feature re-encoders can align the features for different tasks to similar semantic levels to facilitate the task interaction process. Based on the representations from re-encoders, the task integrator in iFAN integrates the encoded predictions of different tasks into multi-resolution and multi-context features that facilitate the inter-task interactions. Specifically, with access to the encoded predictions of all tasks, the task integrator provides the full context information for the task interactions. It introduces a feedback loop, which connects the integrated context information back to the backbone network, which is beneficial for performing multiple tasks simultaneously.

To the end of jointly addressing different tasks, one bottleneck is the absence of datasets with complete training data for all the tasks of interest. Usually each dataset only provides annotations for a specific task (e.g. emotion category for emotion recognition, segmentation mask for face parsing), and it is very hard to find a dataset with a complete set of labels for all the tasks of interest. Thus we propose a new cross-dataset hybrid training strategy to enable iFAN to learn from multiple data sources and perform well on all tasks simultaneously. The proposed cross-dataset hybrid training strategy can effectively model the statistical differences across different datasets to reduce the negative impacts of such differences. With the proposed training strategy, the iFAN does not require complete annotations for all the tasks over a single dataset. Instead, this training strategy allows iFAN to learn from multiple data sources without annotation overlapping. Such “plug-in and play” feature greatly increases the flexibility of iFAN.

The iFAN uses only one network for multiple face analytics tasks, enabling users to customize their own combination of tasks for iFAN to perform simultaneously. The model size, computation complexity and inference time are linearly reduced compared with separate models. Moreover, iFAN goes a step further to analyze the correlations between the tasks, which enables interaction with each other for performance boost.

It is worth noting that iFAN is different from multi-task learning. Unlike the simple parameter sharing scheme in commonly used multi-task learning models, iFAN explicitly models the interaction between different tasks. More than merely sharing a common feature space, the outputs from different tasks also jointly influence the predictions of other tasks. Besides, the proposed iFAN is able to learn from multiple data sources with no overlapping, where traditional multi-task learning approaches will fail. Thus the expensive cost of collecting comprehensive training data for all involved tasks can be substantially reduced. Our work is also different from transfer learning which considers to learn the same task from different datasets. In contrast, our proposed cross-dataset hybrid learning is able to utilize the useful knowledge on learning different tasks from non-overlapping datasets.

2. Related Work

In this section, we briefly review related work, including standard multi-task deep learning and specific face analytics.

Multi-Task Deep Learning

Deep neural network has outstanding learning capacity and thus it is possible for it to learn to perform multiple tasks at the same time. For example, in the scenario of image analysis, the features learned by deep neural networks at bottom layers are known to characterize low-level features such as edges and blobs, which are common for all image analysis tasks so they are universal for different vision tasks. Some work shows that the higher level features can also be shared across different tasks. For instance, Fast RCNN

(Girshick, 2015) uses the same network to perform object confidence score prediction and bounding box regression. In addition to these two tasks, Faster RCNN (Ren et al., 2015) uses the same network to generate region proposals as well. A recent work Mask RCNN (He et al., 2017) adds a segmentation task, i.e. mask prediction, to the same trunk of the network. TCDCN (Zhang et al., 2014) uses a deep network to perform the task facial landmark localization and face attribute prediction (such as facial emotion, pose) and shows that adding face attribute prediction can help improve the performance of facial landmark localization. MTCNN (Zhang et al., 2016) performs the task of face detection and facial landmark localization together and HyperFace (Ranjan et al., 2016)

performs face detection, landmark localization, pose estimation and gender recognition in one network. We can see that a single network is capable of performing multiple tasks together. However, the informative relations among different tasks are not explored in these previous works. Existing multi-task learning networks generally focus on learning common representations for different tasks. All the tasks are learned in parallel and the useful feedback information from one task for other tasks is not modeled. A recent work

(Bilen and Vedaldi, 2016) models task interactions with integrated perception, but only simple hand-crafted prediction encoding scheme is used. In contrast to existing multi-task learning models, our proposed iFAN explicitly models the interaction between different tasks with learnable feature re-encoders, and the feedback information effectively contributes to the representation learning as well as boosting performance for all the tasks.

Face Analytics

A lot of research has been conducted on individual face analytics, especially on analyzing challenging unconstrained faces, i.e. faces in the wild. The field of face analytics has been accelerated by emergence of large scale unconstrained face datasets. One of the large face attribute prediction datasets, CelebA, is proposed in (Liu et al., 2015a). MsCeleb-1M dataset (Guo et al., 2016) is a big face-in-the-wild dataset for face recognition. Most of the datasets focus on one task with labels only for that task. There are some datasets which have multiple sets of labels for different tasks. Annotated Facial Landmarks in the Wild (AFLW) (Koestinger et al., 2011) provides a large-scale collection of annotated face images with face location, gender and facial landmarks. Multi-Task Facial Landmark (MTFL) dataset (Zhang et al., 2014) contains annotations of five facial landmarks and attributes of gender, head pose, etc. However, such datasets can only cover a subset of all the face analytics tasks. Thus it is usually not easy to find a dataset with a complete label set for combinations of tailored tasks of interest. Thus a model which allows “plug-in and play” of multiple datasets from different sources is of great practical value but is still absent.

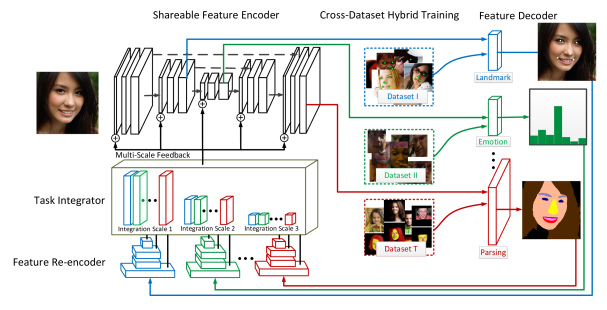

Figure 2. Overall structure of iFAN. Black blocks denote the backbone network for learning shareable features. Each colored block is associated with one task, namely, blue for facial landmark localization, green for facial emotion recognition and red for face parsing. Each task has its own feature decoder and feature re-encoder, which perform task prediction and prediction encoding, respectively. The task integrator integrates the encoded prediction features from different tasks in multiple scales of spatial resolutions. The integrated multi-resolution features are then fed back into the respective multiple feature spaces in the backbone network. Different tasks are associated with different training datasets without overlapping in both images and annotations. The whole network is trained with the proposed cross-dataset hybrid training strategy.

3. Proposed Method

In this section, we elaborate on the proposed integrated Face Analytics Network (iFAN). Its overall structure is shown in Figure 2. The backbone network of iFAN learns shareable features for different face analytics tasks, and different tasks take in features from different layers within the backbone network to perform prediction. In Figure 2, three tasks are illustrated, including facial landmark localization, facial emotion recognition and face parsing, each of which employs a feature decoder to make predictions for the corresponding task. Different from existing multi-task learning models, iFAN introduces task-specific feature re-encoders to facilitate task interaction. The feature re-encoders takes predictions from different tasks and re-encode them back to semantically rich feature spaces across the tasks in multiple spatial resolutions. iFAN also has a task integrator, which aggregates the re-encoded features from different tasks and feeds them back to the backbone network for task interaction and improve the shareable feature learning. To solve the data incompleteness problem, we propose a novel cross-dataset hybrid training strategy, which allows iFAN to effectively learn from multiple datasets with orthogonal annotations, without requiring any dataset with comprehensive annotations.

3.1. Preliminary

We first introduce the problem setup formally. Suppose there are tasks under consideration and there is a training dataset with a complete set of labels for all the tasks: where is the -th data sample and is the corresponding label for the -th task. The traditional multi-task learning problem seeks to find the set of parameters such that


where denotes the loss between the prediction and the ground truth label, is the shared network parameter and is the parameter to perform the -th task. Although widely used, the multi-task learning in Eqn. (1) can be improved from two perspectives. First, the formulation only implicitly models the interactions between tasks through the shared data feature and an explicit modeling is not present. Second, the model requires a dataset with complete labels for all tasks, which is rather difficult to collect. It is beneficial if we can get rid of this requirement. We propose to make these two improvements over the original multi-task learning through a new integrated network model and a new cross-dataset learning, detailed in the following two subsections.

3.2. Task Integrator

In the traditional multi-task learning formulated in Eqn (1), different tasks share common features for exploiting correlations among different tasks. However, the interactions among different tasks are not explicitly modeled—they only interact with each other through error back-propagation to contribute to the learned feature and such implicit interactions are not controllable. The prediction of a certain task is certainly benefited from other related tasks for face analytics, but this dependency is rarely modelled in the traditional multi-task learning. The proposed iFAN explicitly models and exploits beneficial feedback from different tasks through a task integrator. The task integrator integrates the features from the predictions of all the tasks, and feeds them back to the backbone network. In this way the task integrator provides the information of other tasks’ predictions in order to further refine the prediction of the current task under consideration.

As the predictions are decoded by different task-specific decoders, the predictions of different tasks lie in different semantic spaces and it is not trivial to properly model the inter-task interactions. We propose to use the task-wise feature re-encoder to encode the predictions from different tasks into a set of semantically rich features. The re-encoded features from different tasks are integrated by the task integrator, and then fed-back to the backbone network. As different tasks draw features from different layers in the backbone network, we feedback the re-encoded features to multiple layers in the backbone network with different spatial sizes. The feature re-encoder naturally generates a pyramid of features with different spatial sizes, and all of them are used in the multi-layer, multi-resolution feedback. The encoded features facilitate interactions among different tasks during training and deploying the integrated face analytics model.

The proposed iFAN uses a task integrator and task-specific feature re-encoders to explicitly model task interactions. Formally the task integrator models the effects of other tasks by creating a set of integrated feature spaces where the predictions from different tasks are encoded to


where is the learned feature shareable across multiple tasks for one input sample and is the prediction of the -th task based on . Parametrized by , the feature re-encoder of the -th task performs encoding of the predictions of the -th task, as represented by . The summation here denotes feature level integration. This encoding space of an input sample aggregates the features from not only the original feature, but also the encoded predictions from all the tasks.

Based on , we can reformulate Eqn. (1) as


We can see that the prediction of the -th task is made from the integrated feature space , which contains features from all the tasks. The integrated feature space provides rich information and context cues for the predictions of the -th task.

The formulation in Eqn. (2) extends naturally to an iterative updating formulation:


With this iterative formulation, Eqn. (3) becomes


where is the maximal iteration of task interactions. When , Eqn. (5) reduces to ordinary multi-task learning formulation in Eqn. (1). With , the iterative refinement is turned on with the feedback loop (the connection from the task integrator to the backbone network in Figure 2). With the feedback loop and the iterative refinement process, the task integrator enables interactions of different tasks and helps make better predictions.

3.3. Cross-dataset Hybrid Training

Based on Eqn. (5), we propose a cross-dataset hybrid training strategy to bypass the requirement of data fully labeled for all the tasks, as it is difficult to satisfy in real scenarios. We consider the more realistic cases where data annotations are incomplete and aim at an integrated network model for all the tasks with incomplete training information. Each task is provided with a specific training dataset which is denoted as where is the -th input data point for the -th task, and is the corresponding label. There is no overlapping between datasets for different tasks, i.e. . This setting is quite common in reality. A trivial and straightforward solution is to train models for the tasks, each with the respective training data . Such a trivial solution clearly leaves the relations between tasks un-modeled and thus is sub-optimal. In the proposed iFAN, we build an integrated network, which is trained on multiple data sources, yet still enjoys the benefits of multi-task learning.

When training from multiple data sources , we cannot optimize the parameters for all the tasks as in Eqn. (5), but need to focus on one of the tasks every time. When we optimize the integrated network for the -th task, we have


Here, we only use the supervision information from the -th task, but the integrated feature incorporates the prediction information from all other tasks for the input sample in the -th task. Optimizing Eqn. (6) directly will lead only to the optimal solution to the -th task, making the common feature space bias towards the -th task. Such a situation is undesired and our final target is an optimal solution to all the tasks.

In iFAN, we use a strategic alternative training scheme to achieve the cross-dataset hybrid training. We use to denote the operation of one gradient update of the involved parameters with the provided data in the -th task interaction towards the direction of optimizing Eqn. (6) for the -th task. Then the cross-dataset hybrid training strategy can be summarized in Algorithm 1.

1:Randomly initialized , Training data , Batch size of the gradient descent

, Total number of task interaction iterations ITER, Number of Pre-training epochs

3:for  do
4:     for  do
5:         while  is not traversed  do
6:              Sample data points from as
8:         end while
9:     end for
10:end for
11:while  are not converged do
12:     for  do
13:         Sample data points from as
14:         for  do
16:         end for
17:     end for
18:end while
Algorithm 1 Cross-dataset Hybrid Training Strategy

The cross-dataset hybrid training contains two stages: task-wise pre-training and batch-wise fine-tuning. For the task-wise pre-training, we loop through every dataset to learn the common features and the task specific feature decoders so that task specific feature decoders have the ability to perform the task. During the process, the common feature may bias towards the latest task, to which the batch-wise fine-tuning is used as a complement. The feature re-encoders and task integrator are also added in the second stage so that the task interactions are enabled. Since with pre-training, each feature decoder can make reasonable predictions about its own task, we turn on task interaction only in the second stage. In the second stage, each task will take turns to update its parameters with the guidance of its label information. Moreover, each task has an equal number of training samples from its training set for each update. It addresses the issue of imbalanced numbers of training samples from multiple datasets, and the resultant network will not bias towards any of the training sets with larger numbers of training data.

Empirically, we find that task-dependent batch normalization parameters are important in the backbone network, which agrees with

(Bilen and Vedaldi, 2017). Different datasets vary in terms of statistical distributions such as image quality, illumination condition on faces, etc. The task-wise batch normalization will effectively address the shifts of statistical distributions of the features across different datasets to facilitate the learning of useful and robust common features within multiple datasets. Although simple, we experimentally demonstrate that together with the task integrator, the cross-dataset hybrid training strategy effectively helps the integrated face network learn from multiple data sources.

4. Experiments

We conduct experiments to validate the power of iFAN with multiple face tasks, and also provide ablation study in this section.

4.1. Experimental Setting

4.1.1. Datasets

In the experiments, we consider three important fine-grained face analytics tasks including face parsing, facial landmark localization, and facial emotion recognition. Each task is associated with a different dataset.

The task of face parsing (or face segmentation, face labeling) aims to predict semantic categories for all pixels in face images. We use the popular Helen dataset (Le et al., 2012) for this task. It contains images with accurate and detailed annotations of the primary facial components. The work (Smith et al., 2013) modifies the original Helen dataset to suit a face parsing task by generating segmentation masks for the facial components (such as eyes, nose, mouth, etc.

) and hair regions. The categories in the Helen dataset include eyes, eyebrows, nose, inside mouth, upper lip, lower lip, face skin and hair. Every pixel needs to be classified into one of these categories or background.

Facial landmark localization aims to find coordinates of pre-defined facial landmarks. For this task, we use Multi-Task Facial Landmark (MTFL) dataset (Zhang et al., 2014). It contains face images annotated with facial landmarks, namely, eye centers, nose tip and mouth corners. The images in the dataset contain various pose angles and occlusion, thus it is challenging to accurately localize facial landmarks.

For facial emotion recognition, we use BNU Large-scale Spontaneous Visual Expression Database (BNU-LSVED) (Sun et al., 2015, 2016). It is designed to capture facial emotions in the educational environment. It contains subjects, with totally about images and emotions: “Happy”, “Surprised”, “Disgusted”, “Puzzled”, “Concentrated”, “Tired” and “Distracted”. The original dataset contains images in videos and there are a lot of near duplicates. We adopt this dataset for the task of static emotion recognition by sampling images from the video sequences. The resultant dataset after sampling contains about images.

Different tasks have different sets of labels and there is no overlap between them. Currently, there is no dataset that covers every possible combination of face analytics tasks of interest. Our proposed iFAN model and the cross-dataset hybrid training strategy allow any task to be plugged into the integrated framework without worrying the statistical differences among the different datasets.

4.1.2. Implementation Details

In iFAN, we use fully convolutional DenseNets (Jégou et al., 2016) as the backbone network, considering its outstanding ability at re-using features learned at different layers. The fully convolutional DenseNet has a down-sampling stage and an up-sampling stage. In both stages, we use dense blocks with layers in each block and a growth rate of

. All the convolutional layers in the dense blocks are resolution preserving with stride

and kernel size , except for the initial convolution where we use kernel size to increase the receptive field. At the end of each dense block in the down-sampling stage, we use average pooling to halve the spatial dimension. At the end of each dense block in the up-sampling stage, we use sub-pixel sampling layer (Shi et al., 2016) followed by a convolutional layer to double the feature spatial dimension. The input size of each face is . In the down-sampling stage, the spatial resolution of the feature maps reduce from to , , , and after each average pooling operation. Inversely, in the up-sampling stage, the spatial resolution of the features gradually increases from back to .

For facial landmark localization, the features with dimension in the down-sampling stage are used as input for the landmark decoder which performs a regression to the normalized coordinates of the facial landmarks with the Euclidean distance loss. For the face parsing task, we use the features with dimension at the end of the up-sampling stage as input to the face parsing decoder which performs a per-pixel prediction of the pixel label with a categorical cross entropy loss. For the facial emotion recognition task, we use the feature with spatial size as input for the attribute decoder which performs a single prediction of the attribute label with a categorical cross entry loss. Note that for the face parsing task, the loss is calculated on the

prediction map. But the prediction is done by resizing the prediction map to the original size of the input with bilinear interpolation and then comparing with the ground truth label for each pixel.

For the feature re-encoders, we design different encoders for different tasks. For the facial landmark localization task, we construct point heat maps with hot values indicating the locations of the landmarks. We enlarge the one-hot point heat map to a radius of

pixels. Then the point heat maps are used as inputs into alternating convolution layers and max pooling layers to perform feature encoding of the landmark predictions. For the face parsing task, we feed the parsing prediction map, which also has the size of

and contains cues for face parsing results, into the feature re-encoder with alternating convolution layers and max pooling layers. For the attribute prediction task, we use several fully connected layers to encode the predicted probability vectors, and tile the encoded feature to the corresponding spatial dimensions. The feature re-encoders convert the raw predictions of different tasks into a pyramid of semantically-rich features to facilitate task interaction and integration. The integration in Eqn. (

4) is realized by feature concatenation.

For training, we use mini-batch gradient descent with batch size , and

for parsing, landmark and emotion, respectively. The optimizer used is RMSprop

(Tieleman and Hinton, Tieleman and Hinton). For pre-training, each task is trained with learning rate for epochs. For fine-tuning, the total number of training epochs is and the learning rate reduces from to during the entire training process.

4.1.3. Evaluation Metrics

Face parsing

For face parsing we follow (Smith et al., 2013)

and use F-score for evaluation, which is the harmonic mean of precision and recall, to measure the performance. We report the F-score for all the classes in the Helen dataset, as well as two additional scores for all the components associated with mouth (Month-All) and overall score to keep the comparison consistent with

(Smith et al., 2013) and (Liu et al., 2015b).

Facial Landmark Localization

For facial landmark localization, we report the results on two widely used metrics (Zhang et al., 2014; Xiao et al., 2016), i.e. normalized mean error and failure rate. The normalized mean error is the distance between the estimated landmark and the ground truth, normalized with respect to the inter-ocular distance. A failure happens when the normalized mean error is larger than .

Facial Emotion Recognition

For facial emotion recognition, we adopt the accuracy of the prediction as compared with the ground truth annotations as the evaluation metric.

Figure 3. Some results of face analytics from iFAN. The top block shows images from the Helen dataset (which is designed for face parsing). White dots on the faces indicate detected facial landmarks. The second row shows the predicted face parsing results and the third row is the parsing ground truth. The second block in blue shows the face images from the MTFL dataset (designed for landmark detection). White dots are detected landmarks and red ones are given ground truth. The second row in this block shows the face parsing results. The bottom block shows face images from the BNU dataset with detected lardmarks, face parsing maps and correctly predicted facial emotions. All the results demonstrate iFAN is good at modeling interactions between multiple tasks, even there is no complete training image set. The figure is best viewed in color.

4.2. Results and Comparison

We compare the performance of the proposed iFAN with well established baseline methods. We consider two multi-task settings for iFAN: 1) performing facial landmark localization and face parsing simultaneously (denoted as 2T); 2) performing facial landmark localization, face parsing and emotion recognition simultaneously (denoted as 3T). We report the performance of iFAN and state-of-the-art baseline methods. For facial landmark localization, we compare with state–of-the-art TSPM (Zhu and Ramanan, 2012), ESR (Cao et al., 2014), CDM (Yu et al., 2013), RCPR (Burgos-Artizzu et al., 2013), SDM (Xiong and De la Torre, 2013), TCDCN (Zhang et al., 2014) and MTCNN (Zhang et al., 2016). For face parsing, we compare with Generative Shape Regularization Model (GSRM) (Gu and Kanade, 2008), Examplar (Smith et al., 2013), Multi-Objective (Liu et al., 2015b) and iCNN (Zhou et al., 2015). For our results, we follow the official training/testing split of the MTFL dataset in (Zhang et al., 2014) and the Helen dataset as described in (Smith et al., 2013), and report the performance on the respective testing set. The second setting involves BNU-LSVED, which is a relatively new one without public training/testing split protocols, we choose subjects in each emotion category as the testing set and the rest are used for training/validation (with no overlapping subjects in training and testing sets). We use the same network structure to train different strong baselines for comparison. No other external datasets are used during the training process for both the two settings.

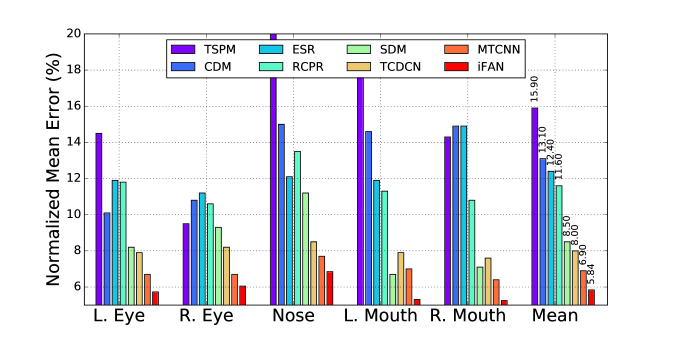

Figure 4. Normalized mean errors of different methods for different landmarks. The values for TCDCN are the best results achieved in (Zhang et al., 2014). The results for other baselines are obtained from (Zhang et al., 2016). L. Eye denotes left eye center and R. Mouth means right mouth corner.

4.2.1. Facial Landmark Localization

The performance on the facial landmark localization task with iFAN and other baselines is shown in Figure 4. The normalized mean errors on different landmarks for different methods are illustrated. iFAN achieves the best performance for all the landmarks, outperforming state-of-the-art performance reported before. Specifically, the NMEs for both the two-task (2T) and three-task (3T) settings and the performance over different iterations of interactions (Iter0, Iter1 and Iter2) are detailed in Table 1. For Iter0, there is no interaction between the tasks, and iFAN reduces to an ordinary multi-task learning network, except for it is trained with multiple non-overlapping datasets. For Iter1 and Iter2, interactions between tasks are performed within iFAN. We can also observe that within iFAN, more iterations of interactions help the landmark localization achieve lower normalized mean error. Compared with the case of a single landmark localization task, the incorporation of the second task, face parsing, improves the performance of the baseline by about , even though the face parsing dataset does not contain any duplicate image in the landmark localization dataset. With more iterations of task interactions between facial landmark localization and face parsing, the normalized mean error can be further decreased to . We can see that multiple iterations of interactions between these two tasks gives rise to about improvement. The results clearly demonstrate that the iFAN model is powerful at exploiting the informative feedback during the task interactions, and the proposed cross-dataset hybrid learning is effective at learning useful knowledge from non-overlapping datasets with orthogonal annotations.

The proposed iFAN can also integrate different tasks into a single model and perform simultaneously well for all the tasks, as can be observed from the 3T cases. iFAN effectively exploits emotion information and provides informative cues (e.g. movement of mouth corners) for the landmark localization task through the task integrator and feedback connections. The incorporation of the emotion recognition task helps improve the performance of landmark localization by about . The failure rates of different iterations corresponding to 2T and 3T cases are shown in Figure 5. We can see that the trend is similar to Table 1. Some qualitative examples from iFAN are shown in Figure 3.

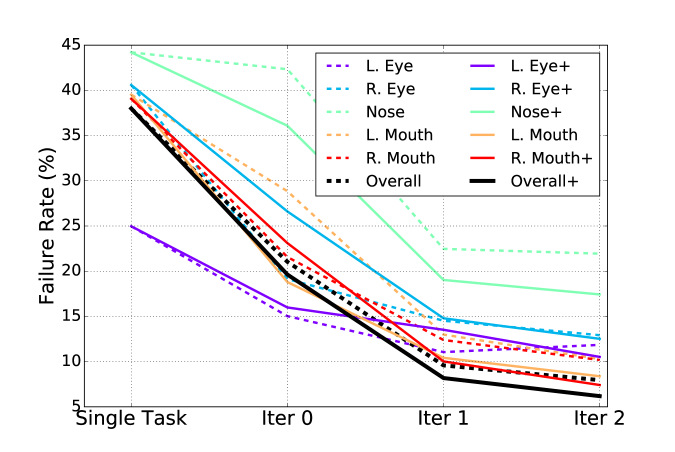

Figure 5. Failure rate of facial landmark localization for different landmarks and different numbers of tasks. The dash lines denote the first setting (2T) and the solid lines denote the second setting (3T), which has a “” mark on the corresponding legend.
L.Eye R.Eye Nose L.Mouth R.Mouth Mean
Single Task 8.19 10.30 10.86 10.25 10.68 10.06
iFAN 2T Iter0 6.52 8.21 9.67 7.39 8.03 7.96
iFAN 2T Iter1 6.20 5.97 7.53 5.79 5.76 6.25
iFAN 2T Iter2 5.99 6.10 7.46 5.73 5.68 6.19
iFAN 3T Iter0 6.08 7.54 8.92 7.42 7.79 7.55
iFAN 3T Iter1 5.93 5.91 6.79 5.38 5.26 5.85
iFAN 3T Iter2 5.73 6.05 6.85 5.31 5.25 5.84
Table 1. Normalized Mean Error (NME) (in ) on MTFL dataset. Different iterations of interactions with two and three tasks are shown.
Eyes Brows Nose In mouth Upper Lip Lower Lip Mouth-All Face Skin Hair Background Overall
GSRM(Gu and Kanade, 2008) 74.3 68.1 88.9 54.5 56.8 59.9 78.9 - - - 74.6
Exemplar(Smith et al., 2013) 78.5 72.2 92.2 71.3 65.1 70.0 85.7 88.2 - - 80.4
Multi-Objective(Liu et al., 2015b) 76.8 73.4 91.2 82.4 60.1 68.4 84.9 91.2 - - 85.4
iCNN(Zhou et al., 2015) 87.4 81.3 95.0 83.6 75.4 80.9 92.6 - - - 87.3
Single Task 84.38 80.26 92.34 77.64 75.93 82.45 90.46 92.84 76.19 90.61 88.75
iFAN 2T Iter0 86.66 82.27 93.53 83.79 76.97 85.78 92.70 94.58 85.57 94.09 90.52
iFAN 2T Iter1 86.60 82.22 94.03 85.62 78.87 87.13 93.79 94.68 85.90 94.05 91.03
iFAN 2T Iter2 86.59 82.20 94.07 86.63 79.25 87.48 93.98 94.67 85.91 94.04 91.10
iFAN 3T Iter0 86.81 81.43 94.09 85.47 79.78 87.59 93.86 94.73 86.59 94.39 90.96
iFAN 3T Iter1 86.82 81.65 94.22 86.37 80.28 88.01 94.17 94.71 86.16 94.23 91.14
iFAN 3T Iter2 86.81 81.67 94.22 86.63 80.35 88.12 94.19 94.71 86.11 94.21 91.15
Table 2. F-score (in ) on Helen dataset for face parsing. 2T indicates there is another task jointly learned with the face parsing. 3T indicates there are in total three tasks. Note iFAN Iter0 corresponds to the standard multi-task learning.

4.2.2. Face Parsing

The performance on face parsing with iFAN and other baselines is listed in Table 2. We can see that compared with other methods, iFAN achieves a new state-of-the-art performance in terms of overall F-score. Particularly, Multi-Objective (Liu et al., 2015b) formulates face parsing as a conditional random field with unary and pairwise classifiers and designs a multi-object learning method for this task. In contrary, in iFAN the face parsing task is only guided by the single unary classifiers, and still outperforms Multi-Objective by a large margin. iCNN (Zhou et al., 2015) consists of multiple CNNs taking input of different scales with an interlinking layer, which performs facial parts localization and pixel identification in a two-stage pipeline. In iFAN, only one singe model is used in an end-to-end network, which still outperforms iCNN by in terms of F-score. We can see that the strong baseline of fully convolutional DenseNet (Jégou et al., 2016) already outperforms iCNN in the Single Task case. Within iFAN, the incorporation of the facial landmark localization task improves the overall F-score of the face parsing task by about and the interactions between face parsing and facial landmark localization further improve the F-score by in the 2T case. So compared with iCNN, strong baseline architecture contributes to of performance gain, incorporation of facial landmark localization contributes to and the task interaction contributes to . In the 3T case, iFAN gets slightly performance gain on face paring after the incorporation of the emotion recognition task. Some qualitative examples for face parsing from iFAN are shown in Figure 3.

4.2.3. Facial Emotion Recognition

For the facial emotion recognition task, we consider the following models: 1) a baseline model performing only emotion recognition on cropped faces; 2) a baseline model performing only emotion recognition on aligned faces; 3) iFAN performing three tasks simultaneously. The inputs to the integrated network are cropped faces. The performance on emotion recognition with different models is summarized in Table 3. The confusion matrices corresponding to the first baseline model above and iFAN are shown in Figure 6. While the traditional face alignment methods require facial landmark detection and face transformation (mapping the detected landmarks to some manually defined canonical locations) as pre-processing steps, we rely on the task interaction to perform alignment-free emotion recognition. We argue that by integration of the emotion recognition task with other related tasks (such as facial landmark localization), the emotion recognition task can be solved more effectively in iFAN than the traditional face alignment based pipeline. This is validated by the experimental results. Some qualitative examples for emotion recognition, together with the other two tasks are shown in Figure 3.

Cropped Face 42.26
Aligned Face 43.31
iFAN Iter0 44.84
iFAN Iter1 45.16
iFAN Iter2 45.40
Table 3. Facial emotion recognition accuracy of different models.
Figure 6. The confusion matrices of different models. On the left panel is the output from the baseline model with no task interaction. On the right panel is the output from the proposed iFAN.

4.3. Ablation Study

We evaluate the effects of the two key components in our proposed iFAN, including the task integrator and the feature re-encoders, as well as the contribution of the cross-dataset hybrid training strategy to the final performance.

4.3.1. Task Integrator

We have demonstrated the effectiveness of the task integrator on different tasks when it is not utilized and utilized for one or two times. To further probe the behavior of the task integrator with more iterations of task integrations, we perform additional iterations of interactions between tasks, and find that further iterations only provide marginal performance improvement as shown in Table 4. The convergence is quickly achieved within one or two iterations of interactions.

Overall F-score(%) NME(%) Accuracy (%)
Single Task 88.750 10.06 42.26
iFAN Iter0 90.961 7.55 44.84
iFAN Iter1 91.142 5.85 45.16
iFAN Iter2 91.147 5.84 45.40
iFAN Iter3 91.145 5.81 45.73
iFAN Iter4 91.145 5.82 45.48
Table 4. Behavior of the task integrator with more iterations througth the feedback connections.

4.3.2. Feature Re-Encoders

We then probe the effect of the feature re-encoders. We remove the feature re-encoders and replace them with simple resizing operation to directly convert the prediction maps (i.e. the input into the feature re-encoders) to the size of the respective feature map for the purpose of task interaction. In this way, the predictions of different tasks are used in their original feature space and no encoding is performed. We find that the normalized mean error of landmark localization increases to , the accuracy of the emotion recognition drops to and the F-score of face parsing drops to after two iterations of interactions. We can see that the feature re-encoders facilitate better interactions between different tasks.

4.3.3. Cross-dataset Hybrid Training Strategy

In the cross-dataset hybrid training strategy, task dependent batch normalization parameters are used. When we enforce all the tasks to share the same batch normalization parameters, the performance after two iterations reduces to , ad for facial landmark localization, facial emotion recognition and face parsing, respectively. We can see that task-wise batch normalization parameters give rise to remarkable performance boost in the proposed iFAN.

There are two stages in the cross-dataset hybrid training strategy: task-wise pre-training and batch-wise fine-tuning. For the task wise pre-training, the training of one task will negatively affect performance of other tasks. To illustrate the process, the metrics of three tasks in different stages of the optimization process are shown in Figure 7. T1 denotes the pre-training stage of the first task (face parsing), where the parsing average F-score is increasing. We can see during the pre-training of the second task (facial landmark), denoted by T2, the performance of facial landmark localization is increasing (lower normalized mean error), but the performance of parsing is decreasing quickly. During the pre-training of the third task, we can observe performance decreasing for both the first two tasks. The reason is that different tasks are trained on different datasets and the network easily biases to one of them during the pre-training stage. In the batch-wise alternative fine-tuning stage, we can see the performance of all the three tasks is increasing. With the batch-wise alternative fine-tuning, the performance can gradually get back to that of the pre-training stage, and then it is further improved through task interactions.

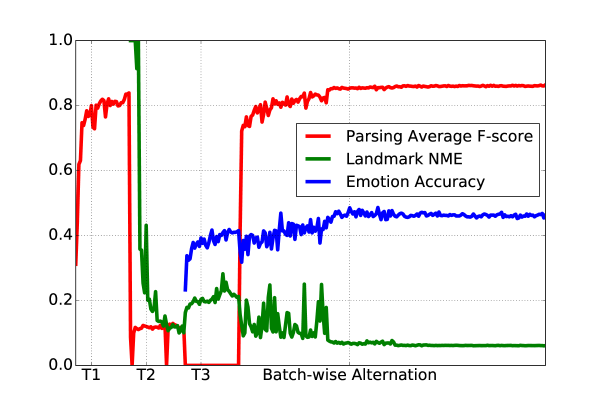

Figure 7. Performance of three tasks in different stages of the cross-dataset hybrid training strategy. Note that for landmark detection (the green curve), lower numbers mean better performance.

5. Conclusion

In this work, we proposed an integrated face analytics network iFAN that performs multiple face analytics tasks simultaneously. The proposed iFAN fully exploits the correlations between tasks and enables interactions between them. The feature re-encoders and task integrator in iFAN facilitate better task interactions and integrations. With the cross-dataset hybrid training strategy, the proposed network is able to learn from multiple data sources with no overlapping labels, allowing the “plug-in and play” feature for practical usage in multimedia applications.


This work was partially funded by National Research Foundation of Singapore. The work of Jiashi Feng was partially supported by NUS startup R-263-000-C08-133, MOE Tier-I R-263-000-C21-112 and IDS R-263-000-C67-646.


  • (1)
  • Bilen and Vedaldi (2016) Hakan Bilen and Andrea Vedaldi. 2016. Integrated perception with recurrent multi-task neural networks. In Advances in neural information processing systems. 235–243.
  • Bilen and Vedaldi (2017) Hakan Bilen and Andrea Vedaldi. 2017. Universal representations: The missing link between faces, text, planktons, and cat breeds. arXiv preprint arXiv:1701.07275 (2017).
  • Burgos-Artizzu et al. (2013) Xavier P Burgos-Artizzu, Pietro Perona, and Piotr Dollár. 2013. Robust face landmark estimation under occlusion. In

    Proceedings of the IEEE International Conference on Computer Vision

    . 1513–1520.
  • Cao et al. (2014) Xudong Cao, Yichen Wei, Fang Wen, and Jian Sun. 2014. Face Alignment by Explicit Shape Regression. International Journal of Computer Vision 2, 107 (2014), 177–190.
  • Chen et al. (2016) Dong Chen, Gang Hua, Fang Wen, and Jian Sun. 2016.

    Supervised transformer network for efficient face detection. In

    European Conference on Computer Vision. Springer, 122–138.
  • Dhall et al. (2016) Abhinav Dhall, Roland Goecke, Jyoti Joshi, Jesse Hoey, and Tom Gedeon. 2016. Emotiw 2016: Video and group-level emotion recognition challenges. In Proceedings of the 18th ACM International Conference on Multimodal Interaction. ACM, 427–432.
  • Girshick (2015) Ross Girshick. 2015. Fast r-cnn. In Proceedings of the IEEE International Conference on Computer Vision. 1440–1448.
  • Gu and Kanade (2008) Leon Gu and Takeo Kanade. 2008. A generative shape regularization model for robust face alignment. Computer Vision–ECCV 2008 (2008), 413–426.
  • Guo et al. (2016) Yandong Guo, Lei Zhang, Yuxiao Hu, Xiaodong He, and Jianfeng Gao. 2016. Ms-celeb-1m: A dataset and benchmark for large-scale face recognition. In European Conference on Computer Vision. Springer, 87–102.
  • He et al. (2017) Kaiming He, Georgia Gkioxari, Piotr Dollár, and Ross Girshick. 2017. Mask R-CNN. arXiv preprint arXiv:1703.06870 (2017).
  • Jégou et al. (2016) Simon Jégou, Michal Drozdzal, David Vazquez, Adriana Romero, and Yoshua Bengio. 2016. The One Hundred Layers Tiramisu: Fully Convolutional DenseNets for Semantic Segmentation. arXiv preprint arXiv:1611.09326 (2016).
  • Koestinger et al. (2011) Martin Koestinger, Paul Wohlhart, Peter M. Roth, and Horst Bischof. 2011. Annotated Facial Landmarks in the Wild: A Large-scale, Real-world Database for Facial Landmark Localization. In First IEEE International Workshop on Benchmarking Facial Image Analysis Technologies.
  • Le et al. (2012) Vuong Le, Jonathan Brandt, Zhe Lin, Lubomir Bourdev, and Thomas S Huang. 2012. Interactive facial feature localization. In European Conference on Computer Vision. Springer, 679–692.
  • Li et al. (2016a) Jianshu Li, Sujoy Roy, Jiashi Feng, and Terence Sim. 2016a. Happiness level prediction with sequential inputs via multiple regressions. In Proceedings of the 18th ACM International Conference on Multimodal Interaction. ACM, 487–493.
  • Li et al. (2016b) Jianshu Li, Jian Zhao, Fang Zhao, Hao Liu, Jing Li, Shengmei Shen, Jiashi Feng, and Terence Sim. 2016b. Robust Face Recognition with Deep Multi-View Representation Learning. In Proceedings of the 2016 ACM on Multimedia Conference. ACM, 1068–1072.
  • Liu et al. (2015b) Sifei Liu, Jimei Yang, Chang Huang, and Ming-Hsuan Yang. 2015b. Multi-objective convolutional learning for face labeling. In

    Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition

    . 3451–3459.
  • Liu et al. (2015a) Ziwei Liu, Ping Luo, Xiaogang Wang, and Xiaoou Tang. 2015a. Deep Learning Face Attributes in the Wild. In Proceedings of International Conference on Computer Vision (ICCV).
  • Ranjan et al. (2016) Rajeev Ranjan, Vishal M Patel, and Rama Chellappa. 2016. Hyperface: A deep multi-task learning framework for face detection, landmark localization, pose estimation, and gender recognition. arXiv preprint arXiv:1603.01249 (2016).
  • Ren et al. (2015) Shaoqing Ren, Kaiming He, Ross Girshick, and Jian Sun. 2015. Faster r-cnn: Towards real-time object detection with region proposal networks. In Advances in neural information processing systems. 91–99.
  • Shi et al. (2016) Wenzhe Shi, Jose Caballero, Ferenc Huszár, Johannes Totz, Andrew P Aitken, Rob Bishop, Daniel Rueckert, and Zehan Wang. 2016.

    Real-time single image and video super-resolution using an efficient sub-pixel convolutional neural network. In

    Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition. 1874–1883.
  • Smith et al. (2013) Brandon M Smith, Li Zhang, Jonathan Brandt, Zhe Lin, and Jianchao Yang. 2013. Exemplar-based face parsing. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition. 3484–3491.
  • Sun et al. (2016) Bo Sun, Qinglan Wei, Jun He, Lejun Yu, and Xiaoming Zhu. 2016. BNU-LSVED: a multimodal spontaneous expression database in educational environment. In SPIE Optical Engineering+ Applications. International Society for Optics and Photonics, 997016–997016.
  • Sun et al. (2015) Bo Sun, Di Zhang, Jun He, Lejun Yu, and Xuewen Wu. 2015. Multi-feature-based robust face detection and coarse alignment method via multiple kernel learning. In SPIE Security+ Defence. International Society for Optics and Photonics, 96520H–96520H.
  • Tieleman and Hinton (Tieleman and Hinton) T Tieleman and G Hinton.

    Rmsprop: Divide the gradient by a running average of its recent magnitude. COURSERA: Neural Networks for Machine Learning

    Technical Report. Technical report, 2012. 31.
  • Xiao et al. (2016) Shengtao Xiao, Jiashi Feng, Junliang Xing, Hanjiang Lai, Shuicheng Yan, and Ashraf Kassim. 2016. Robust Facial Landmark Detection via Recurrent Attentive-Refinement Networks. In European Conference on Computer Vision. Springer, 57–72.
  • Xiong and De la Torre (2013) Xuehan Xiong and Fernando De la Torre. 2013. Supervised descent method and its applications to face alignment. In Proceedings of the IEEE conference on computer vision and pattern recognition. 532–539.
  • Yu et al. (2013) Xiang Yu, Junzhou Huang, Shaoting Zhang, Wang Yan, and Dimitris N Metaxas. 2013. Pose-free facial landmark fitting via optimized part mixtures and cascaded deformable shape model. In Proceedings of the IEEE International Conference on Computer Vision. 1944–1951.
  • Zhang et al. (2016) Kaipeng Zhang, Zhanpeng Zhang, Zhifeng Li, and Yu Qiao. 2016. Joint Face Detection and Alignment Using Multitask Cascaded Convolutional Networks. IEEE Signal Processing Letters 23, 10 (2016), 1499–1503.
  • Zhang et al. (2014) Zhanpeng Zhang, Ping Luo, Chen Change Loy, and Xiaoou Tang. 2014. Facial landmark detection by deep multi-task learning. In European Conference on Computer Vision. Springer, 94–108.
  • Zhou et al. (2015) Yisu Zhou, Xiaolin Hu, and Bo Zhang. 2015. Interlinked convolutional neural networks for face parsing. In International Symposium on Neural Networks. Springer, 222–231.
  • Zhu and Ramanan (2012) Xiangxin Zhu and Deva Ramanan. 2012. Face detection, pose estimation, and landmark localization in the wild. In Computer Vision and Pattern Recognition (CVPR), 2012 IEEE Conference on. IEEE, 2879–2886.
