1 Introduction

Neural compression methods have enormous potential to improve the efficiency of video coding. With video constituting the large majority of internet traffic, this has significant implications for the internet at large (Sandvine, 2019)

. State-of-the-art algorithms model each frame by warping the previous one with a neural estimate of the optical flow

(Lu et al., 2019) or scale-space flow (Agustsson et al., 2020)

and adding residuals modeled by another network. Both the optical flow and the residuals are compressed with variational autoencoders. Such neural codecs have recently achieved results on par with popular classical codecs

(Agustsson et al., 2020; Rippel et al., 2021; Pourreza & Cohen, 2021) such as H.264 / AVC (Wiegand et al., 2003) and H.265 / HEVC (Sullivan et al., 2012). However, relatively little research has focused on their computational complexity, and matching the rate-distortion performance of H.266 / VVC (Bross et al., 2018) is still an open problem.

Neural video codecs depend critically on generalization: they are developed assuming that a good performance on training and validation datasets translates to a good performance at test time. However, this assumption does not always hold in practice, for instance because of limited training data or imperfect optimization. Domain shift is a particularly challenging problem given the variety in video content and styles; for instance, neural video codecs trained on natural scene video data often perform poorly on animated sequences (Agustsson et al., 2020).

Here we address this problem by optimizing the autoencoder — finetuning its weights — for each single video to be compressed at test time. After training on the test set in this way, the finetuned network parameters need to be made available on the receiver side: they are compressed, quantized, and entropy-coded under a suitable prior to the bitstream along with the latent code. Optimizing the compression network for every video in this way relaxes the requirement of training data that closely matches the test distribution as well as the necessary model capacity. It also allows trading off encoding compute for better compression efficiency.

The essential idea of instance-adaptive finetuning was recently proposed by van Rozendaal et al. (2021). The authors demonstrated the idea on I-frame compression, i. e. compressing a set of similar images, but did not apply it to video sequences yet. In this work we extend the idea to the compression of full videos, in which only periodic key frames are compressed as images and most frames are encoded relative to one or two reference frames. Our method is general and can be applied to various settings and base models. We first demonstrate it in a low-latency setting with I-frames and P-frames using a scale-space flow architecture (Agustsson et al., 2020) as base model. Next we show its performance in a B-frame setting, using the base model proposed by Pourreza & Cohen (2021).

On the UVG-1k, HEVC class-B, and Xiph-5N datasets, our new instance-adaptive video compression codec yields BD-rate savings of 17 to 26 % over the respective base models and 5 to 44 % over the popular ffmpeg (x265) implementation of the H.265 codec (FFmpeg, ; VideoLAN, b). In addition, instance-adaptive finetuning lends itself to a possible reduction in model size, because a smaller network may suffice to model a single instance. We show that in this framework smaller models can still outperform most neural codecs while reducing the computational complexity of the decoder by 72%. Overall, we demonstrate that unlike other neural video codecs, our method can trade off encoding compute against compression performance, and that this trade-off is more effective than for classical codecs.

2 Related work

Neural video compression

The standard framework used by most neural compression codecs (either implicitly or explicitly) is that of the variational (Kingma & Welling, 2014) or compressive (Theis et al., 2017) autoencoder. An encoder (or approximate posterior) maps a data point to a latent representation . This latent is transmitted to the decoding party by means of entropy coding under a latent prior . The receiver can then reconstruct the sample with a decoder (or likelihood)

. The encoder, prior, and decoder are neural networks, parameterized by weights

, as indicated by the subscripts.

These models are trained by minimizing the rate-distortion loss

(1)

which combines a distortion metric and a rate term that approximates the bitrate necessary to transmit the latent code . Up to a constant entropy term , this loss equals the -weighted VAE loss (Habibian et al., 2019; Higgins et al., 2017).

Much research has focused on the design of efficient network architectures for neural video codecs, in particular with respect to the temporal structure. While some earlier works were based on 3D convolutions (Habibian et al., 2019; Pessoa et al., 2020), recent models use optical flow and residual modeling to exploit similarities between frames. The latter class of approaches can be divided into predictive or P-frame temporal modeling, where the model for each frame is conditional on the previous frame(s) (Agustsson et al., 2020; Chen et al., 2019; Liu et al., 2020; Lombardo et al., 2019; Lu et al., 2019; Rippel et al., 2019; Golinski et al., 2020; Rippel et al., 2021; Hu et al., 2020; Yang et al., 2020b), and bidirectional or B-frame modeling, where each frame is conditioned on past as well as future reference frames (Cheng et al., 2019; Choi & Bajić, 2019; Djelouah et al., 2019; Wu et al., 2018; Park & Kim, 2021; Pourreza & Cohen, 2021; Yang et al., 2020a). Agustsson et al. (2020) generalize optical flow to scale-space flow by adding dynamic blurring to the warping operation, improving the modeling of uncertainty and leading to state-of-the-art results.

Instance-adaptive compression

Rate-distortion autoencoders are trained by minimizing the RD loss in Eq. (1) over a training dataset . This approach relies on the assumptions that the model is not only able to fit the training data well, but also generalizes to unseen datapoints at inference time. In practice, however, finite training data, limited model capacity, optimization imperfections, and domain shift — differences between train and test distributions — can degrade the performance.

This problem can be solved by adapting video codecs to each sequence at test time. Several such methods have been proposed, see Appendix A for an in-depth overview that also covers image compression. These works can be roughly categorized into encoder-only finetuning, limited decoder finetuning, and hybrid classical-neural codecs. Works in the first category (e. g. Lu et al. (2020)) optimize the encoder parameters for each data point. Such an update does not have to be communicated to the receiver side. This approach alleviates the generalization problem for the encoder, but does not solve it for the decoder and prior. We will demonstrate later that encoder-only finetuning leads to a limited improvement in the compression performance.

The second category of works also adapt parts of the prior and decoder for each video instance. Since these modules need to be known on the receiver side, such an update needs to be signalled in the bitstream. Depending on the implementation, this may increase the bitrate substantially. Aytekin et al. (2018); Zou et al. (2020); Wang et al. (2021) address this by only allowing limited changes to the decoder-side models, for instance choosing one out of a number of fixed decoder networks, thus limiting the potential gains of these methods. Finally, the third category of works propose a hybrid approach, where a video is first compressed by a classical codec and a finetuned enhancement network is added to the bitstream (He et al., 2020, 2021; Klopp et al., 2020, 2021; Liu et al., 2021). Although these methods have shown great performance at low bitrates, they tend to perform less well at higher bitrates, and do not benefit from developments in end-to-end neural compression.

van Rozendaal et al. (2021) suggest a method to adapt the full model to a single datapoint. The key idea is that the parameter updates , where are the global model parameters resulting from training on , can be be transmitted very efficiently. After discretization, the quantized updates are entropy-coded under a parameter update prior

that assigns high probability mass (and thus low transmission cost) to zero-updates

. This procedure enables a neural codec in which the full model — encoder, decoder, and prior — is finetuned on each data sample at test time by minimizing the loss

(2)

The term reflects the increased bitstream length from coding the parameter updates . In van Rozendaal et al. (2021), this approach was successfully demonstrated on I-frame compression, essentially compressing a set of images with similar content. In this work we adapt it to the compression of full video sequences, as we will describe in the following section.

3 Instance-adaptive video compression

We now introduce our instance-adaptive compression codec for full video sequences, or InstA for short. The key idea is to optimize the parameters of a rate-distortion VAE for each video sequence to be transmitted, and to send the relevant network parameters in a rate-efficient way to the decoder. This approach can be beneficial whenever a standard rate-distortion autoencoder would not generalize well, for instance because of limited training data or domain shift. In addition, instance adaptation allows us to use smaller models while maintaining most of the compression performance. While encoding the network parameters to the bitstream increases the length of the code, we describe a compression scheme in which this cost is negligible, especially when amortized over many frames of a video sequence.

Our approach is agnostic about the base model and we demonstrate it on two different architectures: a scale-space flow model in the low-latency setting and the B-EPIC model in the B-frame setting. In the following, we first describe the base models, before describing how InstA compresses and decompresses video sequences.

Low-latency base model: Scale-space flow (SSF)

We first focus on the low-latency setting, which we define as having only access to current or previous frames when decoding a frame. As a base model for this setting, we use the scale-space-flow architecture introduced by Agustsson et al. (2020). Any video sequence is first split into groups of pictures (GoP). The first frame in each GoP is modeled as an image without any dependency on previous frames, i. e. as an I-frame. All other frames are P-frames, modeled as

(3)

where is the reconstructed previous frame, is the estimated scale-space flow field, is the estimated residual, and the scale-space warping operation performs optical-flow warping of the previous frame with a dynamic, position-dependent amount of Gaussian blur. The I-frame images, P-frame scale-space flow , and P-frame residuals are compressed with separate hyperprior models  (Ballé et al., 2018), a hierarchical variational autoencoder architecture.

We largely follow the architecture choices of Agustsson et al. (2020) and refer to this model as SSF18 after its number of decoder-side parameters (in millions). In Appendix C we describe the architecture in detail and highlight the differences to Agustsson et al. (2020).

Model SSF18 SSF8 SSF5 SSF3
Total parameters [] 28.9 13.8 8.1 4.9
Decoder-side params. [] 18.0 8.4 5.0 3.1
Decoder-side kMACs / pixel 313.4 180.0 88.6 50.8
Decoder kMACs reduction 0 % 43 % 72 % 84 %
Table 1: Parameter counts and decoding complexity for our various global scale-space-flow models.

Smaller low-latency base models

As our instance-adaptive approach is based on finetuning the compression model on a low-entropy “dataset” (a single video sequence), we hypothesize that it does not require the full expressivity of the computationally complex SSF18 model. We propose three alternative scale-space flow architectures with a reduced computational complexity. In Tbl. 1 we list the parameter counts and the number of multiply-accumulate (MAC) operations required for decoding a sequence, which are reduced by 43–84% compared to the SSF18 baseline. The architectures of the four SSF models are described in detail in Appendix C.

B-frame base model: B-EPIC

We also consider a less constrained setting, in which frames can be compressed as B-frames as well, i. e. using both a previous frame and a future frame as reference points. This flexibility allows for even more efficient compression and is used for instance for on-demand video streaming. As a base model we choose the B-EPIC architecture (Pourreza & Cohen, 2021). Again, the video is split into GoPs. The very first frame of a video is modeled as an I-frame, while the last frame in each GoP is a P-frame, using the last frame of the preceeding GoP as reference; both I-frame and P-frames are compressed as in the SSF model.

Any other frame is modeled as a B-frame: it is assigned a past reference frame () and a future reference frame (

); an off-the-shelf Super-SloMo frame interpolator

(Jiang et al., 2018) is used to interpolate between these two reference frames. The interpolated frame is then used as a basis for scale-space flow warping:

(4)

The interpolated frame provides a more useful starting point for optical-flow warping than the previous frame, e. g. because the combination of past and future knowledge may avoid occlusion effects.

Again, I-frames, optical flow, and residuals are modeled with three separate hyperprior models and the model is trained on the RD loss in Eq. (1

). We only consider a single configuration and use hyperparameters and checkpoints from

Pourreza & Cohen (2021). This model has 38.5 million parameters, 23.2 million of which are on the decoder side.

Encoding a video sequence

Our procedure conceptually follows van Rozendaal et al. (2021). For completeness we shall describe the full method here. A video sequence is compressed by:

  1. Finetuning the model parameters of the base model on the sequence using Eq. (2),

  2. computing the latent codes ,

  3. parameterizing the finetuned decoder and prior parameters as updates ,

  4. quantizing latent codes and network updates , and

  5. compressing the quantized latents and updates with entropy coding to the bitstream.

To finetune a pretrained base compression model, we start with the global model with parameters and minimize the rate-distortion loss given in Eq. (2) — but only over the single video sequence . This modified rate-distortion loss explicitly includes the bitrate required to send model updates under an update prior . We compute the regularizing loss with the unquantized updates , but use the quantized parameter updates to calculate the and loss terms, using a straight-trough estimator (Bengio et al., 2013) in the backward pass.

Sending the updated network parameters of course adds to the length of the bitstream. This is even the case when finetuning does not lead to changed parameters (). Given the large size of the neural model we consider, it is therefore essential to choose an update prior that assigns a large probability mass to zero-updates . This allows the network to transmit trivial updates at a negligible rate cost, while giving it the freedom to invest bit cost in non-trivial parameter updates that improve the performance substantially. We use a spike-and-slab prior (Johnstone & Titterington, 2009; van Rozendaal et al., 2021)

, a mixture model of a narrow and a wide Gaussian distribution given by

(5)

where the “slab” component with variance

keeps the bitrate cost for sizable updates down, and the “spike” component with the narrow standard deviation

ensures cheap zero-updates. The mixing weight is a tunable hyperparameter.

At the beginning of the finetuning procedure, our neural model is equal to the global model. Because of the spike-slab update prior, the rate cost is only marginally increased and the compression performance essentially equal to the global model. During finetuning, the rate-distortion performance gradually improves, giving us an anytime algorithm that we can stop prematurely to get the best compression performance within a given encoder compute budget.

After the model has converged or a compute budget has been exhausted, we use the finetuned encoder to find the latent code corresponding to the video sequence . Both and the updates to prior and decoder , which will be necessary to decode the video sequence, are quantized. To discretize the updates , we use a fixed grid of equal-sized bins of width centered around . We choose such that and clip values at the tails. The quantization of is analogous, except that we use a bin width of and do not clip the values at the tails (in line with Ballé et al. (2018)).

Finally, we write the quantized updates and quantized codes to the bitstream. We use entropy coding under the quantized update prior and finetuned prior , respectively. For latent codes in the tail region we use Exp-Golomb coding (Wiegand et al., 2003).

Decoding a video sequence

The receiver first decodes the prior and decoder updates from the bitstream. Once is known on the decoder side, the latents are decoded with the prior and the video sequence is reconstructed with the decoder following standard VAE protocol. The only overhead on the decoder side is therefore the initial decoding of . While this results in a small delay before the first frame can be decoded, in practice this delay is very short (below 0.2 seconds in our experiments).

4 Experimental setup

Datasets

In our experiments we use sequences from five different datasets. The global models are trained on Vimeo90k (Xue et al., 2019). We evaluate on the HEVC class-B test sequences (HEVC, 2013), on the UVG-1k (Mercat et al., 2020) dataset, and on Xiph-5N (van Rozendaal et al., 2021), which entails five Xiph.org test sequences. The performance on out-of-distribution data is tested on two sequences from the animated short film Big Buck Bunny, also part of the Xiph.org collection (Xiph.org, ). We choose an “easy” (BBB-E) and a “hard” (BBB-H) clip of 10s each, see Appendix B for details. All of these datasets consist of videos in Full-HD resolution ( pixels). In addition, we evaluate on HEVC class C with a lower resolution of pixels.

Global models

The scale-space flow models described in Sec. 3 are trained with the MSE training setup described in Agustsson et al. (2020), except that we use the publicly available Vimeo-90k dataset. For the B-EPIC model, we use the model trained by Pourreza & Cohen (2021) on Vimeo-90k. We describe the training schemes in detail in Appendix D.

Instance-adaptive finetuning

On each instance, we finetune the models with the InstA objective in Eq. 3, using the same weight as used to train the corresponding global model. We finetune for up to two weeks, corresponding to an average of 300 000 steps. Our training scheme is described in detail in Appendix D.

Baselines

As our instance-adaptive video compression method can be applied to any compression architecture, we focus on comparing to the respective base models: we compare InstA-SSF to our reimplementation of the SSF model (Agustsson et al., 2020) and InstA-B-EPIC to the B-EPIC model (Pourreza & Cohen, 2021). To better understand where the benefits of instance-adaptive finetuning come from, we consider an additional SSF18 baseline in which only the encoder is finetuned on each instance. Unlike our InstA method, encoder-only finetuning does not require sending any model updates in the bitstream. In addition, we show the strongest or most closely related neural baselines, with further baselines in Appendix F.

We also run the popular classical codecs H.264 (AVC) (Wiegand et al., 2003) and H.265 (HEVC) (Sullivan et al., 2012) in the ffmpeg (x264 / x265) implementation (FFmpeg, ; VideoLAN, a, b) as well as the (slower but more effective) HM reference implementation (HEVC, ) of H.265. To ensure a fair comparison, in the low-latency experiments we restrict all codecs to I-frames and P-frames and fix the GoP size to 12. In the B-frame experiments, we use default settings, allowing the codecs to freely determine frame types and GoP size. For ffmpeg, we compare several different encoder presets to study the trade-off between encoding time and RD performance. In Appendix E we provide the exact commands used to generate these baseline results.

Metrics

We evaluate the fidelity of the reconstructions through the peak signal-to-noise ratio (PSNR) in RGB space. To summarize the rate-distortion performance in a single number, we compute the Bjøntegaard Delta bitrate (BD-rate)

(Bjøntegaard, 2001), the relative rate difference between two codecs averaged over a distortion range. We evaluate the BD-rate savings of all methods relative to the HM reference implementation of HEVC, using PSNR as distortion metric, the intersection of the support of all RD curves as the distortion range, and cubic spline interpolation.

Figure 1: Rate-distortion performance of our InstA video codecs. InstA (red) leads to BD-rate savings of between 17 % and 26 % over the corresponding base models (orange) and between 5 % and 44 % over H.265 (ffmpeg).

5 Results

Compression performance

Figure 1 shows the rate-distortion curves of our instance-adaptive video codec (InstA) as well as neural and traditional baselines. We compare to more baselines in Appendix F. Both for SSF in the low-latency and B-EPIC in the B-frame setting, the instance-adaptive models clearly outperform the corresponding base models. Finetuning only the encoder — which does not require sending model updates in the bitstream — leads to a much more modest improvement over the base models.

In the low-latency setting, InstA-SSF outperforms all other neural models as well as the ffmpeg implementations of H.264 and H.265 at all studied bitrates, except for OTU and ELF-VC, which hold an edge in the low-bitrate region, and M-LVC, which is competitive at medium bitrates. Within the restrictions of the low-latency setting and at medium to high bitrates, it is even competitive with the HM reference codec. In the B-frame configuration, InstA-B-EPIC outperforms all baselines from around 0.1 bits per pixel except HM.

Robustness to model-size reduction

While the full-size InstA-SSF18 model leads to the best RD performance in the low-latency setting, the smaller InstA-SSF5 models hold their own. Despite the 72% reduction in decoder complexity, Insta-SSF5 outperforms most neural baselines and the ffmpeg codecs, and achieves a performance close to that of InstA-SSF18. In comparison, the gap between the SSF5 and SSF18 baselines is larger. This provides evidence for the hypothesis that instance-adaptive finetuning reduces the capacity requirements on neural compression models.

To further investigate how the performance of our method depends on decoder complexity, we train two additional models, SSF3 and SSF8, as summarized in Tbl. 1. The results are in line with the trends already shown. While the performance of the global models degrades quickly when reducing the model size, instance-adaptive finetuning can compensate for the reduced capacity and offers more “bang for the buck” in terms of (decoding-side) model complexity. For detailed results we refer the readers to Appendix H.

Robustness to dataset variation

Globally trained neural codecs rely on the similarity of the test instances to the training data. In comparison, we expect our finetuned models to be more robust under domain shift and to perform well across different test sets. To put this to the test, we evaluate the InstA-SSF models and low-latency baselines on different sequences, including two animated scenes from the Big Buck Bunny video. In Tbl. 2 we report the compression performance as BD-rate savings relative to the HM reference codec, the corresponding RD curves can be found in Appendix F. We find that InstA performs strongly on all datasets. On the animated sequences, the global SSF18 baseline performs poorly relative to ffmpeg H.265, showing its susceptibility to domain shift. Our instance-adaptive models are much more robust to this shift and close the gap with classical codecs. We illustrate this performance improvement on example frames from the Big Buck Bunny video in Appendix G and provide reconstructed video data in the supplementary material.

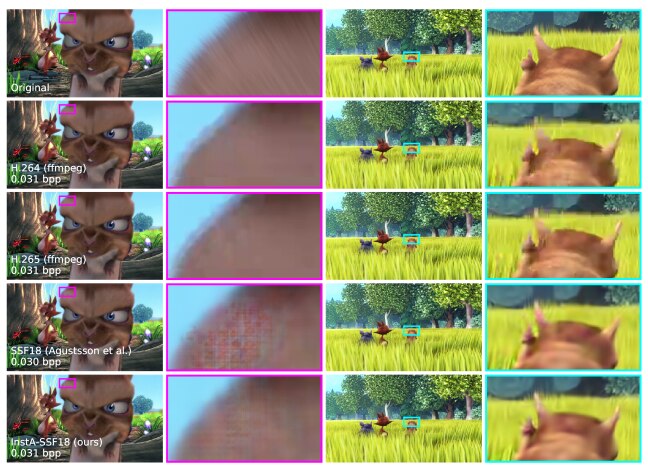

Instance-adaptive compression is particularly powerful for high-resolution data, where the model-rate overhead is amortized over more pixels. We test whether InstA still works at a lower resolution by evaluating on the HEVC class C test sequences, which have 81 % less pixels per frame than the Full-HD sequences. As shown in Appendix F, InstA indeed performs worse relative to the baselines than on the higher-resolution data. Nevertheless, InstA-SSF18 still is among the best neural codecs.

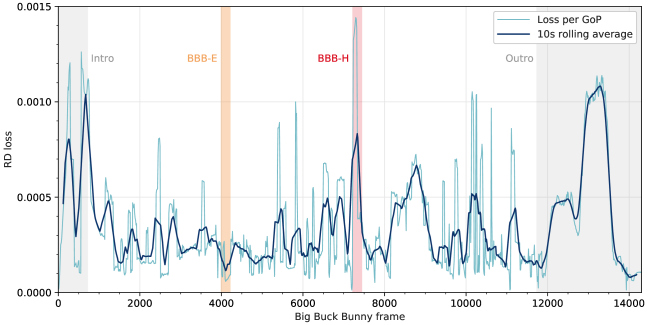

To further quantify our robustness to test data characteristics, we investigate the effect of the video framerate on the model performance. In Appendix H we study the performance of global and instance-adaptive SSF models on temporally subsampled videos and again find that the instance-adaptive model is more robust to variations than the global SSF model. While these ablations do not cover all realistic variations, they serve as examples of dataset characteristics that a global neural codec is likely sensitive to.

Setting Method BD-rate relative to H.265 (HM) []
UVG-1k HEVC-B HEVC-C Xiph-5N BBB-E BBB-H
Low latency InstA-SSF18 (ours)
InstA-SSF5 (ours)
Encoder-finetuned SSF18
SSF18
SSF5
H.265 (ffmpeg)
H.264 (ffmpeg)
B-frames InstA-B-EPIC (ours)
Encoder-finetuned B-EPIC
B-EPIC
H.265 (ffmpeg)
H.264 (ffmpeg)
Table 2: Rate-distortion performance of InstA and baselines on several datasets. We summarize the rate-distortion performance as BD-rate relative to the HM reference implementation of H.265 in the respective setting (lower is better).

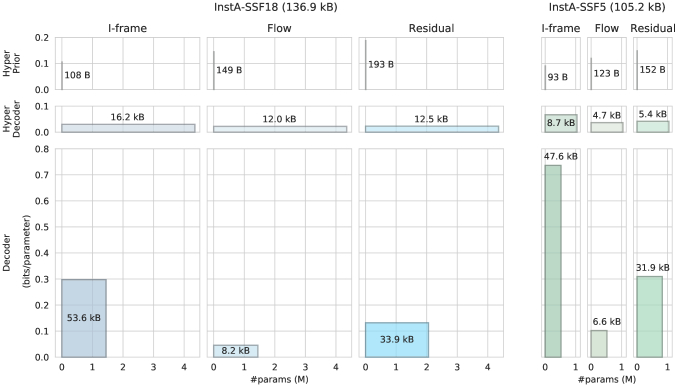

Rate composition

It is remarkable that InstA consistently improves the rate-distortion performance of neural models despite having to send updates for millions of neural network parameters. We investigate this low rate overhead in Appendix H. We find that the spike-and-slab prior is crucial: compared to Gaussian coding, it allows us to save around 7.5 bits per parameter.

InstA learns to distribute bits on model updates and latents. The optimal trade-off generally depends on the bitrate, the size of the model and latent code, and on the test data: we expect that for strongly out-of-distribution data, more bits will be spent on model updates. Indeed we find that in almost all cases, less than of the total rate is spent on model updates, while for the animated sequences from the Big Buck Bunny video between and of the total bitrate are invested in model updates. We provide more details in Appendix H.

Computational complexity

The improved compression performance of our instance-adaptive video codec comes at the price of increased encoding time. In Fig. 2 we illustrate this trade-off for the low-latency setting. We summarize the rate-distortion performance as BD-rate savings relative to HM and compare to the encoding time111We report the walltime on machines with 40-core Intel Xeon Gold 6230 CPUs with 256 GB RAM and NVIDIA Tesla V100-SXM2 GPUs with 32 GB VRAM. We only use a single GPU.. For our instance-adaptive methods, this time includes the finetuning in addition to the forward pass of the encoder, the quantization, and the entropy coding (for both the latents and the parameters). By choosing how long to run the finetuning, we can trade off RD performance against the encoding time. Out of the studied codecs, ours can best exploit this trade-off: encoding time and compression performance are fixed in other neural methods, while the existing handles in traditional codecs have a limited effect on performance.

We find that instance-adaptive finetuning leads to state-of-the-art RD performance even when finetuning only for a few steps. The performance gradually improves over the course of training and eventually flattens out. Care has to be taken in interpreting these results as the different codecs were designed for different hardware and our algorithms have not been optimized for performance.

Figure 2: Trade-off between RD performance and encoder-side compute in the low-latency setting. We summarize the RD performance as BD-rate difference relative to the HM implementation of H.265 (lower is better). InstA-SSF (red) is compared to SSF (orange) and traditional (grey) baselines. Some fluctuations in the measured walltime are due to varying load on our computational cluster. Since we can stop the instance finetuning at any time, InstA-SSF allows us to continuously trade off encoder compute for compression performance.

Instance-adaptive video compression also adds some overhead on the decoder side, as the model parameters need to be decoded before any frame can be reconstructed. For the full-size InstA-SSF18 model and without optimizing the code for performance, this initial delay is below 0.2 seconds. The neural network forward pass alone is timed with a speed of around 0.01 seconds per frame on a TeslaV100 GPU without any optimization. Both the overhead and the network forward pass are thus negligible compared to the time it takes to entropy-decode the latents : in our (not optimized) implementation, this takes around 1 second per frame, both for the global SSF models and InstA-SSF. Compared to the neural baselines, InstA-SSF thus yields a better performance at comparable complexity. Compared to traditional codecs, there is still a gap to bridge, and none of the neural codecs can decode at the framerate of the videos yet.

At the same time, instance-adaptive finetuning allows us to use smaller architectures while maintaining a strong performance, as shown above. This potential to reduce the decoder-side compute may outweigh the small overhead from the initial update decoding.

Model update strategy for longer sequences

For longer videos with multiple scenes, one can apply instance-adaptive finetuning per scene, per video, or in an hierarchical approach. In Appendix H we discuss these aspects and compare them for the Big Buck Bunny video.

6 Conclusions

We introduced InstA, a method for video compression that finetunes a pretrained neural compression model on each video sequence to be transmitted. The finetuned network parameters are compressed and transmitted along with the latent code. The method is general and can be applied to many different settings and architectures, we demonstrated it on scale-space flow models in the low-latency setting as well as a state-of-the-art B-frame architecture.

Instance-adaptive video compression relaxes the requirement of a single global model that needs to be able to generalize to any unseen test sequence. This can be beneficial when the training data is limited, when there is domain shift between training and test distributions, or when the model class is not expressive enough. While it comes at the cost of some overhead to the bitstream, we demonstrated that with a suitable compression scheme this overhead can be kept small, especially since it is amortized over the many pixels of a video sequence.

Our InstA models clearly outperform the base models in all considered settings, in several cases achieving a state-of-the-art rate-distortion performance. They outperform their corresponding global base models with BD-rate savings of between 17 % and 26 % on the UVG-1k, HEVC class-B, and Xiph-5N datasets, and the popular ffmpeg implementation of H.265 with BD-rate savings between 5 % and 44 %. By evaluating models that were trained on natural scene data on animated sequences, we demonstrate that instance-adaptive finetuning improves the robustness of neural video codecs under domain shift. Finally, instance-adaptive compression reduces the required model expressivity: even after reducing the model size by 72 %, InstA-SSF maintains a competitive performance.

The ability to trade off encoder-side compute for compression performance is a natural match for one-to-many transmission scenarios, in which a sequence is compressed once but transmitted and decoded often. We demonstrated that even just finetuning for seconds per frame can lead to a substantial improvement in compression performance, so instance-adaptive compression may ultimately even be beneficial in real-time applications.

Acknowledgements

We would like to thank the whole Qualcomm AI Research team, but in particular Amir Said, Guillaume Sautiére, Auke Wiggers, Yang Yang, and Yinhao Zhu for useful discussions and help with the experiments.

We are grateful to the authors and maintainers of ffmpeg (FFmpeg, ), Matplotlib (Hunter, 2007), Numpy (Charles R Harris et al., 2020), OpenCV (Bradski, 2000), pandas (McKinney, 2010), Python (Python core team, 2019)

, PyTorch

(Paszke et al., 2017), scipy (SciPy contributors, 2020), and seaborn (Waskom, 2021).
