1 Introduction

Learning deep neural networks (DNNs) has achieved impressive successes in many research fields but has suffered from collecting massive clean-annotated training samples such as ImageNet

[9]

and MS-COCO

[21]

. Since annotating procedures are usually done manually by human experts, it is expensive and time-consuming to get large clean labeled data, which prevents deep learning models from being trained successfully. On the other hand, it is feasible to access numerous data through internet search engines

[11, 31, 40, 17] or hashtags, whose labels are easy to collect but relatively inaccurate. Thus it becomes to get a spotlight to exploit data sets with corrupted labels instead of clean ones to solve classification tasks with DNNs, which is called the noisy label problem.

There have been many kinds of literature dealing with noisy labeled data, and a majority of methods exploited so-called the memorization effect

, which is a special characteristic of DNNs that DNNs memorize data eventually (i.e. perfectly classify training data) but memorize clean labeled samples earlier and noisy samples later

[3, 16]. Hence, we can identify clean data from the given training data contaminated with noisy labels by choosing samples with small loss values. Due to its simplicity and superiority, many follow-up studies have been proposed based on the small-loss strategy and achieved great success ([34] and references therein).

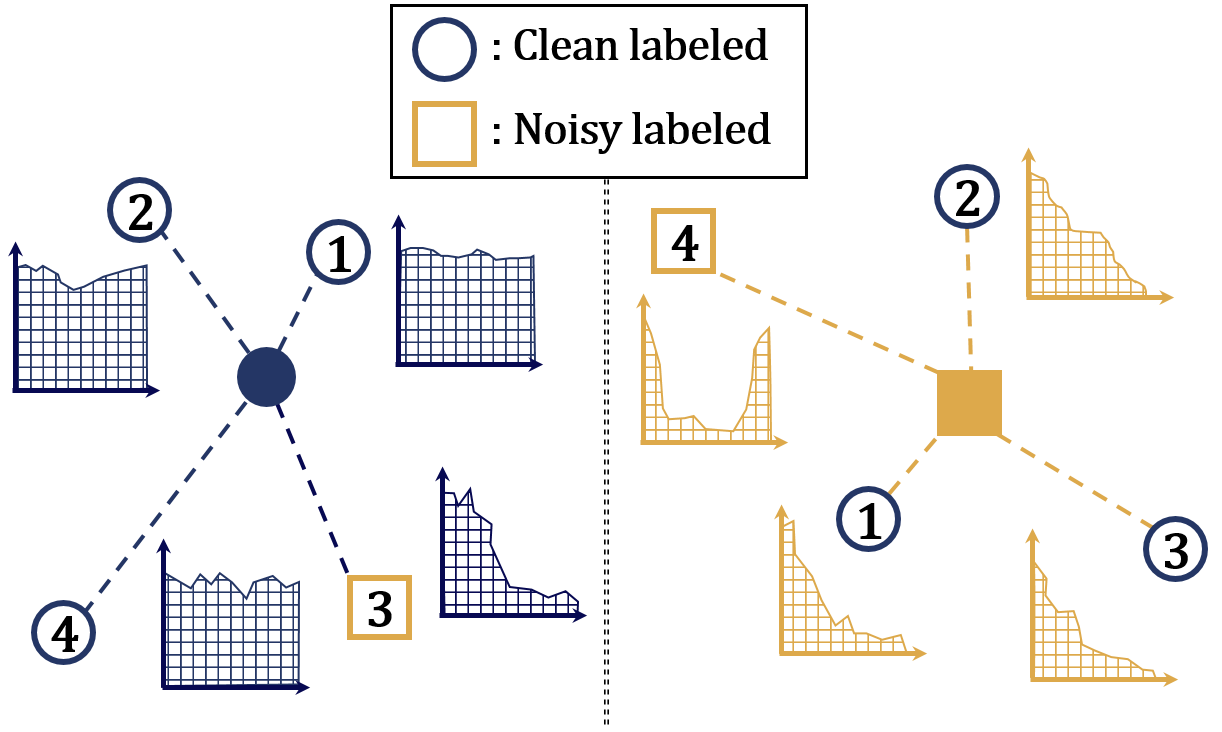

Figure 1: An illustration of the INN method. Circle and square are inputs with clean label and noisy label, respectively. Numbered dots are the nearest inputs. Each graph presents the value of a given prediction model along the dashed line. The INN method takes an average of the areas under each of the graphs.

But the small-loss strategy has several weaknesses. First, during the training phase, it is difficult to know a training epoch (or iteration) where the discrepancy of loss values between clean data and noisy data is large since it heavily depends on various factors including data set, model architecture, optimizer type and even learning schedule. Second, it becomes hard to identify clean-annotated samples from training data via the small-loss strategy when the training labels are heavily polluted. Besides, the memorization effect may not appear when we analyze the data with imbalanced label distribution. As we can obtain imbalanced data frequently in many real-world domains, this shortcoming can be an obstacle for the small-loss strategy applied in many industry fields.

To tackle these issues about the memorization effect, we develop a novel and powerful method called INN (Integration with the Nearest Neighbors). We start with a new and interesting observation that the output values of a trained DNN at neighbor regions of labeled and noisy samples are consistently much different regardless of training epochs. We call this phenomenon the consistency effect. Motivated by the consistency effect, the INN method takes averages of the output values of neighbor regions of a given sample and decides it as noisy if the average is small. See Figure 1 for an illustration of the INN method.

In fact, the INN requires more computation than the small-loss method. Still, this additional expense deserves to pay since the INN successfully overcomes the small-loss method’s limitations. The INN works well even when the training labels are heavily contaminated or has imbalanced distribution, while the small-loss method is in trouble for the situations. The stability and superiority make the INN easily applicable to various supervised learning tasks without much effort.

We can also combine the INN with an existing noisy-label-problem-solving learning method based on the small-loss strategy (e.g. DivideMix [19]) to construct deep networks of high accuracy. We replace the parts where the memorization effect and loss information are used with the consistency effect and the INN information. We show that these modifications enhance prediction performances much, especially when training labels have many noises or imbalanced distribution.

This paper is organized as follows. In Section 2, we provide brief reviews for related studies dealing with noisy labels, and detailed descriptions of the INN are given in Section 3. Various experimental analyses including performance test and ablation study are given in Section 4 and final concluding remarks follow in Section 5. The key contributions of this work are as follows.

  • We find a new observation called the consistency effect, that the output values of a trained DNN at neighbor regions of labeled and noisy samples are consistently much different regardless of training epochs.

  • Built on the consistency effect, we propose a method called the INN to identify clean annotated data from a given training data.

  • We empirically demonstrate that the INN can separate clean and noisy samples accurately and stably even under the heavy label corruption and imbalanced label distribution, and also helpful to construct superior prediction models.

2 Related works

The noisy label problem has been studied for several decades [1, 47, 27]. The core issue to solve the noisy label problem with DNNs is that DNNs easily over-fit all training samples, including noisy labeled ones, because of too large complexities resulting in inferior generalization performances. Here we review some related studies for efficient algorithms to train robust classifiers in noisy annotations based on the key concepts called the loss correction and the memorization effect. And we also describe several approaches exploiting the information of a target sample’s neighborhoods as the INN does.

Loss correction based algorithms have a goal to improve the generalization error by modifying objective functions [29, 45]. The noise adaptive layer-based algorithm [12]

added additional noisy channels that estimate the correct labels. The iterative noisy label detection

[38, 37]

used the weighted softmax loss function where the weights are updated iteratively based on the feature maps of the current DNN model. Some algorithms to estimate ground-truth labels directly have been developed

[36, 41]. The meta-learning algorithm was also applied to resolve the noisy label problem [20]. There was an attempt to propose a new loss function more robust than standard loss functions [23].

Approaches based on the memorization effect focused on the gap between the output values of clean labeled and noisy labeled samples during an early stage of the training phase. The decouple method [26] proposed a meta-algorithm called decoupling which decides when to update. D2L [25] distinguished clean labeled data from noisy ones by employing a local dimensionality measure and ELR [22] found the faster gradient vanishings of clean labeled samples at the early learning stage. There were several algorithms to train noisy-robust prediction models by using only a subset of the training data based on their loss or prediction values. [13, 42, 32, 8, 33, 28]. Some studies fitted a two-component mixture model to a per-sample loss distribution [2, 19].

Some works tried to utilize the information of neighborhoods to filter out noisy labeled data, similar to the INN’s idea. The distance-weighted -NN [10] was an initial work that considers the nearest samples with their distance-based weights. Deep -NN [4] proposed a filtering strategy based on the label information of nearest neighbors, and MentorMix [15] applied MixUp [44] to MentorNet [16] to consider linear combinations of two inputs. We will discuss about the difference between the INN and the methods of exploiting neighbor’s information in Section 3.3.

3 Integration with the nearest neighbors

3.1 Notations and definitions

For a given input vector

, let be its observable and ground-truth labels, respectively, where . Of course, might be different from . We say that the sample is cleanly labeled if and noisily labeled if . Let be a training data set with samples. Define and . Our goal is to identify the clean labeled subset from accurately.

Let (abbr. ) be a discriminative DNN parametrized by which maps an input to a

-dimensional conditional probability vector with the softmax layer. Also let

be the -th component of , that is, we can represent as .

3.2 Consistency effect

Before we start, we explain the main motivation of our method. For a given training sample , we define , where is the nearest neighbor training input of on the feature space (i.e. is most close to ) and is the output of the penultimate layer of a pre-trained prediction model on . Then, we can regard that locates in the neighbor region of . We investigate how the prediction values of the training inputs and their neighbors behave differently by the label cleanness. We also estimate a prediction model by minimizing the standard cross-entropy based on . At each training epoch, we calculate the four expectations defined as

Two values and are the expectations of clean and noisy data’s predictions, respectively, and and are the expectations of neighbor region’s prediction values over the clean and noisy labeled data, respectively. From Figure 3, we can see a typical phenomenon related to the memorization effect: and are much different at early epochs but the difference diminishes as the training epoch proceeds. That means that it becomes hard to discriminate noisy data from clean ones by comparing values at each sample at later stages of the training phase. But it is difficult to decide how many epochs are necessary for amply utilizing the memorization effect.

On the other hand, the difference between and is clearly significant regardless of training epochs. That is, the prediction values of neighbor regions for each sample are informative to separate clean and noisy data even when the number of training epoch is large. We call this new observation the consistency effect. This consistent discrepancy occurs by two reasons. First, when is a noisy labeled sample, the label of an input , i.e. , and the label of its neighborhood training sample denoted by tend not to coincide, which yields the small prediction value . And even if and are equal, may not be the nearest neighbor on the input space (i.e. is not close to ). Hence, there exists a region between and at which the value of becomes small.

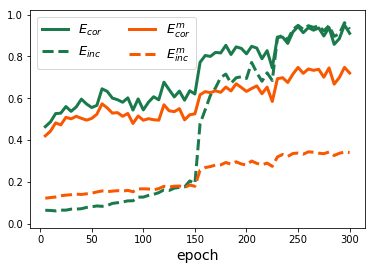

Figure 2: Comparison of , , and for various training epochs. We use the 30% symmetrically noisy CIFAR10 as .

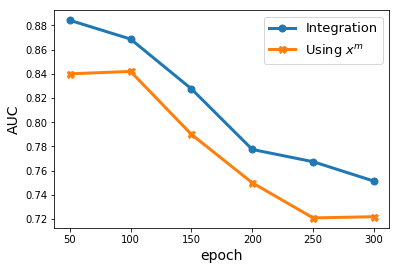

Figure 3: Comparison of AUC values for clean/noisy sample classification of the INN by varying some factors. We consider about (Left) how to utilize the prediction information of neighbor regions and (Right) the number of the nearest neighborhoods. We use the 40% asymmetrically noisy CIFAR10 as

3.3 INN method

In this section, we propose a new and novel method to identify clean labeled samples motivated by the consistency effect. As being observed in Section 3.2, it is important to take into account the prediction values at a neighbor region of each sample. Let be a prediction model trained with a loss function on for training epochs. In this study, we use the MixUp objective function [44] as the loss function . For a given training sample and its neighborhood training input , a naturally induced score to identify whether is clean or not would be , where . From further experiments, we modify the score as follows. First, it is observed that the consistency effect occurs at many input vectors between and other than . Thus, to exploit the consistency effect fully, we consider integrating the prediction function over the whole interval between and to have

Second, using multiple neighbor samples helps identify clean labeled data more accurately. Based on these two arguments, we propose the INN score given as:

(1)

where is the set of nearest neighbor training inputs of on the feature space described in Section 3.2. Figure 3 illustrates the effects of these two modifications. The integration in (1) can be easily approximated by the trapezoidal rule as follows:

where and is the number of trapezoids. In practice, we fix the value of and to 10. The larger the score is, the more we could regard as being cleanly labeled. Hereafter, we will abbreviate to . Even after large training epochs, since there still remains the consistency effect in the prediction model, the INN method separates clean labeled data from noisy ones well. The following simple lemma supports the validity of our method.

Lemma 1.

Let be a prediction model which perfectly over-fits the MixUp loss function

where CE is the cross-entropy loss function, , and

is the Beta distribution with a hyperparameter

. Also let assume that for each training input , its nearest neighbor set satisfies , where is the observed label of and is the ground-truth label of . Then, the following inequality holds:

0:  Training data , a prediction model , a pre-trained feature model , the number of neighborhoods , a training epoch , an optimizer
1:   //dissimilarity measure
2:  for  to  do
3:      //train using MixUp
4:  end for
5:   //Define INN score set
6:  for  to  do
7:      // nearest neighborhoods of
8:
9:      //INN score of
10:      //append to
11:  end for
11:
Algorithm 1 INN (In practice, we fix to 10.)

The proof is in the supplementary materials. Lemma 1 means that if we have a prediction model trained with the MixUp and good nearest neighborhood sets, then the INN separates perfectly from .

As mentioned in Section 2, there are several approaches similar to the INN that utilize the nearest neighborhoods’ information to filter out noisy data [38, 20, 4, 15]. They mainly take advantage of the labels of the neighborhoods. When the training labels are polluted heavily, most of the nearest samples also become noisy, thus relying only on the label information might lead to bad results. On the other hand, the INN focuses on the regions between the inputs and their neighbor training samples. So, we expect that the INN would be robust to highly noisy data.

The algorithm of the INN method is summarized in Algorithm 1.

4 Experimental analysis

In this section, we empirically show the superiority of the INN in terms of three aspects. First, the INN is not sensitive to the choice of the training epochs and provides consistent performances. Second, the INN is significantly better than the small-loss strategy when many polluted labels are in the training data. Finally, in a situation where the training labels are imbalanced, the small-loss strategy may not work, while our method still succeeds in finding clean labeled data. And we also provide a combination of the INN and an existing small-loss-based learning framework to construct better deep prediction networks. Some additional ablation studies follow after then.

4.1 Experimental settings

Data sets

We carry out extensive experiments including performance tests and ablation studies by analyzing three data sets, CIFAR10&100 [18] and Clothing1M [40]. Both CIFAR10 and CIFAR100 consist of 50K training data and 10K test data with an input size of all of which are cleanly labeled. Clothing1M is a large-scale data set with real-world noisy labels containing 1M training data collected from online shopping websites. We use the subset of the Clothing1M data set whose ground-truth labels are known. The subset consists of 48K samples with a noisy level of 20% roughly.

As for imposing noise labels to CIFAR10 and CIFAR100, we consider symmetric and asymmetric settings as other studies did [45, 41]. In the symmetric noise setting, for each sample in the training data set, its label is contaminated with a probability

to a random label generated from the uniform distribution on

to ( for CIFAR10 and for CIFAR100). In the asymmetric noise setting for CIFAR10, with a probability , a noisy label is generated by one of the following mappings: truckautomobile, birdairplane, deerhorse and catdog. For CIFAR100, labels are asymmetrically contaminated by flipping a given label to the next label with a probability according to the transition chain: class1class2class100class1.

Architectures and implementation details

We need two models and , and we use the same architectures for them in all experiments. For CIFAR10&100 we utilize PreActResNet18 (PRN, [14]) with randomly initialized weights, and for Clothing1M we use ResNet50 (RN, [35]

) with pre-trained weights by ImageNet. We train all the deep networks using the SGD algorithm with a momentum of 0.9 and the mini-batch size of 128, set the initial learning rate as 0.02, and reduce it by a factor of 5 when the half and three-fourths of the learning procedure proceed, respectively. All the results of ours in the following experiments are the averaged values of three trials executed from random initial weights and mini-batch arrangements.


Figure 4: Comparison of AUC values for clean/noisy sample classification between the INN and the small-loss methods with two losses. The plot positioned at the -th row from the top and the -th column from the left is the result of the Case-

4.2 Stability test of the INN

In this section, we show the stability and superiority of the INN for identifying clean labeled samples from training data. For CIFAR10&100, we consider eight cases (Case1-1 to Case4-2) by varying noise rates and noise types.

  • CIFAR10 with (Case1-1) and (Case1-2) symmetrically noisy labels

  • CIFAR10 with (Case2-1) and (Case2-2) asymmetrically noisy labels

  • CIFAR100 with (Case3-1) and (Case3-2) symmetrically noisy labels

  • CIFAR100 with (Case4-1) and (Case4-2) asymmetrically noisy labels

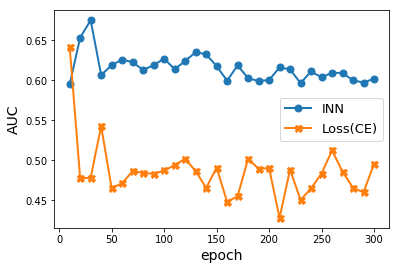

Figure 5: Comparison of AUC values for clean/noisy sample classification for Clothing1M.

We consider various training epochs for , , from 50 to 300, and calculate the clean/noisy classification AUC values of the training data induced by the INN for each training epoch. We consider two small-loss methods for the baselines, whose loss functions are the standard cross-entropy (CE) and the sum of the cross-entropy and negative entropy (CE+NE), respectively. We evaluate the small-loss methods’ clean/noisy classification AUC values based on their per-sample losses.

The results are depicted in Figure 4. We can clearly see that the INN provides consistent and high-quality results for all considering cases regardless of training epochs. In contrast, the performances of other baselines become worse as the training epoch increases. That implies the INN gives a more stable and powerful performance for clean/noisy classification. We also repeat these experiments with another deep architecture, WideResNet28-2 [43], and leave the results in the supplementary materials.

As for Clothing1M, we extract the weights of from the estimate of RN pre-trained by ImageNet and train only for epochs varying from 10 to 300. We compare the AUC values of the INN with those based on the loss values of RN trained by CE. Figure 5 shows that the INN is superior and more stable throughout the whole training procedure compared to the competitor, which again assures the effectiveness of the INN.

4.3 INN with heavy noisy rates

We experiment with situations where training data are highly contaminated with noisy labels. We analyze CIFAR10&100 and change their ground-truth labels with a high probability. Like the previous analysis, we compare the INN to the two small-loss-based methods trained with the CE and CE+NE, respectively.

The best clean/noisy classification AUC values of the training data for each method are summarized in Table 1. In the heavy noise case, the proportion of the clean labeled data is not large. Thus, reducing the loss of clean labeled data may not be an optimal direction to reduce the overall loss values in the early learning stages, leading to the degradation of the small-loss strategy. In contrast, the INN can still identify clean data from noisy ones effectively even when many noisy labels exist and outperform the small-loss methods with large margins. We conjecture that this performance differences arise because the consistency effect is more insensitive to the number of noisy labels.

Data set CIFAR10 CIFAR100
Noise type Symm. Symm. Asymm.
Noise rate () 0.8 0.9 0.8 0.9 0.4
CE 0.857 (0.011) 0.756 (0.015) 0.809 (0.005) 0.690 (0.009) 0.589 (0.002)
CE+NE 0.854 (0.012) 0.750 (0.017) 0.807 (0.015) 0.695 (0.011) 0.608 (0.003)
INN 0.885 (0.014) 0.817 (0.018) 0.853 (0.016) 0.717 (0.013) 0.671 (0.005)
Table 1:

The best clean/noisy classification AUC values of the INN and small-loss methods. The averaged values over three trials are listed, and standard deviations are also given in the parenthesis.

4.4 Analysis of imbalanced data

We also analyze the noisy data where the ground-truth labels are imbalanced. In this section, we consider the two-class classification task. From CIFAR10, we randomly sample two classes: first and second labels are regarded as a majority class and a minority class, respectively. We gather all images in the first class and 10% randomly sampled images in the second class. We relabel the majority and minority classes to 0 and 1, respectively, i.e. , and for each sample, we flip its label with a probability of 0.3 to generate training data with noisy labels. We compare the normalized score distributions of the INN and the small-loss method (CE) with the training data. For each distribution, we make four histograms by considering two factors: 1) whether the ground-truth label is 0 or 1 and 2) whether the observed label is 0 or 1.


Figure 6: Score histograms for (Upper) the small-loss strategy (CE) and (Lower) the INN for imbalanced data. We fix the number of training epochs to 50 for the INN and 10 for the small-loss method. (Left to Right) We pick four class pairs, and and the first class for each pair is treated as a majority class. Data with and are colored by blue, orange, green and red, respectively.

As can be seen in Figure 6, we observe that the model trained by the standard CE does not always prioritize memorizing the clean-labeled data anymore, i.e. data with , rather memorizing the data with , which implies the memorization effect may not occur in these imbalanced cases. Furthermore, their loss distributions are very unstable with respect to the training epochs. We report the histograms at other training epochs in the supplementary materials. In contrast, the consistency effect is still observable though not clear. The INN can separate clean samples from noisy ones to some extent, even if they belong to the minor class.

4.5 Constructing noise-robust classifiers

Data set CIFAR10 CIFAR100
Noise type Symm. Symm. Asymm.
Noise rate () 0.8 0.9 0.8 0.9 0.4
Cross-Entropy 62.9 42.7 19.9 10.1 42.7
Co-teaching [42] 67.4 47.9 27.9 13.7 -
P-correction [41] 77.5 58.9 31.1 15.3 -
MLNT [20] - 59.1 (1.12) - - -
M-correction [2] 86.8 69.1 48.2 24.3 -
DivideMix [19] 93.2 76.0 60.2 31.5 -
DivideMix* 92.90 (1.08) 71.34 (1.43) 58.26 (1.01) 31.36 (0.67) 59.26 (1.08)
INNDivideMix 93.48 (1.01) 81.20 (1.05) 59.04 (0.98) 33.11 (0.82) 63.04 (1.10)
Table 2: Comparison of the test accuracies(%) of various method. The results marked with * are re-implemented by us and the other results except for INNDivideMix are copied from the comparison table in [19] or their original papers. We only report the best results and attach the last accuracy results in the supplementary materials.
Data set Imbalanced CIFAR10
Classes DivideMix INNDivideMix
Best Last Best Last
1 and 2 89.23 (0.40) 82.21 (0.57) 92.82 (0.27) 87.75 (0.77)
3 and 8 87.49 (0.68) 82.24 (1.65) 9 3.02 (0.12) 91.06 (0.18)
4 and 5 79.41 (0.68) 78.35 (0.98) 82.82 (0.20) 82.79 (0.13)
7 and 9 85.64 (0.35) 79.80 (1.92) 86.33 (0.45) 84.15 (0.25)
Table 3: The test accuracies(%) of the DivideMix and the modified DivideMix with the INN. The averaged values and standard deviations are reported.

The INN is also helpful for learning deep classification models with high performance with noisy training data. Many conventional learning frameworks built on the small-loss strategy usually begin with learning models with the whole training data by minimizing the standard loss function, such as CE, for a few epochs. Due to the memorization effect, the early estimated models tend to memorize the clean-labeled training data first. Initialized with the estimated models, they conduct their own strategies to train models. After each training epoch, they update the per-sample loss values with the current model and utilize this information at the next training epoch.

We can modify them by simple modifications with the INN. First, we replace their initialized models with new ones trained with the INN. We fit a two-component mixture model to the INN scores of the training data and split the data into the labeled and unlabeled data based on the posterior probability of belonging to the clean cluster (the cluster with a larger mean). With the labeled and unlabeled data, we train prediction models for a few epochs using a semi-supervised learning method, such as the MixMatch

[7], then use them as the initialized estimates. Second, after each training epoch, we recalculate the INN scores with the current prediction model and utilize these score values instead of the loss values at the next training epoch.

In this work, we provide an example to mix the INN and the DivideMix [19], known as one of the state-of-the-art methods to learning models with data mixed with noisy labels. We add a detailed algorithm of this combination in the supplementary materials. We again stress that any other small-loss-based learning frameworks than the DivideMix are also available to be combined with the INN to train better prediction models, and that there are many rooms to develop our simple application.

To assess the prediction performance of our modification, we analyze the same noisy data sets in Section 4.3 and 4.4. We carry out test accuracy comparison with the modified DivideMix with the INN (INNDivideMix) and other baselines, which are reported in Table 2 and 3.111We complete our source code based on the public GitHub code of the DivideMix. We can check that our modified learning framework works better than the existing methods, including the DivideMix, in the cases where the training labels are highly polluted or imbalanced. And the performance gap between the best and last models trained with our method is smaller than the original DivideMix, which means the INN makes learning procedures more stable. We also make additional accuracy tests for data sets with noise rates not too severe and observe that ours gives no significant improvements since the DivideMix already works well. We report these results in the supplementary materials.

4.6 Ablation study

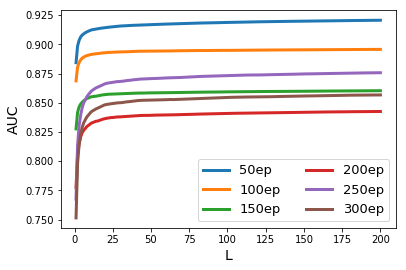

We empirically investigate how the choices of dissimilarity measure and the loss function affect the INN, whose detailed analyses are described in the supplementary materials. We observe that the Euclidean distance on the penultimate layer of a DNN trained by the training data is the best dissimilarity measure. And for the loss function, the MixUp objective function yields the best results.

We also evaluate the total training time of the INN and compare it to that of the standard small-loss method. We use a single NVIDIA TITAN XP GPU, and the results are in the supplementary materials. It takes much more time to implement the INN than the competitor since it needs to extract the nearest neighbors for each sample, which could be one of our limitations. More study to lighten the computation burden of the INN is required.

5 Concluding remarks

In this study, we proposed a new and novel approach, called the INN, to identify clean labeled samples from training data with noisy labels based on a new finding called the consistency effect that discrepancies of predictions at neighbor regions of clean and noisy data are consistently observed. We empirically demonstrated that the INN is stable and superior even when the training labels are heavily contaminated or imbalanced.

It would be interesting to apply our methods to unsupervised anomaly detection problems

[39, 46, 48, 5]. After annotating labels (normal or abnormal) to the training data in a certain way, we can regard the task as the two-class noisy label problem. We expect that our methods would solve the anomaly detection problems successfully.
