1 Introduction

The success of deep learning stems from the availability of large scale datasets with detailed annotation, such as ImageNet

(Russakovsky et al., 2015). The need for such a large dataset is however a limitation, since its collection requires intensive human labor. This is also strikingly different from human learning, where new concepts can be learned from very few examples. One line of work that attempts to bridge this gap is few-shot learning (Koch et al., 2015; Vinyals et al., 2016; Snell et al., 2017), where a model learns to output a classifier given only a few labeled examples of the unseen classes. While this is a very promising line of work, its usability in practice can be a concern, because few-shot models only focus on learning novel classes, ignoring the fact that many common classes are readily available in large datasets.

An approach that aims to enjoy the best of both worlds, the ability to learn from large datasets for common classes with the flexibility of few-shot learning for others, is incremental few-shot learning (Gidaris & Komodakis, 2018). This combines incremental learning where we want to add new classes without catastrophic forgetting (McCloskey & Cohen, 1989), with few-shot learning when the new classes, unlike the base classes, only have a small amount of examples. One use case to illustrate the problem is a visual aid system. Most objects of interest are common to all users, e.g., cars, pedestrian signals; however, users would also like to augment the system with additional personalized items or important landmarks in their area. Such a system needs to be able to learn new classes from few examples, without harming the performance of the original classes and without access to the original dataset used to train these classes.

In this work we present a novel method for incremental few-shot learning where during meta-learning we optimize a regularizer that reduces catastrophic forgetting from the incremental few-shot learning. Our proposed “attention attractor network” regularizer is inspired by attractor networks (Zemel & Mozer, 2001) and can be thought of as a learned memory of the base classes. We also show how this regularizer can be optimized, using recurrent back-propagation (Liao et al., 2018; Almeida, 1987; Pineda, 1987) to back-propagate through the few-shot optimization stage. Finally, we show empirically that our proposed method can produce state-of-the-art results in incremental few-shot learning on the challenging mini-ImageNet (Vinyals et al., 2016) and tiered-ImageNet (Ren et al., 2018) tasks.

2 Related Work

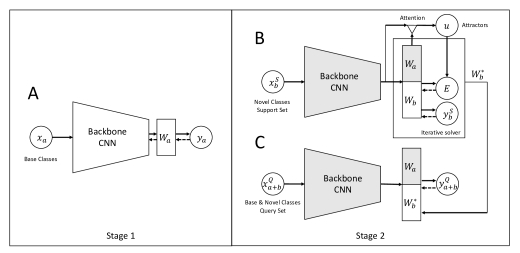

Figure 1: Our proposed attention attractor network for incremental few-shot learning. A: In stage 1, we learn and the feature extractor CNN backbone through supervised pretraining. B: In stage 2 we learn on a few-shot episode through an iterative solver, to minimize cross entropy plus an additional energy term predicted by attending to the base class representation . C: The attention attractor network is learned end-to-end to minimize the expected query loss.

Recently, there has been a surge in interest in few-shot learning (Koch et al., 2015; Vinyals et al., 2016; Snell et al., 2017; Lake et al., 2011), where a model for novel classes is learned with only a few labeled examples. One family of approaches for few-shot learning, including Deep Siamese Networks (Koch et al., 2015), Matching Networks (Vinyals et al., 2016) and Prototypical Networks (Snell et al., 2017)

, follows the line of metric learning. In particular, these approaches use deep neural networks to learn a function that maps the input space to the embedding space where examples belonging to the same category are close and those belonging to different categories are far apart. Recently,

Garcia & Bruna (2018) propose a graph neural networks based method which captures the information propagation from the labeled support set to the query set. Ren et al. (2018) extends Prototypical Networks to leverage unlabeled examples while doing few-shot learning. Despite the simplicity, these methods are very effective and often competitive with the state-of-the-art.

Another class of approaches try to learn models which can, unlike metric methods, adapt to the episodic tasks. In particular, Ravi & Larochelle (2017)

treat the long short-term memory (LSTM) as a meta learner such that it can learn to predict the parameter update of a base learner, e.g., a convolutional neural network (CNN). MAML

(Finn et al., 2017)

instead learns the hyperparameters or the initial parameters of the base learner by back-propagating through the gradient descent steps.

Santoro et al. (2016) use a read/write augmented memory, and Mishra et al. (2018) combine soft attention with temporal convolutions which enables retrieval of information from past episodes.

Methods described above belong to the general class of meta-learning models. First proposed in  Schmidhuber (1987); Naik & Mammone (1992); Thrun (1998), meta-learning is a machine learning paradigm where the meta-learner tries to improve the base learner using the learning experiences from multiple tasks. Meta-learning methods typically learn the update policy yet lack an overall learning objective in the few-shot episodes. Furthermore, they could potentially suffer from short-horizon bias (Wu et al., 2018), if at test time the computation graph is unrolled for longer steps. To address this problem, Bertinetto et al. (2018)

propose to use fast convergent models like logistic regression (LR), which can be back-propagated via a closed form update rule. Compared to

Bertinetto et al. (2018), our proposed method using recurrent back-propagation (Liao et al., 2018; Almeida, 1987; Pineda, 1987) is more general as it does not require a closed-form update rule, and the inner loop solver can employ any existing continuous optimizers.

Our work is also related to incremental learning or continual learning, a setting where information is arriving continuously while prior knowledge needs to be transferred. A key challenge here is catastrophic forgetting (McCloskey & Cohen, 1989; McClelland et al., 1995), i.e., the model forgets the learned knowledge. Various forms of memory-based models have since been proposed, which either store training examples explicitly (Rebuffi et al., 2017; Sprechmann et al., 2018; Castro et al., 2018), regularize the parameter updates (Kirkpatrick et al., 2017), or learn a generative model (Kemker & Kanan, 2018). However, in these studies, incremental learning typically starts from scratch, and usually perform worse than a regular model that is trained with all available classes together since the network has not learned a good representation yet while dealing with catastophic forgetting. To make incremental learning more useful, Gidaris & Komodakis (2018) combine few-shot learning and incremental learning, where they start off with a pre-trained network on a set of base classes, and try to augment the classifier with a batch of new classes that has not been seen during training. This is also the setting we adopt in this paper. In addition, Gidaris & Komodakis (2018)

propose an attention based model which generates weights for new tasks. They also promote the use of cosine similarity between feature representations and weight vectors to classify images.

3 Attention Attractor Network for Incremental Few-Shot Learning

In this section, we first define the setup of incremental few-shot learning, and then we introduce our new model, the Attention Attractor Network, which attends to the set of base classes according to the few-shot training data, and learns the attractor energy function as an additional regularizing term for the few-shot episode. Figure 1 illustrates the high-level model diagram of our method.

3.1 Incremental few-shot learning

We first define the task of incremental few-shot learning in this section. In this paper, we consider the two stage learning model proposed by Gidaris & Komodakis (2018).

Stage 1:

We learn a base model for the regular supervised classification task on dataset where is the -th example from dataset and its labeled class . The purpose of this stage is to learn both a good base classifier and a good representation. We denote parameters of the top fully connected layer as where is the dimension of our learned representation.

Stage 2:

A few-shot dataset is presented, from which we can sample few-shot learning episodes . For each -shot -way episode, there are novel classes disjoint from the base classes. Each novel class has and images from the support set and the query set respectively. Therefore, we have where . and

can be regarded as the training set and the validation set in a regular supervised learning setting. To evaluate the performance on a joint prediction of both base and novel classes, i.e., a

-way classification, a mini-batch from is also added to to form . During this stage, the learning algorithm has only access to samples from , i.e., few-shot examples from the new classes. But its performance is evaluated on the joint query set . For simplicity, the base model including is fixed so that only is learned.

In meta-training, we iteratively sample few-shot episodes and try to optimize the few-shot learning algorithm, i.e., stage 2, in order to produce good results on . In this work, we learn a regularizer such that , and the meta-learner tries to learn such that the resulting performs well on .

3.1.1 Joint prediction on old and new classes

When solving a few-shot episode, we consider learning a linear classifier on the novel classes in the support set

. For notational convenience, we augment the hidden representation

as below such that the -th dimension of the weights is the original bias.

(1)

We use the concatenation of and as the fully-connected layer for classification,

(2)

Here we emphasize that learnable parameters of is . During the learning stage of each few-shot episode, we treat it as a classification problem and aim to minimize the following regularized cross-entropy objective on the support set ,

(3)

3.2 Attention attractor networks

Directly learning the few-shot episode, e.g., by setting to be zero or simple weight decay, can cause catastrophic forgetting on the old classes. This is because

is trying to minimize the probability of all the old classes, as it is trained only on new classes. In this section, we introduce Attention Attractor Networks to address this problem.

The attractor network adds an energy term to the few-shot learning objective, .

(4)
(5)

where the optimized parameters are functions of energy function parameters and few-shot samples . During meta-learning, are updated to minimize an expected loss of the query set which contains both old and new classes, averaging over all few-shot learning episodes.

(6)
(7)

Conceptually, the energy function regularizes the learning of so that it is compatible with during the joint prediction. In our proposed model each base class in has a learned attractor stored in the knowledge base matrix . When a novel class is seen, its classifier is regularized towards its attractor which is a weighted sum of . The weighting can be seen as an attention mechanism where each new class attends to the old classes according to the level of interference. Specifically, the attention mechanism is implemented by the cosine similarity function:

(8)

For each image in the support set, we compare it with the set of base weights , average over each support class and apply a softmax function,

(9)

where are the representations of the inputs in the support set and is a learnable temperature scalar. encodes a normalized pairwise attention matrix between the novel classes and the base classes. The attention vector is then used to compute a linear weighted sum of entries in the knowledge base matrix ,

(10)

The final energy function is defined as a sum of squared distance from the attractors,

(11)

where is a learnable vector, which defines a diagonal distance metric over the hidden dimensions. Our proposed attention attractor network takes inspiration from attractor networks (Mozer, 2009; Zemel & Mozer, 2001), where for each base class we learn an “attractor” that stores the relevant memory regrading that class.

In summary, is a tuple of . The number of parameters is on the same order as a fully connected layer . It is important to note that is convex in , so the optimum is guaranteed to be unique and achievable.

3.3 Learning an energy function using recurrent backpropagation

As there is no closed-form solution to the regularized linear classification problem shown above, in each training step, we need to solve for to obtain through an iterative optimizer. The question is how to efficiently compute

, back-propagating through the optimization. For simple energy functions, we can unroll the iterative optimization process in the computation graph and use the backpropagation through time (BPTT) algorithm

(Werbos, 1990). However, the number of iterations for a gradient-based optimizer to converge can be on the order of thousands, and BPTT can be computationally prohibitive. Another way is to use the truncated BPTT (Williams & Peng, 1990) (T-BPTT) algorithm that optimizes for the initial steps of gradient-based optimization, and is commonly used in meta-learning problems. However, when is small the training objective is biased compared to the objective that considers the optimal .

Alternatively, the recurrent backpropagation algorithm (Almeida, 1987; Pineda, 1987; Liao et al., 2018) allows us to backpropagate through fixed-point iterations efficiently without unrolling the computation graph and storing intermediate activations. Consider a vanilla gradient descent process on with step size . The difference between two steps can be written as , where . Since is identically zero as a function of , we have

(12)

where denotes the Jacobian matrix of the mapping evaluated at .

0:  , , , , ,
0:
1:  ;
2:  for  do
3:     ;
4:     ;
5:     repeat
6:         ;
7:         ;
8:         ;
9:     until  converges
10:     ;
11:     ; COMMENT// Backprop through the above converging processCOMMENT// A dummy gradient descent step
12:     ;
13:     ; ; ;
14:     repeat
15:         ; ;
16:     until  converges
17:
18:  end for
Algorithm 1 Learning an Energy Function for Incremental Few-Shot Learning
Damped Neumann RBP

To compute the matrix-inverse vector product in Equation 12, Liao et al. (2018) propose to use the Neumann series:

(13)

Note that the matrix vector product can be computed by standard backpropagation. Nonetheless, we empirically observe that directly applying the Neumann RBP algorithm leads to numerical instability. Therefore, we propose “damped Neumann RBP”, which adds a damping term to . It results in the following update: . The damping constant can also be interpreted as an additional weight decay term of the energy function during the backpropagation steps . In practice, we found the damping term with helps alleviate the issue significantly.

Algorithm 1 outlines the key steps for learning an energy function using RBP in the incremental few-shot learning setting.

4 Experiments

4.1 Datasets

We used few-shot image classification benchmarks, mini-ImageNet Vinyals et al. (2016) and tiered-ImageNet Ren et al. (2018), and made modifications of the datasets to accommodate the incremental few-shot learning settings. For meta-learning we need to split between training base classes, and training classes from which we sample few-shot episodes. In tiered-ImageNet we split the 351 training classes to 200 base classes and 151 novel classes used to train the meta-learner. In mini-ImageNet this is problematic as there are only 64 training classes, therefore at each meta-learning episode we randomly erase 5 classes, considering the 59 left as our base classes and sampling a few-shot episode from the removed 5 classes. For validation/test we sample from the validation/test set of the base classes and sample episodes from separate validation and test classes. Further details about these datasets and the class splits are in the supplementary material.

4.2 Experimental setup

In the first stage, we use a standard ResNet backbone (He et al., 2016) to learn the feature representation through supervised training. For mini-ImageNet experiments, we follow Mishra et al. (2018) and use a modified version of ResNet. For tiered-ImageNet, we use the standard ResNet-18 (He et al., 2016)

, but replace all batch normalization

(Ioffe & Szegedy, 2015) layers with group normalization (Wu & He, 2018), as there is a large distributional shift from training to testing in tiered-ImageNet due to categorical splits. We used standard data augmentation, with random crops and random horizonal flips. All of our models in our implementations use the same pretrained model as the starting point for the second stage.

In the second stage of learning as well as the final evaluation, we sample a few-shot episode from the , together with a regular mini-batch from the . The base class images are added to the query set of the few-shot episode. The base and novel classes are maintained in equal proportion in our experiments. For all the experiments, we consider 5-way classification with 1 or 5 support examples (i.e. shots); the total number of query images per episode is 752 =150.

We use an L-BFGS (Zhu et al., 1997) to solve the inner loop of our models to make sure converges. For BPTT baselines, we unroll the computation graph using vanilla gradient descent with a fixed learning rate 1e-2. We use the ADAM (Kingma & Ba, 2015) optimizer for meta-learning with a learning rate of 1e-3, which decays by a factor of after 4,000 steps, for a total of 8,000 steps. We fix the RBP to 20 iterations and .

4.3 Evaluation metrics

We consider the following evaluation metrics: 1) overall accuracy on individual query sets and the joint query set (“Base”, “Novel”, and “Both”); and 2) decrease in performance during joint prediction within the base and novel classes, considered separately (“

” and “”). Finally we take the average as a key measure of the overall decrease in accuracy.

1-shot 5-shot
Model Backbone Base Novel Both Novel Both
MatchingNets (Vinyals et al., 2016) C64 - 43.60 - - 55.30 - -
Meta-LSTM (Ravi & Larochelle, 2017) C32 - 43.40 0.77 - - 60.20 0.71 - -
MAML (Finn et al., 2017) C64 - 48.70 1.84 - - 63.10 0.92 - -
RelationNet (Sung et al., 2018) C64 - 50.44 0.82 - - 65.32 0.70 - -
R2-D2 (Bertinetto et al., 2018) C256 - 51.20 0.60 - - 68.20 0.60 - -
SNAIL (Mishra et al., 2018) ResNet - 55.71 0.99 - - 68.88 0.92 - -
ProtoNet (Snell et al., 2017) C64 - 49.42 0.78 - - 68.20 0.66 - -
ProtoNet (our implementation) ResNet 75.79 50.09 0.41 42.73 -20.21 70.76 0.19 57.05 -31.72
LwoF (Gidaris & Komodakis, 2018) ResNet 80.24 55.45 0.89 51.23 - 70.92 0.35 56.04 -
LwoF (our implementation) ResNet 74.58 56.97 0.24 52.37 -13.65 70.50 0.36 59.90 -14.18
Ours (1st stage) ResNet 77.17 54.78 0.43 52.74 -13.95 70.57 0.36 60.34 -13.60
Ours (full model) ResNet 76.84 55.72 0.41 54.89 -11.39 70.50 0.36 62.37 -11.48
Table 1: mini-ImageNet 64+5-way few-shot classification results
1-shot 5-shot
Model Backbone Base Novel Both Novel Both
ProtoNet (Snell et al., 2017) ResNet 59.70 48.19 0.43 34.49 -19.45 65.90 0.19 50.27 -12.54
LwoF (Gidaris & Komodakis, 2018) ResNet 61.84 50.90 0.46 54.05 -2.35 66.69 0.36 62.32 -1.90
Ours (1st stage) ResNet 62.01 47.09 0.42 48.58 -5.95 64.90 0.41 59.73 -3.72
Ours (full model) ResNet 61.59 51.12 0.45 55.56 -0.80 66.40 0.36 63.27 -0.83
Table 2: tiered-ImageNet 200+5-way few-shot classification results

4.4 Results

We present the few-shot benchmark in Table 1 and2. On mini-ImageNet, we compare our models to other incremental few-shot learning methods as well as pure few-shot learning methods. Note that our model uses the same backbone architecture as Mishra et al. (2018) and Gidaris & Komodakis (2018), and is directly comparable with their results. The “1st stage” baseline is a CNN trained on the base classes, where we train the new classes using logistic regression with weight decay.

In the incremental few-shot learning setting, we implemented and compared to two methods. First, we adapted ProtoNet (Snell et al., 2017) to incremental few-shot settings. For each base class we store a base representation, which is the average representation over all images belonging to the base class. During the few-shot learning stage, we again average the representation of the few-shot classes and add them to the bank of base representations. Finally, we retrieve the nearest neighbor by comparing the representation of a test image with entries in the representation store. In summary, both and are stored as the average representation of all images seen so far that belong to a certain class. We also compare to Dynamic Few-Shot Learning without Forgetting (LwoF) (Gidaris & Komodakis, 2018). Here the base weights are learned regularly through supervised pre-training, and are computed using prototypical averaging. We implemented the most advanced variants proposed in the paper, which involves a class-wise attention mechanism. The main difference to this work is that we use an iterative optimization to compute .

Shown in Table 1 and2, our proposed method consistently outperform the two approaches described above, particularly in “”. Our method is significantly improved during the second stage training, compared to a baseline that has only been pre-trained on base classes in the first stage.

4.5 Comparison to truncated BPTT

1-shot Base Base+ Novel Novel+ Both
BPTT 20 Steps 61.41 61.16 -0.25 42.09 0.40 37.80 0.37 -4.28 49.44 -2.27
BPTT 100 Steps 61.41 61.08 -0.33 44.49 0.42 40.43 0.38 -4.06 50.75 -2.20
BPTT 20 Steps * 61.65 6.02 -55.63 27.08 0.26 21.99 0.24 -5.08 14.01 -30.36
BPTT 100 Steps * 61.46 5.23 -56.22 27.70 0.29 19.59 0.26 -8.11 12.41 -32.17
Ours (RBP 20 Steps) 61.52 61.11 -0.41 48.72 0.45 47.04 0.45 -1.68 54.08 -1.05
Table 3: Learning an attention attractor network using damped Neumann RBP vs. truncated BPTT. Models are on evaluated on the validation set of tiered-ImageNet. During evaluation, “*” models are solved till convergence using a second-order optimizer.

An alternative way to learn the energy function is to unroll the inner optimization for a fixed number of steps in a differentiable computation graph, and then we can back-propagate through time. In fact, truncated BPTT is a popular learning algorithm in recent meta-learning approaches (Andrychowicz et al., 2016; Ravi & Larochelle, 2017; Finn et al., 2017; Sprechmann et al., 2018).

In Table 6, we report the performance of the truncated BPTT versions of our attention attractor model on 1-shot learning. Results on 5-shot are in the supplementary material. We unrolled the computation graph by 20 or 100 steps. In comparison, the RBP version also runs for only 20 truncation Neumann steps. At test time, we also test the BPTT learned model by solving the learned energy function until convergence, just like the RBP model. We can see that truncated BPTT versions have worse performance than RBP, since solving the fully connected layer weights requires more iterations than the number of unrolling steps. When we tried to solve the optimization to convergence at test time, we found that the BPTT model performance greatly decayed (colored in red), as they are only guaranteed to work well for a certain number of steps, and failed to learn a good energy function. In contrast, learning the energy function with RBP finds a good solution upon convergence, regardless of the optimizer being used.

4.6 Ablation studies

1-shot Base Base+ Novel Novel+ Both
None 61.63 59.61 -2.02 43.68 0.40 34.59 0.34 -9.10 47.10 -5.56
Best WD (=0) 61.63 59.61 -2.02 43.68 0.40 34.59 0.34 -9.10 47.10 -5.56
Gamma Random 61.84 61.28 -0.56 44.29 0.40 18.66 0.29 -25.63 39.97 -13.09
Gamma w/o 61.97 61.57 -0.40 48.05 0.43 32.16 0.38 -15.89 46.86 -8.14
Gamma 61.68 60.43 -1.25 46.17 0.42 43.39 0.41 -2.77 51.91 -2.01
Fixed Attractor 61.74 61.06 -0.67 45.96 0.42 44.30 0.42 -1.66 52.68 -1.17
Full Model 61.52 61.11 -0.41 48.72 0.45 47.04 0.45 -1.68 54.08 -1.05
5-shot Base Base+ Novel Novel+ Both
None 61.75 52.74 -9.01 61.00 0.39 59.82 0.38 -1.18 56.28 -5.09
Best WD (=5e-4) 61.62 58.48 -3.14 61.59 0.39 57.93 0.37 -3.65 58.21 -3.39
Gamma Random 61.78 59.42 -2.36 61.20 0.38 55.66 0.36 -5.54 57.54 -3.95
Gamma w/o 62.00 57.99 -4.01 61.18 0.40 59.00 0.39 -2.18 58.49 -3.09
Gamma 61.46 59.87 -1.59 61.72 0.39 59.80 0.39 -1.92 59.83 -1.76
Fixed Attractor 61.78 60.82 -0.97 61.33 0.39 60.06 0.39 -1.28 60.44 -1.12
Full Model 61.80 61.28 -0.53 63.40 0.39 62.09 0.39 -1.31 61.68 -0.92
Table 4: Ablation studies on tiered-ImageNet. “Base+” and “Novel+” are the prediction accuracies on Base and Novel classes within a joint query set.

To understand the effectiveness of each part of the proposed model, we consider the following baselines as control experiments:

  • [leftmargin=*]

  • Plain logistic regression (“None”) solves a logistic regression problem at each few-shot episode, without any form of weight decay other regularizers.

  • Scalar weight decay (“WD”) has a constant for weight decay as the regularizer. The is chosen according to validation performance.

  • Learnable (“Gamma”) learns , which affects the size of the attractor basin, while keeping the center of the attractor at zero. “w/o ” variant does not fine-tune in the second stage.

  • Fixed attractor learns a fixed attractor center, in addition to learning . No attention mechanism is employed here.

Experimental results are reported in Table 4. While models have similar performance on individually predicting base and novel classes, since they are using the same pre-trained backbone, there are significant differences in terms of joint prediction. Adding , fine-tuning , adding attractors, and using our attention mechanism all contribute towards the final performance. In particular, on , the full attention attractor model is 80% better compared to no regularization, and 10-18% relative to to the fixed attractor.

5 Conclusion and Future Work

Incremental few-shot learning, the ability to jointly predict based on a set of pre-defined concepts as well as additional novel concepts, is an important step towards making machine learning models more flexible and usable in everyday life. In this work, we propose an attention attractor model, which outputs an additional energy function by attending to the set of base classes. We show that recurrent back-propagation is an effective and modular tool for learning energy functions in a general meta-learning setting, whereas truncated back-propagation through time fails to learn functions that converge well. Our attention attractor network is an iterative model that learns to remember the base classes without needing to review examples from the original training set, outperforming baselines that only do one-step inference. Future directions of this work include sequential iterative learning of few-shot novel concepts, and hierarchical memory organization.

References

  • Almeida (1987) Luis B Almeida.

    A learning rule for asynchronous perceptrons with feedback in a combinatorial environment.

    In Proceedings of the 1st International Conference on Neural Networks, volume 2, pp. 609–618. IEEE, 1987.
  • Andrychowicz et al. (2016) Marcin Andrychowicz, Misha Denil, Sergio Gomez, Matthew W Hoffman, David Pfau, Tom Schaul, and Nando de Freitas. Learning to learn by gradient descent by gradient descent. In Advances in Neural Information Processing Systems 29 (NIPS), 2016.
  • Bertinetto et al. (2018) Luca Bertinetto, João F. Henriques, Philip H. S. Torr, and Andrea Vedaldi. Meta-learning with differentiable closed-form solvers. CoRR, abs/1805.08136, 2018.
  • Castro et al. (2018) Francisco M Castro, Manuel Marín-Jiménez, Nicolás Guil, Cordelia Schmid, and Karteek Alahari. End-to-end incremental learning. In

    European Conference on Computer Vision (ECCV)

    , 2018.
  • Finn et al. (2017) Chelsea Finn, Pieter Abbeel, and Sergey Levine. Model-agnostic meta-learning for fast adaptation of deep networks. In Proceedings of the 34th International Conference on Machine Learning (ICML), 2017.
  • Garcia & Bruna (2018) Victor Garcia and Joan Bruna. Few-shot learning with graph neural networks. In Proceedings of the 6th International Conference on Learning Representations (ICLR), 2018.
  • Gidaris & Komodakis (2018) Spyros Gidaris and Nikos Komodakis. Dynamic few-shot visual learning without forgetting. In

    Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR)

    , 2018.
  • He et al. (2016) Kaiming He, Xiangyu Zhang, Shaoqing Ren, and Jian Sun. Deep residual learning for image recognition. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR), pp. 770–778, 2016.
  • Ioffe & Szegedy (2015) Sergey Ioffe and Christian Szegedy. Batch normalization: Accelerating deep network training by reducing internal covariate shift. In Proceedings of the 32nd International Conference on Machine Learning (ICML), 2015.
  • Kemker & Kanan (2018) Ronald Kemker and Christopher Kanan. Fearnet: Brain-inspired model for incremental learning. In Proceedings of 6th International Conference on Learning Representations (ICLR), 2018.
  • Kingma & Ba (2015) Diederik P Kingma and Jimmy Ba. Adam: A method for stochastic optimization. In Proceedings of the 3rd International Conference on Learning Representations (ICLR), 2015.
  • Kirkpatrick et al. (2017) James Kirkpatrick, Razvan Pascanu, Neil Rabinowitz, Joel Veness, Guillaume Desjardins, Andrei A Rusu, Kieran Milan, John Quan, Tiago Ramalho, Agnieszka Grabska-Barwinska, et al. Overcoming catastrophic forgetting in neural networks. Proceedings of the national academy of sciences (PNAS), pp. 201611835, 2017.
  • Koch et al. (2015) Gregory Koch, Richard Zemel, and Ruslan Salakhutdinov. Siamese neural networks for one-shot image recognition. In ICML Deep Learning Workshop, volume 2, 2015.
  • Lake et al. (2011) Brenden M. Lake, Ruslan Salakhutdinov, Jason Gross, and Joshua B. Tenenbaum. One shot learning of simple visual concepts. In Proceedings of the 33th Annual Meeting of the Cognitive Science Society (CogSci), 2011.
  • Liao et al. (2018) Renjie Liao, Yuwen Xiong, Ethan Fetaya, Lisa Zhang, KiJung Yoon, Xaq Pitkow, Raquel Urtasun, and Richard S. Zemel. Reviving and improving recurrent back-propagation. In Proceedings of the 35th International Conference on Machine Learning (ICML), 2018.
  • McClelland et al. (1995) James L McClelland, Bruce L McNaughton, and Randall C O’reilly. Why there are complementary learning systems in the hippocampus and neocortex: insights from the successes and failures of connectionist models of learning and memory. Psychological review, 102(3):419, 1995.
  • McCloskey & Cohen (1989) Michael McCloskey and Neal J Cohen. Catastrophic interference in connectionist networks: The sequential learning problem. In Psychology of learning and motivation, volume 24, pp. 109–165. Elsevier, 1989.
  • Mishra et al. (2018) Nikhil Mishra, Mostafa Rohaninejad, Xi Chen, and Pieter Abbeel. A simple neural attentive meta-learner. In Proceedings of the 6th International Conference on Learning Representations (ICLR), 2018.
  • Mozer (2009) Michael C Mozer. Attractor networks. The Oxford companion to consciousness, pp. 86–89, 2009.
  • Naik & Mammone (1992) Devang K Naik and RJ Mammone. Meta-neural networks that learn by learning. In Proceedings of the IEEE International Joint Conference on Neural Networks (IJCNN), 1992.
  • Pineda (1987) Fernando J Pineda.

    Generalization of back-propagation to recurrent neural networks.

    Physical review letters, 59(19):2229, 1987.
  • Ravi & Larochelle (2017) Sachin Ravi and Hugo Larochelle. Optimization as a model for few-shot learning. In Proceedings of the 5th International Conference on Learning Representations (ICLR), 2017.
  • Rebuffi et al. (2017) Sylvestre-Alvise Rebuffi, Alexander Kolesnikov, Georg Sperl, and Christoph H. Lampert. icarl: Incremental classifier and representation learning. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 2017.
  • Ren et al. (2018) Mengye Ren, Eleni Triantafillou, Sachin Ravi, Jake Snell, Kevin Swersky, Joshua B. Tenenbaum, Hugo Larochelle, and Richard S. Zemel. Meta-learning for semi-supervised few-shot classification. In Proceedings of 6th International Conference on Learning Representations (ICLR), 2018.
  • Russakovsky et al. (2015) Olga Russakovsky, Jia Deng, Hao Su, Jonathan Krause, Sanjeev Satheesh, Sean Ma, Zhiheng Huang, Andrej Karpathy, Aditya Khosla, Michael Bernstein, et al. Imagenet large scale visual recognition challenge. International Journal of Computer Vision, 115(3):211–252, 2015.
  • Santoro et al. (2016) Adam Santoro, Sergey Bartunov, Matthew Botvinick, Daan Wierstra, and Timothy Lillicrap. One-shot learning with memory-augmented neural networks. In Proceedings of the 33rd International Conference on Machine Learning (ICML), 2016.
  • Schmidhuber (1987) Jürgen Schmidhuber. Evolutionary principles in self-referential learning, or on learning how to learn: The meta-meta-… hook. Diplomarbeit, Technische Universität München, München, 1987.
  • Snell et al. (2017) Jake Snell, Kevin Swersky, and Richard S. Zemel. Prototypical networks for few-shot learning. In Advances in Neural Information Processing Systems 30 (NIPS), 2017.
  • Sprechmann et al. (2018) Pablo Sprechmann, Siddhant M. Jayakumar, Jack W. Rae, Alexander Pritzel, Adrià Puigdomènech Badia, Benigno Uria, Oriol Vinyals, Demis Hassabis, Razvan Pascanu, and Charles Blundell. Memory-based parameter adaptation. In Proceedings of 6th International Conference on Learning Representations (ICLR), 2018.
  • Sung et al. (2018) Flood Sung, Yongxin Yang, Li Zhang, Tao Xiang, Philip H. S. Torr, and Timothy M. Hospedales. Learning to compare: Relation network for few-shot learning. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 2018.
  • Thrun (1998) Sebastian Thrun. Lifelong learning algorithms. In Learning to learn, pp. 181–209. Springer, 1998.
  • Vinyals et al. (2016) Oriol Vinyals, Charles Blundell, Tim Lillicrap, Koray Kavukcuoglu, and Daan Wierstra. Matching networks for one shot learning. In Advances in Neural Information Processing Systems 29 (NIPS), 2016.
  • Werbos (1990) Paul J Werbos. Backpropagation through time: what it does and how to do it. Proceedings of the IEEE, 78(10):1550–1560, 1990.
  • Williams & Peng (1990) Ronald J Williams and Jing Peng. An efficient gradient-based algorithm for on-line training of recurrent network trajectories. Neural computation, 2(4):490–501, 1990.
  • Wu et al. (2018) Yuhuai Wu, Mengye Ren, Renjie Liao, and Roger B. Grosse. Understanding short-horizon bias in stochastic meta-optimization. In Proceedings of the 6th International Conference on Learning Representations (ICLR), 2018.
  • Wu & He (2018) Yuxin Wu and Kaiming He. Group normalization. In European Conference on Computer Vision (ECCV), 2018.
  • Zemel & Mozer (2001) Richard S Zemel and Michael C Mozer. Localist attractor networks. Neural Computation, 13(5):1045–1064, 2001.
  • Zhu et al. (1997) Ciyou Zhu, Richard H Byrd, Peihuang Lu, and Jorge Nocedal. Algorithm 778: L-bfgs-b: Fortran subroutines for large-scale bound-constrained optimization. ACM Transactions on Mathematical Software (TOMS), 23(4):550–560, 1997.

Appendix A Datasets

We experiment on two datasets, mini-ImageNet and tiered-ImageNet. Both are sub-sets of imagenet (Russakovsky et al., 2015), with images size reduced to size of pixels

  • mini-ImageNet Proposed by Vinyals et al. (2016), mini-ImageNet which contains 100 object classes and 60,000 images. We used the splits proposed by Ravi & Larochelle (2017), where training, validation, and testing have 64, 16, and 20 classes respectively.

  • tiered-ImageNet Proposed by Ren et al. (2018), tiered-ImageNet is a larger subset of ILSVRC-12. It features a categorical split among training, validation, and testing subsets. The categorical split means that classes that belong to the same high-level category, e.g. “working dog”, are not split between training, validation and test. This is harder task, but one that more truthfully evaluates generalization to new classes. It is also an order of magnitude larger than mini-ImageNet.

Details about number of samples are presented in Table 5.

mini-ImageNet tiered-ImageNet
Classes Purpose Split N. Cls N. Img Split N. Cls N. Img
Base Train Train-Train 64 38,400 Train-A-Train 200 203,751
Val Train-Val 64 18,748 Train-A-Val 200 25,460
Test Train-Test 64 19,200 Train-A-Test 200 25,488
Novel Train Train-Train 64 38,400 Train-B 151 193,996
Val Val 16 9,600 Val 97 124,261
Test Test 20 12,000 Test 160 206,209
Table 5: mini-ImageNet and tiered-ImageNet split statistics

a.1 Validation and testing splits for base classes

In standard few-shot learning, meta-training, validation, and test set have disjoint sets of object classes. However, in our incremental few-shot learning setting, to evaluate the model performance on the base class predictions, additional splits of validation and test splits of the meta-training set are required. Splits and dataset statistics are listed in Table 5. For mini-ImageNet, Gidaris & Komodakis (2018) released additional images for evaluating training set, namely “Train-Val” and “Train-Test”. For tiered-ImageNet, we split out 20% of the images for validation and testing of the base classes. The image split files can be downloaded at:

a.2 Novel classes

In mini-ImageNet experiments, the same training set is used for both and . In order to pretend that the classes in the few-shot episode are novel, following Gidaris & Komodakis (2018), we masked the base classes in , which contains 64 base classes. In other words, we essentially train for a 59+5 classification task. We found that under this setting, the progress of meta-learning in the second stage is not very significant, since all classes have already been seen before.

In tiered-ImageNet experiments, to emulate the process of learning novel classes during the second stage, we split the training classes into base classes (“Train-A”) with 200 classes and novel classes (“Train-B”) with 151 classes, just for meta-learning purpose. During the first stage the classifier is trained using Train-A-Train data. In each meta-learning episode we sample few-shot examples from the novel classes (Train-B) and a query base set from Train-A-Train. The class split files can be downloaded at:

200 Base Classes (“Train-A”):

n02128757, n02950826, n01694178, n01582220, n03075370, n01531178, n03947888, n03884397, n02883205, n03788195, n04141975, n02992529, n03954731, n03661043, n04606251, n03344393, n01847000, n03032252, n02128385, n04443257, n03394916, n01592084, n02398521, n01748264, n04355338, n02481823, n03146219, n02963159, n02123597, n01675722, n03637318, n04136333, n02002556, n02408429, n02415577, n02787622, n04008634, n02091831, n02488702, n04515003, n04370456, n02093256, n01693334, n02088466, n03495258, n02865351, n01688243, n02093428, n02410509, n02487347, n03249569, n03866082, n04479046, n02093754, n01687978, n04350905, n02488291, n02804610, n02094433, n03481172, n01689811, n04423845, n03476684, n04536866, n01751748, n02028035, n03770439, n04417672, n02988304, n03673027, n02492660, n03840681, n02011460, n03272010, n02089078, n03109150, n03424325, n02002724, n03857828, n02007558, n02096051, n01601694, n04273569, n02018207, n01756291, n04208210, n03447447, n02091467, n02089867, n02089973, n03777754, n04392985, n02125311, n02676566, n02092002, n02051845, n04153751, n02097209, n04376876, n02097298, n04371430, n03461385, n04540053, n04552348, n02097047, n02494079, n03457902, n02403003, n03781244, n02895154, n02422699, n04254680, n02672831, n02483362, n02690373, n02092339, n02879718, n02776631, n04141076, n03710721, n03658185, n01728920, n02009229, n03929855, n03721384, n03773504, n03649909, n04523525, n02088632, n04347754, n02058221, n02091635, n02094258, n01695060, n02486410, n03017168, n02910353, n03594734, n02095570, n03706229, n02791270, n02127052, n02009912, n03467068, n02094114, n03782006, n01558993, n03841143, n02825657, n03110669, n03877845, n02128925, n02091032, n03595614, n01735189, n04081281, n04328186, n03494278, n02841315, n03854065, n03498962, n04141327, n02951585, n02397096, n02123045, n02095889, n01532829, n02981792, n02097130, n04317175, n04311174, n03372029, n04229816, n02802426, n03980874, n02486261, n02006656, n02025239, n03967562, n03089624, n02129165, n01753488, n02124075, n02500267, n03544143, n02687172, n02391049, n02412080, n04118776, n03838899, n01580077, n04589890, n03188531, n03874599, n02843684, n02489166, n01855672, n04483307, n02096177, n02088364.

151 Novel Classes (“Train-B”):

n03720891, n02090379, n03134739, n03584254, n02859443, n03617480, n01677366, n02490219, n02749479, n04044716, n03942813, n02692877, n01534433, n02708093, n03804744, n04162706, n04590129, n04356056, n01729322, n02091134, n03788365, n01739381, n02727426, n02396427, n03527444, n01682714, n03630383, n04591157, n02871525, n02096585, n02093991, n02013706, n04200800, n04090263, n02493793, n03529860, n02088238, n02992211, n03657121, n02492035, n03662601, n04127249, n03197337, n02056570, n04005630, n01537544, n02422106, n02130308, n03187595, n03028079, n02098413, n02098105, n02480855, n02437616, n02123159, n03803284, n02090622, n02012849, n01744401, n06785654, n04192698, n02027492, n02129604, n02090721, n02395406, n02794156, n01860187, n01740131, n02097658, n03220513, n04462240, n01737021, n04346328, n04487394, n03627232, n04023962, n03598930, n03000247, n04009552, n02123394, n01729977, n02037110, n01734418, n02417914, n02979186, n01530575, n03534580, n03447721, n04118538, n02951358, n01749939, n02033041, n04548280, n01755581, n03208938, n04154565, n02927161, n02484975, n03445777, n02840245, n02837789, n02437312, n04266014, n03347037, n04612504, n02497673, n03085013, n02098286, n03692522, n04147183, n01728572, n02483708, n04435653, n02480495, n01742172, n03452741, n03956157, n02667093, n04409515, n02096437, n01685808, n02799071, n02095314, n04325704, n02793495, n03891332, n02782093, n02018795, n03041632, n02097474, n03404251, n01560419, n02093647, n03196217, n03325584, n02493509, n04507155, n03970156, n02088094, n01692333, n01855032, n02017213, n02423022, n03095699, n04086273, n02096294, n03902125, n02892767, n02091244, n02093859, n02389026.

Appendix B 5-shot results

We show here additional results on 5-shot learning. In table 6 we compare RBP to BPTT optimization.

5-shot Base Base+ Novel Novel+ Both
BPTT 20 Steps 61.48 61.05 -0.43 47.72 0.37 41.72 0.37 -6.00 51.39 -3.21
BPTT 100 Steps 61.75 61.28 -0.47 59.51 0.37 55.79 0.36 -3.72 58.53 -2.10
BPTT 20 Steps * 61.49 7.29 -54.20 37.16 0.33 37.11 0.33 -0.05 22.20 -27.12
BPTT 100 Steps * 61.46 4.00 -57.45 41.68 0.36 41.67 0.36 0.00 22.84 -28.73
Ours (RBP 20 Steps) 61.80 61.28 -0.53 63.40 0.39 62.09 0.39 -1.31 61.68 -0.92
Table 6: Learning an attention attractor network using damped Neumann RBP vs. truncated BPTT. Models are on evaluated on the validation set of tiered-ImageNet. During evaluation, “*” models are solved till convergence using a second-order optimizer.
