I Introduction

Password authentication is in many ways both a blessing and a curse for modern computer systems and applications and their users. Although many researchers and users would enjoy the riddance of password authentication in their daily lives, the relative ease of deployment and usability of password authentication shows that passwords are here to stay for the foreseeable future [1][2]. However, when given the freedom to choose their own passwords, many users will opt to create passwords that are easy for an adversary to guess or easy for a password recovery tool to crack [3]. Users can be trained or given tools and guidelines to aid in the creation of more secure passwords. However, studies have found that most users will actively try to circumvent these requirements in order to create a password they are able to remember [4].

This paper presents SPARse Two-dimensional AuthenticatioN (SPARTAN), a password entry interface that attempts to bridge the gap between security and usability. SPARTAN allows a user to input each character of his password anywhere in a two-dimensional grid instead of a linear textbox. Even with sparsely-populated grids, SPARTAN passwords increase entropy over linear passwords due to the variability of the location of each character. In this way, users can have simpler passwords while achieving a higher overall password security.

As prior work with SPARTAN has been largely theorectical, we conducted a preliminary study to test the usability and security of the SPARTAN interface with unfamiliar users. Our study was especially concerned with the time required for users to create a password using our interface, and the resulting security of the password created both in terms of calculated security (i.e., entropy) and security against a stolen password file attack. The study reached a total of 100 participants, 48 of which interacted with the SPARTAN prototype. The remaining 52 participants formed a control group and were asked to perform tasks on a linear password interface. We found that while passwords created with the SPARTAN interface were, on average, shorter and comprising fewer character sets than passwords created with the linear interface, SPARTAN users did choose a variety of starting positions and password formations, which resulted in a higher average security for SPARTAN passwords compared to their linear conterparts. Feedback on the SPARTAN prototype mixed excitement and criticism, and the current prototype needs further evaluation and focused usability development before use in an operational environment.

The next section goes into more detail about SPARTAN, while Section III discusses related work in usable password authentication. Section IV explains the methodology of our user study and the functionality of the SPARTAN prototype interface created for this study. Our findings are presented in Sections V and VI, while Section VII gives a more academic discussion of the calculated security of user-created SPARTAN passwords. Finally, Section VIII explains future work that we wish to perform to further evaluate SPARTAN and concludes.

Ii Spartan

The SPARTAN interface allows the user to input their password anywhere in a two-dimensional grid. The user’s SPARTAN password is then the text of the password itself and the location of each character in the grid. Figure 1 gives examples of various types of SPARTAN passwords users could create. As its name implies, SPARTAN grids are sparsely populated, that is, the whole grid does not need to be filled with characters in order to see a security benefit over linear passwords. Table I compares the password space for 8-character linear passwords and SPARTAN passwords.

Fig. 1: Different categories of SPARTAN passwords. A Straight Line password continues in a single straight line through the grid. A Snake password changes direction as it flows through the grid, but always continues into an adjacent cell. A Block password fills a square or rectangle pattern in the grid, likely following the coloring scheme. A Segments password is a Straight Line password composed of multiple segments, and a Points password is made up of multiple disjoint points throughout the grid.
Password type Password Space
Linear 41 bits
SPARTAN 12x12 grid 98 bits
TABLE I: Password Space of random linear passwords of 8 characters and random SPARTAN passwords of the same length, using an alphabet of 36 characters. For linear passwords, the equation used is . For SPARTAN passwords, this is

To use SPARTAN, the user first selects a starting location. In deployment scenarios, this cell could be randomly chosen or otherwise constrained to help the user select a unique placement. There is no requirement for the characters of a password to be placed in adjacent cells. In fact, SPARTAN passwords are most secure when the user chooses distinct points throughout the grid. However, to aid ease of input, our implementations give the user the option to select a direction for their password. Direction can be changed during password entry; the prototype will automatically place typed characters into adjacent cells in the selected direction. Order of character entry is not collected as part of the password, but SPARTAN does not preclude this.

The grid used for SPARTAN passwords can be as large or as small as necessary to balance desired usability and security. Optimal grid size is an interesting area of future work we wish to pursue in a follow-on user study. In our prototypes, the squares of the SPARTAN grid have been colored in an abstract pattern in an attempt to limit the prevalance of hotspots in the grid, and to help users remember the placement of their passwords. This colorization is merely a visual aid provided by the interface; it is not chosen by the user as part of their password. Colorization would be different across accounts, so it could also aid users in remembering multiple different SPARTAN passwords.

The SPARTAN grid also employs a wrapping mechanism so that the user does not have to estimate spacing before creating his password. In our implementations this mechanism can result in the overwriting of characters. Future implementations could fix this by allowing multiple characters to reside in a single cell. The encoding of the SPARTAN password is an implementation decision, and can be any method which preserves each character of the password and its location. One method could be to encode the password as follows:


Where the initial ’23’ is location of the ’P’ in the grid, ’24’ is the location of the ’a’, and so forth. The encoded password can then be hashed and stored in the same way as linear passwords.

Ii-a Deployment Options

The SPARTAN interface can be used anywhere that linear passwords are used, including as part of a two-factor authentication scheme. We have developed a JavaScript SPARTAN interface, which can be incorporated into any existing web-based login page. We have also created a SPARTAN user script which can be deployed client-side, with no changes made to the authentication server. In this use case, the user installs a SPARTAN user script in their browser. The user can then enter a backslash (’\’) or another user-defined character into any password field and the SPARTAN grid will appear on top of the webpage. The user can then enter his SPARTAN password in the grid, and the hashed version of this password will be automatically placed in the website’s linear password field.

Iii Related Work

The topic of usable passwords has been a contentious subject of research for many in the field of privacy and security throughout the years. Among the participants in a study by Mare et al., passwords were the most commonly disliked form of authentication, and had a relatively high failure rate among users [4]. Many other experts and studies find that current password practices are burdensome to users [3]. However, due to the deployability of passwords, among other factors, passwords are here to stay [1][2].

Password managers can help solve the common user problem of having too many passwords to remember; however, a study by Ion et al. found that many users are distrustful of password managers and do not find them to be user-friendly [5]. Furthermore, many organizations do not feel they can trust third-party password managers, and restrict their employees from using them for work accounts [4].

A study by Shay et al. evaluated the tradeoff between security and usability in user-created passwords made under different length and complexity requirements [6]. Some studies have suggested the use of randomly-chosen dictionary words for passwords. A study by Cranor et al. found that computer-generated passphrases made up of randomly-chosen dictionary words are not any more memorable than computer-generated short passwords, and the passphrases take longer to type (and re-type if the user makes an error) [3]. In their work with Persuasive Text Passwords (PTP), Forget et al. combined user- and computer-generated passwords. PTP increases the security of user-created passwords by placing random characters at random positions in the password text. Their study found that PTP is a promising method both in terms of usability and security, but also discovered a limit where users would create weaker initial passwords if PTP was too aggressive in its transformations [7].

Mnemonic passwords, where users are instructed to make a password by choosing a character for each word of a selected phrase, have also been an interesting point of research. Kuo et al. found that user-created mnemonic passwords are often based on well-known phrases, such as song lyrics, and they could be vulnerable to a specially-crafted dictionary attack [8]. A study by Forget et al. found that these password schemes may be difficult for users to understand and are easy to misuse [9].

Graphical passwords are another variation on normal password authentication that is currently in use on various mobile and desktop platforms. During their study using the graphical password system PassTiles, Strobert and Biddle showed that graphical passwords are easier for users to remember than generated textual passwords [10]. However, they can also be prone to predictability, and can even fall victim to dictionary attacks [11][12] or the selection of ’hot-spots’ in the chosen image [13]. Tao and Adams observed that users create relatively long graphical passwords with their Pass-Go interface, wherein users pick and connect intersections on a grid rather than the conventional selection of grid cells. Their research also shows a propensity for users to start in predictable locations in the grid and to draw familar shapes [14]. Chiasson et al. developed Persuasive Cued Click-Points (PCCP) to aid users in selecting more random locations in a graphical password, with significant success [15]. However, many forms of graphical passwords also fall short when compared to textual passwords because they must allow a degree of tolerance in user input. Without this, users are often unable to correctly enter their graphical passwords [16].

Safdar and Hassan suggest the completion of a full two-dimensional grid as passwords in secure environments [17]. In their research, they acknowledge that this method should only be used in extreme situations where security is paramount, because the passwords are too complex and lengthy for normal users to remember.

Perhaps the most similar work to the research described in this paper is Saharkar and Dhopte’s scheme for the combination of graphical and alphanumeric passwords. In their model, they suggest that users should choose points of interest on an image, and have the option of adding a textual password to each point upon password entry [18]. As of this writing, there is no published research evaluating the security or usability of this method.

Our study is unique to all previous research in that it evaluates the combination of aspects of graphical and linear passwords. Although SPARTAN uses a two-dimensional grid, it is different from Safdar and Hassan’s work in that its use does not require users to complete the entire grid space. In this way, our study gives unique insight into the creation of passwords and is the first to evaluate the SPARTAN method of authentication.

Iv Method

We conducted a Institutional Review Board (IRB)-approved human factors study with adult employees of our organization in order to evaluate the usability of our SPARTAN prototype and differences between user-created SPARTAN and linear passwords. During the course of this study, we were especially concerned with identifying usability limitations in our SPARTAN prototype, identifying any potential patterns in participant’s use of the prototype and comparing passwords created with a linear password interface with those created with the SPARTAN interface.

Participants were recruited via email and could participate at their leisure from the comfort of their individual workstations. Figures 2 and 3 show demographic information of participants and their reported computer usage. The study took place over the course of three weeks from late August to early September 2016.

Fig. 2: Participant-reported age and gender demographics. Notice that not all participants completed the survey phase of the study, and they were not required to answer questions to complete their participation. N=77
Fig. 3: Participant-reported computer usage: a) shows participants’ responses to the question “How comfortable are you with using computers?” b) depicts responses to “How much time on average do you spend on a computer on work days?”, and c) shows the distribution of answers to the question “How much time on average do you spend on a computer on non-work days?”. N=77
Fig. 4: Average time spent by participants in each phase. (

2-tailed t-test )

Iv-a Procedure

Participants were randomly assigned to the control group (linear passwords) or the experimental group (SPARTAN passwords). Each group went through four phases: instruction, creation, survey, and recall. The study had to be completed in one session; users were not able to return to complete their participation.

During instruction, the experimental group was given minimal instructions on SPARTAN and an interactive demo of its use. In the creation phase, members of each group created a password. For both SPARTAN and linear participants, the only password requirement was that it comprise at least eight characters. All passwords were masked during creation. In addition to a password hash, we collected a converted version of the passwords created which conveyed the character set used for each character of the password (uppercase, lowercase, numerical, or special character). This data allowed us to determine the password length and number of character sets used as well as the placement of SPARTAN passwords in the grid.

After creating their passwords, all participants completed a survey for demographic information and password practices. SPARTAN participants were asked additional questions about the SPARTAN interface. Participants were then asked to recall the password they created at the beginning of the study, with the opportunity to retry as many times as desired.

Some participants did not complete all phases of the study; user retention is discussed further in Section V-D1. Of the participants that reached the recall phase, the median total time spent on the study for members of the control group was 3.8 minutes, whereas in the experimental group the median time was 13.7 minutes. Figure 4 shows the average time spent in each phase for all participants.

Iv-B SPARTAN Prototype

The SPARTAN prototype used in this study is a 12x12 grid, with the block colorization seeded by the username used. When entering a password, the user was expected to first choose a starting location by clicking on a cell in the grid, then choose a typing direction for their password by clicking on an arrow or pressing an arrow on their keyboard. In order to de-clutter the interface, we opted for arrows superimposed on the grid itself instead of a separate directional pad (d-pad). As a goal of this study was to gather data on where users would independently place their passwords in the SPARTAN grid, we refrained from giving a default grid location and direction.

We also implemented a mobile-inspired masking mechanism, where characters in adjacent cells remain visible to the user until the cursor is moved to a distant cell. Characters in each cell could be unmasked by hovering over the desired cell. A screenshot of the developed prototype displaying these features is shown in Figure 5.

Some of the design decisions made for the use of this study were found to have adverse affects on the usability of the prototype. These concerns are explained further in Section V-B3.

Fig. 5: SPARTAN prototype used in the study, with overlaid arrows, grid colorization, text wrapping, and mobile-style masking mechanisms.

Passwords created with the SPARTAN prototype were collected by filling empty cells with spaces in order to effectively preserve location data and concatenating each row to the preceding rows. The result of the concatenation was then hashed to compare against re-entered passwords.

V Results

V-a Password Practices

During the survey phase, we asked all participants about their password practices. When asked how often they forget a password to one of their accounts, 49% of participants said “Once or twice a month” or more often (N=77). When asked how difficult it is to create a password that meets password requirements, 55% of participants reported “slightly difficult” or higher (N=77). When asked if they had any other comments, suggestions, or opinions on password practices or other topics, there was a mix of beliefs and security knowledge among our participants. Some indicated that they are unsure of what constitutes a secure password. Others stated that they use a password manager to manage all of their passwords across different accounts, while one stated that they write down their passwords in order to keep track of them. Some participants indicated that password complexity requirements is reaching a level such that it is difficult to develop a scheme to keep track of the different requirements and passwords across sites, while several voiced their opinions that longer passwords, or passphrases, offer more of a benefit against password crackers than increased complexity requirements. A couple also cited research that suggests enterprises should not mandate periodic password changes. Another participant mentioned that they wish biometrics, such as fingerprint scanners, could be adopted more universally.

In general, our participants’ responses indicated that they are burdened by password creation, with many sites enforcing disparate complexity requirements. This is in line with other research and expert opinions in the field [3][19][4]. Many participants demonstrated an affinity for longer length requirements in place of complexity requirements. This is also the opinion supported by the NIST Draft Digital Authentication Guideline [20], and is the idea behind the SPARTAN interface, to decrease complexity requirements while increasing security.

V-B SPARTAN Usability

In this section we evaluate SPARTAN in terms of the time required to use the SPARTAN interface, the rate of recall of SPARTAN passwords, and the reported usability and acceptance of SPARTAN among participants.

V-B1 Time Considerations

As shown in Figure 4, the average time for participants to create a SPARTAN password was three times that of their linear counterparts. In addition, experimental group participants took approximately twice as long as their control group counterparts to recall their passwords. Although this is a significant increase in time required for creation and recall, we find these results promising as the factor of increase decreased as participants became more familiar with the SPARTAN interface. Future work should further evaluate the time required for users to login using SPARTAN after they’ve gained familiarity with the interface over time.

V-B2 Recall Rate

In total, 31 SPARTAN and 41 linear participants reached the recall phase of the study. Of these SPARTAN participants, three did not attempt to recall their password. Both the control group and the experimental group had one participant who was unable to recall his password after several attempts. Of the participants that did sucessfully recall their passwords, two in the control group and three in the experimental group required multiple attempts. In both groups, the average number of attempts among all successful participants was 1.1. All participants in the study only had to remember their passwords for a couple of minutes while they completed the survey; however, it is promising that SPARTAN group participants displayed a recall rate similar to their linear counterparts. Future work should evaluate the recall rate of SPARTAN passwords over a longer period of time, and when multiple passwords need to be remembered across different accounts.

V-B3 User Reaction

We asked members of both groups “How comfortable are you with the security of the password you created during this study?”. A larger proportion of SPARTAN participants reported being “extremely,” comfortable with the security of their password (28%) than linear participants (12%). Approximately an equivalent proportion of SPARTAN and linear participants expressed some level of comfort with their created password (72% of SPARTAN, 71% of linear, N=36 and 41, respectively). Please refer to Figure 6 for this data. In addition, a majority (78%) of SPARTAN participants agreed with the statement “I think SPARTAN passwords are more secure than traditional passwords,” while a smaller majority (56%) disagreed with the statement “I think SPARTAN passwords are more memorable than traditional passwords” (N=36).

Fig. 6: Participants’ reported comfort with the password they created during the study. SPARTAN participants N=36, linear participants N=41. A greater number of SPARTAN participants than linear participants expressed extreme comfort with the password they created for their study, while an almost equivalent proportion of participants in each group expressed some positive level of comfort with their password.

We also asked SPARTAN participants if they would prefer to use SPARTAN or traditional passwords in order to log in to their bank accounts. 37% of users said they would prefer SPARTAN while 63% reported they would prefer linear (N=35). The reasons behind these answers varied. The majority of participants in favor of SPARTAN cited improved security as the reason for their preference. Some even mentioned that they would prefer security over ease-of-use for important credentials. A few also mentioned that they liked that they could create a unique pattern that would be impossible for others to guess. Of those in favor of linear passwords, a majority cited poor prototype usability as the reason behind their preference.

One of the most prevalent problems with usability was caused by our decision to superimpose arrows on the grid instead of featuring a separate d-pad. With this implementation, in order to move around the grid cell by cell, users could either click a cell or use the directional arrows on the keyboard to navigate. However, if a cell contained an arrow, one click would select the arrow, and a second click would select the cell. This was understandably confusing to users unfamiliar with the mechanics. Our decision to eliminate default selections also resulted in poor usability. As noted in Section IV-B, in order to decrease bias, we did not implement a default starting position or direction in the SPARTAN interface. This resulted in a decrease in usability which would not be present in a deployed system. In Section VIII, we propose future work to improve the usability of SPARTAN.

The next most frequent response in favor of linear passwords was a feeling that SPARTAN passwords would be harder to remember. As discussed in Section V-B2, we did not see a significant decrease in recall rate for SPARTAN passwords. However, our study only required a short amount of time between password creation and recall; future work should evaluate the recall rate of SPARTAN passwords over a longer period of time. A few participants indicated their preference was due to password managers not yet supporting SPARTAN passwords.

V-C SPARTAN Passwords

The increased security of SPARTAN passwords over linear passwords depends on the variability of their placement in the grid. If all users choose the same location or set of locations, the security of SPARTAN passwords would decrease and SPARTAN would not provide any additional security over linear passwords. The data gathered during our study shows that users did choose variable password locations and strategies throughout the grid, and increased the security of their passwords by doing so. Figure 7 shows the distribution of filled cells in the grid for all SPARTAN passwords created by users.

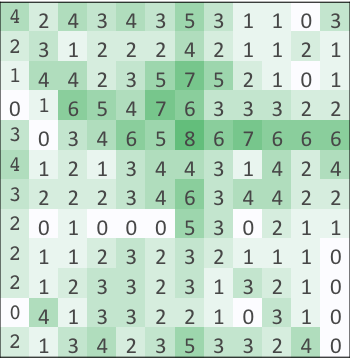

Fig. 7: Heatmap of SPARTAN passwords created by participants. N=38

In order to evaluate the types of passwords created by users, we divided them into five different categories: Straight Line, Snake, Block, Segments, and Points. Straight Line passwords are those that continued in a straight line through the grid. These could be horizontal, vertical, or diagonal. Snake passwords are those that comprise adjacent cells but can change direction any number of times as they travel through the grid. Block passwords were usually created by a user filling in all of the cells of a certain color block; Segment passwords occurred when the user divided their password into a number of Straight Line segments and placed those segments in disjoint cells of the grid. Point passwords are those where the user chose to place each character of their passwords in disjoint cells across the grid. An example of each type of password is given in Figure 1. The number of each type of password created during this study is given in Figure 8. While the largest proportion of participants created Straight Line passwords, we were surprised to find that no single type of password was created by a majority of users. In addition, of the 17 Straight Line passwords created in this study, eleven were horizontal, while two were vertical and four diagonal. Snake passwords had an average of 2.7 direction changes, and Segment passwords comprised an average of 2.3 segments. These are promising metrics as they show that users will make a variety of SPARTAN passwords that cannot be easily predicted.

Fig. 8: Categorization of participants’ SPARTAN passwords created during the study. N=38

V-D Limitations

There are a number of factors that could have affected the outcome of our study. Members of the experimental group took much longer to complete their participation than members of the control group. This could have led to fatigue in the experimental group.

As mentioned in Section IV-B, in order to refrain from imposing bias on the location and direction of participants’ SPARTAN passwords, we did not give a default location or direction in the grid. This led to some usability concerns among participants.

Finally, participants may have created stronger passwords than they normally employ because they knew the passwords were being monitored for a study. This is especially true in the control group, as some participants indicated a belief that the results of the study would be used to influence password complexity requirements for our organization as a whole.

V-D1 Retention

Although we recruited 100 participants from throughout our organization, not all participants finished all phases of the study. Two participants each from the control and experimental groups quit after failing to create a password due to being unable to meet requirements and/or re-enter the password correctly. Since the same number of participants in each group did this, terminating at this time should not be attributed to difficulty with the SPARTAN interface.

It should also be noted that a number of participants from each group quit before the survey loaded. We found during the study that the survey had difficulty handling a large number of simultaneous participants. A number of experimental group participants also quit during the survey or before attempting to recall their password. This may have been due to fatigue; as noted in Section IV-A, participation in the experimental group took much longer than control group participation did. More information about the number of participants at each phase is shown in Figure 9.

Fig. 9: Number of participants in each phase of study.

Vi Password Cracking

During our study, we researched how an adversary would attempt to crack SPARTAN passwords offline. None of the open-source password cracking tools we tried were able to crack SPARTAN passwords off-the-shelf, for two reasons. First, SPARTAN passwords are simply too long for the password crackers. These tools were developed to work on relatively short linear passwords, and the source code would have to be edited to accept SPARTAN passwords. Second, they are not designed to expect the sparseness of SPARTAN passwords. Since each empty cell was replaced with a space in the password, even if a user used a dictionary word as his password, the password would be hashed with additional spaces present. The password cracking tool would need to be updated to compute all of the possible permutations of SPARTAN, such as starting in each location in the grid, being typed in each direction, etc.

If SPARTAN were deployed in an organization, attackers would readily update password cracking tools to work with the differently-formatted SPARTAN passwords. This tasking was outside the scope of this project and would make for interesting follow-on work. However, cracking a SPARTAN password would still require more effort from an attacker than cracking a linear one. The major costs to attackers who use password cracking tools in an offline stolen password file attack are space required to store the dictionary and the amount of time needed to calculate and search through the hashes. Both of these factors are proportional to the number of hashes to compute and sort through. Memory is relatively cheap, and a higher number of computations can be defeated by more time or higher computing power. However, this is true for linear passwords as well. Even if all user-created SPARTAN passwords were input horizontally from left to right, this would still increase the dictionary and the number of hashes to search through by a factor of 144 for a 12x12 grid. This increase could still be defeated with time, but its significance is not negligible. On the other end of the spectrum, if all users created Point SPARTAN passwords, this would increase the dictionary and the number of hashes to search through by a factor of 2.78E+21 for 10 character passwords in a 12x12 grid. The computational increase for this is significant and could make a huge impact on security. There are many forms of SPARTAN passwords between these two bounds, and the comparative overall security of SPARTAN over linear passwords is discussed in the following sections.

Vii Discussion

Due to the predictability of user-created passwords, many experts in the field assert that length may be the most important factor in the security of linear passwords [20][6]. One curious data point gathered during this study is that most SPARTAN passwords comprised fewer characters than linear passwords. The median length of a SPARTAN password created during this study comprised 9 characters, while the median linear password length was 11 characters. However, SPARTAN password locations varied, and this added location factor increases the overall security of SPARTAN passwords over that of the linear passwords. There are many ways to estimate the security of a user-created password; a few of them are discussed here for comparison.

One drawback to the design of our study is that we only gathered the end result of password creation. Therefore, while we have the locations of all SPARTAN passwords, we must make some assumptions about which were the starting and ending points of the passwords. Using the mechanics of the prototype and previous work in the field demonstrating that users tend to create graphical passwords that create a top-down, left-right pattern [10], we made reasonable assumptions about starting location for each Straight Line and Snake password created and developed Figure 10, illustrating the occurance of starting locations in each section of the grid. While users often favored the first quadrant or the edges of the grid as a starting location for their password, these areas did not gain a majority of users, and many created more complex passwords with less predictable starting points.

Fig. 10: Percent of SPARTAN Straight Line and Snake passwords created beginning in each quadrant of the grid and percent of SPARTAN Straight Line and Snake passwords beginning at the edges versus the center of the grid. N=27

Vii-a Predicting the Next Cell

Password security is commonly measured in terms of entropy. Previous work in the field has tested the validity of this and other measures in relation to actual password security against realistic attacks [21][22][23]. We find the calculation of entropy added by the use of SPARTAN to be an interesting point of discussion for this research. Shannon’s work in which he estimated the entropy of a string of English text has been used in password security research for decades [24]. The 2013 NIST Electronic Authentication Guideline builds on Shannon’s work and offers similar metrics for the entropy of passwords [25]. In their analysis, the first character of a password is worth 4 bits of entropy. The following seven characters are worth 2 bits each, while characters 9 through 20 are each worth 1.5 bits. Each character after the twentieth is worth 1 bit each. Using these metrics, the median-length linear password created during this study was worth 23 bits of entropy and the median SPARTAN password text was worth 20 bits of entropy.

However, this does not take into account the added security provided by the variability of the location of SPARTAN passwords in the grid. Following a similar method, we created a formula for the effective entropy of each successive cell used in a SPARTAN password. Using the data collected from the SPARTAN passwords created during this study, we estimated 5 bits of entropy for the first cell chosen by the user. The entropy decreases to 2.5 bits for the second cell, due to the increased likelihood that the user selects a cell adjacent to the first. Cells 3 through 12 are each worth 1 bit of entropy, and any cell after the twelfth does not provide any additional entropy, due to the likelihood that it will follow a pattern shown in the previous cells. This cell entropy can be added to the entropy of the text of the password itself. Using these calculations, Figure 11 shows the comparable entropy for human-created linear and SPARTAN passwords of varying lengths. As the graph shows, a 6-character random linear password has 40 bits of entropy, which is approximately equivalent to an 11-character user-created SPARTAN password, or a 24-character user-created linear password. A randomly-generated SPARTAN password reaches 40 bits of entropy after just three characters. Thus, using SPARTAN cuts the number of characters the user has to type and remember in half, while maintaining an equivalent amount of security in terms of entropy.

Fig. 11: Bits of entropy for lengths of user-generated linear and SPARTAN passwords and randomly-generated linear and SPARTAN passwords.

Vii-B Dictionary Size

It is difficult to quantify exactly how bits of entropy correlate to increased security. Entropy can also be described as a function of the dictionary size, or space (S) and the likelihood (L) that a given password will be in the stated space, as in Equation 1 below [26].


Looking at the problem from this angle, one can consider the number of passwords that an attacker might recover using a given dictionary, as described in Section VI. An attacker will try to go after the weakest passwords first when constructing his dictionary. Assume the adversary has created a dictionary of 5000 possible passwords and assume he is able to crack all linear passwords comprising a maximum of 10 characters with this dictionary. Under these assumptions, he would recover 43% of the linear passwords created in our study.

Using the same dictionary, but adapting it to look for SPARTAN passwords that are up to 10 characters and that start at the top left corner of the grid and continue horizontally, the dictionary would have the same number of entries, but the adversary would only recover 5% of the passwords created with SPARTAN. Although a greater number of SPARTAN passwords were 10 characters or fewer, only 5% of the SPARTAN passwords created were both 10 characters or fewer and placed horizontally in the top left corner. Thus, with the same size dictionary (therefore the same number of comparisons to perform, the same amount of time spent cracking), the attacker would only recover 5% of the SPARTAN passwords created in this study compared to 43% of the linear passwords.

The attacker could increase his dictionary to include all Straight Line horizontal passwords of 10 characters or fewer placed anywhere in the grid. By doing so, his dictionary would now be able to recover 29% of the SPARTAN passwords created in this study, but his dictionary would necessarily increase by a factor of 288 for a 12x12 grid (passwords could start anywhere in the grid, traveling left or right). This trend continues for other common SPARTAN password placements. The attacker could alter his dictionary to target a certain subset of SPARTAN passwords, but this comes with the tradeoff of a larger dictionary, thus more memory and time required. Figure 12 displays the calculated tradeoff between dictionary size for the more common variations of SPARTAN passwords and the percent of passwords recovered.

Fig. 12: Tradeoff between dictionary size and percent of passwords recovered for various methods of attack.

Viii Conclusion and Future Work

During this user study, we created a SPARTAN prototype, gathered empirical data on the security and usability of this method, and analyzed SPARTAN password security. The prototype interface, while sufficiently usable for the purposes of this study, would benefit from focused improvement to maximize usability. The usability concerns voiced by users were largely against the particular implementation of SPARTAN created for this study, and participants were open to new methods of authentication. Many users voiced opinions showing that they are overburdened with the current state of password requirements employed in their various online accounts, and they showed that they are interested in trying new forms of authentication.

The user-created SPARTAN passwords in this study, while generally shorter than the linear passwords created by participants, varied in placement throughout the grid and demonstrate that SPARTAN is a promising method for shorter, more secure passwords. In addition, current password cracking tools are not capable of breaking SPARTAN passwords without modification, and SPARTAN would necessitate the use of larger dictionaries than those employed for cracking linear passwords to recover the same number of user-created passwords.

There is still much work that can be done to evaluate the security and usability of SPARTAN passwords. First, we would like to address some of the usability concerns mentioned by participants in this study. In future deployments, we would like to employ a default location and direction in the grid in order to ease usability. In addition, we would like to introduce a simpler d-pad implementation for the directional arrows instead of superimposed arrows on the grid. We would also like to look into mobile adoption, as we can see usability on mobile as an important feature going forward.

We gathered 38 SPARTAN and 44 linear passwords during this study. In the future, we would like to gather more data on user-created SPARTAN passwords to ensure that the trends we saw in this study hold with a larger sample size. In addition, we would like to conduct a study to gain insight into the optimal grid size and layout to balance the tradeoffs among usability, memorability, and security. The decreased security resulting from the use of a smaller grid (10x10 or 8x8, for example) could perhaps be tolerated if increased usability can be demonstrated. Finally, we would like to conduct a study to gather data on the usability of SPARTAN over time, while participants use it to authenticate periodically over the course of a few months. This study would gain data on the memorability of SPARTAN and its usability over time, and could incorporate activities related to SPARTAN password changes and recovery for analysis.
