1 Introduction

Manual segmentation of biomedical images is performed by humans, often requiring expert knowledge, to assign each pixel of an image to a class. Not only is this process time-consuming, but the difficult, and often subjective nature, results in significant inter and intra-rater variability [warfield2004simultaneous]. Automatic methods for biomedical image segmentation aim to address these issues, using manual segmentations to provide labels for supervised training and performance evaluations. However, categorical labels from manual segmentation fail to capture the uncertainty associated with the process of humans assigning class labels.

A common approach in classification tasks to represent uncertainty is to apply soft labels (SLs) to the ground truth, converting binary decisions into probabilistic scores [nguyen2014learning, szegedy2016rethinking]. Segmentation describes a pixel-wise classification task, and the equivalent therefore involves assigning soft labels to each pixel [wang2020improved]. However, this form of global uncertainty ignores important spatial information, and is different from uncertainty in manual segmentation which is instead concentrated around class boundaries [krygier2021quantifying].

To focus optimisation on boundaries, the distance penalty term (DPT) computes Distance Transform Maps (DTMs) based on Euclidean distances to penalise predictions relative to class boundaries [kervadec2019boundary, sugino2021loss]

. However, generating DTMs are not only computationally expensive, but also increases the risk of overfitting by focusing too strictly on classifying boundary pixels according to the ground truth despite the uncertainty.

The main contributions of this work can be summarised as follows:

  1. We propose a new ground truth transformation, known as Boundary Uncertainty (BU), which uses morphological operations to restrict soft labelling to boundary regions, providing an efficient approximation to segmentation uncertainty.

  2. We demonstrate consistently improved performance with the balanced variant of BU across three well-validated datasets over SL and DPT.

  3. We show the unbalanced variant of BU enables robust training when dealing with over-segmented and under-segmented labels.

2 Materials and methods

Boundary Uncertainty combines soft labelling with morphological operations to approximate segmentation uncertainty. Here, we first introduce soft labelling, followed by morphological operations, before describing Boundary Uncertainty, and conclude with dataset and implementation details. For all experiments, we use the original 2D U-Net as our baseline model, and apply ground truth transformations to the Dice loss [ronneberger2015u, milletari2016v, yeung2021unified].

2.1 Soft labels

Manual segmentation involves assigning class labels to each pixel in an image. In a binary segmentation task using one-hot encoded softmax outputs, the value for a pixel,

, at location in the ground truth is defined as:

(1)

where is the segmentation target.

To represent uncertainty, SL involves converting class labels into probabilistic scores:

(2)

subject to:

(3)

Greater confidence in classifying a pixel as the segmentation target or background is represented as values closer to 1 and 0, respectively. To approximate manual segmentation uncertainty, we restrict SL to boundary regions using morphological operations.

2.2 Morphological operations

Morphological operations involve non-linear, local transformations on region boundaries. The two basic morphological transformations are erosion and dilation, applied to binary images by querying with a structuring element at all positions. Let represent the input grey-scale image of size . Dilation () and erosion () operations are defined as:

(4)
(5)

where is the structuring element.

2.3 Boundary Uncertainty

BU assigns pixels with probabilistic scores around boundary regions:

(6)

where denotes the number of iterations of the morphological operation, and and

are hyperparameters that determine the SL values directly exterior and interior to the boundary region respectively (Fig.

1). The balanced form is subject to the constraint that and , used for when segmentation errors are equally likely to occur either side of the boundary. The setting and corresponds to the original hard labels.

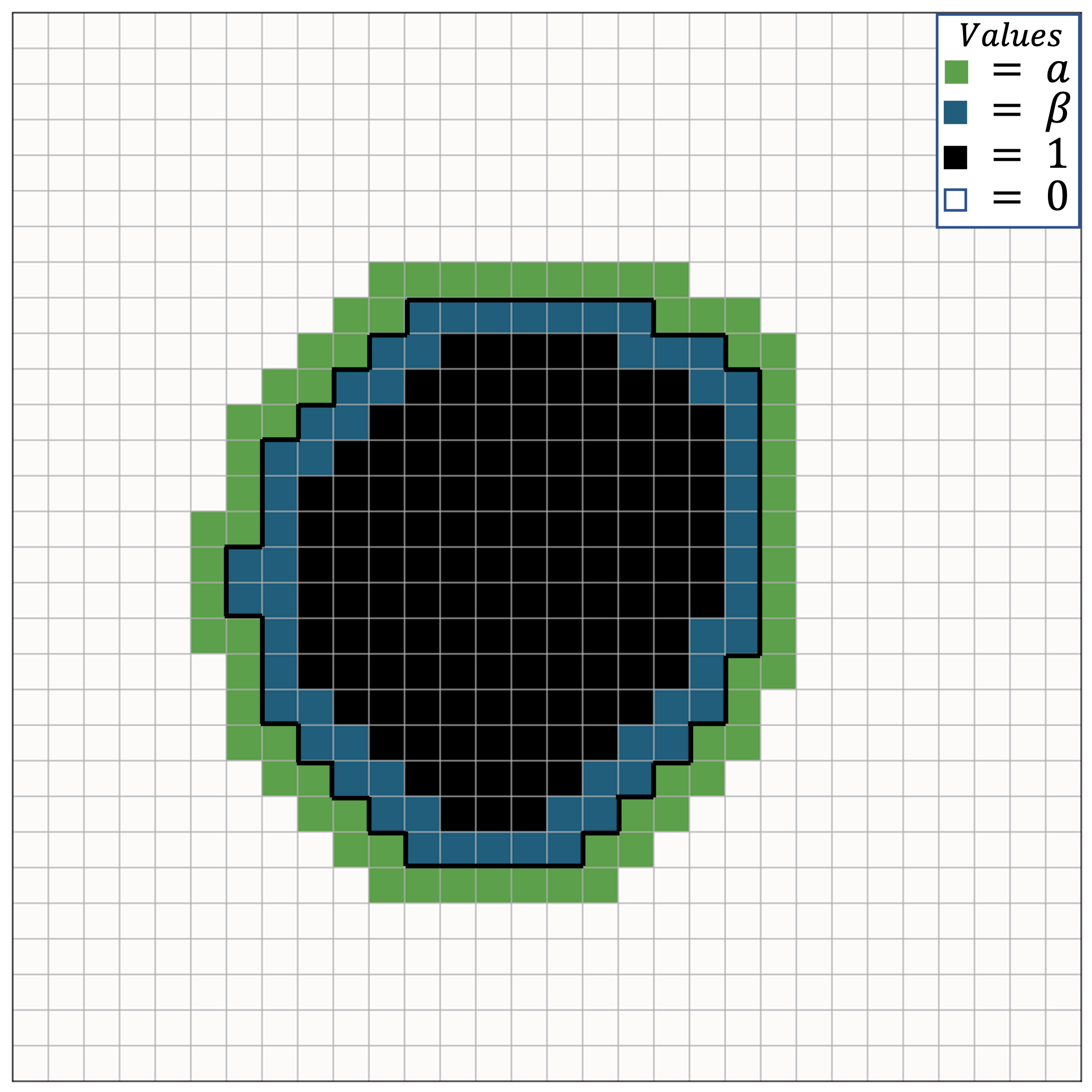

Figure 1: Example of applying BU to a manual segmentation. The black border delineates the original manual segmentation. Morphological dilation expands the segmentation target into the green region, where values are assigned . In contrast, morphological erosion subtracts the blue region, where values are assigned . Due to the local nature of morphological operations, all other pixels remain unaffected.

In contrast, the unbalanced form restricts and

, used when there is systematic bias towards under-estimation or over-estimation of the segmentation target. The unbalanced form has been applied in highly class imbalanced segmentation, where dilation of the segmentation target improves recall with small segmentation targets

[du2019boundary, wang2018focal].

determines the extent of BU, with larger values of corresponding to larger regions of uncertainty.

In summary, BU enables robust model training by approximating segmentation error, which is mainly concentrated around boundaries, regardless of whether the errors are random or systematic in origin. The effect of different ground truth transformations are shown in Fig. 2.

Hyperparameters DRIVE 2018DSB CVC-ClinicDB
Alpha Beta DSC Precision Recall DSC Precision Recall DSC Precision Recall
1 0 0.8082 0.8473 0.7766 0.9147 0.9205 0.9168 0.8826 0.9175 0.8759
0.9 0.1 0.8141 0.8115 0.8211 0.9171 0.9139 0.9281 0.8928 0.9211 0.8844
0.8 0.2 0.8099 0.7870 0.8386 0.9162 0.9129 0.9268 0.8903 0.9146 0.8892
0.7 0.3 0.8025 0.7542 0.8621 0.9119 0.8952 0.9374 0.8787 0.8985 0.8811
0.6 0.4 0.7838 0.6759 0.8829 0.9043 0.8873 0.9319 0.8962 0.9229 0.8856
0.5 0.5 0.7347 0.6158 0.9156 0.8742 0.8197 0.9500 0.8903 0.9143 0.8874
Table 1: Hyperparameter tuning of BU on the DRIVE, 2018DSB and CVC-ClinicDB datasets. The highest scores are denoted in bold.

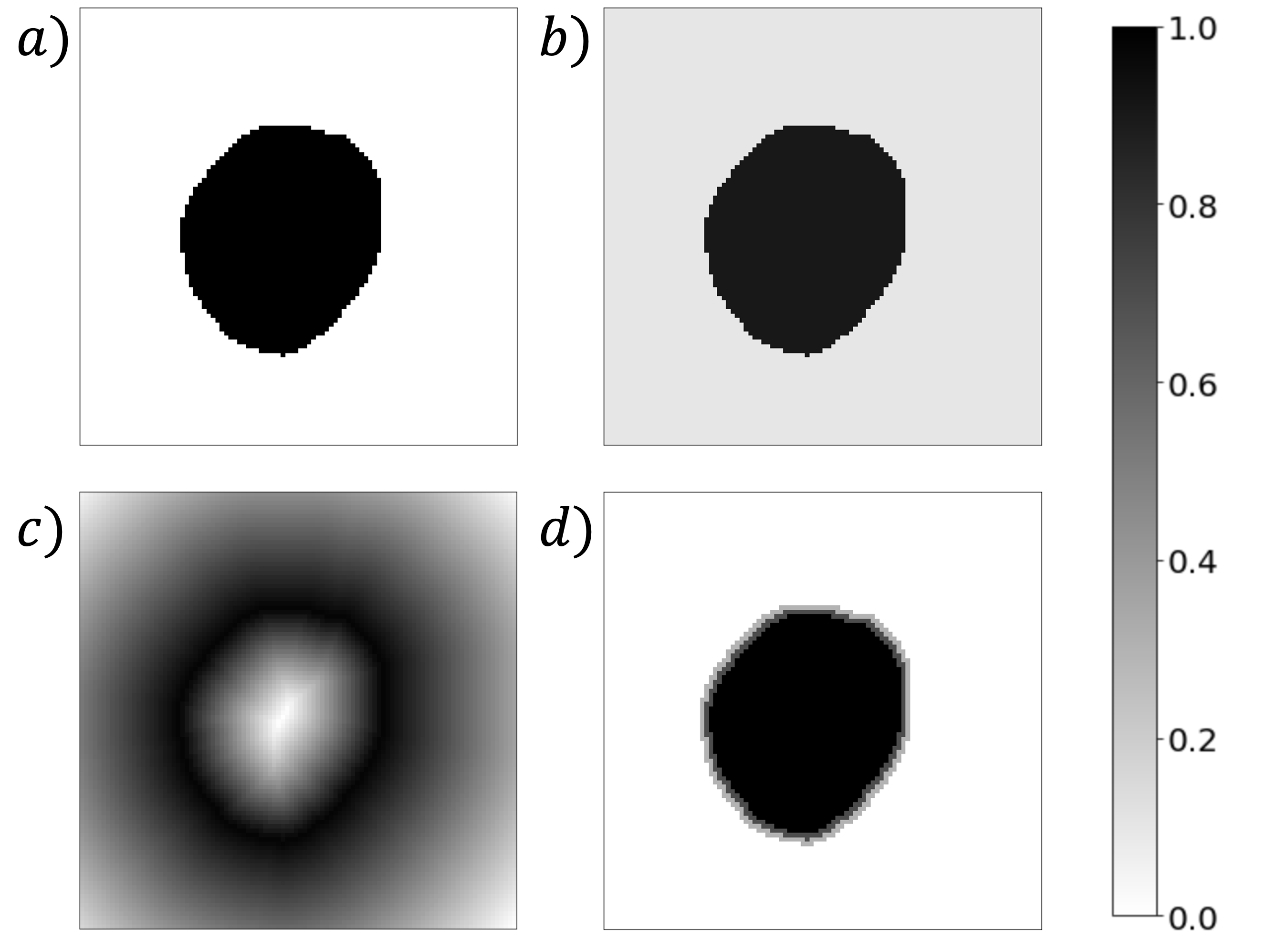

Figure 2: Ground truth transformations where a) ground truth, b) SL, c) DPT and d) BU with and .

2.4 Dataset descriptions and evaluation metrics

To evaluate BU, we select three well-validated, open-source biomedical imaging datasets, namely: Digital Retinal Images for Vessel Extraction (DRIVE), 2018 Data Science Bowl (2018DSB) and CVC-ClinicDB

[staal2004ridge, caicedo2019nucleus, bernal2015wm]. The DRIVE dataset contains 40 coloured fundus photographs used for retinal vessel segmentation, 2018DSB consists of 670 light microscopy images for nuclei segmentation, and the CVC-ClinicDB dataset consists of 612 frames of colorectal polyps obtained during optical colonoscopy. A summary of the datasets and training details are presented in Table 2.

Dataset Segmentation #Images Size #Training #Validation #Test
DRIVE Retinal vessel 40 16 4 20
2018DSB Cell nuclei 670 428 108 134
CVC-ClinicDB Colorectal polyp 612 392 98 122
Table 2: Details of datasets and training setup used for our experiments.

For evaluation, we calculate Dice Similarity Coefficient (DSC), precision and recall metrics per image and average over the hold-out test set.

DRIVE 2018DSB CVC-ClinicDB
Segmentation Loss DSC Precision Recall DSC Precision Recall DSC Precision Recall
Under DSC 0.4387 0.9845 0.2830 0.8040 0.9653 0.7034 0.8909 0.9433 0.8602
DSC + BU 0.7198 0.8797 0.6120 0.9130 0.9231 0.9107 0.8940 0.9225 0.8857
Over DSC 0.6730 0.5236 0.9471 0.8417 0.7514 0.9709 0.8742 0.8773 0.9006
DSC + BU 0.8093 0.8286 0.7949 0.9160 0.9108 0.9291 0.8797 0.8975 0.8888
Table 3: Evaluating robustness of the Dice loss with and without BU to under-segmentation and over-segmentation. The highest scores are denoted in bold.

2.5 Implementation details

For our experiments, we used the Medical Image Segmentation with Convolutional Neural Networks (MIScnn) open-source Python library

[muller2021miscnn]

. All experiments made use of Keras with Tensorflow backend, run on NVIDIA P100 GPUs. For all experiments, except for the DRIVE dataset which is already divided into 20 training images and 20 testing images, we randomly partitioned each dataset into 80% development and 20% test set, with further division of the development set into 80% training set and 20% validation set. We used the following data augmentation: scaling, rotation, mirroring, elastic deformation and brightness. All images were normalised to

using the z-score.

Model parameters were initialised using the Xavier initialisation. We trained each model with instance normalisation [zhou2019normalization], using the Adam optimizer with a batch size of 1 and initial learning rate of

, and used ReduceLROnPlateau to reduce the learning rate by 0.1 if the validation loss did not improve after 25 epochs. The EarlyStopping callback was used to terminate training if the validation loss did not improve after 50 epochs.

SLs are set to for the segmentation target and for the background [wang2018focal]. For BU, a grid search was performed to select optimal and values for each dataset. For this preliminary study, A square structuring element was used, and we set .

To simulate under-segmentation and over-segmentation, we use morphological erosion and dilation operations, respectively, on the manual segmentations in the training set. In these experiments we used the unbalanced form of BU, setting and for under-segmentation, and and for over-segmentation.

DRIVE 2018DSB CVC-ClinicDB
Loss DSC Precision Recall DSC Precision Recall DSC Precision Recall
DSC 0.8082 0.8473 0.7766 0.9147 0.9205 0.9168 0.8826 0.9175 0.8759
DSC + SL 0.8032 0.7420 0.8797 0.8863 0.8478 0.9531 0.8660 0.8417 0.9267
DSC + DPT 0.8086 0.8498 0.7751 0.9016 0.9230 0.8891 0.8174 0.9058 0.7614
DSC + BU 0.8141 0.8115 0.8211 0.9171 0.9139 0.9281 0.8962 0.9229 0.8856
Table 4: Performance comparisons using different ground truth transformations on the DRIVE, 2018DSB and CVC-ClinicDB datasets. The highest scores are denoted in bold.

3 Results

3.1 Hyperparameter tuning

The results for the hyperparameter tuning experiments are shown in Table 1. The highest DSC values were obtained with for the DRIVE and 2018DSB experiments with a score of 0.8141 and 0.9171 respectively, higher than 0.8082 and 0.9147 obtained without BU. For CVC-ClinicDB, the highest DSC values of 0.8962 was obtained with , compared to 0.8826 with the original DSC loss. The lower optimal value for the CVC-ClinicDB dataset correlates with the greater uncertainty associated with delineating colorectal polyp boundaries compared to retinal vessels and cell nuclei. The general increase in recall and decrease in precision with higher values of , despite using the balanced form, is a property of using the Dice loss, which is biased towards assignment of the under-represented class.

3.2 Robustness to systematic segmentation error

The results for evaluating robustness to under-segmentation and over-segmentation are shown in Table 3. Including BU is associated with the highest DSC values across datasets for both under-segmentation and over-segmentation. The difference was most apparent in the DRIVE dataset, where the DSC score reduced to 0.4387 with under-segmented ground truth labels without BU, while only reduced to 0.7198 with BU. The smallest differences were observed with the CVC-ClinicDB, which as previous mentioned, may be due to the greater uncertainty associated with demarcating polyp boundaries.

3.3 Performance comparisons using different ground truth transformations

The results for different ground truth transformations are shown in Table 4. The highest DSC scores were consistently observed with BU. Using SL and DPT generally negatively affected the DSC score. By applying SL globally, the label noise generated by regions distant to the boundary may prevent optimal convergence. In contrast, DPT may attend to boundary regions too strictly, resulting in overfitting.

Example segmentations are shown in Fig. 3. Segmentations produced using BU are the most similar to the ground truth, even with difficult segmentations such as the CVC-ClinicDB example.

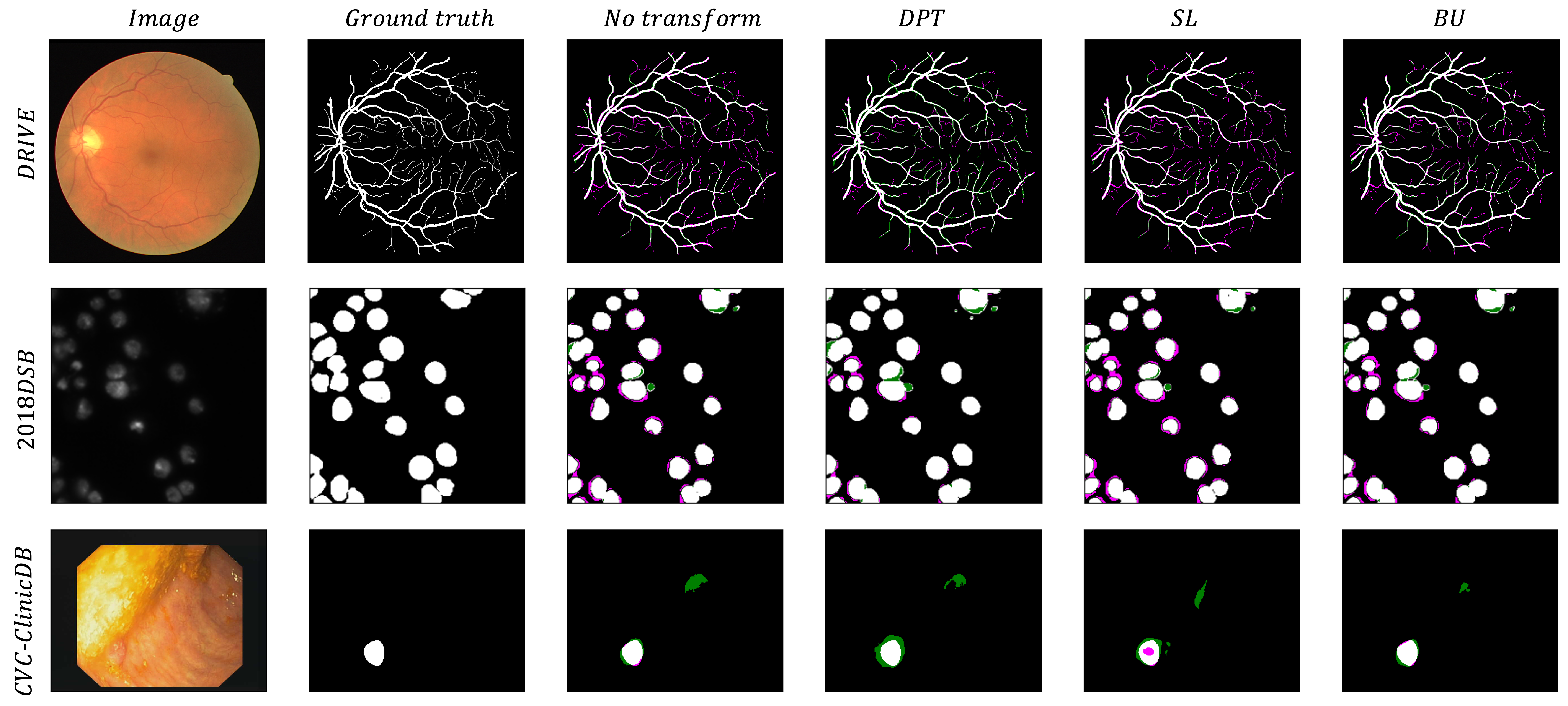

Figure 3: Example segmentations using each ground truth transformation for the three datasets. False positive and false negative predictions are highlighted in green and purple, respectively.

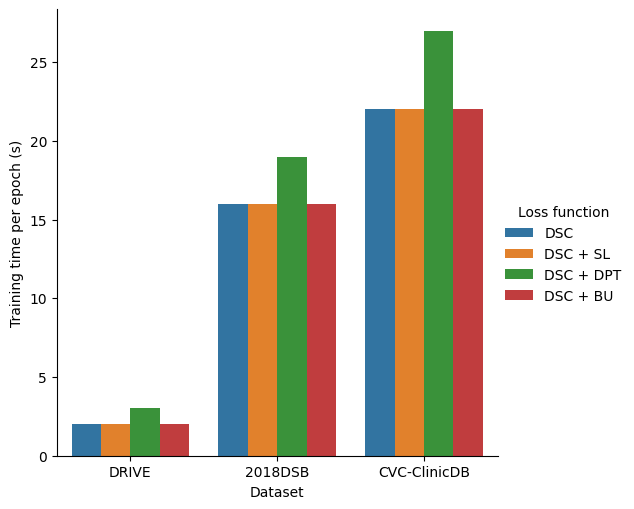

Figure 4: Efficiency comparisons of different ground truth transformations on the DRIVE, 2018DSB and CVC-ClinicDB datasets.

3.4 Efficiency comparisons of different ground truth transformations

Although ground truth transformations may be pre-computed prior to training, this is not possible when on-the-fly data augmentation is used. The training times using different ground truth transformations are shown in Fig. 4. Only DPT was associated with an increase in training time, demonstrating the efficiency of BU.

4 Conclusion

In this work, we developed a new ground truth transformation, known as BU, to reflect segmentation uncertainty, by using morphological operations to restrict SL to boundary regions. We demonstrated improved performance using BU over global SL and DPT, across three well-validated biomedical imaging datasets. Moreover, we showed how BU may be adapted to provide robustness to over and under-segmentation. Finally, we confirmed that BU is an efficient operation, with no increase in training time. Appreciating the underlying uncertainty with manual segmentations not only more accurately reflects the nature of manual segmentation with biomedical images, but may also improve model generalisation to unseen datasets by reducing overfitting.

5 Compliance with Ethical Standards

This research study was conducted retrospectively using open-source medical imaging datasets. Ethical approval was not required as confirmed by the license attached with the open access data.
