Problems, reported by users of software or hardware products - called tickets or cases, are often long and complex. Along with a description of the problem, users often report the setup, steps they have tried at mitigating the problem, and explicit requests. These problems also contain various non-natural language elements like snippets of code or commands tried, outputs of commands or software tools, error messages or stack traces, contents of log files or configuration files, and lists of key-value pairs. Figure 1 shows a sample support problem from AskUbuntu 111https://askubuntu.com/, where all such segments are labeled.
While these segments are important sources of information for the human reader, they are difficult to handle for systems built to automatically answer support problems. As noted in Gupta et al. (2018), the non-natural language segments lead to parsing mistakes, and errors in the understanding of support problems. Correctly identifying these segments can also augment problem understanding. For instance, a retrieval engine with error messages and their solutions indexed in distinct fields would return better results with a fielded query containing just the error message from the ticket. Specialized tools for log analysis He et al. (2016) could also be run specifically on the identified log segment of problems.

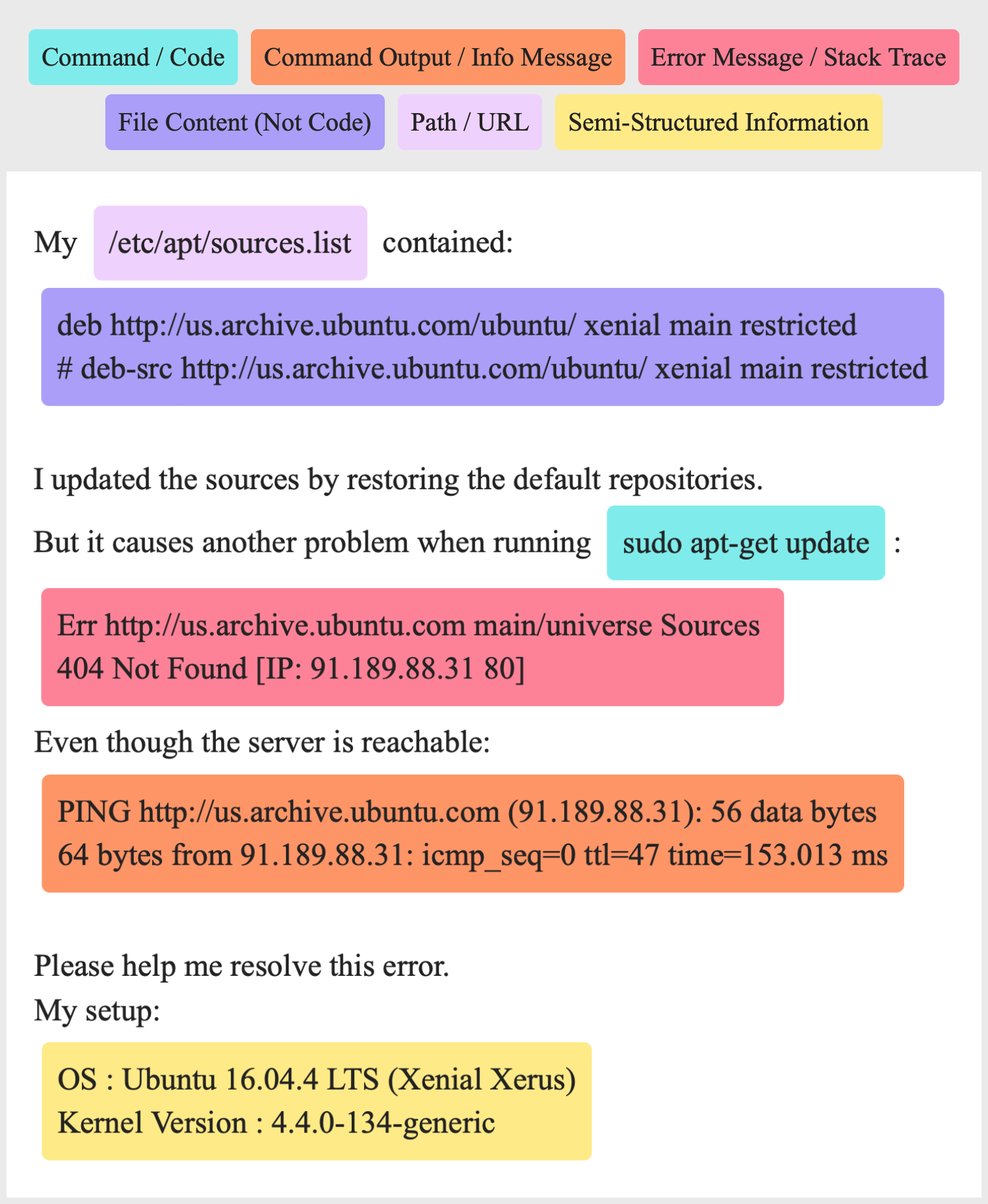

In this paper, we aim to address the problem of identifying and extracting these non-natural language segments from support tickets. In particular, we choose to focus on the following six segment labels which appear often in support tickets (also shown in Figure 1):
Command / Code: Includes terminal commands and programming code snippets
Command Output / Info Message: Includes outputs of successful command/code executions
Error Message / Stack Trace: Includes error traces resulting from unsuccessful command/code executions
File Content (Not Code): Includes contents of log files, configuration files, etc. which do not contain programming source code
Path / URL: Includes file paths or webpage URLs
Semi-Structured Information: Includes text which is structured in the form of key-value pairs, lists, etc., often used to convey system configurations or lists of components
We formulate the problem as a sequence labelling task, with word-level tags used to encode segments. To leverage the rich literature of supervised approaches in this framework, we also create a dataset with segments tagged for questions from AskUbuntu 222Data available at https://github.com/kushalchauhan98/ticket-segmentation.
Our contributions are as follows -
We introduce a novel task towards understanding technical support problems, which has implications on a variety of downstream applications. We also release a tagged dataset of problems for the task.
We benchmark the performance of state of the art sequence labelling models on the task, studying their performance and limitations. This hopefully provides direction for future research.
Given the relatively small size of tagged data, we also explore pre-training based approaches. Our model leverages activations from multiple language models pre-trained on different data sources, and we show how they can be used to improve performance on the task.
2 Related Work
Understanding technical support problems is a particularly difficult task, owing to the long text of problems. In Gupta et al. (2018), the authors propose that understanding can be approached by extracting attributes of the ticket that correspond to the description of the problem (symptom), steps taken for mitigation (attempt), and explicit requests (intent). They also propose a dependency parser-based approach for extracting these attributes. However, while this approach pays attention to the semantics of the problem, the syntactical idiosyncrasies are ignored.
The idea of segmenting of questions for improvements on downstream tasks is not new. In Wang et al. (2010), the authors propose an unsupervised graph-based approach for segmenting questions from Community Question Answering (cQA) websites into sub-questions and their related context sentences. The authors demonstrate improvements in question retrieval by using these segments for more granular similarity matching. Chrupała (2013) uses representations from a character-level language model for segmenting code spans in Stack Overflow posts. The author uses tags in HTML sources of posts for supervised training of a character level sequence labelling model. However, the tags in the posts usually include all forms of non-natural language text like code snippets, command outputs, error messages or stack traces, and file paths (See Fig 2). The resulting level of granularity is thus insufficient for effective application in downstream tasks such as automated problem resolution. The task of text-segmentation in itself has been well studied in the literature, with popular unsupervised approaches like TextTiling Hearst (1997) and C99 Choi (2000). While, the problem of ticket segmentation, as defined by us, involves both segmenting and identifying segment types, we compare the performance of a more recent supervised segmentation approach Koshorek et al. (2018) against our proposed model.
Significant amount of work has been done on using sequence labelling approaches for text segmentation tasks Huang et al. (2015); Chiu and Nichols (2016); Lample et al. (2016); Ma and Hovy (2016); Rei et al. (2016); Peters et al. (2017). In Wang et al. (2018) the authors use ELMo embeddings and a biLSTM-CRF based architecture with self-attention for the task of neural discourse segmentation. We adopt a similar architecture, and explore the effect of using pre-trained contextual embeddings on our task. Given the fact that different segments in technical support problems have very different vocabularies, we also explore leveraging pre-trained Language Models on a variety of different datasets.
|#Questions||Avg. #Words||Avg. #Spans|
Our dataset is derived from English questions on Ask Ubuntu. Questions posted on the website are similar to proprietary tech support tickets (in terms of question length, number of keywords/noun phrases, etc). We would like to point out that while posts on the website support the HTML tag, it is not granular enough for our downstream tasks. These tags are also often abused to present snippets of command outputs/error messages/file paths etc. Figure 2 shows examples of such questions. We also do not use other metadata available (like turn-based information) with the data dump because these are not available with proprietary tickets.
Tagging is performed at the word level, and we use the BIO tagging scheme. We have a pair of Begin and Inside tags for each of the 6 non-natural language segments, and natural language segments are labelled O, totalling to 13 tags. We use the Doccano tool 333https://github.com/chakki-works/doccano for labelling, which provides better support for labelling long chunks in big documents compared to other popular sequence labelling annotation tools.

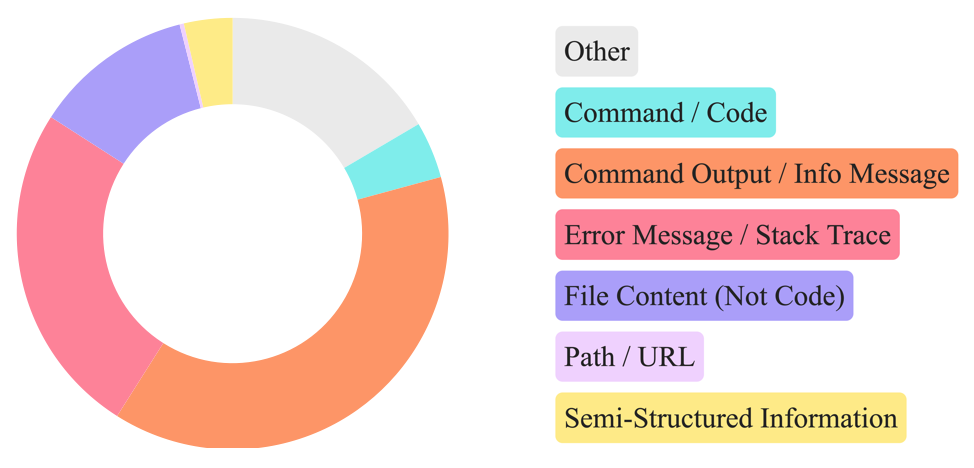

We obtain labelling for 1,317 questions, totalling to 11,580 spans (including spans labelled as O) and over 1.18 million words. We divide the data into 80:10:10 train, val, and test splits, at random. High-level statistics for the dataset are presented in Table 1. Figure 3 shows the average number of words per tag in the dataset. The tags Command Output and Error Message are relatively infrequent (1.2 and 0.6 per question) compared to the tag Command Code (2.1 per question), however, they cover a much larger fraction of words because they tend to be quite verbose.

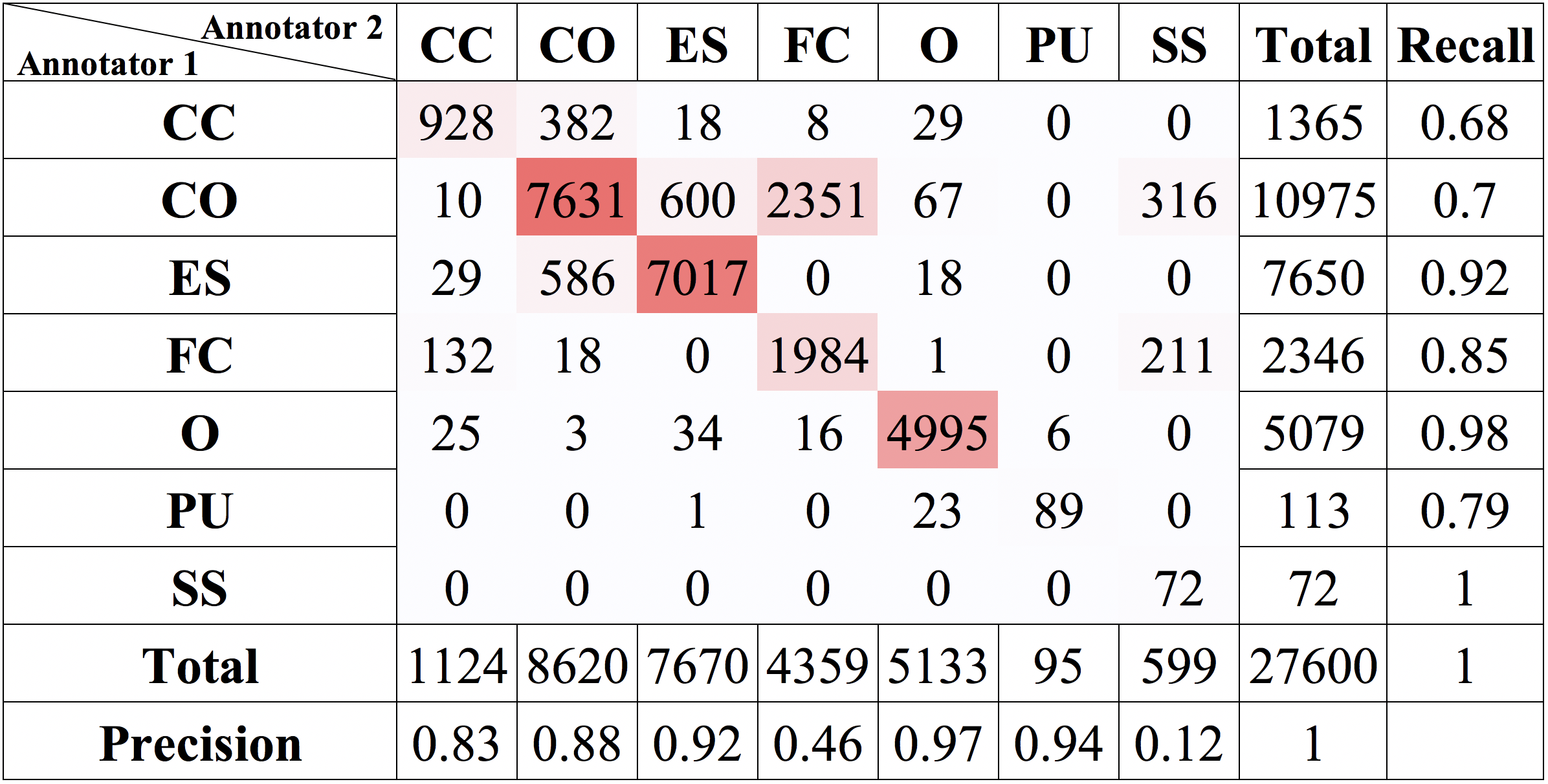

In Figure 4 we show the inter-annotator agreement between two annotators on 50 questions. Few of the label pairs with large off-diagonal values include -
Command Output - Error Message, which is understandable, as error messages are often interspersed in successful program runs. Conversely, unsuccessful program runs often contain a long train of success messages, only ending in one or few error logs.
Command Output - Semi-Structured Information and File Content - Semi-Structured Information. This kind of confusion is due to the presence of network configurations, commands to view these, and files that contain these. They’re often stored in configuration files as “key-value” pairs
Command Output - File Content. This particular confusion stems from the “cat” command, and its use to view the contents of files.
The low inter-annotator agreement () illustrates the inherent difficulty of the task. At this point, it’s important to note that while there’s some confusion in identifying labels for these segments, the need for these separate labels stems from downstream tasks.

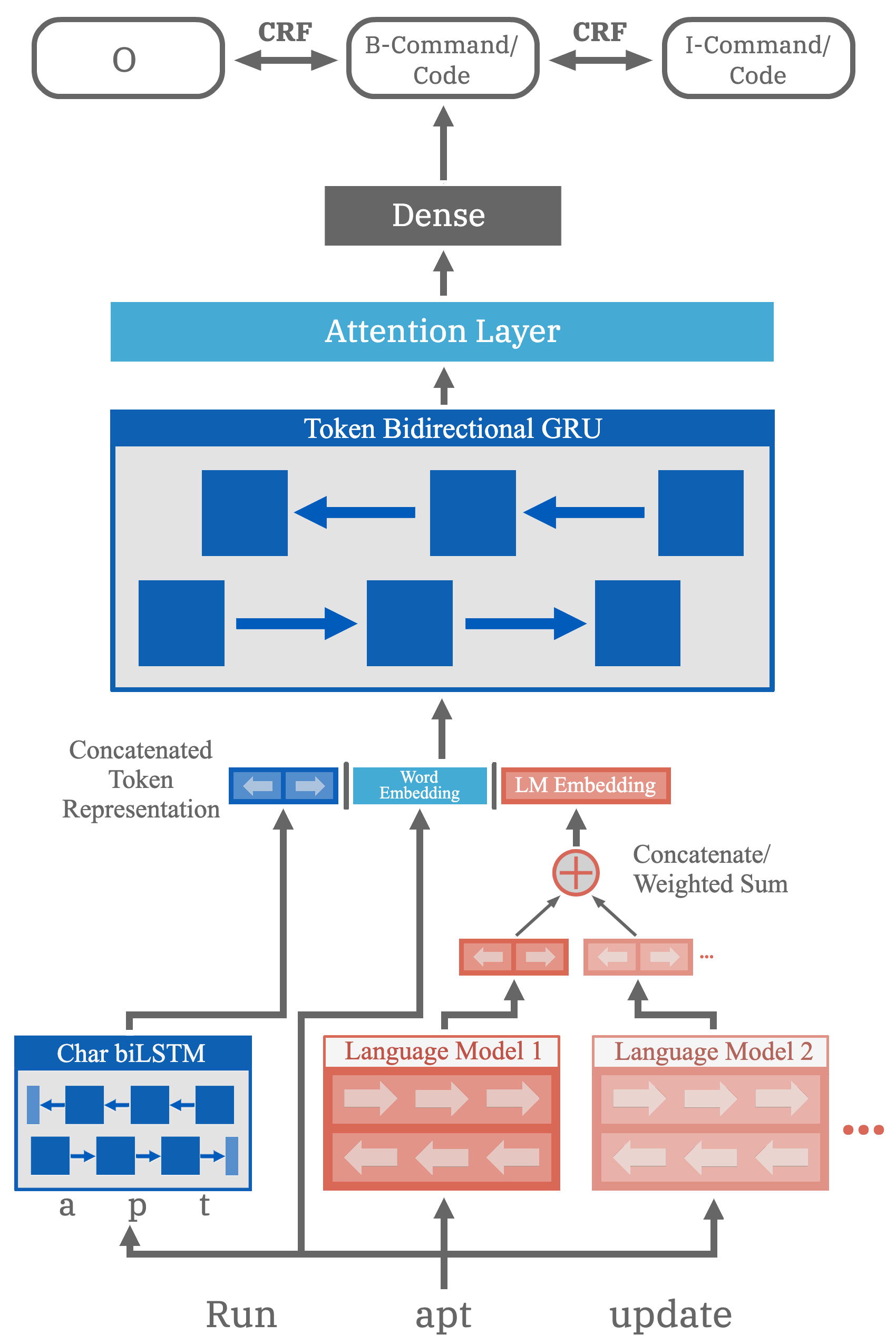

Given a technical support question, we formulate the segmentation problem as a sequence labelling task. It is an intuitive choice, given its efficacy for similar text segmentation problems like discourse segmentation Wang et al. (2018) and chunking Peters et al. (2017). Figure 5 presents an overview of our model. We explore different embeddings for each word (character-based embeddings, pre-trained embeddings, and pre-trained contextual embeddings). These word embeddings are then fed to a bi-directional GRU for encoding context. On the output of the GRU layer, we explore the effect of attention. Finally, the representations are passed to a CRF to decode the segment labels. We also study the impact of combining pre-trained contextual embeddings from multiple language models, trained on different data sources. In the rest of this section we detail individual components of the model.
4.1 Word Embeddings
For distributed word representations, we use skip-gram based word2vec embeddings (Mikolov et al., 2013) trained on all the questions from Ask Ubuntu. We also look at fastText word embeddings (Bojanowski et al., 2017)
, which enrich word vectors by using subword information, emitting plausible word representations for unseen or rare words, giving us a significant gain. We use a 300-dimensional embedding from both word2vec and fastText.
4.2 Character Embeddings
In addition to the word-level features we also use bi-directional LSTM based character-level features similar to Chiu and Nichols (2016), Lample et al. (2016), and Ma and Hovy (2016). These features encode rich character level information which can improve performance, especially in syntactic tasks. We obtain an 80-dimensional representation for each word through the character bi-LSTM, which is the concatenation of the last hidden state of the forward and backward LSTMs.
4.3 Contextual Embeddings from Language Models
Pre-trained contextual embeddings have been shown to work well on a wide variety of NLP tasks. In domains with relatively small task-specific training data, the gains have been substantial (McCann et al., 2017; Akbik et al., 2018; Peters et al., 2017). We also include contextual embeddings from the pre-trained bi-directional language model in ELMo (Peters et al., 2018).
We observe that the non-natural language segments exhibit wide differences in syntactic and semantic structure, as is evident from Fig 1. We propose contextual embeddings from multiple language models; each trained on a different data source - English text, code snippets, config/log file contents. We hypothesize that combined embeddings from language models trained on separate data sources can capture word relationships better and can give richer word representations, as opposed to a single model trained on a large English corpora.
For combining multiple contextual embeddings, we explore two techniques - (1) a naive concatenation, and (2) a weighted sum, with weights learned from context-independent DME (Dynamic Meta-Embeddings) and context-dependent CDME (Contextualised Dynamic Meta-Embeddings) self-attention mechanisms as proposed by Kiela et al. (2018).
4.3.1 DME and CDME
When using embeddings from different LMs for a training instance with tokens , we get contextual embeddings .
For computing the weighted sum, the embeddings from multiple LMs are first projected to a common -dimensional space by learned linear functions:
where and . The projected embeddings are then combined with a weighted sum
where are scalar weights. In DME, they are learned with the self-attention mechanism:
where and are learned parameters and is the softmax function.
For CDME, the self-attention mechanism is made context-dependent:
where is the hidden state of a bi-directional LSTM which takes as input, and . is the number of hidden units in this LSTM, and it is set to 2 as in the original paper.
4.3.2 Data Sources for pre-trained LMs
In addition to the pre-trained ELMo model, we train three additional language models on different data sources. Each of these are also trained with the ELMo architecture. The pre-trained model emits word embeddings of size 1024, while each of our domain-specific models emit embeddings of size 256.
Code LM: This LM was trained on a concatenation of all text inside the tags of Ask Ubuntu, Super User, and Unix Stack Exchange posts. The total size of this corpus was approximately 400 MB.
Config LM: This LM was trained on a corpus of configuration and log files present in the system folders of Mac OS and Ubuntu installations. The total size of the corpus was about 60 MB.
In Wang et al. (2018)
, the authors experiment with a restricted attention mechanism on top of the LSTM hidden representations. This is not appropriate for our task since the questions are fairly long (averaging around 900 words) and signals indicating the start or end of a segment might appear far away. Since RNNs are known to be poor at modelling very long-distance dependencies, we also experiment with the inclusion of the Scaled Dot-Product Attention layer(Vaswani et al., 2017) on top of the bi-directional GRU. This attention layer requires the computation of 3 matrices (Key, Query, Value) from the RNN hidden states, which entails a large number of extra parameters to be learned. Therefore, we also try a version of attention where all the three matrices are set equal to the hidden states of the GRU. We call these two approaches “weighted” and “un-weighted” attention, in our experiments.
5 Experimental Setup
With the setup above, we study the performance of various model components on the task of segmenting support problems. To put the performance in perspective, we also compare against three baselines detailed in Section 5.1
. The evaluation metrics are carefully selected, avoiding an exact evaluation of such long and noisy segments, and rewarding partial retrieval of segments. The chosen evaluation metric is discussed in Section5.2. Finally, to demonstrate the usefulness of the task, we evaluate the performance of answer retrieval with segmentation (Section 5.3).
All baselines and sequence labelling models are trained on the train split, and fine-tuned on the validation split. For the baselines, we only tune the regularization strength parameter. For the sequence labelling model, we tune the dropout and recurrent dropout parameters, as well as the learning rate. Our best performing models have a dropout of 0.3, recurrent dropout of 0, and learning rate of 1e-3. All results are then reported on the test split.
The task of segmenting technical support problems can be thought to be comprised of two distinct sub-tasks - (1) segmentation of text, (2) identification of the segment label. With these in mind, we propose 3 baseline methods -
Sentence Only Baseline - Segmentation is done trivially with newlines and sentence boundaries serving as segment boundaries. The label for a segment is determined using just the current sentence as input.
Sentence Context Baseline - Segmentation is done identically to the Sentence Only baseline. The label for a segment is determined using the immediate neighbouring sentences along with the current sentence as input.
Supervised Text Segmentation Baseline - Segments are identified with the supervised algorithm for segmenting text as described in Koshorek et al. (2018). The label for each segment is identified with all the text contained in it as input.
For training the supervised text segmentation model from Koshorek et al. (2018) we use the whole data dump from AskUbuntu, with the and html tags serving as segment boundaries.
5.2 Evaluation Metrics
Segments in our dataset are typically quite long, therefore evaluation based on an exact match is quite harsh. Keeping this in mind, we resort to soft precision and recall metrics. We adopt proportional overlap based metrics, used for the task of opinion expression detection, as proposed byJohansson and Moschitti (2010).
Towards the calculation of soft precision and recall, consider two spans and with labels and respectively. The span coverage, , is defined as how well is covered by :
Using span coverage, the span set coverage of a set of spans with respect to another set of spans is computed as follows:
Using the span set coverage, we can now define the soft precision and recall of a predicted set of spans with respect to the gold standard set of spans :
In this equation, the operator counts the no. of spans in the span set.
An important task in the automation of technical support is the retrieval of the most relevant answer document for a given ticket (from a corpus of product documentation, FAQ docs, frequent procedures). In this experiment we demonstrate the usefulness of segmenting support tickets towards this goal. We index the text of about 250,000 answers from AskUbuntu with ElasticSearch 444https://www.elastic.co/products/elasticsearch. Answers with a large number of downvotes, and very short answers are ignored. We use questions from our annotated dataset as search queries. We then compare the retrieval performance of querying with the whole question against a query with separate fields corresponding to each segment. In the fielded query, we set different boost values for the identified segments. Boosting a specific segment of the question with a higher value causes it to have more significance in the relevance score calculation in ElasticSearch. To decide the boost values, we calculate the average percentage word overlap between a segment in the question and its correct answer from AskUbuntu on the train and val sets. To compare retrieval performance, we evaluate the Mean Reciprocal Rank (MRR) of the correct answer for questions in the test set.
|Sent. Only Baseline||47.77||31.75||38.15|
|Sent. Context Baseline||52.52||34.03||41.3|
|Supervised Text Segmentation Baseline||44.13||40.43||42.20|
|SL w/o LM embeddings||74.57||75.51||75.04|
|SL + pre-trained ELMo||76.88||74.49||75.67|
|SL + CDME combined pre-trained Embeddings||78.30||79.29||78.80|
Table 2 presents evaluation metrics for the three baselines against three variants of our sequence labelling model. The first variant does not use pre-trained embeddings from language models, the second uses just pre-trained ELMo, while the third combines pre-trained embeddings from multiple language models using CDME. All three variants use fastText for word embeddings (refer Section 6.1), character-based embeddings, and do not have attention mechanism before the final CRF layer (refer Section 6.2).
As one would expect, the Context Baseline performs much better than the Sentence Only Baseline. The sequence labelling models, however, outperform both the baselines by a huge margin, demonstrating the effectiveness of the model on the task. Specifically, the best performance is achieved by combining pre-trained embeddings from multiple language models trained on different data sources. It significantly outperforms the model using embeddings from a single pre-trained model on English (explored in Section 6.3).
In the following section we present results from the various model components we explored.
6.1 Effect of fastText
Row 1 and 4 in Table 3
presents the comparison between models using word embeddings from word2vec and fastText. Both word2vec and fastText embeddings are trained on all posts in the Ask Ubuntu dataset. As we can see, fastText gives a marked improvement over using embeddings from word2vec. This is probably due to the nature of the vocabulary in our task. Since large portions of questions are spans ofcommand output or error messages
a lot of tokens appear very rarely. In fact, out of the 62,501 unique tokens in the dataset, 57% appear just once, and 78% appear 3 or fewer times. However, the characters in these tokens are probably very informative (for example “http” in a token would signal that the token is a URL). Therefore, fastText, which uses n-grams from a token to compute embeddings, would emit more meaningful representations.
. While the cosine similarity of Word2Vec vectors for the two is, the similarity between the fastText vectors is .
|Word2Vec (w/o Attn)||65.20||58.59||61.72|
|+ weighted Attn.||62.34||57.0||59.55|
|+ un-weighted Attn.||69.21||56.15||62.0|
6.2 Effect of Attention
Given the long tickets in our dataset, and un-reasonably long lengths of spans for labels like command output or error messages, we explored the usefulness of attention in our model. We used the Scaled Dot-Product Attention as in Vaswani et al. (2017). Rows 2 and 3 in Table 3 present the results of using attention. We find that weighted attention actually hurts performance. This could be because of the large number of extra parameters introduced in the calculation of Key, Value, and Query matrices. While the un-weighted version gets around this by using the bi-directional GRU hidden states as all 3 matrices, it doesn’t improve results significantly either.
6.3 Effect of Contextual Pre-Trained Embeddings
As detailed in Section 4.3, we explore the impact of pre-trained contextual embeddings. We also test our hypothesis, that combining pre-trained embeddings from different data sources would perform better on our task than using embeddings from a language model trained on a single data source. The combination is also performed in two ways - naive concatenation of embeddings from all language models, and weighted combination using DME and CDME as in Kiela et al. (2018).
|Simple Concat - 1 (en)||76.88||74.49||75.67|
|Simple Concat - 2 (en + config)||77.67||76.12||76.89|
|Simple Concat - 3 (en + code + config)||79.64||77.72||78.67|
|Simple Concat - 4 (ALL)||76.05||76.65||76.35|
Table 4 summarizes these results. For the simple concatenation method, we present results for the best -way combination of embeddings from different data sources, for each (1, 2, 3, and 4). We find that combining embeddings from multiple language models trained on different data sources considerably outperforms using embeddings from a single pre-trained model (using both the naive concatenation and CDME). This is an artifact of the support problems containing large sections of non-natural language text. We also find that contextual weighting does better than a simple concatenation.
6.4 Retrieval of the Correct Answer
|Segmented Question - Gold||0.300|
|Segmented Question - Predicted||0.298|
Table 5 presents results for the retrieval experiment. We show that weighing identified segments of the question with separate weights improves retrieval of the correct answer over a query with all tokens from the question. We also present results from the gold annotations of segments for these questions, as an upper-bound of the performance improvement we can hope to achieve.
In this paper, we introduce and address an important problem towards a better understanding of support tickets - segmentation of various non-natural language segments. We create an annotated dataset for the task, on questions from the publicly available website, Ask Ubuntu. We also study the performance of the most recent Recurrent Neural Network-based approaches to sequence labelling, on this task. In the end, we propose the novel idea of combining pre-trained embeddings from language models trained on different data sources, which substantially improves performance. We also demonstrate the usefulness of the task with improvements in retrieval of the correct answer. Our future research direction includes a thorough study of differences in this dataset with actual tickets, and potential for transfer. It is still valuable to study models on open datasets, however, as these are readily available to the community.
