1 Introduction
Boolean satisfiability (SAT) is an important problem for both industry and academia impacting various fields, including circuit design, computer security, artificial intelligence, automatic theorem proving, and combinatorial optimization. As a result, modern SAT solvers are wellcrafted, sophisticated, reliable pieces of software that can scale to problems with hundreds of thousands of variables
(ohrimenko2009propagation).SAT is known to be NPcomplete (karp1972reducibility), and most stateoftheart opensource and commercial solvers rely on multiple heuristics
to speed up the exhaustive search, which is otherwise intractable. These heuristics are usually meticulously crafted using expert domain knowledge and are often iterated on using trial and error. In this paper, we investigate how we can use machine learning to improve upon an existing branching heuristic without leveraging domain expertise.
We present GraphQSAT (GQSAT), a branching heuristic in a Conflict Driven Clause Learning (marques1999grasp; bayardo1997using, CDCL) SAT solver trained with valuebased reinforcement learning (RL), based on DQN (mnih2015human). GQSAT uses a graph representation of SAT problems similar to selsam2018learning which provides permutation and variable relabeling invariance. It uses a Graph Neural Network (gori2005new; battaglia2018relational, GNN) as a function approximator to provide generalization as well as support for a dynamic stateaction space. GQSAT uses a simple state representation and a binary reward that requires no feature engineering or problem domain knowledge. GQSAT modifies only part of the CDCL based solver, keeping it complete, i.e. always leading to a correct solution.
We demonstrate that GQSAT outperforms Variable State Independent Decaying Sum (moskewicz2001chaff, VSIDS), most frequently used CDCL branching heuristic, reducing the number of iterations required to solve SAT problems by 23X. GQSAT is trained to examine the structure of the particular problem instance to make better decisions at the beginning of the search whereas the VSIDS heuristic suffers from bad decision during the warmup period. We show that our method generalizes to problems five times larger than those it was trained on. We also show that our method generalizes across problem types from SAT to unSAT. We also show, to a lesser extent, it generalizes to SAT problems from different domains, such as graph colouring. Finally, we show that some of these improvements are achieved even when training is limited to single SAT problem demonstrating data efficiency of our method. We believe GQSAT is a stepping stone to a new generation of SAT solvers leveraging data to build better heuristics learned from past experience.
2 Background
2.1 SAT problem
A SAT problem involves finding variable assignments such that a propositional logic formula is satisfied or showing that such an assignment does not exist. A propositional formula is a Boolean expression, including Boolen variables, ANDs, ORs and negations. ’x’ or ’NOT x’ make up a literal. It is convenient to represent Boolean formulas in conjunctive normal form (CNF), i.e., conjunctions (AND) of clauses, where a clause is a disjunction (OR) of literals. An example of a CNF is , where are AND, OR, and negation respectively. This CNF has two clauses: and . In this work, we use SAT to both denote the Boolean Satisfiability problem and a satisfiable instance, which should be clear from the context. We use unSAT to denote unsatisfiable instances.
There are many types of SAT solvers. In this work, we focus on CDCL solvers, MiniSat (sorensson2005minisat) in particular, because it is an open source, minimal, but powerful implementation. A CDCL solver repeats the following steps: every iteration it picks a literal, assigns a variable a binary value. This is called a decision. After deciding, the solver simplifies the formula building an implication graph, and checks whether a conflict emerged. Given a conflict, it can infer (learn) new clauses and backtrack to the variable assignments where the newly learned clause becomes unit (consisting of a single literal) forcing a variable assignment which avoids the previous conflict. Sometimes, CDCL solver undoes all the variable assignments keeping the learned clauses to escape futile regions of the search space. This is called a restart.
We focus on the branching heuristic because it is one of the most heavily used during the solution procedure. The branching heuristic is responsible for picking the variable and assigning some value to it. VSIDS (moskewicz2001chaff) is one of the most used CDCL branching heuristics. It is a counterbased heuristic which keeps a scalar value for each literal or variable (MiniSat uses the latter). These values are increased every time a variable gets involved in a conflict. The algorithm behaves greedily with respect to these values called activities. Activities are usually initialized with zeroes (liang2015understanding).
2.2 Reinforcement Learning
We formulate the RL problem as a Markov decision process (MDP). An MDP is a tuple
with a set of states , a set of actions , a reward function and the transition function , whereis a probability distribution,
. is the probability distribution over initial states. is the discount factor responsible for trading off the preferences between the current immediate reward and the future reward. To solve an MDP means to find an optimal policy, a mapping which outputs an action or distribution over actions given the state, such that we maximize the expected discounted cumulative return , where is the reward for the transition from to .In Section 3 we apply deep networks (mnih2015human, DQN), a valuebased RL algorithm that approximates an optimal
function, an actionvalue function that estimates the sum of future rewards after taking an action
in state and following the optimal policy thereafter: . A mean squared temporal difference (TD) error is used to make an update step: . is called a target network (mnih2015human). It is used to stabilise DQN by splitting the decision and evaluation operations. Its weights are copied from the main network after each minibatch updates.2.3 Graph Neural Networks
We use Graph Neural Networks (gori2005new, GNN) to approximate our function due to their input size, structure, and permutation invariance. We use the formalism of battaglia2018relational which unifies most existing GNN approaches. Under this formalism, GNN is a set of functions that take a labeled graph as input and output a graph with modified labels but the same topology.
Here, a graph is a directed graph , where is the set of vertices, is the set of edges with , and
is a global attribute. The global attribute contains information, relevant to the whole graph. We call vertices, edges and the global attribute entities. Each entity has its features vectors. A GNN changes this features as a result of its operations.
A graph network can be seen as a set of six functions: three update functions and three aggregation functions. The information propagates between vertices along graph edges. Update functions compute new entity labels. Aggregation functions exist to ensure the GNN’s ability to process graphs of arbitrary topologies, compressing multiple entities features into vectors of fixed size. GNN blocks can be combined such that the output of one becomes input of the other. For example, the EncodeProcessDecode architecture (battaglia2018relational) processes the graph in a recurrent way, enabling information propagation between remote vertices.
3 Gqsat
We represent the set of all possible SAT problems as an MDP. The state of such an MDP consists of unassigned variables and unsatisfied clauses. The action set includes two actions for each unassigned variable: assigning it to true or false. The initial state distribution is a distribution over all SAT problems. We modify the MiniSatbased environment of wang2018gameplay which is responsible for the transition function. It takes the actions, modifies its implication graph internally and returns a new state, containing newly learned clauses and without the variables removed after the propagation. Strictly speaking, this state is not fully observable. In the case of a conflict, the solver undoes the assignments for variables that are not in the agent’s observation. However, in practice, this should not inhibit the goal of quickly pruning the search tree: the information in the state is enough to pick a variable that leads to more propagations in the remaining formula.
We use a simple reward function: the agent gets a negative reinforcement for each nonterminal transition and for reaching the terminal state. This reward encourages an agent to finish an episode as quickly as possible and does not require elaborate reward shaping to start using GQSAT.
3.1 State Representation
We represent a SAT problem as a graph similar to selsam2018learning. We make it more compact, using vertices to denote variables instead of literals. We use nodes to encode clauses as well.
Our state representation is simple and does not require scrupulous feature engineering. An edge means that a clause contains literal . If a literal contains a negation, a corresponding edge has a label and otherwise. GNN process directed graphs so we create two directed edges with the same labels: from a variable to a clause and viceversa. Vertex features are two dimensional onehot vectors, denoting either a variable or a clause. We do not provide any other information to the model. The global attribute input is empty and is only used for message passing. Figure 0(a) gives an example of the state for .
3.2 Qfunction representation
We use the encodeprocessdecode architecture (battaglia2018relational), which we discuss in more detail in Appendix B.1. Similarly to bapst2019structured, our GNN labels variable vertices with values. Each variable vertex has two actions: pick the variable and set it to true or false as shown on Figure 0(b). We choose the action which gives the maximum Qvalue across all variable vertices. The graph contains only unassigned variables so all actions are valid. We use common DQN techniques such as memory replay, target network and greedy exploration. To expose the agent to more episodes and prevent it from getting stuck, we cap the maximum number of actions per episode. This is similar to the episode length parameter in gym (openaigym).
3.3 Training and Evaluation Protocol
We train our agent using Random 3SAT instances from the SATLIB benchmark (hoos2000satlib). To measure generalization, we split these data into train, validation and test sets. The train set includes 800 problems, while the validation and test sets are 100 problems each. We provide more details about dataset in Appendinx B.2.
To illustrate the problem complexities, Table 2 provides the number of steps it takes MiniSat to solve the problem. Each random 3SAT problem is denoted as SATXY or unSATXY, where SAT means that all problems are satisfiable, unSAT stands for all problems are unsatisfiable. X and Y stands for the number of variables and clauses in the initial formula.
While random 3SAT problems have relatively small number of variables/clauses, they have an interesting property which makes them more challenging for a solver. For this dataset, the ratio of clauses to variables is close to 4.3:1 which is near the phase transition, when it is hard to say whether the problem is SAT or unSAT (cheeseman1991really). In 3SAT problems each clause has exactly 3 variables, however, learned clauses might be of arbitrary size and GQSAT is able to deal with it.
We use Median Relative Iteration Reduction (MRIR) w.r.t. MiniSat as our main performance metric which is a number of iterations it takes MiniSat to solve a problem divided by GQSAT’s number of iterations. By one iteration we mean one decision, i.e. choosing a variable and setting it to a value. MRIR is the median across all the problems in the dataset. We compare ourselves with the best MiniSat results having run MiniSat with and without restarts. We cap the number of decisions our method takes at the beginning of the solution procedure and then we give control to MiniSat.
When training, we evaluate the model every 1000 batch updates on the validation subsets of the same distribution as the train dataset and pick the one with the best validation results. After that, we evaluate this model on the test dataset and report the results. For each of the model we do 5 training runs and report the average MRIR results, the maximum and the minimum.
dataset  median  mean
SAT 50218  38  42
SAT 100430  232  286
SAT 2501065  62 192  76 120
unSAT 50128  68  68
unSAT 100430  587  596
unSAT 2501065  178 956  182 799
dataset  mean  min  max
SAT 50218  2.46  2.26  2.72
SAT 100430  3.94  3.53  4.41
SAT 2501065  3.91  2.88  5.22
unSAT 50128  2.34  2.07  2.51
unSAT 100430  2.24  1.85  2.66
unSAT 2501065  1.54  1.30  1.64
We implement our models using Pytorch
(paszke2017automatic) and Pytorch Geometric (Fey/Lenssen/2019). We provide all the hyperparameters needed to reproduce our results in Appendix
B. We will release our experimental code as well as the MiniSat gym environment.4 Experimental results
4.1 Improving upon VSIDS
In our first experiment, we consider whether it is possible improve upon VSIDS using no domain knowledge, a simple state representation, and a simple reward function. The first row in Table 2 gives us a positive answer to that question. DQN equipped with GNN as a function approximation solves the problems in fewer than half the iterations of MiniSat.
GQSAT makes decisions resulting in more propagations, i.e., inferring variable values based on other variable assignments and clauses. This helps GQSAT prune the search tree faster. For SAT50218, GQSAT does on average 2.44 more propagations than MiniSat (6.62 versus 4.18). We plot the average number of variable assignments for each problem individually in the Appendix A.
These results raise the question: Why does GQSAT outperform VSIDS? VSIDS is a counterbased heuristic that takes time to warm up. Our model, on the other hand, perceives the whole problem structure and can make more informed decisions from step one. To check this hypothesis, we vary the number of decisions our model makes at the beginning of the solution procedure before we hand the control back to VSIDS. The results of the experiment in Figure 3 support this hypothesis. Even if our model is used for only the first ten iterations, it still improves performance over VSIDS.
One strength of GQSAT is that VSIDS keeps being updated while the decisions are made with GQSAT. We believe that GQSAT complements VSIDS by providing better quality decisions in the initial phase while VSIDS is warming up. Capping the number of model calls can significantly reduce the main bottleneck of our approach – wall clock time spent on model evaluation. Optimizing for speed was not our focus, however even with the current unoptimized implementation, if we use the model for the first 500 iterations and assuming this gives us a 2x reduction in total iterations, our approach is competitive if it takes more than 20 seconds for a base solver to solve the problem.
4.2 Generalization Properties of GQSAT
4.2.1 Generalization across problem sizes
Table 2 shows that GQSAT has no difficulties generalizing to bigger problems, showing almost 4x improvement in iterations for the dataset 5 times bigger than the training set. GQSAT on average leads to more variable assignments changes per step, e.g., 7.58 vs 5.89 on SAT100430. It might seem surprising that the model performs better for larger problems. However, our performance metric is relative. An increase in score for different problem sizes might also mean that the base solver scales worse than our method does for this benchmark.
4.2.2 Generalization from SAT to unSAT
An important characteristic of GQSAT is that the problem formulation and representation makes it possible to solve unSAT problems when training only on SAT, which was problematic for some of the existing approaches (selsam2018learning).
The performance is, however, worse than the performance on satisfiable problems. On the one hand, SAT and unSAT problems are different. When the solver finds one satisfying assignment, the problem is solved. For unSAT, the algorithm needs to exhaust all possible options to prove that there is no such assignment. On the other hand, there is one important similarity between these two types of problems – an algorithm has to prune the search tree as fast as possible. Our measurements of average propagations per step demonstrate that GQSAT learns how to prune the tree more efficiently than VSIDS (6.36 vs 4.17 for unSAT50218).
4.2.3 Generalization across problem structures
SAT problems have distinct structures. The graph representation of a random 3SAT problem looks much different than that of a graph coloring problem. To investigate how much our model, trained on SAT50, can generalize to problems of different structures, we evaluate it on the flat graph coloring benchmark from SATLIB (hoos2000satlib). All the problems in the benchmark are satisfiable.
dataset  variables  clauses  MiniSat median iterations  GQSAT MRIR
average  min  max
flat3060  90  300  10  1.51  1.25  1.65
flat50115  150  545  15  1.36  0.47  1.80
flat7580  225  840  29  1.40  0.31  2.06
flat100239  300  1117  55  1.44  0.31  2.38
flat125301  375  1403  106  1.02  0.32  1.87
flat150360  450  1680  179  0.76  0.37  1.40
flat175417  525  1951  272  0.67  0.44  1.36
flat200479  600  2237  501  0.67  0.54  0.87
Table LABEL:tab:gen2color shows a decrease in GQSAT performance when generalizing to another problem distribution. We believe there are two potential reasons. First, different SAT problem distributions have different graph properties that are not captured during training on another distribution. Second, this might be related to our model selection process which does not favor generalization across problem structures.
Table LABEL:tab:gen2color shows that graph coloring problems have more variables. We conducted an experiment investigating GQSAT’s ability to scale to larger problems (more variables, more clauses). We trained GQSAT on flat75180 with problems of 225 variables and 840 clauses. Graph Coloring benchmarks have only 100 problems each, so we do not split them into train/validation/test dataset using flat7580 for training and flat100239
to do model selection. We use the same hyperparameters as in all previous experiments changing only the gradient clipping parameter to 0.1. The results on Table
4 show that GQSAT can scale to bigger problems on the flat graph coloring benchmark.Apart from scaling to bigger graphs, we could test scaling for longer episodes. Table 2
shows exponential growth in the number of iterations it takes MiniSat to solve larger problems. Our preliminary experiments show that generalizing is easier than learning. Learning on SAT100430 requires more resources, does not generalize as well, and is generally less stable than training on SAT50218. This is most likely related to higher variance in the returns caused by longer episodes, challenges for temporal credit assignment, and difficulties with exploration, motivating further research. It also motivates curriculum learning as the next step of GQSAT development.
bapst2019structured shows a positive effect of curriculum learning on RL with GNN.dataset  GQSAT MRIR
average  min  max
flat75180  2.44  2.25  2.70
flat100239  2.89  2.77  2.98
flat3060  1.74  1.33  2.00
flat50115  2.08  2.00  2.13
flat125301  2.43  2.20  2.66
flat150360  2.07  2.00  2.11
flat175417  1.98  1.69  2.21
flat200479  1.70  1.38  1.98
4.3 Data Efficiency

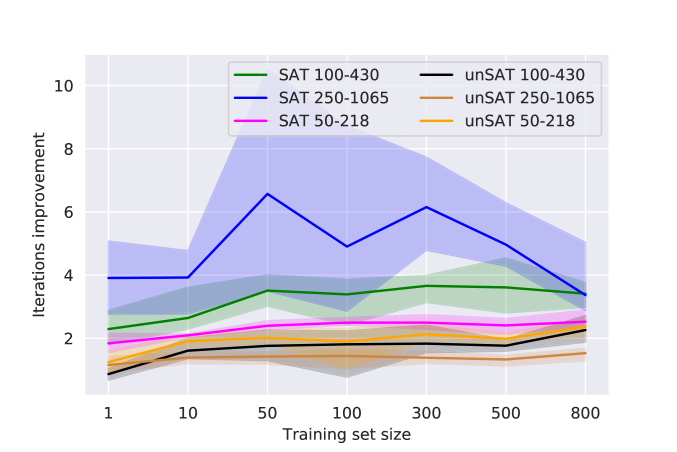

We design our next experiment to understand how many different SAT problems GQSAT needs to learn from. We varied the SAT50218 train set from a single problem to 800 problems. Figure 3 demonstrates that GQSAT is extremely data efficient. Having more data helps in most cases but, even with a single problem, GQSAT generalizes across problem sizes and to unSAT instances. This should allow GQSAT to generalize to new benchmarks without access to many problems from it.
5 Related Work
Using machine learning for the SAT problem is not a new idea (haim2009restart; grozea2014can; flint2012perceptron; singh2009avatarsat). xu2008satzilla propose a portfoliobased approach which yielded strong results in 2007 SAT competition. liang2016learning treat each SAT problem as a multiarmed bandit problem capturing variables’ ability to generate learnt clauses.
Recently, SAT has attracted interest in the deep learning community. There are two main approaches: solving a problem endtoend or learning heuristics while keeping the algorithm backbone the same.
selsam2018learningtake an endtoend supervised learning approach demonstrating that GNN can generalize to SAT problems bigger than those used for training. NeuroSAT finds satisfying assignments for the SAT formulae and thus cannot generalize from SAT to unSAT problems. Moreover, the method is incomplete and might generate incorrect results, which is extremely important especially for unSAT problems.
selsam2019guiding modify NeuroSAT and integrate it into popular SAT solvers to improve timing on SATCOMP2018 benchmark. While the approach shows its potential to scale to large problems, it requires an extensive training set including over 150,000 data points. amizadeh2018learning propose an endtoend GNN architecture to solve circuitSAT problems. While their model never produces false positives, it cannot solve unSAT problems.The following methods take the second approach learning a branching heuristic instead of learning an algorithm endtoend. jaszczur2019heuristics take the supervisedlearning approach using the same graph representation as in selsam2018learning. The authors show a positive effect of combining DPLL/CDCL solver with the learnt model. As in selsam2018learning, their approach requires a diligent process of the test set crafting. Also, the authors do not compare their approach to the VSIDS heuristic, which is known to be crucial component of CDCL (katebi2011empirical).
wang2018gameplay, whose environment we took as a starting point, show that DQN does not generalize for 2091 3SAT problems, whereas Alpha(GO) Zero does. Our results show that the issue is related to the state representation. They use CNNs, which are not invariant to variable renaming or permutations. Moreover, CNNs require a fixed input size which makes it infeasible when applying to problems with different number of variables or clauses.
The work of lederman2018learning is closest to ours. They train a REINFORCE (williams1992simple) agent to replace the branching heuristic for Quantified Boolean Formulas using GNNs for function approximation. They note positive generalization properties across the problem size for problems from similar distributions. Besides the base RL algorithm and some minor differences, our approaches differ mainly in the state representation. They use 30 variables for the global state encoding and seven variables for vertex feature vectors. GQSAT does not require feature engineering to construct the state. We use only two bits to distinguish variables from clauses and encode literal polarities. Also, lederman2018learning use separate vertices for and in the graph representation.
vinyals2015pointer introduce a recurrent architecture for approximately solving complex geometric problems, such as the Traveling Salesman Problem (TSP), approaching it in a supervised way. bello2016neural consider combinatorial optimization problems with RL, showing results on TSP and the Knapsack Problem. khalil2017learning approach combinatorial optimization using GNNs and DQN, learning a heuristic that is later used greedily. It is slightly different from the approach we take since their heuristic is effectively the algorithm itself. We augment only a part of the algorithm – the branching heuristic. paliwal2019graph
use GNN with imitation learning for theorem proving.
carbune2018smartchoices propose a general framework of injecting an RL agent into existing algorithms.cai2019reinforcement use RL to find a suboptimal solution that is further refined by another optimization algorithm, simulated annealing (kirkpatrick1983optimization, SA) in their case. The method is not limited with SA, and this modularity is valuable. However, there is one important drawback of the approach. The second optimization algorithm might benefit more from the first algorithm if they are interleaved. For instance, GQSAT can guide search before VSIDS overcomes its initialization bias.
Recently, GNN received a lot of attention in the RL community, enabling the study of RL agents in state/action spaces of dynamic size, which is crucial for generalization beyond the given task. wang2018nervenet and sanchez2018graph consider GNN for the generalization of the control problem. bapst2019structured investigate graphbased representation for the construction task and notice high generalization capabilities of their agents. jiang2018graph; aleks2018deep; agarwal2019learning study generalization of the behaviour in multiagent systems, noting the GNN benefits due to their invariance to the number of agents in the team or other environmental entities.
6 Conclusion and Future Work
In this paper, we introduced GQSAT, a branching heuristic of a SAT solver that causes more variable propagations per step solving the SAT problem in fewer iterations comparing to VSIDS. GQSAT uses a simple state representation and does not require elaborate reward shaping. We demonstrated its generalization abilities, showing more than 23X reduction in iterations for the problems up to 5X larger and 1.52X from SAT to unSAT. We showed how GQSAT improves VSIDS and showed that our method is data efficient. While our method generalizes across problem structures to a lesser extent, we showed that training on data from other distributions might lead to further performance improvements. Our findings lay the groundwork for future research that we outline below.
Scaling GQSAT to larger problems. Industrialsized benchmarks have millions of variables. Our experiments training on SAT100 and graph coloring show that increases in problem complexity makes our method less stable due to typical RL challenges: longer credit assignment spans, reward shaping, etc. Further research will focus on scaling GQSAT using latest stabilizing techniques (hessel2018rainbow), more sophisticated exploration methods and curriculum learning.
From reducing iterations to speeding up. SAT heuristics are good because they are fast. It takes constant time to make a decision with VSIDS. GNN inference takes much longer. However, our experiments show that GQSAT can show an improvement using only the first steps. An efficient C++ implementation of our method should also help.
Interpretation of the results. newsham2014impact show that the community structure of SAT problems is related to the problem complexity. We are interested in understanding how graph structure influences the performance of GQSAT and how we can exploit this knowledge to improve GQSAT.
Although we showed the powerful generalization properties of graphbased RL, we believe the problem is still far from solved and our work is just one stepping stone towards a new generation of solvers that can discover and exploit heuristics that are too difficult for a human to design.
Acknowledgments
The authors would like to thank Rajarshi Roy, Robert Kirby, Yogesh Mahajan, Alex Aiken, Mohammad Shoeybi, Rafael Valle, Sungwon Kim and the rest of the Applied Deep Learning Research team at NVIDIA for useful discussions and feedback. The authors would also like to thank Andrew Tao and Guy Peled for providing computing support.
References
Appendix A Propagations per step
Appendix B Reproducibility
b.1 Model architecture
We use EncoderProcessDecode architecture from battaglia2018relational. Encoder and decoder are independent graph networks, i.e. MLPs taking whole vertex or edge feature matrix as a batch without message passing. We call the middle part ’the core’. The output of the core is concatenated with the output of the encoder and gets fed to the core again. We describe all hyperparameters in Appendix B.3. We also plan to release the experimental code and the modified version of MiniSat to use as a gym environment.
b.2 Dataset
We split SAT50218 into three subsets: 800 training problems, 100 validation and 100 test problems. For generalization experiments, we use 100 problems from all the other benchmarks.
For graph colouring experiments, we train our models using all problems from flat75180 dataset. We select a model, given performance on all 100 problems from flat100239. So, evaluation on this two datasets should not be used to judge the performance of the method and they are shown separately in Table 4. All the data from the second part of the table was not seen by the model during training (flat3060, flat50115, flat125301, flat150360, flat175417, flat200479).
b.3 Hyperparameters
Hyperparameter  Value  Comment
DQN
– Batch updates  50 000
– Learning rate  0.00002
– Batch size  64
– Memory replay size  20 000
– Initial exploration  1.0
– Final exploration  0.01
– Exploration decay  30 000  Environment steps.
– Enitial exploration steps  5000  Environment steps, filling the buffer, no training.
– Discounting  0.99
– Update frequency  4  Every 4th environment step.
– Target update frequency  10
– Max decisions allowed for training  500  Used a safety against being stuck at the episode.
– Max decisions allowed for testing  500


– Step penalty size  0.1
Optimization
– Optimizer  Adam
– Adam betas  0.9, 0.999  Pytorch default.
– Adam eps  1e08  Pytorch default.
– Gradient clipping  1.0  0.1 for training on the graph coloring dataset.
– Gradient clipping norm
– Evaluation frequency  1000
Graph Network
– Message passing iterations  4
– Number of hidden layers for GN core  1
– Number of units in GN core  64
– Encoder output dimensions  32  For vertex, edge and global updater.
– Core output dimensions  64,64,32  For vertex, edge and global respectively.
– Decoder output dimensions  32


ReLU  For everything but the output transformation.
– Edge to vertex aggregator  sum
– Variable to global aggregator  average
– Edge to global aggregator  average
