1 Introduction
To deploy machine learning algorithms in realworld applications, we must pay attention to distribution shift, i.e. when the test distribution is different from the training distribution, which substantially degrades model performance. In this paper, we refer this problem as outofdistribution (OOD) generalization and specifically consider performance gaps caused by two kinds of distribution shifts: domain shifts and subpopulation shifts. In domain shifts, the test data is sampled from different domains than the training data, which requires the trained model to generalize well to test domains without seeing the data from those domains in training time. Take health risk prediction as an example. We may want to train a model on patients from a few sampled hospitals and then deploy the model to a broader set of hospitals (Koh et al., 2021). In subpopulation shifts, the proportions of subpopulations in the test distribution differ from the proportions in the training distribution (eg. the setting of imbalanced data). When subpopulation shift occurs, models perform poorly when they falsely rely on spurious correlations, which may occur when some subpopulations are underrepresented in the training set. For example, in financial risk prediction, a machine learning model trained on the entire population may associate the labels with demographic features (e.g., religion and race), making the model fail on the test set when such an association does not hold in reality.
To improve model robustness under these two kinds of distribution shifts, methods for learning invariance have shown effectiveness in various applications. These methods use regularizers to learn features or predictors that are invariant across different domains while still containing sufficient information of fulfilling the task (Li et al., 2018; Sun & Saenko, 2016; Arjovsky et al., 2019; Krueger et al., 2021; Rosenfeld et al., 2021). However, designing regularizers that are widely suitable to datasets from diverse domains is especially challenging and insuitable regularizers may adversely limit the model’s expressive power or yield a difficult optimization problem, leading to inconsistent performance among various realworld datasets. For example, on the WILDS datasets, invariant risk minimization (IRM) (Arjovsky et al., 2019) with reweighting outperforms empirical risk minimization (ERM) on CivilComments, but fails to improve robustness on a variety of other datasets like Camelyon17 and RxRx1 (Koh et al., 2021). CORAL (Sun & Saenko, 2016), a popular domain adaptation method that adds explicit regularization, has also been observed to have similar phenomenon (Koh et al., 2021).
Instead of explicitly imposing regularization to learn invariant representations or predictors, we turn towards an implicit solution in this paper. Inspired by mixup (Zhang et al., 2018), we aim to learn invariant functions through data interpolation, leading to a simple algorithm called LISA (Learning Invariant Functions with Selective Augmentation). Concretely, LISA linearly interpolates the features for a pair of samples and applies the same interpolation strategy on the corresponding labels. Critically, the pairs are selectively chosen according to two selective augmentation strategies – intralabel LISA (LISAL) and intradomain LISA (LISAD), which are described below and we illustrate the motivations of both strategies on Colored MNIST dataset in Figure 1. Intralabel LISA (Figure 1(b)) interpolates samples with the same label but from different domains, aiming to eliminate domainrelated spurious correlations. Intradomain LISA (Figure 1(c)) interpolates samples with the same domain but different labels, where the model should to ignore the domain information and generate different predicted values as the interpolation ratio changes. In this way, LISA encourages the model to learn domaininvariant functions without any explicitly constraints or regularizers.
The primary contributions of this paper are as follows: (1) We propose a simple yet widelyapplicable method for learning domain invariant functions that are shown to be robust to domain shift and subpopulation shift. (2) We conduct broad empirical experiments to evaluate the effectiveness of LISA on nine benchmark datasets from diverse domains. In these experiments, we make the following observations. First, we find that LISA consistently outperforms seven prior methods in addressing both domain shifts and subpopulation shifts. Second, we identify that the performance gains of LISA are indeed caused by canceling out domainspecific information (or spurious correlations) and learning invariant functions, rather than simply involving more data via interpolation. Third, when the degree of distribution shift increases, LISA achieves more significant performance gains. (3) Finally, we provide theoretical analysis of the phenomena distilled from the empirical studies, where we provably demonstrate that LISA can mitigate the spurious correlations and therefore lead to smaller worstdomain error compared with ERM and vanilla mixup. We also note that to the best of our knowledge, our work provides the first theoretical framework of studying how mixup (with or without the selective augmentation strategies) affects misclassification error.
2 Preliminaries
In this paper, we consider the setting where one predicts the label based on the input feature . Given a parameter space
and a loss function
, we need to train a model under the training distribution , where . In empirical risk minimization (ERM), the empirical distribution over the training data is ; ERM optimizes the following objective:(1)
In a traditional machine learning setting, a test set, sampled from a test distribution , is used to evaluate the generalization of the trained model , where the test distribution is assumed to be the same as the training distribution, i.e., . In this paper, we are interested in the setting when distribution shift occurs, i.e., .
Specifically, following Muandet et al. (2013); Albuquerque et al. (2019); Koh et al. (2021), we regard the overall data distribution containing domains and each domain is associated with a data distribution over a set , where is the number of samples in domain . Then, we formulate the training distribution as the mixture of domains, i.e., , where
denotes the mixture probabilities in training set. Here, the training domains are defined as
. Similarly, the test distribution could be represented as , where is the mixture probabilities in test set. The test domains are defined as .In domain shift scenarios, we investigate the problem where the test domains are disjoint from the training domains, i.e., . In general, we assume the test domains share some common properties with the training domains. For example, in Camelyon17 (Koh et al., 2021), we train the model on some hospitals and test it in a new hospital. We evaluate the worstdomain and average performance of the classifier across all test domains.
In subpopulation shift scenarios, the test set has domains that have been seen in the training set, but with a different proportion of subpopulations, i.e., but . Under this setting, following Sagawa et al. (2020a), we specially consider groupbased spurious correlations, where each group is defined to be associated with a domain and a label , i.e., . We assume that the domain is spuriously correlated with the label. For example, we illustrate the CMNIST dataset in Figure 1, where the digit color (green or red) is spuriously correlated with the label ([1, 0] or [0, 1]). Based on the group definition, we evaluate the model via the worst test group error, i.e., , where represents the 01 loss.
3 Learning Invariant Functions with Selective Augmentation
This section presents LISA, a simple way to improve robustness to domain shifts or subpopulation shifts. The key idea behind LISA is to encourage the model to learn invariant functions by selective data interpolation, which could also alleviates the effects of domainrelated spurious correlations. Before detailing how to select interpolated samples, we first provide a general formulation for data interpolation.
In LISA, we perform linear interpolation between training samples. Specifically, given samples and drawn from domains and , we apply mixup (Zhang et al., 2018), a simple data interpolation strategy, separately on the input features and corresponding labels as:
(2)
where the interpolation ratio is sampled from a Beta distribution and and
are onehot vectors for classification problem.
Notice that the mixup approach in equation 2 can be replaced by CutMix (Yun et al., 2019), which shows stronger empirical performance in visionbased applications. In textbased applications, we can use Manifold Mixup (Verma et al., 2019), interpolating the representations of a pretrained model, e.g., the output of BERT (Devlin et al., 2019).
After obtaining the interpolated features and labels, we replace the original features and labels in ERM with the interpolated ones. Then, the optimization process in equation 1 is reformulated as:
(3)
Without additional selective augmentation strategies, vanilla mixup will regularize the model and reduce overfitting (Zhang et al., 2021b), allowing it to attain good indistribution generalization. However, vanilla mixup may not be able to cancel out spurious correlations, causing the model to still fail at attaining good OOD generalization (see empirical comparisons in Section 4.3 and theoretical discussion in Section 5). In LISA, we instead adopt a new strategy where mixup is only applied across specific domains or groups, which leans towards learning invariant functions and thus better OOD performance. Specifically, the two kinds of selective augmentation strategies are presented as follows:

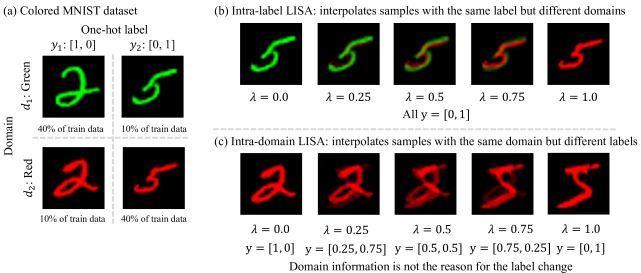

Intralabel LISA (LISAL): Interpolating samples with the same label. Intralabel LISA interpolates samples with the same label but different domains (i.e., , ). As shown in Figure 1(a), this produces datapoints that have both domains partially present, effectively eliminating spurious correlations between domain and label in cases where the pair of domains correlate differently with the label. Additionally, if domain information does not fully reflect the spurious correlations in some datasets, we can also enlarge the interpolation scope to cover more potentially spurious correlations by only interpolating samples within the same class regardless of domain information (i.e., ). As a result, intralabel LISA should learn domaininvariant functions for each class and thus achieve better OOD robustness.
Intradomain LISA (LISAD): Interpolating samples with the same domain. Supposing domain information is highly spuriously correlated with the label information, intradomain LISA (Figure 1(b)) applies the interpolation strategy on samples with the same domain but different labels, i.e., , . Intuitively, even within the same domain, the model is supposed to generate different predicted labels since the interpolation ratio is randomly sampled, corresponding to different labels . This causes the model to make predictions that are less dependent on the domain, again improving OOD robustness.
For each batch of data, we randomly perform intralabel or intradomain LISA during the training process with probability and , where
is treated as a hyperparameter in our experiments. The choice of
depends on the number of domains and the relation between domain information and spurious correlations. Empirically, using intralabel LISA brings much more benefits when there are more domains, and/or the domain information can not fully reflect the spurious correlations. Intradomain LISA can benefit the performance when domain information is highly spuriously correlated with the label, where we find a balanced ratio (i.e., ) performs the best. The pseudocode of the training procedure of LISA is shown in Algorithm 1.4 Experiments
In this section, we conduct comprehensive experiments to evaluate the effectiveness of LISA. Specifically, we aim to answer the following questions: Q1: Compared to prior methods, can LISA improve robustness to domain shifts and subpopulation shifts (Section 4.1 and Section 4.2)? Q2: Which aspects of LISA are the most important for improving robustness (Section 4.3)? Q3: How does LISA perform with varying degrees of distribution shifts (Section 4.4)? Q4: Does LISA successfully produce invariant functions (Section 4.5)?
To answer Q1, we compare to ERM, IRM (Arjovsky et al., 2019), MMD (Li et al., 2018), DRNN (Ganin & Lempitsky, 2015), GroupDRO (Sagawa et al., 2020a), DomainMix (Xu et al., 2020), and Fish (Shi et al., 2021). Upweighting (UW) is particularly suitable for subpopulation shifts, so we also use it for comparison. We adopt the same model architectures for all approaches.
4.1 Evaluating Robustness to Domain Shifts
Experimental Setup. To study domain shifts, we study five datasets. Four datasets (Camelyon17, FMoW, RxRx1, and Amazon) are selected from WILDS (Koh et al., 2021)
, covering realworld distribution shifts across diverse domains (e.g., health, natural language process, and vision). Besides the WILDS data, we also apply LISA on the MetaShift datasets
(Liang & Zou, 2021), constructed using the realworld images and natural heterogeneity of Visual Genome (Krishna et al., 2016). We summarize the datasets in Table 7 of Appendix A.1.1, including domain information, evaluation metric, model architecture, and the number of classes. Detailed dataset descriptions and other training details are discussed in Appendix
A.1.1 and A.1.2, respectively.Results. We report the results of domain shifts in Table 1, where the full results that include validation performance and other metrics are listed in Appendix A.1.3. The optimal strategy selection probability is set as for these domain shifts problems, i.e., only intralabel LISA is used. In addition, we only interpolate samples with the same labels regardless of the domain information, which empirically leads to the best performance. According to Table 1, we have two key findings:
(1) There are no significant performance differences between ERM and other invariant learning methods (e.g., IRM, CORAL, DomainMix) on most datasets, which is consistent with the reported results on WILDS (Koh et al., 2021). A potential reason is that the existing domain information may not fully reflects the spurious correlation. For example, in Camelyon17wilds dataset, the presence of tumor tissue (i.e., label) mainly depends on the demographic of patients (e.g., race, gender), which shows no significant difference across hospitals (i.e., domain information). This could also explain why only interpolating samples with the same labels regardless the domain information achieves the best performance, which also corroborates our claims in the description of intralabel LISA in Section 3.
(2) The consistent superiority of LISA outperforms prior methods on all five datasets regardless of the model architecture and dataset types (i.e., image or text), demonstrating its effectiveness in improving OOD robustness by canceling out both observable and unobservable domainrelated correlations with selective augmentation.
Camelyon17  FMoW  RxRx1  Amazon  MetaShift
Avg. Acc.  Worst Acc.  Avg. Acc.  10th Per. Acc.  Worst Acc.
ERM  70.3 6.4%  32.3 1.25%  29.9 0.4%  53.8 0.8%  52.1 0.4%
IRM  64.2 8.1%  30.0 1.37%  8.2 1.1%  52.4 0.8%  51.8 0.8%
CORAL  59.5 7.7%  31.7 1.24%  28.4 0.3%  52.9 0.8%  47.6 1.9%
GroupDRO  68.4 7.3%  30.8 0.81%  23.0 0.3%  53.3 0.0%  51.9 0.7%
DomainMix  69.7 5.5%  34.2 0.76%  30.8 0.4%  53.3 0.0%  51.3 0.5%
Fish  74.7 7.1%  34.6 0.18%  10.1 1.5%  53.3 0.0%  49.2 2.1%
LISA (ours)  77.1 6.5%  35.5 0.65%  31.9 0.8%  54.7 0.0%  54.2 0.7%
CMNIST  Waterbirds  CelebA  CivilComments
Avg.  Worst  Avg.  Worst  Avg.  Worst  Avg.  Worst
ERM  27.8%  0.0%  97.0%  63.7%  94.9%  47.8%  92.2%  56.0%
UW  72.2%  66.0%  95.1%  88.0%  92.9%  83.3%  89.8%  69.2%
IRM  72.1%  70.3%  87.5%  75.6%  94.0%  77.8%  88.8%  66.3%
CORAL  71.8%  69.5%  90.3%  79.8%  93.8%  76.9%  88.7%  65.6%
GroupDRO  72.3%  68.6%  91.8%  90.6%  92.1%  87.2%  89.9%  70.0%
DomainMix  51.4%  48.0%  76.4%  53.0%  93.4%  65.6%  90.9%  63.6%
Fish  46.9%  35.6%  85.6%  64.0%  93.1%  61.2%  89.8%  71.1%
LISA (ours)  74.0%  73.3%  91.8%  89.2%  92.4%  89.3%  89.2%  72.6%
Results of subpopulation shifts. Here, we show the average and worst group accuracy. We repeat the experiments three times and put full results with standard deviation in Table
15.4.2 Evaluating Robustness to Subpopulation Shifts
Evaluation Protocol. In subpopulation shifts, we evaluate the performance on four binary classification datasets, including Colored MNIST (CMNIST), Waterbirds (Sagawa et al., 2020a), CelebA (Liu et al., 2015), and Civilcomments (Borkan et al., 2019). We summarize brief data statistics in Table 13 of Appendix A.2.1, covering domain information, model architecture, and class information. Full dataset descriptions of subpopulation shifts are also presented in Appendix A.2.1. Following Sagawa et al. (2020a), in subpopulation shifts, we use the worstgroup accuracy to evaluate the performance of all approaches and the domain identifications are highly spurious correlated with the label information. For example, as suggested in Figure 1, 90% images in the CMNIST dataset have the same color and class, i.e., green color for label 0 and red color for label 1. Full hyperparameter settings and training details are listed in Appendix A.2.2.
Results. In Table 2, we report the overall performance of LISA and other methods. Similar to the observations in domain shifts, LISA consistently outperforms prior methods in CMNIST, CelebA, and CivilComments. In Waterbirds, LISA outperforms other invariant learning methods (e.g., IRM, CORAL, DomainMix, Fish) and shows similar performance to GroupDRO. These results demonstrate the effectiveness of LISA in improving OOD robustness. In CMNIST, Waterbirds, and CelebA, we find that works well for choosing selective augmentation strategies, while is set as in CivilComments. This is not surprising because it might be more beneficial to use intralabel LISA more often to eliminate domain effects when there are more domains, i.e., eight domains in CivilComments v.s. two domains in others.
4.3 Ablation Study: Is the Performance Gain from Data Augmentation?
Camelyon17  FMoW  RxRx1  Amazon  MetaShift
Avg. Acc.  Worst Acc.  Avg. Acc.  10th Per. Acc.  Worst Acc.
ERM  70.3 6.4%  32.8 0.45%  29.9 0.4%  53.8 0.8%  52.1 0.4%
Vanilla mixup  71.2 5.3%  34.2 0.45%  26.5 0.5%  53.3 0.0%  51.3 0.7%
Ingroup mixup  75.5 6.7%  32.2 1.18%  24.4 0.2%  53.8 0.6%  52.7 0.5%
LISA (ours)  77.1 6.5%  35.5 0.65%  31.9 0.8%  54.7 0.0%  54.2 0.7%
CMNIST  Waterbirds  CelebA  CivilComments
Avg.  Worst  Avg.  Worst  Avg.  Worst  Avg.  Worst
ERM  27.8%  0.0%  97.0%  63.7%  94.9%  47.8%  92.2%  56.0%
Vanilla mixup  32.6%  3.1%  81.0%  56.2%  95.8%  46.4%  90.8%  67.2%
Vanilla mixup + UW  72.2%  71.8%  92.1%  85.6%  91.5%  88.0%  87.8%  66.1%
Ingroup mixup  33.6%  24.0%  88.7%  68.0%  95.2%  58.3%  90.8%  69.2%
Ingroup mixup + UW  72.6%  71.6%  91.4%  87.1%  92.4%  87.8%  84.8%  69.3%
LISA (ours)  74.0%  73.3%  91.8%  89.2%  92.4%  89.3%  89.2%  72.6%
In LISA, we apply selective augmentation strategies on samples either with the same label but different domains or with the same domain but different labels. Here, we explore two substitute interpolation strategies: (1) Vanilla mixup: In Vanilla mixup, we do not add any constraint on the sample selection, i.e., the mixup is performed on any pairs of samples; (2) Ingroup mixup: This strategy applies data interpolation on samples with the same labels and from the same domains. Notice that all the substitute interpolation strategies use the same mixup types (e.g., mixup/Manifold Mixup/CutMix) as LISA. Finally, since upweighting (UW) small groups significantly improves performance in subpopulation shifts, we also evaluate UW combined with Vanilla/Ingroup mixup.
The ablation results of domain shifts and subpopulation shifts are in Table 3 and Table 4, respectively. Furthermore, we also conduct experiments on datasets without spurious correlation in Table 17 of Appendix A.3. From the results, we make the following three key observations. First, compared with Vanilla mixup, the performance of LISA verifies that selective data interpolation does improve the outofdistribution robustness by canceling out the spurious correlations and encouraging learning invariant functions rather than simply data augmentation. This findings are further strengthened by the results in Table 17 of Appendix A.3, where Vanilla mixup outperforms LISA and ERM without spurious correlations but LISA achieves the best performance with spurious correlations. Second, the superiority of LISA over Ingroup mixup verifies that only interpolating samples within each group is incapable of eliminating out the spurious information, where Ingroup mixup still performs the role of data augmentation. Finally, though incorporating UW significantly improves the performance of Vanilla mixup and Ingroup mixup in subpopulation shifts, LISA still achieves larger benefits than these enhanced substitute strategies, demonstrating its stronger power in improving OOD robustness.
4.4 Effect of the Degree of Distribution Shifts
We further investigate the performance of LISA with respect to the degree of distribution shifts. Here, we use MetaShift to evaluate performance, where the distance between training and test domains is measured as the node similarity on a metagraph (Liang & Zou, 2021). To vary the distance between training and test domains, we change the backgrounds of training objects (see full experimental details in Appendix A.1.1). The performance with varied distances is illustrated in Table 5, where the top four best methods (i.e., ERM, GroupDRO, IRM, DomainMix) are reported for comparison. We observe that LISA consistently outperforms other methods under all scenarios. Additionally, another interesting finding is that LISA achieves more substantial improvements with the increases of distance. A potential reason is that the models may rely more heavily on domain correlations when there is a larger distance between training and test domains.
Distance  0.44  0.71  1.12  1.43
ERM  80.1%  68.4%  52.1%  33.2%
IRM  79.5%  67.4%  51.8%  32.0%
DomainMix  76.0%  63.7%  51.3%  30.8%
GroupDRO  77.0%  68.9%  51.9%  34.2%
LISA (ours)  81.3%  69.7%  54.2%  37.5%

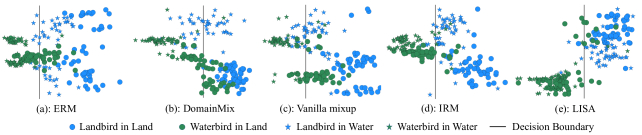

4.5 Analysis about Learned Invariance
CMNIST  Waterbirds  MetaShift  CMNIST  Waterbirds  MetaShift
ERM  12.0486  0.2456  1.8824  6.2858  1.8878  1.2051
Vanilla mixup  0.2769  0.1465  0.2659  4.7365  2.9121  1.1711
IRM  0.0112  0.1243  0.8748  7.7549  1.1219  1.1483
DomainMix  0.1674  0.0995  1.1158  5.1600  2.7467  1.2019
LISA (ours)  0.0012  0.0016  0.2387  0.5670  0.1344  1.0005
Results of the analysis of functionlevel invariance. Variance of test risks across all domains (
) and pairwise KL divergence of prediction among all domains () are used to measure the invariance. Smaller values denote stronger invariance.Finally, we analyze the functionlevel invariance learned by LISA. Specifically, we use two metrics to measure the functionlevel invariance: (1) Variance of test risks (). Motivated by Arjovsky et al. (2019); Krueger et al. (2021), the functionlevel invariance is first measured by the variance of test risks across all domains, which is defined as , where represents the number of test domains and represents the risk of domain ; (2) Pairwise divergence of prediction (). We further measure the KL divergence of the predicted probability among all domains, i.e., . Small values of and represent strong functionlevel invariance. The results on CMNIST, Waterbirds and MetaShift are reported in Table 6, where the superiority of LISA verifies that it could also improve the functionlevel invariance. Besides the functionlevel invariance, we observe that LISA can also leads to stronger representationlevel invariance, which are detailed in Appendix A.4.
5 Theoretical Analysis
In this section, we provide some theoretical understandings that explain several of the empirical phenomena from the previous experiments and theoretically compare the worstgroup errors of three methods: the proposed LISA, ERM, and vanilla mixup. Specifically, we consider a Gaussian mixture model with subpopulation and domain shifts, which has been widely adopted in theory to shed light upon complex machine learning phenomenon such as in
(Montanari et al., 2019; Zhang et al., 2021c). We also note here that despite the popularity of mixup in practice, the theoretical analysis of how mixup (with or without the selective augmentation strategies) affects the misclassification error is still largely unexplored in the literature even in the simple models. As discussed in Section 2, here, we define as the label, and as the domain information. For and , we consider the following model:(4)
where is the conditional mean vector and is the covariance matrix. Let . Let , , and .
To account for the spurious correlation brought by domains, we consider in general for and the imbalanced case where . Moreover, we assume there exists some invariance across different domains. Specifically, we assume
According to the theory of Fisher’s linear discriminant analysis (Anderson, 1962), the optimal classification rule is linear with slope . The assumption above implies that is the (unknown) invariant prediction rule for model equation 4.
Suppose we use some method and obtain a linear classifier from a training data, we will apply it to a test data and compute the worstgroup misclassification error, where the misclassification error for domain and class is , and we denote the worstgroup error with the method as
where and are the slope and intercept based on the method . Specifically, denotes the ERM method (by minimizing the sum of squares loss on the training data altogether), denotes the vanilla mixup method (without any selective augmentation strategy), and denotes the mixup strategy for LISA. We also denote its finite sample version by .
Let denote the marginal difference and denote the correlation operator between the domainspecific difference and the marginal difference with respect to . We see that smaller indicates larger discrepancy between the marginal difference and the domainspecific difference and therefore implies stronger spurious correlation between the domains and labels. We present the following theorem showing that our proposed LISA algorithm outperforms the ERM and vanilla mixup in the subpopulation shifts setting.
Theorem 1 (Error comparison with subpopulation shifts)
Consider independent samples generated from model (4), , , , and is positive definite. Suppose satisfies that for some large enough constant and . Then for any ,
Theorem 1 implies that when is small (indicating that the domain has strong spurious correlation with the label) and , the worstgroup classification errors of LISA are asymptotically smaller than that of ERM and vanilla mixup. In fact, our analysis shows that LISA yields a classification rule closer to the invariant classification rules by leveraging the domain information.
In the next theorem, we present the misclassification error comparisons with domain shifts. That is, consider samples from a new unseen domain:
Let , where is the mean of the training distribution, and assume . Let and denote the correlation for and for , respectively, with respect to . Let and its sample version be .
Theorem 2 (Error comparison with domain shifts)
Suppose samples are independently generated from model (4), , and is positive definite. Suppose that satisfy that and for some large enough constant and . Then for any ,
Similar to Theorem 1, this result shows that when domain has strong spurious correlation with the label (corresponding to small ), such a spurious correlation leads to the downgraded performance of ERM and vanilla mixup, while our proposed LISA method is able to mitigate such an issue by selective data interpolation. Proofs of Theorem 1 and Theorem 2 are provided in Appendix B.
6 Related Work and Discussion
In this paper, we focus on improving the robustness of machine learning models to domain shifts and subpopulation shifts. Here, we discuss related approaches from the following three categories:
Learning Invariant Representations. Motivated by unsupervised domain adaptation (BenDavid et al., 2010; Ganin et al., 2016), the first category of works learns invariant representations by aligning representations across domains. The major research line of this category aims to eliminate the domain dependency by minimizing the divergence of feature distributions with different distance metrics, e.g., maximum mean discrepancy (Tzeng et al., 2014; Long et al., 2015), an adversarial loss (Ganin et al., 2016; Li et al., 2018), Wassertein distance (Zhou et al., 2020a). Followup works applied data augmentation to (1) generate more domains and enhance the consistency of representations during training (Yue et al., 2019; Zhou et al., 2020b; Xu et al., 2020; Yan et al., 2020; Shu et al., 2021; Wang et al., 2020) or (2) generate new domains in an adversarial way to imitate the challenging domains without using training domain information (Zhao et al., 2020; Qiao et al., 2020; Volpi et al., 2018). Unlike these latter methods, LISA instead focuses on learning invariant functions without restricting the representations, leading to stronger empirical performance.
Learning Invariant Predictors. Beyond using domain alignment to learning invariant representations, recent work aims to further enhance the correlations between the invariant representations and the labels (Koyama & Yamaguchi, 2020), leading to invariant predictors. Representatively, motivated by casual inference, invariant risk minimization (IRM) (Arjovsky et al., 2019) aims to find a predictor that performs well across all domains. After IRM, the following works propose stronger regularizers by penalizing the variance of risks across all domains (Krueger et al., 2021), by aligning the gradient across domains (Koyama & Yamaguchi, 2020), by smoothing the crossdomain interpolation paths (Chuang & Mroueh, 2021), or through gametheoretic invariant rationalization criterion (Chang et al., 2020). Instead of using regularization, LISA eliminates spurious correlations and learns invariant functions in the data directly via data interpolation.
Group Robustness. The last category of methods combats spurious correlations and are particularly suitable for subpopulation shifts. These approaches include directly optimizing the worstgroup performance with Distributionally Robust Optimization (Sagawa et al., 2020a; Zhang et al., 2021a; Zhou et al., 2021), generating samples around the minority groups (Goel et al., 2021), and balancing the majority and minority groups via reweighting (Sagawa et al., 2020b) or regularizing (Cao et al., 2019, 2020). Here, LISA proposes a more general strategy based that is suitable for both domain shifts and subpopulation shifts.
7 Conclusion
To tackle the distribution shifts, we propose LISA, a simple and efficient algorithm, to improve the outofdistribution robustness. LISA aims to eliminate the domainrelated spurious correlations among the training set by selective sample interpolation. We evaluate the effectiveness of LISA on nine datasets under subpopulation shifts and domain shifts settings, demonstrating its promise. Besides, our detailed analysis verifies that the performance gains caused by LISA result from encouraging learning invariant functions and representations. Our theoretical results further strengthen the superiority of LISA by showing smaller worstgroup misclassification error compared with ERM and vanilla data interpolation.
