Improving Information Extraction from Images with Learned Semantic Models

by   Stephan Baier, et al.
Siemens AG
Universität München

Many applications require an understanding of an image that goes beyond the simple detection and classification of its objects. In particular, a great deal of semantic information is carried in the relationships between objects. We have previously shown that the combination of a visual model and a statistical semantic prior model can improve on the task of mapping images to their associated scene description. In this paper, we review the model and compare it to a novel conditional multi-way model for visual relationship detection, which does not include an explicitly trained visual prior model. We also discuss potential relationships between the proposed methods and memory models of the human brain.



There are no comments yet.


page 1

page 2

page 3

page 4


Improving Visual Relationship Detection using Semantic Modeling of Scene Descriptions

Structured scene descriptions of images are useful for the automatic pro...

Interpreting Context of Images using Scene Graphs

Understanding a visual scene incorporates objects, relationships, and co...

Visual Relationship Detection with Language Priors

Visual relationships capture a wide variety of interactions between pair...

Constructing a Visual Relationship Authenticity Dataset

A visual relationship denotes a relationship between two objects in an i...

Semi-automatic conversion from OSG to CityGML

CityGML is a data model used to represent the geometric and semantic inf...

Relationship-based Neural Baby Talk

Understanding interactions between objects in an image is an important e...

Detecting Visual Relationships with Deep Relational Networks

Relationships among objects play a crucial role in image understanding. ...
This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

The extraction of semantic information from unstructured data is a key challenge in artificial intelligence. Object detection in images has improved enormously within the last years, due to novel deep learning methods. However, the semantic expressiveness of image descriptions that consist simply of a set of objects is rather limited. Semantics is captured in more meaningful ways by the relationships between objects. In particular, visual relationships can be represented by triples, where two entities appearing in an image are linked through a relation (e.g.

man-riding-elephant, man-wearing-hat). Due to the cubic combinatorial complexity of possible triples, it is likely that not all relevant triples do appear in the training data, which makes training a predictive model difficult. In this paper, we review our previously proposed approach published in [Baier et al.2017]

, which uses a Bayesian fusion approach for combining visual object detection methods with a separately trained probabilistic semantic prior. Incorporating a probabilistic semantic prior especially helps in cases where the prediction of the classifier is not very certain, and for the generalization to unobserved triples in the training set. Further, we propose a new conditional multi-way model which is inspired by statistical link prediction methods. This model does not include an explicitly trained prior of the semantic triples, and is trained in a purely feedforward manner. The prior is implicitly learned in the latent representations of the entities. We conduct experiments on the Stanford Visual Relationship dataset recently published by

[Lu et al.2016]. For the Bayesian fusion model we evaluate different model variants on the task of predicting semantic triples and the corresponding bounding boxes of the subject and object entities detected in the image. Our experiments show that including the semantic model improves on the state-of-the-art result in the task of mapping images to their associated triples. The experiments further show that the conditional multi-way model proposed in this paper, especially in the task of predicting unobserved triples, achieves performance that is comparable to the Bayesian fusion model.

2 Background and Related Work

In this section, we discuss the most important background and related work for visual relationship detection.

2.1 Visual Relationship Detection

Visual relationship detection is concerned with the problem of detecting objects and their relationships in images. Extracting triples, i.e. visual relationships, from raw images is a challenging task, which has been a focus in the Semantic Web community for some time, e.g. [Bloehdorn et al.2005, Serafini et al.2017]

and recently also gained substantial attention in mainstream computer vision

[Sadeghi and Farhadi2011, Lu et al.2016, Zhang et al.2017]. In the approach from Lu et al. [Lu et al.2016]

, a Region Convolutional Neural Network (RCNN) for detecting and classifying objects in the image was used. Given a pair of objects, their relationship is predicted using another Convolutional Neural Network (CNN). The prediction is combined with a prior based on the word embeddings of the objects and the relationships. Baier et al.

[Baier et al.2017] have used the same RCNN, but have replaced the word embedding model with a learned probabilistic semantic model. This model will be reviewed in Section 3.1. More recently, Zhang et al. [Zhang et al.2017] have applied the translational embedding model [Bordes et al.2013] for the task of visual relationship detection.

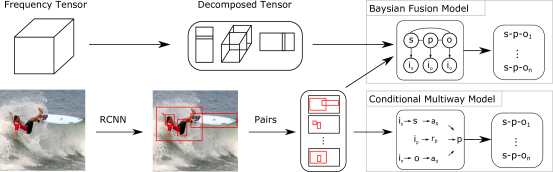

Figure 1: The procedure of deriving a list of triples given an image. The last step differs for the two proposed models.

2.2 Semantic Tensor Models

A number of statistical models have been proposed for modeling graph-structured knowledge bases, often referred to as knowledge graphs. A knowledge graph

consists of a set of triples . The entities are referred to as subject and object of the triple, and the relation between the entities is referred to as predicate of the triple.

Link prediction methods can be described by a function , which maps a triple to a real-valued score, which is a measure for the likelihood of the triple being true. Most recently developed link prediction models learn a latent representation, also called embedding, for the entities and the relations. In the following we describe the link prediction methods, which are used in this paper.


DistMult [Yang et al.2014] scores a triple by building the tri-linear dot product of the embeddings, such that



are latent vector representations for subject, predicate, and object, and

denotes the dot product of multiple vectors. The dimensionality

of the embeddings, also called rank, is a hyperparameter of the model.


ComplEx [Trouillon et al.2016] extends DistMult to complex-valued vectors for the embeddings of both, relations and entities. The score function is


where are complex-valued vector representations of subject, predicate and object. denotes the real part of a complex number and denotes the complex conjugate.

Multiway NN:

The multiway neural network [Dong et al.2014, Nickel et al.2016] concatenates all embeddings and feeds them to a neural network of the form


where denotes the concatenation of the embeddings

. The prediction is derived using a Mulilayer Perceptron with the weight matrix

, the weight vector , and the biases .


The tensor decomposition RESCAL

[Nickel et al.2011] learns vector embeddings for entities and matrix embeddings for relations. The score function is


with denoting the dot product, and .

2.3 Image Classification and Object Detection

The Region Convolutional Neural Network (RCNN) [Girshick et al.2014] is a standard approach for detecting objects in images. It uses a selective search algorithm for getting candidate regions in an image. The RCNN algorithm then rejects most of the regions based on a classification score. As a result, a small set of region proposals is derived. Convolutional Neural Networks (CNNs) have become the standard approach for classifying images. CNNs apply convolutional filters in a hierarchical manner to an image. In this work, we use a specific CNN network architecture, which is called VGG-16 [Simonyan and Zisserman2014]. It consists of 16 convolutional layers and two dense output layers. The output of the second last layer of the network can be considered as a latent representation of the input image.

Task Phrase Det. Rel. Det. Predicate Det. Triple Det.
Evaluation R@100 R@50 R@100 R@50 R@100 R@50 R@100 R@50
Lu et al. V [Lu et al.2016] 2.61 2.24 1.85 1.58 7.11 7.11 2.68 2.30
Lu et al. full [Lu et al.2016] 17.03 16.17 14.70 13.86 47.87 47.87 18.11 17.11
Conditional Multiway Model 17.71 15.79 15.37 13.72 47.93 47.62 18.53 16.47
RESCAL Prior 19.17 18.16 16.88 15.88 52.71 52.71 20.23 19.13
MultiwayNN Prior 18.88 17.75 16.65 15.57 51.82 51.82 19.76 18.53
ComplEx Prior 19.36 18.25 17.12 16.03 53.14 53.14 20.23 19.06
DistMult Prior 15.42 14.27 13.64 12.54 42.18 42.18 16.14 14.94
Table 1: Results for visual relationship detection. We report Recall at 50 and 100 for four different validation settings.

3 Modelling Visual Relationships

In this section, we present two different models for the task of visual relationship detection, both combining semantic tensor models and object detection in different ways. Figure 1 shows the processing pipeline for both models. Both assume that object candidate boxes are provided by an RCNN model. The goal is to predict the most likely triple for each pair of subject/object candidate boxes . We define the union of the regions and as . The extracted triples then consist of two visual concepts and their relationship . This is different to knowledge graphs where the relations are typically not modelled on the concept level, but on the instance level. Nevertheless, the link prediction methods described in Section 2.2 can be applied to visual concepts, as well.

3.1 Bayesian Fusion Model

In this model, we derive predictions from two different CNNs, one modelling and , and the other one modelling . We combine these visual models with a tensor model serving as a semantic prior

in a Bayesian way. We assume the joint distribution of all involved variables to factor as



denoting unnormalized probabilities. We can divide the joint probability of Equation

5 into two parts. The first part is , which models semantic triples. The second part is , which models the visual part given the semantics. The semantic prior is modelled as


where is a semantic tensor model as described in Section 2.2 and

is the activation function for Poisson regression. An advantage is that the semantic model can be trained separately from the visual model using only the absolute frequencies of triples in the training data. As we are predicting count data, we train the model using a Poisson cost function.

111Another sampling model would lead to a multinomial model, which would only result in a different normalization of the distribution. The semantic model and the visual models are combined by applying Bayes rule to Equation 5, such that


The additional terms of the denominator , , are derived through the marginalization of and a Laplacian smoothing. For each pair of bounding boxes, we pick the triple with the highest probability.

3.2 Conditional Multiway Model

In this model, we derive for each pair of bounding boxes the subject and the object by applying a VGG classifier to the regions and . In a second step we then build a conditional tensor model for . We parameterize the model as


with being latent vector representations for the visual concepts, being a latent representation vector for the image patch , and denoting the concatenation operation. For and the representations are optimized in the learning procedure and stored in a lookup table. For deriving a representation of the predicate region , we model , where is the activation of the second last layer of a VGG network with the image region as input. The matrix maps the latent representation of the VGG network to a vector with the rank of the multi-way model. The probabilities for predicate

are derived by applying a Multilayer Perceptron with the additional parameters


To derive a single prediction for each pair of bounding boxs, we pick the subject , object , and predicate with the highest probabilities. The confidence score for the triple , given an input region is calculated as

Task Phrase Det. Rel. Det. Predicate Det. Triple Det.
Evaluation R@100 R@50 R@100 R@50 R@100 R@50 R@100 R@50
Lu et al. V [Lu et al.2016] 1.12 0.95 0.78 0.67 3.52 3.52 1.20 1.03
Lu et al. full [Lu et al.2016] 3.75 3.36 3.52 3.13 8.45 8.45 5.39 4.79
Conditional Multiway Model 5.73 5.39 5.22 4.96 14.32 14.32 5.22 4.96
RESCAL Prior 6.59 5.82 6.07 5.30 16.34 16.34 6.07 5.30
MultiwayNN Prior 6.93 5.73 6.24 5.22 16.60 16.60 6.24 5.22
ComplEx Prior 6.50 5.73 5.82 5.05 15.74 15.74 5.82 5.05
DistMult Prior 4.19 3.34 3.85 3.08 12.40 12.40 3.85 3.08
Table 2: Results for the zero shot learning experiments. We report Recall at 50 and 100 for four different validation settings.

4 Experiments

We evaluate our proposed method on the recently published Stanford Visual Relationship dataset.


We compare the two models presented in this paper and their variations, with the results from [Lu et al.2016]. The settings are the same as in [Lu et al.2016] and [Baier et al.2017]. In all settings a single triple is derived for each pair of bounding boxes. In the first setting, which in [Lu et al.2016] is referred to as Phrase Detection, a triple with its corresponding bounding boxes is considered correctly detected, if the triple is similar to the ground truth, and if the union of the bounding boxes has at least 50 percent overlap with the union of the ground truth bounding boxes. In Relationship Detection, both the bounding box of the subject and the bounding box of the object need at least 50 percent of overlap with their ground truth. In Predicate Detection, it is assumed that subject and object are given, and only the correct predicate linking both needs to be predicted. In Triple Detection, a triple is considered correct if it corresponds to the ground truth, independent of the predicted bounding boxes.


Table 1 shows the results for visual relationship detection. The first row shows the results, when only the visual part of the model is applied. This model performs poorly in all four settings. The full model in the second row adds the language prior to it, which drastically improves the results. The Conditional Multiway Model outperforms the language prior model in some settings and achieves very similar results in the others. In the last four rows we report the results of the Bayesian fusion model, with different link prediction methods. We see that the model performs consistently better than the state-of-the-art method proposed by [Lu et al.2016]. Only DistMult is slightly worse, which might be due to the fact that it assumes symmetric scores when subject and object are exchanged.

Table 2 shows the results, when only evaluating triples which have not been observed in the training data. This task is much more difficult, as it requires the models to generalize to these triples. Also in this experiment, including the semantic model significantly improves the prediction. For the first three settings, the best performing method, which is the Multiway Neural Network, almost retrieves twice as many correct triples, as the state-of-the-art model of [Lu et al.2016]. These results clearly show that our model is able to infer also new likely triples, which have not been observed in the training data. The Conditional Multiway Model achieves a performance close to the Bayesian fusion models, although it does not include a separately learned prior for the semantic triples.

5 Relationships to Perception and Memory

At a higher cognitive level, information which is ceaselessly acquired by the visual system of the brain, needs to be interpreted correctly. Goethe’s proverb might be quite fitting for our proposed approach: ”You only see what you know” since one can only perceive things for which we have an internal brain representation. This internal representation is used by the perceptual system and by the main declarative memory systems, i.e., the episodic memory (about events we remember) and the semantic memory system (about facts we know[Tulving2002]. Perception even needs more: it needs to generalize to novel entities on the class level, since a subject constantly encounters novel entities: The perceptual system needs to be able to generalize to new scenes and needs to generalize on the associations of new perceptual components. According to the complementary learning system [McClelland et al.1995], the memory systems are the basis for the brain to learn to generalize to new situations, a consolidation process which might happen largely during sleep and might involve the neocortex. Our work focuses on the generalization after training the perceptual system for scene comprehension. Our approaches can be related to some of the main current hypothesis about perception and memory. Many groups favor the Bayesian brain hypothesis, which assumes that the brain uses inherited and learned prior hypothesis to understand and reason about the world ([Knill and Pouget2004] and [Griffiths et al.2008] are two examples). Our Bayesian fusion model fits precisely into this category. Its tensor model provides a prior model which is quite powerful in supporting the perceptual pipeline. It is a very rich prior compared to simple smoothness priors used in other approaches. In contrast, in the conditional multiway model the prior is represented in the latent representations of entities and weights in the feedforward neural network. The conceptual memory is formed implicitly in the end-to-end training of the model. Cognitive models which are pursuing this approach have been proposed and studied in [Tresp et al.2015, Tresp et al.2017, Tresp and Ma2016]. This approach is more in favor of a theory which assumes that the brain, at least conceptionally, is trained end-to-end with few clearly interpretable functional modules.

6 Conclusion

We presented two approaches for visual relationship detection, which both include statistical semantic models. The first approach, which originally has been published in [Baier et al.2017], combines standard computer vision methods with latent variable models for link prediction. We proposed a probabilistic framework, in form of a Bayesian fusion model, for integrating both the semantic prior and the computer vision algorithms into a joint model. The second approach uses a conditional multi-way model, which is inspired by link prediction methods. For the prediction of triples, which have not been observed in the training data, the performance of the second approach is on par with the first approach, as its structure helps to generalize to unobserved triples, without including a separately trained prior for the semantic triples. Both approaches form statistical models on the class level, and can thus generalize to new images. This is in contrast to typical knowledge graph models, where nodes correspond to specific instances. In cognitive terms, the Bayesian fusion model can more directly be related to the Bayesian brain hypothesis, as being pursued by many research teams, whereas the conditional multiway model is more closely related to the tensor memory hypothesis [Tresp and Ma2016].


  • [Baier et al.2017] Stephan Baier, Yunpu Ma, and Volker Tresp. Improving visual relationship detection using semantic modeling of scene descriptions. International Semantic Web Conference, 2017.
  • [Bloehdorn et al.2005] Stephan Bloehdorn, Kosmas Petridis, Carsten Saathoff, Nikos Simou, Vassilis Tzouvaras, Yannis Avrithis, Siegfried Handschuh, Yiannis Kompatsiaris, Steffen Staab, and Michael G Strintzis. Semantic annotation of images and videos for multimedia analysis. In European Semantic Web Conference, pages 592–607. Springer, 2005.
  • [Bordes et al.2013] Antoine Bordes, Nicolas Usunier, Alberto Garcia-Duran, Jason Weston, and Oksana Yakhnenko. Translating embeddings for modeling multi-relational data. In Advances in neural information processing systems, pages 2787–2795, 2013.
  • [Dong et al.2014] Xin Dong, Evgeniy Gabrilovich, Geremy Heitz, Wilko Horn, Ni Lao, Kevin Murphy, Thomas Strohmann, Shaohua Sun, and Wei Zhang. Knowledge vault: A web-scale approach to probabilistic knowledge fusion. In Proceedings of the 20th ACM SIGKDD international conference on Knowledge discovery and data mining, pages 601–610. ACM, 2014.
  • [Girshick et al.2014] Ross Girshick, Jeff Donahue, Trevor Darrell, and Jitendra Malik. Rich feature hierarchies for accurate object detection and semantic segmentation. In

    Proceedings of the IEEE conference on computer vision and pattern recognition

    , pages 580–587, 2014.
  • [Griffiths et al.2008] Thomas L Griffiths, Charles Kemp, and Joshua B Tenenbaum. Bayesian models of cognition. The Cambridge Handbook of Computational Psychology, 2008.
  • [Knill and Pouget2004] David C Knill and Alexandre Pouget. The bayesian brain: the role of uncertainty in neural coding and computation. TRENDS in Neurosciences, 27(12):712–719, 2004.
  • [Lu et al.2016] Cewu Lu, Ranjay Krishna, Michael Bernstein, and Li Fei-Fei. Visual relationship detection with language priors. In European Conference on Computer Vision, pages 852–869. Springer, 2016.
  • [McClelland et al.1995] James L McClelland, Bruce L McNaughton, and Randall C O’reilly. Why there are complementary learning systems in the hippocampus and neocortex: insights from the successes and failures of connectionist models of learning and memory. Psychological review, 102(3):419, 1995.
  • [Nickel et al.2011] Maximilian Nickel, Volker Tresp, and Hans-Peter Kriegel. A three-way model for collective learning on multi-relational data. In

    Proceedings of the 28th international conference on machine learning (ICML-11)

    , pages 809–816, 2011.
  • [Nickel et al.2016] Maximilian Nickel, Kevin Murphy, Volker Tresp, and Evgeniy Gabrilovich. A review of relational machine learning for knowledge graphs. Proceedings of the IEEE, 104(1):11–33, 2016.
  • [Sadeghi and Farhadi2011] Mohammad Amin Sadeghi and Ali Farhadi. Recognition using visual phrases. In Computer Vision and Pattern Recognition (CVPR), 2011 IEEE Conference on, pages 1745–1752. IEEE, 2011.
  • [Serafini et al.2017] Luciano Serafini, Ivan Donadello, and Artur d’Avila Garcez. Learning and reasoning in logic tensor networks: theory and application to semantic image interpretation. In Proceedings of the Symposium on Applied Computing, pages 125–130. ACM, 2017.
  • [Simonyan and Zisserman2014] Karen Simonyan and Andrew Zisserman. Very deep convolutional networks for large-scale image recognition. arXiv preprint arXiv:1409.1556, 2014.
  • [Tresp and Ma2016] Volker Tresp and Yunpu Ma. The tensor memory hypothesis. NIPS 2016 Workshop on Representation Learning in Artificial and Biological Neural Networks (MLINI 2016), 2016.
  • [Tresp et al.2015] Volker Tresp, Cristóbal Esteban, Yinchong Yang, Stephan Baier, and Denis Krompaß. Learning with memory embeddings. arXiv preprint arXiv:1511.07972, 2015.
  • [Tresp et al.2017] Volker Tresp, Yunpu Ma, Stephan Baier, and Yinchong Yang. Embedding learning for declarative memories. In European Semantic Web Conference, pages 202–216. Springer, 2017.
  • [Trouillon et al.2016] Théo Trouillon, Johannes Welbl, Sebastian Riedel, Éric Gaussier, and Guillaume Bouchard. Complex embeddings for simple link prediction. In International Conference on Machine Learning, pages 2071–2080, 2016.
  • [Tulving2002] Endel Tulving. Episodic memory: From mind to brain. Annual review of psychology, 53(1):1–25, 2002.
  • [Yang et al.2014] Bishan Yang, Wen-tau Yih, Xiaodong He, Jianfeng Gao, and Li Deng. Embedding entities and relations for learning and inference in knowledge bases. arXiv preprint arXiv:1412.6575, 2014.
  • [Zhang et al.2017] Hanwang Zhang, Zawlin Kyaw, Shih-Fu Chang, and Tat-Seng Chua. Visual translation embedding network for visual relation detection. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, volume 2, page 4, 2017.
