Improving EEG based Continuous Speech Recognition

11/24/2019 ∙ by Gautam Krishna, et al. ∙ 0

In this paper we introduce various techniques to improve the performance of electroencephalography (EEG) features based continuous speech recognition (CSR) systems. A connectionist temporal classification (CTC) based automatic speech recognition (ASR) system was implemented for performing recognition. We introduce techniques to initialize the weights of the recurrent layers in the encoder of the CTC model with more meaningful weights rather than with random weights and we make use of an external language model to improve the beam search during decoding time. We finally study the problem of predicting articulatory features from EEG features in this paper.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 2

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

I Introduction

Automatic speech recognition (ASR) system maps acoustic features to text. ASR systems forms front end or back end in many state of the art voice assistant systems like Bixby, Alexa,Siri,Cortana etc. Most of the current state of the art ASR systems are trained only with acoustic features and can operate only with acoustic input, this limits technology accessibility for people who can’t speak at all or for people with speaking disabilities like stuttering. On the other hand electroencephalograpgy (EEG) is a non invasive way of measuring electrical activity of human brain. EEG sensors are placed on the scalp of the subjects to obtain the EEG recordings. Recently in [1] authors demonstrated isolated speech recognition using EEG features on a limited English vocabulary of four words and five vowels. In [2] authors demonstrated continuous speech recognition using connectionist temporal classification (CTC) [3]

and attention model

[4] on an English vocabulary of 20 unique sentences using EEG and combination of EEG, acoustic features as input. In [5] authors demonstrated continuous speech recognition using different EEG feature sets. In [2, 5] authors used state of the art end-to-end ASR models to directly map EEG features to text.

In [6] authors demonstrated combining articulatory features with acoustic features improves the performance of ASR systems and in [1] authors demonstrated combining EEG features with acoustic features also improve the performance of ASR systems operating in presence of background noise. In [5, 2] authors didn’t take into account the articulatory features for performing speech recognition. In this paper we show that the articulatory features can be used to design more robust ASR EEG encoder models and can help in improving the performance of EEG based continuous speech recognition systems.

In [5, 2]

authors initialized the weights of the recurrent neural network (RNN) encoder in their CTC network with random weights. In this paper we demonstrate that initializing the weights of the first few RNN layers in the CTC network with weights of a RNN trained to predict concatenation of acoustic and articulatory features from EEG features will help in significantly improving the performance of EEG based speech recognizer. We further demonstrate predicting articulatory features from EEG features using temporal convolutional network (TCN)

[7] model.

In [2, 5] authors didn’t use external language model during inference time. In this paper we demonstrate that using an external language model during inference time significantly improves the beam search decoder performance of EEG based speech recognizer. Finally in this paper we demonstrate EEG based speech recognition results for a larger English vocabulary size than the ones used by authors in [2, 5].

Ii Connectionist Temporal Classification (CTC)

The encoder of our CTC network consists of two gated recurrent unit (GRU)

[8] layers with 128 hidden units and 64 hidden units respectively connected to a temporal convolutional network (TCN) [7] layer with 32 filters as shown in Figure 1. The GRU layers contained dropout regularization [9]

with a dropout rate of 0.1. The decoder of the CTC network consists of a combination of dense layer and softmax activation. The output of the encoder layer is fed into the decoder at every time step. The two GRU layers in the encoder network are initialized with weights of the GRU layers of the model shown in Figure 2. The model in Figure 2 consists of two layers of GRU with 128 and 64 hidden units respectively connected to a time distributed dense layer of 19 hidden units with linear activation to predict concatenation of acoustic or Mel-frequency cepstrum coefficients (MFCC) features of dimension 13 and articulatory features of dimension 6 or a net feature dimension of 19 at every time step. The model shown in Figure 2 was trained for 500 epochs with mean squared error (MSE) as loss function with adam optimizer

[10] and batch size one. Basically the model shown in Figure 2 is a GRU based regression model which predicts combination of acoustic and articulatory features from EEG features of dimension 30 at every time step.

The CTC model was trained for 120 epochs to optimize the CTC loss using adam optimizer. More details of CTC loss function are described in [3, 11, 2, 5]

. The batch size was set to 32 for the CTC model. The TCN layer in the CTC encoder was initialized with random weights. The main motivation behind this idea was that the first two GRU layers of the CTC encoder will help in discovering acoustic and articulatory representations from the input EEG features and the TCN layer will learn the mapping of those representations to text. There was no fixed value for the time steps for the encoder of the CTC model. As usual the number of time steps is equal to the product of the sampling frequency of the input features and input sequence length. During inference time of the CTC model we used a combination of CTC beam search decoder and an external 4-gram language model. Along with beam search we include the log of the probability assigned by the language model for the label sequence during inference time. We used a character based CTC model for this work. The CTC model predicted a character at every time step. Figure 3 shows the loss convergence of the CTC ASR model and Figure 4 shows the loss convergence of the GRU regression model described in Figure 2. All the scripts were written using python keras deep learning and tensorflow 2.0 framework.

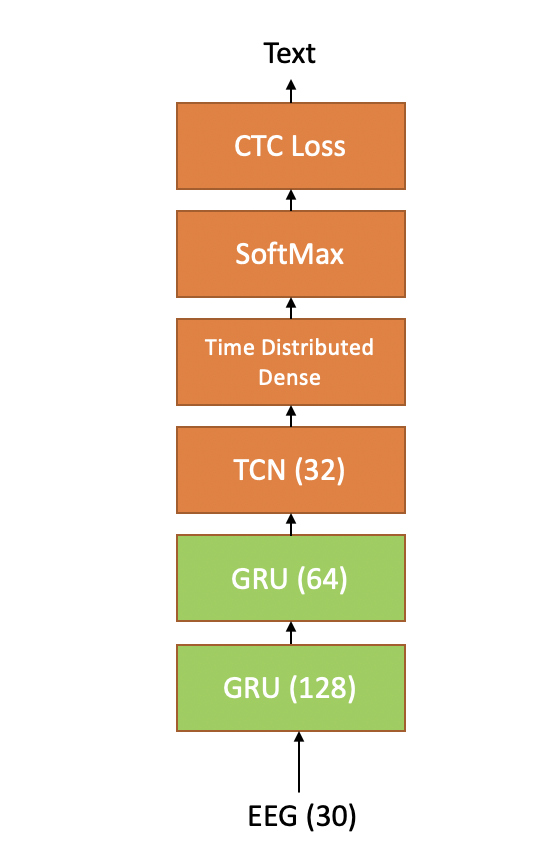

Fig. 1: CTC ASR Model

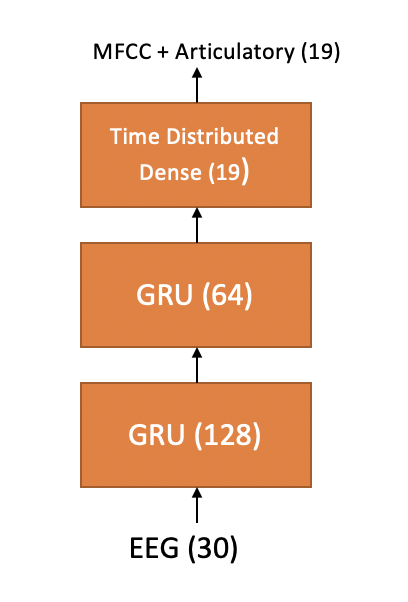

Fig. 2: Model to derive the initializing weights for the GRU layers of the CTC network
Fig. 3: CTC loss convergence
Fig. 4: GRU regression loss convergence

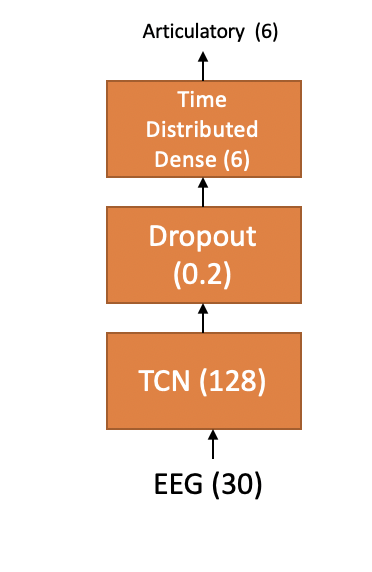

Fig. 5: Model to predict articulatory features from EEG features
