Improving Behavioural Cloning with Human-Driven Dynamic Dataset Augmentation

Behavioural cloning has been extensively used to train agents and is recognized as a fast and solid approach to teach general behaviours based on expert trajectories. Such method follows the supervised learning paradigm and it strongly depends on the distribution of the data. In our paper, we show how combining behavioural cloning with human-in-the-loop training solves some of its flaws and provides an agent task-specific corrections to overcome tricky situations while speeding up the training time and lowering the required resources. To do this, we introduce a novel approach that allows an expert to take control of the agent at any moment during a simulation and provide optimal solutions to its problematic situations. Our experiments show that this approach leads to better policies both in terms of quantitative evaluation and in human-likeliness.

READ FULL TEXT VIEW PDF
02/06/2019

CESMA: Centralized Expert Supervises Multi-Agents

We consider the reinforcement learning problem of training multiple agen...
02/17/2022

Efficient Learning of Safe Driving Policy via Human-AI Copilot Optimization

Human intervention is an effective way to inject human knowledge into th...
03/25/2021

Adversarial Imitation Learning with Trajectorial Augmentation and Correction

Deep Imitation Learning requires a large number of expert demonstrations...
01/29/2022

Explaining Reinforcement Learning Policies through Counterfactual Trajectories

In order for humans to confidently decide where to employ RL agents for ...
10/02/2019

Scenario Generalization of Data-driven Imitation Models in Crowd Simulation

Crowd simulation, the study of the movement of multiple agents in comple...
12/17/2021

An Online Data-Driven Emergency-Response Method for Autonomous Agents in Unforeseen Situations

Reinforcement learning agents perform well when presented with inputs wi...

Related Work

Our approach takes the original DAgger algorithm RossBagnell2010 as the main inspiration. In that work, the authors use the idea of fixing wrong actions of a standard BC agent by re-evaluating its errors through another policy. Although the idea sounds promising, it assumes that the policy used for correction is better than the actual policy at solving the task or a particular instance of it. We argue that such an assumption is strong and perhaps too optimistic, as having such an agent would make the actual agent useless and solve the problem inherently. Moreover, generating an expert agent for each possible problem is to be considered impractical due to the enormous amount of resources it would require for non-trivial tasks Russell2019.

Our method uses one of the DAgger variants, HG-DAgger KellyKochenderfer2018, as a secondary source of inspiration. This algorithm addresses the problem described above and deals with it by introducing a human expert in the training procedure. The presence of a human expert is used at training time to correct trajectories that show dangerous behaviours. Therefore, the overall quality of the training trajectories increases and the average performance of the agent increases as well. Even though we believe that this algorithm represents a valid solution to the original DAgger problem, we argue that introducing the human expert at training time implies a gigantic work of correction and provides very slow improvement for a newly generated policy. Therefore, a non-trivial task might require a non-feasible amount of work to be done to train a single agent.

Moreover, previous work on inverse reinforcement learning ZiebartDey2008 and on RL human feedback SinghLevine2019 are taken into account for the development of our method, to provide suggestions on keeping our method fast and reliable. In particular, ZiebartDey2008 proposes the maximum entropy principle for exploring the reward space. This principle inspired the idea of detaching the BC dataset from the expert correction so that the data distributions remain separate and provide maximum exploration capabilities to the agent. On a more technical part, SinghLevine2019 proposes a novel method to make the best use of a low number of trajectories. In our paper, this idea helped us in shaping the training step on the corrective trajectory.

Human-Driven Dynamic Dataset Augmentation

In this section, we present Human-Driven Dynamic Dataset Augmentation (HDD-DAugment), a method for improving RL agents trained from human demonstrations, that addresses and solves all the problems presented above. Similarly to the HG-DAgger algorithm, the motivation for our approach is to provide high-quality labels to an agent. We believe that these labels can be provided only by an expert, which must be therefore included in the training loop to some extent. However, differently from the baseline approach, we integrate the expert’s corrections in the form of one-time micro-trajectories learned on the spot, skipping the dataset augmentation step.

In the HG-DAgger algorithm described in Algorithm 1, a novice policy is pre-trained over a dataset that is then augmented iteratively based on corrections provided by an expert. The resulting dataset

is then used to fine-tune the agent by performing additional training epochs in the standard BC fashion. Although the solution is indeed valid and leads to an improvement of the policy, we argue that it might suffer from data-related problems in contexts that deal with high dimensional data such as images. Among those problems, the most prominent is maintaining the data in memory, for which a solution requires performing an infinite number of read/write operations from slow mass storage memories. In those cases, we believe that two main reasons could slow down or even prevent an improvement over a standard BC agent.

First, dealing with high dimensional data drastically increases their variability, and therefore a much more vast set of trajectories is required to allow learning. As a consequence, augmenting the dataset results in a longer training time. Also, memory is affected: a high dimensional dataset might not fit into memory. In those cases, data are stored to mass storage devices, and become an additional cost both in economic and computational terms. Although time can be saved with highly-engineered solutions, memory for massive datasets of this kind is still problematic.

Second, DAgger-like approaches incorporate the corrections into the original dataset , such that at the end of the procedure . This prevents the agent from drifting away from the original solution, as a good portion of the augmented dataset will still represent the original one. We believe that such robustness to change is both an upside and a drawback: whenever the variability of the data is high, preventing the drift might anchor the agent to a solution that is very distant from the optimal one. On the other hand, allowing the agent to detach from it by learning from an independent dataset allows the agent to freely explore new solutions to the problem. Indeed, this comes with a risk of detaching from the initial task, but the complete control that the expert exerts over the agent helps in preventing this.

By skipping the standard aggregation step, our approach avoids the data-related problems and can be used to train a network on high dimensional datasets: HDD-DAugment (Algorithm 2) does not make use of the initial BC dataset, thus making the intermediate training steps much faster than the baseline approaches. Our method processes an expert’s corrective trajectory as an independent mini-batch of tuples that are stored only temporarily in RAM and are deleted as soon as the training step ends. As a consequence of this, we do not need to perform onerous read and write actions, nor occupy memory with corrective data or need a powerful machine to overcome those limitations. At the same time, using the corrective trajectory independently from the baseline dataset makes it independent from the underlying data distribution. Therefore, the policy can explore a wider range of solutions for the problem.

While this might come with problems if the number of corrections is too high, a single correction does represent a small step in an arbitrary direction and is equivalent to the idea of random noise added to the policy in evolutionary algorithms

Grefenstette2011. Thus, small changes to the policy weights can be allied with no harm. Moreover, since each correction is provided singularly by an expert, a careful design of corrective trajectories and limiting their number can easily avoid this negative phenomenon.

Input:
Output:

1:
2:
3:  for epoch  do
4:     for rollout  do
5:        for timestep of rollout  do
6:           if expert has control then
7:              Record expert labels into
8:           end if
9:           if expert is taking control then
10:              record doubt into
11:           end if
12:        end for
13:
14:
15:     end for
16:     train
17:  end for
18:
19:  return
Algorithm 1 HG-DAgger

Input:
Output:

1:  train on with regular BC
2:  for game  do
3:     while not ending condition do
4:        for timestep of rollout  do
5:           perform RL step
6:           if expert takes control then
7:
8:              while expert gives control back do
9:
10:              end while
11:              train on
12:           end if
13:        end for
14:     end while
15:  end for
16:  return
Algorithm 2 HDD-DAugment

Experiments

We have performed our experiments on a Minecraft agent, using the MineRL GussSalakhutdinov2019 dataset. In particular, our agents have been trained to solve the FindCave task proposed in the NeurIPS BASALT challenge ShahDragan2021 2021. To complete this task, an agent must spot a cave and take a picture of it by throwing a snowball while being in front of it. The experiments are focused on two sub-problems that we have discovered during the competition. In particular, we found out that standard BC agents were struggling to jump on ramps of blocks and handle the camera controls. To address them, we propose a comparison between four agents. As the first step, each policy has been trained with standard BC until convergence. From our experiments, this happened after around epochs. Then, three of them were fine-tuned with DAgger, HG-DAgger and HDD-DAugment respectively, while the fourth one was left unchanged.

For each fine-tuned agent we have gathered a similar number of additional data. In particular, the DAgger and the HG-DAgger agents have been trained for iterations, each one consisting of one game played by the respective policy and additional training epochs. In both cases, this led to an increment of about in the size of our dataset. To reach a similar number of additional data, we have played games with the agent trained with HDD-DAugment. After the training, we have collected games played by each agent, with a maximum duration of minutes each. Since comparing trajectories qualitatively is not easy, we have decided to use a fixed seed on our environment, to set the same spawning point for every agent. We have assessed the agents’ performance according to four different metrics.

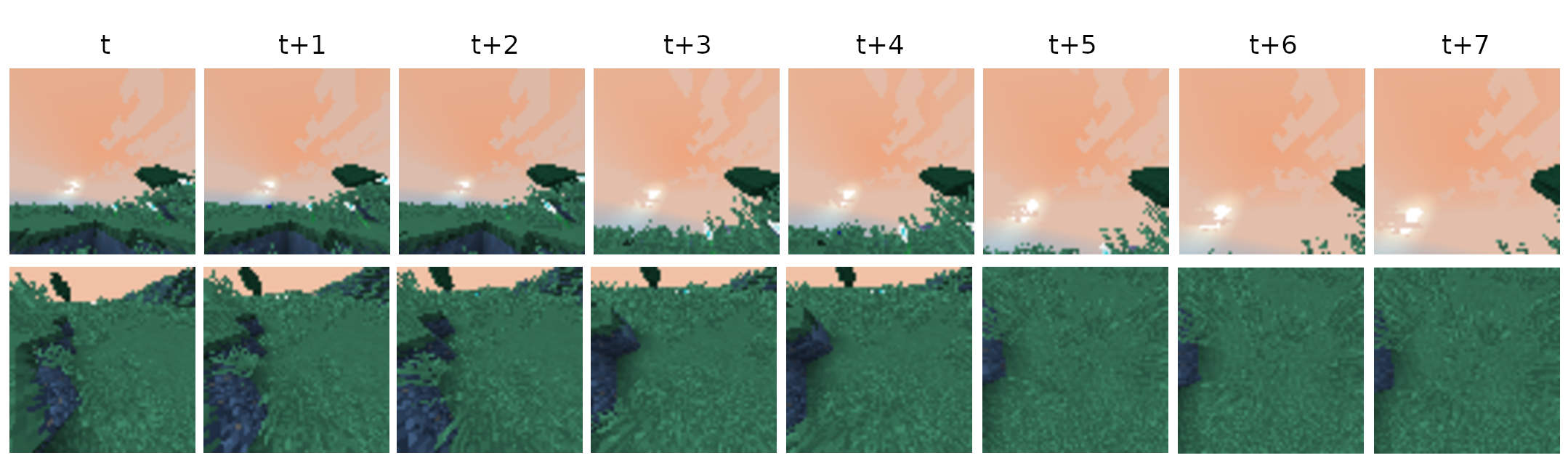

Figure 1: Examples of trajectories that lead to blinded situations. Above: the agent stares at the sky and loses almost every spatial reference of its immediate surroundings; Below: the agent lowers its gaze at every timestep, until it sees nothing but grass.

Number and severity of collisions.

We define a collision as a situation in which an agent gets stuck on a wall or a block. We evaluate the collisions by dividing them into severity classes, according to their duration: the longer the collision, the higher its severity. In our experiments, we have measured collisions that have lasted more than and seconds. An occurrence in the s collision means that in one case an agent has been stuck for a period of time s.t. 5 , and similarly for all the other values. In this experimental setup, a single game can last at most seconds. We compare the agents by assessing the total time spent colliding in each game and plotting their values over the total number of games. In this way, we aim to penalize both a single collision that lasts for a very long time and many collisions that are resolved quickly.

Number and severity of blinded situations.

A blinded situation is a particular state in which the agent repeatedly moves the camera in the same direction along the Y-axis. Examples of this situation are represented in Figure 1. In these situations, the agent ends up looking at the sky or staring at the ground and loses the vast majority of information about its surroundings. The increment of the camera in each direction is constant and in our case has been set to degrees per action. To evaluate a blinded situation we set the initial camera position on the vertical axis to degrees and keep track of the evolution of the offset throughout the game. If the agent overcomes a critical threshold, then it reaches the ”blinded state”. In our experiments, the values of the threshold have been changed incrementally from to degrees with a step of degrees. Similarly to the number of collisions, we sum all the instances related to a game and plot the sequence with respect to the number of games to assess the agents’ tolerance to this problem.

Similarity with expert trajectories.

Provided that the human player is the expert, we know the shape of the optimal solution to a particular situation. For our experiments we have decided to rely on two situations: on the first, the agent is required to step over a block, while the second one assesses an agent that is stuck against a wall. By analyzing the gathered data, we have found those to be the more reliable measures as both of them had an adequate number of instances. For each of them, we extract instances of the problem from the test games and compute an average trajectory from the one performed by the agents. Then, we compare them with the sequence of actions provided by the expert to overcome the problem. To ensure fairness, we align the first meaningful action to solve the situation and compute the average trajectory accordingly.

Qualitative evaluation.

Since this work has been inspired by the BASALT competition ShahDragan2021, and since human likeliness is the focal point of the competition, we also provide a link to a YouTube video that shows the qualitative performance related to each agent. In it, each agent is shown while performing a limited set of actions. While this does not represent a reliable assessment of performances, we believe it is still valid as a perceptual measure of the quality of an agent. The link to the video is posted at youtube.

Results

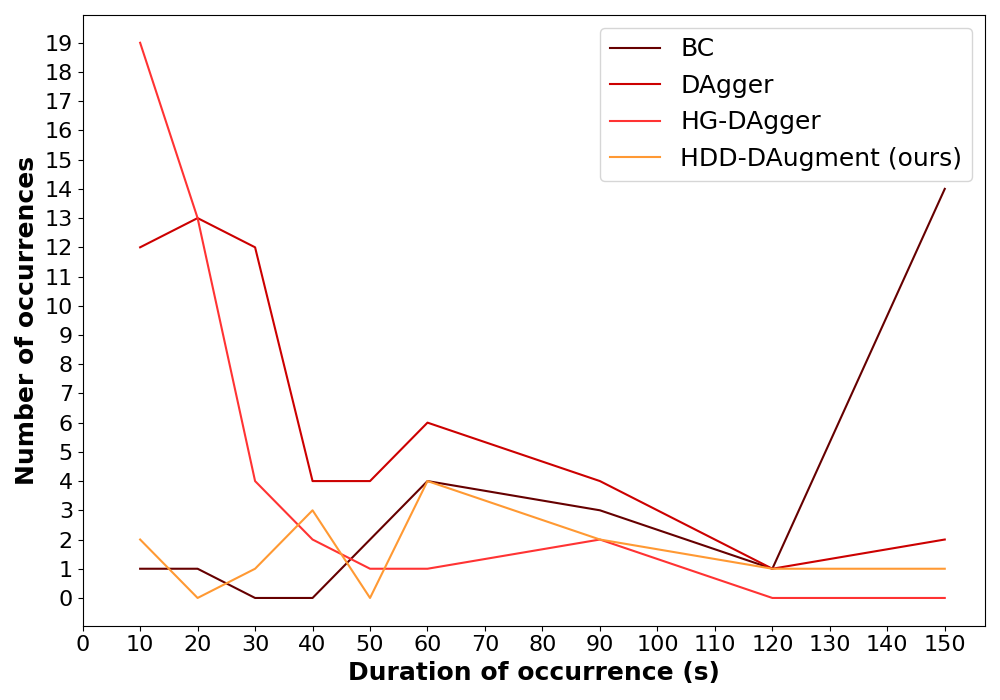

Figure 2: The graph shows the number of occurrences (-axis) per each measured duration (-axis) of the four approaches we compare. In our study, an occurrence is defined as a general instance of problem that the agent faces (e.g. getting stuck, looping with camera movement and so on). The BC agent gets stuck for very long amounts of time in 14 games out of 20. Both the DAgger and HG-DAgger policies show a high number of quick collisions, that rapidly decrease as the duration increases. The HDD-DAugment agent shows a low number of collisions, regardless of their length.

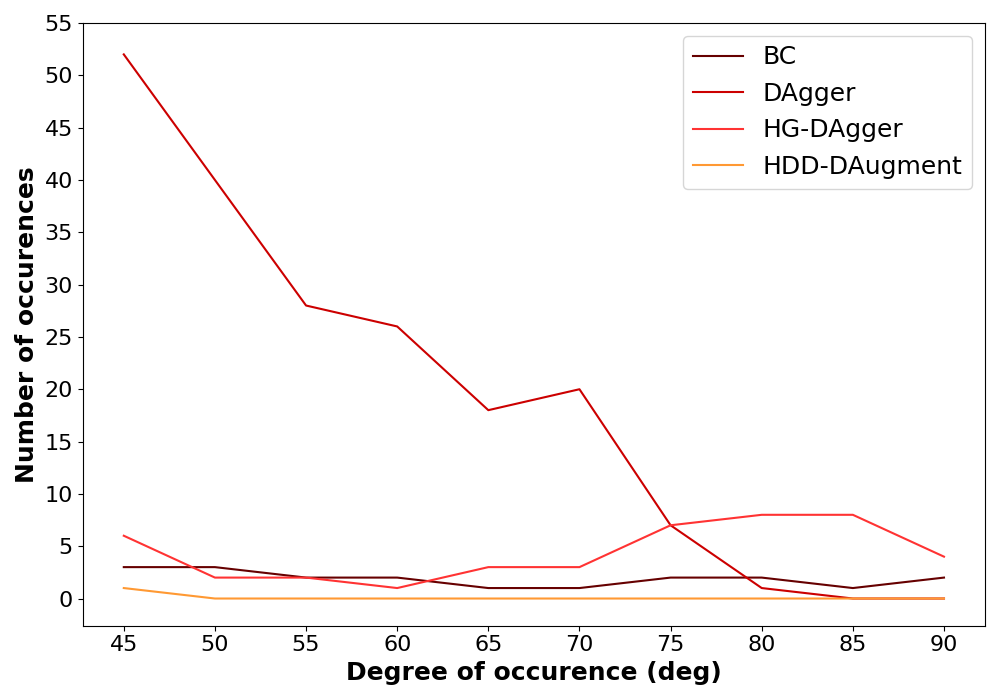

Figure 3: The number of blinded situations (-axis) for each agent, computed with respect to different angle thresholds (-axis). The DAgger agent shows a linearly decreasing trend. The HG-Dagger policy has some occurrences () for very high thresholds.

Number of collisions.

Figure 2 shows the number of collisions per each measured duration. The HDD-DAugment agent handles collisions in the best way possible. While the number of quick collisions is comparable to the baseline BC agent, it is noticeable that the trend of our agent does not vary as the duration of the collision increases. On the other side, the trend of the BC agent skyrockets, meaning that it often gets stuck indefinitely and wastes the majority of its exploration time. Moreover, our agent gets mostly stuck in situations that include a pond or a swap, from which is particularly hard to get out. Our approach also outperforms both the DAgger and the HG-DAgger policies, which suffer from a high number of non-severe collisions.

Moreover, Figure 4 shows that the improvement of our agent with respect to the other candidates is quite noticeable. In particular, our agent is the only one that never gets stuck in some of the games. Also, even in the worst-performing game, HDD-DAugment performs similarly to the best HG-DAgger. The image shows clearly that on average our method outperforms all the others in terms of active time of exploration.

Figure 4: Number of frames (-axis) that have been used for active exploration in each game (-axis). The BC agent spends most of its time being stuck, along with the DAgger policy. Having a lot of quick collisions, also the HG-DAgger is penalized with this measure. Our HDD-DAugment policy is the only one to reach the maximum uptime in some games and rarely drops under of uptime.
(a) (b)
Figure 5: (a) The average behaviour varies enormously between the agents even when they encountered a single step block. The image shows that while the BC policy continues to walk forward indefinitely, the DAgger and the HG-DAgger agents both try to tilt their cameras to get rid of the obstacle. The HDD-DAugment, instead, replicates almost perfectly the expert’s policy. (b) When an agent faces a wall, the expert turns back and continues walking. The graph shows that the BC and DAgger agents are unable to face this situation. On the other hand, the HG-DAgger policy tilts its camera left and right most of the time. On the contrary, our agent turns the camera with a reasonable degree of certainty for several consecutive timesteps.

Number of blinded situations.

From Figure 3 we can conclude that the camera management represents a problem only for the BC agent, while all the other approaches successfully solve it. Even so, the HDD-DAugment performs the better on the test games, showing practically no instance of the problem. It is also noticeable how to HG-DAgger almost always recovers for slightly failures of this kind, while if it goes above a higher threshold of tilting, the chances of repairing this problem decrease. This might indicate that the HG-DAgger algorithm solves the problem only if it can look at its surroundings, while a severe blinded situation still represents an impossible problem. Moreover, the low number of occurrences in the HDD-DAugment agent indicates that drifting from the baseline policy is not likely to happen, as we expected.

Similarity with expert trajectories.

In Figures 5a and 5b it is visible that the HDD-DAugment agent outperforms all the others both in jumping a step and overcoming a rock wall. It is particularly of interest the fact, also shown in the related video, that our agent mimics the expert almost perfectly: when it faces a wall, it turns by almost degrees and keeps walking as nothing happened. This is a clear example of a situation in which drifting from the baseline policy comes with major advantages and helps our agent solve situations that none of the others could address easily. Moreover, this example shows that our approach can follow the expert lead closely while not forgetting the knowledge derived from the baseline training.

Qualitative evaluation.

From the video, it is evident that our HDD-DAugment agent is more human-like than all the other agents. It is surprising, perhaps, to see that the HG-DAgger is quite capable of exploring, although it shows its robotic nature in actions like jumping over a block or climbing a hill. Also, we can see that both the baseline BC and the DAgger agents struggle to explore the environment and get stuck most of the time, even though sometimes they can solve situations like stepping on a block.

The video also shows situations for which, unfortunately, the number of examples was so low that building a statistic on it would have led to vague and non-meaningful results. Anyway, the differences between our agent and the others are clear. It is particularly interesting to see how our agent manages to get out of a pond: while every other agent usually has to be lucky to find the correct path, our agent spots the correct path and follows it. Finally, it’s visible that our agent from time to time tilts its camera left and right while exploring. We have decided to include this in the video to show the possible negative effects of drifting from the baseline policy. In our experience, those problems come from non-coherent solutions provided by a human expert. Therefore, it is possible to avoid them easily with a careful design of the corrective trajectories.

Conclusions

In this paper, we propose Human-Driven Dynamic Dataset Augmentation (HDD-DAugment), a novel approach that incorporates human feedback to address and tackle problems of previous algorithms for improving the performances of a behavioural cloning (BC) agent. Moreover, we apply our approach to a standard BC agent and compare it with the baseline BC policy itself and two other similar approaches, DAgger and HG-DAgger. We evaluate the performances of each approach with both qualitative and quantitative measures.

Our experimental work shows that while our agent is far from being perfect, it either matches or improves the other approaches in all the instances of problems that we have assessed. In some cases, our agent was the only one that could provide a solution. The obtained results prove that even though HDD-DAugment is a more risky approach than the others, it comes with great upsides and careful planning of the human corrections greatly reduces those risks. Moreover, our algorithm is invariant to problems related to the storage of data and the speed of training and provides a fast and light way to train an agent even with extensive, high dimensional datasets.
