Improved Optical Flow for Gesture-based Human-robot Interaction

by   Jen-Yen Chang, et al.
The University of Tokyo

Gesture interaction is a natural way of communicating with a robot as an alternative to speech. Gesture recognition methods leverage optical flow in order to understand human motion. However, while accurate optical flow estimation (i.e., traditional) methods are costly in terms of runtime, fast estimation (i.e., deep learning) methods' accuracy can be improved. In this paper, we present a pipeline for gesture-based human-robot interaction that uses a novel optical flow estimation method in order to achieve an improved speed-accuracy trade-off. Our optical flow estimation method introduces four improvements to previous deep learning-based methods: strong feature extractors, attention to contours, midway features, and a combination of these three. This results in a better understanding of motion, and a finer representation of silhouettes. In order to evaluate our pipeline, we generated our own dataset, MIBURI, which contains gestures to command a house service robot. In our experiments, we show how our method improves not only optical flow estimation, but also gesture recognition, offering a speed-accuracy trade-off more realistic for practical robot applications.



page 1

page 3

page 5


Surgical Gesture Recognition with Optical Flow only

In this paper, we address the open research problem of surgical gesture ...

Gesture Recognition with a Focus on Important Actions by Using a Path Searching Method in Weighted Graph

This paper proposes a method of gesture recognition with a focus on impo...

Head Gesture Recognition using Optical Flow based Classification with Reinforcement of GMM based Background Subtraction

This paper describes a technique of real time head gesture recognition s...

One-Shot-Learning Gesture Recognition using HOG-HOF Features

The purpose of this paper is to describe one-shot-learning gesture recog...

Using Visual Anomaly Detection for Task Execution Monitoring

Execution monitoring is essential for robots to detect and respond to fa...

Two-stream Fusion Model for Dynamic Hand Gesture Recognition using 3D-CNN and 2D-CNN Optical Flow guided Motion Template

The use of hand gestures can be a useful tool for many applications in t...

SDOF-Tracker: Fast and Accurate Multiple Human Tracking by Skipped-Detection and Optical-Flow

Multiple human tracking is a fundamental problem for scene understanding...
This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

I Introduction

In our society, people have a constant need to communicate with each other (e.g., via voice or gestures). Although voice is normally preferred for its directness, sometimes verbal communication is not possible due to environmental factors such as noise, or the inability of one of the interlocutors to communicate, due to, e.g., a speech/hearing disability or when the interlocutor speaks in another language or has a very strong accent. In such cases, humans use gestures as an alternative modality for interaction [1]. On the other hand, robots are increasingly being adopted in our daily life. There has been a rising demand for domestic service robots for entertainment purposes [2], taking care of elders or hospital patients [3], and carrying out domestic tasks. An example of these robots are the Human Support Robot (HSR) developed by Toyota and Pepper developed by Softbank Robotics. The speech recognition modules installed in house service robots (e.g., DeepSpeech [4] or Google Speech API) have achieved near human level performance. However, similarly to humans, human-robot verbal communication is also affected by factors such as noisy environments, a malfunctioning microphone, or situations in which the robot and the human do not “speak” the same language. In order to achieve a more reliable human-robot interaction (HRI), an alternative way to communicate with the robot is necessary. As with humans, gestures provide an alternative modality for communication, and thus, gesture recognition plays an important role in HRI.

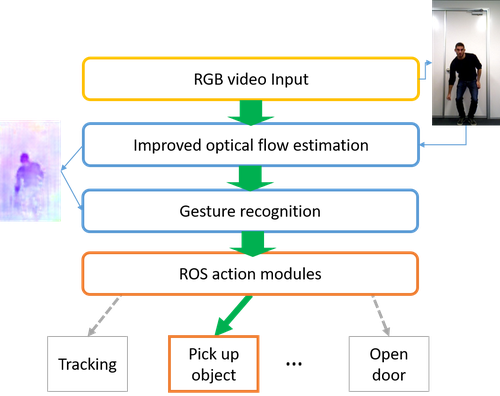

Fig. 1: Overview of our pipeline. The input video from the robot’s camera is used to estimate the optical flow with our novel method. Then, through optical flow-based gesture recognition, the robot’s operating system (e.g., ROS) selects which module to run.

In computer vision, gestures can be recognized using an action recognition method

[5] [6]. These methods include optical flow estimation in their pipeline to facilitate understanding the dynamic nature and the spatio-temporal features of gestures. Current optical flow estimation methods have limitations: (1) they result in a blurry representation of the human silhouette that misses a lot of detail, and (2) they are time-costly. Algorithms with an excessive runtime are not suitable for real time gesture-based HRI. If recognizing a gesture takes too long (e.g., 30s), communication is heavily hindered. On the other hand, if the recognition time is fast but the accuracy is poor, recognition mistakes will make the communication impossible.

In this work, we present a gesture recognition pipeline (Fig. 1) designed for human-robot interaction that achieves a good trade-off balance between speed and accuracy. In order to obtain a finer spatio-temporal representation of human motion, we proposed a novel optical flow that pays attention to the human body silhouette, and thus, achieves a better recognition accuracy. Our contributions are:

  • Three novel optical flow estimation methods that incorporate attention to allow for better gesture recognition.

  • An optical-flow based gesture recognition pipeline with improved speed-accuracy trade-off, designed for human-robot interaction.

  • A self-generated dataset for human-robot interaction, MIBURI111MIBURI project URL:, designed to command the robot to complete household tasks.

Ii Related work

Ii-a Human-Robot Interaction Via Gestures

Nowadays, most human-robot interaction methods are speech recognition-based [7] [8]. Unfortunately, the use of speech recognition is somewhat limited, due to environmental, hardware, or linguistic problems (Sec. I). Gesture communication serves as a natural alternative to speech [1]. Previous works [9, 10] study the effect of robots performing gestures to communicate with humans. However, our interest is in humans commanding the robot through gestures. Most existing works on human-robot interaction (HRI) via gestures focus on hand gesture recognition [11]. However, hand gestures limit the motion to only the hand part of the human body, which may not be intuitive enough for general human users to perform. Unlike these works, we also refer to motions involving the whole body as gestures.

Ii-B Gesture Recognition and Optical-Flow based Gesture Recognition

In robot vision, gestures can be recognized using action recognition methods that combine appearance and motion. Whereas color-only methods [12] can recognize certain activities such as sports, their representation of motion is not fine enough to differentiate between similar gestures. In contrast, optical flow is a better representation of motion. Deep learning-based action recognition using optical flow achieved outstanding results with the two-stream network approach [5]

developed by Simonyan et al.. They trained two separate convolutional neural networks to explicitly capture spatial features from color images and temporal features from optical flow. Finding Action Tubes

[13] extended the work of Simonyan et al. by proposing candidate regions descriptors instead of full images in order to localize the action to improve the recognition accuracy. However, the trade-off between the runtime of recognizing the gesture and accuracy of such recognition can be improved. Recent approaches such as Temporal Segment Networks (TSN) [6], and [14] further extended the two-stream approach. More concretely, TSN proposed to concatenate video frames into segments for a better speed-accuracy trade-off.

Ii-C Optical Flow Estimation

In optical flow-based gesture recognition, such as the previously described [14] and [6], in order to estimate optical flow from the input images, researchers deployed traditional optical flow estimation methods, namely the TVL1 [15], and the work of Brox et al. [16]. These optical flow estimation methods reached state-of-the-art accuracy, but they are slow. To tackle this, researchers leveraged deep learning techniques. The first attempt of a deep optical flow estimation network, FlowNet [17], proposed two networks, namely FlowNetS and FlowNetC, and greatly improved the runtime of previous work. Zhu et al. [18] developed an optical flow estimation method called DenseNet by extending a deep network for image classification, and demonstrated that it outperforms other unsupervised methods. FlowNet 2.0 [19] is a follow-up paper of FlowNet [17]. They stacked two optical flow estimation networks (FlowNetS and FlowNetC) and achieved state-of-the-art results comparable to traditional optical flow methods while running on 8 to 140 fps depending on the desired accuracy (the higher the accuracy, the slower the runtime). However, one of the main problems of FlowNet 2.0 [19] is its model size (parameter counts). Since the architecture is stacked, the parameter count is naturally high. Recently, some methods focused on obtaining the same accuracy while reducing its model size [20].

Iii Optical Flow-based Gesture Recognition

Figure 1 depicts an overview of the basic pipeline of our gesture recognition method for human-robot interaction (HRI). The RGB video of the user performing a gesture is fed to our optical-flow estimation method, and then, the resulting optical flow is used to recognize the gesture.

We implemented our modules by taking into account the trade-off between the recognition accuracy and speed. While most gesture/action recognition methods employ optical flow (Sec. II-C), they mainly use traditional optical flow estimation. We argue that using deep learning for estimating optical flow results in a better trade-off between gesture recognition runtime and accuracy, and thus, is adequate for HRI. We also argue that adding an attention mechanism to deep learning optical flow estimation results in a higher accuracy, not only for optical flow estimation (reduces blurriness in contours), but also for gesture recognition (refines the user’s silhouette).

Following the same criteria, we feed our optical flow to the TSN action recognition network [6] (Sec. II-B), as it features state-of-the-art accuracy with short recognition time. That is, approximately one second on a GTX 1080 GPU, for action recognition on 120 images (4 seconds of video at 30fps).

The next section explains in detail our contribution in optical flow estimation.

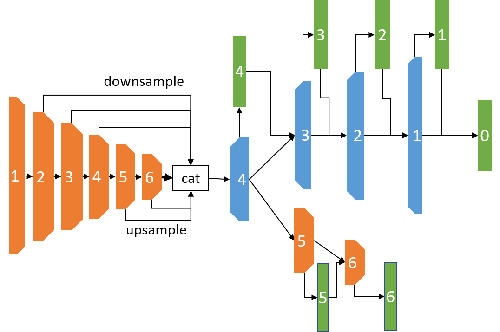

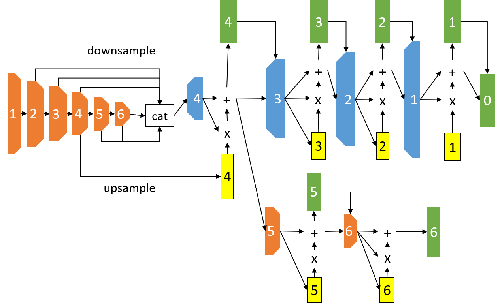

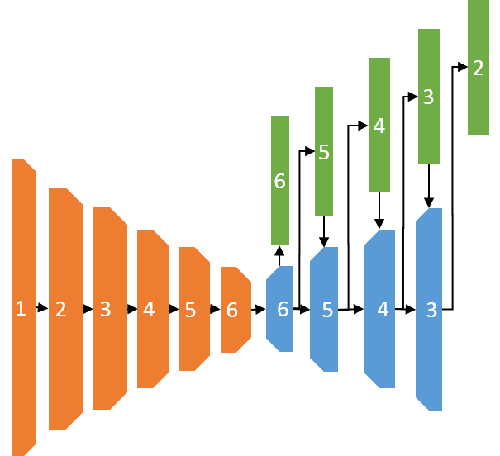

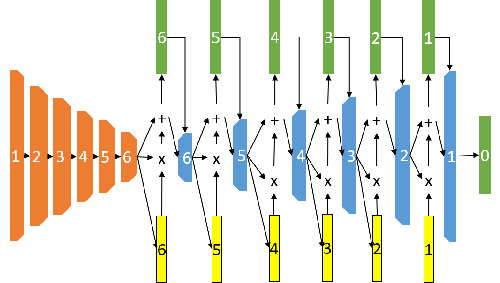

Fig. 2: Proposed optical flow estimation networks. Top left: original FlowNetS [17]. Top right: AttFlowNet{Res, Inc, NeXt32, NeXt64}. Bottom left: MidFlowNet{Res, Inc, NeXt32, NeXt64} [17]. Bottom right: AttMidFlowNet{Res, Inc, NeXt32, NeXt64}. For all figures below, orange blocks are convolutional layers (feature extractors), blue blocks are transposed convolutional layers, green blocks are optical flow estimators, yellow blocks are attention calculators. Numbers indicate layer size (same number, same size).
