1 Introduction

Physical human-robot interaction requires the robot to actively engage in joint action with human partners. In this work, we are interested in robotic learning of physical human-robot tasks which require coordinated actions. We take inspiration from psychological and biological research and investigate how observational and kinesthetic learning can be combined to learn specific coordinated actions, namely interactive greeting gestures.

In a more general context, coordinated actions between humans can be of functional nature, such as handing over an object, or of social importance, such as shaking hands as a greeting gesture. Thus, joint actions encompass any kind of coordination of actions in space and time in a social context. In general, joint actions require the ability to share representations, to predict others’ actions and to integrate these predictions into action planning [sebanz2006joint]. On a sensorimotor level coordinated actions require a constant coupling between the partners’ sensory and motor channels [vesper2017joint]. We aim at making use of sensorimotor patterns to enable a robot to engage with a human partner in actions that require a high degree of coordination such as hand-shaking.

The acquisition of the ability to engage in joint action during human infancy and early childhood is an active field of research in psychology [brownell2011early]. Interaction is mostly learned in interaction, from observation, active participation or explicit teaching. While cultural differences exist, children are commonly presented with the opportunity to learn through guided participation in joint action with more experienced interaction partners [rogoff1993guided]. In the robotics community two prominent techniques to learn actions from others are learning from demonstration and imitation learning [billard2008robot, osa2018algorithmic]

. Learning from demonstration can be seen as a form of imitation learning. It requires a teacher to intentionally demonstrate to a learner how an action should be performed. In a robotic learning scenario, this can imply direct kinesthetic teaching of trajectories. General imitation learning on the other hand includes also learners who passively observe an action and replicate it without supervision. When observing a human, who often has a different set of degrees of freedom, the robotic system first needs to acquire a mapping between embodiments before a motion can be imitated

[alissandrakis2007correspondence].

In this work, we are interested in teaching a robot to coordinate with a human in time and space. Therefore we require adaptive and predictive models of sensorimotor patterns such as joint trajectories and motor commands of interactive tasks. To this end, we develop deep generative models that represent joint distributions over all relevant variables over time. The temporal latent variables in these models encode the underlying dynamics of the task and allow for a sensorimortor coupling of the human and the robot partner. As depicted in Figure

1, collecting data by kinesthetic teaching for human-robot interaction tasks is tedious and time-consuming. We propose to first model the dynamics of human-human interaction and subsequently use the learned representation to guide the robot’s action selection during human-robot interaction.

Before diving into the theory, in the next section we will shortly introduce the field of robotic imitation learning and point out how the general field differs from the requirements needed for imitation learning for interaction. Finally, we will motivate our choice of model and explain the basic assumptions of deep generative models.

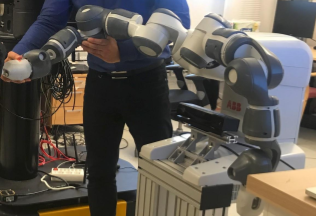

Figure 1: Kinesthetic teaching of a human-robot hand shake. The human partner is wearing a motion capture suit to record joint positions.

2 Background

Traditionally, robotic imitation learning is applied to individual tasks in which the robot has to acquire e.g. motor skills and models of the environment. Our goal is to extend the ideas to interactive settings in which a human partner has to be incorporated into action selection. Thus. we aim at transferring knowledge form observing human-human interaction (HHI) to human-robot interaction (HRI).

2.1 Robotic imitation learning of trajectories

Imitation learning is concerned with acquiring a policy, i.e. a function that generates the optimal action given an observed state. While reinforcement learning usually solves this task with help of active exploration by the learning agent, in imitation learning the agent is provided with observations of states and actions from which to learn. These demonstrations can either be generated in the agent’s own state space, e.g. by tele-operation

[argall2009survey], or in the demonstrators embodiment, e.g. a human demonstrating actions for a robot. In this work we combine these approaches to teach a robot arm trajectories required for a number of interactive tasks.

Learning trajectory generating policies from demonstration has been addressed with for example a combination of Gaussian Mixture Models and Hidden Markov Models

[calinon2010learning], probabilistic flow tubes [Dong2011MotionLI, Dong2012LearningAR] or probabilistic motion primitives [maeda2017probabilistic]. The general strategy in this case is to first gather training data in form of trajectories and to align these temporally e.g. with the help of Dynamic Time Warping [Sakoe1978DynamicPA]. Once the training data has been pre-processed in this way, the model of choice is trained to predict the trajectory of robotic motion for a certain task. During employment of the model, the online trajectory needs to be aligned with the temporal dynamics of the training samples in order to generate accurate movements. Depending on the trajectory representation, e.g. torque commands or Cartesian coordinates, the model predictions might be highly dependent on the training data. For example, when the task is to learn to grasp an object at a certain location, the model might not generalize to grasping the same object at a different location.

This constant need of alignment and reliance on demonstrations hampers the models to work in a dynamic environment with varying task demands. For example, if the task is to shake hands with a human, the number of shaking cycles and the length of each individual shake can vary from trial to trial and have to be estimates online instead of being predicted once prior to motion onset. These requirements for online interaction are discussed in more detail below.

2.2 Requirements for online interaction

Interaction with humans requires a robotic system to be flexible and adaptive [dautenhahn2007socially, maeda2017phase]. To meet these requirements, the robot needs to be able to anticipate future human actions and movements [koppula2015anticipating]. Thus, imitation learning for interaction is different from non-social imitation learning as it requires to learn a function not only of one’s own behavior, but also of the partner’s behavior.

These requirements stand therefore in contrast to the approaches to imitation learning discussed in Section 2.1 which focus on learning a trajectory of a fixed size. [maeda2017phase] address the problem of adjusting to the speed of the human’s actions by introducing an additional phase variable. This variable can be interpreted as an indication of the progress of the movement of the human to which the robot has to adapt. However, such an approach is only feasible for interactions which require little mutual adaptation beyond speed. For example, during a hand-shake interaction, it is not only important to meet the partner’s hand at an appropriate time, but also to adjust to the frequency and height of every up-and-down movement. Thus, online interaction requires the prediction of the partner’s future movements in order to adapt to them quickly and a constant update of these predictions based on sensory feedback.

An additional requirement for natural human-robot interaction is to provide fluent coordination. We envision robot’s to actively engage in an interaction such that the human partner does not have to wait with a stretched arm until the robot reacts and moves its arm to engage in a hand-shake. Making use of predictive models allows the robot to initiate its movements before the human has reached the goal location. These models also provide a basis for collision-free path planning to assure safe interaction in shared workspaces.

Since humans are involved in the data collection process and kinesthetic teaching is time consuming and requires expert knowledge, the amount of training data is restricted. Therefore, any method used to learn trajectories must be data efficient. Many modern imitation learning techniques build on ideas from deep reinforcement learning [zhang2018deep, li2017infogail] which is often data intensive. We rely on a model class which is regularized by its Bayesian foundation and therefore less prone to overfit to small datasets. This model class of deep latent variable models has been mostly used to model images. Here, we take inspiration from earlier work in which we model human motion trajectories [butepage2018anticipating] and robot actions [ghadirzadeh2017deep]

with help of deep generative models. We extend the ideas to represent the dynamics of human-robot interaction in a joint model. For those unfamiliar with the ideas of Variational Autoencoders, we introduce the underlying concept of this model class below.

2.3 Deep generative models and inference networks

In this work, we model human and robotic motion trajectories with help of Variational Autoencoders (VAEs) [kingma2013auto, rezende2014stochastic], a class of deep generative models. In contrast to Generative Adversarial Networks [Goodfellow2014GenerativeAN] and flow-based methods [dinh2016density, kingma2018glow], VAEs allow us to define our assumption in terms of a probabilistic, latent variable model in a principled manner. While we focus on the main concepts and the mathematical foundations of VAEs, we refer the reader to [zhang2018advances] for an in-depth review on modern advances in variational inference and VAEs. In the next section, we will shortly introduce the concepts of variational inference.

2.3.1 Variational inference

To begin with, we assume that the observed variable, or data point, depends on latent variables . If the dataset consists of images, the latent variables or factors describe the objects, colors and decomposition of the image. If, as we will introduce later, the dataset consists of human or robot joint movements, the underlying factors describe the general movement patterns. For example, a waving movement, in which many joints are involved, can be described by a single oscillatory latent variable. Usually the dimension of is smaller than the dimension of , i.e. .

In general, this model describes a joint distribution over both variables where are the parameters. This modelling assumption allows us to generate new observations with help of the mathematical model instead of employing a physical system. First, a latent variable is sampled, from a prior distribution . For example, to generate a waving arm movement, we sample where in the oscillation the arm starts and the initial velocity. Then we sample the actual poses conditioned on these latent variables. The conditional distribution encodes the mapping from the latent space to the observed space. Thus, the generative process looks as follows:

(1)

In order to determine the structure of the latent variables that generated on observed set consisting of data points , one requires access to the posterior distribution for each data point

. Often exact inference of this term is intractable which is why one recedes to approximate inference techniques such as Monte Carlo sampling and variational inference (VI). VAEs combine VI for probabilistic models with the representational power of deep neural networks. VI is an optimization based inference technique which estimates the true posterior distribution

with a simpler approximate distribution where are parameters and is the set of latent variables corresponding to the data set. A common approach is the mean-field approximation which assumes that the latent variables are independent of each other . As an example, if

follows a Gaussian distribution, we need to identify a mean

and variance

for every data point . For the entire dataset , the parameters of this distribution are determined by optimizing the Evidence Lower BOund (ELBO)

(2)

where is a distance measure between two distributions and .

Traditional VI approximates a latent variable distribution for every data point which becomes expensive or impossible when the number of data points is large. VAEs circumvent this problem by learning a direct functional mapping from the data space to the latent space and vice versa. We will detail this method in the next section.

2.3.2 Variational Autoencoders

Instead of approximating sets of parameters, VAEs employ so called inference networks to learn a functional mapping from the data space into the latent space. Thus we define each latent variable to be determined by a distribution which is parameterized by a neural network (the inference network) that is a function of the data point . In the Gaussian case this would imply that , where and are neural networks mapping from the data space to the parameter space of the latent variables. Likewise, the likelihood is represented by neural network mappings (the generative network) . In this way, VAEs do not estimate sets of parameters but only the parameters of the inference and generative network. These are optimized with help of the ELBO

(3)

Note that we replaced the expectation in Equation 2 with the Monte Carlo estimate summing over the individual data points.

3 Methodology

Following the introduction of VAEs above, we will now detail how we employ them to learn the sensorimotor patterns required for interactive tasks. We will begin with a description of human-human dynamics modelling which is subsequently used to guide the human-robot interaction model.

3.1 A generative model of interaction

In general we assume that a recording consists of observations and , where , and represents a single frame containing the joint positions of human . During testing time, we would like to be able to infer a future window (of size ) of observations after time , i.e. we would like to predict and . We assume a generative process that looks as follows

(4)
(5)

Here, the latent variables and for agent and encode the next time window and , while is the deterministic output of a recurrent model . As depicted in Figure 2. encodes shared task dynamics which can be derived from the movement of either subject independently. These shared dynamics influence how each partner moves through and . In summary, the generative model for agent represents the joint distribution conditioned on a deterministic summary of the past and parameterized by .

In the following, we will describe how to learn each of the components for human-human interaction and subsequently how to transfer this knowledge to a human-robot interaction scenario.

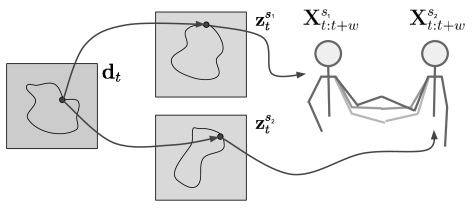

Figure 2: The task dynamics govern the activity of the latent variables of both partners and . These in turn determine the future movement of the partners and .

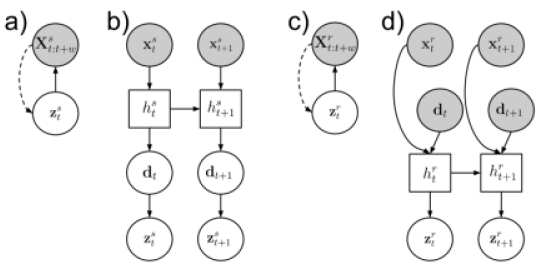

Figure 3: An overview of the model structure. a) Human motion embedding, b) Task dynamics model, c) Robot motion embedding, d) Human motion embedding, Interaction model with predictive input. Gray circles represent observed variables, white circles are unobserved variables and a white square indicates a deterministic unit. A filled line shows the generative process while dotted lines indicate inference connections.

3.1.1 Motion embeddings

One problem when it comes to predicting the future is that there exist many possible ones. When using a mean-squared error based cost function during training, this will lead the model to rely on predicting only the average, not many different trajectories. We will circumvent this problem by first learning a latent space that encodes the future without knowledge of the past and then to learn a distribution over the latent variables which is conditioned on the past (e.g. in Equation 5). At each time step, we assume that there exists latent variables and for agent and which encode the next time window and . We assume that both humans are encoded into a common space, therefore we will replace the superscripts and with in the following discussion.

To infer the latent variables efficiently from data, we apply variational autoencoders (introduced in Section 2.3). To this end, we define the following generative process:

(6)

The graphical model is depicted in Figure 3 a). The parameters of the generative network and the inference network are jointly trained on the training data collected from both humans to optimize the Evidence Lower BOund (ELBO)

(7)

3.1.2 Encoding task dynamics

Once the motion embeddings have been learned, the whole generative model in Equation 5, as depicted in Figure 3 b), can be trained. To this end, we need to infer the parameters to estimate and .

The loss function is defined as follows

(8)

The first line in Equation 8 forces the distributions over latent variables that depend on the past to be close to the expected motion embedding at time . The second line enforces that the latent variable , which encodes the task dynamics are the same for both agents. As the KL divergence is not symmetric, we use here the Jensen–Shannon divergence, which is defined as for two distributions and .

3.1.3 Interactive embodiment mapping

Once trained, the generative model described above can be used to generate future trajectories for both agents given that only one agent has been observed. This is achieved by e.g. predicting the task dynamics variable with help of data collected for agent and using this variable to infer both and . We will make use of this fact to infer not only a human partner’s future movement, but also to guide how a robotic partner should react given the observed human.

As training data acquisition with a robot and a human in the loop is cumbersome and time consuming, we do not have access to as much training data of the human-robot interaction compared to the human-human interaction. Therefore, we will leverage the task dynamics representation learned from human-human interaction to guide the robot’s corresponding motion commands. To this end, we extract the task dynamics distribution from the human partner for each time step of the human-robot interaction recordings and learn a mapping to the robot’s motion commands with a second dynamics model.

In more detail, given a recording which consists of observations and , where represents the robot’s state at time , we first collect which we set to the mean of the distribution for each time step . We are now equipped with a training data set, containing the data point pairs . In order to learn a predictive model from the task dynamic variable to the future motion commands of the robot, , we design a similar approach to the model described for human-human interaction. It includes a Variational Autoencoder functioning as a motion embedding and a recurrent network that encodes the robot motion over time. These two models are depicted in Figure 3 c) and d) respectively.

Interaction model with predictive input: Similar to the human-human setting in Equation 5, the generative model for the robot motion is as follows

(9)

Just as in the human-human setting, we first train a motion embedding VAE on the robot data, i.e. we train the following model with the same loss function as in Equation 7

(10)

Subsequently, we assume that the parameters in Equation 9 are inferred by optimizing

(11)

where the dynamics are extracted with help of the models trained on the human-human data. We summarize the training procedure of all our model in Algorithm 1.

Human-human interaction
      Data:
      Step 1: Human motion embedding
          Fit and to , following Equation 7.
      Step 2: Task dynamics
          Fit and to , following Equation 8.
Human-robot interaction
      Data: , where
      Step 3: Robot motion embedding
          Fit and to , combining Equation 7 and 10.
      Step 4: Interactive embodiment mapping
          Fit and to , following Equation 11.
Algorithm 1 All four steps of our combined motion embedding and dynamics modelling framework.

3.2 Generating interactions

In order to employ our models during an ongoing interaction, we need to predict future time steps. As the dynamics and the motion embeddings encode a window of the next time steps, the prediction up to this horizon is straight forward as it only requires a propagation of the observed data. To go beyond a time frame of is made possible by our generative design. Instead of propagating observed data, one can let the models predict the next time frames based on the observed data and provide these as an input to the model. In case of the human-robot interaction model, one has to first predict the human’s future motion to extract the matching dynamics variables and can subsequently use these variables together with predictions of the robot’s motion to generate long-term robot motion. During online interaction these predictions can be updated on the fly when new data is observed.

3.3 Baselines

We benchmark our approach on three baselines. Our own approach will be called Human Motion Embedding in the following.

The first baseline tests whether our predictive and adaptive approach is necessary or whether more static imitation learning techniques suffice. To test this, we group the robot trajectories in the training data according to action type and use Dynamic Time Warping (DTW) to align them. We fit Gaussian distributions with full covariance matrices to the trajectory of each of the robot’s joints. If DTW resulted in a trajectory length of for a certain action type and joint, then the Gaussian is of dimension . A sample from each Gaussian model constitutes therefore a trajectory in joint angle space without input from the current human movement. We call this approach Gaussian model.

The second baseline tests whether our approach actually benefits from the encoded dynamics learned with the HHI data. Thus, in this case we train the same model as described in Section 3.1.3. However, instead of feeding the dynamics variable into the recurrent network in Equation 9, we feed the current human joint position , i.e. . This also affects the loss in Equation 11, which now is a function of , i.e., . We call this approach Raw Data HR which symbolizes that we provide raw human and robot data as input to the model.

The third baseline tests whether the human observation is required at all or whether the approach is powerful enough to predict based on robot joint position alone. In this case we train the same model as described in Section 3.1.3, but provide only the current robot joint positions , i.e. . This also affects the loss in Equation 11, i.e., . We call this approach Raw Data R which symbolizes that we provide only raw robot data as input to the model.

4 Experimental setup and model fitting

In this section we detail the experimental setup and model performances. For details regarding model architectures and model training, such as train and test splits, please see the Supplementary Material.

4.1 Task description

Our interactive tasks consist of performing four different greeting gestures with a human partner. In each task execution we assume the identity of the gesture to be known apriori as the focus of this work lies on learning continuous interactive trajectories. However, our method can easily be extended to automatically infer the action type [butepage2018classify]. Two of the gestures fall into the category of dyadic leader–follower interaction, while the other two partners carry equal roles. The interactive gestures are the following:

Equal roles
Hand waving: Both: Lifting the right arm into an upright, ninety-degree angle with the open palm facing the partner; moving the lower arm sideways in an oscillatory motion (around 3-6 cycles); lowering the arm.
Hand Shaking: Both: Stretching the right arm forward to meet the partner’s hand, grasping the partners hand; moving the lower arm up and down in an oscillatory motion (around 3-6 cycles); releasing the partner’s hand, lowering the arm.
Leader-follower roles
Parachute fist-bump: Both: Stretching the right arm upwards with the hand closed to a fist to meet the partner’s hand, touching the partner’s fist with one’s own;
Leader: (parachute) Opening the hand and tilting it so that the flat, inner palm faces downwards; keeping the hand above the follower’s hand; moving the hand in a slight sideways oscillatory motion while simultaneously moving downwards;
Follower (person): Keeping the hand closed and slightly below the leader’s hand; following the slight sideways oscillatory motion of the leader and moving the hand downwards;
Both: Lowering the arm when the hand is approximately on the height of the hip.
Rocket fist-bump: Both: Stretching the right arm downwards with the hand closed to a fist to meet the partner’s hand, touching the partner’s fist with one’s own;
Leader (rocket): Opening the hand slightly to point to fingers upwards; keeping the hand above the follower’s hand; moving the hand upwards;
Follower (fire): Opening the hand with all fingers stretched downwards; keeping the hand below the leader’s hand; wiggling the fingers to simulate fire; moving the hand upwards;
Both: Lowering the arm when the hand is approximately on the height of the shoulders.

Between actions, the two partners are standing in an upright position with both arms directed downwards close to the body.

As the robot is not necessarily equipped with a hand-like gripper, the actions involving finger movement are omitted during human-robot interaction. Furthermore, we assume the robot to take the role of the follower.

a) b)
Figure 4: a) The right arm of the Yumi robot used in the experiments. b) A rokoko smart suit in action.

4.2 Data collection

We collected data from human-human and human-robot interaction respectively. The robotic setup and the human motion recording setup are described below, followed by the data collection procedure.

4.2.1 Robotic system setup

In this work, we use a dual-armed YuMi-IRB 14000 robot which has been developed by ABB specifically with human-robot collaboration in mind. As depicted in Figure 4

a), each arm has seven joints Arm 1 (rotation motion), Arm 2 (bend motion), Arm 7 (rotation motion), Arm 3 (bend motion), Wrist 4 (rotation motion), Wrist 5 (bend motion) and Flange 6 (rotation motion). To control the robot, we work in the joint angle space, i.e. at each time step we have access to a seven dimensional vector consisting of radial measurements. To control the robot, we provide the system with the next expected joint angle configuration or a whole trajectory thereof. We sample the robot’s joint angles at a frequency of 40 Hz.

Human-human data Human-robot data
Action type # trials min. duration max duration # trials min. duration max duration
hand shake 38 8.5 s 12.5s 10 10.4 s 14.5 s
hand wave 31 8.5 s 17.5 s 10 12.7 s 17.4 s
parachute 49 7.0 s 12.0 s 11 11.0 s 14.3 s
rocket 70 3.0 s 6.0 s 10 11.1 s 13.8 s
Table 1: Statistics of the collected dataset.

4.2.2 Human motion capture

We recorded the 3D position of the human joints in Cartesian space during interaction with help of two Rokoko smart suits***https://www.rokoko.com/. As shown in Figure 4 b), these textile suits are equipped with 19 inertia sensors with which motion is recorded. Via wireless communication with a Wi-fi access point, the suits are able to record whole-body movements at a rate of up to 100 Hz. While simultaneous recordings with several suits are possible, we align the recordings offline. We record the 3D Cartesian positions of each joint in meters with respect to a body-centric reference frame. The data is sampled down to match the 40 Hz of the robot recording.

4.2.3 Collection procedure

For the human-human dataset, we asked two participants to perform all four actions as described in Section 4.1 for approximately six minutes each. The exact number of repetitions of each action type as well as duration statistics are listed in Table 1. A recording of the action hand-shake is depicted in the top of Figure 5.

For the robot-human dataset, we asked one of the participants to perform all for actions together with the robot. To this end, we made use of kinesthetic teaching, i.e. a human expert guided the arm of the robot during the interaction. As shown in Table 1, the duration of the human-robot trials is on average slightly longer than the human-human trials. A recording of the action hand-shake is depicted in the middle of Figure 5.

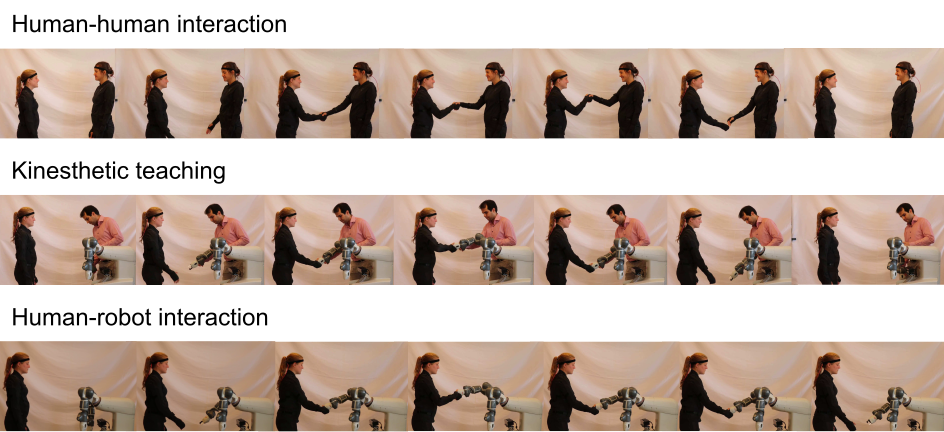

Figure 5: The data collected during human-human interaction (top) and kinesthetic teaching (middle) is used train the proposed models. These are employed in human-robot interaction tasks (bottom).

5 Results

In this section we present the performance of the proposed approach. Online employment of our approach during the action hand-shake is depicted in the bottom of Figure 5. More examples can be found here youtube. In the analysis we present results on held-out test datasets. We begin by investigating the predictive performance of the models trained on the human-human dataset. This will be followed by an analysis of the robot motion prediction. In this case, we consider both the predictive error as well as the entrainment of predicted vs ground truth robot motion with the human motion.

5.1 Predictive performance on human-human data

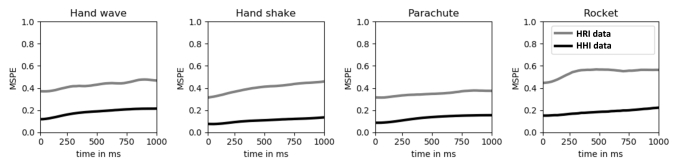

Figure 6: The mean squared prediction error (MSPE) in meters for human-human interaction over a time horizon of one second.

We have two reasons for collecting additional human-human interaction data. Firstly, we hypothesize that the dynamics learned based on HHI data can guide robot action selection during HRI experiments. Secondly, it is easier to collect HHI data, allowing for larger datasets. To test the second hypothesis we trained the human motion embedding and dynamics models both on HHI data and only on the human data contained in the HRI data. In the latter case, the dynamics variable is not restricted to match a human partner. We test the predictive capacity of both these models by computing the mean squared prediction error (MSPE) for the time window on both test data sets (HRI and HHI). The results are depicted in Figure 6. Two observations can be made. First of all, the model trained on HRI data does not generalize well, mainly caused by the small training data set. Secondly, the prediction error does not increase drastically over time as should be expected. Due to the fact that we do not force the model to predict a whole trajectory as e.g. [butepage2018anticipating] but only a latent variable which can be decoded into a trajectory, our model is less prone to regress to the mean but to encode the actual motion.

5.2 Predictive performance on human-robot data

In this section we inspect how our proposed dynamics transfer approach performs against the baselines. As the different joints move to different extents, the range of joint angles varies. Therefore we measure the predictive error not with the MSPE as in the case of HHI predictions but with the normalized root-mean-square deviation (NRMSD) which is computed as follows:

(12)

for the joint. Here denotes trial, i.e. one execution of an interaction, and is the number of trials. and denote the maximum and minimum value that has been recorded for the joint in the training data.

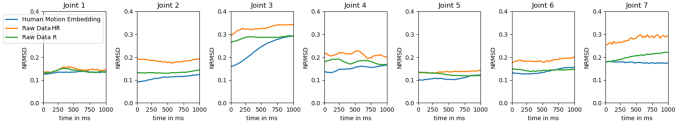

Figure 7: The normalized root-mean-square deviation (NRMSD) for robot motion during human-robot interaction over a time horizon of one second.
NRMSD computed on robot testing data
Human Motion Embedding Raw Data RH Raw Data R Gaussian model
0.16 0.22 0.18 0.20
Table 2: NRMSD computed on robot testing data averaged over all joints.

We start by comparing our approach (Human Motion Embedding) to the two models that have an identical structure but that differ in the type of input data (Raw Data HR and Raw Data R). To this end, we provide ten time steps as input to the models and let the recurrent network predict thirty steps as described in Section 3.2. This process is repeated until the end of a trial is reached. Since the Raw Data HR model is not able to generate human motion, we provide it with the last observed human pose. Through the motion embedding, the models produce a prediction of the next forty time steps (1 second). We average over all time steps and present the results in Figure 7. The Human Motion Embedding appears to produce the smallest errors, especially for those joints that are vital for the interaction (joint 2, 3 and 4). The wrist joints (joint 6 and 7) are of less importance and do also show a larger degree of between-trial variance in the training data. We depict the predictions of each of the Human Motion Embedding model, the Raw Data HR model and the ground truth trajectory for one testing trial of each action in Figure 8.

When averaged over the forty time steps of prediction, the difference becomes clear in Table 2, where we also include the Gaussian model. As the Raw Data HR model is not able to predict human motion, it produced the largest error. The Human Motion Embedding outperforms both the adaptive Raw Data HR and Raw Data R models as well as the non-adaptive Gaussian model. The adaptive Raw Data R model produces a smaller error than the non-adaptive Gaussian model, which also is trained on raw robot data. We will investigate the difference between adaptive and non-adaptive approaches in more detail in the next section.

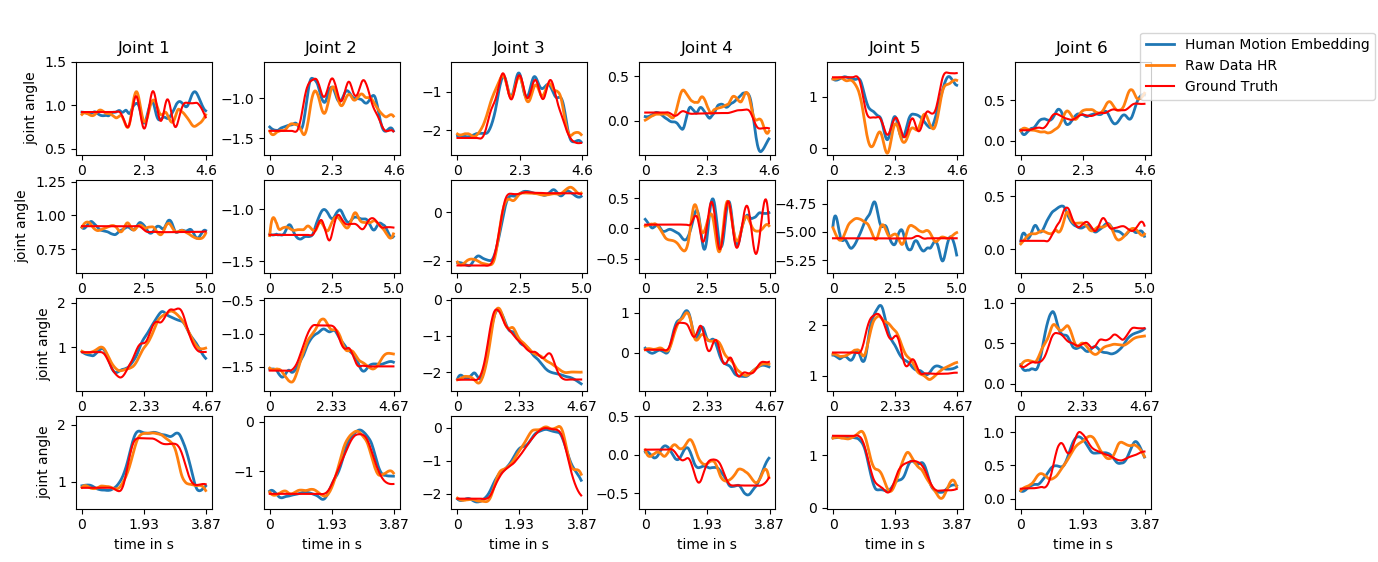

Figure 8: The joint angle trajectory of joint 1 to 6 for a testing trial of each of the actions hand-wave, hand-shake, parachute and rocket (top to bottom).

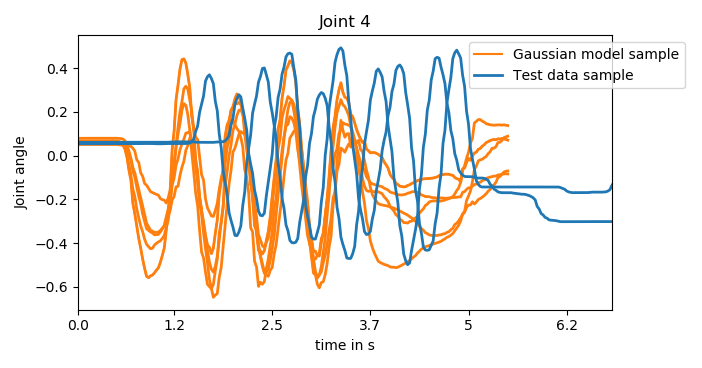

Figure 9: Five samples from the Gaussian model of the hand-shake action and two testing data trials.

5.3 Non-adaptive vs adaptive motion generation

As discussed in Section 2.2, Human-Robot interaction has additional requirements compared to traditional imitation learning. It does not suffice to learn a distribution over the trajectories observed in the training data and sample a whole trajectory during run-time. Instead, HRI requires adaptive and predictive models that react to the human’s actions such that a sensorimotor coupling between human and robot can arise. We visualize this in Figure 9 by sampling from the Gaussian model of joint 4 for the action hand-shake. It becomes apparent that none of the samples is in accordance with any of the testing trials that are also depicted. First of all, the motion onset differs and the duration of the trajectory is predetermined due to the time alignment, while the duration of natural interaction differs from trial to trial. Additionally, the movement is not adapted to the human’s hand-shake but has different degrees of phase shift. If we compare these predictions to the predictions of joint 4 in the second row of Figure 8, we realize that the adaptive approach reacts in a timely manner and follows the oscillations of the the ground truth motion that match the human motion. We will investigate the degree of entrainment of the predictions of robot with the human motion in the next section.

5.4 Entrainement on human-robot data

With this work we are aiming at developing models that allow for sensorimotor coupling between humans and robots to benefit physical HRI. We visualize the generated predictions of the Human Motion Embedding model as well as the ground truth robot motion data and the hand position of the human for a testing trial of each interaction in Figure 10. As not all joints are relevant to a task, we visualize joint 2-4. We see that the predicted motion follows the oscillatory movement of the human hand during hand-wave (see joint 3), hand-shake (see joint 4) and the parachute (see joint 4) interaction as well the rise and fall of the rocket action (see joint 2 and 3).

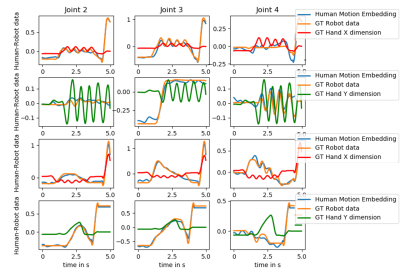

Figure 10: The predictions of the Human Motion Embedding model as well as the ground truth robot motion data and the hand position (X or Y dimension) of the human for a testing trial of each interaction hand-wave, hand-shake, parachute and rocket (top to bottom). The values are normalized to facilitate comparison.

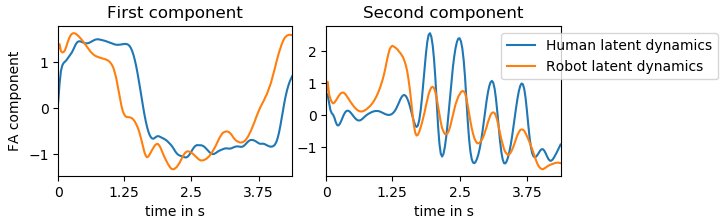

Figure 11: The first two factor analysis (FA) components of a testing trial of the hand-shake interaction computed on both the latent variables extracted from the human ground truth motion and the latent variables predicting the robot motion.

To investigate whether the models capture this coupling, we extract the dynamics variables of the human motion of an entire testing trial of the hand-shake interaction as well as the latent variables that predict the robot motion. We then apply factor analysis to these two streams of data and compare the two first components to each other. The two components are visualized in Figure 11. The first factor appears to represent the general onset, duration and offset of the interaction while the second factor encodes the oscillatory motion of the hand and arm. We see that, although the factor analysis is performed independently on the human and robot latent variables, the overall structure is similar. Additionally, the oscillatory motion is overlapping, indicating a coupling between the two systems.

6 Conclusion

In this work, we propose a deep generative model approach to imitation learning of interactive tasks. Our contribution is a novel probabilistic latent variable model which does not predict in joint space but in latent space, which minimizes the chance of regression to the mean. We employ this model both as a dynamics extractor of HHI as well as the basis for the motion generation of a robotic partner. Our experiments indicate that HRI requires adaptive models which take the human motion and task dynamics into account. These dynamics, which encode the movement of both humans, see Figure 2, and therefore the coupling of the human partners during interaction, guide the generation of the robot which thus is coupled to its human partner.

After having established that the cheaper HHI data is required for high predictive performance, see Section 5.1, we demonstrate that the extracted dynamics facilitate the performance of the predictive model of robot motion, see Section 5.2. This indicates that the encoding of the future human motion and task dynamics can contribute to the robot’s motion planning. This is in contrast to common approaches to imitation learning for interaction which use non-adaptive models. As we discuss in Section 5.3, a non-adaptive trajectory model does not suffice in interactive tasks such as hand-shaking. With help of our generative approach, we can create synchronized behavior which shows a level of entrainment between human and robot, see Section 5.4.

We believe that prediction and adaptation are essential to allow for natural HRI in shared workspaces. In future work, we plan to employ the system in real-time and to extend it to more complex tasks.

Author Contributions

Judith Bütepage contributed to the idea development and data collection, developed the methodology, implemented and trained the models, evaluated the models and wrote the manuscript. Ali Ghadirzadeh contributed to the idea, data collection and development of the robot software. Özge Öztimur Karadag̃ contributed to the data collection and implementation of other baselines. Mårten Björkman and Danica Kragic supervised the work.

Acknowledgments

This work was supported by the EU through the project socSMCs (H2020-FETPROACT-2014) and the Swedish Foundation for Strategic Research.
