I Introduction

Robots that are to accomplish manipulation tasks in human environments need perception systems for acquiring the information needed to adapt their behavior to the objects they are to manipulate, the tools they can use, and the context of the scene. Consider a household robot that is to fetch milk and add some to the coffee. To perform this task competently, the robot has to go to the counter, pick up the milk box without squeezing it too much, then hold the milk box to open it by unscrewing the lid and tilting the milk box such that the milk is poured into the mug without spilling.

Such a robot has to be equipped with a vision system that can “perceive” semantic knowledge, the component and part structure of objects, as well as their physical and geometric details as necessary for the execution of the task. Semantic knowledge includes that the milk box is a container that is not rigid. Knowledge about object-part relations includes knowledge that the milk box has a lid that can be opened by unscrewing. Additionally, the robot needs a tool to verify that the inferred belief about the scene and the relevant objects holds in the visual domain. For example to verify that the lid is on the detected milk by visualizing it internally and comparing it with the real world percepts.

In this case, robot perception should be viewed as a form of open question answering based on visual information. So far, research on robot vision systems that can do open question answering has received surprisingly little attention. In this paper we investigate perception systems that have these question answering capabilities for task and environment settings where robots can make a weak closed-world assumption; that is that the robots know almost all entities in the environment. The knowledge base of the robot is populated with object models that consist of CAD models, the part structure, articulation models, textures, as well as encyclopedic, common-sense and intuitive physics knowledge about the object. We call the closed-world assumption weak because the robot is still required to detect novel objects111Building detailed and realistic models for novel objects is outside the scope of this paper.

The key assumption underlying our approach is that it is feasible for a robot perception system to implement and maintain a belief state about the environment as a scene graph in a virtual environment. Using the rendering mechanism of the virtual environment and the knowledge about the pose of its camera the robot can compute the image that it expects to capture through its camera. By comparing the expected and the captured image the robot can efficiently detect and interpret discrepancies.

In this paper, we propose a perception system that reconstructs the current state of the environment and the robot as an aw that is implemented using Virtual Reality(VR) technology as depicted in Figure 1. Because this technology offers advanced photorealistic rendering and physics simulation, it allows robots to have an expressive method for belief state representation and reasoning, that goes beyond purely symbolic approaches.

In the following, the major components of the system are discussed as well as the methods necessary to continously synchronize a robot perception system with the VR-based belief state. Possible approaches for discrepancy detection between real world and expected sensor data are outlined as well as the benefits of our system in an exemplary object recognition scenario evaluated on a real robotic system.

The main contributions of this paper are as follows:

  • We provide an overview of our system called systemname that enables robot systems to envision their belief explicitly in an aw in such a way, that it can be directly compared against sensor data from the real world (see Figure 2).

  • A mechanism to initialize the systemname in the aw from a perception system and a real robotic system

  • The ICBS update process used to re-recognize objects and compare the envisioned sensor data from the AW against the real world sensor data to detect inplausable predictions from perception methods.

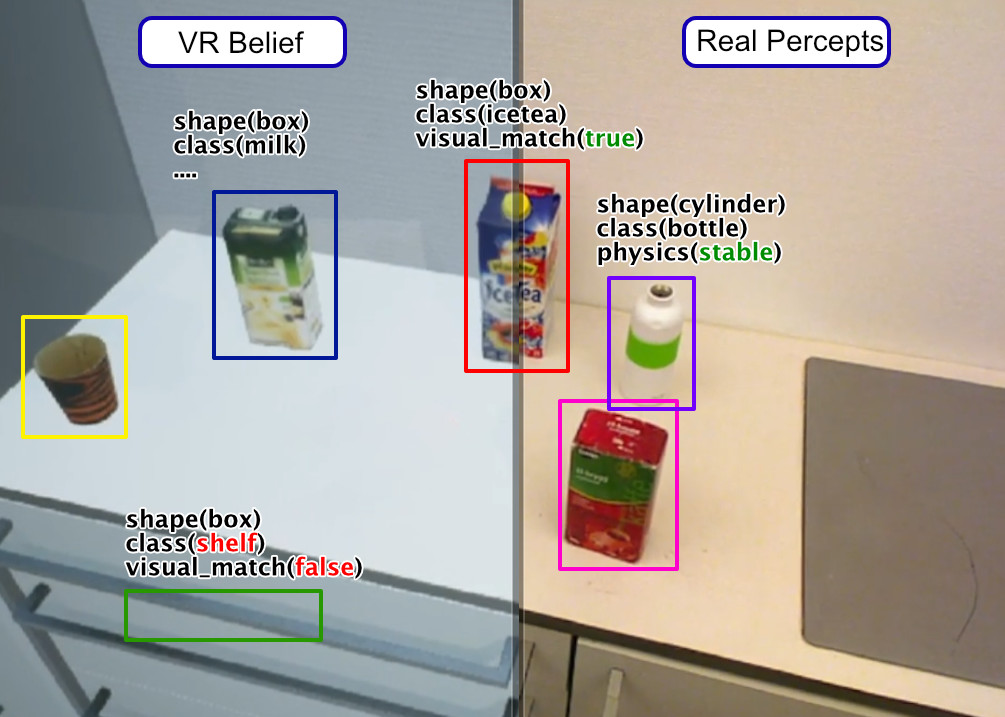

Fig. 2:

Real world sensor data (right) next to an envisioned version of the same scene(left) from a VR engine, based on the current belief. By representing the belief about objects in an VR-based artificial world, we can reason about visual similarity or if the prediction is physically plausable.

Ii Related Work

In this section we want to present works that are combining VR technology with robot perception systems.

The usage of VR in the field of robotics goes back to the late 1980s where immerse tele-operation methods have been developed[1087127]

. Even though this approach helps reducing the tele-operation costs and improving the interactivity between the controller and the robots, it does not lead to significantly more autonomy. VR has also been intensively used to train robots. It has been a promising environment for machine learning methods such as reinforcement learning(

[sallab2017deep],[chen2017end]), which is not always feasible to conduct in the real world. The focus is often laid on specific perception tasks such as navigation in rather abstract geometric worlds.

A major contribution of VR to robot perception is the synthesis of big datasets([qiu2016unrealcv],[muller2018sim4cv]). However, this data is often subject to disembodiment and unsituatedness: The training data does not reflect the robot’s real target environment and architecture (e.g. camera properties, model of the environment, instrinsic features). The work in [mania2019framework] provides partial solutions to tackle the problem of the disembodiment and unsituatedness by interfacing the control program of the robot and modeling the environment. However, being an offline training data generation approach, it does not provide an online mechanism to validate perception results from the current robot belief against the current real world data.

Providing capabilities of mental simulation has been examined in a few works. A robotics-related study on mental simulation has been conducted by Cassimatis et al. in [cassimatis2004integrating]. By developing a multi-specialist architecture based on Polyscheme they showed that a restricted object tracker could be improved by using symbolic high-level knowledge about perceived objects and their possible actions. Most mental simulation works focused on specific tasks like navigation[rocha2019mental] or localization, not fully exploiting all the potential simulator capabilities (e.g. realtime photorealism or physics) that VR potentially offers.

General mental simulation in robot perception, as indicated by the literature, is a new topic. An interesting approach to envision scenes are Generative Adversarial Networks(GAN), which can be used to generate realistic images based on semantic input or input images that are to be translated, like in

[wang2018high]. Using GANs to realistically envision potential outcomes of robot manipulation and perception tasks imposes many challenges, as larger GANs tend to suffer from instabilities[brock2018large], but also need a suitable input representation for the full robot description, the task context including objects and physical effects. By using VR we model these task-relevant semantics and phenomena effectively and can envision future states by executing the simulation.

Though robots have been mentally simulating their actions in artificial worlds before engaging in the real world, connecting mental simulation and perception systems for envisionment in manipulation tasks has only received little attention. Balint-Benczedi[balint18iros] proposed a perception system which can instantiate experienced scenes from episodic memories in a VR environment to train a YOLOv3 model[yolov3] on the simulated images offline. In the past, several works have used isolated offscreen rendering techniques, for example as a metric for particle-based 3D-Tracking[murphy2008particle]

, pose estimation

[pauwels_simtrack_2015] or pointcloud-based object recognition frameworks[aldoma2011cad]. These specialized approaches showed that information gained by reconstructing, rendering and comparing of hypotheses of the given problem is useful. Our approach includes these possibilities as well but also adds the potential to simulate physics phenomena in realtime while providing a comprehensive, photorealistic environment with annotated semantics in a broad range of domains.

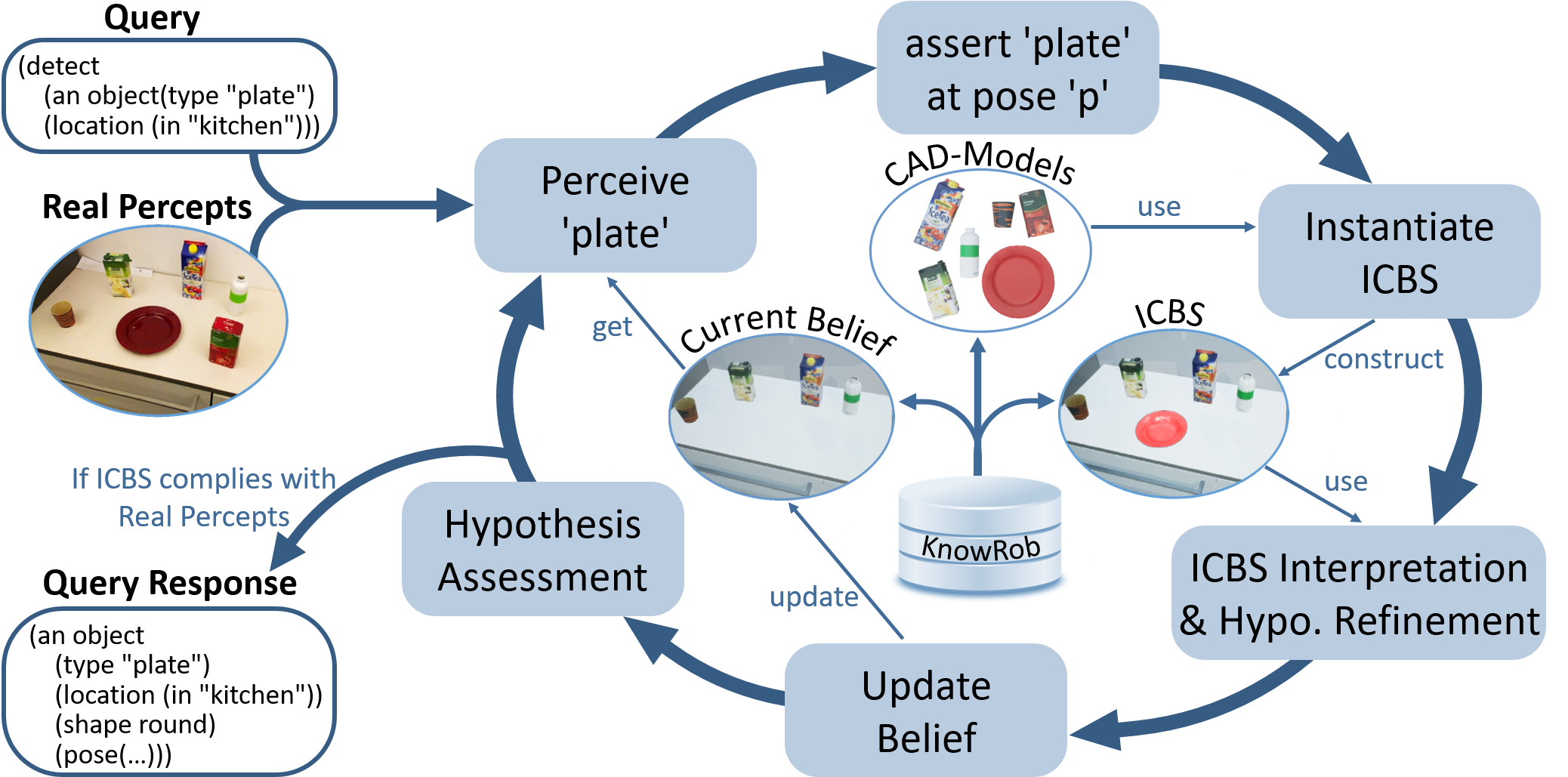

Fig. 3: Our proposed architecture provides a task-based robot perception loop that incorporates multiple sources of knowledge to refine predictions iteratively. Passed perception tasks (queries) trigger a perception action that will instantiate an artificial world with the predicted belief state (ICBS) of the robot and its environment. By reasoning about the plausability of that predicted belief, the robot updates its belief and either a) returns the query result to the robot control system or b) passes the current belief back to the perception action module to generate new hypotheses and analyze them in the next iteration.

Iii Architecture

In this section, we will present our developed system top-down. In Figure 3, the high-level-concept of the data flow in our system is visualized. Imagine that a robot is supposed to prepare a meal and needs to detect a plate on the table in the current task context. The resulting perception task is formulated as a query and passed to a perception system that is capable of detecting the required information in the incoming sensor data. Based on these results, a potential belief state is constructed in the systemname system by 1) replicating the current state of the robot and 2) asserting corresponding CAD models for detected object hypotheses into the aw. Symbolic knowledge about objects, environments and the robot has been modelled in KnowRob[tenorth2013knowrob], which is a knowledge representation and processing framework for robots. The combination of this knowledge and the perception hypothesis results in the construction of a new, predicted belief state in the aw.

In this simulated environment, a virtual camera is used to gather RGBD sensor data from the virtual scene. This data holds the expected visual input, given the current belief and can be compared against the incoming sensor data from the real world cameras

. If a discrepancy between both data sources is detected, it is assumed that the initial object hypothesis was not precise enough. The reason for this could be that a pose estimation was inaccurate or a wrong object class has been predicted. Potential solutions to refine the belief state or matching information is stored into the belief state to keep the information about the plausability of the predicted belief state. In the final step, the system decides if the envisioned belief state explains the real world sensor data well enough to assume that the perception hypothesis was correct. If this is true, the system will return the result as a response to the initial query. Otherwise, the process starts the next iteration of the same loop, exploiting the knowledge gained from the belief state analysis in the last iteration.

We now introduce the main components for perception and the simulation of the aw in the systemname system (see Figure 4).

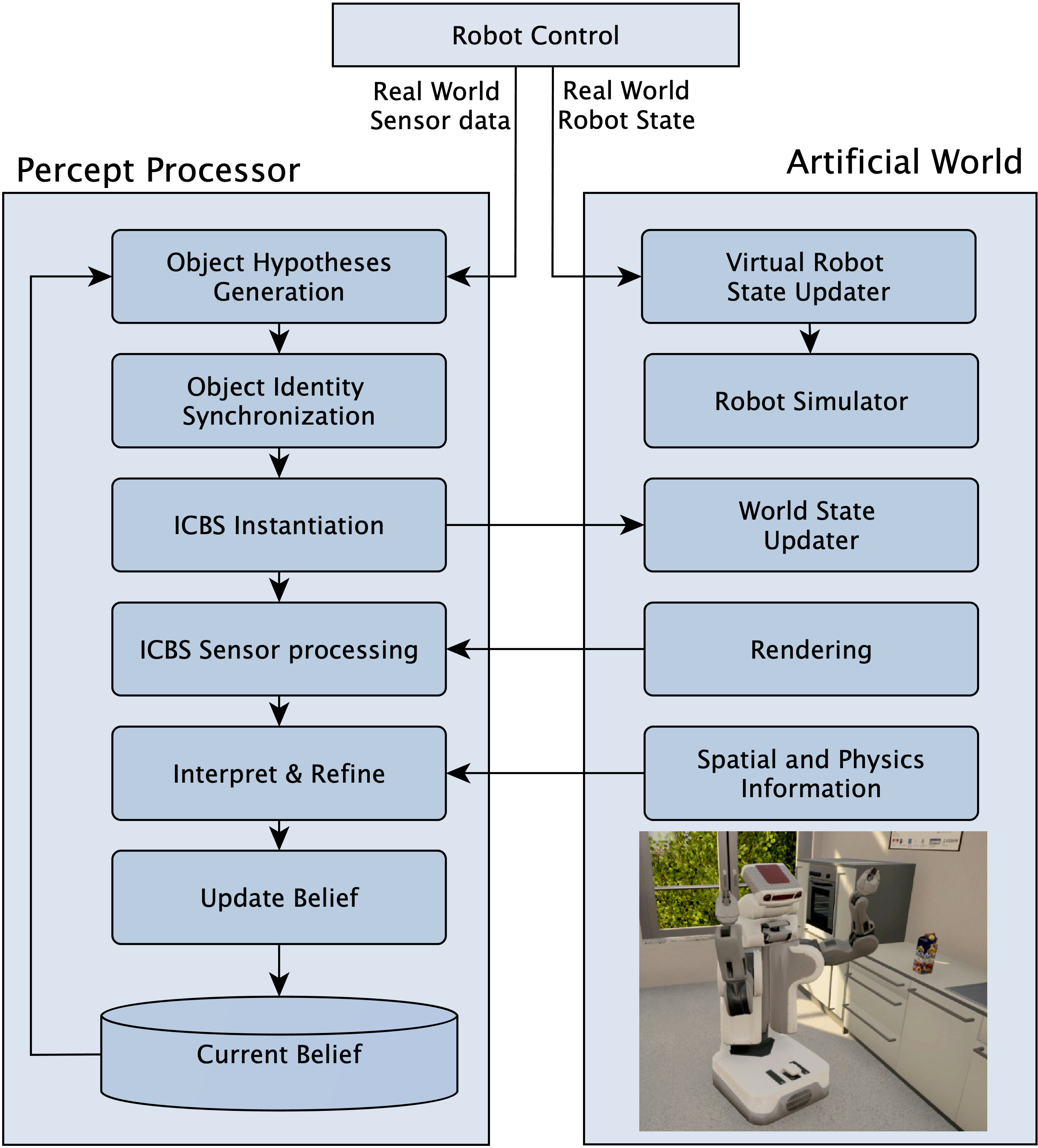

Fig. 4: Interaction between the main perception functionality and the belief state in the VR-based artificial world.

Iii-a Percept Processor

The pp includes all components that interpret the sensor data directly, executing task-related perception methods and the estimation of the current belief state. In our framework, we are using a perception variant of the Unstructured Information Principle[ref86] which treats incoming sensor data as unstructured information that will get analyzed and annotated by multiple experts. Experts can be specific methods for perception tasks such as shape estimation, object recognition or segmentation which are ultimately used to form object hypotheses with detected semantic properties. Object hypotheses are also tracked over multiple percepts by an Object Identity Synchronization (see Section IV-A) to generate a mapping between the perceived object hypotheses and the associated virtual objects in the aw.

After the object hypothesis generation, the estimated belief of the scene is converted into commands to synchronize the world state in the VR-based aw accordingly which includes the removal, addition or update of objects. At the same time, the real world state of the robot is replicated into the aw. The system then receives sensor data from the aw denoted by which represents the estimated sensor data given the estimated belief. is a triple containing a RGB, Depth and Object Mask image. This allows to generate 2D/3D percept data from the aw that can be easily segmented.

The current symbolic belief, the real world sensor data and the aw sensor data will then be interpreted to infer if the estimated sensor data matches the current symbolic belief. If the similarity criterion is not met, refinement methods such as pose refinement or additional classification experts can be executed. Otherwise, the current belief of the perception system is updated and grounded into the knowledge base of the robot.

Iii-B Artificial World

The simulation technology for our systemname system is Unreal Engine 4(UE4). It is a VR engine capable of simulating physics and rendering photorealistic scenery222https://www.youtube.com/watch?v=9fC20NWhx4s while being able to simulate even very complex scenes in realtime. Being a VR engine, UE4 also offers techniques for object or environment interaction that are targeted for manipulation tasks. This allows the simulation of handling objects like unscrewing a lid or handling levers. As it is a widely adopted game engine the provided features progress quickly. Simulating robotics-related tasks was previously mostly done with dedicated simulation environments like Gazebo, having limited support for large scale scenes and photorealism.

To use UE4 as a robot belief state, multiple components had to be developed. Robots are complex systems which can be described in the URDF format. Our system processes these descriptions to instantiate the employed robotic system in the aw, including physics constraints to model the joints in the VR engine. The robot state (joint states + localization) is replicated online into the aw. This allows the generation of embodied sensor data from the estimated belief.

The environment can be manipulated with a RPC interface that allows to add, modify or delete objects in the aw. This is used by the pp, to set up the estimated belief in the aw. All objects are handled by a physics simulation, which allows us to reason about object collisions in estimated object poses or if objects moved significantly after an event. Spawn collisions are detected by the automatic construction of overlap collision boxes for every . Physics events are recorded and related to each of the objects in the belief. We aggregate object-related information in a module for spatial and physics information and feed it back to the pp for the interpretation and refinement step.

Iv Synchronization of Icbs

We will now outline the creation process of systemname. The description will be split in two parts: 1) The initialization procedure of the whole system to explain the data flow from a perception task to a populated aw, representing the current belief and 2) the update process that compares the sensor data and to detect mismatching expectations and leads to the correction of the current belief about the scene.

Iv-a Initialization

The initialization begins with a semantic map of the environment. This map describes the geometry and spatial relation of entities in target space to act in. It is a fundamental prior for the perception system, but also for the aw that is constructed in the VR engine. We assume that localization information is available. The robot pose will be constantly transformed into the coordinate system of the AW to update the virtual robot model in the AW, ultimately resulting in similar viewpoints of the current scene (see Figure 2).

To create an initial belief, the pp will segment the incoming sensor data based on spatial information for relevant surfaces in the semantic map. After the segmentation, object candidates are detected and asserted in a scene graph. Every is annotated with the results of the perception experts, like shape, color, 6D pose or predicted class labels. An important task of the perception system is to create a consistent graph of the scene over time despite changes that might happen on the objects, for example removal, moving or adding. Every object in the scene graph should be re-recognized over multiple percepts to be able to reliably link the corresponding object in the systemname. Otherwise, objects might be re-added to the belief because the perception system could not infer that it just saw the same object again. To solve this problem, we implemented an Object Identity Synchronization(OIS) that uniquely identifies detected objects (see Figure 5) and connects them with systemname entities. In the initialization phase, every gets an unique identifier with a timestamp. In every following perception step, the current object hypotheses are matched against the known objects in the scene graph. The object identity is determined by a weighted policy that computes similarity measures on the properties that have been annotated by the perception experts. Each object in the scene graph is then linked to an entity in the systemname by predicting the object class and instantiating the particular CAD object model in the AW with the estimated pose, effectively recreating the hypothesis about the observed scene as a virtual copy. The corresponding virtual object for an object hypothesis is denoted as . Because systemname are a three-dimensional AW, the perception system must provide 6D poses for objects. In our scenario, we use RGBD sensors on our robot to segment and estimate the objects’ pose in pointcloud data. The pose will be transformed from the frame of into the coordinate system of the AW before the creation of the object is triggered on the corresponding interface of the VR engine.

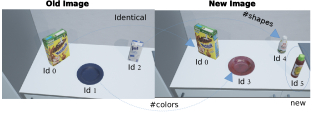

Fig. 5: The Object Identity Synchronization mechanism uniquely identifies objects over time to link them in the systemname. Object IDs only change if objects have been exchanged and/or are added to the scene.

Iv-B Update

After the initial state of the systemname has been set up, the system must ensure that the belief state is always updated with the information from the incoming sensor data . Predictions on detected objects should be able to be related to their virtual counterparts to be able to verify their plausability or trigger a reparametrization of the predictive models to generate new predictions.

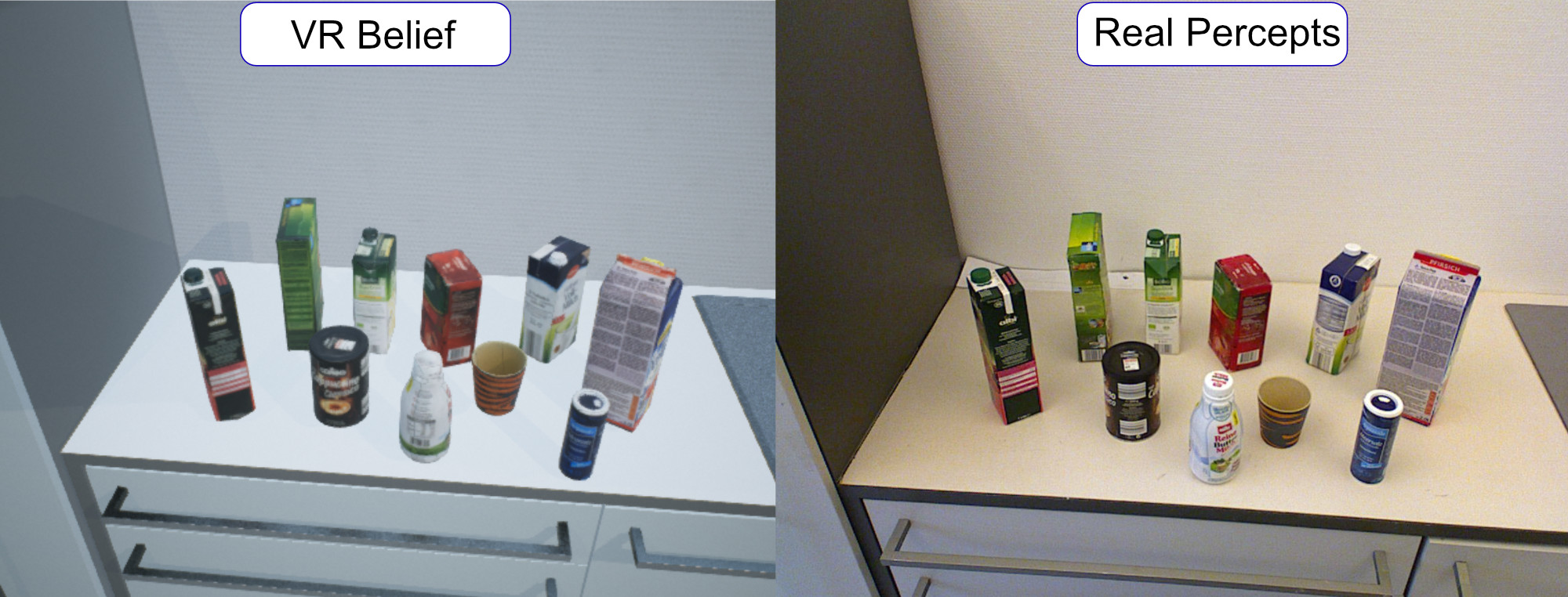

Fig. 6: Resultant AW(left) after ICBS initialization and update with real world percepts(right) from a robot.

The update process begins with the execution of the perception pipeline in the pp where the current scene will be analyzed by the perception experts. In contrast to the initialization step, the system can now use the information in the scene graph to identify and annotate new information to objects that have already been discovered by the OIS in . Because the OIS monitors the appearance, movement or disappearance of objects, the update of the AW can be triggered whenever such an event is discovered. After the AW contains the current expectation of the appearance of the scene, the sensor data and will be compared in every region that contains object hypotheses. In this step we assume, that due to the realistic rendering possibilities of the AW, the sensor data (and especially the RGB image) is realistic enough that even non-complex similarity models can be used. The viewpoints of and are also similar because the robot sensor pose is constantly mapped from the real into the artificial world (see Figure 6).

The employed similarity methods depend on the given perception task, formulated as a query . This is especially important in the context of robot manipulation, since perception tasks in that context are diverse. Take for example the milk pouring scenario that has been outlined in the introduction. The robot should localize a milk box as well as validate his object recognition results to reduce the chance of a misdetection. In this scenario, we propose two comparison methods that are suitable to confirm the results: 1) A image-based method that compares the ROI in and depicting the detected object and 2) a physics-based validation scheme. The latter can be implemented by using the physics simulation of the VR engine. Imagine for example that a picture of the wanted milk box has been detected on an advertisement hanging on the wall. If this object hypothesis is spawned in the aw, the milk box will either collide with the wall or fall down on the next supporting surface. Both cases would be detected by our Spatial and Physics Information module (see Figure 4) and indicate that the object recognition produced a false result.

Method 1 builds upon the idea that if one presents an image of the detected object in the scene and an image of the same object as a textured CAD model from the same viewpoint in the aw, it should be possible to decide if both images are showing the same object. Our system includes several comparison methods to check for the similarity of feature annotations made by the experts in the pp on the sensor data and . One image-based comparison method we propose are color histogram annotations in conjunction with the computation of their Hellinger distance as a similarity measure. In this step, many additional methods could be used to compare both sensor dates, for example edge-based contour comparisons as well as keypoint feature matching in images or pointcloud-based model-fitting approaches.

The capabilities of the VR engine allow to represent fine-grained object models in conjunction with articulation models. For example, the lid of the aforementioned milk box can also be modelled in VR with a constraint-based physics model for screwing. Robots could then simulate planned actions while having ground truth for all relevant entities in the AW. After the planned action has been simulated, the visual expectation of the scene can be compared to the appearance of the scene after the robot has executed the same task in the real world. Depth-based methods can be used to compare if the manipulated objects or parts of the robot are now in the envisioned state (for example, a visible opening in the milk box where the lid was after unscrewing) and use this as a success criterion for manipulation tasks.

V Experiments & Discussion

The proposed system should support mobile robotic agents to reason about their envisioned belief state and planned actions in manifold ways in unstructured environments. Since manipulation actions and their intended outcomes are strongly dependent on valid perception results, we focus our evaluation in this work on an experiment for object recognition verification. We want to emphasize that the selection of the chosen perception models and their parameters are not crucial to use our framework, as it is general enough to exchange these methods arbitrarily.

In this work, we want to investigate the potential of our system with an image-based refinement method. The experiments have been conducted in the kitchen lab of the Insitute for Artificial Intelligence. A PR2 mobile robot platform is using the systemname system to detect objects on surface regions in the kitchen where objects are located. The segmentation is based on the semantic knowledge about the environment and the surfaces of interest as well as a 3D-based clustering approach. Object recognition is done by using a CNN as a feature generator[pmlr-v32-donahue14] combined with a k-NN classification model. The output of these methods is then used to envision the belief state in the AW and then analyze which parts of the virtual sensor data comply with the real world sensor data. To achieve the latter, we implemented a RGB-based appearance comparison based on distance measures for color histograms on segmented objects in and . In our experiments, we use the Hellinger distance defined as:

(1)

where is the average bin value and is the total number of histogram bins. If the distance exceeds the matching threshold, it is assumed that the object recognition predicted a false hypothesis which will then be rejected.

Our dataset consists of 154 scene percepts with a total of 462 object recognition predictions. In our experiments we employ different parametrizations of the k-NN classifier that is used to classify the extracted CNN features. Our goal is not to propose a certain perception approach or parametrization, but rather show that our system provides a useful method for validating and improving perception results.

With varying in the k-NN classifier, the classification performance ranges between 0.881 and 0.996 accuracy. By applying our ICBS system with an image-based similarity measure, we were able to envision the predictions visually and reject large parts of the false predictions, effectively increasing the accuracy (see Table I). In some cases, objects were confused with a different variant of the same product category (for example, an icetea box with two different flavors from the same brand) which could not be detected by the employed comparison method. As the false predictions were made on the rather featureless backside of the presented products, we are optimistic that this problem can be solved in future work by comparing more detailed features like texts.

Classifier Acc. without ICBS Acc. with ICBS Improv.
k-NN (k=20) 0.881 0.948 6.7 %
k-NN (k=15) 0.948 0.996 4.8 %
k-NN (k=10) 0.996 1.000 0.4 %
TABLE I: Accuracy for object recognition experiments with and without our image-based comparison technique.

Vi Conclusion& Future Work

We presented an integrated system that allows robots to form expectations and validate beliefs about their environment in a VR-based world model, which is capable of simulating physics phenomena as well as rendering realistic imagery. By maintaining a scene graph representation over time, detected entities can be uniquely identified and linked to virtual counterparts in the VR engine. Since everything in VR is machine-understandable, robot control programs can make use of this feature-rich belief state representation to validate their perception results or imagine how the environment would look like after simulating their planned action in the artificial world. This method of representing beliefs allows us to expand purely symbolic knowledge representations, effectively allowing robots to reason about subsymbolic effects in the world. In our experiment we showcased the potential of our proposed system in an object recognition study by comparing the visual expectation of the predicted scene with the real world data.

Since our proposed system provides a general way of representing and comparing expectations about belief states, many potential research topics are open for future work. In computer graphics interesting approaches for the simulation of non-rigid and evolving objects such as bakery products[10.1145/3355089.3356537] have been developed that could help household robots to understand the process of making food. Integrating such a simulation into our system could help us to build better perception models that could infer in which state a certain type of food currently is and reason about the potential next steps for it (,,put in oven”? ,,serve to guest”?). Another potential topic is the integration of robot high-level control into the VR engine. This would allow robots to imagine complex manipulation activities in an artificial world while having visual expectations for every action available, allowing robots to detect failures in the real world more easily.
