1 Introduction

A hallmark of an intelligent agent is its ability to rapidly adapt to new circumstances and "achieve goals in a wide range of environments" (Legg and Hutter, 2007)

. Progress has been made in developing capable agents for numerous domains using deep neural networks in conjunction with

model-free reinforcement learning (RL) (Mnih et al., 2013, 2016; Schulman et al., 2015a), where raw observations directly map to values or actions. However, this approach usually requires large amounts of training data and the resulting policies do not readily generalize to novel tasks in the same environment, as it lacks the behavioral flexibility constitutive of general intelligence.

Model-based RL aims to address these shortcomings by endowing agents with a model of the world, synthesized from past experience. By using an internal model to reason about the future, here also referred to as imagining

, the agent can seek positive outcomes while avoiding the adverse consequences of trial-and-error in the real environment – including making irreversible, poor decisions. Even if the model needs to be learned first, it can enable better generalization across states, remain valid across tasks in the same environment, and exploit additional unsupervised learning signals, thus ultimately leading to greater data efficiency. Another appeal of model-based methods is their ability to scale performance with more computation by increasing the amount of internal simulation.

The neural basis for imagination, model-based reasoning and decision making has generated a lot of interest in neuroscience (Hassabis et al., 2007a; Schacter et al., 2012; Hassabis et al., 2007b); at the cognitive level, model learning and mental simulation have been hypothesized and demonstrated in animal and human learning (Tolman, 1948; Dickinson and Balleine, 2002; Pfeiffer and Foster, 2013; Lake et al., 2016). Its successful deployment in artificial model-based agents however has hitherto been limited to settings where an exact transition model is available (Silver et al., 2016a) or in domains where models are easy to learn – e.g. symbolic environments or low-dimensional systems (Peng and Williams, 1993; Abbeel and Ng, 2005; Deisenroth and Rasmussen, 2011; Levine and Abbeel, 2014). In complex domains for which a simulator is not available to the agent, recent successes are dominated by model-free methods (Mnih et al., 2013; Lillicrap et al., 2016). In such domains, the performance of model-based agents employing standard planning methods usually suffers from model errors resulting from function approximation (Talvitie, 2014, 2015). These errors compound during planning, causing over-optimism and poor agent performance. There are currently no planning or model-based methods that are robust against model imperfections which are inevitable in complex domains, thereby preventing them from matching the success of their model-free counterparts.

We seek to address this shortcoming by proposing Imagination-Augmented Agents, which use approximate environment models by "learning to interpret" their imperfect predictions. Our algorithm can be trained directly on low-level observations with little domain knowledge, similarly to recent model-free successes. Without making any assumptions about the structure of the environment model and its possible imperfections, our approach learns in an end-to-end way to extract useful knowledge gathered from model simulations – in particular not relying exclusively on simulated returns. This allows the agent to benefit from model-based imagination without the pitfalls of conventional model-based planning. We demonstrate that our approach performs better than model-free baselines in various domains including Sokoban. It achieves better performance with less data, even with imperfect models, a significant step towards delivering the promises of model-based RL.

2 The I2A architecture

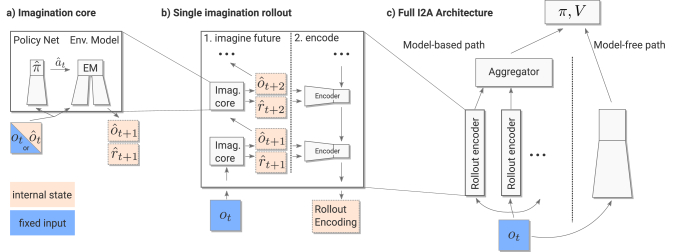

Figure 1: I2A architecture. notation indicates imagined quantities. a): the imagination core (IC) predicts the next time step conditioned on an action sampled from the rollout policy . b): the IC imagines trajectories of features , encoded by the rollout encoder. c): in the full I2A, aggregated rollout encodings and input from a model-free path determine the output policy .

In order to augment model-free agents with imagination, we rely on environment models – models that, given information from the present, can be queried to make predictions about the future. We use these environment models to simulate imagined trajectories, which are interpreted by a neural network and provided as additional context to a policy network.

In general, an environment model is any recurrent architecture which can be trained in an unsupervised fashion from agent trajectories: given a past state and current action, the environment model predicts the next state and any number of signals from the environment. In this work, we will consider in particular environment models that build on recent successes of action-conditional next-step predictors (Oh et al., 2015; Chiappa et al., 2017; Leibfried et al., 2016), which receive as input the current observation (or history of observations) and current action, and predict the next observation, and potentially the next reward. We roll out the environment model over multiple time steps into the future, by initializing the imagined trajectory with the present time real observation, and subsequently feeding simulated observations into the model.

The actions chosen in each rollout result from a rollout policy (explained in Section 3.1). The environment model together with constitute the imagination core module, which predicts next time steps (Fig 1a). The imagination core is used to produce trajectories . Each imagined trajectory is a sequence of features , where is the current time, the length of the rollout, and the output of the environment model (i.e. the predicted observation and/or reward).

Despite recent progress in training better environment models, a key issue addressed by I2As is that a learned model cannot be assumed to be perfect; it might sometimes make erroneous or nonsensical predictions. We therefore do not want to rely solely on predicted rewards (or values predicted from predicted states), as is often done in classical planning. Additionally, trajectories may contain information beyond the reward sequence (a trajectory could contain an informative subsequence – for instance solving a subproblem – which did not result in higher reward). For these reasons, we use a rollout encoder that processes the imagined rollout as a whole and learns to interpret it, i.e. by extracting any information useful for the agent’s decision, or even ignoring it when necessary (Fig 1b). Each trajectory is encoded separately as a rollout embedding . Finally, an aggregator converts the different rollout embeddings into a single imagination code .

The final component of the I2A is the policy module, which is a network that takes the information from model-based predictions, as well as the output of a model-free path (a network which only takes the real observation as input; see Fig 1

c, right), and outputs the imagination-augmented policy vector

and estimated value

. The I2A therefore learns to combine information from its model-free and imagination-augmented paths; note that without the model-based path, I2As reduce to a standard model-free network Mnih et al. (2016). I2As can thus be thought of as augmenting model-free agents by providing additional information from model-based planning, and as having strictly more expressive power than the underlying model-free agent.

3 Architectural choices and experimental setup

3.1 Rollout strategy

For our experiments, we perform one rollout for each possible action in the environment. The first action in the rollout is the action of the action set , and subsequent actions for all rollouts are produced by a shared rollout policy . We investigated several types of rollout policies (random, pre-trained) and found that a particularly efficient strategy was to distill the imagination-augmented policy into a model-free policy. This distillation strategy consists in creating a small model-free network , and adding to the total loss a cross entropy auxiliary loss between the imagination-augmented policy as computed on the current observation, and the policy as computed on the same observation. By imitating the imagination-augmented policy, the internal rollouts will be similar to the trajectories of the agent in the real environment; this also ensures that the rollout corresponds to trajectories with high reward. At the same time, the imperfect approximation results in a rollout policy with higher entropy, potentially striking a balance between exploration and exploitation.

3.2 I2A components and environment models

In our experiments, the encoder is an LSTM with convolutional encoder which sequentially processes a trajectory . The features are fed to the LSTM in reverse order, from to , to mimic Bellman type backup operations.111The choice of forward, backward or bi-directional processing seems to have relatively little impact on the performance of the I2A, however, and should not preclude investigating different strategies. The aggregator simply concatenates the summaries. For the model-free path of the I2A, we chose a standard network of convolutional layers plus one fully connected one (e.g. Mnih et al., 2016). We also use this architecture on its own as a baseline agent.

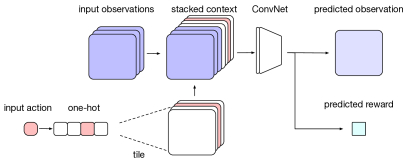

Figure 2: Environment model.

The input action is broadcast and concatenated to the observation. A convolutional network transforms this into a pixel-wise probability distribution for the output image, and a distribution for the reward.

Our environment model (Fig. 2) defines a distribution which is optimized by using a negative log-likelihood loss . We can either pretrain the environment model before embedding it (with frozen weights) within the I2A architecture, or jointly train it with the agent by adding to the total loss as an auxiliary loss. In practice we found that pre-training the environment model led to faster runtime of the I2A architecture, so we adopted this strategy.

For all environments, training data for our environment model was generated from trajectories of a partially trained standard model-free agent (defined below). We use partially pre-trained agents because random agents see few rewards in some of our domains. However, this means we have to account for the budget (in terms of real environment steps) required to pretrain the data-generating agent, as well as to then generate the data. In the experiments, we address this concern in two ways: by explicitly accounting for the number of steps used in pretraining (for Sokoban), or by demonstrating how the same pretrained model can be reused for many tasks (for MiniPacman).

3.3 Agent training and baseline agents

Using a fixed pretrained environment model, we trained the remaining I2A parameters with asynchronous advantage actor-critic (A3C) (Mnih et al., 2016). We added an entropy regularizer on the policy to encourage exploration and the auxiliary loss to distill into the rollout policy

as explained above. We distributed asynchronous training over 32 to 64 workers; we used the RMSprop optimizer

(Tieleman and Hinton, 2012)

. We report results after an initial round of hyperparameter exploration (details in Appendix

A). Learning curves are averaged over the top three agents unless noted otherwise.

A separate hyperparameter search was carried out for each agent architecture in order to ensure optimal performance. In addition to the I2A, we ran the following baseline agents (see Appendix B for architecture details for all agents).

Standard model-free agent. For our main baseline agent, we chose a model-free standard architecture similar to (Mnih et al., 2016), consisting of convolutional layers ( for MiniPacman, and

for Sokoban) followed by a fully connected layer. The final layer, again fully connected, outputs the policy logits and the value function. For Sokoban, we also tested a ‘large’ standard architecture, where we double the number of all feature maps (for convolutional layers) and hidden units (for fully connected layers). The resulting architecture has a slightly larger number of parameters than I2A.

Copy-model agent. Aside from having an internal environment model, the I2A architecture is very different from the one of the standard agent. To verify that the information contained in the environment model rollouts contributed to an increase in performance, we implemented a baseline where we replaced the environment model in the I2A with a ‘copy’ model that simply returns the input observation. Lacking a model, this agent does not use imagination, but uses the same architecture, has the same number of learnable parameters (the environment model is kept constant in the I2A), and benefits from the same amount of computation (which in both cases increases linearly with the length of the rollouts). This model effectively corresponds to an architecture where policy logits and value are the final output of an LSTM network with skip connections.

4 Sokoban experiments

We now demonstrate the performance of I2A over baselines in a puzzle environment, Sokoban. We address the issue of dealing with imperfect models, highlighting the strengths of our approach over planning baselines. We also analyze the importance of the various components of the I2A.

Sokoban is a classic planning problem, where the agent has to push a number of boxes onto given target locations. Because boxes can only be pushed (as opposed to pulled), many moves are irreversible, and mistakes can render the puzzle unsolvable. A human player is thus forced to plan moves ahead of time. We expect that artificial agents will similarly benefit from internal simulation. Our implementation of Sokoban procedurally generates a new level each episode (see Appendix D.4 for details, Fig. 3 for examples). This means an agent cannot memorize specific puzzles.222Out of 40 million levels generated, less than 0.7% were repeated. Training an agent on 1 billion frames requires less than 20 million episodes. Together with the planning aspect, this makes for a very challenging environment for our model-free baseline agents, which solve less than 60% of the levels after a billion steps of training (details below). We provide videos of agents playing our version of Sokoban online (I2A, 2017).

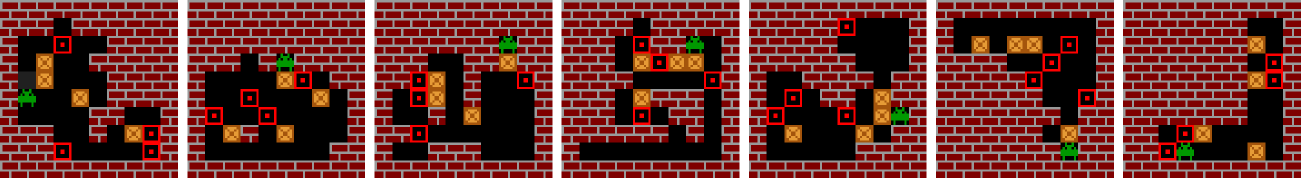

Figure 3: Random examples of procedurally generated Sokoban levels. The player (green sprite) needs to push all 4 boxes onto the red target squares to solve a level, while avoiding irreversible mistakes. Our agents receive sprite graphics (shown above) as observations.

While the underlying game logic operates in a grid world, our agents were trained directly on RGB sprite graphics as shown in Fig. 4 (image size pixels). There are no aspects of I2As that make them specific to grid world games.

4.1 I2A performance vs. baselines on Sokoban

Figure 4 (left) shows the learning curves of the I2A architecture and various baselines explained throughout this section. First, we compare I2A (with rollouts of length 5) against the standard model-free agent. I2A clearly outperforms the latter, reaching a performance of 85% of levels solved vs. a maximum of under 60% for the baseline. The baseline with increased capacity reaches 70% - still significantly below I2A. Similarly, for Sokoban, I2A far outperforms the copy-model.

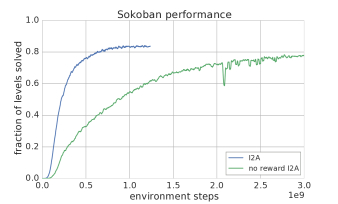

Figure 4: Sokoban learning curves. Left: training curves of I2A and baselines. Note that I2A use additional environment observations to pretrain the environment model, see main text for discussion. Right: I2A training curves for various values of imagination depth.

Since using imagined rollouts is helpful for this task, we investigate how the length of individual rollouts affects performance. The latter was one of the hyperparameters we searched over. A breakdown by number of unrolling/imagination steps in Fig. 4 (right) shows that using longer rollouts, while not increasing the number of parameters, increases performance: 3 unrolling steps improves speed of learning and top performance significantly over 1 unrolling step, 5 outperforms 3, and as a test for significantly longer rollouts, 15 outperforms 5, reaching above 90% of levels solved. However, in general we found diminishing returns with using I2A with longer rollouts. It is noteworthy that 5 steps is relatively small compared to the number of steps taken to solve a level, for which our best agents need about 50 steps on average. This implies that even such short rollouts can be highly informative. For example, they allow the agent to learn about moves it cannot recover from (such as pushing boxes against walls, in certain contexts). Because I2A with rollouts of length 15 are significantly slower, in the rest of this section, we choose rollouts of length 5 to be our canonical I2A architecture.

It terms of data efficiency, it should be noted that the environment model in the I2A was pretrained (see Section 3.2). We conservatively measured the total number of frames needed for pretraining to be lower than 1e8. Thus, even taking pretraining into account, I2A outperforms the baselines after seeing about 3e8 frames in total (compare again Fig. 4 (left)). Of course, data efficiency is even better if the environment model can be reused to solve multiple tasks in the same environment (Section 5).

4.2 Learning with imperfect models

One of the key strengths of I2As is being able to handle learned and thus potentially imperfect environment models. However, for the Sokoban task, our learned environment models actually perform quite well when rolling out imagined trajectories. To demonstrate that I2As can deal with less reliable predictions, we ran another experiment where the I2A used an environment model that had shown much worse performance (due to a smaller number of parameters), with strong artifacts accumulating over iterated rollout predictions (Fig. 5, left). As Fig. 5 (right) shows, even with such a clearly flawed environment model, I2A performs similarly well. This implies that I2As can learn to ignore the latter parts of the rollout as errors accumulate, but still use initial predictions when errors are less severe. Finally, note that in our experiments, surprisingly, the I2A agent with poor model ended outperforming the I2A agent with good model. We posit this was due to random initialization, though we cannot exclude the noisy model providing some form of regularization — more work will be required to investigate this effect.

Figure 5: Experiments with a noisy environment model. Left: each row shows an example 5-step rollout after conditioning on an environment observation. Errors accumulate and lead to various artefacts, including missing or duplicate sprites. Right: comparison of Monte-Carlo (MC) search and I2A when using either the accurate or the noisy model for rollouts.

Learning a rollout encoder is what enables I2As to deal with imperfect model predictions. We can further demonstrate this point by comparing them to a setup without a rollout encoder: as in the classic Monte-Carlo search algorithm of Tesauro and Galperin (1996), we now explicitly estimate the value of each action from rollouts, rather than learning an arbitrary encoding of the rollouts, as in I2A. We then select actions according to those values. Specifically, we learn a value function from states, and, using a rollout policy , sample a trajectory rollout for each initial action, and compute the corresponding estimated Monte Carlo return where comes from a trajectory initialized with action a. Action is chosen with probability proportional to , where is a learned temperature. This can be thought of as a form of I2A with a fixed summarizer (which computes returns), no model-free path, and very simple policy head. In this architecture, only and are learned.333the rollout policy is still learned by distillation from the output policy

We ran this rollout encoder-free agent on Sokoban with both the accurate and the noisy environment model. We chose the length of the rollout to be optimal for each environment model (from the same range as for I2A, i.e. from 1 to 5). As can be seen in Fig. 5 (right),444Note: the MC curves in Fig. 5 only used a single agent rather than averages. when using the high accuracy environment model, the performance of the encoder-free agent is similar to that of the baseline standard agent. However, unlike I2A, its performance degrades catastrophically when using the poor model, showcasing the susceptibility to model misspecification.

4.3 Further insights into the workings of the I2A architecture

So far, we have studied the role of the rollout encoder. To show the importance of various other components of the I2A, we performed additional control experiments. Results are plotted in Fig. 4 (left) for comparison. First, I2A with the copy model (Section 3.3) performs far worse, demonstrating that the environment model is indeed crucial. Second, we trained an I2A where the environment model was predicting no rewards, only observations. This also performed worse. However, after much longer training (3e9 steps), these agents did recover performance close to that of the original I2A (see Appendix D.2), which was never the case for the baseline agent even with that many steps. Hence, reward prediction is helpful but not absolutely necessary in this task, and imagined observations alone are informative enough to obtain high performance on Sokoban. Note this is in contrast to many classical planning and model-based reinforcement learning methods, which often rely on reward prediction.

4.4 Imagination efficiency and comparison with perfect-model planning methods

I2A@87 I2A MC search @95 MCTS@87 MCTS@95 Random search  millions
Table 1: Imagination efficiency of various architectures.
Boxes 1 2 3 4 5 6 7 I2A (%) 99.5 97 92 87 77 66 53 Standard (%) 97 87 72 60 47 32 23
Table 2: Generalization of I2A to environments with different number of boxes.

In previous sections, we illustrated that I2As can be used to efficiently solve planning problems and can be robust in the face of model misspecification. Here, we ask a different question – if we do assume a nearly perfect model, how does I2A compare to competitive planning methods? Beyond raw performance we focus particularly on the efficiency of planning, i.e. the number of imagination steps required to solve a fixed ratio of levels. We compare our regular I2A agent to a variant of Monte Carlo Tree Search (MCTS), which is a modern guided tree search algorithm (Coulom, 2006; Silver et al., 2016a). For our MCTS implementation, we aimed to have a strong baseline by using recent ideas: we include transposition tables (Childs et al., 2008), and evaluate the returns of leaf nodes by using a value network (in this case, a deep residual value network trained with the same total amount of data as I2A; see appendix D.3 for further details).

Running MCTS on Sokoban, we find that it can achieve high performance, but at a cost of a much higher number of necessary environment model simulation steps: MCTS reaches the I2A performance of of levels solved when using 25k model simulation steps on average to solve a level, compared to 1.4k environment model calls for I2A. Using even more simulation steps, MCTS performance increases further, e.g. reaching with 100k steps.

If we assume access to a high-accuracy environment model (including the reward prediction), we can also push I2A performance further, by performing basic Monte-Carlo search with a trained I2A for the rollout policy: we let the agent play whole episodes in simulation (where I2A itself uses the environment model for short-term rollouts, hence corresponding to using a model-within-a-model), and execute a successful action sequence if found, up to a maximum number of retries; this is reminiscent of nested rollouts (Rosin, 2011). With a fixed maximum of 10 retries, we obtain a score of (up from for the I2A itself). The total average number of model simulation steps needed to solve a level, including running the model in the outer loop, is now 4k, again much lower than the corresponding MCTS run with 100k steps. Note again, this approach requires a nearly perfect model; we don’t expect I2A with MC search to perform well with approximate models. See Table 2 for a summary of the imagination efficiency for the different methods.

4.5 Generalization experiments

Lastly, we probe the generalization capabilities of I2As, beyond handling random level layouts in Sokoban. Our agents were trained on levels with boxes. Table 2 shows the performance of I2A when such an agent was tested on levels with different numbers of boxes, and that of the standard model-free agent for comparison. We found that I2As generalizes well; at boxes, the I2A agent is still able to solve more than half of the levels, nearly as many as the standard agent on boxes.

5 Learning one model for many tasks in MiniPacman

In our final set of experiments, we demonstrate how a single model, which provides the I2A with a general understanding of the dynamics governing an environment, can be used to solve a collection of different tasks. We designed a simple, light-weight domain called MiniPacman, which allows us to easily define multiple tasks in an environment with shared state transitions and which enables us to do rapid experimentation.

In MiniPacman (Fig. 6, left), the player explores a maze that contains food while being chased by ghosts. The maze also contains power pills; when eaten, for a fixed number of steps, the player moves faster, and the ghosts run away and can be eaten. These dynamics are common to all tasks. Each task is defined by a vector , associating a reward to each of the following five events: moving, eating food, eating a power pill, eating a ghost, and being eaten by a ghost. We consider five different reward vectors inducing five different tasks. Empirically we found that the reward schemes were sufficiently different to lead to very different high-performing policies555For example, in the ‘avoid’ game, any event is negatively rewarded, and the optimal strategy is for the agent to clear a small space from food and use it to continuously escape the ghosts. (for more details on the game and tasks, see appendix C.

To illustrate the benefits of model-based methods in this multi-task setting, we train a single environment model to predict both observations (frames) and events (as defined above, e.g. "eating a ghost"). Note that the environment model is effectively shared across all tasks, so that the marginal cost of learning the model is nil. During training and testing, the I2As have access to the frame and reward predictions generated by the model; the latter was computed from model event predictions and the task reward vector . As such, the reward vector can be interpreted as an ‘instruction’ about which task to solve in the same environment (cf. the Frostbite challenge of Lake et al., 2016). For a fair comparison, we also provide all baseline agents with the event variable as input.666It is not necessary to provide the reward vector to the baseline agents, as it is equivalent a constant bias.

We trained baseline agents and I2As separately on each task. Results in Fig. 6 (right) indicate the benefit of the I2A architecture, outperforming the standard agent in all tasks, and the copy-model baseline in all but one task. Moreover, we found that the performance gap between I2As and baselines is particularly high for tasks 4 & 5, where rewards are particularly sparse, and where the anticipation of ghost dynamics is especially important. We posit that the I2A agent can leverage its environment and reward model to explore the environment much more effectively.

Task Name Standard model-free Copy-model I2A
Regular 192 919 859
Avoid -16 3 23
Hunt -35 33 334
Ambush -40 -30 294
Rush 1.3 178 214

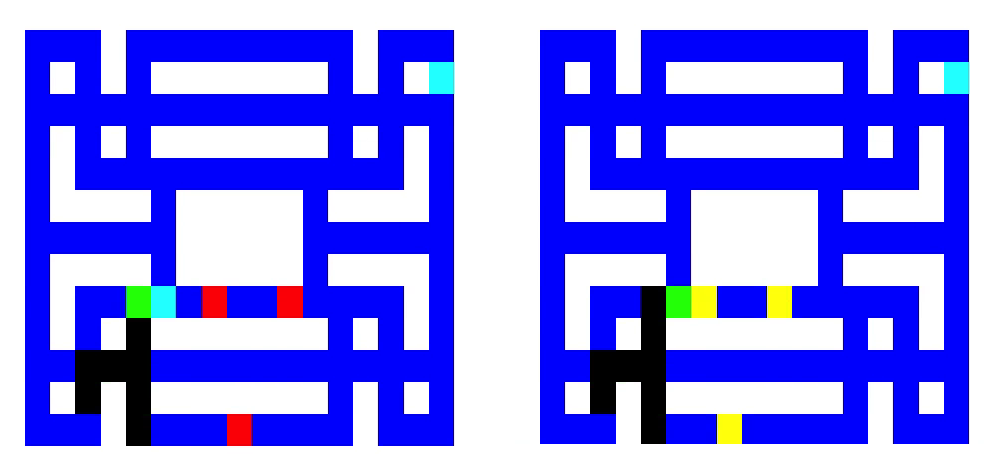

Figure 6: Minipacman environment. Left: Two frames from a minipacman game. Frames are RGB images. The player is green, dangerous ghosts red, food dark blue, empty corridors black, power pills in cyan. After eating a power pill (right frame), the player can eat the 4 weak ghosts (yellow). Right: Performance after 300 million environment steps for different agents and all tasks. Note I2A clearly outperforms the other two agents on all tasks with sparse rewards.

6 Related work

Some recent work has focused on applying deep learning to model-based RL. A common approach is to learn a neural model of the environment, including from raw observations, and use it in classical planning algorithms such as trajectory optimization

(Watter et al., 2015; Lenz et al., 2015; Finn and Levine, 2017). These studies however do not address a possible mismatch between the learned model and the true environment.

Model imperfection has attracted particular attention in robotics, when transferring policies from simulation to real environments (Taylor and Stone, 2009; Tzeng et al., 2015; Christiano et al., 2016). There, the environment model is given, not learned, and used for pretraining, not planning at test time. Liu et al. (2017)

also learn to extract information from trajectories, but in the context of imitation learning.

Bansal et al. (2017) take a Bayesian approach to model imperfection, by selecting environment models on the basis of their actual control performance.

The problem of making use of imperfect models was also approached in simplified environment in Talvitie (2014, 2015) by using techniques similar to scheduled sampling (Bengio et al., 2015); however these techniques break down in stochastic environments; they mostly address the compounding error issue but do not address fundamental model imperfections.

A principled way to deal with imperfect models is to capture model uncertainty, e.g. by using Gaussian Process models of the environment, see Deisenroth and Rasmussen (2011). The disadvantage of this method is its high computational cost; it also assumes that the model uncertainty is well calibrated and lacks a mechanism that can learn to compensate for possible miscalibration of uncertainty. Cutler et al. (2015) consider RL with a hierarchy of models of increasing (known) fidelity. A recent multi-task GP extension of this study can further help to mitigate the impact of model misspecification, but again suffers from high computational burden in large domains, see Marco et al. (2017).

A number of approaches use models to create additional synthetic training data, starting from Dyna (Sutton, 1990), to more recent work e.g. Gu et al. (2016) and Venkatraman et al. (2016); these models increase data efficiency, but are not used by the agent at test time.

Tamar et al. (2016), Silver et al. (2016b), and Oh et al. (2017) all present neural networks whose architectures mimic classical iterative planning algorithms, and which are trained by reinforcement learning or to predict user-defined, high-level features; in these, there is no explicit environment model. In our case, we use explicit environment models that are trained to predict low-level observations, which allows us to exploit additional unsupervised learning signals for training. This procedure is expected to be beneficial in environments with sparse rewards, where unsupervised modelling losses can complement return maximization as learning target as recently explored in Jaderberg et al. (2016) and Mirowski et al. (2016).

Internal models can also be used to improve the credit assignment problem in reinforcement learning: Henaff et al. (2017) learn models of discrete actions environments, and exploit the effective differentiability of the model with respect to the actions by applying continuous control planning algorithms to derive a plan; Schmidhuber (1990) uses an environment model to turn environment cost minimization into a network activity minimization.

Kansky et al. (2017) learn symbolic networks models of the environment and use them for planning, but are given the relevant abstractions from a hand-crafted vision system.

Close to our work is a study by Hamrick et al. (2017): they present a neural architecture that queries learned expert models, but focus on meta-control for continuous contextual bandit problems. Pascanu et al. (2017) extend this work by focusing on explicit planning in sequential environments, and learn how to construct a plan iteratively.

The general idea of learning to leverage an internal model in arbitrary ways was also discussed by Schmidhuber (2015).

7 Discussion

We presented I2A, an approach combining model-free and model-based ideas to implement imagination-augmented RL: learning to interpret environment models to augment model-free decisions. I2A outperforms model-free baselines on MiniPacman and on the challenging, combinatorial domain of Sokoban. We demonstrated that, unlike classical model-based RL and planning methods, I2A is able to successfully use imperfect models (including models without reward predictions), hence significantly broadening the applicability of model-based RL concepts and ideas.

As all model-based RL methods, I2As trade-off environment interactions for computation by pondering before acting. This is essential in irreversible domains, where actions can have catastrophic outcomes, such as in Sokoban. In our experiments, the I2A was always less than an order of magnitude slower per interaction than the model-free baselines. The amount of computation can be varied (it grows linearly with the number and depth of rollouts); we therefore expect I2As to greatly benefit from advances on dynamic compute resource allocation (e.g. Graves (2016)). Another avenue for future research is on abstract environment models: learning predictive models at the "right" level of complexity and that can be evaluated efficiently at test time will help to scale I2As to richer domains.

Remarkably, on Sokoban I2As compare favourably to a strong planning baseline (MCTS) with a perfect environment model: at comparable performance, I2As require far fewer function calls to the model than MCTS, because their model rollouts are guided towards relevant parts of the state space by a learned rollout policy. This points to further potential improvement by training rollout policies that "learn to query" imperfect models in a task-relevant way.


We thank Victor Valdes for designing and implementing the Sokoban environment, Joseph Modayil for reviewing an early version of this paper, and Ali Eslami, Hado Van Hasselt, Neil Rabinowitz, Tom Schaul, Yori Zwols for various help and feedback.


Appendix A Training and rollout policy distillation details

Each agent used in the paper defines a stochastic policy, i.e. a categorical distribution over discrete actions . The logits of are computed by a neural network with parameters , taking observation at timestep as input. During training, to increase the probability of rewarding actions being taken, A3C applies an update to the parameters using policy gradient :

where is an estimate of the advantage function [Baird III, 1993]. In practice, we learn a value function and use it to compute the advantage as the difference of the bootstrapped -step return and and the current value estimate:

The value function is also computed as the output of a neural network with parameters . The input to the value function network was chosen to be the second to last layer of the policy network that computes . The parameter are updated with towards bootstrapped -step return:

In our numerical implementation, we express the above updates as gradients of a corresponding surrogate loss [Schulman et al., 2015b]. To this surrogate loss, we add an entropy regularizer of to encourage exploration, with thoughout all experiments. Where applicable, we add a loss for policy distillation consisting of the cross-entropy between and :

with scaling parameter . Here

denotes that we do not backpropagate gradients of

wrt. to the parameters of the rollout policy through the behavioral policy

. Finally, even though we pre-trained our environment models, in principle we can also learn it jointly with the I2A agent by a adding an appropriate log-likelihood term of observations under the model. We will investigate this in future research. We optimize hyperparameters (learning rate and momentum of the RMSprop optimizer, gradient clipping parameter, distillation loss scaling

where applicable) separately for each agent (I2A and baselines).

Appendix B Agent and model architecture details

We used rectified linear units (ReLUs) between all hidden layers of all our agents. For the environment models, we used leaky ReLUs with a slope of


b.1 Agents

Standard model-free baseline agent

The standard model-free baseline agent, taken from [Mnih et al., 2016]

, is a multi-layer convolutional neural network (CNN), taking the current observation

as input, followed by a fully connected (FC) hidden layer. This FC layer feeds into two heads: into a FC layer with one output per action computing the policy logits ; and into another FC layer with a single output that computes the value function . The sizes of the layers were chosen as follows:

  • for MiniPacman: the CNN has two layers, both with 3x3 kernels, 16 output channels and strides

    and ; the following FC layer has 256 units

  • for Sokoban: the CNN has three layers with kernel sizes 8x8, 4x4, 3x3, strides of 4, 2, 1 and number of output channels , , ; the following FC has 512 units


The model free path of the I2A consists of a CNN identical to one of the standard model-free baseline (without the FC layers). The rollout encoder processes each frame generated by the environment model with another identically sized CNN. The output of this CNN is then concatenated with the reward prediction (single scalar broadcast into frame shape). This feature is the input to an LSTM with (for Sokoban) or (for MiniPacman) units. The same LSTM is used to process all rollouts (one per action); the last output of the LSTM for all rollouts are concatenated into a single vector of length for Sokoban, and on MiniPacman. This vector is concatenated with the output of the model-free CNN path and is fed into the fully connected layers computing policy logits and value function as in the baseline agent described above.


The copy-model agent has the exact same architecture as the I2A, with the exception of the environment model being replaced by the identity function (constantly returns the input observation).

b.2 Environment models

For the I2A, we pre-train separate auto-regressive models of order 1 for the raw pixel observations of the MiniPacman and Sokoban environments (see figures 7 and 8) . In both cases, the input to the model consisted of the last observation , and a broadcasted, one-hot representation of the last action . Following previous studies, the outputs of the models were trained to predict the next frame by stochastic gradient decent on the Bernoulli cross-entropy between network outputs and data .

The Sokoban model is a simplified case of the MiniPacman model; the Sokoban model is nearly entirely local (save for the reward model), while the MiniPacman model needs to deal with nonlocal interaction (movement of ghosts is affected by position of Pacman, which can be arbitrarily far from the ghosts).

MiniPacman model

The input and output frames were of size 15 x 19 x 3 (width x height x RGB). The model is depicted in figure 7. It consisted of a size preserving, multi-scale CNN architecture with additional fully connected layers for reward prediction. In order to capture long-range dependencies across pixels, we also make use of a layer we call pool-and-inject

, which applies global max-pooling over each feature map and broadcasts the resulting values as feature maps of the same size and concatenates the result to the input. Pool-and-inject layers are therefore size-preserving layers which communicate the max-value of each layer globally to the next convolutional layer.

Figure 7: The minipacman environment model. The overview is given in the right panel with blow-ups of the basic convolutional building block (middle panel) and the pool-and-inject layer (left panel). The basic build block has three hyperparameters determining the number of channels in the convolutions; their numeric values are given in the right panel.

Sokoban model

The Sokoban model was chosen to be a residual CNN with an additional CNN / fully-connected MLP pathway for predicting rewards. The input of size 80x80x3 was first processed with convolutions with a large 8x8 kernel and stride of 8. This reduced representation was further processed with two size preserving CNN layers before outputting a predicted frame by a 8x8 convolutional layer.

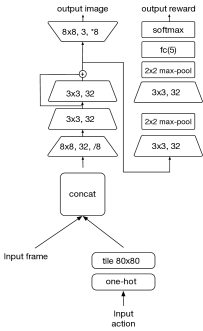

Figure 8: The sokoban environment model.

Appendix C MiniPacman additional details

MiniPacman is played in a grid-world. Characters, the ghosts and Pacman, move through a maze. Walls positions are fixed. At the start of each level power pills, a number of ghosts, and Pacman are placed at random in the world. Food is found on every square of the maze. The number of ghosts on level is rounded down, where on the first level.

Game dynamics

Ghosts always move by one square at each time step. Pacman usually moves by one square, except when it has eaten a power pill, which makes it move by two squares at a time. When moving by squares, if Pacman new position ends up inside a wall, then it is moved back by one square to get back to a corridor.

We say that Pacman and a ghost meet when they either end up at the same location, or when their path crosses (even if they do not end up at the same location). When Pacman moves to a square with food or a power pill, it eats it. Eating a power pill gives Pacman super powers, such as moving at double speed and being able to eat ghosts. The effects of eating a power pill last for 19 time steps. When Pacman meets a ghost, either Pacman dies eaten by the ghost, or, if Pacman has recently eaten a power pill, the ghost dies eaten by Pacman.

If Pacman has eaten a power pill, ghosts try to flee from Pacman. They otherwise try to chase Pacman. A more precise algorithm for the movement of a ghost is given below in pseudo code:

1:function moveghost
2:     Inputs: Ghost object Contains position and some helper methods
3:     PossibleDirections DOWN, LEFT, RIGHT, UP
4:     CurrentDirection Ghost.current_direction
5:     AllowedDirections []
6:     for dir in PossibleDirections do
7:         if Ghost.can_move(dir) then
8:              AllowedDirections [dir]
9:         if len(AllowedDirections)  then We are in a straight corridor, or at a bend
10:              if Ghost.current_direction in AllowedDirections then
11:                  return Ghost.current_direction
12:              if opposite(Ghost.current_direction) AllowedDirections[0] then
13:                  return AllowedDirections[1]
14:              return AllowedDirections[0]
15:         else We are at an intersection
16:              if opposite(Ghost.current_direction) in AllowedDirections then
17:                  AllowedDirections.remove(opposite(Ghost.current_direction)) Ghosts do not turn around
18:              X = normalise(Pacman.position - Ghost.position)
19:              DotProducts = []
20:              for dir in AllowedDirections do
21:                  DotProducts [dot_product(X, dir)]
22:              if Pacman.ate_super_pill then
23:                  return AllowedDirections[argmin(DotProducts)] Away from Pacman
24:              else
25:                  return AllowedDirections[argmax(DotProducts)] Towards Pacman
Algorithm 1 move ghost

Task collection

We used different tasks available in MiniPacman. They all share the same environment dynamics (layout of maze, movement of ghosts, …), but vary in their reward structure and level termination. The rewards associated with various events for each tasks are given in the table below.

Task At each step Eating food Eating power pill Eating ghost Killed by ghost
Regular 0 1 2 5 0
Avoid 0.1 -0.1 -5 -10 -20
Hunt 0 0 1 10 -20
Ambush 0 -0.1 0 10 -20
Rush 0 -0.1 10 0 0

When a level is cleared, a new level starts. Tasks also differ in the way a level was cleared.

  • Regular: level is cleared when all the food is eaten;

  • Avoid: level is cleared after steps;

  • Hunt: level is cleared when all ghosts are eaten or after steps.

  • Ambush: level is cleared when all ghosts are eaten or after steps.

  • Rush: level is cleared when all power pills are eaten.

There are no lives, and episode ends when Pacman is eaten by a ghost.

The time left before the effect of the power pill wears off is shown using a pink shrinking bar at the bottom of the screen as in Fig. 9.

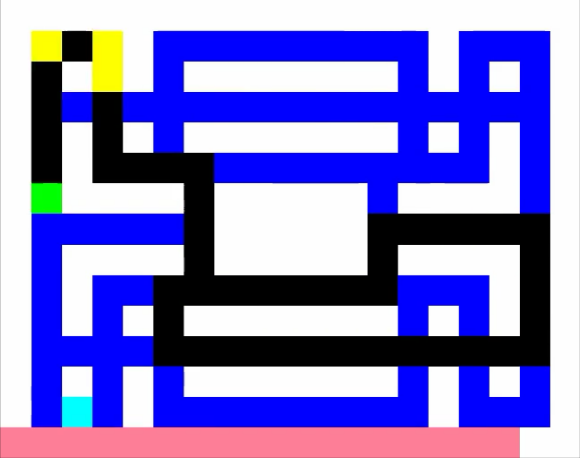

Figure 9: The pink bar appears when Pacman eats a power pill, and it decreases in size over the duration of the effect of the pill.

Training curves

Figure 10: Learning curves for different agents and various tasks

Appendix D Sokoban additional details

d.1 Sokoban environment

In the game of Sokoban, random actions on the levels would solve levels with vanishing probability, leading to extreme exploration issues for solving the problem with reinforcement learning. To alleviate this issue, we use a shaping reward scheme for our version of Sokoban:

  • Every time step, a penalty of -0.1 is applied to the agent.

  • Whenever the agent pushes a box on target, it receives a reward of +1.

  • Whenever the agent pushes a box off target, it receives a penalty of -1.

  • Finishing the level gives the agent a reward of +10 and the level terminates.

The first reward is to encourage agents to finish levels faster, the second to encourage agents to push boxes onto targets, the third to avoid artificial reward loop that would be induced by repeatedly pushing a box off and on target, the fourth to strongly reward solving a level. Levels are interrupted after 120 steps (i.e. agent may bootstrap from a value estimate of the last frame, but the level resets to a new one). Identical levels are nearly never encountered during training or testing (out of 40 million levels generated, less than 0.7% were repeated). Note that with this reward scheme, it is always optimal to solve the level (thus our shaping scheme is valid). An alternative strategy would have been to have the agent play through a curriculum of increasingly difficult tasks; we expect both strategies to work similarly.

d.2 Additional experiments

Our first additional experiment compared I2A with and without reward prediction, trained over a longer horizon. I2A with reward prediction clearly converged shortly after 1e9 steps and we therefore interrupted training; however, I2A without reward prediction kept increasing performance, and after 3e9 steps, we recover a performance level of close to 80% of levels solved, see Fig. 11.

Figure 11: I2A with and without reward prediction, longer training horizon.

Next, we investigated the I2A with Monte-Carlo search (using a near perfect environment model of Sokoban). We let the agent try to solve the levels up to times within its internal model. The base I2A architecture was solving around of levels; mental retries boosted its performance to around of levels solved. Although the agent was allowed up to mental retries, in practice all the performance increase was obtained within the first mental retries. Exact percentage gain by each mental retry is shown in Fig. 12. Note in Fig. 12, only of the levels are solved on the first mental attempt, even though the I2A architecture could solve around of levels. The gap is explained by the use of an environment model: although it looks nearly perfect to the naked eye, the model is not actually equivalent to the environment.

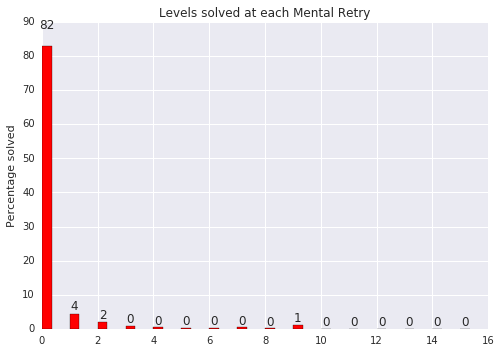

Figure 12: Gain in percentage by each additional mental retry using a near perfect environment model.

d.3 Planning with the perfect model and Monte-Carlo Tree Search in Sokoban

We first trained a value network that estimates the value function of a trained model-free policy; to do this, we trained a model-free agent for 1e9 environment steps. This agent solved close to 60 % of episodes. Using this agent, we generated 1e8 (frame, return) pairs, and trained the value network to predict the value (expected return) from the frame; training and test error were comparable, and we don’t expect increasing the number of training points would have significantly improved the quality of the the value network.

The value network architecture is a residual network which stacks one convolution layer and convolution blocks with a final fully-connected layer of 128 hidden units. The first convolution is convolution with feature maps. Each of the three residual convolution block is composed of two convolutional layers; the first is a convolution with feature maps, the second a convolution with feature maps, and the last a layer with feature maps. To help the value networks, we trained them not on the pixel representation, but on a symbolic representation.

The trained value network is then employed during search to evaluate leaf-nodes — similar to [Silver et al., 2016a], replacing the role of traditional random rollouts in MCTS. The tree policy uses [Kocsis and Szepesvári, 2006, Gelly and Silver, 2007] with a fine-tuned exploration constant of 1. Depth-wise transposition tables for the tree nodes are used to deal with the symmetries in the Sokoban environment. External actions are selected by taking the max Q value at the root node. The tree is reused between steps but selecting the appropriate subtree as the root node for the next step.

Reported results are obtained by averaging the results over episodes.

d.4 Level Generation for Sokoban

We detail here our procedural generation for Sokoban levels - we follow closely methods described in [Taylor and Parberry, 2011, Murase et al., 1996].

The generation of a Sokoban level involves three steps: room topology generation, position configuration and room reverse-playing. Topology generation: Given an initial width*height room entirely constituted by wall blocks, the topology generation consists in creating the ‘empty’ spaces (i.e. corridors) where boxes, targets and the player can be placed. For this simple random walk algorithm with a configurable number of steps is applied: a random initial position and direction are chosen. Afterwards, for every step, the position is updated and, with a probability , a new random direction is selected. Every ‘visited’ position is emptied together with a number of surrounding wall blocks, selected by randomly choosing one of the following patterns indicating the adjacent room blocks to be removed (the darker square represents the reference position, that is, the position being visited). Note that the room ‘exterior’ walls are never emptied, so from a widthheight room only a (width-2)(height-2) space can actually be converted into corridors. The random walk approach guarantees that all the positions in the room are, in principle, reachable by the player. A relatively small probability of changing the walk direction favours the generation of longer corridors, while the application of a random pattern favours slightly more convoluted spaces.

Position configuration: Once a room topology is generated, the target locations for the desired N boxes and the player initial position are randomly selected. There is the obvious prerequisite of having enough empty spaces in the room to place the targets and the player but no other constraints are imposed in this step.

Reverse playing: Once the topology and targets/player positions are generated the room is reverse-played. In this case, on each step, the player has eight possible actions to choose from: simply moving or moving+pulling from a box in each possible direction (assuming for the latter, that there is a box adjacent to the player position).

Initially the room is configured with the boxes placed over their corresponding targets. From that position a depth-first search (with a configurable maximum depth) is carried out over the space of possible moves, by ‘expanding’ each reached player/boxes position by iteratively applying all the possible actions (which are randomly permuted on each step). An entire tree is not explored as there are different combinations of actions leading to repeated boxes/player configurations which are skipped.

Statistics are collected for each boxes/player configuration, which is, in turn, scored with a simple heuristic:

where BoxSwaps represents the number of occasions in which the player stopped pulling from a given box and started pulling from a different one, while BoxDisplacement represents the Manhattan distance between the initial and final position of a given box. Also whenever a box or the player are placed on top of one of the targets the RoomScore value is set to 0. While this scoring heuristic doesn’t guarantee the complexity of the generated rooms it’s aimed to a) favour room configurations where overall the boxes are further away from their original positions and b) increase the probability of a room requiring a more convoluted combination of box moves to get to a solution (by aiming for solutions with higher boxSwaps values). This scoring mechanism has empirically proved to generate levels with a balanced combination of difficulties.

The reverse playing ends when there are no more available positions to explore or when a predefined maximum number of possible room configurations is reached. The room with the higher RoomScore is then returned.

Defaul parameters:

  • A maximum of 10 room topologies and for each of those 10 boxes/player positioning are retried in case a given combination doesn’t produce rooms with a score > 0.

  • The room configuration tree is by default limited to a maximum depth of 300 applied actions.

  • The total number of visited positions is by default limited to 1000000.

  • Default random-walk steps: 1.5 (room width + room height).
