Introduction

With the spread of security threats in the internet, the intrusion detection system (IDS) becomes the essential tools to detect and defend network attacks which are performed in the form of the malicious network traffic. The IDS monitors the network traffic and raises an alarm if the unsafe traffic is identified. The main aim of IDS is to classify the network records between normal ones and malicious ones.

In classification issues, machine learning algorithms have been widely applied in IDS and achieved good results. These detection algorithms have been utilized to monitor and analyze the malicious traffic, including K-Nearest Neighbor, Support Vector Machine, Decision Tree, etc

[Tsai et al.2009]

. In recent years, deep learning algorithms develop fast and promote the further development in intrusion detections, like Convolutional Neural Networks, Recurrent Neural Networks, Auto Encoder and so on

[Li et al.2017]. These algorithms improve the intrusion detection in accuracy and simplification [Lin, Shi, and Xue2018].

However, the intrusion detection system gradually exposes its vulnerability under the adversarial examples: inputs that are close to original inputs but classified incorrectly [Carlini and Wagner2017]. Attackers attempt to deceive models into the desired misclassification by using the adversarial malicious traffic examples. And the generative adversarial networks (GAN) are the potential chosen method for such adversarial attacks.

Goodfellow et al. introduced GAN, a framework to train the generative models [Goodfellow et al.2014], whose main idea is that two networks, the generator network and the discriminator network, play a minimax game in order to converge to an optimal solution [Lee, Han, and Lee2017]. GAN has shown its state-of-the-art advance in the generation of images, sound and texts [Ledig et al.2017, Dong et al.2018, Su et al.2018]. Sharing the similar characteristic of texts or sentences, information security is also the focused field for GAN recently. Current researches have used GAN to improve the malware detection or generate the adversarial malware examples for more threatening attacks [Kim, Bu, and Cho2017, Hu and Tan2017b]. But there is a lack of the researches about the GAN used in IDS.

In this paper, we propose a new framework of GAN for the adversarial attack generation against the intrusion detection system (IDSGAN). The goal of the model is to implement IDSGAN to generate malicious traffic examples which can deceive and evade the detection of the defense systems. Machine learning algorithms are assigned as the black-box IDS, simulating the intrusion detection system in the real world unknown with its internal structure. We design and improve the generator and the discriminator on the basis of Wasserstein GAN for its superior characteristics [Arjovsky, Chintala, and Bottou2017]. The generator generates adversarial attacks: adversarial malicious traffic. The discriminator provides feedback for the training of the generator and imitates the black-box IDS. The attackers can perform attacks based on the adversarial examples. In summary, we make the following contributions:

  • We design IDSGAN, an improved framework of GAN against the intrusion detection system, to generate adversarial malicious traffic examples to attack IDS. In the generation, the modification to the original attack traffic will not invalidate its attack function.

  • To mimic attacks and IDS in real world, adversarial attacks perform the black-box attacks and the machine learning algorithms are used as the IDS in this model.

  • IDSGAN presents good performance in the experiments, and the detection rates to the adversarial examples approach 0 in various black-box IDS models and different attacks, meaning that most of the adversarial attacks can deceive and bypass the detection of the black-box IDS.

  • We test and discuss the influence on IDSGAN under different amounts of the unmodified features in the traffic examples. The minor changes in results reflect the strong robustness of IDSGAN. Besides, various attacks and detection algorithms affect the model differently.

Related Work

With the rapid development of machine learning algorithms, the adversarial examples generation of machine learning algorithms have attracted researchers’ interests and applied in many fields. As an important and sensitive field, information security is facing more challenges from the adversarial attacks. Plenty of researches focus on the generation of adversarial malicious examples in security.

Grosse proposed to apply the algorithm based on the forward derivative of the attacked neural networks to craft adversarial Android malware examples with the function of the malware preserved [Grosse et al.2016]

. The reinforcement learning algorithm with a set of the functionality-preserving operations was used for generating adversarial malware examples

[Anderson et al.2017]. Rosenberg generated the adversarial examples combining API call sequences and static features with an end-to-end attack generation framework [Rosenberg et al.2018]. Al-Dujaili presented 4 methods to generate binary-encoded adversarial malware examples with the preserved malicious functionality and utilized the SLEIPNIR to train the robust detectors [Al-Dujaili et al.2018]. Besides, the adversarial spam also got the concern. Zhou crafted the adversarial spam with the adversarial SVM model and researched how to construct a more robust spam-filter [Zhou et al.2012].

GAN was implemented in generating adversarial examples in information security as well. Hu proposed a GAN framework to generate adversarial malware examples for the black-box attacks [Hu and Tan2017b]. Hu also leveraged a new model to generate some adversarial API sequences which would be inserted into the original API sequences of malware to form the attacks, aiming at bypassing Recurrent Neural Networks (RNN) detection systems [Hu and Tan2017a].

Although the adversarial technology has been widely applied in malware detection, there are few researches about the adversarial malicious traffic examples against IDS. Our proposed model constructs the architecture of the generative adversarial networks for the adversarial attack examples targeting at IDS and successfully attacks many black-box IDS models.

Proposed Method

We design IDSGAN, an improved model of GAN, for the evasion attacks against IDS. According to the characteristics of the dataset NSL-KDD, we need to preprocess the dataset to fit the model. In IDSGAN, the generator, the discriminator and the black-box IDS take their advantages to generate adversarial malicious traffic examples. The aim of the method is to perform the evasion attacks by deceiving the black-box IDS model.

Dataset: NSL-KDD dataset description

Improved from KDD’99, NSL-KDD is utilized as a benchmark dataset to evaluate IDS today [Hu et al.2015]. In NSL-KDD, the dataset comprises of the training set KDDTrain+ and the testing set KDDTest+.

To simulate the real network environment, the traffic data contain the normal traffic and four main categories of malicious traffic: Probing (Probe), Denial of Service (DoS), User to Root (U2R) and Root to Local (R2L).

The traffic records in NSL-KDD are extracted into the sequences of the features combination, as the abstract description of the normal and malicious network traffic. There are 9 features in discrete values and 32 features in continuous values, a total of 41 features. According to the meanings of the features, these features consists of four sets including “intrinsic”, “content”, “time-based traffic” and “host-based traffic” [Davis and Clark2011, Lee and Stolfo2000], as shown in Figure 1. The detailed description of what one set of the features focuses on is listed below:

  • “Intrinsic” features: reflect the inherent characteristics of a single connection for the general network analysis.

  • “Content” features: mark the content of connections which indicate whether some behaviors related to the attack exist in the traffic.

  • “Time-based traffic” features: examine the connections in the past 2 seconds, which have the same destination host or the same service as the current connection, including the “same host” features and “same service” features.

  • “Host-based traffic” features: monitor the connections in the past 100 connections, which have the same destination host or the same service as the current connection, as the mirror of “time-based traffic” features.

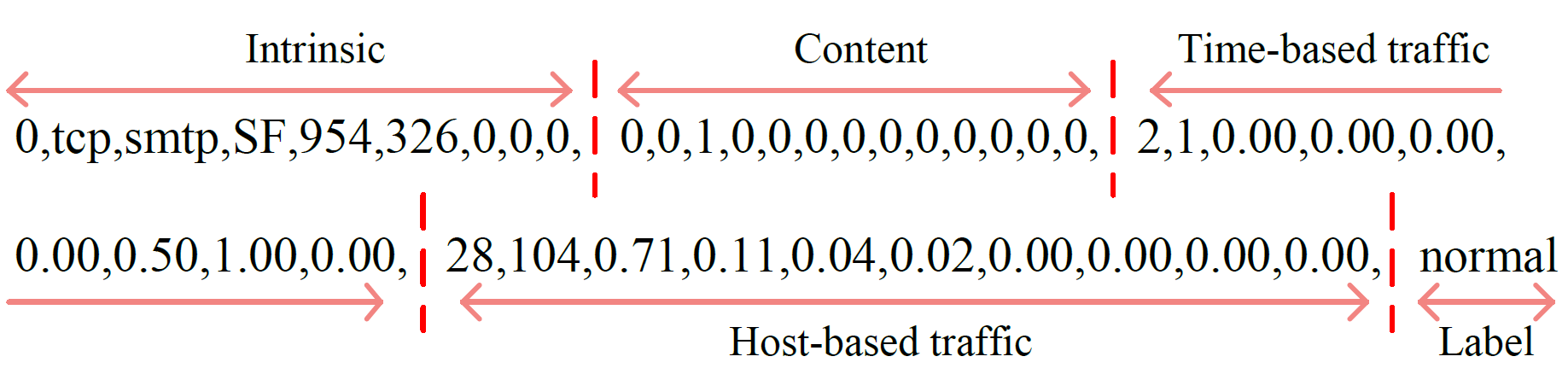

Figure 1: The distribution of the feature sets in a line of traffic record in NSK-KDD, including features and a label.

Data preprocessing

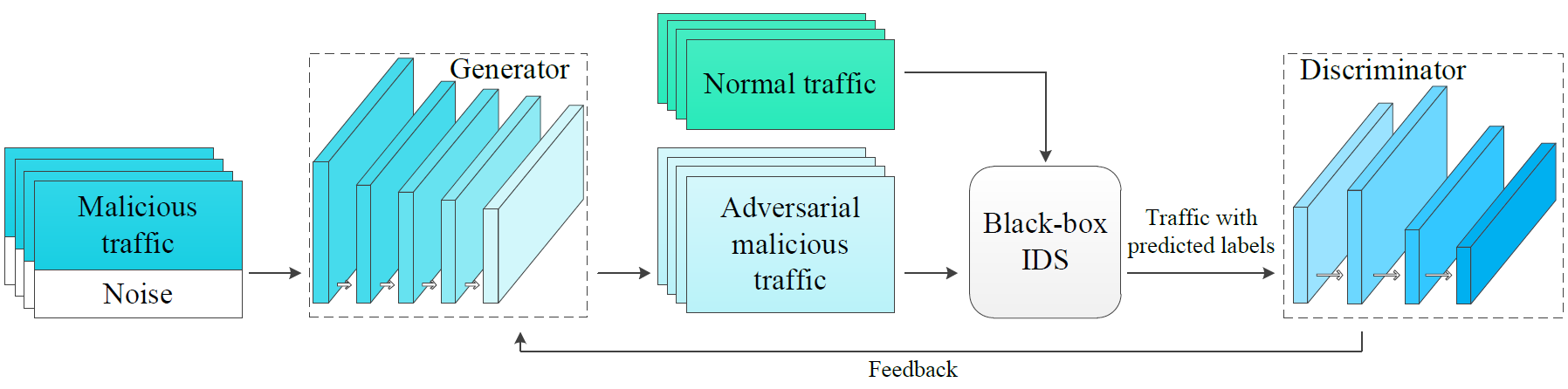

Figure 2: The training of IDSGAN. The training dataset is divided into the normal traffic and the malicious traffic. After adding noise, the malicious traffic is sent into the generator. The adversarial malicious traffic and the normal traffic are predicted by the black-box IDS. The predicted labels and the original labels are used in the discriminator to simulate the black-box IDS. The loss of generator is calculated based on the result of the discriminator and the predicted labels of the black-box IDS.

In the data preprocessing, the data in NSL-KDD need the processing of the numeric conversion and the normalization to become the input vectors of the traffic examples for IDSGAN.

In 9 discrete features, there are 3 features in nonnumeric values and 6 features in binary values which are 0 or 1. To convert the feature sequences into the numeric vectors as the input, it is necessary to make the numeric conversion on the nonnumeric features firstly, including protocol_type, service and flag. For instance, “protocol_type” has 3 types of attributes: TCP, UDP and ICMP, which will be encoded into the numeric discrete values as 1, 2 and 3.

Afterwards, to eliminate the dimensional impact between feature values in the input vectors, the standard scalar is utilized to normalize the original and converted numeric features into a specific range. For the better training and testing, we implement Min-Max normalization method to transform data into the interval of , which is suitable for all the discrete and continuous features. The Min-Max normalization is calculated as below:

(1)

where is the feature value before the normalization and is the feature value after the normalization. Besides, and represent the maximum value and the minimum value of this features in the dataset, respectively.

Structure of IDSGAN

With the rapid development of GAN, many versions of GAN are designed for different requests. To prevent the non-convergence and instability of GAN, IDSGAN is designed based on the structure of Wasserstein GAN. In IDSGAN, the generator modifies some specific features to generate adversarial malicious traffic examples. The discriminator is trained to imitate the black-box IDS and assist the generator training. The black-box IDS is implemented by machine learning algorithms to detect attacks. By making the weight parameters of the generator different from the IDS in the training, the adversarial examples can be generated to evade the detection of IDS. The framework of IDSGAN is delineated in Figure 2.

Restriction in generating adversarial examples

Although the main purpose of the adversarial attack examples generation is to evade IDS, the premise is that this generation should retain the attack function of the traffic.

According to the attack principles and purposes, it is evident that each category of attacks has its functional features, which represent the basic function of this attack. On the other word, the attack attribute remains undisturbed if we only change the nonfunctional features, not the functional features. Therefore, in order to avoid invalidating the traffic, we must keep the functional features of each attack unchanged. For the nonfunctional features of one attack which don’t represent the function relevant to that attack, we can alter or retain them. These retained features in the generation, including functional features, are called the unmodified features in this paper. As shown in [Lee and Stolfo2000], the functional features of each category of attacks in NSL-KDD are presented in Table 1.

Attack Functional features
Intrinsic Content Time-based traffic Host-based traffic
Probe
DoS
U2R
R2L
Table 1: The functional features of each attack category.

Generator

As a crucial part of the model, the generator plays the role of the adversarial malicious traffic example generation for the evasion attack.

To transform an original example into an adversarial example, each input vector of the traffic examples should consists of an -dimensional original example vector and an -dimensional noise vector . As the original example part,

has been preprocessed. To be consistent with the preprocessed vector, the elements of the noise part are comprised of random numbers in a uniform distribution within the range of

.

Our purposed structure of the generator has a neural network with 5 linear layers. The ReLU non-linearity

is utilized to activate the outputs of former 4 linear layers. To make the adversarial examples meet the formula of the original example vector , the output layer must have units. The update of the parameters in this network is based on the feedback from the discriminator.

In addition, there are some tricks in the processing of the modified features. To restrict the output elements into the range of , the element which is above 1 is set as 1 and the element which is below 0 is set as 0. Moreover, considering that “intrinsic” features are the functional features in all the attacks in NSL-KDD, we will not modify the discrete features with more than two values, all of which gather in “intrinsic” features. So, the modified discrete features are the binary discrete features. The values of these modified discrete features will be transformed into binary values. The threshold in the binary transformation is 0.5. The values above or below the threshold will be transformed into 1 or 0.

Discriminator

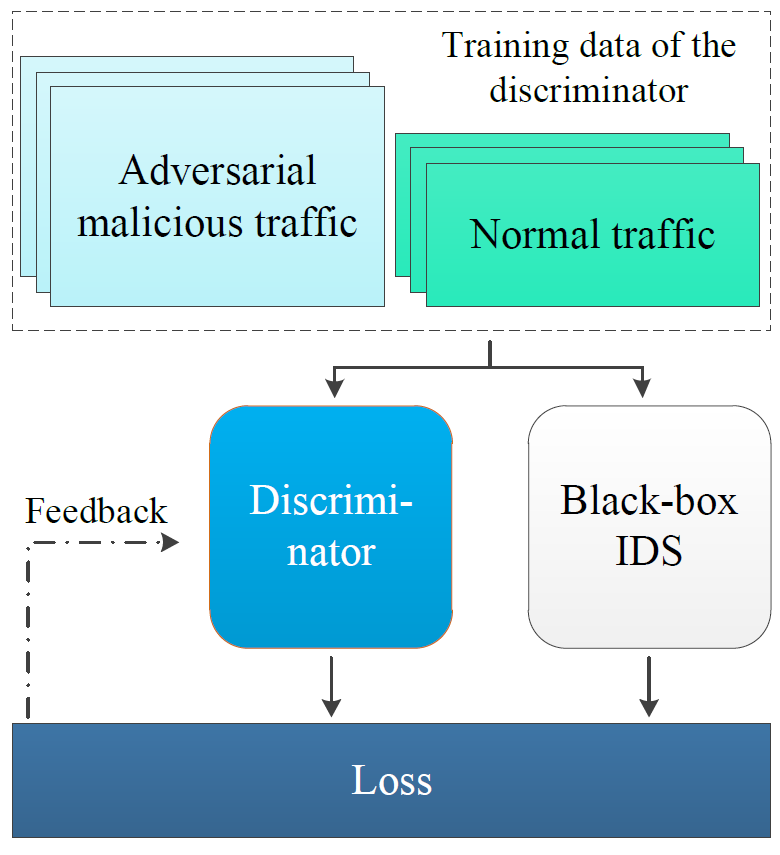

Figure 3: The process of simulating the black-box IDS by the discriminator.

Without the knowledge about the structure of the black-box IDS model, the discriminator is used to imitate the black-box IDS based on the adversarial malicious traffic examples and the normal traffic examples. The imitation helps the generator training because the adversarial attacks can try to bypass the IDS during the training of the generator. Meanwhile, as a classification tool, the discriminator classifies the outputs of the generator and supplies the feedback to the generator.

The discriminator is a multi-layer neural network to classify the malicious traffic and the normal traffic. Its training data consist of the adversarial malicious traffic and the normal traffic.

As one of the main aim of the discriminator, the work of imitating the ability of the black-box IDS needs the detection results of the black-box IDS to normal and adversarial malicious traffic examples. First, the normal traffic examples and the adversarial malicious traffic examples are classified by the black-box IDS. Then, the detection results of the black-box IDS are used as the target labels of the discriminator’s training data to make the discriminator’s classification similar to the black-box IDS. The procedure of the discriminator’s imitating the black-box IDS model is delineated in Figure 3.

Training algorithms

In the training of the generator, the results obtained from the discriminator’s classification to the adversarial examples provide the gradient information for the generator’s training. The loss function of the generator is defined as follows:

(2)

where is the original malicious traffic examples; represents the generator and represents the discriminator. To train and optimize the generator to fool the black-box IDS, we need to minimize .

For the discriminator training, the adversarial malicious traffic examples are the part of the training set. According to the above introduction about relationship between the training set and the predicted labels of the black-box IDS, the loss of the discriminator is calculated by the output labels of the discriminator and the predicted labels achieved from the black-box IDS. Thus, the definition of the loss function of the discriminator for the optimization is as follows:

(3)

where means the traffic examples for the training of the discriminator; and respectively mean the normal examples and the adversarial attack examples predicted by the black-box IDS.

According to Wasserstein GAN, RMSProp is the optimizer of IDSGAN to optimize the parameters in the networks. Algorithm 1 shows an outline of the general IDSGAN training.

0:    Original normal and malicious traffic examples , ;The noise for the adversarial generation;
0:    The trained generator and the trained discriminator ;
1:  Initialize the generator , the discriminator and the black-box IDS ;
2:  for  do
3:     for -steps do
4:         generates the adversarial malicious traffic examples based on ;
5:        Update the parameters of according to Eq. 2;
6:     end for
7:     for -steps do
8:         classifies the training set including and ;
9:         classifies the training set, getting predicted labels;
10:        Update the parameters of according to Eq. 3;
11:     end for
12:  end for
Algorithm 1 IDSGAN

Experiments and Results

In the experiment, PyTorch is adopted as the deep learning framework to implement IDSGAN

[Paszke et al.2017]. The purposed model is run and evaluated on a Linux PC with Intel Core i7-2600.

IDSGAN is trained with the 64 batch size for 100 epochs. The learning rates of the generator and the discriminator are both 0.0001. The dimension of the noise vector is 9. The weight clipping threshold for the discriminator training is set as 0.01.

To evaluate the capacity of the model comprehensively and deeply, various kinds of machine learning algorithms are used as the black-box IDS in the experiments. Based on the relevant researches in the intrusion detection, the adopted algorithms of the black-box IDS in the experiments include Support Vector Machine (SVM), Naive Bayes (NB), Multilayer Perceptron (MLP), Logistic Regression (LR), Decision Tree (DT), Random Forest (RF) and K-Nearest Neighbor (KNN). The black-box IDS models have been trained with their training set before the evaluation to IDSGAN.

The training set and the testing set are designed based on the dataset NSL-KDD consisting of KDDTrain+ and KDDTest+. The training set for the black-box IDS consists of one half of the records in KDDTrain+, including normal and malicious traffic records. The training set of the discriminator includes the normal traffic records in the other half of KDDTrain+ and the adversarial malicious traffic examples from the generator. Because GAN is applicable in the binary classification, IDSGAN is able to generate the adversarial examples for only one category of the attacks each time. So, in every experiment, the training set of the generator is the records of one category of the attacks in the other half of KDDTrain+. The records of one attack in KDDTest+ make up the testing set for the generator of one experiment in which one kind of the adversarial attacks for the test are generated to perform that attack against IDS.

For the experimental metrics, the detection rate and the evasion increase rate are measured, showing the performance of IDSGAN directly and comparatively. The detection rate (DR) reflects the proportion of correctly detected malicious traffic records by the black-box IDS to all of those attack records detected, directly showing the evasion ability of the model and the robustness of the black-box IDS. The original detection rate and the adversarial detection rate represent the detection rate to the original malicious traffic records and that to the adversarial malicious traffic records, respectively. In addition, we define the evasion increase rate (EIR) as the rate of the increase in the undetected adversarial malicious traffic examples by IDS compared with the original malicious traffic examples, comparatively reflecting the ability of IDSGAN, especially in different background. These metrics are calculated as follows:

(4)
(5)

A lower detection rate means more malicious traffic evades the black-box IDS, directly reflect the stronger ability of IDSGAN. On the contrary, a lower evasion rate reflects more adversarial examples can be detected by the black-box IDS, meaning that there is a decline on the comparative distance of the evasion attack capacity between original malicious traffic and adversarial malicious traffic. So, the motivation for IDSGAN is to obtain a lower detection rate and a higher evasion increase rate.

Adding unmodified features Attack Metric SVM NB MLP LR DT RF KNN
DoS Original DR (%) 82.37 84.94 82.70 79.85 75.13 73.28 77.22
U2R & R2L Original DR (%) 0.68 6.19 4.54 0.64 12.66 2.44 5.69
DoS Adversarial DR (%) 0.46 0.01 0.72 0.36 0.20 0.35 0.37
EIR (%) 99.44 99.99 99.13 99.55 99.73 99.52 99.52
U2R & R2L Adversarial DR (%) 0.00 0.01 0.00 0.00 0.02 0.00 0.00
EIR (%) 100.00 99.84 100.00 100.00 99.84 100.00 100.00
DoS Adversarial DR (%) 1.03 1.26 1.21 0.97 0.36 0.77 1.16
EIR (%) 98.75 98.52 98.54 98.79 99.52 98.95 98.50
U2R & R2L Adversarial DR (%) 0.01 0.08 0.01 0.00 0.07 0.00 0.00
EIR (%) 98.53 98.71 99.78 100.00 99.45 100.00 100.00
Table 2: The performance of IDSGAN under DoS, U2R and R2L. The first and second lines in the table are the black-box IDS’s original detection rates to the original testing set. “” in “adding unmodified features” means that the lines are the performance of IDSGAN with only the functional features unmodified. “✓” in “adding unmodified features” means that the lines are the performance of IDSGAN with the added unmodified features.

Performance of IDSGAN in different attacks

To evaluate the model comprehensively, IDSGAN is trained and, then, generates the adversarial malicious traffic in the tests based on KDDTest+. Considering that DoS and Probe are both the attacks based on the network, we only experiment and analyze on DoS to reflect the performance of IDSGAN on these kinds of attacks. In addition, the attacks based on the traffic content like U2R and R2L are also experimented. Due to the small amount of the U2R and R2L records in NSL-KDD and their similar characteristic, U2R and R2L are gathered into one attack group in the experiments.

Before applying IDSGAN, the original detection rates of DoS, U2R and R2L are measured on the trained black-box IDS, shown in Table 2. Due to the small amount of records of U2R and R2L in the training set, the insufficient learning makes the original detection rates to U2R and R2L low.

First, we test the capacity of IDSGAN in different attacks with only the functional features unmodified. The results of the experiments are shown in Table 2 and Figure 4. According to the results, all of the adversarial detection rates of DoS, U2R and R2L under different black-box IDS models decline and approach 0 after the processing of IDSGAN, meaning that the IDS models are almost unable to classify any adversarial malicious traffic examples. The distances between the original detection rates and the adversarial detection rates of these attacks are also large and evident.

(a) (b)

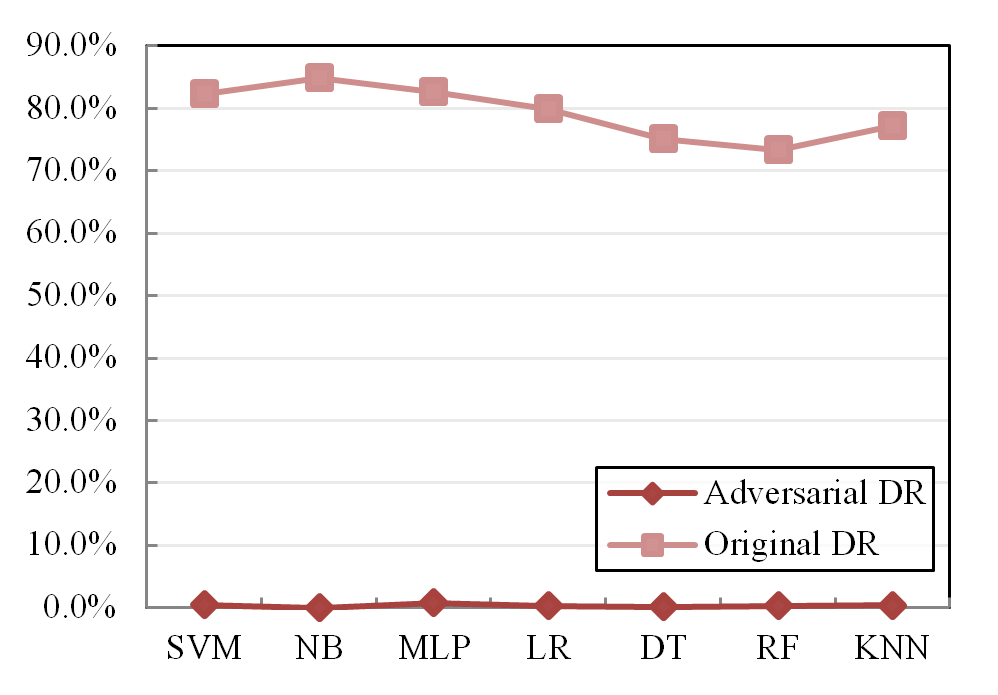

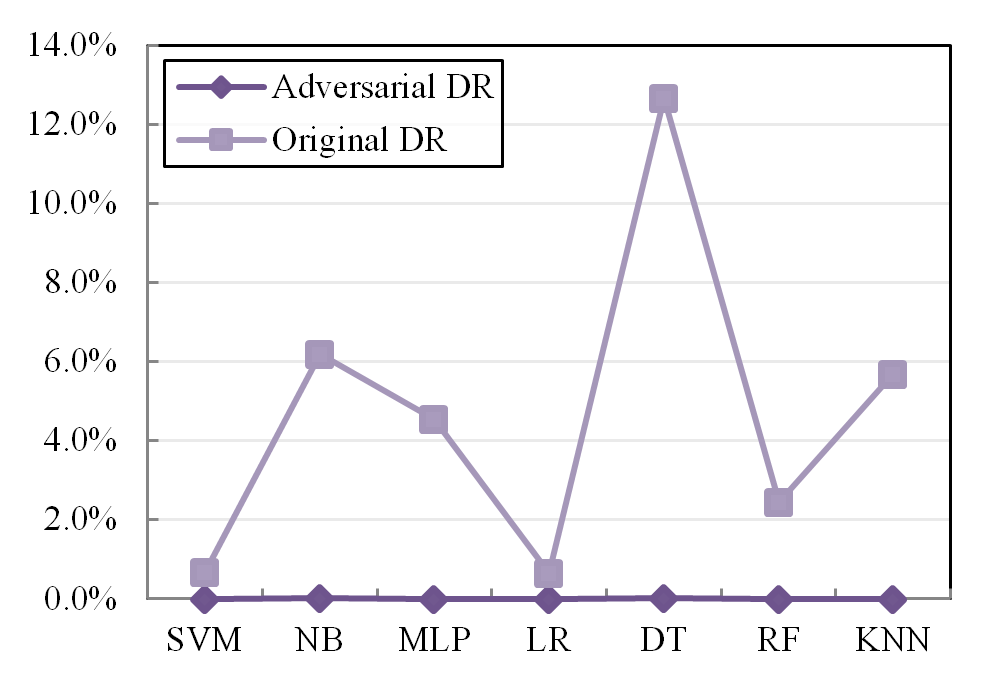

Figure 4: The comparisons of the adversarial detection rates and the original detection rates under different black-box IDS models with only the functional features unmodified. (a) is the results of DoS and (b) is results of U2R and R2L.

As shown in Figure 4(a), the adversarial detection rates of DoS under all detection algorithms remarkably decrease from around 80% to below 1%. Although Multilayer Perceptron shows the best robustness in the list of all the black-box IDS models, its adversarial detection rate of DoS is only 0.72%. The evasion increase rates are all above 98.5%. The results show the excellent performance of IDSGAN in DoS. More than 99% of the adversarial DoS traffic examples can evade the detection of the experimental IDS model in each test.

For U2R and R2L shown in Figure 4(b), although the difference of the original detection rates between algorithms is noticeable, all the adversarial detection rates are equal to or close to 0 after the adversarial generation, meaning that most original malicious traffic examples of U2R and R2L that could be detected are able to fool and evade the IDS after the processing of IDSGAN. The large amount of the undetected examples added after the generation lead that the evasion increase rates are high, all of which are above 99.5%.

The low adversarial detection rates and the high evasion increase rates obtrain in the test under various attacks reflect that IDSGAN shows its great capacity for the adversarial attack in the experiments. Facing adversarial attacks, there are some tiny differences in the ability of IDSGAN and the robustness of the black-box IDS models under different categories of attacks and different IDS models.

Performance of IDSGAN with different amounts of the unmodified features

(a) (b)

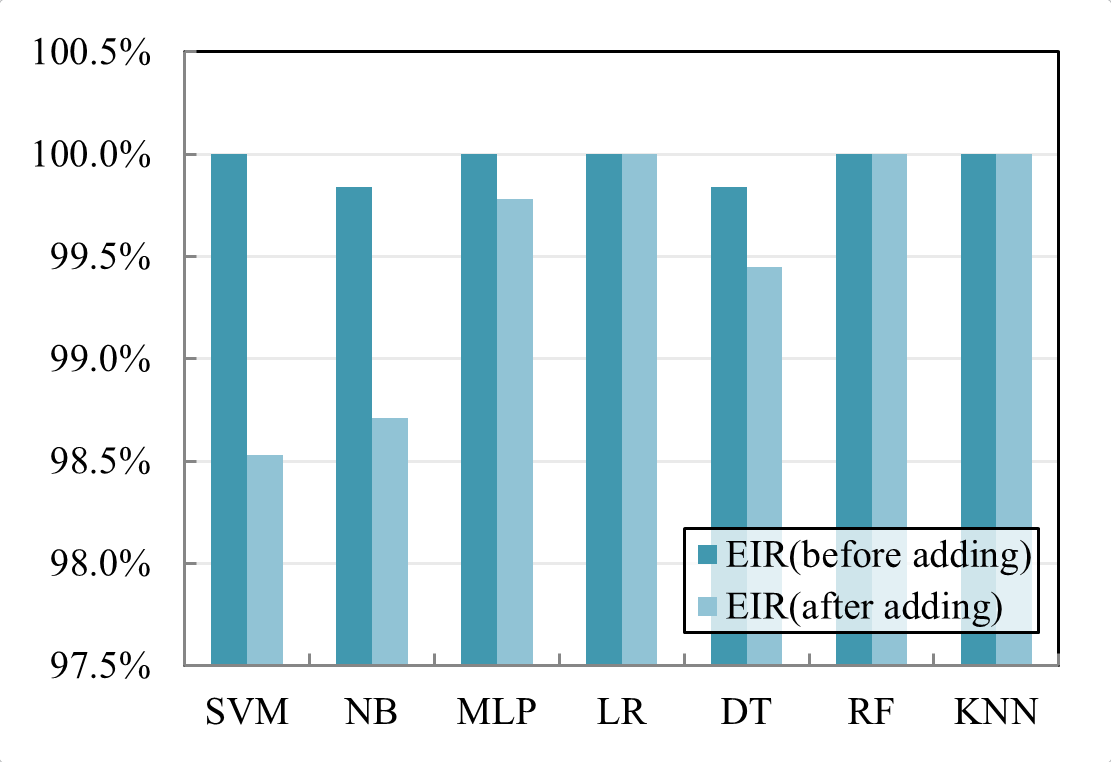

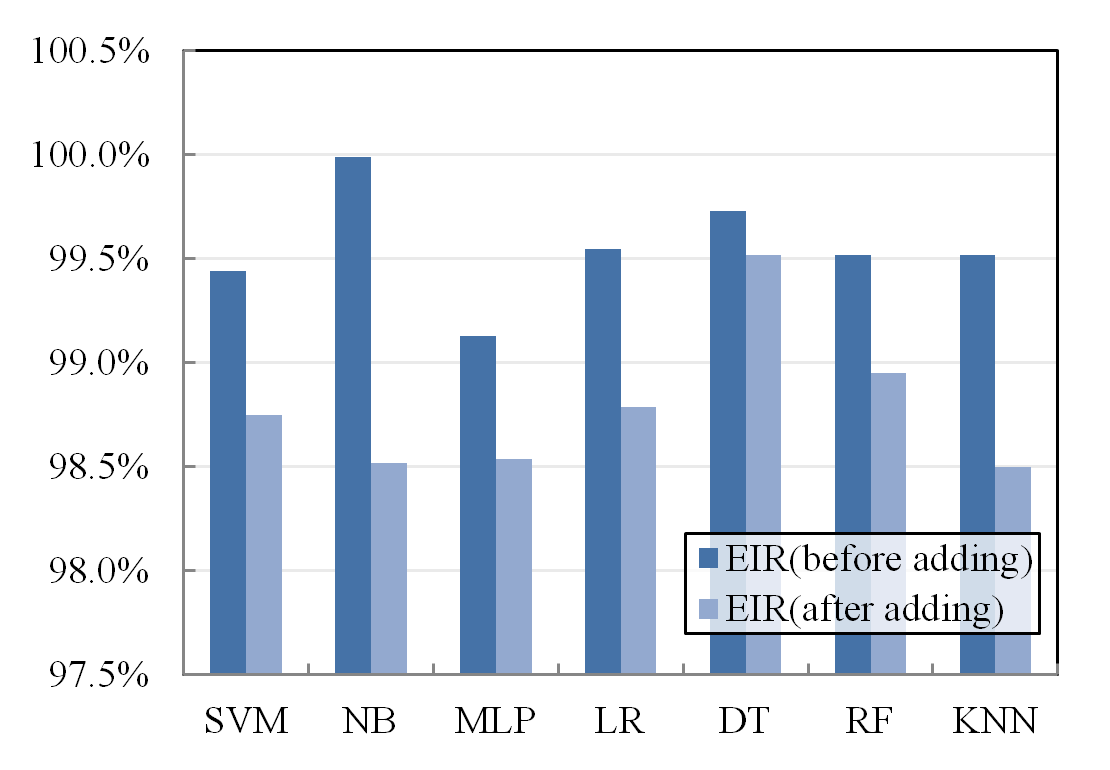

Figure 5: The comparisons of the evasion increase rates under various black-box IDS models before adding un-modified features and after adding unmodified features. (a) is the results of DoS and (b) is results of U2R and R2L.

In the research about the ability and robustness of IDSGAN, the amount of the unmodified features is a significant factor which decides the success of the adversarial attacks by our purposed model. To evaluate the relationship between IDSGAN and the amount of unmodified features, the contrast experiments are done on DoS, U2R and R2L, altering the number of the unmodified features. With the consideration that the functional features of each attack are the fewest features representing the attack function, the way to alter the amount of unmodified features is to add nonfunctional features on the base of the functional features. To test the integral influence of adding potential features on IDSGAN, these added unmodified features are chosen from each of the other feature sets randomly. The ratios of the added features in the rest of the sets are the same. The added unmodified features in experiments are listed below.

  • DoS:
    “Content”:
    hot, num_failed_logins, logged_in, num_compromised, num_root, num_file_creations, is_guest_login;
    “Host-based traffic”:
    dst_host_count, dst_host_rerror_rate, dst_host_serror_rate, dst_host_same_srv_rate, dst_host_same_src_port_rate;

  • U2R & R2L:
    “Time-based traffic”:
    count, srv_count, serror_rate, srv_serror_rate;
    “Host-based traffic”:
    dst_host_srv_diff_host_rate, dst_host_srv_serror_rate, dst_host_srv_count, dst_host_diff_srv_rate, dst_host_srv_r-error_rate.

The results of the experiments are shown in Table 2 and Figure 5. The ability and robustness of IDSGAN under different amounts of the unmodified features is clearly and comparably presented by the evasion increase rate in Figure 5. Compared with the experiments with only the functional features unmodified, the evasion increase rates in the contrast experiments decrease slightly or maintain.

The minor changes of all the evasion increase rates in Figure 5 reflect the strong robustness of IDSGAN with larger amount of the unmodified features. Meanwhile, with the increase of the unmodified features, more original information in one traffic record is retained after the adversarial traffic generation. With the help of this increased knowledge, the black-box IDS is able to detect better based on more precise information, making more accurate judgments in the tests. But due to the strong perturbation from the modified features, the addition of the unmodified features doesn’t help the detection of some IDS models like Logistic Regression when detecting U2R and R2L. Therefore, the degrees of the rise in detection accuracy of the black-box IDS are different under various attacks and IDS models.

The degrees of the declines of the evasion increase rates are related to the attack categories. For example, in Figure 5(a), the reduction in the evasion increase rates of DoS under K-Nearest Neighbor is about 1.00% before and after adding the unmodified features. However, the evasion increase rate of U2R and R2L under this detection algorithm doesn’t change after adding shown in Figure 5(b).

Furthermore, the declines of the evasion increase rates in the same attacks are also different between various IDS models. As shown in Figure 5(a), the changes of the evasion increase rates under Naive Bayes in DoS are much larger than others, meaning that the unmodified features addition has bigger impact on the performance of adversarial DoS attacks under the detection of Naive Bayes.

Thus, according to the results of the experiments, the remained high evasion increase rates verify the strong robustness of IDSGAN with most of the malicious traffic evading the black-box IDS, though adding unmodified features will slightly cause that more adversarial malicious examples fall to deceive the IDS. But the degrees of influence on the performance of adversarial examples are different under various attack categories and black-box IDS models.

Conclusions

With the purpose of generating adversarial attacks to evade the intrusion detection system, IDSGAN is a novel framework of generative adversarial networks based on Wasserstein GAN, consisting of the generator, the discriminator, the black-box IDS. IDSGAN shows its good capacity in generating adversarial malicious traffic examples of different attacks, leading the detection rates of various black-box IDS models to decrease to approximately 0. Furthermore, to evaluate the influence of changing the amount of the unmodified features, it shows that the evasion ability of the adversarial malicious traffic examples will maintain or slightly reduce when adding unmodified features, reflecting the strong robustness of IDSGAN. The degree of the IDSGAN’s performance change after the unmodified features addition is based on the category of the attacks and the kind of black-box detection algorithms. The great performances exhibited above by the model indicate the wide feasibility and flexibility of IDSGAN.

In the future, we will further focus on the improvement of IDSGAN. This improvement will concentrate on two aspects: first, we will apply IDSGAN in more categories of intrusion attacks; second, for the definitive aim of the IDS development, the increase of the IDS’s robustness is our critical work.
