Identifying the atmospheric drivers of drought and heat using a smoothed deep learning approach

11/09/2021
by   Magdalena Mittermeier, et al.
Universität München
0

Europe was hit by several, disastrous heat and drought events in recent summers. Besides thermodynamic influences, such hot and dry extremes are driven by certain atmospheric situations including anticyclonic conditions. Effects of climate change on atmospheric circulations are complex and many open research questions remain in this context, e.g., on future trends of anticyclonic conditions. Based on the combination of a catalog of labeled circulation patterns and spatial atmospheric variables, we propose a smoothed convolutional neural network classifier for six types of anticyclonic circulations that are associated with drought and heat. Our work can help to identify important drivers of hot and dry extremes in climate simulations, which allows to unveil the impact of climate change on these drivers. We address various challenges inherent to circulation pattern classification that are also present in other climate patterns, e.g., subjective labels and unambiguous transition periods.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 2

06/25/2021

Heat Waves – a hot topic in climate change research

Research on heat waves (periods of excessively hot weather, which may be...
11/25/2020

Mega Regional Heat Patterns in US Urban Corridors

Current literature suggests that urban heat-islands and their consequenc...
07/18/2019

A Systematic Approach to Detect Hierarchical Healthcare Cost Drivers and Interpretable Change Patterns

There is strong interest among payers to identify emerging healthcare co...
01/10/2022

An experiment of the complexity of sliding block puzzles by 2D heat flow in paramodulation

In this paper, we present a curious experiment with the hot list strateg...
10/20/2020

A Systematic Approach to Surveillance and Detection of Hierarchical Healthcare Cost Drivers and Utilization Offsets

There is strong interest among healthcare payers to identify emerging he...
12/30/2020

A Predictive Model for Geographic Distributions of Mangroves

Climate change is an impending disaster which is of pressing concern mor...
10/25/2021

Rotation Equivariant Deforestation Segmentation and Driver Classification

Deforestation has become a significant contributing factor to climate ch...
This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

In recent summers such as those of 2003, 2010 and 2018, Europe has been subject to particularly outstanding summer drought and heat events, which caused large economic and societal damage including heat-related deaths Bastos2020; Liu2020. The frequency and intensity of hot and dry extremes has recently increased and is projected to further increase due to climate change and rising global mean temperatures Suarez-Gutierrez2020; Spinoni2020.

Drivers of hot and dry extremes

There are two key processes leading to drought and heat events: thermodynamic and dynamic factors. Thermodynamic factors involve, e.g., evaporation and the feedback between soil moisture and air temperature. Dynamic factors on the other hand describe the atmospheric drivers of heat and drought, which are mainly anticyclonic conditions and blocking Suarez-Gutierrez2020. While anticyclonic conditions go along with various high-pressure systems, blocking describes a particular, persistent high-pressure situation that is associated with the displacement of westerly winds and their accompanying weather systems Suarez-Gutierrez2020; IPCC2021. These atmospheric drivers of hot and dry extremes are part of the large-scale atmospheric circulation in the mid-latitudes, which control the weather and climate over Europe Huguenin2020; Woollings2010. Changes in the atmospheric circulation are complex with opposing processes and thus many open research questions remain IPCC2021; Stendel2021.

Classification of circulation patterns

Objectively classifying the circulation patterns that are associated with hot and dry extremes is an important step towards a better understanding of how climate change affects the atmospheric drivers of potentially disastrous extreme events. Previous studies, e.g., Mittermeier2019; Racah2016; Kurth2017 have shown that deep learning approaches are powerful tools for the detection of extreme weather in climate simulations. In this study, we use a subjective catalog of circulation type classifications over Europe by Hess & Brezowsky Hess1969; Werner2010. Our goal is to learn the categorization of six circulation types with anticyclonic conditions over Europe, which are associated with dry and hot summer conditions in Central Europe KLIWA2012. The classification of circulation types comes with various challenges that need to be addressed with appropriate modeling strategies. Challenges include noisy labels due to subjective expert choices in ambiguous climate situations Huth2008, an imbalanced class distribution of labels, undefined transition days between successive circulation patterns, and a fixed dwell time of a circulation pattern of at least three consecutive days by its definition Werner2010.

Our contribution

In this work we propose a novel modeling procedure to address existing challenges in classifying anticyclonic circulation patterns. Especially in times of large ensembles of climate simulations Maher2021 that consist of dozens of model runs and thousands of model years, our study can help to efficiently analyse large climate simulations and be another piece of the puzzle to better understand changes in the atmospheric drivers of drought and heat.

2 Data

The Hess & Brezowsky catalog contains a subjective categorization of circulation patterns created by experts manually labelling air pressure patterns over Europe into 29 classes. In this way, daily air pressure constellations are retrospectively assigned to one of these classes. A circulation pattern is, by definition, required to last at least three days. The six circulation patterns associated with heat and drought are (abbreviations originate from German): Zonal ridge across Central Europe (BM), Norwegian Sea-Iceland high, anticyclonic (HNA), North-easterly anticyclonic (NEA), Fennoscandian high, anticyclonic (HFA), Norwegian Sea-Fennoscandian high, anticyclonic (HNFA), and South-easterly anticyclonic (SEA) sykorova2020; KLIWA2012. The mean air pressure patterns for the six circulation patterns of interest are given in Figure 1 for the variables sea level pressure and geopotential height at 500 hPa (average values at roughly 5500 meters height). For the analysis of heat and drought, the remaining 23 circulation types are assigned to a residual class. The frequencies of the six anticyclonic patterns are between 8.5% (BM) and 1.4% (HNFA), whereas the residual class comprises about 80% of the days.

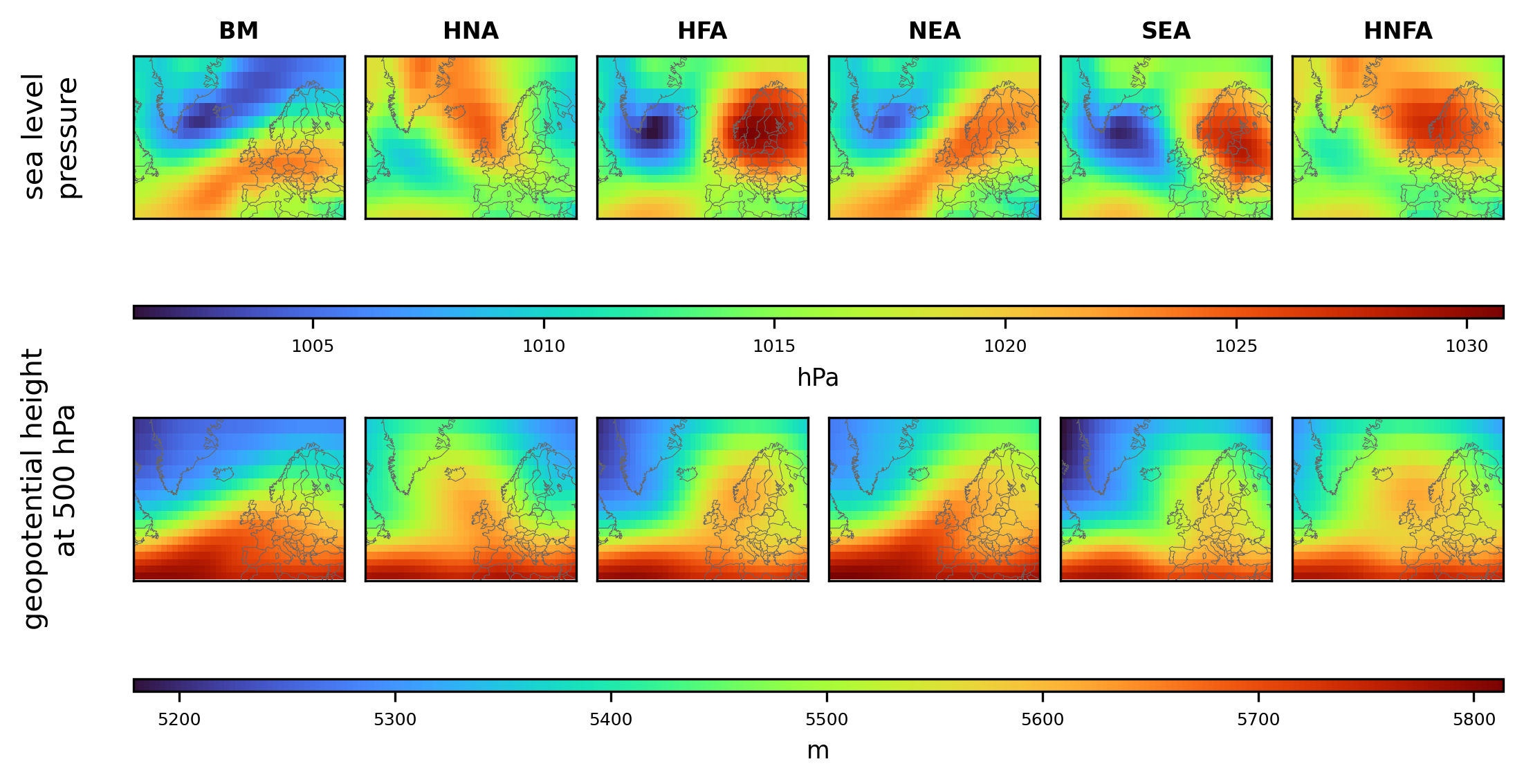

Figure 1: Mean air pressure patterns of the six anticyclonic circulation types BM, HNA, NEA, HFA, HNFA, and SEA (columns) averaged over all days in the period between 1900 and 2010. The plots are shown for the variables (rows) sea level pressure [hPa] and geopotential height at 500 hPa [m].

Next to the catalog by Hess & Brezowsky, we supplement our data base with the ERA-20C reanalysis data by the European Centre for Medium-Range Weather Forecasts poli2016. The long record ERA-20C data set contains global spatial information on various climate parameters from 1900 to 2010. In accordance with the definition by Werner2010, we use the two atmospheric variables, sea level pressure and geopotential height at 500 hPa as predictors for circulation patterns. The spatial domain of our data set is defined over a region covering Europe and the North Atlantic Werner2010 (see Figure 1) with a spatial resolution of 5x 5 resulting in a grid of 16 x 29 pixels. The resulting data set contains daily information over 111 years, i.e., T = 40541 observations.

3 Methods

Model definition, training, tuning and evaluation

To account for the spatial information and the specific characteristics of circulation patterns, we use a convolutional neural network (CNN) following liu2016, who propose a network architecture for climate pattern detection problems. Since air pressure patterns of atmospheric features are comparatively simple, our chosen architecture consists of only two convolutional layers with larger kernels (5x5-8 and 5x5-16), a dropout layer and two fully-connected layers as well as individual channels for both climate parameters. The two different atmospheric variables are included as individual channels in the CNN as in Liu2020; Racah2016. While there is reason to believe that accounting for the temporal structure of our data, e.g., through a structured model Ruegamer2021 or ConvLSTM Shi.2015 improves the model, a previous study henri2021new showed no improvement in the classification of circulation patterns when using a temporal-aware architecture. As explained in the next paragraph, our approach instead smoothes predicted labels to account for their temporal nature.

The model is trained using Adam optimization with a batch size of 128 for 35 epochs and early stopping based on a validation set of size 3650 with patience of 6 epochs. Hyperparameter tuning for learning rate and dropout rate is performed using Bayesian optimization

snoek2012

. We evaluate the model using overall accuracy and macro F1-score. For class-specific evaluations, we consider recall and precision. To obtain performance estimates that are as unbiased as possible, a nested cross-validation with ten inner and eleven outer folds is used. In order to not leak intra-year information, observations within the same year are required to belong to the same fold.

Modeling challenges

Our approach takes into account several data-specific characteristics for circulation pattern data. First, we employ a loss-weighting scheme to account for imbalanced classes by weighting the classes with their inverse frequencies. Moreover, the assigned categories in the Hess & Brezowsky catalog can be noisy, in particular for transition days between two subsequent circulation patterns. This is due to the continuous movement of pressure systems while circulation types are discrete by definition and in-between states do not fit in one or the other class. We address this problem by using label-smoothing szegedy2016 for the first and last day of each occurrence of a specific circulation pattern. Finally, our target variable must adhere to the aforementioned definition of a circulation pattern, implying a pattern to last at least three days. A transition-smoothing step ensures that this three day rule is respected. In this step, the final predicted class at time point , is given by

where

denotes the predicted probability vector at time

, the predicted class prior to the transition-smoothing step, and

This guarantees consistency with the required three day rule and systematically replaces isolated single or two day-type predictions.

4 Results

Taking into account the aforementioned subjectivity of the circulation pattern catalog and the noisy labels, the overall performance of the proposed model is satisfactory and our proposed smoothing approaches consistently improve the model across all classes. Our smoothed convolutional neural network classifier achieves an macro F1-score of 38.4% and an overall accuracy of 59.9% averaged over the test sets during nested cross-validation. Table 1

shows the corresponding confusion matrix together with the precision and recall. The best performance in terms of recall is achieved for the circulation patterns HNA and BM, the lowest performance for NEA. In absolute numbers, misclassifications mainly occur for residual class observations. Due to the proposed error weighting technique, we obtain larger recall than precision values except for the residual class.

LABELS
BM HNA HFA NEA SEA HNFA Residual Precision

OUTPUTS

BM 208.8 4.0 7.7 6.5 1.7 5.0 477.4 711.2 0.29
HNA 11.9 75.8 3.7 4.5 7.1 3.7 204.9 311.5 0.24
HFA 22.9 3.5 41.9 14.6 3.6 1.5 138.6 226.6 0.18
NEA 10.4 2.8 10.4 61.5 6.3 11.7 85.9 188.9 0.33
SEA 3.2 11.6 3.6 15.0 25.2 5.5 78.4 142.5 0.18
HNFA 9.1 3.8 2.4 20.5 5.5 44.7 185.7 271.7 0.16
Residual 43.3 7.0 6.6 5.2 2.7 5.3 1729.9 1800 0.96
309.6 108.6 76.2 127.7 52.1 77.4 2900.7 3652.4
Recall 0.67 0.70 0.55 0.48 0.48 0.58 0.60
Table 1: Confusion matrix of our proposed smoothed approach, averaged over the test sets in the nested cross-validation. Correctly classified classes are highlighted in bold.

Table 2 shows an ablation study of our modeling procedure. Including label- and transition-smoothing improves the overall accuracy by 4 percentage points and the macro F1-score by 2 percentage points compared to a model without any smoothing steps. The class specific F1-scores also considerably increase for all patterns. A comparison of the networks without label-smoothing and without transition-smoothing indicates that the label-smoothing step has rather little impact while the proposed transition-smoothing is the key to our observed performance gains.

BM HNA HFA NEA SEA HNFA Residual Accuracy F1-score

MODEL

Smoothed network 0.41 0.36 0.28 0.39 0.26 0.26 0.74 0.60 0.38
No LS 0.41 0.36 0.28 0.40 0.26 0.26 0.74 0.60 0.39
No TS 0.39 0.33 0.25 0.36 0.23 0.23 0.70 0.56 0.36
No LS and TS 0.39 0.33 0.25 0.37 0.23 0.23 0.70 0.56 0.36
Table 2: Comparison of class-specific F1-scores (first 7 columns), accuracy and macro F1-Score (last two columns) for the final smoothed model (Final), a model without label-smoothing (NO LS), a model without transition-smoothing (No TS) and a model without label-smoothing (No LS and TS). Best results are highlighted in bold.

5 Conclusion and Outlook

Our results indicate the high potential of deep learning-based methods in classifying the atmospheric drivers of drought and heat. We also demonstrate the effectiveness of our smoothed approach to deal with typical challenges in circulation type classifications, e.g., transition-smoothing for historical dwell time definitions. To the best of our knowledge, we are the first to use air pressure patterns over Europe to classify circulation patterns associated with drought and heat as given in the Hess & Brezowsky catalog. While the proposed approach can potentially also be used for other circulation patterns associated with different kinds of extreme climate events, our goal was to establish a baseline model for this specific and highly relevant circulation pattern categorization. Although our approach relies on a network architecture developed for climate applications liu2016

, there is room for improvement in modeling the analyzed patterns. As an alternative to the transition-smoothing step, we will investigate a deep hidden Markov model that accounts for the state dwell times by assuming a latent process that emulates the data-inherent three day transition rule.
