0.1 Introduction

Today, after decades of intensive research, cancer is still one of the most deadly diseases worldwide, killing millions of people every year. Cancer is mainly caused by somatic mutations that affect critical genes and pathways. These mutations are mostly triggered by environmental factors (e.g. obesity, smoking, alcohol, lifestyle,…) often promoted by certain genetic configurations. In the last two decades, large-scale projects, such as the Cancer Genome Atlas project (TCGA), which has produced massive amounts of multi-omics data, have launched to improve our understanding of cancers [32]. In this context, developing statistical algorithms able to interpret these large data sets and to identify genes that are the origin of diseases and their causal pathways still remains an important challenge.

Genes are commonly affected by genomic changes in the pathogenesis of human cancer. Cancer is moreover a heterogeneous disease, with affected gene sets that may be highly different depending on subtypes, and thus requires different treatments of patients. Specific analyses of subtypes have for example revealed significant differences between breast cancer subgroups [13] but also pancancer similarities between breast and bladder cancer subgroups [16].

Using transcriptional data allows to look beyond DNA, that is to study abnormalities in terms of gene expression. As a common approach, differential expression analysis, for which statistical procedures have been intensively explored, can be performed and altered genes are then differentially expressed genes [12]. This points to relevant genes but does not take into account the regulations (activation and inhibition) between genes.

The approach we consider consists in taking into account the regulation structure between genes. We particularly focus on transcription factors (TFs), for their major role played in the regulation of gene expression, which make them an attractive target for cancer therapy [29, 36]. Regulation processes between TFs and their targets are usually represented by Gene Regulatory Networks (GRNs). In the last few years, many different methods have been proposed to infer GRNs from collections of gene expression data. In a discrete framework, gene expression can be discretized depending on their status (under/over-expressed or normal) and truth tables provide the regulation structure [9]. In the continuous case, regression methods, including the popular Lasso [33] and its derivatives, have provided powerful results [18, 25].

A deregulated gene then corresponds to a gene whose expression does not correspond to the expression level expected from its regulators expression. It is different from the notion of differential expression since a loss of regulation between a target gene and one of its regulating TFs implies a loss of correlation between them but not necessarily differential expression. Conversely, a TF can be differentially expressed and one of its targets not, precisely because it is deregulated.

To discover deregulated genes, a first possibility is to infer one network per condition and to compare them. Statistical difficulties due to the noisy nature of transcriptomic data and the large number of features compared to the sample size can be taken into account by inferring the networks jointly and penalizing the differences between them [4]. A second possible approach is to assess the adequacy of gene expression in tumoral cells to a reference GRN, in order to exhibit the most striking discrepancies, i.e. the regulations which are not fulfilled by the data [21, 23]. Such methods however focus on checking the validity of the network rather than highlighting genes with an abnormal behavior. Finally, analyses may be conducted at the pathway level rather than the gene level [11, 14]. They are then not network-wide in the sense that each gene has a deregulation score by pathway it belongs to and pathways are treated independently. Moreover, as the pathways are extracted from curated databases, the regulations taken into account are not tissue-specific.

Here, we propose a statistical deregulation model that uses gene expression data to identify deregulated TFs involved in specific subtypes of cancer. This paper is organized as follows: in Section 1, we present the 3-steps method we developed and our validation procedure. In Section 2, we illustrate its interest on the TCGA bladder cancer data set. We show that it can be used complementary to differential expression analysis to point to potential biomarkers of cancers.

0.2 Methods

0.2.1 Overview of the Procedure

Our approach for the identification of deregulated transcription factors (TFs) involved in cancers

is based on a 3-steps strategy that creates a reference gene regulatory network (GRN), which represents regulations between groups of co-expressed TFs and target genes using a reference data set (Step 1), computes a deregulation score for each target gene in each tumor sample by comparing their behavior with the reference GRN (Step 2), identifies the most significant TFs involved in the deregulation of the target genes in each sample from specific cancer subtypes (Step 3). These steps are presented in Figure 1 and described in detail in the next sections.

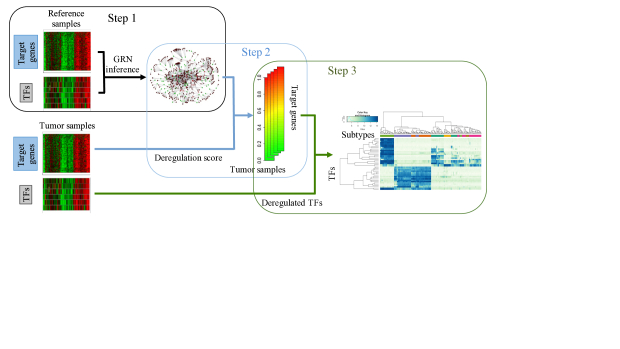

Figure 1: Workflow of the proposed 3-steps algorithm for identifying TFs involved in specific cancer subtypes.

0.2.2 Step 1: Inferring a Gene Regulatory Network

Step 1 of the algorithm consists in inferring a GRN that connects TFs to their downstream targets. Among the large number of existing methods, we choose hLICORN, available in the CoRegNet R-package [30]. This algorithm is based on a hybrid version of the LICORN model [17], in which groups of co-regulated TFs act together to regulate the expression of their targets (Figure 2

). More precisely, LICORN uses heuristic techniques to identify co-activator and co-inhibitor sets from discretized gene expression matrices and locally associates each target gene to pairs of co-activators and co-inhibitors that significantly explain its discretized expression. The hybrid variation of LICORN then ranks the local candidate networks according to how well they predict the target gene expression, through a linear regression, and selects the GRN that minimizes the prediction error. This selection step limits the effects of overfitting, induced by the model complexity, especially the large number of features (genes) as compared to the sample size

[3]. In this work, we slightly enrich the LICORN model by creating a copy of each TF in the target layer to allow regulations between TFs.










Target genes
Figure 2: Example of LICORN graph involving 7 TFs and 2 target genes. TFs are gathered into groups of co-expressed genes that co-regulate (square for co-activators, circle for co-inhibitors) each target gene.

To construct a specific GRN, note that one may prefer using another inference method [5] or a pre-existing regulatory network, which can be loaded from the RegNetwork database [26]. Here, we focus on hLICORN since the induced model is particularly suitable for the rest of our analysis. In addition, it was shown to provide powerful results for cooperative regulation detection, especially on cancer data set [17, 30].

0.2.3 Step 2: Computing a Deregulation Score

Step 2 of the algorithm aims at identifying deregulated target genes by carefully comparing their expression across all tumor samples with the reference GRN inferred in Step 1. For this purpose, we use the method described in [19], which assumes that all genes from a hLICORN model are allowed to be deregulated, i.e. not to respond to their regulators as expected.

More precisely, according to the hLICORN model, each gene is connected with a set of co-regulated TFs split into a group of co-activators and co-inhibitors . A binary deregulation variable

, assumed to be non-zero with probability

, is then introduced to compare the true status (under/over-expressed or normal) of each target gene in each tumor sample with its expected value , resulting from a truth Table (see Figure 3 (b)) and the inferred GRN. To avoid discretization of the data, the status of all genes are considered as hidden variables. The model is described in Figure 3 (a).

Co-activator set

Co-inhibitor set



Expected status

True status

expression of gene

Deregulation variable
(a) Deregulation model.
Inhibitor collective status
collective status - 0 +
- e0e + +
0 - 0 +
+ - - -
(b) Truth table.
Figure 3: (a) The deregulation model [19] used to compute a deregulation score for each target gene in each sample: each gene is associated to a hidden status

(under, over-expressed or normal). Target genes are allowed to be deregulated, i.e. not follow their co-regulator rules (Truth table (b)). The binary variable

indicates whether the corresponding target gene is deregulated () or not (). The deregulation score of gene in sample is then the probability, given the observation, that in sample . (b) LICORN truth table, which gives the expected status of a target gene according to the collective status of its co-activators and co-inhibitors. Collective status are set by default to 0 except if and only if all of its elements share the same status. This table is derived from biological experiments [17].

As the number of hidden variables grows exponentially with the number of genes, the likelihood of the model rapidly becomes intractable. The unknown parameters, including the deregulation score

, are thus estimated using a dedicated EM-algorithm (see

[19] for more details). Note that the deregulation score does not capture information about differentially expressed genes but genes whose expression does not correspond to the level expected from its regulator expression.

0.2.4 Step 3: Identifying Deregulated TFs

Step 3 consists in identifying TFs that cause deregulations of target genes. Our approach is based on linear regression models, in which we try to explain the deregulation score of all target genes in one sample (Step 2) using their co-regulator TFs as explanatory variables (Step 1). Assume that we have TFs and target genes. Denote by the deregulation score of target gene () in sample () and the GRN adjacency matrix, whose non-zero elements encode the structure (edges) of the graph. We then cast our model as follows:


or, in a matrix form, , where each element of matrix , to estimate, measures the deregulation importance of TF in sample and stands for the presence of noise.

Solving the -estimation problem (1) can be viewed as a classical multi-task linear learning problem, in which the number of observations is the number of target genes , the number of linear tasks is and the number of variables . To estimate , we use a constrained least squares estimation procedure. As we only expect to find TFs positively causing the deregulation of their targets in each sample, we consider the induced constrained optimization problem:

where stands for the euclidian norm. The closer is to 1, the more important the role of TF in the deregulation of its targets in sample . To solve Eq. (0.2.4), we use the limSolve R-package.

0.2.5 Correcting Expression Data

Gene expression is commonly affected by copy number alterations (CNA) [1]. Step 2 of our procedure is particularly sensitive to CNA, associating high deregulation scores to amplified or deleted target genes [19]. Indeed, the number of copies of a gene can strongly influence its expression, independently from its regulators expression, making some regulations wrongly deregulated.

To remove CNA effects on gene expression and improve the rest of our analysis, we preprocess target genes expression data beforehand as proposed in [15]. Gene expression is considered as linearly modified by CNA through the linear regression model:


where is the expression of gene in sample and its associated copy number. Let and be the estimated solutions of Eq. (3), the corrected expression is then given by:

0.3 Results and Discussion

0.3.1 The Bladder Cancer Data Set

We apply our method on bladder cancer data, produced in the framework of the Cancer Genome Atlas (TCGA) project and available at the Genomic Data Commons Data Portal (

). These data include a set of 401 bladder cancer samples with gene expression and copy number for a total number of 15,430 genes, split into 2,020 TFs and 13,410 targets. Gene expression data were produced using RNA-sequencing on bladder cancer tissues. Preprocessing is done by log-transformation and quantile-normalization of the arrays. Missing values are estimated using nearest neighbor averaging


. TCGA samples are analyzed in batches and significant batch effects are observed based on a one-way analysis of variance in most data modes. We apply Combat

[22] to adjust for these effects. Genes are finally filtered based on their variability: among them, we only keep the most varying genes.

Based on RNA-seq data analysis from the TCGA data portal, samples are split into five subtypes: basal-squamous (BaSq), luminal (Lum), luminal-infiltrated (LumI), luminal-papillary (LumP) and neuronal (NE) with different characteristics

[10] (Table 1).

Subtypes BaSq Lum LumI LumP NE
Samples 131 44 74 134 18
Table 1: Molecular subtypes distribution of the 401 bladder cancer samples [10] .

0.3.2 Description of the Procedure Results

GRN network.

To validate our method, we have to provide a tissue-specific reference GRN (Step 1), which is computed given a first set of reference samples. In many cancers, the pure normal tissue of origin is not available. Here, we work with the five different subtypes of the TCGA data set presented in Section 0.3.1. Using samples from one subtype as test cases and the rest as reference, we infer five different GRNs. Each of them reflect averaged relationships between genes for patients who are not part of one specific subtype. Due to the very-high heterogeneity of cancers, especially of bladder cancers [24, 34], we think that our method will still point to relevant deregulations of specific subtypes.

After calibrating the internal parameters of the hLICORN agorithm, the GRNs we infer are made of an averaged total number of edges connecting TFs to of their targets. These networks are relatively sparse, each of the target genes being associated with an averaged number of 8 TFs.

Deregulation scores.

We then run five times the EM procedure (Step 2) on the five subsets of the gene expression data matrix to compute a deregulation score of each target gene in each sample of each subtype. From now on, all samples are treated individually, the results reflecting how genes behaved in each sample of one subtype in comparison to reference samples from all other subtypes.

To check the effect of the copy number correction we apply at the beginning of our procedure, we compare the distribution of the deregulation scores across copy number states. To this aim, we use the TCGA CNA thresholded data set, which associates to each gene-sample pair a copy number state of “0” for the diploid state (two copies), “1” for a copy number gain, “-1” for a copy number loss, “2” for an amplification and “-2” for a deletion. We then test for significant differences between the diploid state and the altered states (-2,-1,1,2) using Student tests. Results in terms of p-values, which are corrected for multiple hypothesis testing using the FDR [2], are presented in Table 2. With corrected p-values ranging from 0.10 to 1, deregulation scores are no longer associated with CNA.

BaSq Lum LumI LumP NE
-2 -1 1 2 -2 -1 1 2 -2 -1 1 2 -2 -1 1 2 -2 -1 1 2
1 0.81 0.28 1 1 1 1 1 1 0.25 0.10 0.60 1 1 1 1 1 1 1 1
Table 2: Corrected p-values for Student tests when comparing the distribution of the deregulation scores between the diploid state (0) and each altered state (-2,-1,1,2) for each subtype.

Deregulated TFs.

We finally apply Step 3 of our method to identify TFs involved in the deregulation scores of the target genes, that is having a non-zero coefficient in , as given in Eq. (1). We then rank the TFs according to their number of non-zero coefficients across all samples belonging to each specific subtype. Results are presented in Table 3.

BaSq Lum LumI LumP NE
SPOCD1 92% ZNF268 91% TSHZ1 88% RARB 84% FAIM3 89%
ZNF382 86% HES2 80% ZNF354B 88% RFX5 84% SMARCA2 83%
RCOR2 86% TBX2 80% AR 85% CBFA2T3 83% RARB 78%
ATM 83% PRDM8 75% HES2 82% TBX18 81% ZNF235 78%
HABP4 83% TSHZ1 75% HTATIP2 81% TBX3 79% TBX2 72%
IRX3 82% ZNF354C 73% MAFG 80% PTRF 79% STAT3 72%
IFI16 79% RARB 70% ENO1 80% TBX2 70% HIF1A 72%
TEAD2 79% KLF13 70% TBX2 74% PPARG 76% THRA 72%
NOTCH4 79% SCML2 68% ZNF563 74% NCOR2 75% PIR 67%
SNAI2 79% SNAI3 68% IRX3 72% ZFP2 75% FOSL1 67%
Table 3: List of the 10 most important TFs for explaining the deregulation scores of their targets and number of non-zero coefficients in (in ) across all samples from each subtype.

0.3.3 Discussion

Top TFs include biomarkers of bladder cancer.

Among TFs of Table 3, we retrieve characteristic genes of bladder cancer subtypes. For instance, SNAI2, which is deregulated across 79% of the BaSq samples, is particularly well-known for its implication in EMT pathways for cancer patients [7] and its capacity to discriminate between basal and luminal subgroups [28]. The presence of NOTCH4 in BaSq samples is particularly interesting as it is part of the NOTCH pathway, whose inactivation tends to promote bladder cancer progression [27]. Research works also focus on its implication on the basal subgroup [20]. Similarly, TBX2, involved in all three luminal subtypes is an indicator of luminal cancers [8]. We can finally emphasize the presence of PPARG in LumP, whose high level of expression is used to describe luminal subtypes [6].

Deregulation is complementary to differential gene expression analysis

Differential gene expression analysis consists in performing statistical analysis to discover quantitative changes in terms of expression levels between groups. It is frequently used in cancer research to identify genes with important changes between tumor and normal samples, called differentially expressed genes (DEGs) [31].

We perform differential gene expression analysis using the R-package limma [31] on all samples from each subtype when comparing to samples from all other subtypes. We then verify whether the identified DEGs are different from the deregulated TFs derived from our method (Figure 4). To this aim, we use the following thresholds: a gene is called DEG for p-values smaller than 0.01 whereas it is deregulated for a subtype as soon as it is deregulated () for more than the 50% of the subtype samples. This threshold is purely arbitrary but is not crucial, as the results remain almost the same with slight changes. As shown in Figure 4, except for BaSq and LumP subtypes, more than the 70% of the identified deregulated TFs are not differentially expressed, which means that our procedure does not only point to DEGs.






Figure 4: Venn Diagrams representing the number of DEGs (in pink), the number of deregulated TFs identified by our method (in blue) and their intersection.


With the aim of understanding the deregulation processes in tumoral cells, we develop a 3-steps strategy that measures the influence of TFs in the deregulation of genes in tumor samples. A list of TFs characterizing given subtypes can then be established. Even if a biological experimental validation should be done in future work, it seems that it can be used complementary to differential gene expression analysis to point to potential biomarkers of cancers.

An open question, which has also to be tackled, is to determine in which extend the information carried by mutations can explain the deregulations. Mutation data are particularly hard to explore in this context due to various reasons : first of all, mutations do not necessarily affect gene expression. Secondly, in cancers, besides the most significant mutated genes, many sequencing projects have shown that genes are mutated in less than 5% of the samples.

In this work, among the identified TFs of Table 3, we find ATM, which is highly deregulated (83%) and mutated (15%) for BaSq samples. Mutations of ATM have been recently shown to be associated with shorter survival in urothelial cancers [37]. As a preliminary result, we observe that 95% of the mutated BaSq samples corresponds to non-zero coefficients (Table 4). This table is unfortunately still too unbalanced to positively conclude for a significant association but supplementary works need to be done to go further.

Non mutated 91 21
Mutated 18 1
Table 4: Confusion matrix indicating the association between mutation and deregulation status for TF ATM across all 131 basal samples.
