1 Introduction
In recent years, understanding and interpreting the inner workings of deep networks has drawn considerable attention from the community [7, 15, 16, 13]. One longstanding question is the problem of identifying the inductive bias of stateoftheart networks and the form of implicit regularization that is performed by the optimizer [22, 31, 2] and possibly by natural data itself [3].
While earlier studies focused on the theoretical expressivity of deep networks and the advantage of deeper representations [20, 25, 26], a recent trend in the literature is the study of the effective capacity of trained networks [31, 32, 9, 10]. In fact, while stateoftheart deep networks are largely overparametrized, it is hypothesized that the full theoretical capacity of a model might not be realized in practice, due to some form of selfregulation at play during learning.
Some recent works have, thus, tried to find statistical bias consistently present in trained stateoftheart models that is interpretable and correlates well with generalization [14, 24].
In this work, we take a geometrical perspective and look for statistical bias in the weights of trained convolutional networks, in terms of hyperplane arrangements induced by convolutional layers with ReLU activations. Notably, for networks combining linear (affine) layers with piecewise linear activations, hyperplane arrangements define the function computed by the network and characterize how data is transformed nonlinearly by the model
[1, 5, 9].Specifically, we exploit symmetries arising from parameter sharing in convolutional layers to describe the local arrangements of hyperplanes associated with convolutional filters at each layer, for various networks trained on image classification tasks.
More precisely, we first show that each convolutional filter at a given layer is symmetric w.r.t. the identity line. We then look for regularity of layerwise hyperplane arrangements by measuring degree of agreement in orientation of individual filters along the identify line in the layer’s preactivation space. We correlate this regularity measure to the learning dynamics of convolutional layers. Our main findings are summarized as follows.
Hyperplane arrangements of many layers of trained convolutional networks exhibit strong regularities, that emerge from training and correlate with learning (Figure 1). Furthermore, for lowcomplexity datasets, layers presenting biased hyperplane arrangements are critical to the performance of the network – our measure correlates with the notion of critical layers introduced in the recent intriguing work of Zhang et al. [32] – (Figure 2). That means, when the bias is not observed, the corresponding layers’ weights can be reset to their value at initialization without considerable loss in performance.
We believe these regularities of local arrangements encode important information for understanding the implicit bias of trained convolutional networks and present a novel angle to study the problem.
The paper is organized as follows. Section 2.1 and 2.2 present the background theory for describing local hyperplane arrangements for convolutional layers. Section 2.3 introduces novel statistics to study the arrangements for convolutional layers. In section 3, we perform experiments to investigate how the measure correlates with learning. Related work are summarized in section 4. Finally, section 5 discusses future work.
. The horizontal axis denotes the convolutional layer number, while the vertical axis represents the epoch that was used to reinitialize the weights. The colour intensity in each entry of the heatmap represents the drop in test accuracy when the weights of the corresponding layers are reset to their value at the specified epoch. Each plot corresponds to a different independent training run. On average the first 8 layers seem to be critical. Interestingly, our measure shows significantlystronger bias for the first 8 layers (see figure
7, except layer 1 which is discussed later).2 Method
We consider convolutional networks with rectifier activations (ReLU) and focus our study on convolutional layers. For each layer , we analyse the arrangement of hyperplanes induced by on its preactivation space. Let
denote the weight tensor of
, consisting of output maps, each corresponding to a kernel of size . Then, the matrixobtained by a sparse rowmajor vectorization of
has dimensionality , where denote respectively the number of channels, height and width of the input to the layer and is the number of receptive fields of each output map. Each row of , hereafter denoted , is a sparse vector with nonzero elements corresponding to the entries of the respective filter , for , as illustrated in figure 3. Convolution with an input vector is then performed as general matrixvector multiplication, and the operation is typically augmented to an affine transformation by introducing a bias term for each filter .Crucially, parameter sharing implemented by convolutional layers imposes a circulant structure over the rows of
. Particularly, if each kernel is convolved with stride
, the th row is obtained by cyclically shifting the components of the th row by one step to the right. Thus, each submatrix corresponding to a filter , approximates a circulant matrix^{1}^{1}1The approximation is exact when and each row of is highly sparse. For instance, this holds for singlechannel convolutions () with stride, zeropadding
, spatial kernel size and ..In the next section, we describe how the circulant symmetry induces polyhedra in the preactivation space of a convolutional layer. We begin by briefly considering the special case of singlechannel convolutions, and then treat the more general multichannel problem.
2.1 Local hyperplane arrangements are described by polyhedra
When ReLU is applied elementwise to the output of , each row identifies a hyperplane splitting the preactivation space into two halfspaces, , and its complementary, corresponding respectively to the positive and negative side of the hyperplane with normal vector .
When all hyperplanes induced by filter are considered at the same time, the resulting system of inequalities defines a polyhedron in the preactivation space of .
For the special case of singlechannel convolutions (where ), the matrix induces a polyhedral cone whose hyperplanes all intersect at a common apex, with circulant symmetry around the identity line of the preactivation space of [4, 8]. The number of faces of the cone corresponds to the number of receptive fields of , and is determined by the stride, zeropadding and kernel size of the convolution. Interestingly, while parameter sharing imposes very strong priors on the weights, without further constraints, the variability of the cone is still considerable, corresponding to its opening angle, apex position along the identity line and rotations fixing identity line [8].
In the general multichannel case (), each filter is described by a matrix with doubly blockcirculant structure (figure 3, left). Parameter sharing is implemented over the spatial dimensions and
, while each neuron of
is fullyconnected over depth. Consequently, the submatrix corresponding to each filter represents a circulant matrix with missing rows, inducing a polyhedron which resembles a polyhedral cone with missing faces. Due to parameter sharing, the hyperplanes corresponding to the rows of each circulant submatrix preserve their symmetry around the identify line, and consequently it is still possible to consider orientation and opening angles for . However, without apriori constraints, the variability of the problem increases significantly, since the intersection of all hyperplanes of is no longer a point and the dimensionality of the problem increases compared to the singlechannel setting.A central question to our study is whether there exist additional constraints that are induced on the orientation of the polyhedra by learning. For the present work, we focus on studying the orientation of polyhedra for each layer along the identity line, as motivated in section 2.2. In section 2.3, we conclude our methodology and introduce statistics over the convolutional weights of a layer to express the orientation of polyhedra.
2.2 Positive orthant in the preactivation space
The location of polyhedra in the preactivation space is central to the understanding of how data is mapped nonlinearly between layers.
In fact, when all hyperplanes of filter are considered together, the intersections of the corresponding halfspaces divide the input space of into distinct cells^{2}^{2}2the exact number of cells depends on the total number of hyperplanes, their mutual position, and the dimensionality of the preactivation space where they are defined [29]., each characterized by a distinct sparsity pattern under ReLU, corresponding to whether the input is located on the positive or negative side of each hyperplane .
Interestingly, due to the circulant structure arising from parameter sharing [4], each filter defines two cells that are readily interpretable: the intersection of all negative halfspaces, which ReLU contracts to a single point, and the intersection of all positive halfspaces, which is instead transformed linearly. In section 2.3, we introduce projection statistics to study the distribution of hyperplanes defining such cells with respect to the positive orthant of the input space of a layer.
In general, whether a specific cell in the input space of a layer, and ultimately whether any linear region in the input space of the network, is relevant to characterize the function computed by the network, depends on the distribution of image data in the input space. For the present study, the role of training data is considered indirectly, by analysing the weights of convolutional networks trained in practice.
Without making special assumptions on the actual position of data samples with respect to the hyperplanes induced by each filter , we observe that:

in pixel space, according to the strategy used, normalized pixel values are either represented in the range or as positive values.

for all other layers , ReLU maps the activation of layer to the positive orthant of the preactivation space of , that is .
Furthermore, as described in the previous section, each filter has circulant structure around the identity line and hence, the allpositive and allnegative cells have nonempty intersection with the identity line. Since such a line is partly contained by all polyhedra, we choose it to study the agreement in orientation of , which we use as a proxy for finding strongly biased arrangements.
Therefore, we focus our study on the intersection of the identity line with the positive orthant of the preactivation space of
More precisely, we consider all layers
as a fixed feature extraction step, and study layer
using the standard basis of its preactivation space .We note that, in principle, it would be possible to remove the preference for , but this would in turn require to study the location of input data with respect to the hyperplanes, in order to understand which dimensions (and directions) are meaningful. We leave this direction as interesting future work.
2.3 Projection statistics
To track strongly biased arrangements, we introduce projection statistics over the weights of a convolutional layer and study for each filter whether the allnegative or the allpositive cell is aligned with the positive orthant of the preactivation space of along the positive direction spanned by the identity line. As presented in section 2.1, this relates directly to the contraction properties of the nonlinear mapping learned by the layer.
To do so, is parametrized by , with and . We recall that, due to the circulant symmetry, either the allpositive or allnegative cell of each filter must contain asymptotically . Then, for each filter , we compute the inner product between the unit normal vector to any hyperplane induced by filter and the unit vector .
We observe that, since each row of the vectorized tensor is a sparse vector with nonzero entries corresponding exactly to the parameters of the th output map, , the inner product can be efficiently computed as:
(1)
with is the product of the norms of the two vectors.
2.3.1 Interpretation
The inner product between the unit normal vector and unit vector , measures the cosine opening angle of the polyhedron w.r.t. the identity line . For the purpose of studying orientation, we can assume all bias terms to be zero, since they do not affect the cosine angles computed.
Importantly, the sign of the cosine angle expresses whether any point , is on the positive or negative side of all hyperplanes of . Due to the circulant symmetry, every hyperplane induced by a filter shares the same angle with , and hence the same cosine angle.
Additionally, the sign of the cosine angle is a coarse indicator of the orientation of with respect to the direction spanned by , and expresses whether the allpositive (resp. allnegative) cell contains .
Notably, if the cosine angles for all filters of layer agree in sign, then the corresponding polyhedra all agree in orientation along the direction of the identity line, indicating that the hyperplane arrangement for exhibits regularity. To measure the level of agreement, we compute the cumulative density of negative cosine angles, as described in the next section.
Finally, we note that the angle does not depend on the bias term of the filter and its value is the same for every parallel vector .
2.3.2 Cumulative density of negative projections
Let denote the observed cosine angles for each filter , for . Abusing notation, we define
(2)
the empirical cumulative distribution of negative projections, where denotes the indicator function for event .
In section 3, we study for convolutional networks trained on various image classification datasets, and show a statistical bias towards allnegative projections, for hyperplane arrangements induced by all filters of some of the layers. For simplicity, in the following sections we will refer to simply as our measure.
3 Experiments
We study the cumulative density of negative projections for VGG19 [28] and AlexNet [18] trained on image classification tasks of different complexity, namely CIFAR10, CIFAR100 [17] and ImageNet [6]^{3}^{3}3The source code to reproduce our experiments is available at https://github.com/magamba/hp_arrangements..
The rest of the paper is organized as follows. Section 3.1 summarizes our experimental setup. In section 3.2, we present our main finding and provide an intuitive explanation for the different trend observed for the first layer of all networks. Section 3.3 highlights a correlation between critical layers and biased arrangements, while section 3.4 discusses the relationship between the observed bias and the learning dynamics.
3.1 Experimental setup
All networks are trained using SGD with momentum , weight decay coefficient of , and step learning rate schedule with base learning rate of
. No batch normalization layers are used and all layers are initialized using Kaiming normal initialization
[12]. All bias terms are initialized to zero. Unless otherwise noted, we use the hyperparameters reported in [28]. To report the training performance in a single plot, train and validation losses are rescaled by their highest respective value during training. Validation loss and accuracy are computed on a split of 10% of the training set. Accuracy on the test set is not reported since it differs by at most 1% from the validation accuracy for all experiments. Unless stated otherwise, we runindependent seeds (randomizing the initialization and training samples’ order) for each experiment and report the mean observed measure with shaded areas corresponding to one standard deviation.
3.2 Bias emerges from learning
In figure 4, for each layer of AlexNet trained on ImageNet, we plot the distribution of cosine angles for all filters, computed according to equation 1, and compare the observed values at initialization and after convergence.
At initialization, each weight in the network is drawn independently from a Gaussian distribution
, with proportional to the fanout of each neuron in the corresponding layer. From the central limit theorem, we have that the inner product defined in equation
1is normally distributed with zero mean, as reflected in the histograms of each layer at initialization (blue). After convergence (orange), the distribution of cosine angles is shifted towards negative values, for all layers except the first. As highlighted in section
2.3, this indicates that the negative cell induced by each filter is aligned with the positive direction defined by . Such a level of agreement for all filters suggests that additional constraints on the hyperplane arrangements are induced during training.To study this hypothesis in more detail, in a second experiment (figure 5) we track the development of the cumulative density of negative projections across epochs for each layer of AlexNet. During training, all layers past the first start from a mixed distribution (50% negative projections) and rapidly shift towards allnegative projections. Due to the hardness of ImageNet classification, we hypothesize that the network is making use of its full capacity in order to fit the dataset and this is reflected in the change in distribution of all layers past the first. This conjecture is further explored in section 3.3, where we study the behaviour of a highcapacity VGG network on a lowercomplexity dataset.
Throughout training, the first layer oscillates around 50% negative projections, indicating that the hyperplane arrangements induced on the input space by each filter of the first layer have disagreeing orientations. The same phenomenon is consistently observed for all trained networks considered in this work.
Low level features An intuitive argument for explaining the observed behaviour of the first layer is inspired by visualizing the learned filters of AlexNet on ImageNet, as illustrated in [18], figure 3. For low level features, which typically correspond to edge detectors [19], the network is intuitively required to recognize a pattern and its negative, since both are likely to appear in the data and would be informative. Hence, it is likely that the network would learn in its first layer a filter as well as its negative.
Conversely, deeperlayer filters, which respond to moreabstract patterns (e.g. a face), have no use in detecting the nonexistence of an abstract pattern, since it is unlikely to be present in natural data. In summary, the presence of lowlevel features and their inverse at the first layer might explain the mixed weight distribution (resulting in mixed projection statistics) observed in our experiments, and potentially why such distribution is preserved throughout training.
Bias correlates with learning A natural question is whether the observed bias is an artifact of optimization, without implication for learning, or if it instead pertains to successful training. To assess this, we consider a network that fails to converge and study the cumulative distribution of projections during training. More precisely, we ask whether the observed shift towards negative projections could occur even when training fails to pick a meaningful signal from data.

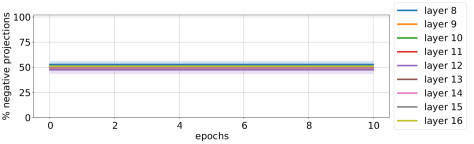

In the first version of [28], the authors report that VGG19 fails to converge on ImageNet if weights are sampled from . Using the same initialization scheme, we train the network for epochs on ImageNet, and compute the cumulative density of negative projections throughout training. We focus on the last convolutional layers of the network, whose weights have been changed from initialization by gradient updates, and observe that cumulative density for all layers is constant at ; its value at initialization. A similar behaviour is observed for the first
layers as well, which are not reported, since their inability to learn is likely due to the vanishing gradient problem. Since the observed projections are unbiased, we argue that the statistical bias observed for networks that converge is more likely correlated with
learning than with optimization.Offtheshelf pretrained models
We were able to observe a statistical bias towards either allnegative or allpositive projections also for offtheshelf pretrained models on ImageNet published by the Pytorch and MatConvNet communities. We include an example in figure
1, showing how the cosine angles shift towards negative values at the end of training. Since snapshots at initialization were not available for pretrained models, we plot for reference the statistics for one random initialization.In our experiments (figure 5), we were able to reproduce the behaviour observed for pretrained AlexNet (released by Pytorch) and pretrained VGG19 (MatConvNet), whose trend matches the last epoch of our implementation (figure 8). Additional histograms are included in the supplemental material.

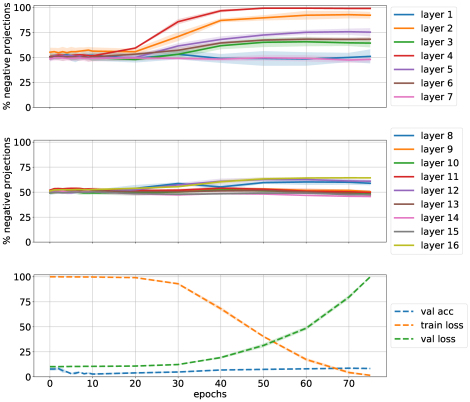

Bias correlates with learning under noisy labels Lastly, we study the learning dynamics under 100% noisy labels on CIFAR10 and report our findings in figure 6. We observe that, for the early epochs of training, as long as the training loss is approximately constant, the projection statistics are largely unbiased. Around epoch , when the training loss starts decreasing, layers to start assuming more biased hyperplane configurations, which also in this case seems to correlate with fitting to the data.
Additional experiments for noise in the data (rather than in the labels) are presented in the supplemental material.
3.3 Biased layers are critical to performance
We now consider lowercomplexity classification tasks and study the role of biased layers for highcapacity VGG19 on CIFAR10. In a recent paper, Zhang et al. [32] introduce the notion of critical layers, whose learned parameters are crucial to generalization, and contrast it to ambient layers, whose parameters can be reinitialized to their value at the start of training, without a significant drop in performance. For lowcomplexity datasets and highcapacity models, the critical role of a limited number of layers is posited to indicate some form of implicit capacity control at play during training [32].
To study the potential relationship between the regularity of hyperplane arrangements for certain layers and implicit regularization, we begin by reproducing the main result of [32]. Our results are reported in figure 2, and agree with what was shown in the original paper, i.e. that for CIFAR10, only the first layers of VGG19 are critical, while the remaining convolutional layers can be reset to their value at initialization without considerable performance loss.
Next, we compute our projection statistic for each convolutional layer in the network. In figure 7, we show that layers , which play a crucial role for generalization, show also heavily biased configurations. To further the statistical significance of the observation, we report averaged results over runs.
The experiment shows that layers with hyperplane arrangements that are biased towards regular configurations are critical to the performance of the network, and hence the observed regularity might encode important information to understand the implicit regularization and capacity control performed during learning. We think this interesting observation provides a potential angle to study the findings in [32].
In the supplemental material, we further extend this experiment to VGG19 on CIFAR100, and show that with a harder learning task, more layers become biased and, in turn, critical to performance.
3.4 Learning dynamics
Throughout our experiments, it is interesting to note how the low standard deviation across multiple runs closely follows the mean measure for most of the layers, amplifying the statistical significance of our result, and suggesting that our measure reflects biased learning dynamics. The same observation does not hold in general for all layers for large datasets, as shown for example in figure 8.

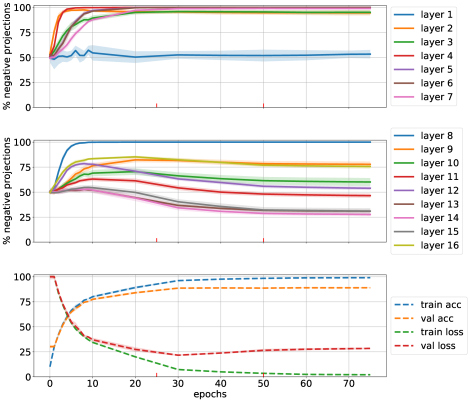

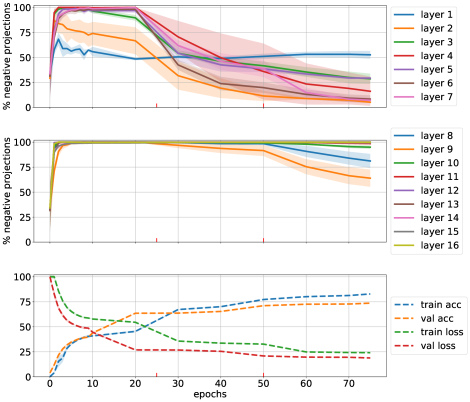

We now turn our attention to VGG19 trained on ImageNet and report the projection statistics in figure 8. We observe that, during the early epochs of training, almost all layers show a strong bias towards negative projections. Then, an intriguing phenomenon is observed, – the cumulative distribution for layers to changes, and towards the end of training layers and show a strong bias towards positive projections, indicating that the allpositive cells of all filters in these layers are now aligned along .
To provide a possible intuitive argument for the difference in behaviour compared to AlexNet, we focus on the training loss and accuracy for the two models, keeping in mind that both networks share the same hyperparameter settings and seeds for our experiments. During the early epochs of training, the training loss of both models sharply decreases, corresponding to a sharp increase in the cumulative density of negative projections. This might correspond to the learning of “easy” examples, which typically happens in the early stages of training
[3, 30], and would indicate that our layerwise statistic captures properties of the local hyperplane arrangements of each layer relating to learning those examples.While networks like AlexNet, which slowly achieve training accuracy of without further sharp decrease in training loss, might fail to learn most hard examples, and hence preserve the local structure acquired in early epochs, VGG19, manages to reach training accuracy, by drastically changing the local hyperplane arrangements of each layer. Interestingly, between epochs , when VGG19 is shifting from negative to positive projections, the training loss plateaus.
This observation suggests that the observed bias might arise from soft constraints imposed by learning, which can however be escaped by optimization in order to accommodate for harder patterns, if the network has enough capacity.
More details on the learning dynamics on other datasets and their relation to the training setup can be found in the supplemental material.
4 Related Works
This work concerns understanding the properties of convolutional networks with ReLU activations that produce piecewiselinear functions. The study assumes a geometrical perspective focusing on the layerwise hyperplane arrangement induced by trained convolutional filters. Statistics of the perfilter arrangements are collected showing a strong bias correlated with learning and generalization.
Thus, different aspects of this work make it related to different subsets of the recent and yetvast literature on understanding deep networks. Here, we try to draw such connections and at the same time delineate the specifics of this work.
Network capacity based on affine regions. Several works are concerned with the learning capacity of deep networks, especially as a result of sequential layers [11]. A subset of those investigates the expressivity of feedforward ReLU networks by analyzing the affine regions induced by hyperplane arrangement in the input space [25, 20, 26, 27, 1, 10, 9]. Among those, [25, 20, 27, 1, 10, 9] offer upper and lower bounds on the number of affine regions with a specific structure (number of layers and neurons). The study of hyperplane arrangement is the common theme between our work and those. However, this work is fundamentally different from them in that it is not concerned with the expressivity and instead studies the geometrical form of the function represented by a trained network and demonstrates a qualitative arrangement bias emerging as a result of training.
Complexity Measures. Another set of works try to propose measures of complexity/regularity for trained networks [22, 23, 21, 26, 27, 10]. [26, 27, 10] define complexity measures based on the affine regions and activation patterns of a trained network, while [22, 23, 21] use normbased measures of the trained weights to obtain regularization measures. All of them, similar to us, look for the inductive bias of a trained and generalizing network. Different from these works we seek the inductive bias in the geometrical properties of the learned functions.
Study of decision boundaries. Finally, [14, 24] are related to us in that they also study the properties of the learned functions and the correlation of those properties to generalization. However, they both focus on decision boundaries while this study concerns all the boundaries between affine regions. Furthermore, our work is only focused on trained weights while [14, 24] uses data as well as trained weights.
5 Conclusion
We performed an empirical exploration of the local structure of hyperplane arrangements induced by the filters of a convolutional layer in its preactivation space, for large networks trained in practice on image classification tasks of various complexity. We introduced a measure over the weights of a trained network and highlighted interesting correlations with the dynamics of learning. For large networks trained on lowercomplexity datasets, we have shown that our measure correlates with layers that are critical for validation performance, suggesting that local hyperplane configurations might encode properties relevant to generalization, that could potentially help shed more light on the puzzle of understanding the implicit bias of deep networks.
In particular, by exploiting the symmetric structure of hyperplane arrangements for convolutional layers, we provided a novel angle to study the problem of learning and generalization for convolutional networks.
Finally, we note that the general problem of studying hyperplane arrangements for deep networks is much more complex when the hierarchical dependency between layers is taken into account. We leave for future work the study of the relationship between hyperplane arrangements and image data, and the problem of characterizing nonempty cells in the hyperplane configurations of a layer.
References

[1]
Arora, R., Basu, A., Mianjy, P., Mukherjee, A.: Understanding deep neural networks with rectified linear units. In: International Conference on Learning Representations (2018)

[2]
Arora, S., Ge, R., Neyshabur, B., Zhang, Y.: Stronger generalization bounds for deep nets via a compression approach. In: International Conference on Machine Learning. pp. 254–263 (2018)
 [3] Arpit, D., Jastrzebski, S., Ballas, N., Krueger, D., Bengio, E., Kanwal, M.S., Maharaj, T., Fischer, A., Courville, A., Bengio, Y., et al.: A closer look at memorization in deep networks. In: Proceedings of the 34th International Conference on Machine LearningVolume 70. pp. 233–242. JMLR. org (2017)
 [4] Carlsson, S.: Geometry of deep convolutional networks (2019)
 [5] Carlsson, S., Azizpour, H., Razavian, A.: The preimage of rectifier network activities (2016)

[6]
Deng, J., Dong, W., Socher, R., Li, L.J., Li, K., FeiFei, L.: Imagenet: A largescale hierarchical image database. In: 2009 IEEE conference on computer vision and pattern recognition. pp. 248–255. Ieee (2009)
 [7] Dziugaite, G.K., Roy, D.M.: Computing nonvacuous generalization bounds for deep (stochastic) neural networks with many more parameters than training data. arXiv preprint arXiv:1703.11008 (2017)

[8]
Gamba, M., Azizpour, H., Carlsson, S., Björkman, M.: On the geometry of rectifier convolutional neural networks. In: Proceedings of the IEEE International Conference on Computer Vision Workshops (2019)
 [9] Hanin, B., Rolnick, D.: Complexity of linear regions in deep networks. In: International Conference on Machine Learning. pp. 2596–2604 (2019)
 [10] Hanin, B., Rolnick, D.: Deep relu networks have surprisingly few activation patterns. In: Advances in Neural Information Processing Systems. pp. 359–368 (2019)

[11]
Håstad, J.: Almost optimal lower bounds for small depth circuits. In: Hartmanis, J. (ed.) Proceedings of the 18th Annual ACM Symposium on Theory of Computing, May 2830, 1986, Berkeley, California, USA. pp. 6–20. ACM (1986)
 [12] He, K., Zhang, X., Ren, S., Sun, J.: Delving deep into rectifiers: Surpassing humanlevel performance on imagenet classification. In: Proceedings of the IEEE international conference on computer vision. pp. 1026–1034 (2015)
 [13] Jastrzebski, S., Kenton, Z., Arpit, D., Ballas, N., Fischer, A., Storkey, A., Bengio, Y.: Three factors influencing minima in SGD (2018)
 [14] Jiang, Y., Krishnan, D., Mobahi, H., Bengio, S.: Predicting the generalization gap in deep networks with margin distributions. In: International Conference on Learning Representations (2019)
 [15] Kawaguchi, K., Kaelbling, L.P., Bengio, Y.: Generalization in deep learning. arXiv preprint arXiv:1710.05468 (2017)

[16]
Keskar, N.S., Mudigere, D., Nocedal, J., Smelyanskiy, M., Tang, P.T.P.: On largebatch training for deep learning: Generalization gap and sharp minima (2016)
 [17] Krizhevsky, A., Hinton, G., et al.: Learning multiple layers of features from tiny images. Tech. rep. (2009)
 [18] Krizhevsky, A., Sutskever, I., Hinton, G.E.: Imagenet classification with deep convolutional neural networks. In: Advances in neural information processing systems. pp. 1097–1105 (2012)
 [19] Matthew, D., Fergus, R.: Visualizing and understanding convolutional neural networks. In: Proceedings of the 13th European Conference Computer Vision and Pattern Recognition, Zurich, Switzerland. pp. 6–12 (2014)
 [20] Montufar, G.F., Pascanu, R., Cho, K., Bengio, Y.: On the number of linear regions of deep neural networks. In: Advances in neural information processing systems. pp. 2924–2932 (2014)
 [21] Neyshabur, B., Bhojanapalli, S., McAllester, D., Srebro, N.: Exploring generalization in deep learning. In: Advances in Neural Information Processing Systems. pp. 5947–5956 (2017)
 [22] Neyshabur, B., Tomioka, R., Srebro, N.: In search of the real inductive bias: On the role of implicit regularization in deep learning. arXiv preprint arXiv:1412.6614 (2014)
 [23] Neyshabur, B., Tomioka, R., Srebro, N.: Normbased capacity control in neural networks. In: Conference on Learning Theory. pp. 1376–1401 (2015)
 [24] Novak, R., Bahri, Y., Abolafia, D.A., Pennington, J., SohlDickstein, J.: Sensitivity and generalization in neural networks: an empirical study. In: International Conference on Learning Representations (2018)
 [25] Pascanu, R., Montufar, G.F., Bengio, Y.: On the number of inference regions of deep feed forward networks with piecewise linear activations (2013)
 [26] Raghu, M., Poole, B., Kleinberg, J., Ganguli, S., SohlDickstein, J.: On the expressive power of deep neural networks. In: International Conference on Machine Learning. pp. 2847–2854 (2017)
 [27] Serra, T., Tjandraatmadja, C., Ramalingam, S.: Bounding and counting linear regions of deep neural networks. In: International Conference on Machine Learning. pp. 4558–4566 (2018)
 [28] Simonyan, K., Zisserman, A.: Very deep convolutional networks for largescale image recognition. In: International Conference on Learning Representations (2015)
 [29] Stanley, R.P., et al.: An introduction to hyperplane arrangements. Geometric combinatorics 13, 389–496 (2004)
 [30] Toneva, M., Sordoni, A., des Combes, R.T., Trischler, A., Bengio, Y., Gordon, G.J.: An empirical study of example forgetting during deep neural network learning. In: International Conference on Learning Representations (2019)
 [31] Zhang, C., Bengio, S., Hardt, M., Recht, B., Vinyals, O.: Understanding deep learning requires rethinking generalization (2018)
 [32] Zhang, C., Bengio, S., Singer, Y.: Are all layers created equal? ICML Workshop Deep Phenomena (2019)
Appendix A Supplemental Material
This document collects complementary experiments to the main paper. More details on the experimental setup and learning rate schedules used are given in section A.1. Sections A.2 and A.3, respectively present histograms of the cosine angles (projection statistics) for offtheshelf pretrained models released by the Pytorch and MatConvNet communities. Section A.4 presents the cumulative distribution of negative projection statistics for a network that fails to converge. Section A.5 extends our main experiments to VGG19 trained on CIFAR100, while section A.6 studies the cumulative distribution of negative projections for noisy data. Finally, section A.7 presents additional experiments on the distribution of the first layer for various datasets and different pixel representations, and section A.8 discusses how our experiments, and other related work, are partly affected by the training setup.
a.1 Experimental Setup
This section describes in more detail the training schedules and data augmentation strategies used in all experiments. With the exception of figure 6, where training data with random labels is fitted, all experiments in the main paper are performed with step learning rate schedule:

Starting from base learning rate , the learning rate is decreased by a factor of every epochs. Each epoch in which the learning rate is decreased is denoted by red ticks on the epochs axis in each relevant figure.

All networks are trained with data augmentation consisting of vertical and horizontal shifts of pixels in each direction and random horizontal flipping.
In section A.8, we repeat most of the experiments using a smooth (exponential) learning rate schedule.

Starting from base learning rate , at every epoch the learning rate is decayed by a factor of .

The smooth learning rate schedule is employed to interpolate between the learning rates obtained with the step schedule and is meant to remove artifacts arising from drastic changes in the learning rate.
a.2 Pytorch Pretrained Models
In addition to figure 1, this section shows histograms of cosine angles for various offtheshelf models released by the Pytorch community. For all networks considered, most histograms show how the cosine angles shift towards negative values at the end of training, as opposed to random initialization. Since snapshots at initialization were not available for pretrained models, we plot for reference the statistics for one random initialization.
We believe the histograms for pretrained models are interesting, because they show how the statistical bias that we observe is also present for training setups and implementations independent from ours.
Importantly, for deeper layers, we consistently observe a strong bias towards either allnegative or allpositive projections. We stress that such bias is statistically significant since initialization is zerocentered with small variance, and for a convolutional layer learning
output maps, the probability of all polyhedra
to be aligned along , is , which is fairly small, highlighting constraints consistently arising from training.a.3 MatConvNet Pretrained Models
Similarly to section A.2, we include histograms of cosine angles for offtheshelf models released in the MatConvNet model zoo. Each model was converted to Pytorch for compatibility with our code base, using pytorchmcn. We only used converted models whose performance was numerically verified to match that of the MatConvNet original model^{4}^{4}4https://github.com/albanie/pytorchmcn.
a.4 Bias Correlates with Learning
Complementing what was described in section 3.2, figure 15 shows the development of the cumulative distribution of negative projections for independent instances of VGG19 that fail to converge on ImageNet. While we observe a change in the deeper layers’ weights during training, our statistics remain unbiased, indicating that our measures is likely correlated with learning.
a.5 Biased Layers Are Critical to Performance
We extend the main experiments of section 3.3 by studying critical layers for VGG19 trained with exponential learning rate decay on CIFAR100 (figure 16). Also in this case, strongly biased layers are critical to performance. We observed that, compared to VGG19 trained on CIFAR10 (figure 2), layers and are critical to performance and this is reflected by a strong bias in their cumulative distribution of negative projections (figure 17).
In contrast, on ImageNet, both VGG19 and AlexNet make use of their full capacity (figures 5 and 8). This is reflected in the weight reinitialization experiments (figures 18 and 19 respectively), which show that all layers are critical to performance.
a.6 Learning Under Noisy Data

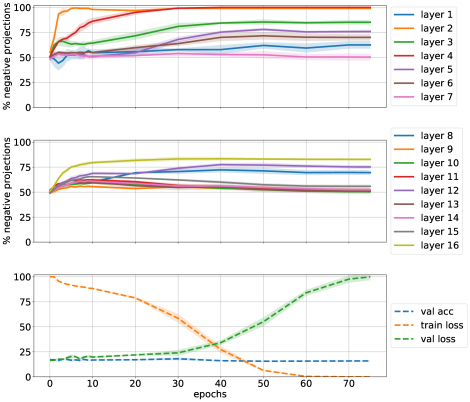

In addition to learning under noisy labels (figure 6), in which image samples are preserved while labels are perturbed, we experiment on training samples with correct labels, but noisy images, in which pixels of all training images are randomly shuffled. This transformation preserves channelwise statistics, but spatial information is lost. In figure 20, we observe how the statistical bias is reduced, compared to the case of clean data, when the spatial information encoded in each image is disrupted.
a.7 Lowlevel Features

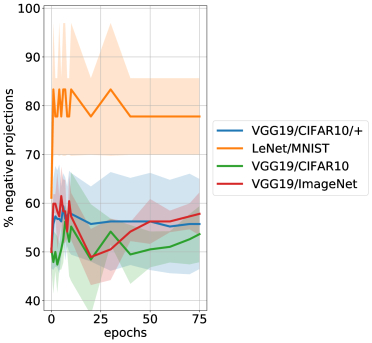

We take a closer look at the cumulative distribution of projection statistics for the first layer of VGG19 and a variant of LeNet with convolutional layers, trained on MNIST (figure 21). We train VGG19 on RGB datasets (ImageNet and CIFAR10), and represent pixel values in . Additionally, we repeat the experiment for VGG19 trained on CIFAR10 with pixel values in , denoted CIFAR10/+. We observe that for all RGB datasets, the distribution of the first layer remains largely unbiased throughout epochs. Furthermore, consistently with our hypothesis (section 3.2), the first layer of LeNet on MNIST shows considerable bias towards negative projections. In fact, MNIST digits, as opposed to CIFAR10 and ImageNet images, present only one kind of edge, and thus the first layer might not need to learn the inverse of a edgedetector filter.
a.8 Training Setup Affects Bias
We conclude by exploring how learning rate schedules affect our statistics and critical layers. Figure 22, shows our measure over epochs for step and exponential learning rate schedules for VGG19 trained on CIFAR10 and ImageNet. The step schedule results in reduced variance of our statistic across independent runs and, for CIFAR10, it better separates strongly biased layers ( to ). In turn, while the number of critical layers on CIFAR10 is on average the same, the smooth learning rate schedule results in layers with smaller drop in performance under weight reinitialization, corresponding to less statistical bias with respect to the cumulative density of negative projections (figure 23 and 24).
