Hydra: An Accelerator for Real-Time Edge-Aware Permeability Filtering in 65nm CMOS

by   Manuel Eggimann, et al.

Many modern video processing pipelines rely on edge-aware (EA) filtering methods. However, recent high-quality methods are challenging to run in real-time on embedded hardware due to their computational load. To this end, we propose an area-efficient and real-time capable hardware implementation of a high quality EA method. In particular, we focus on the recently proposed permeability filter (PF) that delivers promising quality and performance in the domains of HDR tone mapping, disparity and optical flow estimation. We present an efficient hardware accelerator that implements a tiled variant of the PF with low on-chip memory requirements and a significantly reduced external memory bandwidth (6.4x w.r.t. the non-tiled PF). The design has been taped out in 65 nm CMOS technology, is able to filter 720p grayscale video at 24.8 Hz and achieves a high compute density of 6.7 GFLOPS/mm2 (12x higher than embedded GPUs when scaled to the same technology node). The low area and bandwidth requirements make the accelerator highly suitable for integration into SoCs where silicon area budget is constrained and external memory is typically a heavily contended resource.



There are no comments yet.


page 2

page 4


Memory-Efficient CNN Accelerator Based on Interlayer Feature Map Compression

Existing deep convolutional neural networks (CNNs) generate massive inte...

Origami: A 803 GOp/s/W Convolutional Network Accelerator

An ever increasing number of computer vision and image/video processing ...

BTS: An Accelerator for Bootstrappable Fully Homomorphic Encryption

Homomorphic encryption (HE) enables secure offloading of computation to ...

Dataflow-Architecture Co-Design for 2.5D DNN Accelerators using Wireless Network-on-Package

Deep neural network (DNN) models continue to grow in size and complexity...

Optimally Scheduling CNN Convolutions for Efficient Memory Access

Embedded inference engines for convolutional networks must be parsimonio...

A 5 μW Standard Cell Memory-based Configurable Hyperdimensional Computing Accelerator for Always-on Smart Sensing

Hyperdimensional computing (HDC) is a brain-inspired computing paradigm ...

Barrier-Free Large-Scale Sparse Tensor Accelerator (BARISTA) For Convolutional Neural Networks

Convolutional neural networks (CNNs) are emerging as powerful tools for ...
This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

I Introduction

Edge-aware (EA) filters are important building blocks used in many image-based applications like stylization, HDR tone mapping, detail editing and noise reduction [1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12]. However, several high-quality methods such as the weighted least squares (WLS) filter [4] are computationally demanding and hence unsuitable for real-time applications on resource constrained devices. We focus on a recently proposed method termed permeability filter (PF) [11] that can be used to approximate image-based regularization problems such as HDR tone mapping [12], disparity [11], and optical flow estimation [13]. The PF has been designed to converge to results similar to the high-quality WLS filter, but with significantly lower computational effort [13] – which renders the PF an ideal candidate for high-quality filtering in real-time.

In this work, we present a hardware accelerator for the PF that can be used as an area-efficient co-processor in systems-on-chip (SoCs) tailored towards video processing. In particular, we contribute the following:

  • We propose a tiled variant of the PF (TPF) with low on-chip memory requirements and a 6.4 lower off-chip memory bandwidth than the non-tiled PF.

  • We devise an efficient hardware architecture for the TPF that employs loop pipelining and an optimized memory interleaving scheme. Our design maximizes floating-point (FP) unit utilization and eliminates memory contentions caused by frequent tile transpositions required by the TPF.

  • We implement custom FP arithmetic on our accelerator to accurately filter feature maps involving HDR and coordinate data (e.g., sparse optical flow [14, 13]).

  • Our design is the first custom hardware implementation taped-out in CMOS technology, and provides a high compute density of . When scaled to technology, this is around 12 denser than in recent embedded GPUs. When applying 4 internal PF iterations the chip processes 720p monochromatic video at with a measured power of .

Ii Related Work

The PF approximates the high-quality WLS filter [4] with a low computational effort [11, 12, 13]. Furthermore, the PF features good halo reduction and information spreading capabilities that are important for HDR tone-mapping, regularization methods, sparse-to-dense conversions, disparity and optical flow estimation. Other EA filters such as variants of the bilateral filter (BF) [15] and the guided filter (GF) [6] are computationally less involved as the PF, but do not achieve the same level of quality and are hence used for different applications. We compare our chip with ASIC implementations of the BF [16] and GF [17] accelerators in Sec. V.

Iii Permeability Filter and Tiling

Similar to other EA filtering methods such as the GF and the domain-transform, the PF uses a guiding image that controls the EA filtering behavior. The filtered data channels may differ from the input image (e.g., in certain applications,

may hold other features like sparse optical flow vectors or disparity data). In a first step, the PF algorithm extracts

pairwise permeabilities and from the guiding image [13]. Permeabilities measure the similarity between pixels at index and in the horizontal and vertical direction, and define the row-stochastic matrices and holding the filtering coefficients for the horizontal and vertical filter passes. The PF is defined as a 1D operation over a single row/column in the image as follows:


where holds the data channel to be filtered, denotes the intermediate filtering result after iterations (), is a bias parameter towards the original data to reduce halo artifacts and denotes the length of the current row/column to be filtered. To generalize the PF into two dimensions, we iteratively apply (1) on each row (called X-Pass) and column (called Y-Pass). Typical applications considered in this work (HDR tone-mapping [12], filtering of optical flow data [13]) apply XY-passes to the entire frame.

Reformulating Equation (1) enables an efficient 1D scanline evaluation [11, 13]. Each X-Pass and Y-Pass is decomposed into a forward and backward recursion. The forward recursion with normalization weight is given by:


and a backward recursion with normalization weight :


The map in Equations (2) and (3) is either or depending on the filtering direction. The initial values of the recursions are set to zero. Finally, the resulting filter output can be computed on-the-fly during the backward recursion by


Hence, one PF iteration comprises a forward/backward recursion in x-direction, followed by a forward/backward recursion in y-direction, as illustrated in Fig. 1a.

Iii-a Image Tiling

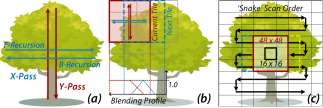

Fig. 1: (a) The PF filters the frame by alternating between horizontal and vertical 1D filtering passes over the whole frame. (b) The TPF splits the frame into overlapping tiles that are filtered individually. The individual results are merged together using a linear weighting profile. (c) Row-major ‘snake’ traversal scheme of the tiles.

Since the PF alternates operating on rows and columns, the complete frame must be kept in the working memory. When applying the PF globally to one data channel of a 720p frame ( and ) with a word width of (see Sec. III-B for an evaluation) the required working memory amounts to to hold the two permeability maps, and (without intermediate storage for ). Since we are considering a co-processor scenario, such a large memory is unfeasible to be implemented on-chip, and hence requires off-chip memory. However, this results in a large off-chip memory bandwidth of for filter iterations and a throughput of , which is not desirable. To this end, we propose a localized version of the PF, which operates on local square tiles as illustrated in Fig. 1b. To reduce tiling artifacts, we employ linear blending of neighboring tiles. By evaluating different overlap configurations, we found that overlapping tiles by 2/3 provides the best visual quality (see Fig. 2). With that configuration, nine different tiles contribute to result pixels. To minimize the memory requirements, we employ a ‘snake’ scan order (illustrated in Fig. 1c) to be able to reuse intermediate results for blending. Fig. 4 shows on-chip SRAM requirements caused by different tile sizes.

A larger tile size is desirable to better approximate the global filter behavior. The following considerations restrict the choice of the tile size: tiles should overlap by 2/3 edge lengths, the length must be divisible by three, and computing the linear weights for the final merging step is simplified when the length is divisible by a power of two. This results in a preferred tile size of . We choose a tile size of pixels, of which pixels overlap the neighbouring tiles on each side. Using this tiling approach, the PF can be reformulated to Alg. 1, which can be implemented with only SRAM storage to hold one tile. Further, the external bandwidth, comprising the input data , , , the filter output , and the partially blended tiles, reduces by 6.4 to only .

Fig. 2: (a) Filter result with an overlap of . (b) Filter result with an overlap of . (c) Filter result with an overlap of .


Algorithm 1 Scanline Permeability Filter
for all Tiles do
     for  )  do
         for all Rows do
              Initialize recursions.
              Evaluate forward recursion. Eq. (2)
              Evaluate backward recursion. Eq. (3)
              Compute filter output. Eq. (4)
         end for
         Transpose tile.
     end for
     Blend overlapping tiles (linear profile). Fig. 1b.
end for

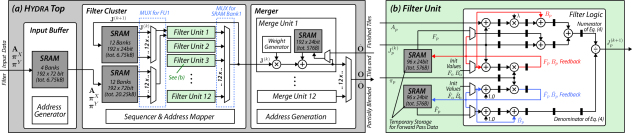

Fig. 3: (a) The Hydra chip contains an input buffer, a filter cluster with 12 FUs, and a merger unit. (b) The systolic FU datapath implements the forward/backward recursions , , and , and employs pipeline interleaving to efficiently utilize the FP operators , as described in Sec. IV-A.
