Deep learning methods have enabled significant advances in a variety of problems in computer vision, including 2D human pose estimation. The impact of deep methods on this problem has been so great that state-of-the-art accuracy on existing pose estimation benchmarks is nearing human performance [1, 2, 3]. This has enabled researchers to look at more advanced scenarios than single-frame pose estimation. This includes pose estimation on video sequences [4, 5], real-time estimation of poses , multi-person pose estimation [7, 8], and recently human pose forecasting [9, 10], which is the central theme of this paper.
Forecasting of human poses is useful in a variety of scenarios in computer vision and robotics, including but not limited to human-robot interaction , action anticipation [12, 13], visual surveillance, and computer graphics. For example, consider a robot designed to help a surgeon manage their tools: it is expected that the robot forecasts the position of the limbs of the surgeon so that it can deliver the tools in time. Pose forecasting is also useful for proactive decision-making in autonomous driving systems and visual surveillance.
While the problem of human motion modelling and forecasting has been explored in the past , it was limited to simple scenarios such as smoothly varying poses under periodic motions . As a result of the innovations in deep methods and the availability of huge datasets , this problem is beginning to be investigated with a renewed interest. For example, Fragkiadaki et al.
show how to learn the dynamics of human motion using an encoder-decoder framework for recurrent neural networks, while Jain et al. present an alternative approach which is able to incorporate high-level semantics of human dynamics into a recurrent network via spatio-temporal graphs . Although these newer approaches have obtained promising results, all of them are purely deterministic models which can only predict a single continuation of an observed sequence, and are thus unable to account for the stochasticity inherent in human motion. Both Fragkiadaki et al. and Jain et al. observe that this stochasticity can lead simple deterministic models to produce pose sequences which rapidly converge to the mean, but they do not attempt to resolve this issue at a fundamental level by explicitly modelling stochasticity. A similar issue is present in the evaluation of forecasted poses: most existing work compares forecasted poses to a single ground truth sequence, when in reality there are often many plausible continuations.
In this paper, we propose to address both of these problems. First, to resolve the stochasticity problem, we make use of a Deep Markov Model (DMM) , which allows us to sample arbitrarily many plausible continuations for an observed pose sequence. Second, on the evaluation side, we use an RNN that takes a pose sequence and returns an action label. We evaluate the quality of the forecasted pose in terms of the classification accuracy of the evaluation RNN against the ground truth forecasted action. This allows us to gauge the intuitive plausibility of the continued sequence without penalising the model for choosing reasonable continuations which do not coincide precisely with the true one.
We evaluate our proposed forecasting model on poses generated over one existing dataset and one new one. The existing dataset is NTU RGB+D , which includes over 5,000,000 video frames depicting a wide variety of actions, as well as Kinect poses for all subjects in each frame. While NTU RGB+D is challenging, sequences in NTU RGB+D are typically very short, and lack the kind of regularity and repetition of actions which pose prediction mechanisms ought to be able to exploit. As such, we propose a novel human pose forecasting dataset Ikea Furniture Assembly, that consists of much longer sequences depicting 4–12 actions, each concerned with assembling a small table. Figure 1 shows frames from one such sequence. While this dataset provides a simple baseline, we believe the problem of pose forecasting is in its infancy, and that our dataset thus provides a good platform for systematic evaluation of the nuances of the problem. Our experiments on these datasets reveal that our proposed method demonstrates state-of-the-art accuracy.
Ii Background and related work
Mocap modelling and synthesis
Modelling sequences of 3D motion capture vectors is both useful in its own right—in animation, for instance—and useful as a benchmark for generic sequence learning techniques. Past approaches to this problem include Gaussian processes , switching linear dynamic systems 26].
It should be noted that our work differs from the majority of existing literature on mocap synthesis in two respects. First, we consider the problem of 2D pose estimation in image-relative coordinates, as opposed to 3D pose estimation in scene-relative coordinates. Second, our proposed benchmark does not allow algorithms to make use of a ground-truth pose sequence at test time, thereby forcing them to learn to exploit visual cues.
In the vision community, mocap modelling has sometimes been used as a motivating application of temporally aware neural network architectures. In addition to 2D pose estimation and forecasting, Fragkiadaki et al. showcase their RNN-based sequence learning framework by using it to extend sequences of 3D motion capture data . Similarly, Jain et al. apply their general structural RNN framework to the same task, and report aesthetically favourable results relative to Fragkiadaki et al. . Martinez et al. present a third approach specifically tailored to pose forecasting, again reporting improvements over Fragkiadaki et al. and Jain et al., particularly in the level of error on the first few frames of a sequence .
Recent work in motion representation has focused on anticipating future appearance, motion or other attributes at the pixel level. Structured random forests , feed-forward CNNs  and variational autoencoders  have all been used to predict dense pixel trajectories from single frames. Prediction of raw pixels—as opposed to pixel trajectories—has been attempted using ordinary feedforward networks, GANs [31, 32] and RNNs [33, 34].
Even over short time horizons, pixel-wise prediction remains a challenging task. State-of-the-art models are capable of predicting up to a second ahead, albeit often with significant blurring or other visual artefacts [32, 34]. We hope that, by tackling a narrower problem, pose forecasting models will be better able to learn long-range dynamics than models for pixel-wise appearance prediction.
Sequence modelling with VAEs
Variational Autoencoders (VAEs) are a recent neural-network-based approach to modeling complex, but potentially structured, probability distributions. An ordinary regressor or autoencoder would be trained to minimise the distance between its output and the dataset, whereas a variational autoencoder is trained to maximise the variational lower bound , where is a (learned) variational approximation to the intractable posterior over latent variables . Not only is this lower bound to the log likelihood efficient to maximise [35, 36], but doing so confers advantages over both ordinary regressors or autoencoders:
VAEs are able to place a fixed prior on latent variables as part of the optimisation process. This enables a single output to be efficiently sampled by choosing , then .
In the presence of uncertainty, regressors trained to minimise error will tend to produce the mean of all plausible outputs, which may or may not be a plausible output itself . In contrast, VAEs are able model multimodal output distributions, thereby yielding crisper predictions.
The attractiveness of VAEs has led to a spate of new approaches to stochastic sequence modeling, including STORNs , VRNNs , SRNNs  and DMMs . These approaches differ in terms of the information which their respective generators condition on between time steps, as well as the architectures of their (approximated) inference networks. We have chosen to use DMMs in this paper because of their strong performance in standard benchmark tasks and their relative simplicity.
Iii Proposed method

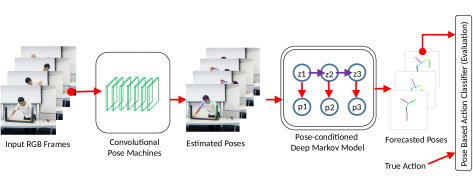

In Figure 2, we show the complete pose forecasting system. First, images are passed through a pose estimation system to obtain a sequence of poses. The observed poses are then passed to a sequence learning model to infer a latent representation capturing the person’s anticipated motion after the final frame. This latent representation can then be extended out to an arbitrarily long sequence of poses using the sequence learning model’s generative capabilities. Last, the sequence of forecasted poses is evaluated by a pose-based action classifier.
Iii-a Pose estimation
To turn an observed sequence of images into a sequence of poses, we employ Wei et al.’s Convolutional Pose Machines (CPMs) . Specifically, a four-stage CPM is used to centre detected person bounding boxes on their subjects, followed by a six-stage model for pose estimation. To overcome temporal instability in the estimations, the generated pose sequences are smoothed using a weighted moving average.
Iii-B Pose forecast model
The heart of our proposed system is a pose forecasting network based on Krishnan et al.’s Deep Markov Models (DMM) . For the sake of understanding how the DMM theory pertains to pose estimation, we can define the task of pose forecasting formally: let denote a sequence of poses and denote a corresponding series of latent variables
. Pose forecasting is the task of sampling from the joint distribution, where is assumed to factorise according to
The fourth panel of Figure 2
depicts this factorisation as a Bayesian network. From this Bayesian network, it follows that the posterior inference distributionfactorises to
Iii-B1 Variational approximation
For learning of these distributions to be tractable, we must make several approximations. First, we can use the following variational approximations in place of the true generative distributions , , and , respectively:
The generative model parameters parametrise neural networks which are able to calculate the means (, , etc.) and covariances (, , etc.) of the normal transition and emission distributions (, etc.). Similarly, we can replace the (intractable) posterior inference distributions and with two more learnt variational approximations expressed in terms of inference network parameters :111As there are many means and covariances produced by this model, it may help to reader to know that the subscript has been used for the mean and covariance of the emission distribution, for those of the transition distribution (in the generative model), and for those of inference distribution (in the inference model). and refer to the initial latent distribution in the generative model and inference model, respectively.
Parameters and can be optimised by gradient ascent to maximise the variational lower bound of Kingma et al. :
Where denotes the KL divergence between densities and , and is shorthand for the variational lower bound itself.
We can further factorise this variational lower bound using the conditional dependencies identified above:
Recall that all involved distributions are multivariate Gaussians, and so each KL divergence has a closed form which is amenable to optimisation with stochastic gradient descent. Further, when training with SGD, it is generally sufficient to approximate the expectation over thes with a single sample from
, and it is possible to perform stochastic backpropagationthrough this sampling operation using the reparametrisation trick [35, 36].222Readers who are completely unfamiliar with these techniques will likely appreciate the context provided by Doersch’s tutorial-style treatment of variational autoencoders .
Taken together, these tricks make it possible to efficiently train a neural network to optimise the DMM objective over the full dataset :
Iii-B2 Network architecture
To calculate the various s and s required by the variational approximation, we use a set of networks based on Krishnan et al.’s ST-LR model :
The mean and covariance of the emission Gaussian are calculated by a simple multilayer perceptron.
The mean and covariance of the first latent vector can be learnt directly, without need for an MLP.
The transition function is reminiscent of a GRU: it uses to compute hidden activations and gating activations , then uses elementwise multiplication with the to trade off the contributions of and to the new hidden state. See  for details.
- and :
Both pairs of means and covariances are calculated using the same Bidirectional Recurrent Neural Network (BRNN), which processes a pose sequence and then yieldsin order. Note that the BRNN outputs after processing actions and poses from both the future and the past: that is, is calculated from all of , rather than just the and on which it is probabilistically dependent. We retain the notation in the discussion above for theoretical consistency.
|Frame 0||Frame 15||Frame 30||Frame 45|
|Frame 60||Frame 75||Frame 90||Frame 105|
Evaluation of forecasted poses is difficult. The most natural approach is to adopt a geometric measure of error and use that to compare different approaches. For instance, Fragkiadaki et al.  uses a standard location-based measure of pose estimation accuracy to report the performance of a 2D pose forecasting system, while Jain et al.  evaluate a 3D pose forecasting system using differences in joint angles. Unfortunately, neither of these approaches is adequate to capture human intuition about what constitutes a natural—or even plausible—continuation of a pose sequence.
As an example of this issue, take the two pose continuation strategies in Figure 3: the magenta continuation shifts each joint of each pose independently by a number of pixels chosen from (again independently in both and dimensions). On the other hand, the yellow continuation is simply the ground truth with additional pixels of drift accumulated at each time step. The latter clearly produces a more coherent pose sequence, but is quickly exceeded in “accuracy” by the former. This plainly illustrates the limitations of the distance metric for capturing the subjective quality of pose sequence continuations in the presence of drift. Further, although it is not illustrated in Figure 3, distance can also penalise plausible, but incorrect predictions; for instance, if a subject begins to move to the left during a forecast was instead predicted to move to the right, it may still be possible to produce an intuitively plausible continuation, but the continuation would be penalised heavily by distance.
Instead of measuring distance, we score forecasted poses by checking whether they are consistent with the action(s) they represent. This is achieved by passing the poses through a recurrent classifier-evaluator which is trained to recover action labels from pose sequences. The recovered action labels associated with the forecasted pose sequences can be compared with the true labels, providing a robust measure of the realism of the pose sequence. The classifier-evaluator is trained using ground truth poses and action labels from the same dataset used to train the corresponding pose forecast model(s). However, it is not trained adversarially, as training it in tandem with any one forecast model would compromise its ability to provide a model-independent measure of pose realism.
|Ikea FA||NTU RGB+D|
Ikea Furniture Assembly
As alluded to earlier, there are several challenging benchmark datasets for both action recognition and pose estimation. However, we believe these datasets are too demanding for a problem such as pose forecasting. This is because most of the existing video benchmarks that include both poses and actions (such as Penn Actions , the MPII Continuous Pose Dataset , or the JHMDB dataset ) have either sequences that undergo significant occlusions of body-parts, or include activities that are hard to discriminate. As a result, it may be difficult to understand or separate the challenge imposed by pose forecasting from that imposed by other tasks.
Towards this end, we propose a new dataset called Ikea Furniture Assembly (Ikea FA) that consists of basic actions of individuals assembling a small piece of Ikea furniture. Our goal with this dataset is to predict the pose of a subject after a few observed frames frames containing an assembling action. There are 101 videos in the dataset, each about 2–4 minutes long, and shot at 30 frames per second (although we downsample to 10fps in our experiments to maximise the duration for which it is computationally feasible to predict). There are 14 actors in the videos, and we use sequences from 11 actors for training and validation while testing on the rest. Half of the sequences show assembly on the floor, while the other half show assembly on a workbench. As the frames in Figure 9 indicate, floor sequences tend to provide more challenging pose variations than table ones. The dataset is available for download on the web.333http://users.cecs.anu.edu.au/~u5568237/ikea/
The original Ikea FA action labels includes four “attach leg” actions (one for each leg), four “detach leg” actions, a “pick leg” action, a “flip table” action, “spin in” and “spin out” actions, and a null action for frames which were not labelled or could not be labelled. Since several of these actions are indistinguishable from pose alone, we merged all attach and detach actions into a single super-action, discarded the null actions, and merged “spin in” with “spin out”, yielding only four actions.
Ikea FA does not include ground truth poses for all frames, so we used poses estimated by CPM for our experiments. We have checked the CPM-labelled poses against a small subset of hand-labelled poses using (strict) Percentage Correct Parts (PCP), which measures the number of limb instances in the dataset where both endpoints of the limb were estimated accurately to within half the true length of the limb . By this criterion, upper arms were localised correctly 83.0% of the time, and lower arms 76.6% of the time.
Ntu Rgb+d (2d)
NTU RGB+D  is an action recognition dataset of over 56,000 short videos, which collectively include over 4 million frames. Each sequence was recorded with a Kinect sensor, and consequently includes RGB imagery, depth maps and 2D/3D skeletons. Each sequence is also given a single action label from one of 60 classes, allowing us to perform an action-classifier-based evaluation. Instead of using the full 3D skeletons supplied with NTU RGB+D, we limit ourselves to 2D skeletons for easier comparison with Ikea Furniture Assembly.
Because NTU RGB+D splits each action into a separate video, most of its sequences are only a few seconds each. Further, since the actions are largely unrelated, it is not possible to produce meaningful sequences of actions by stitching the videos together—one would only end up with a long sequence of seemingly random actions that neither humans nor computers could be expected to anticipate. However, we still wish to test the performance of our system on long videos, so we have limited our NTU RGB+D evaluation to subsequences of 5s or more. Unlike evaluation, training does not require a consistent sequence length, so we still train on all sequences not used for evaluation. For both training and evaluation, we downsample to 15fps to minimise the computational overhead of prediction on long sequences.
As with Ikea FA, we merge NTU RGB+D’s 60 actions into only seven classes for action-based evaluation. These classes constitute “super-actions” which are reasonably close in appearance. They include a super-action for a subject moving their hand to their head, another for moving their whole body up or down on the spot, one for walking, one for stretching their hands out in front of them, another for kicking, a super-action for engaging in other fine manipulation with the hands, and finally a catch-all class for actions which do not fit into the aforementioned categories.
We found that the choice of representation for poses heavily influenced the subjective plausibility of pose sequences. Giving the DMM and baselines an absolute
coordinate for each joint resulted in wildly implausible continuations and poor generalisation. All experiments in this paper were instead carried out with a relative parameterisation: the location of the head is encoded as a series of frame-to-frame displacements over a sequence (i.e. its velocity), while the locations of each other joint was given relative to its parent. All sequences were mean-centred and scaled to have poses of the same height before applying this reparametrisation; after reparametrisation, each feature was again re-scaled to have zero mean and unit variance over the whole dataset.
Iv-B DMM and baseline configurations
Each DMM experiment used a 50 dimensional latent space for the DMM’s generative network, and 50 dimensional state vectors for the inference network’s bidirectional recurrent units.444At evaluation time, these bidirectional units are responsible for processing only the observed sequence of poses, and not the subsequent ground truth to be predicted. The architecture is otherwise identical to the ST-LR architecture of .
We compare with four baselines predictors. The first baseline is a zero-velocity model which merely assumes that all future poses will be identical to the last observed pose. The second is a neural network consisting of a single, unidirectional, 128 dimensional LSTM followed by a Fully Connected (FC) output layer. The third and fourth are Encoder-Recurrent-Decoder (ERD) and three-layer LSTM networks (LSTM-3LR) with the same architectures as those presented in . Note that the latter two models have significantly higher capacity than the former two: the ERD has two 500 dimensional FC layers, followed by two 1000 dimensional LSTMs, then another two hidden 500 and 100 dimensional FC layers, before the FC output layer. Likewise, the LSTM-3LR has a 500 dimensional hidden FC layer, followed by three 1000 dimensional LSTMs, before the FC output layer.
Iv-C Evaluation protocols

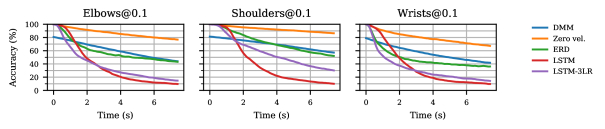

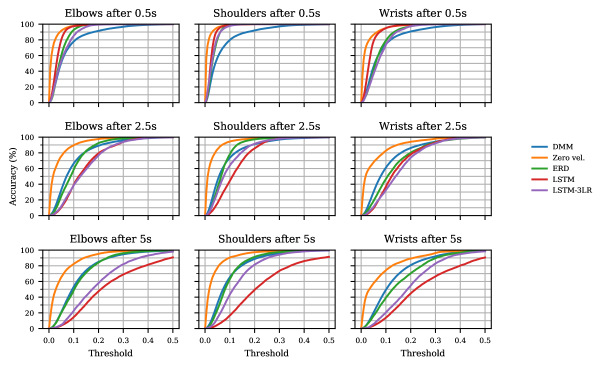

Our first set of experiments focuses on displacements between forecasted poses and the ground truth. Figure 4 and Figure 5 depict the accuracy of predicted poses on Ikea FA, while Figure 6 and Figure 7 depict corresponding statistics for NTU RGB+D. Accuracies are reported as Percentage Correct Keypoints (PCK); this shows, for a given joint or collection of joints, the proportion of instances in which the predicted joint was within a given distance threshold of the ground truth. On Ikea FA, these distances are normalised to the length of the diagonal of a tight bounding box around each pose, while on NTU RGB+D, the distances are instead normalised using the average of displacements between a given hip (left or right) and the opposite shoulder (right or left). Further, for the DMM, we sampled five random continuations of each sequence and reported expected PCK instead of ordinary PCK; this was not necessary for the other baselines, which are deterministic.
Our second set of experiments focuses on the degree to which forecasted pose sequences resemble the ground truth sequence of actions for the forecast. To recover an action sequence from a forecasted pose sequence, we apply a recurrent classifier network consisting of a pair of 50 dimensional bidirectional GRUs, followed by a pair of 50 dimensional FC hidden layers and an FC output layer. Weights for this network are learnt from the training sets of each dataset. As with the first set of experiments, we averaged the DMM’s performance over five sampled continuations per pose sequence. Table I shows the results of these experiments.
The joint-position-based evaluations on Ikea FA and NTU RGB+D show that the DMM performs best on longer forecasting horizons of several seconds or more. Further, Table I shows that we also improve on the three “smart” baselines (ERD, LSTM, LSTM-3LR) in terms of the consistency of our produced poses with the ground truth action sequence. Qualitatively, we found that the ERD, LSTM and LSTM-3LR baselines tend to start out with little error, but quickly either converge to a mean pose or diverge to an implausible set of poses. In contrast, the individual plausibility of poses produced by the DMM tends not to decrease over time, and the DMM’s output does not rapidly converge to an obvious fixed point. Forecasts for each model on a single example sequence are included in Figure 8.
One surprising—and troubling—outcome of our experiments is the high performance of the zero velocity model. Not only does it dominate all baselines in both types of experiment, but it also beats our DMM model. This kind of performance has been observed by other authors, as well: in introducing the ERD, Fragkiadaki et al.reported that their model did not consistently outperform a zero-velocity baseline on forecasting of upper-body joints , and more recent work shows that this is also true of other “state-of-the-art” models .
There are some factors specific to the DMM which may be causing it to fall short of the zero-velocity baseline. In large part, we expect that its inaccuracy is due to drift in the predicted pose: as noted in Section III-C, small errors in the predicted centre-of-mass of a person can rapidly build up to destroy prediction accuracy, even when the motion of limbs relative to one another is small. This problem is exacerbated by our choice of a velocity-based parametrisation for head location, which leads to very rapid build-up of error during fast motions. Even when the DMM is able to observe ground truth poses, before beginning to forecast, it still accumulates error as the velocity-based input features do not provide the necessary information for it to correct the drift which it accumulates. The left side of Figure 9 illustrates the issue.

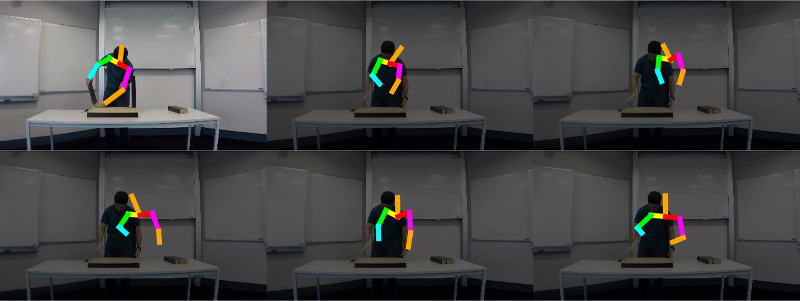

As Figure 1 demonstrates, the DMM is able to produce a good diversity of continuations for a given pose sequence. To some extent, though, this diversity comes at the cost of temporal consistency: during evaluation, we found that the DMM would sometimes flip between poses which were independently plausible, but not temporally consistent, as demonstrated on the right side of Figure 9. In contrast, the deterministic baselines offer much smoother continuations, but at the cost of poorer accuracy and a rapid drift toward implausible poses. In principle, it ought to be possible to obtain the best of both methods by adding a temporal smoothness penalty to the DMM, although we have so far been unable to improve results this way.
We have proposed a novel application of Deep Markov Models (DMMs) to human pose prediction, and shown that they are better able to make long-range pose forecasts than state-of-the-art models. Further, we have introduced a new action recognition and pose forecasting dataset called Ikea Furniture Assembly, and proposed a mechanism for action-based evaluation of pose forecasts. Given the inherent difficulty of making long-range motion forecasts from skeletons alone, we believe that the most fertile ground for future research lies in the use of visual context to enable more meaningful predictions over horizons of several seconds and beyond.
