Building large-scale globally consistent metric maps requires accurate relative location information between poses with large spatial separation. However, due to sensor noise and range limitations, such correlations across distant poses are difficult to extract from real robot sensors. Even when such observations are made, extracting such correlations autonomously is a computationally intensive problem. Furthermore, the order of exploration, and the speed of the robot during the exploration affect the numerical stability, and consequently the global consistency of large-scale maps. Due to these factors, even state of the art mapping algorithms often yield inaccurate or inconsistent large-scale maps, especially when processing data collected by novice users in challenging environments.
To address these challenges and limitations of large-scale mapping, we propose
Human-in-the-Loop SLAM (HitL-SLAM), a principled approach to incorporate
approximate human corrections in the process of solving for metric
maps111Code and sample data is available at:

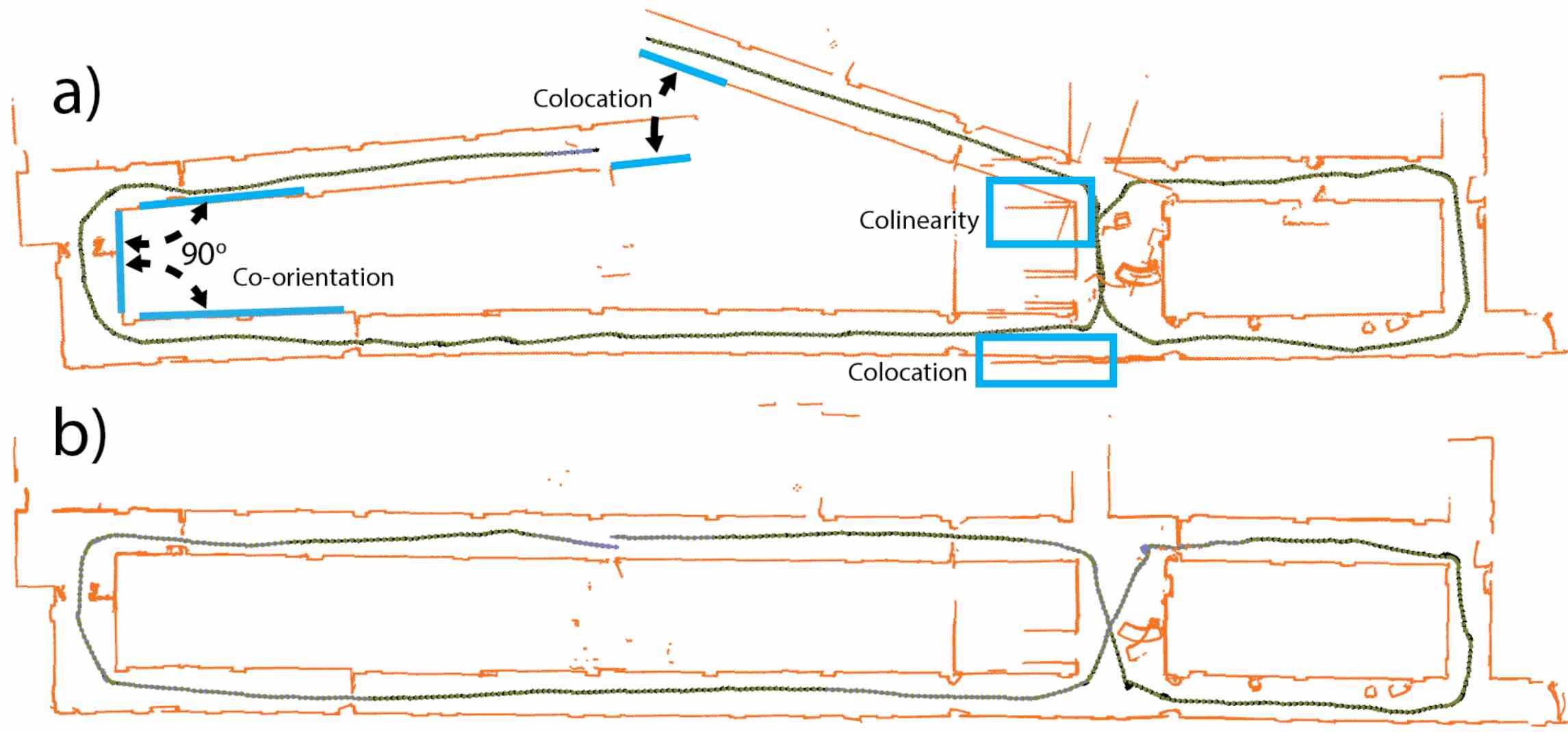

https://github.com/umass-amrl/hitl-slam. Fig. 1 presents an example of HitL-SLAM in practice. HitL-SLAM operates on a pose graph estimate of a map along with the corresponding observations from each pose, either from an existing state-of-the-art SLAM solver, or aligned only by odometry. In an interactive, iterative process, HitL-SLAM accepts human corrections, re-solves the pose graph problem, and presents the updated map estimate. This iterative procedure is repeated until the user is satisfied by the mapping result, and provides no further corrections.
We thus present three primary contributions: 1) an EM-based algorithm [Dempster, Laird, and Rubin1977] to interpret several types of approximate human correction for mapping (§4), 2) a human factor formulation to incorporate a variety of types of human corrections in a factor graph for SLAM (§5), and 3) a two-stage solver for the resultant, hybrid factor graph composed of human and robot factors, which minimally distorts trajectories in the presence of rank deficient human corrections (§5). We show how HitL-SLAM introduces numerical stability in the mapping problem by using human corrections to introduce off-diagonal blocks in the information matrix. Finally, we present several examples of HitL-SLAM operating on maps that intrinsically included erroneous observations and poor initial map estimates, and producing accurate, globally consistent maps.
Solutions to robotic mapping and SLAM have improved dramatically in recent years, but state-of-the-art algorithms still fall short at being able to repeatable and robustly produce globally consistent maps, particularly when deployed over large areas and by non-expert users. This is in part due to the difficulty of the data association problem [Dissanayake et al.2011, Bailey and Durrant-Whyte2006, Aulinas et al.2008]. The idea of humans and robots collaborating in the process of map building to overcome such limitations is not new, and is known as Human-Augmented Mapping (HAM).
Work within HAM belongs primarily to one of two groups, depending on whether the human and robot collaborate in-person during data collection (C-HAM), or whether the human provides input remotely or after the data collection (R-HAM). Many C-HAM techniques exist to address semantic [Nieto-Granda et al.2010, Christensen and Topp2010] and topological [Topp and Christensen2006] mapping. A number of approaches have also been proposed for integrating semantic and topological information, along with human trackers [Milella et al.2007], interaction models [Topp et al.2006], and appearance information [Pronobis and Jensfelt2012], into conceptual spatial maps [Zender et al.2007], which are organized in a hierarchical manner.
There are two limitations in these C-HAM approaches. First, a human must be present with the robot during data collection. This places physical constraints on the type of environments which can be mapped, as they must be accessible and traversable by a human. Second, these methods are inefficient with respect to the human’s attention, since most of the time the human’s presence is not critical to the robot’s function, for instance during navigation between waypoints. These approaches, which focus mostly on semantic and topological mapping, also typically assume that the robot is able to construct a nearly perfect metric map entirely autonomously. While this is reasonable for small environments, globally consistent metric mapping of large, dynamic spaces is still a hard problem.
In contrast, most of the effort in R-HAM has been concentrated on either incorporating human input remotely via tele-operation such as in the Urban Search and Rescue (USAR) problem [Murphy2004, Nourbakhsh et al.2005], or in high level decision making such as goal assignment or coordination of multiple agents [Olson et al.2013, Parasuraman et al.2007, Doroodgar et al.2010]. Some R-HAM techniques for metric mapping and pose estimation have also been explored, but these involve either having the robot retrace its steps to fill in parts missed by the human [Kim et al.2009] or by having additional agents and sensors in the environment [Kleiner, Dornhege, and Dali2007].
A number of other approaches have dealt with interpreting graphical or textual human input within the contexts of localization [Behzadian et al.2015, Boniardi et al.2016] and semantic mapping [Hemachandra, Walter, and Teller2014]. While these approaches solve similar signal interpretation problems, this paper specifically focuses on metric mapping.
Ideally, a robot could explore an area only once with no need for human guidance or input during deployment, and later with minimal effort, a human could make any corrections necessary to achieve a near-perfect metric map. This is precisely what HitL-SLAM does, and additionally HitL-SLAM does not require in-person interactions between the human and robot during the data collection.

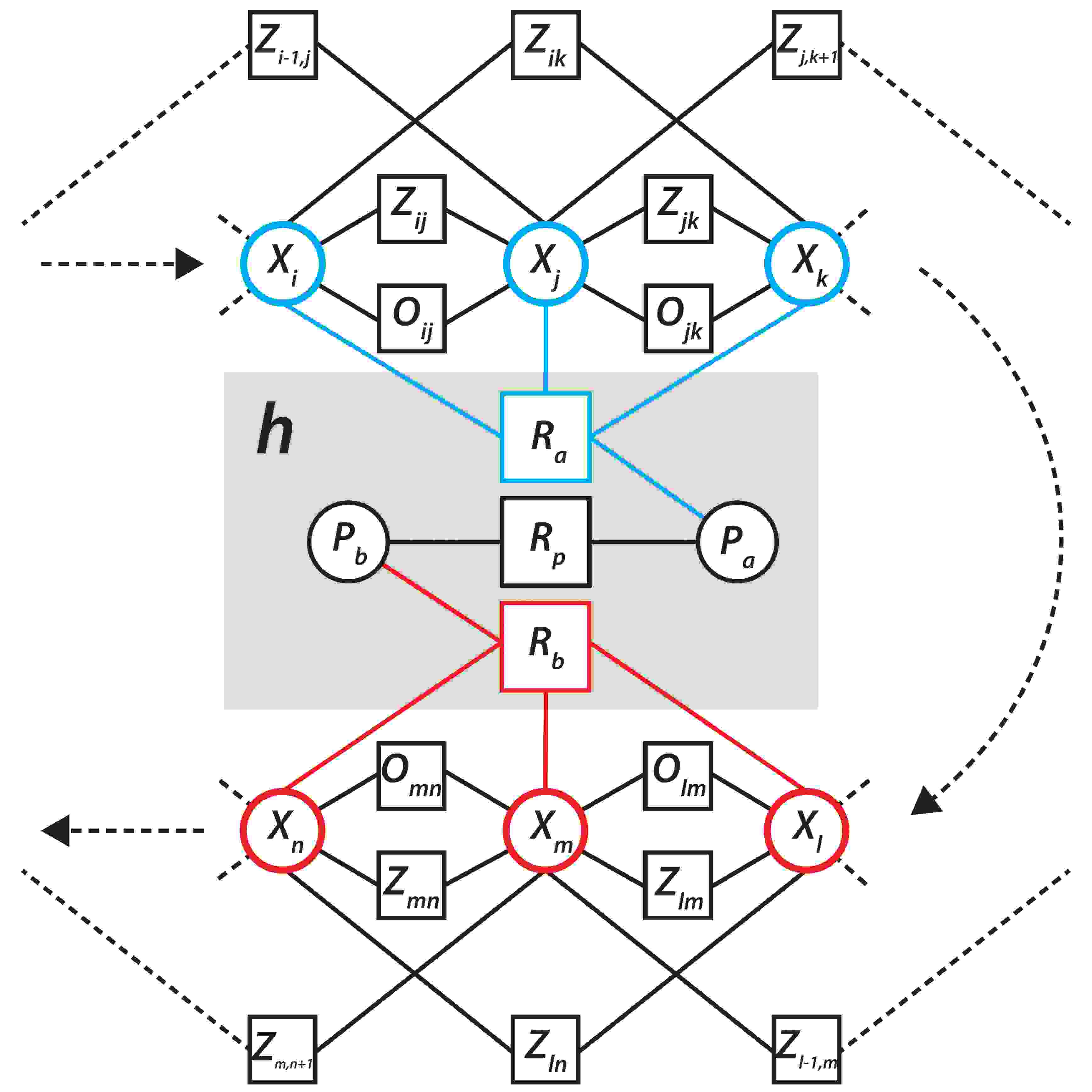

HitL-SLAM operates on a factor graph , where is the set of estimated poses along the robot’s trajectory, and is the set of factors which encode information about both relative pose constraints arising from odometry and observations, , and constraints supplied by the human, . The initial factor graph may be provided by any pose graph SLAM algorithm, and HitL-SLAM is capable of handling constraints in with or without loop closure. In our experiments, we used Episodic non-Markov Localization (EnML) [Biswas and Veloso2017] without any explicit loop closures beyond the length of each episode.
HitL-SLAM runs iteratively, with the human specifying constraints on observations in the map, and the robot then enforcing those constraints along with all previous constraints to produce a revised estimate of the map. To account for inaccuracies in human-provided corrections, interpretation of the such input is necessary before human correction factors can be computed and added to the factor graph. Each iteration, the robot first proposes an initial graph , then the human supplies a set of correction factors , and finally the robot re-optimizes the poses in the factor graph, producing .
A human correction factor, h, is defined by the tuple with:
are subsets of all observations , and poses are added to the sets if there are observations in that arising from pose . is an enumeration of the modes of human correction, a subset of which are shown in Fig. 2. The modes of correction are defined as follows:

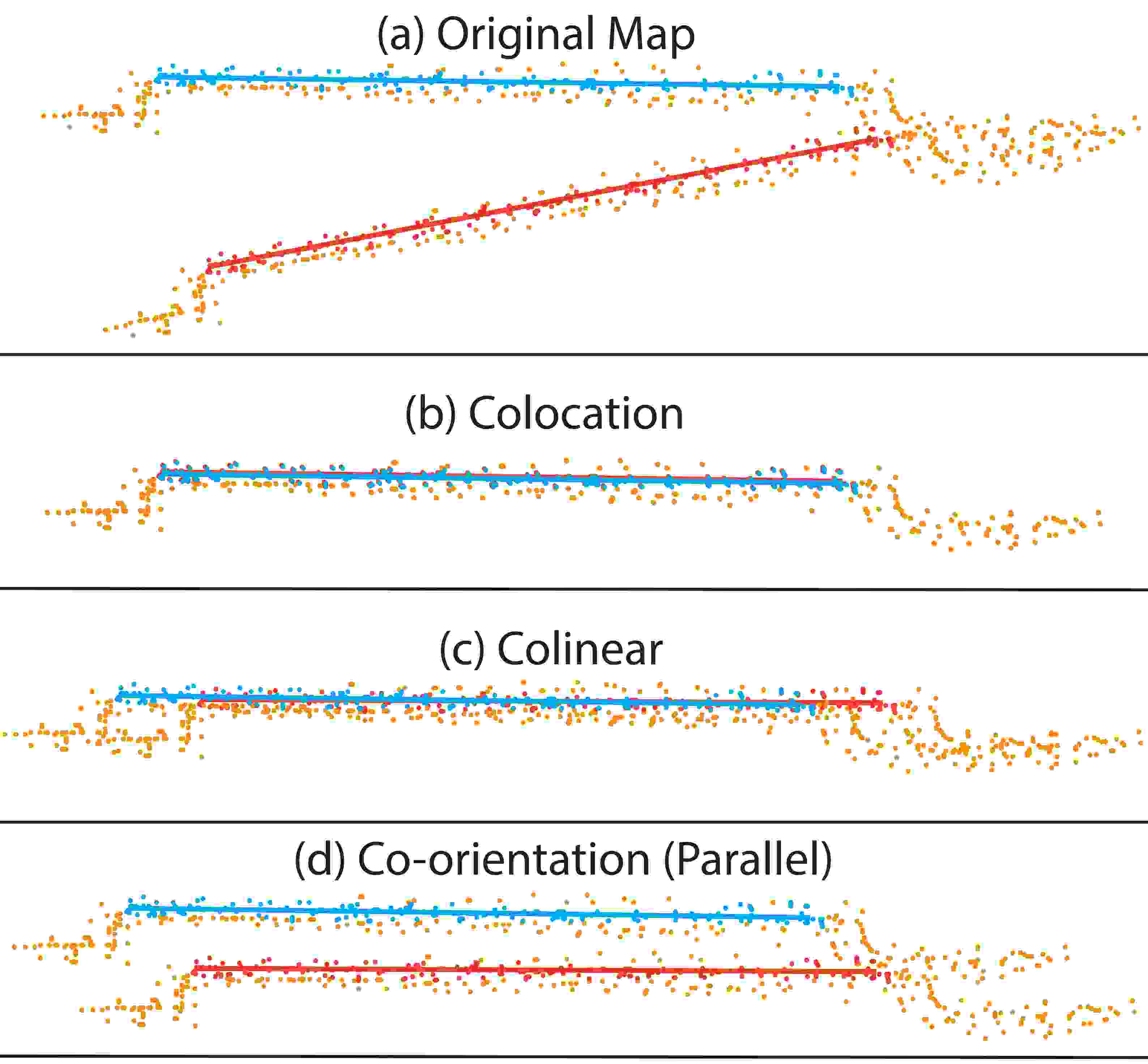

Colocation: A full rank constraint specifying that two sets of observations are at the same location, and with the same orientation.
Collinearity: A rank deficient constraint specifying that two sets of observations are on the same line, with an unspecified translation along the line.
Perpendicularity: A rank deficient constraint specifying that the two sets of observations are perpendicular, with an unspecified translation along either of their lines.
Parallelism: A rank deficient constraint specifying that the two sets of observations are parallel, with an unspecified translation along the parallel lines.

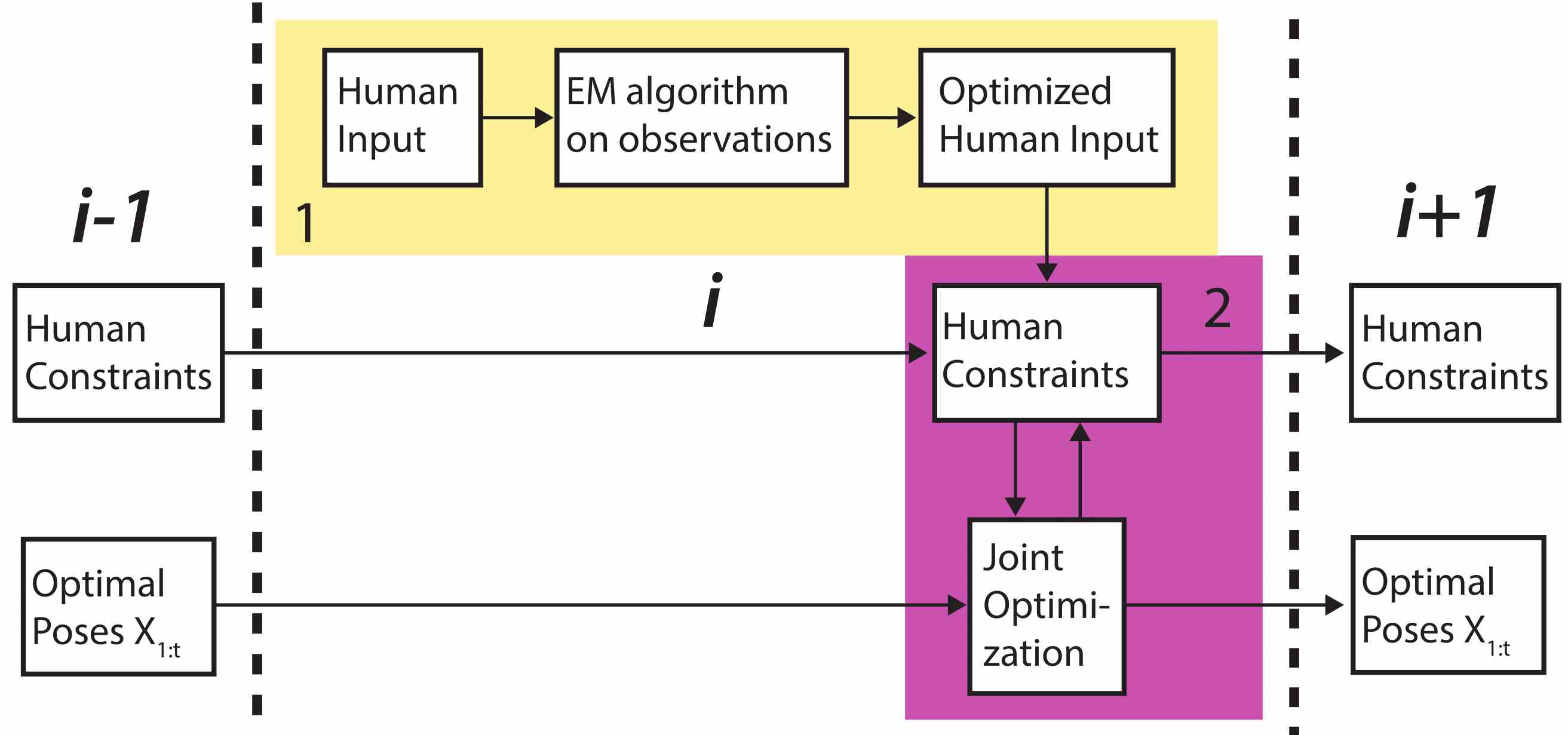

Each iteration of HitL-SLAM proceeds in two steps, shown in Fig. 3
. First, the human input is gathered, interpreted, and a set of human correction factors are instantiated (Block 1). Second, a combination of analytical and numerical techniques is used to jointly optimize the factor graph using both the human correction factors and the relative pose factors (Block 2). The resulting final map may be further revised and compressed by algorithms such as Long-Term Vector Mapping[Nashed and Biswas2016].
We model the problem of interpreting human input as finding the observation subsets and human input sets which maximize the joint correction input likelihood, , which is the likelihood of selecting observation sets and point sets , given initial human input and correction mode . To find and we use the sets and observations in a neighborhood around as initial estimates in an Expectation Maximization approach. As the pose parameters are adjusted during optimization in later iterations of HitL-SLAM, the locations of points in may change, but once an observation is established as a member of or its status is not changed.
Once and are determined for a new constraint, then given we can find the set of poses which best satisfy all given constraints. We first compute an initial estimate by analytic back-propagation of the most recent human correction factor, considering sequential constraints in the pose-graph. Next, we construct and solve a joint optimization problem over the relative pose factors and the human correction factors . This amounts to finding the set of poses which minimize the sum of the cost of all factors,
where computes the cost from relative pose-graph factor , and computes the cost from human correction factor with correction mode . Later sections cover the construction of the human correction factors and the formulation of the optimization problem.
Interpreting Human Input
Human Input Interface
HitL-SLAM users provide input by first entering the ‘provide correction’ state by pressing the ‘p’ key. Once in the ‘provide correction’ state, they enter points for , by clicking and dragging along the feature (line segment) they wish to specify. The mode is determined by which key is held down during the click and drag. For instance, CTRL signifies a colocation constraint, while SHIFT signifies a collinear constraint. To finalize their entry, the user exits the ‘provide correction’ state by again pressing the ‘p’ key. Exit from the ‘provide correction’ state triggers the algorithm in full, and the user may specify additional corrections once a revised version of the map is presented.
Human Input Interpretation
Due to a number of factors including imprecise input devices, screen resolution, and human error, what the human actually enters and what they intend to enter may differ slightly. Given the raw human input line segment end-points and the mode of correction , we frame the interpretation of human input as the problem of identifying the observation sets and the effective line segment end-points most likely to be captured by the potentially noisy points . To do this we use the EM algorithm, which maximizes the log-likelihood ,
where the parameters are the interpreted human input (initially assumed to be ), the are the observations, and the latent variables are indicator variables denoting the inclusion or exclusion of from or . The expressions for and
come from a generative model of human error based on the normal distribution,. Here,
is the standard deviation of the human’s accuracy when manually specifying points, and is determined empirically;is the center or surface of the feature.
Let be the squared Euclidean distance between a given observation and the feature (in this case a line segment) parameterized by . Note that is convex due to our Gaussian model of human error. Thus, the EM formulation reduces to iterative least-squares over changing subsets of within the neighborhoods of . The raw human inputs are taken as the initial guess to the solution , and are successively refined of iterations of the EM algorithm to compute the final interpreted human input .
Once have been determined, along with observations , we can find the poses responsible for those observations , thus fully defining the human correction factor . To make this process more robust to human error when providing corrections, a given pose is only allowed in or if there exist a minimum of elements in or corresponding to that pose. The threshold
is used for outlier rejection of provided human corrections. It is empirically determined by evaluating a human’s ability to accurately select points corresponding to map features, and is the minimum number of points a feature must have for it to be capable of being repeatedly and accurately selected by a human.
After interpreting human input, new pose estimates are computed in three steps. First, all explicit corrections indicated by the human are made by applying the appropriate transformation to and subsequent poses. Next, any resultant discontinuities are addressed using Closed-Form Online Pose-Chain SLAM (COP-SLAM) [Dubbelman and Browning2015]. And last, final pose parameters are calculated via non-linear least-squares optimization of a factor graph. The three-step approach is necessary in order to avoid local minima.
Applying Explicit Human Corrections
Although the user may select sets of observations in any order, we define all poses to occur before all poses . That is, is the input which selects observations arising from poses such that and , , where is defined analogously by observations specified by input .
Given and , we find the affine correction transformation which transforms the set of points defined by to the correct location relative to the set of points defined by , as specified by mode . If the correction mode is rank deficient, we force the motion of the observations as a whole to be zero along the null space dimensions. For co-orientation, this means that the translation correction components of are zero, and for collinearity the translation along the axis of collinearity is zero. Fig. 2 shows the effect of applying different types of constraints to a set of point clouds.
After finding we then consider the poses in to constitute points on a rigid body, and transform that body by . The poses such that , , are treated similarly, such that the relative transformations between all poses occurring during or after remain unchanged.

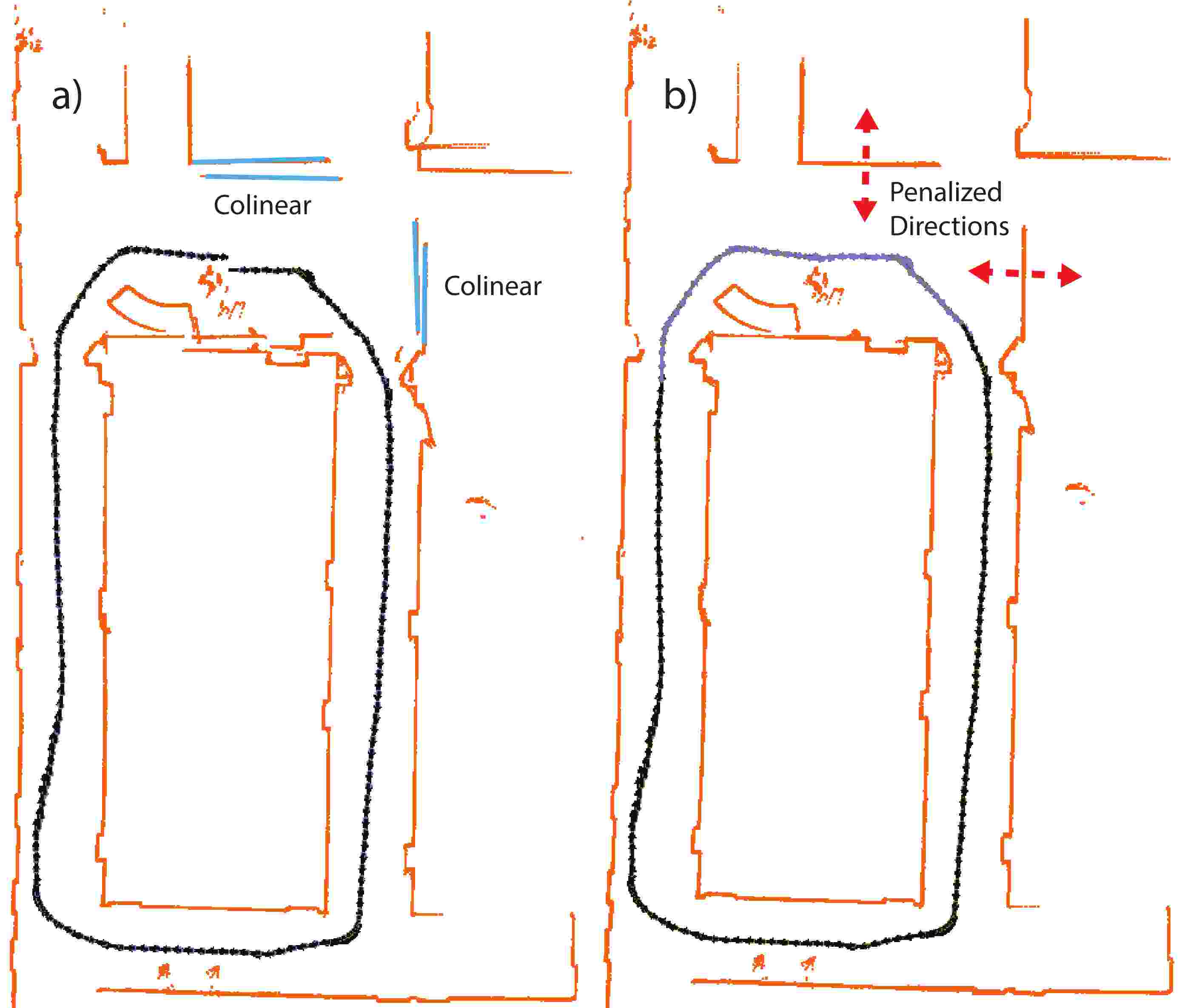

If does not form a contiguous sequence of poses, then this explicit change creates at least one discontinuity between the earliest pose in , and its predecessor, . We define affine transformation such that , where was the original relative transformation between and . Given , and the pose and covariance estimates for poses between and , we use COP-SLAM over these intermediate poses to transform without inducing further discontinuities.
The idea behind COP-SLAM is a covariance-aware distribution of translation and rotation across many poses, such that the final pose in the pose-chain ends up at the correct location and orientation. The goal is to find a set of updates to the relative transformations between poses in the pose-chain such that .
COP-SLAM has two primary weaknesses as a solution to applying human corrections in HitL-SLAM. First, it requires translation uncertainty estimates to be isotropic, which is not true in general. Second, COP-SLAM deals poorly with nested loops, where it initially produces good pose estimates but during later adjustments may produce inconsistencies between observations. This is because COP-SLAM is not able to simultaneously satisfy both current and previous constraints. Due to these issues, we use COP-SLAM as an initial estimate to a non-linear least-squares optimization problem, which produces a more robust, globally consistent map.
Without loop closure, a pose-chain of poses has factors. With most loop closure schemes, each loop can be closed by adding one additional factor per loop. In HitL-SLAM, the data provided by the human is richer than most front-end systems, and reflecting this in the factor graph could potentially lead to a prohibitively large number of factors. If and , then a naïve algorithm that adds a factor between all pairs , , and , where and , would add factors for every loop. This is a poor approach for two reasons. One, the large number of factors can slow down the optimizer and potentially prevent it from reaching the global optimum. And two, this formulation implies that every factor is independent of every other factor, which is incorrect.

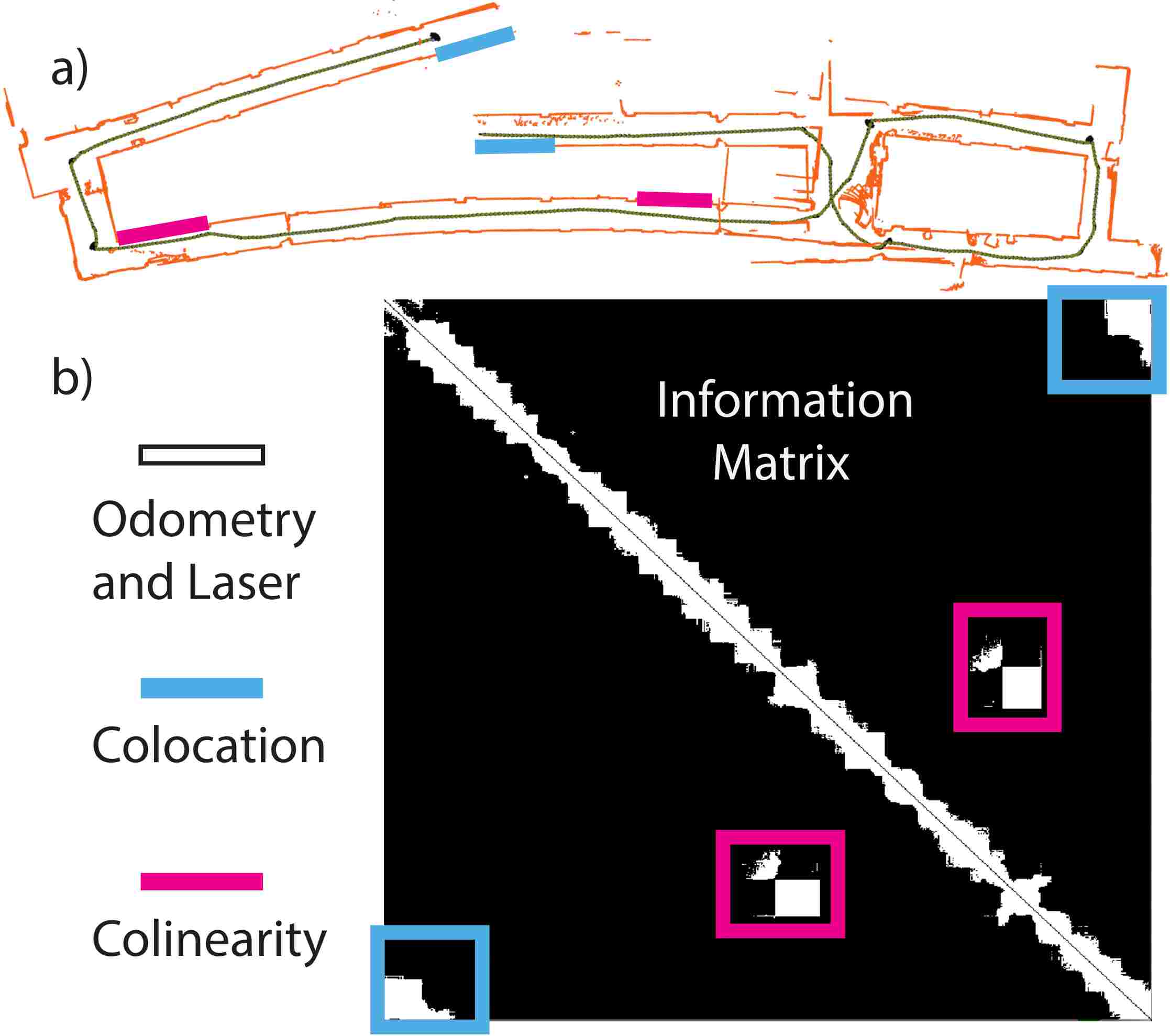

Thus, we propose a method for reasoning about human correction factors jointly, in a manner which creates a constant number of factors per loop while also preserving the structure and information of the input. Given a human correction factor , we define as the sum of three residuals, , , and . The definitions of and are the same regardless of the correction mode :
As before, denotes the squared Euclidean distance from observation to the closest point on the feature defined by the set of points . All features used in this study are line segments, but depending on , more complicated features with different definitions for may be used. implicitly enforces the interdependence of different , since moving a pose away from its desired relative location to other poses in will incur cost due to misaligned observations. The effect on by is analogous.
The relative constraints between poses in and poses in are enforced indirectly by the third residual, . Depending on the mode, colocation (), collinearity (), co-orientation parallel (), co-orientation perpendicular (), the definition changes:
Here, and are the centers of mass of and , respectively, and and are the unit normal vectors for the feature (line) defined by and , respectively. and are constants that determine the relative costs of translational error () and rotational error (). The various forms of all drive the points in to the correct location and orientation relative to . During optimization the solver is allowed to vary pose locations and orientations, and by doing so the associated observation locations, as well as points in and . Fig. 4 illustrates the topology of the human correction factors in our factor graph.

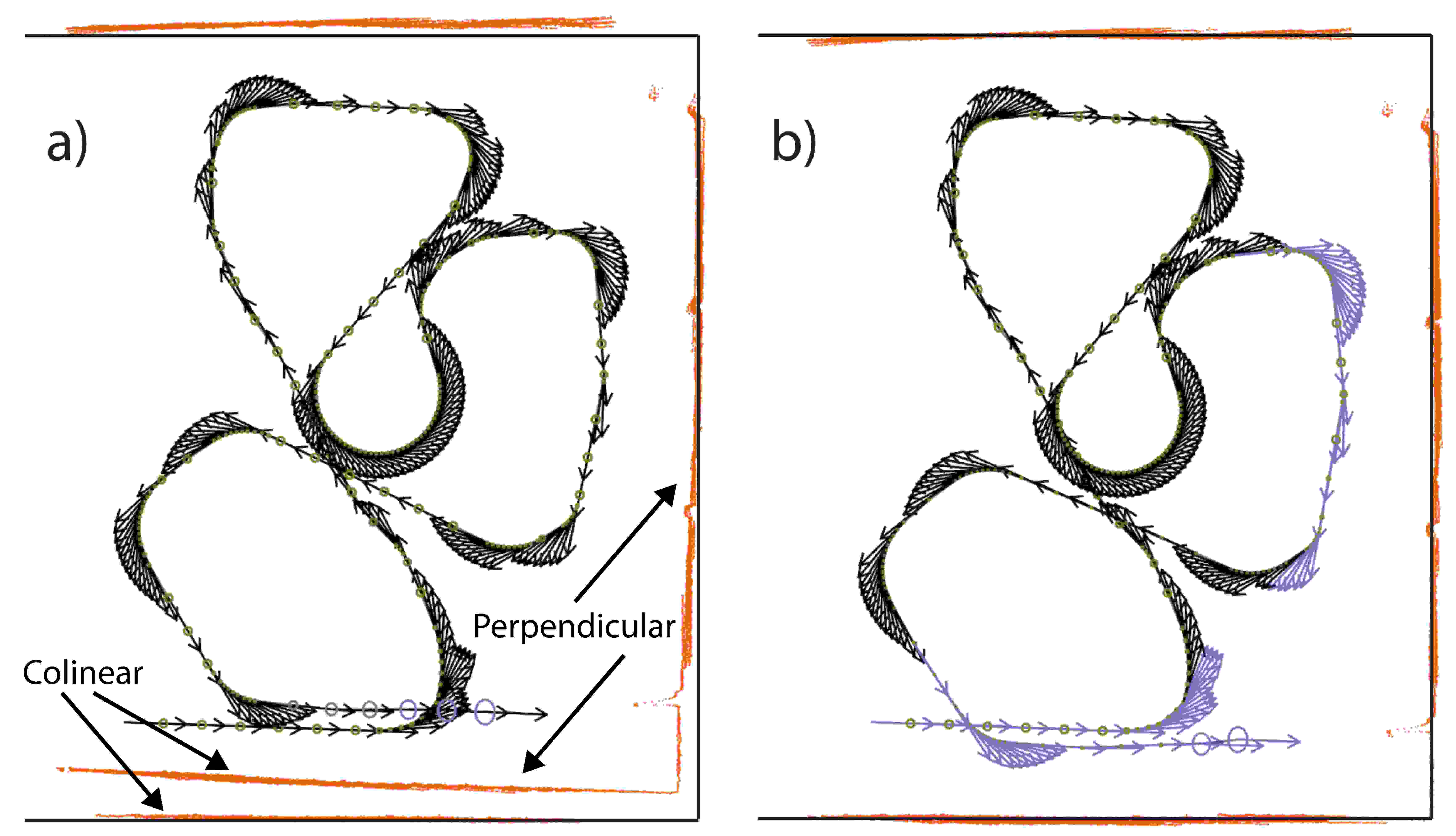

Note that HitL-SLAM allows human correction factors to be added to the factor graph in a larger set of situations compared to autonomous loop closure. HitL-SLAM introduces ‘information’ loop closure by adding correlations between distant poses without the poses being at the same location as in conventional loop closure. The off-diagonal elements in the information matrix thus introduced by HitL-SLAM assist in enforcing global consistency just as the off-diagonal elements introduced by loop closure. Fig. 5 further illustrates this point – note that the information matrix is still symmetric and sparse, but with the addition of off-diagonal elements from the human corrections.
Evaluation of HitL-SLAM is carried out through two sets of experiments. The first set is designed to test the accuracy of HitL-SLAM, and the second set is designed to test the scalability of HitL-SLAM to large environments.
To test the accuracy of HitL-SLAM, we construct a data set in a large room during which no two parallel walls are simultaneously visible to the robot. We do this by limiting the range of our robot’s laser to 1.5m so that it sees a wall only when very close. We then drive it around the room for which we have ground truth dimensions. This creates sequences of “lost” poses throughout the pose-chain which rely purely on odometry to localize, thus accruing error over time. We then impose human constraints on the resultant map and compare to ground truth, shown in Fig. 8. Note that the human corrections do not directly enforce any of the measured dimensions. The initial map shows a room width of 5.97m, and an angle between opposite walls of . HitL-SLAM finds a room width of 6.31m, while the ground truth width is 6.33m, and produces opposite walls which are within of parallel. Note also that due to the limited sensor range, the global correctness must come from proper application of human constraints to the factor graph including the “lost” poses between wall observations.
To quantitatively evaluate accuracy on larger maps, where exact ground truth is sparse, we measured an inter-corridor spacing (Fig. 6 2b), which is constant along the length of the building. We also measured angles between walls we know to be parallel or perpendicular. The results for ground truth comparisons before and after HitL-SLAM, displayed in Table 1, show that HitL-SLAM is able to drastically reduce map errors even when given poor quality initial maps.
We introduce an additional metric for quantitative map evaluation. We define the pair-wise inconsistency between poses and to be the area which observations from pose show as free space and observations from pose show as occupied space. We define the total inconsistency over the map as the pair-wise sum of inconsistencies between all pairs of poses, . The inconsistency metric thus serves as a quantitative metric of global registration error between observations in the map, and allows us to track the effectiveness of global registration using HitL-SLAM over multiple iterations. The initial inconsistency values for maps LGRC 3A and 3B were and , respectively. The final inconsistency values were and , respectively, for an average inconsistency reduction of relative to the initial map, thus demonstrating the improved global consistency of the map generated using HitL-SLAM. Fig. 6 and Fig. 9 offer some qualitative examples of HitL-SLAM’s performance.
|Map||Samples||Input Err.||HitL-SLAM Err.|
To test the scalability of HitL-SLAM, we gathered several datasets with between 600 and 700 poses, and one with over 3000 poses and nearly 1km of indoor travel between three large buildings. Fig. 6 shows some of the moderately sized maps, and Fig. 7 details the largest map. 16 constraints were required to fix the largest map, and computation time never exceeded the time required to re-display the map, or for the human to move to a new map location.
All maps shown in Fig. 6 were corrected interactively by the human using HitL-SLAM in under 15 minutes. Furthermore, HitL-SLAM solves two common problems which are difficult or impossible to solve via re-deployment: 1) a severely bent hallway, in Fig. 6 1a), and 2) a sensor failure, in Fig. 6 2a) which caused the robot to incorrectly estimate its heading by roughly 30 degrees at one point. Combined, these results show that incorporating human input into metric mapping can be done in a principled, computationally tractable manner, which allows us to fix metric mapping consistency errors in less time and with higher accuracy than previously possible, given a small amount of human input.
We present Human-in-the-Loop SLAM (HitL-SLAM), an algorithm designed to leverage human ability and meta-knowledge as they relate to the data association problem for robotic mapping. HitL-SLAM contributes a generalized framework for interpreting human input using the EM algorithm, as well as a factor graph based algorithm for incorporating human input into pose-graph SLAM. Future work in this area could proceed towards further reducing the human requirements, and extending this method for higher dimensional SLAM and for different sensor types.
The authors would like to thank Manuela Veloso from Carnegie Mellon University for providing the CoBot4 robot used to collect the AMRL datasets, and to perform experiments at University of Massachusetts Amherst. This work is supported in part by AFRL and DARPA under agreement #FA8750-16-2-0042.
