1 Introduction

Generative Adversarial Networks (GANs) [19]

are deep neural net architectures composed of a pair of competing neural networks: a generator and a discriminator. This model is trained by alternately optimizing two objective functions so that the generator

learns to produce samples resembling real images, and the discriminator

learns to better discriminate between real and fake data. Such a paradigm has huge potential, as it can learn to generate any data distribution. This has been exploited with some success in several computer vision problems, such as text-to-image

[56] and image-to-image [24, 59]

translation, super-resolution

[31], and realistic natural image generation [25].

Since the original GAN model [19] was proposed, many variants have appeared in the past few years, for example, to improve the quality of the generated images [25, 12, 36, 15], or to stabilize the training procedure [7, 20, 9, 34, 36, 57, 40]. GANs have also been modified to generate images of a given class by conditioning on additional information, such as the class label [35, 16, 37, 41]. There are a number of ways to do this: ranging from concatenation of label to the generator input or intermediate feature maps [16, 35]

, to using conditional batch normalization

[37]

, and augmenting the discriminator with an auxiliary classifier

[41]. With several such variants being regularly proposed in the literature, a critical question is how these models can be evaluated and compared to each other.

Evaluation and comparison of GANs, or equivalently, the images generated by GANs, is challenging. This is in part due to the lack of an explicit likelihood measure [51], which is commonplace in comparable probabilistic models [47, 27]. Thus, much of the previous work has resorted to a mere subjective visual evaluation in the case of images synthesized by GANs. As seen from the sample images generated by a state-of-the-art GAN [36] in Figure 1, it is impossible to judge their quality precisely with a subjective evaluation. Recent work in the past two years has begun to target this challenge through quantitative measures for evaluating GANs [46, 22, 32, 25].

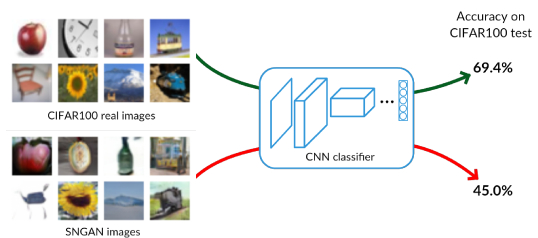

Figure 1: State-of-the-art GANs, e.g., SNGAN [36], generate realistic images, which are difficult to evaluate subjectively in comparison to real images. Our new image classification accuracy-based measure (GAN-train is shown here) overcomes this issue, showing a clear difference between real and generated images.

Inception score (IS) [46] and Fréchet Inception distance (FID) [22]

were suggested as ad-hoc measures correlated with the visual quality of generated images. Inception score measures the quality of a generated image by computing the KL-divergence between the (logit) response produced by this image and the marginal distribution, i.e., the average response of all the generated images, using an Inception network

[50]

trained on ImageNet. In other words, Inception score does not compare samples with a target distribution, and is limited to quantifying the diversity of generated samples. Fréchet Inception distance compares Inception activations (responses of the penultimate layer of the Inception network) between real and generated images. This comparison however approximates the activations of real and generated images as Gaussian distributions (cf. equation (

2)), computing their means and covariances, which are too crude to capture subtle details. Both these measures rely on an ImageNet-pretrained Inception network, which is far from ideal for other datasets, such as faces and biomedical imaging. Overall, IS and FID are useful measures to evaluate how training advances, but they guarantee no correlation with performance on real-world tasks. As we discuss in Section 5, these measures are insufficient to finely separate state-of-the-art GAN models, unlike our measures (see SNGAN vs WPGAN-GP (10M) in Table 2 for example).

An alternative evaluation is to compute the distance of the generated samples to the real data manifold in terms of precision and recall

[32]. Here, high precision implies that the generated samples are close to the data manifold, and high recall shows that the generator outputs samples that cover the manifold well. These measures remain idealistic as they are impossible to compute on natural image data, whose manifold is unknown. Indeed, the evaluation in [32] is limited to using synthetic data composed of gray-scale triangles. Another distance suggested for comparing GAN models is sliced Wasserstein distance (SWD) [25]. SWD is an approximation of Wasserstein-1 distance between real and generated images, and is computed as the statistical similarity between local image patches extracted from Laplacian pyramid representations of these images. As shown in Section 5, SWD is less-informative than our evaluation measures.

In this paper, we propose new evaluation measures to compare class-conditional GAN architectures with GAN-train and GAN-test scores. We rely on a neural net architecture for image classification for both these measures. To compute GAN-train, we train a classification network with images generated by a GAN, and then evaluate its performance on a test set composed of real-world images. Intuitively, this measures the difference between the learned (i.e., generated image) and the target (i.e., real image) distributions. We can conclude that generated images are similar to real ones if the classification network, which learns features for discriminating images generated for different classes, can correctly classify real images. In other words, GAN-train is akin to a recall measure, as a good GAN-train performance shows that the generated samples are diverse enough. However, GAN-train also requires a sufficient precision, as otherwise the classifier will be impacted by the sample quality.

Our second measure, GAN-test, is the accuracy of a network trained on real images and evaluated on the generated images. This measure is similar to precision, with a high value denoting that the generated samples are a realistic approximation of the (unknown) distribution of natural images. In addition to these two measures, we study the utility of images generated by GANs for augmenting training data. This can be interpreted as a measure of the diversity of the generated images. The utility of our evaluation approach, in particular, when a subjective inspection is insufficient, is illustrated with the GAN-train measure in Figure 1. We will discuss these measures in detail in Section 3.

As shown in our extensive experimental results in Section 5 and the appendix in the supplementary material and technical report [5], these measures are much more informative to evaluate GANs, compared to all the previous measures discussed, including cases where human studies are inconclusive. In particular, we evaluate two state-of-the-art GAN models: WGAN-GP [20] and SNGAN [36], along with other generative models [45, 47] to provide baseline comparisons. Image classification performance is evaluated on MNIST [30], CIFAR10, CIFAR100 [28], and the ImageNet [14] datasets. Experimental results show that the quality of GAN images decreases significantly as the complexity of the dataset increases.

2 Related work

We present existing quantitative measures to evaluate GANs: scores based on an Inception network, i.e., IS and FID, a Wasserstein-based distance metric, precision and recall scores, and a technique built with data augmentation.

2.1 Inception score

One of the most common ways to evaluate GANs is the Inception score [46]. It uses an Inception network [50] pre-trained on ImageNet to compute logits of generated images. The score is given by:

(1)

where is a generated image sampled from the learned generator distribution , is the expectation over the set of generated images, is the KL-divergence between the conditional class distribution (for label , according to the Inception network) and the marginal class distribution ]. By definition, Inception score does not consider real images at all, and so cannot measure how well the generator approximates the real distribution. This score is limited to measuring only the diversity of generated images. Some of its other limitations, as noted in [8]

, are: high sensitivity to small changes in weights of the Inception network, and large variance of scores.

2.2 Fréchet Inception distance

The recently proposed Fréchet Inception distance (FID) [22] compares the distributions of Inception embeddings (activations from the penultimate layer of the Inception network) of real () and generated () images. Both these distributions as modeled as multi-dimensional Gaussians parameterized by their respective mean and covariance. The distance measure is defined between the two Gaussian distributions as:

(2)

where , denote the mean and covariance of the real and generated image distributions respectively. FID is inversely correlated with Inception score, and suffers from the same issues discussed earlier.

The two Inception-based measures cannot separate image quality from image diversity. For example, low IS or FID values can be due to the generated images being either not realistic (low image quality) or too similar to each other (low diversity), with no way to analyze the cause. In contrast, our measures can distinguish when generated images become less diverse from worse image quality.

2.3 Other evaluation measures

Sliced Wasserstein distance (SWD) [25] was used to evaluate high-resolution GANs. It is a multi-scale statistical similarity computed on local image patches extracted from the Laplacian pyramid representation of real and generated images. A total of 128 local patches for each level of the Laplacian pyramid are extracted per image. While SWD is an efficient approximation, using randomized projections [44], of the Wasserstein-1 distance between the real and generated images, its utility is limited when comparing a variety of GAN models, with not all of them producing high-resolution images (see our evaluation in Section 5).

Precision and recall measures were introduced [32] in the context of GANs, by constructing a synthetic data manifold. This makes it possible to compute the distance of an image sample (generated or real) to the manifold, by finding its distance to the closest point from the manifold. In this synthetic setup, precision is defined as the fraction of the generated samples whose distance to the manifold is below a certain threshold. Recall, on the other hand, is computed by considering a set of test samples. First, the latent representation of each test sample

is estimated, through gradient descent, by inverting the generator

. Recall is then given by the fraction of test samples whose L2-distance to is below the threshold. High recall is equivalent to the GAN capturing most of the manifold, and high precision implies that the generated samples are close to the manifold. Although these measures bring the flavor of techniques used widely to evaluate discriminative models to GANs, they are impractical for real images as the data manifold is unknown, and their use is limited to evaluations on synthetic data [32].

2.4 Data augmentation

Augmenting training data is an important component of learning neural networks. This can be achieved by increasing the size of the training set [29] or incorporating augmentation directly in the latent space [54]. A popular technique is to increase the size of the training set with minor transformations of data, which has resulted in a performance boost, e.g., for image classification [29]. GANs provide a natural way to augment training data with the generated samples. Indeed, GANs have been used to train classification networks in a semi-supervised fashion [13, 52] or to facilitate domain adaptation [10]. Modern GANs generate images realistic enough to improve performance in applications, such as, biomedical imaging [18, 11], person re-identification [58] and image enhancement [55]. They can also be used to refine training sets composed of synthetic images for applications such as eye gaze and hand pose estimation [49]. GANs are also used to learn complex 3D distributions and replace computationally intensive simulations in physics [42, 39] and neuroscience [38]. Ideally, GANs should be able to recreate the training set with different variations. This can be used to compress datasets for learning incrementally, without suffering from catastrophic forgetting as new classes are added [48]. We will study the utility of GANs for training image classification networks with data augmentation (see Section 5.4), and analyze it as an evaluation measure.

[capbesideposition=right,top,capbesidewidth=6cm]figure[]

Figure 2: Illustration of GAN-train and GAN-test. GAN-train learns a classifier on GAN generated images and measures the performance on real test images. This evaluates the diversity and realism of GAN images. GAN-test learns a classifier on real images and evaluates it on GAN images. This measures how realistic GAN images are.

In summary, evaluation of generative models is not a easy task [51], especially for models like GANs. We bring a new dimension to this problem with our GAN-train and GAN-test performance-based measures, and show through our extensive analysis that they are complementary to all the above schemes.

3 GAN-train and GAN-test

An important characteristic of a conditional GAN model is that generated images should not only be realistic, but also recognizable as coming from a given class. An optimal GAN that perfectly captures the target distribution can generate a new set of images , which are indistinguishable from the original training set . Assuming both these sets have the same size, a classifier trained on either of them should produce roughly the same validation accuracy. This is indeed true when the dataset is simple enough, for example, MNIST [48] (see also Section 5.2). Motivated by this optimal GAN characteristic, we devise two scores to evaluate GANs, as illustrated in Figure 2.

GAN-train is the accuracy of a classifier trained on and tested on a validation set of real images . When a GAN is not perfect, GAN-train accuracy will be lower than the typical validation accuracy of the classifier trained on . It can happen due to many reasons, e.g., (i) mode dropping reduces the diversity of in comparison to , (ii) generated samples are not realistic enough to make the classifier learn relevant features, (iii) GANs can mix-up classes and confuse the classifier. Unfortunately, GAN failures are difficult to diagnose. When GAN-train accuracy is close to validation accuracy, it means that GAN images are high quality and as diverse as the training set. As we will show in Section 5.3, diversity varies with the number of generated images. We will analyze this with the evaluation discussed at the end of this section.

GAN-test is the accuracy of a classifier trained on the original training set , but tested on . If a GAN learns well, this turns out be an easy task because both the sets have the same distribution. Ideally, GAN-test should be close to the validation accuracy. If it significantly higher, it means that the GAN overfits, and simply memorizes the training set. On the contrary, if it is significantly lower, the GAN does not capture the target distribution well and the image quality is poor. Note that this measure does not capture the diversity of samples because a model that memorizes exactly one training image perfectly will score very well. GAN-test accuracy is related to the precision score in [32], quantifying how close generated images are to a data manifold.

To provide an insight into the diversity of GAN-generated images, we measure GAN-train accuracy with generated sets of different sizes, and compare it with the validation accuracy of a classifier trained on real data of the corresponding size. If all the generated images were perfect, the size of where GAN-train is equal to validation accuracy with the reduced-size training set, would be a good estimation of the number of distinct images in . In practice, we observe that GAN-train accuracy saturates with a certain number of GAN-generated samples (see Figures 4(a) and 4(b) discussed in Section 5.3). This is a measure of the diversity of a GAN, similar to recall from [32], measuring the fraction of the data manifold covered by a GAN.

4 Datasets and Methods

Datasets. For comparing the different GAN methods and PixelCNN++, we use several image classification datasets with an increasing number of labels: MNIST [30], CIFAR10 [28], CIFAR100 [28] and ImageNet1k [14]. CIFAR10 and CIFAR100 both have 50k RGB images in the training set, and 10k images in the validation set. CIFAR10 has 10 classes while CIFAR100 has 100 classes. ImageNet1k has 1000 classes with 1.3M training and 50k validation images. We downsample the original ImageNet images to two resolutions in our experiments, namely and . MNIST has 10 classes of grayscale images, with 60k samples for training and 10k for validation.

We exclude the CIFAR10/CIFAR100/ImageNet1k validation images from GAN training to enable the evaluation of test accuracy. This is not done in a number of GAN papers and may explain minor differences in IS and FID scores compared to the ones reported in these papers.

4.1 Evaluated methods

Among the plethora of GAN models in literature, it is difficult to choose the best one, especially since appropriate hyperparameter fine-tuning appears to bring all major GANs within a very close performance range, as noted in a study

[32]

. We choose to perform our analysis on Wasserstein GAN (WGAN-GP), one of the most widely-accepted models in literature at the moment, and SNGAN, a very recent model showing state-of-the-art image generation results on ImageNet. Additionally, we include two baseline generative models, DCGAN

[45] and PixelCNN++ [47]. We summarize all the models included in our experimental analysis below, and present implementation details in the appendix [5].

Wasserstein GAN. WGAN [7] replaces the discriminator separating real and generated images with a critic estimating Wasserstein-1 (i.e., earth-mover’s) distance between their corresponding distributions. The success of WGANs in comparison to the classical GAN model [19] can be attributed to two reasons. Firstly, the optimization of the generator is easier because the gradient of the critic function is better behaved than its GAN equivalent. Secondly, empirical observations show that the WGAN value function better correlates with the quality of the samples than GANs [7].

In order to estimate the Wasserstein-1 distance between the real and generated image distributions, the critic must be a K-Lipschitz function. The original paper [7] proposed to constrain the critic through weight clipping to satisfy this Lipschitz requirement. This, however, can lead to unstable training or generate poor samples [20]. An alternative to clipping weights is the use of a gradient penalty as a regularizer to enforce the Lipschitz constraint. In particular, we penalize the norm of the gradient of the critic function with respect to its input. This has demonstrated stable training of several GAN architectures [20].

We use the gradient penalty variant of WGAN, conditioned on data in our experiments, and refer to it as WGAN-GP in the rest of the paper. Label conditioning is an effective way to use labels available in image classification training data [41]. Following ACGAN [41], we concatenate the noise input

with the class label in the generator, and modify the discriminator to produce probability distributions over the sources as well as the labels.

SNGAN. Variants have also analyzed other issues related to training GANs, such as the impact of the performance control of the discriminator on training the generator. Generators often fail to learn the multimodal structure of the target distribution due to unstable training of the discriminator, particularly in high-dimensional spaces [36]. More dramatically, generators cease to learn when the supports of the real and the generated image distributions are disjoint [6]. This occurs since the discriminator quickly learns to distinguish these distributions, resulting in the gradients of the discriminator function, with respect to the input, becoming zeros, and thus failing to update the generator model any further.

SNGAN [36]

introduces spectral normalization to stabilize training the discriminator. This is achieved by normalizing each layer of the discriminator (i.e., the learnt weights) with the spectral norm of the weight matrix, which is its largest singular value. Miyato

et al. [36] showed that this regularization outperforms other alternatives, including gradient penalty, and in particular, achieves state-of-the-art image synthesis results on ImageNet. We use the class-conditioned version of SNGAN [37] in our evaluation. Here, SNGAN is conditioned with projection in the discriminator network, and conditional batch normalization [17] in the generator network.

DCGAN.

Deep convolutional GANs (DCGANs) is a class of architecture that was proposed to leverage the benefits of supervised learning with CNNs as well as the unsupervised learning of GAN models

[45]. The main principles behind DCGANs are using only convolutional layers and batch normalization for the generator and discriminator networks. Several instantiations of DCGAN are possible with these broad guidelines, and in fact, many do exist in literature [41, 20, 36]. We use the class-conditioned variant presented in [41] for our analysis.

PixelCNN++. The original PixelCNN [53] belongs to a class of generative models with tractable likelihood. It is a deep neural net which predicts pixels sequentially along both the spatial dimensions. The spatial dependencies among pixels are captured with a fully convolutional network using masked convolutions. PixelCNN++ proposes improvements to this model in terms of regularization, modified network connections and more efficient training [47].

5 Experiments

5.1 Implementation details of evaluation measures

We compute Inception score with the WGAN-GP code[1] corrected for the 1008 classes problem [8]. The mean value of this score computed 10 times on 5k splits is reported in all our evaluations, following standard protocol.

We found that there are two variants for computing FID. The first one is the original implementation[2] from the authors [22], where all the real images and at least 10k generated images are used. The second one is from the SNGAN [36] implementation, where 5k generated images are compared to 5k real images. Estimation of the covariance matrix is also different in both these cases. Hence, we include these two versions of FID in the paper to facilitate comparison in the future. The original implementation is referred to as FID, while our implementation [4] of the 5k version is denoted as FID-5K. Implementation of SWD is taken from the official NVIDIA repository[3].

5.2 Generative model evaluation

MNIST. We validate our claim (from Section 3) that a GAN can perfectly reproduce a simple dataset on MNIST. A four-layer convnet classifier trained on real MNIST data achieves 99.3% accuracy on the test set. In contrast, images generated with SNGAN achieve a GAN-train accuracy of 99.0% and GAN-test accuracy of 99.2%, highlighting their high image quality as well as diversity.

CIFAR10. Table 1 shows a comparison of state-of-the-art GAN models on CIFAR10. We observe that the relative ranking of models is consistent across different metrics: FID, GAN-train and GAN-test accuracies. Both GAN-train and GAN-test are quite high for SNGAN and WGAN-GP (10M). This implies that both the image quality and the diversity are good, but are still lower than that of real images (92.8 in the first row). Note that PixelCNN++ has low diversity because GAN-test is much higher than GAN-train in this case. This is in line with its relatively poor Inception score and FID (as shown in [32] FID is quite sensitive to mode dropping).

model IS FID-5K FID GAN-train GAN-test SWD 16 SWD 32
real images 11.33 9.4 2.1 92.8 - 2.8 2.0
SNGAN 8.43 18.8 11.8 82.2 87.3 3.9 24.4
WGAN-GP (10M) 8.21 21.5 14.1 79.5 85.0 3.8 6.2
WGAN-GP (2.5M) 8.29 22.1 15.0 76.1 80.7 3.4 6.9
DCGAN 6.69 42.5 35.6 65.0 58.2 6.5 24.7
PixelCNN++ 5.36 121.3 119.5 34.0 47.1 14.9 56.6
Table 1: CIFAR10 experiments. IS: higher is better. FID and SWD: lower is better. SWD values here are multiplied by for better readability. GAN-train and GAN-test are accuracies given as percentage (higher is better).

[capbesideposition=right,top,capbesidewidth=6.5cm]figure[]

Figure 3: First column: SNGAN-generated images. Other columns: 5 images from CIFAR10 “train” closest to GAN image from the first column in feature space of baseline CIFAR10 classifier.

Note that SWD does not correlate well with other metrics: it is consistently smaller for WGAN-GP (especially SWD 32). We hypothesize that this is because SWD approximates the Wasserstein-1 distance between patches of real and generated images, which is related to the optimization objective of Wasserstein GANs, but not other models (e.g., SNGAN). This suggests that SWD is unsuitable to compare WGAN and other GAN losses. It is also worth noting that WGAN-GP (10M) shows only a small improvement over WGAN-GP (2.5M) despite a four-fold increase in the number of parameters. In Figure 3 we show SNGAN-generated images on CIFAR10 and their nearest neighbors from the training set in the feature space of the classifier we use to compute the GAN-test measure. Note that SNGAN consistently finds images of the same class as a generated image, which are close to an image from the training set.

To highlight the complementarity of GAN-train and GAN-test, we emulate a simple model by subsampling/corrupting the CIFAR10 training set, in the spirit of [22]. GAN-train/test now corresponds to training/testing the classifier on modified data. We observe that GAN-test is insensitive to subsampling unlike GAN-train (where it is equivalent to training a classifier on a smaller split). Salt and pepper noise, ranging from 1% to 20% of replaced pixels per image, barely affects GAN-train, but degrades GAN-test significantly (from 82% to 15%).

Through this experiment on modified data, we also observe that FID is insufficient to distinguish between the impact of image diversity and quality. For example, FID between CIFAR10 train set and train set with Gaussian noise () is 27.1, while FID between train set and its random 5k subset with the same noise is 29.6. This difference may be due to lack of diversity or quality or both. GAN-test, which measures the quality of images, is identical (95%) in both these cases. GAN-train, on the other hand, drops from 91% to 80%, showing that the 5k train set lacks diversity. Together, our measures, address one of the main drawbacks of FID.

CIFAR100. Our results on CIFAR100 are summarized in Table 2. It is a more challenging dataset than CIFAR10, mainly due to the larger number of classes and fewer images per class; as evident from the accuracy of a convnet for classification trained with real images: 92.8 vs 69.4 for CIFAR10 and CIFAR100 respectively. SNGAN and WGAN-GP (10M) produce similar IS and FID, but very different GAN-train and GAN-test accuracies. This makes it easier to conclude that SNGAN has better image quality and diversity than WGAN-GP (10M). It is also interesting to note that WGAN-GP (10M) is superior to WGAN-GP (2.5M) in all the metrics, except SWD. WGAN-GP (2.5M) achieves reasonable IS and FID, but the quality of the generated samples is very low, as evidenced by GAN-test accuracy. SWD follows the same pattern as in the CIFAR10 case: WGAN-GP shows a better performance than others in this measure, which is not consistent with its relatively poor image quality. PixelCNN++ exhibits an interesting behavior, with high GAN-test accuracy, but very low GAN-train accuracy, showing that it can generate images of acceptable quality, but they lack diversity. A high FID in this case also hints at significant mode dropping. We also analyze the quality of the generated images with t-SNE [33] in the appendix [5].

Random forests.

We verify if our findings depend on the type of classifier by using random forests

[23, 43] instead of CNN for classification. This results in GAN-train, GAN-test scores of 15.2%, 19.5% for SNGAN, 10.9%, 16.6% for WGAN-GP (10M), 3.7%, 4.8% for WGAN-GP (2.5M), and 3.2%, 3.0% for DCGAN respectively. Note that the relative ranking of these GANs remains identical for random forests and CNNs.

Human study. We designed a human study with the goal of finding which of the measures (if any) is better aligned with human judgement. The subjects were asked to choose the more realistic image from two samples generated for a particular class of CIFAR100. Five subjects evaluated SNGAN vs one of the following: DCGAN, WGAN-GP (2.5M), WGAN-GP (10M) in three separate tests. They made 100 comparisons of randomly generated image pairs for each test, i.e., 1500 trials in total. All of them found the task challenging, in particular for both WGAN-GP tests.

We use Student’s t-test for statistical analysis of these results. In SNGAN vs DCGAN, subjects chose SNGAN 368 out of 500 trials, in SNGAN vs WGAN-GP (2.5M), subjects preferred SNGAN 274 out of 500 trials, and in SNGAN vs WGAN-GP (10M), SNGAN was preferred 230 out of 500. The preference of SNGAN over DCGAN is statistically significant (

), while the preference over WGAN-GP (2.5M) or WGAN-GP (10M) is insignificant ( and correspondingly). We conclude that the quality of images generated needs to be significantly different, as in the case of SNGAN vs DCGAN, for human studies to be conclusive. They are insufficient to pick out the subtle, but performance-critical, differences, unlike our measures.

model IS FID-5K FID GAN-train GAN-test SWD 16 SWD 32
real images 14.9 10.8 2.4 69.4 - 2.7 2.0
SNGAN 9.30 23.8 15.6 45.0 59.4 4.0 15.6
WGAN-GP (10M) 9.10 23.5 15.6 26.7 40.4 6.0 9.1
WGAN-GP (2.5M) 8.22 28.8 20.6 5.4 4.3 3.7 7.7
DCGAN 6.20 49.7 41.8 3.5 2.4 9.9 20.8
PixelCNN++ 6.27 143.4 141.9 4.8 27.5 8.5 25.9
Table 2: CIFAR100 experiments. Refer to the caption of Table 1 for details.
res model IS FID-5K FID GAN-train top-1 GAN-train top-5 GAN-test top-1 GAN-test top-5
64px real images 63.8 15.6 2.9 55.0 78.8 - -
SNGAN 12.3 44.5 34.4 3 8.4 12.9 28.9
WGAN-GP 11.3 46.7 35.8 0.1 0.7 0.1 0.5
128px real images 203.2 17.4 3.0 59.1 81.9 - -
SNGAN* 35.3 44.9 33.2 9.3 21.9 39.5 63.4
WGAN-GP 11.6 91.6 79.5 0.1 0.5 0.1 0.5
Table 3: ImageNet experiments. SNGAN* refers to the model provided by [36], trained for 850k iterations. Refer to the caption of Table 1 for details.

ImageNet. On this dataset, which is one of the more challenging ones for image synthesis [36], we analyzed the performance of the two best GAN models based on our CIFAR experiments, i.e., SNGAN and WGAN-GP. As shown in Table 3, SNGAN achieves a reasonable GAN-train accuracy and a relatively high GAN-test accuracy at resolution. This suggests that SNGAN generated images have good quality, but their diversity is much lower than the original data. This may be partly due to the size of the generator (150Mb) being significantly smaller in comparison to ImageNet training data (64Gb for ). Despite this difference in size, it achieves GAN-train accuracy of 9.3% and 21.9% for top-1 and top-5 classification results respectively. In comparison, the performance of WGAN-GP is dramatically poorer; see last row for each resolution in the table.

(a)
(b)
Figure 4: The effect of varying the size of the generated image set on GAN-train accuracy. For comparison, we also show the result (in blue) of varying the size of the real image training dataset. (Best viewed in pdf.)

In the case of images generated at resolution, GAN-train and GAN-test accuracies with SNGAN are lower than their counterparts. GAN-test accuracy is over four times better than GAN-train, showing that the generated images lack in diversity. It is interesting to note that WGAN-GP produces Inception score and FID very similar to SNGAN, but its images are insufficient to train a reasonable classifier and to be recognized by an ImageNet classifier, as shown by the very low GAN-train and GAN-test scores.

5.3 GAN image diversity

We further analyze the diversity of the generated images by evaluating GAN-train accuracy with varying amounts of generated data. A model with low diversity generates redundant samples, and increasing the quantity of data generated in this case does not result in better GAN-train accuracy. In contrast, generating more samples from a model with high diversity produces a better GAN-train score. We show this analysis in Figure 4, where GAN-train accuracy is plotted with respect to the size of the generated training set on CIFAR10 and CIFAR100.

(a)
(b)
Figure 5: The impact of training a classifier with a combination of real and SNGAN generated images.

In the case of CIFAR10, we observe that GAN-train accuracy saturates around 15-20k generated images, even for the best model SNGAN (see Figure (a)a). With DCGAN, which is weaker than SNGAN, GAN-train saturates around 5k images, due to its relatively poorer diversity. Figure (b)b shows no increase in GAN-train accuracy on CIFAR100 beyond 25k images for all the models. The diversity of 5k SNGAN-generated images is comparable to the same quantity of real images; see blue and orange plots in Figure (b)b. WGAN-GP (10M) has very low diversity beyond 5k generated images. WGAN-GP (2.5M) and DCGAN perform poorly on CIFAR100, and are not competitive with respect to the other methods.

5.4 GAN data augmentation

We analyze the utility of GANs for data augmentation, i.e., for generating additional training samples, with the best-performing GAN model (SNGAN) under two settings. First, in Figures (a)a and (b)b, we show the influence of training the classifier with a combination of real images from the training set and 50k GAN-generated images on the CIFAR10 and CIFAR100 datasets respectively. In this case, SNGAN is trained with all the images from the original training set. From both the figures, we observe that adding 2.5k or 5k real images to the 50k GAN-generated images improves the accuracy over the corresponding real-only counterparts. However, adding 50k real images does not provide any noticeable improvement, and in fact, reduces the performance slightly in the case of CIFAR100 (Figure (b)b). This is potentially due to the lack of image diversity.

Num real images real C10 real+GAN C10 real C100 real+GAN C100
2.5k 73.4 67.0 25.6 23.9
5k 80.9 77.9 40.0 33.5
10k 85.8 83.5 51.5 45.5
Table 4: Data augmentation when SNGAN is trained with reduced real image set. Classifier is trained either on this data (real) or a combination of real and SNGAN generated images (real+GAN). Performance is shown as % accuracy.

This experiment provides another perspective on the diversity of the generated set, given that the generated images are produced by a GAN learned from the entire CIFAR10 (or CIFAR100) training dataset. For example, augmenting 2.5k real images with 50k generated ones results in a better test accuracy than the model trained only on 5k real images. Thus, we can conclude that the GAN model generates images that have more diversity than the 2.5k real ones. This is however, assuming that the generated images are as realistic as the original data. In practice, the generated images tend to be lacking on the realistic front, and are more diverse than the real ones. These observations are in agreement with those from Section 5.3, i.e., SNGAN generates images that are at least as diverse as 5k randomly sampled real images.

In the second setting, SNGAN is trained in a low-data regime. In contrast to the previous experiment, we train SNGAN on a reduced training set, and then train the classifier on a combination of this reduced set, and the same number of generated images. Results in Table 4 show that on both CIFAR10 and CIFAR100 (C10 and C100 respectively in the table), the behaviour is consistent with the whole dataset setting (50k images), i.e., accuracy drops slightly.

6 Summary

This paper presents steps towards addressing the challenging problem of evaluating and comparing images generated by GANs. To this end, we present new quantitative measures, GAN-train and GAN-test, which are motivated by precision and recall scores popularly used in the evaluation of discriminative models. We evaluate several recent GAN approaches as well as other popular generative models with these measures. Our extensive experimental analysis demonstrates that GAN-train and GAN-test not only highlight the difference in performance of these methods, but are also complementary to existing scores.
