How consistent are our discourse annotations? Insights from mapping RST-DT and PDTB annotations

04/28/2017 ∙ by Vera Demberg, et al. ∙ 0

Discourse-annotated corpora are an important resource for the community. However, these corpora are often annotated according to different frameworks, making comparison of the annotations difficult. This is unfortunate, since mapping the existing annotations would result in more (training) data for researchers in automatic discourse relation processing and researchers in linguistics and psycholinguistics. In this article, we present an effort to map two large corpora onto each other: the Penn Discourse Treebank and the Rhetorical Structure Theory Discourse Treebank. We first propose a method for aligning the discourse segments, and then evaluate the observed against the expected mappings for explicit and implicit relations separately. We find that while agreement on explicit relations is reasonable, agreement between the frameworks on implicit relations is astonishingly low. We identify sources of systematic discrepancies between the two annotation schemes; many of the differences in annotation can be traced back to different operationalizations and goals of the PDTB and RST frameworks. We discuss the consequences of these discrepancies for future annotation, and the usability of the mapped data for theoretical studies and the training of automatic discourse relation labellers.



There are no comments yet.


page 1

page 2

page 3

page 4

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

In recent years, we have seen an increase in attention to discourse processing, in terms of discourse relation labelling as a task in automatic language processing, as well as a feature for improving down-stream tasks such as machine translation Meyer and Popescu-Belis (2012); Popescu-Belis (2016), question answering Jansen, Surdeanu, and Clark (2014); Sharp et al. (2015)

and sentiment analysis

Somasundaran et al. (2009); Zhou et al. (2011); Zirn et al. (2011). Progress on this topic has been made possible through the large-scale annotation of text corpora with discourse relation labels, most notably the Penn Discourse Treebank (PDTB; Prasad et al., 2008) and the RST Treebank (RST-DT; Carlson, Marcu, and Okurowski, 2003) for English. There are also new resources for other languages, as well as numerous annotation efforts currently under way (see, for example, Oza et al., 2009; Stede and Neumann, 2014a).

As of yet there is however no consensus on a single discourse relation labelling scheme. Existing discourse frameworks share basic notions of what a coherence relation is, and many of them make relation sense distinctions that are based on similar underlying ideas, but frameworks differ in how they define discourse relational arguments, in terms of constraints on resulting discourse structure (e.g., whether it has to be a tree), and in whether they are “lexically grounded” (like PDTB-style annotations), semantically driven (like SDRT), or contain a combination of semantic and intentional relations (RST-DT). This makes it difficult to study discourse relations across resources annotated according to different schemes, or across languages. In automatic discourse relation classifiers, it also limits the extent to which all available resources can be used effectively for training classifiers. This situation has long been recognized as a problem: in the early nineties, hovy1995 taxonomized the more than 400 relations that have been proposed in different frameworks as a hierarchy of roughly 70 discourse relations.

More recently, several large initiatives have addressed this issue as well: the COST initiative TextLink111 is aimed at organizing the properties of discourse relations and encouraging the use of a single taxonomy for subsequent discourse annotation, as well as for searches in existing corpora. In this context, some concrete proposals have been made for how discourse relations may be mapped onto one another Bunt and Prasad (2016); Benamara and Taboada (2015); Chiarcos (2014); Sanders et al. (2016). bunt2016 developed an ISO standard for coherence relations, in which they propose a new set of coherence relations that are central in many frameworks, and relate each of these to existing labels in other frameworks. The proposed set of labels can also be used for mapping labels to each other. In a similar line of work, benamara2015 proposed a unified set of 26 discourse relations based on distinctions made by several styles of the RST and SDRT frameworks. They compared discourse relation labels between the frameworks based on their definitions and their overall frequencies of occurrence, but they did not have any data available that was annotated according to both frameworks. They therefore did not evaluate whether the actual annotations of the two frameworks would correspond to one another.

benamara2015’s work highlights differences in granularity between frameworks by identifying certain labels that exist in one framework but do not have a corresponding label in the other framework. Such relations with no correspondence across taxonomies need more consideration when using an intermediate framework. A possible solution for this mapping issue is to create an intermediate representation for mapping between frameworks, rather than creating a new framework. chiarcos2014 was the first to attempt this: he developed an ontology to integrate RST-DT, PDTB and OntoNote annotations within a higher-level, more general framework. In this framework, the RST-DT and PDTB labels are assigned new labels with respect to the more general relation senses in both schemata. sanders2016 created a different version of an intermediate representation. They worked out a mapping for discourse relations from various frameworks to a set of properties, such that each coherence relation can be described in terms of its properties or “dimensions” (such as “causal” vs. “additive”, “positive” vs. “negative”, and “subjective” vs. “objective”). Through this intermediary representation in terms of properties, coherence relations can be mapped onto one another.

As a community, we now find ourselves in a situation where several alternative proposals have been made for mapping coherence relation labels onto one another, but they have not been evaluated. These mappings were mainly proposed based on relation definitions, and we do not know whether alternative proposals for mapping relations are equivalent. Moreover, we do not know how well any of these proposals live up to the annotation of actual data. It is possible, for instance, that coherence relation labels should correspond to one another according to the annotation guidelines, but that differences in the operationalizations of frameworks (i.e., how annotators are asked to proceed for deciding on a relation label) lead to slightly different usages of these labels in actual annotations. Annotation manuals are also often (necessarily) incomplete – they list clear cases or prototypical examples of certain types of coherence relations, but annotators learn through training and discussion how to deal with various kinds of difficult cases. The effect of such implicit knowledge on annotation practice may also lead to discrepancies between actual annotations compared to theoretically posited correspondences. When searching for a discourse phenomenon across several corpora, it may therefore not be sufficient to rely on the theoretically mapped labels. Instead, additional insights for which labels to consider or exclude can be gained from learning which labels correspond to one another empirically based on a large set of annotated instances. This article therefore also aims to elucidate the extent to which aspects of operationalization or training may affect labelling decisions during annotation.

The PDTB 2.0 Prasad et al. (2008); Prasad, Webber, and Joshi (2014) and RST-DT Carlson, Marcu, and Okurowski (2003) corpora represent an excellent opportunity for addressing these questions, as they have been annotated on the same text. We will therefore focus on the PDTB to RST-DT label mappings that have been proposed by various researchers, and compare them against the correspondences between the annotations of actual instances found in the corpora. In the ideal case, we would expect to find (i) that the different mapping schemes are consistent with each other, i.e. they propose the same set of equivalences between relations and (ii) that the proposed theoretical equivalences also hold for actual annotated data, i.e. if a given text is annotated according to two different schemes, and there is a mapping between these schemes, the actual annotations should correspond to one another as specified by the theoretical mappings.

The current study thus extends previous work by mapping existing PDTB and RST-DT annotations onto one another, and comparing them to theoretically posited correspondences between relations. This allows us to identify systematic differences between the annotations. Such discrepancies could be caused by differences in the respective operationalizations in discourse annotations, or by implicit biases inherent in the frameworks, and can represent valuable insight for training future automatic discourse relation classifiers.

This article first provides background on the RST-DT and PDTB frameworks (Section 2), and then proceeds to laying out the proposed mappings between RST-DT and PDTB 2.0 relations according to the three recent approaches which specified such mappings Chiarcos (2014); Bunt and Prasad (2016); Sanders et al. (2016) in Section 3. Section 4 discusses challenges due to differences in discourse segmentation between RST-DT and the PDTB, and describes the alignment algorithm for mapping RST-DT annotations to the Penn Discourse Treebank. Results of the discourse relation label mapping are discussed in Section 5, and compared to the theoretically posited correspondences. Section 6 discusses the results from our mapping to a previous approach which used a similar methodology, albeit in a simplified setting and much smaller scale Rehbein, Scholman, and Demberg (2016). Finally, we discuss implications for annotation as well as automatic discourse processing in Section 7.

Our article makes the following contributions:

  • We propose a method for aligning RST-DT and PDTB 2.0 annotations.

  • We evaluate how well existing proposals for mapping discourse relation labels correspond to the mapping between existing RST-DT and PDTB 2.0 annotations.

  • We analyse how compatible RST-DT and PDTB 2.0 annotations are.

  • We identify sources of systematic discrepancies between annotations according to the two annotation schemes, and discuss their consequences for future annotation, corpus search, and the training of automatic discourse relation labellers.

  • We identify coherence relations for which human annotation is informative and beneficial, as well as cases for which it is unclear whether manual annotation is sufficiently consistent to be useful.

  • We provide an aligned discourse corpus where both PDTB 2.0 and RST-DT annotations can be queried simultaneously.

2 Background

In this section, we describe the notions underlying the two discourse relation annotation frameworks that are compared in this article, namely the PDTB 2.0 and the RST-DT, in order to provide the necessary background for understanding the reasons behind differences in segmentation and discourse relation sense labelling that we find in our study.

2.1 Rhetorical Structure Theory (RST)

The framework that is used to annotate the RST-DT Carlson and Marcu (2001) is based on the Rhetorical Structure Theory (RST) as proposed by mann1988. Annotators are instructed to annotate the writer’s goal of each segment of a text with respect to the neighbouring segments and the resulting hierarchical structure of the entire document. There are different implementations of RST annotation, which follow the overall style of RST annotation, but may differ in how exactly they define the segments, called Elementary Discourse Units (EDUs) and what exact set of relation labels is chosen. For the current study, we focus on the RST-DT style of RST.

Segmentation in RST-DT

A fundamental constraint on RST annotation is that each part of a text has to be included into the overall discourse structure, and that the discourse structure has to be arranged into a tree structure. Each document is first decomposed into non-overlapping sequential text spans (called Elementary Discourse Units). EDUs generally consist of clauses, but attributions, relative clauses, nominal postmodifiers, and phrases that begin with a strong discourse marker are also considered EDUs in RST-DT (see Carlson and Marcu, 2001, p.3).

The tree structure in RST annotations does not allow crossing or embedded EDUs. In order to deal with these limitations and the restriction that EDUs cannot overlap, a Same unit tag was introduced RST-DT, which allows annotators to express that an EDU is discontinuous. To illustrate this, consider example 2.1 below. The clause when implemented is embedded in another clause. As a result, the clause that it will cannot be connected to its other half because when implemented cannot be skipped. The tag Same unit can be applied in this situation to express that the segments in fact make up one unit.

. … [that it will,] [when implemented,] [provide significant reduction in the level of debt and debt service owed by Costa Rica.]
Same-unit, wsj_0624

Discourse Structure in RST-DT

RST works from the assumption that relations have at least two text elements. Example 2.1 illustrates this: the label Elaboration-additional was chosen to represent the semantic link between the two segments in brackets. EDUs are thus connected in a relation to form a complex discourse unit, which can itself be part of a higher-level discourse relation, until the entire text is connected and a tree structure is formed.

Each element can either function as a nucleus or satellite in a relation. The nucleus is the central part of a text (with respect to its intentional discourse structure), while the satellite is supportive of the nucleus. Note that some relations have symmetrically important elements by definition. These relations consist of two nuclei rather than a nucleus and a satellite (see Example 2.1). The writer’s intentions are important when assigning nuclearity (i.e., what does the writer want to achieve?). Determining nuclearity can therefore rarely be done without taking the context of the relation into consideration. Nuclearity assignment is determined simultaneously with the assignment of a discourse relation Carlson, Marcu, and Okurowski (2003).

. . [But even on the federal bench, specialization is creeping in,] [and it has become a subject of sharp controversy on the newest federal appeals court.]
Elaboration-additional, wsj_0601 .̱ [That isn’t much compared with what Bill Cosby makes, or even Connie Chung for that matter (…)] [But the money isn’t peanuts either, particularly for a news program.]
Contrast, wsj_0633

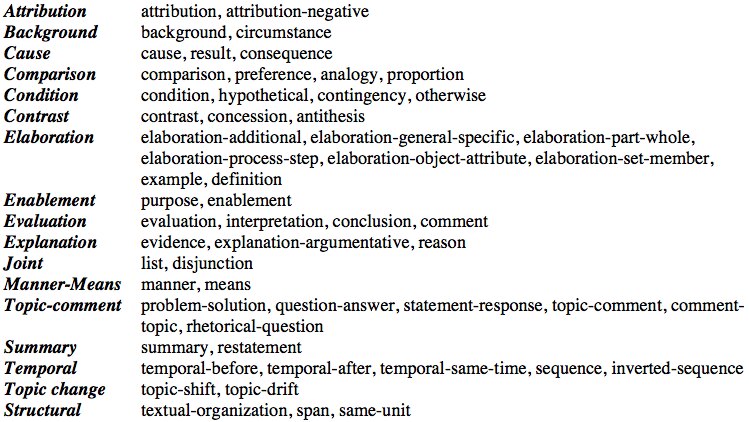

carlson2003 distinguish 72 relation labels, partitioned into 16 classes that share some type of rhetorical meaning (see Appendix A for a list of RST-DT’s relational inventory). Some of these classes contain relations that are not considered to be coherence relations in other schemes such as PDTB 2.0; examples include the Attribution (which is also annotated in PDTB, but not considered a coherence relation) and Question-answer relations. Another example is cases where coherence between discourse segments is not achieved through a specific semantic coherence relation but rather through cohesion. These cases of cohesion are annotated as Elaboration relations in RST-DT.

2.2 Penn Discourse Treebank (PDTB)-style Annotation

PDTB-style annotation Prasad et al. (2007, 2008); Prasad, Webber, and Joshi (2014) follows a lexically-grounded approach to discourse relation representation. It distinguishes between so-called explicit and implicit discourse relations. Explicit relations are marked with a coordinating conjunction, subordinating conjunction or a discourse adverbial, which we will jointly refer to as discourse connectives in this article. Implicit relations, on the other hand, are not marked with a discourse connective. Instead, annotators are asked to insert a connective they think would best fit, and annotate the coherence relation with the inserted connective. The framework was developed with the goal of being theory-agnostic. It therefore refrains from imposing a tree structure on annotations.

Segmentation in the PDTB 2.0

Relations in the PDTB have two and only two arguments, referred to as Arg1 and Arg2. These arguments can be continuous or discontinuous. In the case of explicit relations, the argument that is syntactically bound to the connective is labeled as Arg2; the other argument is Arg1. Annotators were instructed to first identify explicit connectives based on a list of discourse cues; they then identified the discourse relational arguments. The selection of these arguments is restricted by the “minimality principle,” according to which only as much material should be included in the argument as is minimally required and sufficient for the interpretation of the relation. Any other span that is considered to be relevant to the interpretation of the argument is annotated as supplementary information. After identifying explicit connectives and their arguments, a relation label is assigned, as in Example 2.2.

In PDTB 2.0, implicit discourse relations have only been annotated between adjacent sentences within paragraphs, as well as between complete clauses delimited by a semi-colon (“;”) or colon (“:”) (see also Prasad, Forbes-Riley, and Lee, 2017). A connective was then inserted, and the relation label assigned in a next step, see Example 2.2. Because arguments of implicit relations have often been annotated as complete sentences or clauses of sentences with colons or semi-colons, the annotation have a slightly different pattern in segmentation for implicit relations compared to explicit relations (this observation will become important for the design of the mapping algorithm).

. . Although [that may sound like an arcane maneuver of little interest outside Washington], [it would set off a political earthquake].
Comparison.Concession.Expectation, wsj_0609 .̱ [Mr. Carpenter denies the speculation] <implicit: meanwhile> [To answer the brokerage question, Kidder, in typical fashion, completed a task-force study].
Temporal.Synchronous, wsj_0604

When a discourse relation is not marked by a discourse connective, and it’s also not possible to insert a suitable connective (e.g., because including the connective therefore

would sound odd and be redundant in a sentence starting with

for this important reason), the annotators can assign a coherence relation label and mark the relation as expressed via an alternative lexicalization (AltLex).

An important difference between PDTB-style annotation and RST-style annotation is that in PDTB-style annotation, it is not necessary for all parts of a text to be connected in a discourse structure. In fact, the minimality principle leads to many partial sentences not being part of any discourse relational argument. Furthermore, the restriction of only annotating implicit relations between adjacent sentences in PDTB 2.0 means that sentence-internal or cross-paragraph coherence relations may be missed (cf. Prasad, Forbes-Riley, and Lee 2017; but see a recent extension of PDTB annotation to VPs, Webber et al. 2016). Additionally, PDTB differs from RST-DT in its treatment of attributions, which are text elements that ascribe beliefs and assertions to the agent(s) holding or making them Riloff and Wiebe (2003), such as he said that. Attributions are annotated as a discourse relation in RST-DT, but they are annotated separately in PDTB Prasad et al. (2007) and are not included in discourse relational arguments.

Discourse Structure in the PDTB 2.0

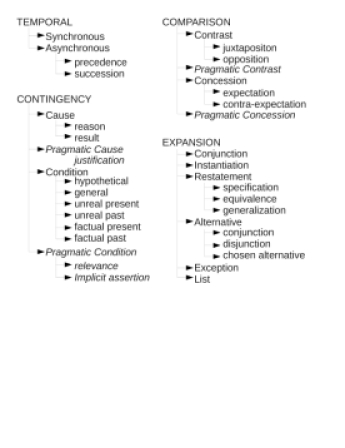

The framework distinguishes 43 relation labels (see Appendix A). These labels are organised in a hierarchy consisting of three levels: (i) class is the top level, which contains the four major semantic classes; (ii) type is the second level, which further refines the semantics of the class levels; and (iii) subtype is the most fine-grained level, which defines the semantic contribution of each argument. When an annotator was uncertain of the more fine-grained senses of subtype, s/he could choose the higher level type, which was also beneficial for inter-annotator agreement Prasad et al. (2008).

A further important aspect distinguishing PDTB 2.0 annotations from RST-DT annotations is that PDTB annotators were allowed to assign several labels to the same relational arguments, when they found that multiple concurrent discourse relations held between the arguments. This is important for our evaluation of correspondences between assigned relation labels later on, as we decided to evaluate the correspondence in terms of the PDTB label that is most similar to the RST-DT label.

If no suitable connective and coherence relation was identified for two consecutive sentences, the EntRel and NoRel labels were used depending on whether coherence was present in the form of cohesion through shared entities or not. The resulting annotations are not always compatible with a tree structure (see Lee et al., 2006).

3 Theory-based proposals for mapping RST-DT and PDTB 2.0 relations

A mapping of discourse relation labels between different frameworks can be achieved by determining the correspondence of relation labels from one framework to the other directly (e.g., PDTB 2.0 to RST-DT, RST-DT to SDRT, SDRT to PDTB 2.0). Another option is to map all frameworks to an intermediary representation, such that the mapping between any two frameworks can be obtained via this intermediary representation. This approach has the advantage of being more general in case many frameworks should be mapped onto one another: rather than creating a new mapping between the new framework and all other frameworks, researchers only have to create a single mapping from the new framework to the intermediary framework. Another advantage is that it produces a candidate for a single set of relational labels potentially suitable for future annotation: the intermediary relation representation. All three of the mapping approaches discussed below propose such an intermediary representation.

The mapping approach by benamara2015 could not be included here, because it focused on comparing RST and SDRT and has not yet completed the mapping to PDTB labels.222Personal communication November 2017

3.1 Mapping according to the OLiA reference model

chiarcos2014 mapped the PDTB and RST-DT schemes onto each other as part of the Ontologies of Linguistic Annotation (OLiA). OLiA provides a terminology repository that can be used to facilitate the conceptual interoperability of annotations. This is done using an intermediate level of representation that mediates between several existing frameworks. The intermediate representation is formalised as subClassOf descriptions. To illustrate this, consider Figure 1, which illustrates a hierarchical mapping of PDTB’s Condition. In OLiA, this relation type is characterised as a subclass of Semantic condition relations, which is in turn a subclass of Condition relations. This can then be mapped onto RST-DT’s class of Condition, which has the same superclasses. chiarcos2014 argues that ontologies are able to represent more fine-grained nuances of meaning, and to quantify the number of shared descriptions between annotations of different frameworks Chiarcos (2014). The Table in Appendix C shows the proposed correspondences (indicated by a ‘o’) between PDTB 2.0 and the RST-DT according to the proposal in OLiA.

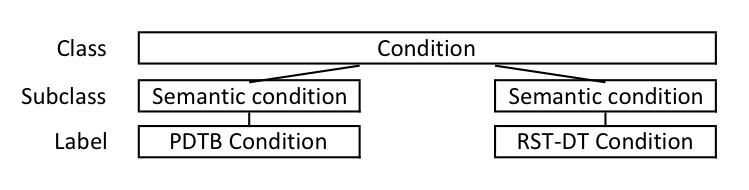

Figure 1: Illustration of OLiA’s hierarchical mapping approach.

3.2 Mapping via Unifying Dimensions

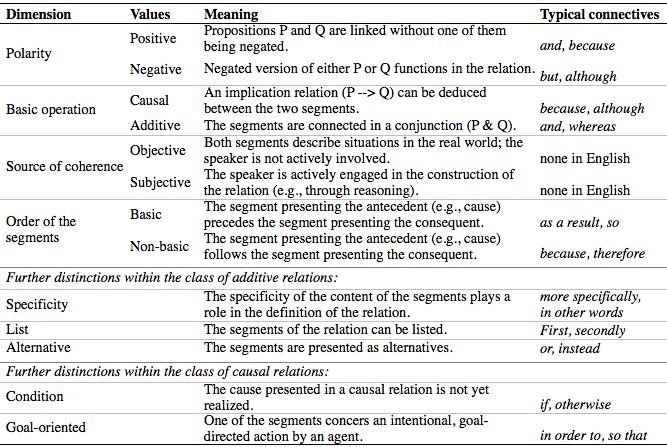

The Unifying Dimensions mapping (UniDim) was proposed by sanders2016,sanderssubm with the goal of mapping labels from different frameworks onto each other using an interlingua (see Appendix B). In the UniDim proposal, relation labels are not mapped to intermediate labels; rather, they are described in terms of their characteristics, or values on certain dimensions. The set of unifying dimensions is an extended version of the dimensions originally proposed as the Cognitive approach to Coherence Relations (CCR; Sanders, Spooren, and Noordman, 1992). The original CCR distinguishes four cognitive dimensions that apply to every relation, namely polarity, basic operation, source of coherence, and order of the segments. For example, a Reason relation would be represented as a relation with positive polarity, causal basic operation, objective source of coherence, and backward order of the segments. As PDTB and RST-DT make some distinctions which cannot be represented in terms of only these four dimensions, Sanders et al. extended CCR to account for more fine-grained properties of relations.

The intermediate representation in terms of these dimensions allows for mapping relation labels from one framework into the representation as dimensions, and from this representation to the second framework. The method of describing relations in terms of their characteristics makes it easier to identify similarities and differences between relations. For example, similarities between relations can be described in terms of how many of their characteristics are identical: Cause and Concession differ in one dimension (polarity) but they are both types of causal, objective, non-conditional relations (in the case of Concessions, the expected result has not occurred, or a result occurred even though the usual cause was not present). Appendix C shows the proposed correspondences (indicated by a ‘u’) according to the proposal by sanders2016.

3.3 Mapping according to the ISO standard proposal

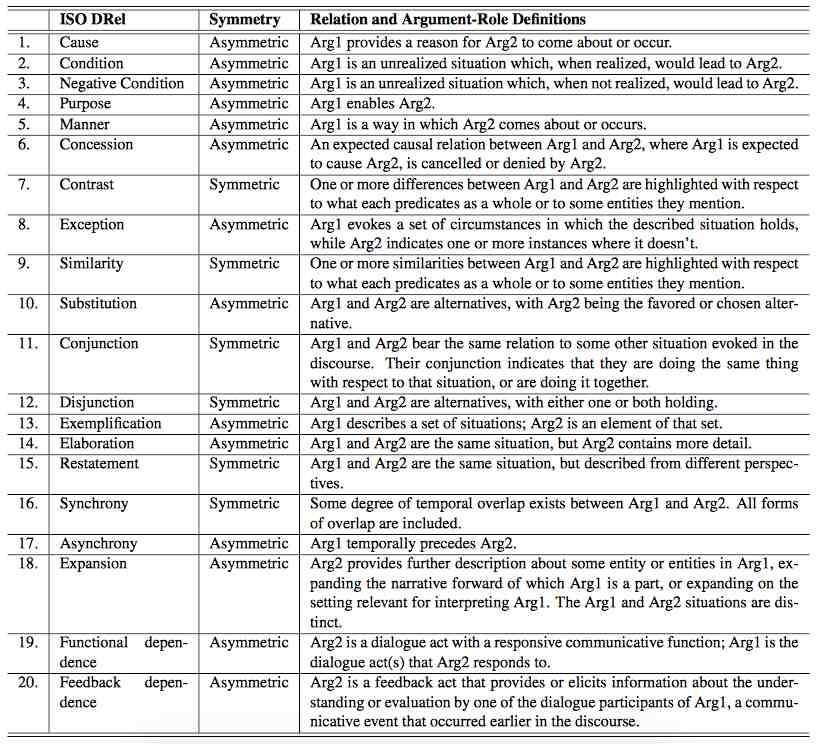

bunt2016 provide a mapping of frameworks that is based on a different system. They proposed an international standard (ISO standard) for coherence relation annotation, which consists of a set of 20 core relations that are commonly found in some form in existing approaches (see Appendix B). They did not aim to provide a fixed and exhaustive set of coherence relations; rather, they aimed at providing an open, extensible set of relations. bunt2016 propose that the ISO standard can be used for future annotation efforts, as well as for mapping between annotations using different frameworks. To this end, they provided mappings of these ISO relations to other frameworks, including PDTB and RST-DT.22footnotetext: Mappings from the paper for certain labels were updated; personal communication January 2018. From these proposed correspondences to ISO standard candidate relations, we can infer how the PDTB 2.0 and RST-DT relations correspond to one another. The full table of hypothesized correspondences according to the ISO proposal are marked by ‘i’ in Appendix C.

3.4 Discussion of agreement and discrepancies between proposed mappings

Appendix C shows the grid of proposed correspondences between the schemes. While we can see many cells that include ‘o’ , ‘u’ and ’i’, indicating that all approaches agree that these relation labels should correspond to one another, we can also see some relational labels that have only been linked by one of the proposals. We have identified three main reasons for these discrepancies, which we discuss below: differences in granularity of mapping schemes, differences in how concepts (in particular, order and subjectivity) are defined by the frameworks, and differences in the interpretation of definitions in the annotation guidelines.

Granularity of the proposals

The first source of discrepancies is the granularity of the intermediate schemes. For cases where ISO is coarser than the relational categories included in RST-DT and PDTB 2.0, the mapping differs from OLiA’s and UniDim’s mapping. For example, the causal relation labels in the ISO-based mapping are coarser than the other two schemes, because the proposed ISO standard doesn’t differentiate between semantic and pragmatic causal relations (a distinction also known as objective vs. subjective or content vs. epistemic); i.e. causal relations where the link can be established based on the semantics of the two arguments and causal relations where the author posits a causal link. OLiA and UniDim do distinguish between semantic and pragmatic relations, and therefore do not map certain RST-DT labels that the manual mentions are semantic (e.g., Reason and Explanation-argumentative) to PDTB’s pragmatic causal label Justification, whereas ISO does map semantic RST-DT labels to Justification.

An example of a relational category that is more fine-grained in the ISO proposal than in the frameworks is Exception, which corresponds to PDTB’s Exception, but has no equivalent mapping to an RST-DT relation. As a result, PDTB’s Exception cannot be mapped to a corresponding RST-DT label based on the ISO proposal. In UniDim, however, Exception is mapped to Contrast, Antithesis and Preference, i.e. a set of more general labels with similar characteristics to PDTB’s Exception. The same goes for RST’s Means relations.

Certain labels can also not be mapped by OLiA. For example, RST-DT’s Evaluation, Comment and Definition relations are part of the superclass Assessment, which doesn’t occur in the PDTB inventory; furthermore, the relations Background and Circumstance are part of the superclass Background, which also doesn’t occur in PDTB. OLiA also doesn’t map any Comparison RST-DT relations. Labels could be mapped using their supersuperclass, but this would not be very informative (e.g., it would result in mapping the Background label to all PDTB Expansion labels).

In temporal relations marked with connectives such as before and after, PDTB assigns the label Temp.Async.Succession to relations marked with after, and the label Temp.Async.Precedence to relations marked with before as a subordinating conjunction. Similarly, RST uses the labels Temporal-after and Temporal-before for these instances. UniDim and OLiA therefore proposed to map Temp.Async.Succession onto Temporal-after and Temp.Async.Precedence to Temporal-before. ISO on the other hand more generally maps both of PDTB’s Temporal.Async relations onto all asynchronous temporal relations in RST.

Discrepancies in granularity occur because of differences in the goals of the mapping frameworks, and different systems of mapping. UniDim was designed to be able to map labels, and, as a result, the interlingua can be used to map relational labels even when there is no direct equivalent. ISO, on the other hand, was proposed as a new set of relations; i.e. mapping was not its primary goal. The mapping that is provided in bunt2016 mainly includes direct correspondences. OLiA also has the goal to identify all correspondences between frameworks, but because of the hierarchical structure of the interlingua, a relation label that is part of a unique superclass in one framework can often not be mapped properly to another framework.

Subjective vs. epistemic relations

A somewhat difficult issue is the notion of subjectivity. A relation can be objective, subjective or epistemic. RST distinguishes between objective and subjective relations with labels such as Cause and Result on the one hand and Reason, Evidence and Explanation-argumentative on the other hand, while PDTB distinguishes between non-epistemic relations Contingency.Cause.Reason and Contingency.Cause.Result and epistemic relations such as Contengency.Pragmatic Cause.Justification. OLiA proposed to map RST-DT’s subjective labels such as Evidence label only to PDTB’s epistemic label Pragmatic cause, which does however not do justice to PDTB’s more restrictive notion of subjectivity as epistemic relations only. A similar problem occurs for RST-DT’s Manner, Means, Problem-Solution and Enablement.

Difference in interpretations of definitions

The third source of discrepancies is rooted in different interpretations of relational definitions in the annotation manuals, and hence represents the theoretically most interesting case for comparison between proposals. In the remainder of this section, we will focus our discussion on these cases22footnotetext: Differences that are not discussed in this section include for instance: UniDim’s mapping of RST-DT Hypothetical to PDTB Pragmatic condition (in addition to Condition); ISO’s mapping of RST-DT Evaluation to the general Expansion class; OLiA’s mapping of RST-DT Summary relations to Equivalence (in addition to Specification and Generalization).. Table 1 provides an overview of the differences between the OLiA, UniDim and ISO-based mapping according to this type of discrepancies.

RST-DT label Mapping to PDTB according to:
Comparison Not mapped Conjunction Contrast
Antithesis Contrast Concession Concession
& Contrast
Elab.-object- Expansion Specification EntRel
attribute & Generalization
Background Not mapped Conjunction Conjunction
& Asynchronous
Circumstance Not mapped Conjunction, Synchronous
& Asynchronous
Table 1: Overview of the differences between the OLiA, UniDim and ISO-based mappings caused by different interpretations of definitions.
RST-DT’s Comparison

First, the proposals differ in their mapping of RST-DT’s Comparison relations. The manual states that the two segments of a Comparison relation are not in contrast with each other (Carlson and Marcu, 2001, p. 50). Based on this description, UniDim mapped Comparison to PDTB Conjunction. ISO, however, mapped Comparison to PDTB’s Contrast relational class. Finally, OLiA mapped RST-DT’s Comparison to the superclass Non-contrastive comparison. However, none of the labels in the PDTB have a superclass Non-contrastive comparison, and therefore RST-DT’s labels do not have a correspondence in PDTB. The mapped data will be able to indicate how the Comparison label was used in practice

RST-DT’s Antithesis

The frameworks also disagree on the mapping to contrastive and concessive relations. The former is a relation of semantic opposition; the latter contains a denial of expectation. To illustrate the difference between the two types of relations, consider the following examples:

. Dylan used to live in Washington DC, but now he lives in Baltimore.

. Dylan lives in Baltimore, but he works in Washington DC.

Example 3.4 presents a simple contrast between where Dylan used to live and where he lives now. The relation could also have been expressed by the connective whereas, which is a typical marker of contrastive relations. In Example 3.4, the first segment informs you where Dylan lives now. This segment presupposes an implicit expectation that Dylan also works there, but the second segment denies this expectation: Dylan works in a different city. This is typical of Concession relations: one argument creates an expectation of a cause or consequence, which is denied by the other argument. The relation could also have been expressed with typical markers of concessive relations, such as even though or nevertheless. The distinction between Contrast and Concession is relatively difficult to make, even for trained annotators (see, for example, Robaldo and Miltsakaki, 2014; Zufferey and Degand, 2013).

The frameworks all disagree on the mapping of the RST-DT label Antithesis to PDTB Contrast and Concession. RST-DT’s annotation manual states that Antithesis is a contrastive relation, but some of the examples that are provided are concessive relations. In UniDim, Antithesis is therefore mapped to both contrastive and concessive PDTB relational labels, whereas in ISO, Antithesis is mapped only to concessive labels. In OLiA, Antithesis is mapped onto Contrast only.

RST-DT’s Elaboration-object-attribute

The proposals differ in their mapping of RST-DT’s Elaboration-object-attribute label: OLiA maps it to general Expansion relations, UniDim maps it to PDTB’s Specification and Generalization relations, while the ISO-based proposal maps Elaboration-object-attribute to EntRel.

RST-DT’s Background and Circumstance

Finally, UniDim and ISO differ in their treatment of RST-DT’s Background and Circumstance. The two proposals agree on the mapping of Background to PDTB Conjunction relations, but UniDim also maps Background to Temporal.Asynchronous based on the description of Background in the manual: “the events represented in the nucleus and the satellite occur at distinctly different times” (Carlson and Marcu, 2001, p. 47). Regarding Circumstance relations, UniDim and ISO agree on mapping these to Synchronous relations, but UniDim also maps to Asynchronous and Conjunction labels.

The disagreements that are attributable to different interpretations of the definitions in the manual will be systematically analysed with respect to actual annotations, and discussed in Section 5, in order to determine which of the proposed correspondences are justified by the actual data. These results can then also be used to clarify annotation guidelines for future research, and highlight which definitions are particularly susceptible to inconsistent annotation.

4 Data, Segmentation and Automatic alignment

PDTB 2.0 and RST-DT annotations overlap for 385 newspaper articles in sections 6, 11, 13, 19 and 23 of the Wall Street Journal corpus. The annotation of the RST-DT involved more than a dozen of people and several phases of revision. The average inter-annotator agreement (final results for 6 taggers) on span detection, nuclearity assignment and relation sense annotation was 86.8%, 80.7%, and 72%, respectively Carlson, Marcu, and Okurowski (2003).333These numbers are the result of averaging over the inter-annotator agreement scores reported for every two annotators in Table 2 of carlson2003. The PDTB 2.0 reports an inter-annotator agreement of 94%, 84%, and 80% for the class, type and subtype levels respectively, and PDTB’s discourse segments were identified with an agreement (exact string match) of 90.2% for explicit relations and 85.1% for implicit relations Prasad et al. (2008).

Our investigation will be based on the intersection of the PDTB and the RST-DT, with annotations from both frameworks included as different annotation layers.

4.1 Segmentation

Comparing annotations of the two corpora is not a trivial task, because annotations not only differ in the label sets that were used, but also in terms of segmentation. Firstly, there are discrepancies in what is considered an "elementary discourse unit" in RST-DT vs. what is considered a discourse relational argument or an attribution in PDTB 2.0. Note that in the remained of this paper, we use the term “segment” to refer to the text elements that are part of a relations; that is, the arguments in PDTB and the EDUS, nuclei and satellites in RST-DT. There are also differences in the discourse structure: RST annotates discourse trees spanning the whole document, while PDTB 2.0 only annotates relations between adjacent sentences and relations marked by an explicit connective. This results in a considerably lower number of PDTB relations than RST-DT relations for the same text. We therefore use PDTB relations as a starting point in alignment, with the goal of identifying for each PDTB relation the corresponding relation label in the RST annotation.

PDTB’s minimality principle (cf. Section 2.2) and RST’s tree structure (cf. Section 2.1) influence the result of the segmentation and annotation steps. An annotation alignment process must therefore take into account systematic differences arising from the respective segmentation procedures. In the automatic alignment step, our goal is to map as many discourse relation labels as possible in order to get a maximally complete picture regarding how well the annotations correspond to one another. At the same time, we must only map those labels where annotators inferred the same relation – if the RST-DT annotators annotated a relation holding between two text segments, and the PDTB annotators marked a relation between two different segments, these labels should not be recorded as valid alignments, and labels hence shouldn’t be compared. To illustrate this, consider Example 4, which presents the PDTB (left) and RST-DT (right) annotations for a fragment of a Wall Street Journal article. PDTB segmented Arg1 differently than RST-DT, leading to a difference in interpretation. PDTB considers segments (c-d) as the result of the event in segment (b), whereas RST-DT focused on the different opinions expressed in segments (a-b) and (c-d). The disagreement between the two labels (Result vs. List, respectively) does not stem from annotator disagreement regarding the label, but from a more fundamental difference in segmentation. Such cases should therefore not be included in the evaluation of mapped labels.

Figure 2: PDTB and RST-DT annotations for a paragraph of wsj_1172. 1 refers to Arg1 in PDTB; 2 refers to Arg2. N refers to Nucleus in RST; S refers to Satellite. (a-d) refer to RST-DT’s EDUs.

In related work, scheffler2016konvens compared PDTB 3.0-style annotations and RST-style annotations on the German Potsdam Commentary Corpus (PCC; Stede and Neumann, 2014b). The PCC includes 1104 explicit connectives annotated in PDTB-style but lacks PDTB-style annotations for implicit relations. scheffler2016konvens propose a simple method for mapping the PDTB 3.0-style and RST-style annotations for explicitly marked relations in the Potsdam Commentary Corpus (PCC) onto one another, in order to empirically observe commonalities and differences in the annotations of discourse structure between the two approaches. They do not, however, compare relation labels for the mapped relations. The alignment algorithm used in scheffler2016konvens compares the spans of the relation argument annotations, and distinguishes different segmentation constellations. They observe that the majority (84%) of instances in their corpus consists of cases that are easy to map, including exact match of discourse relational arguments (41%) and “boundary match” (39%), where a relation is annotated between two adjacent text spans, and the boundary between the two arguments is identical. They however also report difficult cases of non-local relations where the segment boundaries differ (13%) (as in the example of the contrast relation in Figure 3), and cases in which no match is possible (3%).

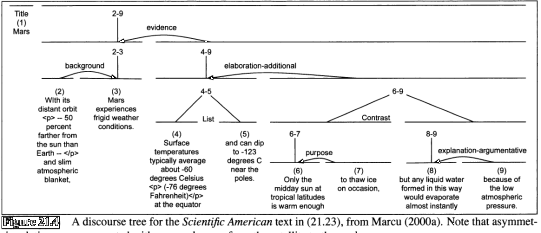

Figure 3: RST discourse structure, Figure 1.1 from marcu2000.

The alignment algorithm proposed in this article (see Section 4.2 below) is more complex than the one proposed in scheffler2016konvens, in order to better address those cases for which there are differences in segmentation between annotation layers. The core idea of how valid alignments can be identified even in the face of mismatches between relational arguments builds on the Strong Nuclearity hypothesis Marcu (2000), which was used for RST-DT annotation. The Strong Nuclearity hypothesis states that when a relation is postulated to hold between two spans of text, it should also hold between the nuclei of these two spans. Note that the notion of “nuclearity” has had several slightly different interpretations throughout the conception and further development of RST, as laid out in stede2008rst. Independent of the theoretical discussion about the intentions behind nuclearity as such, the specific notion used in RST-DT annotation is helpful for determining relation alignment. RST-DT’s nuclearity was assigned in an instance-by-instance decision for identifying those parts of a discourse relation which are crucial for that relation to hold; it was not used as a general property of relation types, as in some other variants of RST annotation. In that sense, the strong nuclearity annotation guideline from marcu2000 is related to the minimality principle used in PDTB 2.0 annotations: both help to indicate which segments of the text are central to establishing the discourse relation. To illustrate this, consider the Contrast relation in Figure 3; the Strong Nuclearity hypothesis means that if the relation holds between (6-7) and (8-9), it should also hold between (6) and (8), but not between (7) and (8) or (7) and (9). In the following, we will use the expression nucleus path to refer to the path between a complex argument of a high-level relation, and the single EDU which one ends up with if always following the path down the segments annotated as nucleus.

4.1.1 Segmentation constellations

We will now go through the different segmentation and alignment constellations using examples, to explain where challenges in alignment lie, and how these are dealt with by our alignment procedure. For ease of reference, we will here adopt the PDTB distinction between explicitly marked and implicit relations, even when referring to RST-DT annotations.

PDTB relations with adjacent arguments

The simplest case is an exact match between the discourse relational arguments for the two annotation layers. Additionally, there can be cases where the argument spans largely overlap but differ in their exact boundaries. Consider Figure 4: in PDTB 2.0, segments (a-b) and (c) are connected in a Temporal.Synchrony relation. In RST-DT, a Temporal-same-time relation was annotated between segments (b) and (c). Even though the spans differ in whether (a) is included, they clearly correspond to each other. As neither of the discourse relational arguments is complex in the case of such matches, it is straightforward to decide which relation labels should correspond to each other.

Figure 4: PDTB and RST annotations for a section of wsj_1146.
PDTB relations with non-adjacent arguments

We also frequently encounter more complex cases, where the PDTB arguments are not directly adjacent to one another. This can happen both for explicitly marked relations and for implicit relations (when the sentences are adjacent but the chosen spans do not cover the complete sentence). Whenever the PDTB arguments are not adjacent, we will either have a mismatch between the size of the discourse segments in that the RST-DT EDU is larger than the PDTB argument, or in that the RST-DT argument is complex, i.e. it consists of other relations. In Figure 4, this is the case for the Restatement relation: in PDTB, this relation holds between segments (a) and (d), whereas in RST-DT, the relation holds between segments (a-c) and (d). For deciding whether the PDTB Expansion.Restatement and RST-DT Restatement relations should be aligned, we rely on the Strong Nuclearity hypothesis. It says that the complex relation between (a-c) and (d) should also hold between the nucleus of (a-c), hence (a) and (d). We can then infer an exact match between discourse relational arguments (a) and (d) between the two annotation layers, and map the labels onto one another.

Such cases also occur among explicitly marked relations. Since RST-DT relations are annotated in a hierarchical tree structure, relations connecting non-adjacent sentences will have large discourse relational arguments. Consider Example 3 again: RST-DT annotates a Contrast relation with segments (6-7) as one nucleus and (8-9) as the other nucleus. In the PDTB annotation, because of the minimality principle of marking discourse relational arguments, the relation marked by but has segment (8) as its ARG2 and segment (6) as its ARG1. Similarly, the evidence relation between segments (2-3) and (4-9) would differ in terms of its argument boundaries in PDTB annotation, as segments (6-9) would typically not be included in the ARG2 of the implicit relation. Nevertheless, an alignment of relations is possible given nuclearity annotation, and labels from such cases are included in the mapping.

Relations with inconsistent nuclearity

There are however also cases for which labels should not be mapped due to discrepancies in what relation the annotators intended to label. These cases can typically be identified through inconsistencies between the discourse relational arguments annotated by PDTB and the nuclearity assignment annotated in RST-DT.

To illustrate this, consider the passage in Figure 5. In this example, one would have to map PDTB relation Contrast to RST-DT’s Consequence, if one were to only take into account maximal overlap of discourse segments, but ignore nuclearity: the difference in span size (PDTB’s annotation excludes segments (a) and (e)) affects the interpretation of the relation. In PDTB’s annotation, the relation holds between the state’s action and the farmers’ actions. RST-DT’s annotation, on the other hand, the annotated relation holds between the state’s action and the consequences of that action. The relation labels therefore correspond to different interpretations. Such cases can be identified automatically because PDTB’s Arg2 cannot be safely traced to the nucleus of the satellite of RST’s Consequence relation, as the contrast relation annotated in RST is multinuclear. Such cases are automatically flagged by our algorithm and excluded from the mapping analysis.

In order to investigate how often relations with intervening multinuclear relations (i.e., relations in which one of the segments consists of a larger tree branch including a multinuclear relation) occur in the data and to what extent they pose a problem for automatic alignment, we extracted all instances that contain an intervening multinuclear relation. In total, 892 relations (13% of the data) have one or more intervening multinuclear relations. However, not all of these pose a potential risk to alignment – cases where the multi-nuclear relation is the relation to be compared, and multi-nuclear relations that are not on the nucleus path, are safe to map. We found that 295 multinuclear cases were flagged as potentially violating strong nuclearity. We manually checked 50 of these flagged instances and found that almost all of them indeed do not represent valid alignments, and should therefore be excluded from the mapping analysis.

Figure 5: PDTB and RST-DT annotations for a paragraph of wsj_1146. Note: Only the PDTB annotation that is relevant for this example is included.
Internal relations

The segmentation granularity between the two frameworks can differ, which can lead to a specific instance from the finer-grained framework not being mapped to a label in the coarser framework. For example, two RST-DT EDUs could occur internally within a sentence, without this relation being annotated in the PDTB annotation layer. Figure 3 shows an example where the Background relation between segments (2) and (3) has no corresponding PDTB annotation. Similarly, there are also cases where a discourse adverbial is annotated as an explicit marker for a relation in the PDTB 2.0 annotation, but both arguments of this relation are part of the same RST EDU, as in Example 4.1.1: PDTB annotated the connective because whereas in RST-DT, the entire sentence was considered as one EDU. Internal relations can inherently not be aligned, and hence were excluded from our mapping analysis.

. [That’s] because [municipal-bond interest is exempt from federal income tax – and from state and local taxes too, for in-state investors.]
Contingency.Cause.Reason, wsj_0689

RST-DT’s Same-unit

Centrally embedded relations (where the ARG1 is discontinuous and ARG2 is located inside the span of ARG1) can be successfully mapped by our algorithm if the RST-DT annotation contains a Same-Unit annotation that links the discontinuous parts of the RST segments mapping to the PDTB ARG1. This is illustrated in Figure 6. If a Same-Unit annotation in RST-DT is identified, the label of the corresponding PDTB relation is mapped to the label of the relation below the Same-unit

relation (96 instances). We manually verified a subset of mapped relations to make sure that this heuristic is valid in practice (see Section

4.3). For Same-unit relations where both of the RST-DT segments contain multiple EDUs (44 instances), the corresponding relation could not be determined. These cases are flagged and excluded from the mapping analysis.

Figure 6: PDTB and RST-DT annotations for a paragraph of wsj_1962.

The PDTB relation label EntRel is used to mark cohesion when no specific coherence relation can be identified. As cohesion is not defined as a type of coherence relation, the EntRel label is not included in the UniDim mapping. However, RST-DT contains several labels (Elaboration-additional, Definition, Background) that tend to be annotated when there is cohesion but no easily identifyable coherence relation. In our analysis, we therefore decided to include the EntRel label, to check whether it actually coincides with RST-DT’s labels signalling cohesion.

4.2 Alignment Algorithm

Our procedure for mapping annotations provided by the two frameworks takes the PDTB relations as a starting point, because there are fewer relations annotated in the PDTB 2.0 than in the RST-DT. The alignment procedure is aimed at determining the optimal mapping of each PDTB relation to an RST relation. Thereby, our goal is to identify as many valid correspondences between annotations as possible, but at the same time minimise mapping “noise” by also identifying those cases in which we cannot be sure that the annotators identified the same underlying relation.444The alignments will be made available. Our mapping algorithm involves two major steps:

  1. Identifying for every PDTB discourse relation those RST-DT segments (EDUs or sub-trees containing more than one EDU) that best correspond to the PDTB segments Arg1 and Arg2 separately.

  2. Identifying the RST-DT relation label that describes the relation between the Arg1-equivalent and Arg2-equivalent spans.

In the first step, for each PDTB argument, we iterate over all RST EDUs in the source file and select the one with maximum overlap (common characters) and minimum margin (extra characters). We then determine whether a PDTB argument should be aligned to more than a single RST EDU by iterating over all RST relation annotations (sub-trees spanning over several EDUs) using the same criteria. Having identified the closest matching RST-annotated text spans for both arguments of the PDTB relation (Arg1-equivalent and Arg2-equivalent RST spans), we move to step 2 to find the lowest RST relation within the discourse tree that contains the two RST spans obtained in the previous step in different arguments. In this step, several error flags are set for manual investigation of possibly invalid alignments, which we briefly introduced in the previous section and will discuss in more detail below.

To illustrate the alignment procedure, consider the example shown in Figure 7. The first step of the alignment algorithm is to identify the corresponding text segment for PDTB’s Arg2 (here, segment a) and Arg1 (here, segments c-d). In order to do that, the algorithm would first compare all EDUs separately to the PDTB argument spans to identify the ones with most character overlap, and then move on to comparing larger spans. This would mean that it would first identify (c) as a matching EDU for PDTB’s Arg1, and then replace this by the better-matching combination of the span comprising both EDUs (c) and (d).

We can see that in this example, segments (c-d) are conjoined in a Condition relation in RST-DT, and are part of an Attribution relation with segment (b), as well as a List relation with segments (e-g). Finally, there is a relation connecting segment (a) to segments (b-g). PDTB’s Arg1 is hence embedded in several relations as part of a tree branch in RST-DT, including one multinuclear relation (the List relation).

As part of its second step, the automatic algorithm proposes an alignment of the PDTB Concession label to the RST Concession label, because RST’s Concession relation is the lowest relation which includes the PDTB Arg2-equivalent span (a) and the Arg1-equivalent span (c-d) in separate arguments. However, it would also automatically flag this instance due to the intervening multi-nuclear List relation: the multi-nuclear relation prevents it from unambiguously identifying the nucleus path from the nucleus of RST’s Concession relation to the relevant textspan that corresponds to PDTB’s Arg1.

Figure 7: PDTB and RST-DT annotations for a paragraph of wsj_0619. Note: Only the PDTB annotation that is relevant for this example is included. Segment (e-g) is simplified, it actually consists of multiple RST-DT relations.

The algorithm flags all instances for which the mapping was potentially problematic, based on various criteria. First, relations for which PDTB arguments are discontinuous (e.g., containing text spans which are marked as not belonging to the relation, or centrally embedding the other PDTB argument, or overlapping with it) are flagged to allow for further manual checking. Second, relation mappings that are inconsistent with the Strong Nuclearity hypothesis Marcu (2000) were flagged so that these cases could be excluded from mapping. Additionally, we added flags for relations that contain intervening multi-nuclear relations, for relations that were originally labelled as Same-unit, and for relations that contain an intervening RST-DT Attribution relation.

4.3 Results of the alignment procedure

In total, we were able to include 76% of PDTB relations from the joint corpus into our mapping analysis (a total of 5141 relations). 52% of these relations (a total of 2662) have directly corresponding argument spans, for which argument spans are exactly identical or differ only with respect to punctuation or inclusion/exclusion of connective in a segment.

The remaining 48% (2489 instances) of the data included in the mapping analysis consists of relations for which the RST-DT tree is more complex than the PDTB relation. In other words, at least one of the PDTB arguments mapped onto an RST-DT relation that consists of multiple RST-DT EDUs. In order to investigate whether these more complex relations are aligned correctly, we randomly selected 100 instances and evaluated whether the algorithm was justified in mapping PDTB and RST-DT labels for these instances. We found that 95 relations were mapped successfully, while 5 instances were unjustified. In these five cases, the nucleus of a larger RST-DT span matched PDTB’s argument, but the annotators did not evaluate the same type of relation. This was largely due to one of the segments (usually Arg2) being part of a larger branch in RST-DT. Even though this segment was the nucleus of that branch, it still blocked a stronger interpretation.

Figure 8: PDTB and RST-DT annotations for a paragraph of wsj_1176. Note: Only the PDTB annotation that is relevant for this example is included.

To illustrate this, consider the example in Figure 8. PDTB annotated a Contrast relation between segments (b) and (d), whereas RST-DT annotated an Elaboration-additional relation between segments (a-b) and (c-d). The inclusion of the two attributions changes the interpretation of the two segments: the relation is focused on the speaker saying something and then adding to that (expressed by an Elab.-additional relation), rather than on the content of what the speaker is saying (expressed by a Contrast relation). Although both the PDTB and the RST-DT annotators selected the same arguments for these relations, the labels might not always match because Attribution can (in a subset of cases) “block” an interpretation. To quantify the risk related to intervening attributions, we counted the occurrence of attribution relations in the otherwise successfully mapped relations and found that 595 relations (12%) in total have at least one attribution relation in one of the segments; 49 (less than 1% of the data) have two or more intervening attributions (like the example given above). Note that out of these 49 instances, only some exhibit the problem of attribution leading to different annotated labels; we therefore decided to include these instances in our analysis.

We conclude that our manual inspection of a representative sample of instances confirms that our alignment algorithm is highly reliable.

4.3.1 Instances that could not be successfully aligned

24% (1621 instances) of PDTB relations were flagged by at least one of our flags indicating difficult cases. That is, these relations were automatically aligned, but these instances exhibit e.g. inconsistent nuclearity, such that there is a higher chance that the annotated relation labels do not correspond to one another (i.e., annotators had different discourse structures or interpretations in mind).

To provide a more quantitative idea of the cases that were excluded from the mapping, we again randomly selected and manually evaluated 100 instances. We found that 72 items were correctly flagged as unjustified mappings. Out of these, 15 instances consisted of EntRel labels. Finding many EntRel labels among the flagged instances is expected, since EntRel is annotated between adjacent segments that do not have a stronger reading. Often, these occur on the boundary of larger RST-DT spans. Looking at the total set of flagged mappings, we find that EntRel makes up a large portion of this set: it occurs 333 times, which amounts to 19% of all flagged mappings. Additionally, PDTB’s NoRel occurs 32 times in the flagged mappings (NoRel is used for adjacent arguments between which no discourse relation holds). The 72 correctly flagged relations also included four cases of Same-unit relations which could not be mapped automatically because both segments of these Same-unit relations consisted of multiple EDUs.

An additional four Same-unit relations were correctly mapped by choosing the relation label below the Same-unit relation. After inspection of additional samples of Same-unit relations for which the label could be unambiguously resolved automatically, we decided to include all of the unambiguously resolvable Same-unit relations into our analyses, while Same-unit relations where both segments have multiple EDUs are excluded.

Figure 9: PDTB and RST-DT annotations for a paragraph of wsj_0604. Note: Only the PDTB annotation that is relevant for this example is included. *The full label is Elaboration-object-attribute.

The remainder of 24 relations do in fact represent valid mappings. This illustrates that our algorithm prefers high reliability of the mapping over full coverage. In more than half of these instances (13 cases), the RST annotation seems to be inconsistent with the Strong Nuclearity principle555Note that difficulties in consistently annotating nuclearity have been pointed out before, see e.g., Stede (2008). Figure 9 illustrates this: PDTB annotated a Synchrony relation between segment (b) and (c). RST-DT annotated a Circumstance relation between segment (a-b) and (c), but segment (a) is in fact annotated as the nucleus. In other words, the nucleus path could not be traced back to PDTB’s Arg1, and therefore the relation was flagged. However, the Circumstance relation does not actually hold between The Kidder name is one of only six or seven and when considering a merger deal; it holds between what PDTB marks as Arg1 and Arg2.

Another typical case for automatic flagging by our algorithm occurred in cases where PDTB’s annotation constraint for annotating only adjacent implicit relations caused a mismapping: this can happen when two adjacent sentences convey a similar message and are followed by a third sentence which is Arg2. In those cases, the second but not the first sentence has to be annotated as Arg1 in PDTB.

5 Correspondence between mapped relation labels

Our analysis of correspondences between mapped labels is based on a total of 5141 PDTB labels that could be mapped automatically with high confidence (see Section 4.3). For any relation that carried two PDTB labels (in case the annotators thought that both relations held), we selected the label that is most similar to the corresponding RST-DT relation.

We will first discuss results concerning the discrepancies in theoretical mappings between frameworks as introduced in Section 3, and then analyse in more detail whether all mapped relations were annotated in a way that is consistent across frameworks, i.e. whether for a given relation, annotators from the two frameworks usually chose labels in PDTB that match the annotation in RST and vice versa. As results differ strongly between explicit and implicit relations, we will discuss this separately: explicit relations are discussed in Section 5.2 and implicit relations in Section 5.3.

5.1 Analysis of theoretically interesting discrepancies in expected mappings

Section 3 laid out theoretically interesting discrepancies between proposed mappings, relating to highlighting the RST-DT relations Comparison, Antithesis, Elaboration-object-attribute, Background and Circumstance. Table 2 shows the mapping of relations corresponding to these labels.

Temp. Cont. Comp. Expansion
RST-DT label

PDTB label






Pragm. contr.



Chosen alt.






Comparison 2 1 1 1 52 2 24 2 2 87
Antithesis 1 3 186 2 37 15 5 2 1 2 254
Elab.-object-attr. 6 7 1 1 15
Background 10 13 13 2 19 2 4 21 84
Circumstance 90 83 39 22 15 4 21 5 15 294
Table 2: Alignment of RST-DT relations for those labels that were identified as theoretically interesting cases of discrepancies between the three mapping proposals.

Regarding the first label, PDTB does not have a directly corresponding label for RST-DT’s Comparison label. Because the RST-DT annotation manual explicitly defines these relations as non-contrastive, sanders2016 mapped this label to Conjunction while bunt2016 mapped it to Contrast. Looking at the empirical results (see Table 2), we find that approximately one third of RST-DT Comparison instances are annotated as Conjunction, while two thirds (63%) are annotated as Contrast in PDTB; we specifically note a high proportion of PDTB Contrast.juxtaposition labels for these instances. This distribution is similar for explicit and implicit instances of Comparison. Typical markers for explicit instances are while, but and however. We therefore conclude that RST-DT’s Comparison should be mapped to both PDTB Conjunction and Contrast.

A second area of disagreement was the label Antithesis, which was proposed to map to Contrast or Concession in UniDim, but only to Concession according to the ISO-based mapping and only to Contrast according to OLiA. The empirical data clearly shows that the vast majority of Antithesis relations (73%) map onto PDTB’s Contrast relations, while 15% map to Concession relations, in line with OLiA and UniDim.

Next, we consider RST-DT’s Elaboration-object-attribute. OLiA proposed a correspondence with general Expansion labels, UniDim proposed a mapping to Specification and Generalization, and ISO proposed a mapping to PDTB’s EntRel. The data only contained 15 instances of Elaboration-object-attribute, and the majority of these (seven instances) were mapped to Conjunction, confirming OLiA’s mapping. Six cases were mapped to PDTB’s Asynchronous label, which none of the frameworks predicted. Only one instance was annotated as Specification. The closest corresponding labels for Elaboration-object-attribute therefore seem to be the more general Conjunction label, as well as the temporal Asynchronous type.

Finally, we consider the labels Background and Circumstance. UniDim mapped Background to PDTB Conjunction and Asynchronous, whereas ISO only mapped it to Conjunction. As shown in Table 2, Background relations are annotated as a variety of relations: 23% are annotated as PDTB Conjunction, and 12% as Asynchronous, but Cause and Contrast (both 15%) also occur frequently.

Regarding Circumstance, UniDim mapped it to PDTB Conjunction, Synchronous and Asynchronous, and ISO only mapped it to Synchronous. Table 2 shows that Circumstance is also annotated as a wide range of PDTB relations, indeed including Conjunction (7%), Synchronous (31%) and Asynchronous (28%), but also Cause (13%) and Condition (7%). RST-DT’s Background and Circumstance therefore seem to be more general labels than both UniDim and ISO predicted. This could be due to the lack of corresponding label in PDTB.

We conclude that the empirical data confirms the usage of the label Antithesis primarily for contrast relations rather than concessives; we would suggest that any new annotation efforts using the Antithesis label should clarify its intended use in the annotation guidelines; the same holds for the label Comparison, which would need to be more clearly defined for future use to avoid misinterpretation. The mapping of relations Background and Circumstance to PDTB is difficult, because these labels are more general, used when additional information needs to be provided to allow the reader/listener to understand. Therefore, these segments have a function within the overall goal of the text, but do not seem to stand in a consistent semantic relation to the segment that they are supposed to provide additional context for. We now turn to the findings for the mapping of other labels to see if the two frameworks’ annotations are compatible.

5.2 Mapping for explicitly marked relations

Table 3 displays the mapping of PDTB annotations onto RST-DT annotations for explicitly marked discourse relations that occurred more than 30 times in total. In the table, relation mappings which were suggested by all three proposals are considered “expected” mappings and are marked in the table by underlined, bold numbers. Mappings of labels for which at least two of three proposals agree are indicated by underlined numbers. Note that for some labels, several entries in a row or column are marked as “expected”. This is because a one-to-one mapping is not always possible, as some labels have multiple matching candidate labels in another framework due to differences in the granularity of distinctions between frameworks (see Section 3). We can distinguish a number of clusters that correspond quite well to the expected mappings. In this section, we will go through the major classes (temporals, causals, contrastives, additives).

Temp. Cont. Comp. Expansion
RST-DT label

PDTB label










Temp.-same-time 63 1 1 1 4 5 75
Temporal-after 48 1 2 54
Sequence 2 29 1 1 19 52
Circumstance 89 79 29 21 7 4 10 259
Result 1 3 30 2 5 41
Consequence 5 6 45 4 1 16 1 95
Explanation-arg. 6 39 7 2 1 57
Reason 2 67 72
Condition 5 13 1 104 2 1 1 182
Contrast 1 1 160 23 17 208
Concession 5 4 3 101 53 4 182
Antithesis 1 3 170 37 10 243
Comparison 2 1 26 2 9 41
Elaboration-add. 4 3 1 30 8 122 3 3 192
Example 1 1 3 29 35
List 2 4 1 17 1 303 47 377
Total 187 197 215 129 533 132 527 32 51
Table 3: Alignment of explicit discourse relation classes for which 30. Numbers indicate how many instances occurred in our high-confidence mapping; values are represented as colors. Underlined, bold numbers indicate the mapping predicted to all three proposals; numbers that are only underlined (not bold) are predicted by two of three proposals.

The results show that most (81%) of the explicitly marked relations that were classified as Synchronous by PDTB were tagged as RST-DT Temporal-same-time or Circumstance. There are however also some cases where annotations deviated from expected mappings for temporal PDTB labels. These include cases where one of RST-DT’s causal labels (specifically, Explanation-argumentative or Consequence) was annotated. Closer inspection revealed that frequent connectives in these relations, which did not receive a temporal sense label in RST-DT, were as and when. These connectives are known to be ambiguous markers (see e.g.  Asr and Demberg, 2013), and are frequent among temporal relations such as Circumstance and Temporal-same-time in RST-DT. We hence find that there are some instances containing these ambiguous connectives which could not be consistently disambiguated between frameworks, with one framework labelling these instances as temporal and the other as causal. We will analyse the annotation of ambiguous connectives in more detail in Section 5.2.1

PDTB’s temporal Asynchronous relations generally also map well to their corresponding RST-DT classes (79%). The most notable unexpected pattern consists of PDTB temporal relations marked with until often being classified as Condition in RST. This mismatch could be indicative of inconsistencies in disambiguation of this marker, or could be more systematically related to RST-DT annotating the intention in subjective relations, while PDTB annotations stay closer to the semantic relation Scholman and Demberg (2017).

For RST-DT’s Sequence class, we find that a substantial portion is annotated as PDTB’s Conjunction (37%), i.e. annotations by the different frameworks disagree in these instances as to whether the relation is temporal or not. This was not predicted by any of the mapping proposals.


Explicit causal and conditional PDTB relation labels generally map well onto causal and conditional RST-DT labels; a finding that can be attributed to the relative definiteness of causal markers (we will see a different results for implicit relations in Section 5.3). RST-DT distinguishes more types of causal relations, which results in causal PDTB relations being distributed among the various causal RST-DT classes. Unexpected mappings – e.g., PDTB causals and conditionals annotated as RST-DT’s Circumstance (12% and 16%, respectively) – were found to occur again for instances marked by the ambiguous connectives as and when, respectively.


The majority of PDTB’s Contrast relations was mapped to RST-DT’s Contrast and Antithesis relations (62%), as expected. However, we also found that a substantial portion (19%) of PDTB’s Contrast relations are annotated as RST-DT’s Concession; and some also as RST-DT’s Elaboration-additional (6%). These cases were often marked by the connective but, which is an ambiguous connective.

A closer look at the subtypes of PDTB Concession reveals that relations annotated as PDTB’s Concession.Expectation map quite well (54%) onto RST-DT’s Concession relations, while Concession.Contra-expectation relations are often annotated as Contrast in RST, especially when marked with the connective but. We note that the distinction between concession and contrast relations is known to be difficult in discourse relation annotation Robaldo and Miltsakaki (2014). It is possible that the observed differences stem from differences in interpretation between annotators, and slight biases in the frameworks. Overall, PDTB has a stronger bias than RST-DT towards assigning the Contrast label: the majority of three RST-DT relational labels, namely Contrast, Antithesis and Concession, are mapped to PDTB’s Contrast.


Finally, looking at PDTB’s Expansion relations, we find that a majority of relations annotated as PDTB’s Conjunction is annotated as RST-DT’s List (57%), which was not expected based on the theoretical definitions of these relations. Closer inspection shows that the high number of cases annotated as RST-DT List stems from the fact that PDTB annotation guidelines say that lists have to be “announced”. Unannounced lists cannot be annotated as List relations in PDTB. Such a criterion is however not applied in RST-DT. We find that PDTB’s List and Instantiation relations map well onto RST-DT’s List and Example relations respectively.

We also observe a substantial amount of noise, i.e. 26% of Conjunction relations have a temporal, causal or contrastive label in RST; some of these cases contain the connectives but or while, again indicating that connective disambiguation may not always be consistent between frameworks.

A final interesting observation regards the annotation of the connective unless: these instances are annotated as Condition in RST-DT but as Alternative.Disjunctive relations in PDTB (note that RST-DT does not have a corresponding label).

In sum, we find that deviations from expected mappings are often related to ambiguous connectives (e.g., as, when, but, while) which are in some instances resolved differently in the two frameworks, as well as differences in operationalization between frameworks which leads to mismatches in annotations for relations such as list. We will now consider the annotation of connectives in more detail, before turning to the mapping of implicit relations.

5.2.1 Analysis of annotation for ambiguous connectives

Given that the disagreements between the PDTB and RST-DT can be related to different interpretations of specific ambiguous connectives (as discussed in Section 5.2), we studied the agreement on annotating ambiguous connectives in more detail. After all, it is not surprising that annotators can reach high agreement on relations with an unambiguous connective such as if for Condition; given the empirical findings from previous annotation work in English, this could be done automatically in the future. Rather, the value of additional manual annotation comes from disambiguating between relations when the connective can mark different relations (or when a relation is not explicitly marked, see Section 5.3).


To investigate the agreement on connectives, we tested the independence of PDTB and RST-DT annotations by calculating a separate test for each connective. For connectives where the distribution violated the assumptions of the test (less than 5 expected observations in a cell), we instead used the non-parametric Fisher’s exact test. These analyses reveal whether the annotations agreed more with each other than can be expected based on the distribution of the connectives in the data. The results will provide insight into whether the content of the discourse relation arguments had been taken into account for the actual annotations of the relation instances, or whether the distinction is potentially too difficult or too subtle for human annotators to make reliably. Note that this analysis is more strict than the usual kappa for inter-annotator agreement, because we use the distribution of relations per connective (i.e. which relations a connective can mark, and how often it does so for each relation type in the text at hand), which we are not normally known.


We report some representative results for connectives where the null hypothesis of PDTB and RST-DT annotations for a connective being independent from one another. Here, independence would mean that the content of the actual content of an instance is not predictive of which label was chosen by the one vs. the other framework; in the ideal case, we would expect strong non-independence: given a pair of segments, the labels chosen by one and the other framework should correspond to one another and hence be deterministic not random. We first report cases for which the labels corresponded well (i.e. the null hypothesis of labels being independent could be rejected with high confidence), and then discuss connectives for which observed distributions were very similar to random distributions.

The connective while is an example of the first case: we find that annotators could distinguish between the Temporal.Synchronous vs. Contrast / Comparison reading of while very well; the annotations from the two frameworks almost always agreed on the reading ().

On the other hand, the distribution for sense labels of connectives which are ambiguous between more similar discourse relations (Contrast vs. Concession), such as but, although and however, did not significantly differ from a random distribution of these sense labels (given the marginals), according to a test for but and Fisher’s exact tests for although and however. Calculating values in this strict reading (i.e. taking for granted that but cannot mark causals or temporals and only testing agreement on different subtypes of negative relations) corresponds to for these relation label distinctions between frameworks.

To summarize, we find that there are some ambiguous connectives for which manual annotation from the two frameworks reliably agreed on how the connective should be disambiguated and hence provide valuable additional information. This was mostly the case for when the alternative readings of the connective strongly differ from one another. However, we found no conclusive evidence that most subtle distinctions could be made reliably – on these cases, annotations from the two frameworks often don’t agree with one another more than would be expected by random assignment of labels that a connective can occur with (given the distribution of these connectives). This lack of agreement between humans may also provide a partial explanation for why automatic discourse relation disambiguation is difficult – it is unclear whether the training data that these distinctions are trained on is fully consistent internally, and/or the distinction may be so subtle in a substantial number of real data cases that even humans find it hard to agree. We will next move on to the analysis of agreement between frameworks on implicit discourse relation annotation.

5.3 Mapping of implicit discourse relations

The overall picture of annotation agreement between the two frameworks looks a lot more problematic for implicit than for explicit relations. To get an idea of what underlying causes these differences stem from, we decided to provide two perspectives on the results: once from the PDTB view, which provides an overview of how RST labels are distributed for a given PDTB relation (Table 4(a)) and once from the RST view, showing how the PDTB labels are distributed for a given RST relation (Table 4(b)). To keep tables readable, we only include those labels that occurred more than twenty times in the data.

Mapping of relation annotations for implicit relations, as seen from the PDTB perspective, is shown in Table 4(a). Expected correspondences in the table are again indicated by underlined numbers. The colours in the table indicate the percentage of correspondence to RST-DT labels, with darker shades indicating a higher proportion of instances with a certain PDTB label falling into that RST-DT category. For example, 7 instances of PDTB Temporal.Asynchronous relations are annotated as RST-DT Background. As these 7 instances represent more than 10% of the data on Temporal Asynchronous relations, the number is shaded in light green. On the other hand, the 7 counts of Comparison.Contrast relations labelled as RST’s Consequence represent less than 10% of the 219 PDTB Comparison.Contrast relations; the entry is therefore not shaded.

A first striking observation is that the agreement between frameworks is a lot worse than for explicit relations. While we saw a diagonal line of shaded cells that largely overlapped with theoretically expected correspondences, we can see that a substantial proportion of instances from almost all PDTB classes were annotated as RST-DT’s Elaboration-additional.

Table 4(b) shows the alignment of implicit relations from the RST-DT perspective. Many cells here are shaded green, which indicates that the annotations for many of the RST-DT relations have a wide variety of PDTB labels.


Temporal relations were not consistently identified between frameworks. Only roughly one third of PDTB’s Asynchronous.Precedence relations had the expected RST label Sequence, and most of PDTB’s Asynchronous.Succession relations were labelled as Elaboration-additional in RST-DT. The RST-DT Temporal-after label is very rarely annotated among implicit relations.


For PDTB’s Cause.Reason relations, less than 40% of instances were annotated as one of the expected causal classes by RST-DT annotators (expected classes were Explanation-argumentative, Reason, Evidence or Interpretation), and only a very small percentage of PDTB’s Cause.Result were annotated as Consequence, Result or Cause-result relations in RST. Instead, most of these relations are annotated as Elaboration.additional, showing that PDTB annotators tended to choose a “stronger” label than RST annotators for these instances.

RST-DT’s causal relations Consequence and Reason map relatively well onto PDTB’s causal relations. However, other causal RST-DT labels (Evidence and Explanation-argumentative) are often mapped onto the additive PDTB labels Instantiation and Specification. This difference can be attributed to a fundamental difference between the approaches: PDTB annotates the lower-level ideational relations between arguments, while RST-DT focuses more on the intentional level. scholmansubm show that often two functions can be identified in these specific relations: a segment can provide an example or a specification of a set, as well as providing evidence for a previously stated claim. These double functions are reflected in the annotation mapping between PDTB and RST.


Only a minority of PDTB Contrast relations was also labelled as a contrastive relation in RST (17% for RST Contrast, 10% for Comparison). Instead, the majority is mapped to Elaboration-additional and even List labels.

From the perspective of RST-DT’s Contrast relations, we observe that they were for the most part annotated as contrastive relations in PDTB, usually using the underspecified Contrast label (rather than one of its subtypes).


One PDTB implicit relation that matches well with RST-DT annotation is List, for which 84% of instances were annotated as RST-DT’s List relation. For RST-DT’s List relation, we see that the largest proportion of its instances (44%) are annotated as Conjunction in PDTB; as mentioned earlier, this problem is partially due to the guideline in PDTB that lists have to be announced.

Taking a look at PDTB EntRel labels, we can see that these are predominantly annotated as Elaboration-additional and List in RST-DT. Nevertheless, we also observe a number of different annotations on the RST side. We analysed a randomly selected subset of these instances and found that a common reason for the richer RST labels is that these EntRel relations are in fact high-level relations in RST. The stronger interpretation is in those cases often due to the effect of additional content (outside the nucleus path), which facilitates the stronger interpretations. In our view, it is arguable whether EntRel labels should really be considered to be mapped to RST labels, as the task given to the annotators differed markedly for these instances: in the PDTB case, the annotator task was to label the relation holding between two adjacent sentences, whereas the task of the RST annotators was to join high-level discourse segments and describe their relation.

RST-DT’s Comment

relation shows an almost uniform distribution across PDTB labels, consistent with other communicative functions which are not represented in the PDTB annotation scheme such as

Background and Circumstance, which have been discussed in Section 5.1.

Finally, we observe that RST-DT’s Elaboration-general-specific relations are often labelled as PDTB’s Restatement (55%). This correspondence was predicted according to the expected mappings. 21% of instances were labelled as Instantiation, which can be attributed to the subtlety of the distinction between these two labels.

Temp. Cont. Comp. Expansion
RST-DT label

PDTB label










Sequence 16 1 2 4 3
Background 7 12 10 16 2 4 21
Circumstance 1 10 8 11 6 15
Consequence 4 16 7 11 2 2 1 4
Evidence 12 2 12 2 29 28 6
Explanation-arg. 2 114 16 16 2 35 51 1 22
Reason 1 20 1 3 1 2 3
Result 1 12 1 4 3 1 5
Evaluation 7 9 11 2 1 12
Interpretation 16 3 9 2 8 8
Contrast 1 2 35 2 2 3
Comparison 1 24 14 4 2 2
Antithesis 15 5 2 1 2
Elaboration-add. 29 168 73 221 10 36 151 7 266
Example 9 1 6 64 21 2
Elab.-gen.-spec. 8 11 17 44 18
List 6 24 29 120 2 6 13 74 30
Restatement 5 2 1 2 12 1
Comment 16 9 8 4 8
Total 75 499 277 511 26 202 406 88 463
(a) Colours encode percentage agreement from PDTB perspective, i.e. darker colours show that most instances of a PDTB relation type occurred in that specific RST-DT class.
Temp. Cont. Comp. Expansion
RST-DT label

PDTB label










Sequence 16 1 2 4 3 27
Background 7 12 10 16 2 4 21 72
Circumstance 1 10 8 11 6 15 51
Consequence 4 16 7 11 2 2 1 4 49
Evidence 12 2 12 2 29 28 6 92
Explanation-arg. 2 114 16 16 35 51 1 22 267
Reason 1 20 1 3 1 2 3 31
Result 1 12 1 4 3 1 5 28
Evaluation 7 9 11 2 1 12 46
Interpretation 16 3 9 2 8 8 49
Contrast 1 2 35 2 2 3 56
Comparison 1 24 14 4 2 2 44
Antithesis 15 5 2 1 2 26
Elaboration-add. 29 168 73 221 10 36 151 7 266 991
Example 1 9 1 6 64 21 2 106
Elab.-gen.-spec. 8 11 17 44 18 99
List 6 24 29 120 2 6 13 74 30 311
Restatement 5 2 1 2 12 1 25
Comment 16 9 8 4 8 49
(b) Colours encode percentage agreement from RST-DT perspective, i.e. darker colours show that most instances of a RST-DT relation type occurred in that specific PDTB class.
Table 4: Alignment of implicit discourse relation classes for which 20. Numbers indicate how many instances occurred in our high-confidence mapping.
Discussion on correspondence of annotations for implicit relations

Our analysis of the implicit relations from both perspectives documents a low level of agreement between labels assigned by RST-DT and PDTB. Generally, a stronger relation (biasing away from annotating simple additive labels) tended to be chosen by PDTB annotators. Nevertheless, wherever the RST-DT annotators chose a label other than Elaboration-additional (the predominant label assigned to the implicit cases), the annotations matched with their PDTB equivalents relatively well.

These results raise the question of how these very substantial differences in annotations of implicit relations can be explained. We think that the discrepancy can be attributed largely to the differences in annotation guidelines and operationalizations for implicit discourse relations. PDTB’s connective-driven approach biases against annotating simple additive relations when a connective can be inserted and hence an additional stronger interpretation of the discourse relation is available. RST-DT prescribes a different strategy: annotators are asked to annotate the writer’s intentions. The resulting low agreement between PDTB and RST-DT on implicit relations have implications for the reliability and validity of these annotations. We will expand on this point in the Discussion.

6 Related work

The only other systematic evaluation of the mapping of discourse annotations from different frameworks on the same text is the work by rehbein2016. Rehbein et al. created an English corpus of spoken discourse containing PDTB 3.0 and CCR annotations for every relation. They segmented the texts first, and then proceeded to assign sense labels according to both schemes for that given segmentation. This procedure thus avoided challenges related to differences in segmentation between frameworks. After annotation, the relation labels were mapped onto one another directly, and the correspondence between PDTB and CCR annotations was evaluated.

rehbein2016 reported three systematic biases introduced in the operationalizations of PDTB 3.0 and CCR, which lead to differences in annotations in some areas: A first observation holds that PDTB’s additive relations Expansion.Instantiation, Expansion.Restatement.Specification and Expansion.Restatement.Equivalence were quite often (30% of relations) annotated as causals in CCR. This finding is consistent with our observation here, where we found that PDTB Expansion.Instantiation and Expansion.Restatement are often annotated with a causal label in RST. As noted by blakemore1997 and carston1993, and shown in scholmansubm, these types of discourse relations are often ambiguous, as examples can at the same time also serve as evidence for a claim.

The second category of systematic disagreements concerns Comparison.Contrast and Comparison.Concession relations: among the negative relations, annotators often disagreed on the causal vs. additive basic operation. This was partly due to a slightly different definition of what constitutes a Concession, but note that distinguishing between contrastive and concessive discourse relations is a well-attested difficulty (see, for example, Robaldo and Miltsakaki, 2014; Zufferey and Degand, 2013). Again, the same difficulty is obvious in the mapping between RST-DT and PDTB, as discussed in Section 5.1.

As a third pattern of disagreements, rehbein2016 report effects of operationalization of annotation procedures: Some instances marked by but were annotated as positive polarity relations in PDTB, but as negative in CCR (including instances marked with but also). These discrepancies were systematic and due to an annotation instruction – as a rule, all relations that can be marked with but are annotated as negative polarity relations in CCR. While this specific pattern is not relevant for the mapping between PDTB and RST-DT, we have nevertheless also observed substantial effects of annotation operationalization here, such as the large discrepancies in terms of annotating implicit discourse relations, with PDTB preferring more specific labels due to the annotation instruction to in a first step try to insert a connective and then annotate the relation.

7 Discussion

In the current paper, we evaluated how well theoretical proposals for mapping discourse relational labels correspond to the mapping between existing RST-DT and PDTB 2.0 annotations. The study consisted of three main steps: alignment of relations, evaluation of theoretically interesting discrepancies between the proposals, and evaluation of the mapped labels for explicit and implicit relations. We will discuss each one in turn.

Automatic alignment

In order to evaluate existing annotations, we proposed an automatic mapping algorithm for PDTB and RST-DT discourse relation annotations and applied it to a segment of the WSJ corpus that contains annotations from both frameworks. The algorithm proposed in this article allowed us to align 76% of PDTB discourse relation annotations to corresponding RST annotations. Our manual error analysis shows that the alignment algorithm is highly accurate; it also correctly identifies instances where annotations cannot be aligned due to more fundamental differences in how the discourse is analysed.

Our study highlights the importance of discourse segmentation. Segmentation has a strong effect on determining the scope and argument structure of a discourse relation (see also Hoek, Evers-Vermeul, and Sanders, 2017). The differences in segmentation may hold interesting insights about effects of operationalization of discourse segmentation on discourse annotation, which could be explored in future work to refine annotation processes both for manual annotation and automatic processing.

Evaluation of mapping proposals

As a result of the annotation alignment, we are able to offer a more complete picture of how annotations from the two frameworks relate to one another in practice. We compared actual annotations to expected correspondences which were determined based on three recent proposals for mapping discourse relations onto one another. Our aim in evaluating three different mapping proposals was not to identify the “best” proposal; rather, the comparison between proposed correspondences and empirical co-ocurrences of annotated labels is helpful for achieving a deeper understanding of how certain definitions in the annotation guidelines were applied in practical annotation, and can help to decide between alternative proposals for mappings. The observed mismatches between the proposals can furthermore be used for clarifying annotation guidelines in future annotation projects; for example, the three proposals differed in their interpretation of RST-DT’s Antithesis label, which indicates that the definition of this label could be expanded on.

We found high numbers of disagreement between observed and expected annotations for those relations that did not have a direct correspondence in the other scheme. Examples of such relations include RST’s Background and Circumstance relations. The three proposals treated these relations differently from each other based on the definitions in the annotation manual, but generally, they were mapped to temporal or additive labels. However, the empirical mapping showed that many of these relations were also annotated as causals or even contrastives in PDTB. We see two possible explanations for what causes this: either the mapping scheme (and possibly the annotation manuals) would have to be revised to more clearly or exhaustively describe the relations, or there is a function to the relation which is not reflected in the PDTB scheme, and should be considered to be added to relation schemes, again possibly by annotating both the ideational and intentional functions separately.

Evaluation of mapped explicit and implicit relations

After evaluating the theoretical discrepancies between the proposals, we looked at the mapped data for explicit and implicit relations separately. The most striking observations were a lower than expected level of agreement on annotations for implicit relations, and low agreement on more fine-grained distinctions for explicitly marked relations. In order to get more insight into this issue of difference in agreement, we recommend that future annotation efforts (corpus annotation as well as other tasks) report agreement on implicit and explicit relations separately. While the rate of non-correspondences does seem problematic, we were able to identify several patterns that lead to these observed disagreements. Specifically, many of the differences can be traced back to different operationalizations employed during annotation. as well as to the different goals of PDTB 2.0 vs. RST-DT annotation.

First, the operationalization of discourse annotations may have a strong effect on the resulting annotations: in the PDTB annotation process, annotators were asked to annotate implicit relations by first identifying a discourse connective that would fit the relation, and then in a second step annotate the relation sense. It seems that this practice encourages annotators to assign more specific relation labels to implicit relations than RST-DT’s annotation procedure does. We therefore find that most implicit relations receive the RST-DT label Elaboration-additional and a more specific PDTB label. For future annotation efforts, it is important that this consequence of annotation operationalization is taken into account. We cannot determine whether RST-DT annotators relied too heavily on the absence of a connective, which may have biased them to annotate the Elaboration-additional relation more often, or whether the insertion of connectives as a task made some of the interpretations of relations stronger than they were without the connective, i.e. whether the operationalization to insert a connective may have changed the inferred relation in some cases. To answer this question, we suggest systematic annotation experiments for measuring effect of annotation instructions.

Second, the framework-specific goals have led to a focus on different levels of analysis of discourse relations, namely the ideational and the intentional level. Ideational relations describe the semantic relation between the information conveyed in the consecutive elements of a coherent discourse (cf. Moore and Pollack, 1992). Intentional relations on the other hand involve the writer’s attempts to affect the addressee’s beliefs, attitudes, desires etc. by means of language (cf. Hovy and Maier 1995; see also Crible and Degand 2017; Redeker 1990).666The ideational and intentional levels are also referred to as informational vs. intentional (Moore and Pollack, 1992), subject matter vs. presentational (Mann and Thompson, 1987), and internal vs. interpersonal (Hovy and Maier, 1995). This distinction is relevant for the data used in the current study, because the goals of RST-DT annotations and PDTB 2.0 annotations differ with respect to these functions. While annotators in RST-DT were instructed to annotate the writer’s goal or intended effect of each segment of a text with respect to the neighbouring segments, PDTB annotators were asked to assess the relation between relational arguments, with a strong focus on the role of connectives (lexically-driven approach).

The analysed empirical mappings provide support for the idea to annotate several levels of discourse relational arguments when appropriate. For instance, a segment can be an example for something that was said in the other segment, but it may at the same time serve as evidence for a claim (see also Carston, 1993; Blakemore, 1997). Some of these patterns are systematic and go beyond the PDTB approach of allowing to annotate multiple labels for the same relation: PDTB annotators were not asked to systematically try to annotate all relations that hold. We conclude that future research should explore in more depth whether it is possible to devise an annotation procedure that allows researchers to identify both functions in a systematic way (see also Crible and Degand, 2017).

Finally, regarding the annotation of explicit relations, we found that disagreements are often related to ambiguous connectives such as as, but and while. We analysed whether the annotations of ambiguous connectives agreed more with each other than can be expected based on the distribution of connectives in the data. We found that the PDTB and RST corpus annotations agreed well for relations marked by connectives that can mark very different types of relations (e.g., while can mark a causal or a temporal relation), but they disagreed often on annotation of connectives that mark similar types of relations (e.g., but can mark a contrastive or a concessive relation). We believe that these cases warrant further study in order to better understand why the disagreements occur, and what the implications should be (e.g., a less fine-grained distinction among discourse relations if the present distinction cannot be made reliably, or an improved operationalization of the annotation process in order to achieve more agreement?).

Future directions

The mapped annotations will be made available online so that other researchers can profit from the aligned corpus. We see several possible directions of research for which this mapped data can be useful. First, for theoretical studies, the data can serve to further investigate the frameworks and the effects of their operationalizations on the annotations. Especially the cases which could not be aligned due to differences in structuring the discourse, and cases where different labels were chosen, are interesting from this viewpoint. Some of the mismatches that occur between the PDTB and RST-DT annotations are systematic; for example, certain causal labels in RST-DT are often annotated as additive labels in PDTB, and RST’s Contrast is often annotated in PDTB as Concession. The mapping reveals these patterns and can therefore function as a starting point for other experiments that investigate these systematic mismatches.

Second, the mapping can prove to be useful for future annotations. The patterns of matches and mismatches that can be observed in the data can function as input for defining future annotation guidelines. The mapped data reveals which relation types may be particularly relevant for carrying several functions, and hence displayed less agreement between frameworks. The labels and definitions agreed upon across frameworks can be considered well-established, but for other types of relations, our mapping indicates that definitions may need to be refined in future efforts (for example, PDTB’s and RST’s Contrast and Concession, but also RST’s Comparison deserves more consideration). Our detailed results can also inform the ongoing discussion on identifying a set of labels for discourse relation annotation, which has been a long-lasting issue causing a lot of controversy in the literature.

Third, the mapped data can contribute towards automated discourse parsing efforts. Discourse relation annotations have been used as training data in all recent efforts in automatic discourse relation classification. The classification of implicit discourse relations has received the bulk of the attention and work, given that classification of explicit relations was found to be relatively easy and accurate Pitler et al. (2008). Implicit discourse relation classification has recently also been the subject of two CoNNL shared tasks Xue et al. (2015, 2016)

, with accuracies just over 40% F-score on implicit relation sense labelling for an 11-way classification. Important questions to be considered in the light of the mapping results in this article relate to how these classification results can be interpreted in the light of the difficulty of the implicit relation classification task. How can we make sure that consistency is improved for training automatic discourse relation classifiers? Can and should we train classifiers separately for ideational vs. intentional discourse relation levels? Should classifiers be evaluated by taking into account several possible labels for a relation, so that either the PDTB label or the corresponding RST label would be considered correct? Or should we weigh differently classification mismatch for categories that humans don’t commonly replace for one another versus those that are more interchangeable?

Finally, we would like to emphasize that some of the methodological decisions for the present mapping are specific to the two exact frameworks we worked with, RST-DT and PDTB2.0. Other instances of RST-style annotation may treat nuclearity differently, in which case some of the assumptions of our alignment algorithm would not necessarily generalize to those annotations. Furthermore, PDTB-style annotation also differs between languages; different PDTB resources may use different relation inventories; nevertheless, we would expect that some of the fundamental observations we made (such as the effect of operationalization like the usage of implicit connectives during annotation) would transfer to those other PDTB-style resources.


  • Asr and Demberg (2013) Asr, Fatemeh Torabi and Vera Demberg. 2013. On the information conveyed by discourse markers. In Proceedings of the Fourth Annual Workshop on Cognitive Modeling and Computational Linguistics, pages 84–93.
  • Benamara and Taboada (2015) Benamara, Farah and Maite Taboada. 2015. Mapping different rhetorical relation annotations: A proposal. In Proceedings of the Fourth Joint Conference on Lexical and Computational Semantics,* SEM, pages 147–152.
  • Blakemore (1997) Blakemore, Diane. 1997. Restatement and exemplification: A relevance theoretic reassessment of elaboration. Pragmatics & Cognition, 5(1):1–19.
  • Bunt and Prasad (2016) Bunt, Harry and Rashmi Prasad. 2016. ISO-DR-Core (ISO 24617-8): Core concepts for the annotation of discourse relations. In Proceedings 12th Joint ACL-ISO Workshop on Interoperable Semantic Annotation (ISA-12), pages 45–54.
  • Carlson and Marcu (2001) Carlson, Lynn and Daniel Marcu. 2001. Discourse tagging reference manual.
  • Carlson, Marcu, and Okurowski (2003) Carlson, Lynn, Daniel Marcu, and Mary Ellen Okurowski. 2003. Building a discourse-tagged corpus in the framework of Rhetorical Structure Theory. In Current and new directions in discourse and dialogue. Springer, pages 85–112.
  • Carston (1993) Carston, Robyn. 1993. Conjunction, explanation and relevance. Lingua, 90(1-2):27–48.
  • Chiarcos (2014) Chiarcos, Christian. 2014. Towards interoperable discourse annotation. Discourse features in the Ontologies of Linguistic Annotation. In Proceedings of the Ninth International Conference on Language Resources and Evaluation (LREC 2014), pages 4569–4577.
  • Crible and Degand (2017) Crible, Ludivine and Liesbeth Degand. 2017. Reliability vs. granularity in discourse annotation: What is the trade-off? Corpus Linguistics and Linguistic Theory.
  • Hoek, Evers-Vermeul, and Sanders (2017) Hoek, Jet, Jacqueline Evers-Vermeul, and Ted JM Sanders. 2017. Segmenting discourse: Incorporating interpretation into segmentation? Corpus Linguistics and Linguistic Theory, Advance online publication.
  • Hovy and Maier (1995) Hovy, Eduard H and Elisabeth Maier. 1995. Parsimonious or profligate: How many and which discourse structure relations. Unpublished manuscript.
  • Jansen, Surdeanu, and Clark (2014) Jansen, Peter, Mihai Surdeanu, and Peter Clark. 2014. Discourse complements lexical semantics for non-factoid answer reranking. In ACL (1), pages 977–986.
  • Lee et al. (2006) Lee, Alan, Rashmi Prasad, Aravind Joshi, Nikhil Dinesh, and Bonnie Webber. 2006. Complexity of dependencies in discourse: Are dependencies in discourse more complex than in syntax? In Proceedings of the 5th International Workshop on Treebanks and Linguistic Theories (TLT), Prague, Czech Republic, pages 79–90.
  • Mann and Thompson (1987) Mann, William C and Sandra A Thompson. 1987. Rhetorical Structure Theory: A theory of text organization. University of Southern California, Information Sciences Institute.
  • Mann and Thompson (1988) Mann, William C and Sandra A Thompson. 1988. Rhetorical Structure Theory: Toward a functional theory of text organization. Text-Interdisciplinary Journal for the Study of Discourse, 8(3):243–281.
  • Marcu (2000) Marcu, Daniel. 2000. The theory and practice of discourse parsing and summarization. MIT press.
  • Meyer and Popescu-Belis (2012) Meyer, Thomas and Andrei Popescu-Belis. 2012. Using sense-labeled discourse connectives for statistical machine translation. In Proceedings of the Joint Workshop on Exploiting Synergies between Information Retrieval and Machine Translation (ESIRMT) and Hybrid Approaches to Machine Translation (HyTra), pages 129–138, Association for Computational Linguistics.
  • Moore and Pollack (1992) Moore, Johanna D and Martha E Pollack. 1992. A problem for RST: The need for multi-level discourse analysis. Computational Linguistics, 18(4):537–544.
  • Oza et al. (2009) Oza, Umangi, Rashmi Prasad, Sudheer Kolachina, Dipti Misra Sharma, and Aravind Joshi. 2009. The Hindi discourse relation bank. In Proceedings of the third Linguistic Annotation Workshop (LAW), pages 158–161, Association for Computational Linguistics.
  • Pitler et al. (2008) Pitler, Emily, Mridhula Raghupathy, Hena Mehta, Ani Nenkova, Alan Lee, and Aravind K Joshi. 2008. Easily identifiable discourse relations. Technical report.
  • Popescu-Belis (2016) Popescu-Belis, Andrei. 2016. Manual and automatic labeling of discourse connectives for machine translation. In TextLink–Structuring Discourse in Multilingual Europe Second Action Conference Károli Gáspár University of the Reformed Church in Hungary Budapest, 11–14 April, 2016, page 16.
  • Prasad et al. (2008) Prasad, Rashmi, Nikhil Dinesh, Alan Lee, Eleni Miltsakaki, Livio Robaldo, Aravind K. Joshi, and Bonnie Webber. 2008. The Penn Discourse TreeBank 2.0. In Proceedings of the International Conference on Language Resources and Evaluation (LREC), Citeseer.
  • Prasad, Forbes-Riley, and Lee (2017) Prasad, Rashmi, Katherine Forbes-Riley, and Alan Lee. 2017. Towards full text shallow discourse relation annotation: Experiments with cross-paragraph implicit relations in the PDTB. In Proceedings of the 18th Annual SIGdial Meeting on Discourse and Dialogue, pages 7–16.
  • Prasad et al. (2007) Prasad, Rashmi, Eleni Miltsakaki, Nikhil Dinesh, Alan Lee, Aravind K. Joshi, Livio Robaldo, and Bonnie Webber. 2007. The Penn Discourse Treebank 2.0 annotation manual.
  • Prasad, Webber, and Joshi (2014) Prasad, Rashmi, Bonnie Webber, and Aravind Joshi. 2014. Reflections on the Penn Discourse Treebank, comparable corpora, and complementary annotation. Computational Linguistics.
  • Redeker (1990) Redeker, Gisela. 1990. Ideational and pragmatic markers of discourse structure. Journal of Pragmatics, 14(3):367–381.
  • Rehbein, Scholman, and Demberg (2016) Rehbein, Ines, Merel C. J. Scholman, and Vera Demberg. 2016. Annotating discourse relations in spoken language: A comparison of the PDTB and CCR frameworks. In Proceedings of the Tenth International Conference on Language Resources and Evaluation (LREC), European Language Resources Association (ELRA), Portoroz, Slovenia.
  • Riloff and Wiebe (2003) Riloff, Ellen and Janyce Wiebe. 2003. Learning extraction patterns for subjective expressions. In

    Proceedings of the 2003 conference on Empirical Methods in Natural Language Processing

    , pages 105–112, Association for Computational Linguistics.
  • Robaldo and Miltsakaki (2014) Robaldo, Livio and Eleni Miltsakaki. 2014. Corpus-driven semantics of concession: Where do expectations come from? Dialogue & Discourse, 5(1):1–36.
  • Sanders et al. (under review) Sanders, Ted J. M., Vera Demberg, Jet Hoek, Merel C. J. Scholman, Fatemeh Torabi Asr, Sandrine Zufferey, and Jacqueline Evers-Vermeul. under review. Unifying dimensions in discourse relations: How various annotation frameworks are related. Corpus Linguistics and Linguistic Theory.
  • Sanders, Spooren, and Noordman (1992) Sanders, Ted J. M., Wilbert P. M. S. Spooren, and Leo G. M. Noordman. 1992. Toward a taxonomy of coherence relations. Discourse Processes, 15(1):1–35.
  • Sanders et al. (2016) Sanders, Ted JM, Vera Demberg, Jet Hoek, Merel CJ Scholman, Sandrine Zufferey, and Jacqueline Evers-Vermuel. 2016. How can we relate various annotation schemes? Unifying dimensions in discourse relations. In TextLink Second Action Conference, pages 110–112.
  • Scheffler and Stede (2016) Scheffler, Tatjana and Manfred Stede. 2016. Mapping PDTB-style connective annotation to RST-style discourse annotation. In Proceedings of the 13th Conference on Natural Language Processing (KONVENS 2016).
  • Scholman and Demberg (2017) Scholman, Merel C. J. and Vera Demberg. 2017. Examples and specifications that prove a point: Identifying elaborative and argumentative discourse relations. Dialogue & Discourse, 8(2):56–83.
  • Sharp et al. (2015) Sharp, Rebecca, Peter Jansen, Mihai Surdeanu, and Peter Clark. 2015. Spinning straw into gold: Using free text to train monolingual alignment models for non-factoid question answering. In HLT-NAACL, pages 231–237.
  • Somasundaran et al. (2009) Somasundaran, Swapna, Galileo Namata, Janyce Wiebe, and Lise Getoor. 2009. Supervised and unsupervised methods in employing discourse relations for improving opinion polarity classification. In Proceedings of the 2009 Conference on Empirical Methods in Natural Language Processing: Volume 1-Volume 1, pages 170–179, Association for Computational Linguistics.
  • Stede (2008) Stede, Manfred. 2008. RST revisited: Disentangling nuclearity. Subordination’versus’ Coordination’in Sentence and Text, pages 33–59.
  • Stede and Neumann (2014a) Stede, Manfred and Arne Neumann. 2014a. Potsdam Commentary Corpus 2.0: Annotation for discourse research. In Proceedings of the Ninth International Conference on Language Resources and Evaluation (LREC 2014), pages 925–929.
  • Stede and Neumann (2014b) Stede, Manfred and Arne Neumann. 2014b. Potsdam Commentary Corpus 2.0: Annotation for discourse research. In LREC, pages 925–929.
  • Webber et al. (2016) Webber, Bonnie, Rashmi Prasad, Alan Lee, and Aravind Joshi. 2016. A discourse-annotated corpus of conjoined VPs. LAW X, page 22.
  • Xue et al. (2015) Xue, Nianwen, Hwee Tou Ng, Sameer Pradhan, Rashmi Prasad, Christopher Bryant, and Attapol Rutherford. 2015. The CoNLL-2015 shared task on shallow discourse parsing. In CoNLL Shared Task, pages 1–16.
  • Xue et al. (2016) Xue, Nianwen, Hwee Tou Ng, Attapol Rutherford, Bonnie Webber, Chuan Wang, and Hongmin Wang. 2016. CoNLL 2016 shared task on multilingual shallow discourse parsing. Proceedings of the CoNLL-16 shared task, pages 1–19.
  • Zhou et al. (2011) Zhou, Lanjun, Binyang Li, Wei Gao, Zhongyu Wei, and Kam-Fai Wong. 2011. Unsupervised discovery of discourse relations for eliminating intra-sentence polarity ambiguities. In Proceedings of the Conference on Empirical Methods in Natural Language Processing, pages 162–171, Association for Computational Linguistics.
  • Zirn et al. (2011) Zirn, Cäcilia, Mathias Niepert, Heiner Stuckenschmidt, and Michael Strube. 2011. Fine-grained sentiment analysis with structural features. In IJCNLP, pages 336–344.
  • Zufferey and Degand (2013) Zufferey, Sandrine and Liesbeth Degand. 2013. Annotating the meaning of discourse connectives in multilingual corpora. Corpus Linguistics and Linguistic Theory, 1:1–24.

Appendix A Appendix A: PDTB 2.0 and RST-DT tagsets

Figure 10: Hierarchy of relation senses in PDTB Prasad et al. (2008)
Figure 11: Tagset of relation senses in RST-DT (Carlson and Marcu, 2001)

Appendix B Appendix B: ISO tagset and Unifying Dimensions definitions

Figure 12: Tagset of relation senses in the ISO proposal (Bunt and Prasad, 2016)
Figure 13: The unifying dimensions and features, and their values Sanders et al. (under review)

Appendix C Appendix C: ISO-based and Unifying Dimension-based mappings between RST-DT and PDTB 2.0 labels

Note: Labels that were excluded by at least two frameworks were not included in this table. These labels are RST-DT’s Question-answer, Statement-response, Topic-comment, Comment-topic, Rhetorical-question, Topic-shift, Topic-drift, Attribution. General labels for the types Condition, Contrast, and Expansion were included as subtypes because the three proposals mapped to these more general labels.

PDTB Temporal Contingency Comparison
Asynch. Cause Pragm. Prag. Contrast Concess.
cause cond.









Impl. assert.




Pragm. contr.



Pragm. conc.

Background u u
Circumstance u, i u u
Cause o, u, i o, u, i i
Cause-result o, u, i o, u, i i
Result o, u, i o, u, i i
Consequence o, u, i o, u, i i
Comparison i i i
Preference u u u u i i
Proportion u u u
Condition o, u, i o, u o, u
Hypothetical o, u, i u u
Contingency o, u, i
Otherwise u, i
Contrast o, u, i o, u o, u o, u
Concession o, u, i o, u, i o, u
Antithesis o, u o, u o, u o, u u, i u, i u
Purpose o o, u, i
Enablement u, i o o
Evaluation u u
Conclusion o, u o o, u o o o
Evidence u, i u, i o, u, i
Expl.-argum. o, u, i o, u, i i
Reason o, u, i o, u, i i
Temp.-before o, u, i i
Temp.-after i o, u, i
T.-same-time o, u, i
Sequence o, u, i u, i
Inverted-seq. u, i o, u, i
Means u u o o
Problem-sol. u u o o
Not mapped i i i i
Table 5: Proposed mappings between RST-DT and PDTB 2.0 Temporal, Contingency, and Comparison labels (Expansion labels on next page). Cells with an ‘o’ indicate proposed correspondence according to the OLiA, cells with a ‘u’ according to the Unifying Dimensions proposal, and cells with ‘i’ according to the ISO proposal.
PDTB Expansion
Restatement Alternative









Chosen alt.




Not mapped

Background i u o
Circumstance u o
Comparison u o
Preference u u o
Analogy u, i o
Proportion u, i o
Otherwise o o o
Contrast u
Antithesis i u
El-additional o u, i i
El-gen.-spec. o, u, i o, u, i
El-part-whole o u, i u, i
El-proc.-step o u, i u, i
El-object-attr. o u u i
El-set-mem. o u, i
Example o, u, i
Definition i u u o, i
Evaluation i u u o
Conclusion i i
Comment i u u u o
List o, u, i
Disjunction o, u, i o, u, i o, u
Summary o, u, i o o, u, i
Restatement o, u, i
Means i
Problem-sol. i
Not mapped o, i u
Table 6: Proposed mappings between RST-DT and PDTB 2.0 Expansion labels, including a general Expansion category. Cells with an ‘o’ indicate proposed correspondence according to the OLiA, cells with a ‘u’ according to the Unifying Dimensions proposal, and cells with ‘i’ according to the ISO proposal.
