HotFlip: White-Box Adversarial Examples for NLP

12/19/2017 ∙ by Javid Ebrahimi, et al. ∙ 0

Adversarial examples expose vulnerabilities of machine learning models. We propose an efficient method to generate white-box adversarial examples that trick character-level and word-level neural models. Our method, HotFlip, relies on an atomic flip operation, which swaps one token for another, based on the gradients of the one-hot input vectors. In experiments on text classification and machine translation, we find that only a few manipulations are needed to greatly increase the error rates. We analyze the properties of these examples, and show that employing these adversarial examples in training can improve test-time accuracy on clean examples, as well as defend the models against adversarial examples.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 1

page 2

page 3

page 4

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Adversarial examples are inputs to a predictive machine learning model that are maliciously designed to cause poor performance Goodfellow et al. (2015). Adversarial examples expose regions of the input space where the model performs poorly, which can aid in understanding and improving the model. By using these examples as training data, adversarial training learns models that are more robust, and may even perform better on non-adversarial examples. Interest in understanding vulnerabilities of NLP systems is growing Jia and Liang (2017); Zhao et al. (2018); Belinkov and Bisk (2018); Iyyer et al. (2018)

. Previous work has focused on heuristics for creating adversarial examples in the

black-box setting, without any explicit knowledge of the model parameters. In the white-box setting, we use complete knowledge of the model to develop worst-case attacks, which can reveal much larger vulnerabilities.

We propose a white-box adversary against differentiable text classifiers. We find that only a few manipulations are needed to greatly increase the misclassification error. Furthermore, fast generation of adversarial examples allows feasible adversarial training, which helps the model defend against adversarial examples and improve accuracy on clean examples. At the core of our method lies an atomic flip operation, which changes one token to another by using the directional derivatives of the model with respect to the one-hot vector input.

South Africa’s historic Soweto township marks its 100th birthday on Tuesday in a mood of optimism. 57% World
South Africa’s historic Soweto township marks its 100th birthday on Tuesday in a mooP of optimism. 95% Sci/Tech
Chancellor Gordon Brown has sought to quell speculation over who should run the Labour Party and turned the attack on the opposition Conservatives. 75% World
Chancellor Gordon Brown has sought to quell speculation over who should run the Labour Party and turned the attack on the oBposition Conservatives. 94% Business
Table 1: Adversarial examples with a single character change, which will be misclassified by a neural classifier.

Our contributions are as follows:

  1. We propose an efficient gradient-based optimization method to manipulate discrete text structure at its one-hot representation.

  2. We investigate the robustness of a classifier trained with adversarial examples, by studying its resilience to attacks and its accuracy on clean test data.

2 Related Work

Adversarial examples are powerful tools to investigate the vulnerabilities of a deep learning model

Szegedy et al. (2014). While this line of research has recently received a lot of attention in the deep learning community, it has a long history in machine learning, going back to adversarial attacks on linear spam classifiers Dalvi et al. (2004); Lowd and Meek (2005). Hosseini et al. Hosseini et al. (2017) show that simple modifications, such as adding spaces or dots between characters, can drastically change the toxicity score from Google’s perspective API 111https://www.perspectiveapi.com. Belinkov and Bisk Belinkov and Bisk (2018) show that character-level machine translation systems are overly sensitive to random character manipulations, such as keyboard typos. They manipulate every word in a sentence with synthetic or natural noise. However, throughout our experiments, we care about the degree of distortion in a sentence, and look for stronger adversaries which can increase the loss within a limited budget. Instead of randomly perturbing text, we propose an efficient method, which can generate adversarial text using the gradients of the model with respect to the input.

Adversarial training interleaves training with generation of adversarial examples Goodfellow et al. (2015). Concretely, after every iteration of training, adversarial examples are created and added to the mini-batches. A projected gradient-based approach to create adversarial examples by Madry et al. Madry et al. (2018) has proved to be one of the most effective defense mechanisms against adversarial attacks for image classification. Miyato et al. Miyato et al. (2017) create adversarial examples by adding noise to word embeddings, without creating real-world textual adversarial examples. Our work is the first to propose an efficient method to generate real-world adversarial examples which can also be used for effective adversarial training.

3 HotFlip

HotFlip is a method for generating adversarial examples with character substitutions (“flips”). HotFlip also supports insertion and deletion operations by representing them as sequences of character substitutions. It uses the gradient with respect to a one-hot input representation to efficiently estimate which individual change has the highest estimated loss, and it uses a beam search to find a set of manipulations that work well together to confuse a classifier.

3.1 Definitions

We use to refer to the loss of the model on input with true output . For example, for classification, the loss would be the log-loss over the output of the softmax unit. Let be the alphabet, be a text of length characters, and denote a one-hot vector representing the -th character of the -th word. The character sequence can be represented by

= [(,.. );..(,.. )]

wherein a semicolon denotes explicit segmentation between words. The number of words is denoted by , and is the number of maximum characters allowed for a word.

3.2 Derivatives of Operations

We represent text operations as vectors in the input space and estimate the change in loss by directional derivatives with respect to these operations. Based on these derivatives, the adversary can choose the best loss-increasing direction. Our algorithm requires just one function evaluation (forward pass) and one gradient computation (backward pass) to estimate the best possible flip.

A flip of the -th character of the -th word () can be represented by this vector:

= (,..;,..0,..-1,0,..,1,0,..; ,..)



where -1 and 1 are in the corresponding positions for the -th and -th characters of the alphabet, respectively, and . A first-order approximation of change in loss can be obtained from a directional derivative along this vector:



We choose the vector with biggest increase in loss:

(1)

Using the derivatives as a surrogate loss, we simply need to find the best change by calling the function mentioned in eq. 1, to estimate the best character change (). This is in contrast to a naive loss-based approach, which has to query the classifier for every possible change to compute the exact loss induced by those changes. In other words, apart from the overhead of calling the function in eq. 1, one backward pass saves the adversary a large number of forward passes.

Character insertion222For ease in exposition, we assume that the word size is at most

-1, leaving at least one position of padding at the end.

at the -th position of the -th word can also be treated as a character flip, followed by more flips as characters are shifted to the right until the end of the word.

where and . Similarly, character deletion can be written as a number of character flips as characters are shifted to the left. Since the magnitudes of direction vectors (operations) are different, we normalize by the norm of the vector i.e., , where N is the number of total flips.

3.3 Multiple Changes

We explained how to estimate the best single change in text to get the maximum increase in loss. A greedy or beam search of steps will give us an adversarial example with a maximum of flips, or more concretely an adversarial example within an distance of from the original example. Our beam search requires only forward passes and an equal number of backward passes, with being the budget and

, the beam width. We elaborate on this with an example: Consider the loss function

, input , and an individual change . We estimate the score for the change as . For a sequence of 3 changes [,,], we evaluate the “score” as follows.

where and are the modified input after applying [] and [, ] respectively. We need forward and backward passes to compute derivatives at each step of the path, leading to queries. In contrast, a naive loss-based approach requires computing the exact loss for every possible change at every stage of the beam search, leading to queries.

4 Experiments

In principle, HotFlip could be applied to any differentiable character-based classifier. Here, we focus on the CharCNN-LSTM architecture Kim et al. (2016), which can be adapted for classification via a single dense layer after the last recurrent hidden unit. We use the AG’s news dataset333https://www.di.unipi.it/~gulli/, which consists of 120,000 training and 7,600 test instances from four equal-sized classes: World, Sports, Business, and Science/Technology. The architecture consists of a 2-layer stacked LSTM with 500 hidden units, a character embedding size of 25, and 1000 kernels of width 6 for temporal convolutions. This classifier was able to outperform Conneau et al. (2017)

, which has achieved the state-of-the-art result on some benchmarks, on AG’s news. The model is trained with SGD and gradient clipping, and the batch size was set to 64. We used 10% of the training data as the development set, and trained for a maximum of 25 epochs. We only allow character changes if the new word does not exist in the vocabulary, to avoid changes that are more likely to change the meaning of text. The adversary uses a beam size of 10, and has a budget of maximum of 10% of characters in the document. In Figure

1, we plot the success rate of the adversary against an acceptable confidence score for the misclassification. That is, we consider the adversary successful only if the classifier misclassifies the instance with a given confidence score. For this experiment, we create adversarial examples for 10% of the test set.

We compare with a (greedy) black-box adversary, which does not have access to model parameters, and simply queries the classifier with random character changes. Belinkov and Bisk Belinkov and Bisk (2018) define an attack, Key, in which a character is replaced with an adjacent character in the keyboard. We allow a stronger black-box attacker to change a character to any character in the alphabet, and we call it Key. As expected a white-box adversary is much more damaging, and has a higher success rate. As can be seen, the beam-search strategy is very effective in fooling the classifier even with an 0.9 confidence constraint, tricking the classifier for more than 90% of the instances. A greedy search is less effective especially in producing high-confidence scores. We use a maximum of 10% of characters in the document as the budget for the adversary, but our adversary changes an average of 4.18% of the characters to trick the classifier at confidence 0.5. The adversary picks the flip operation around 80% of the times, and favors delete over insert by two to one.

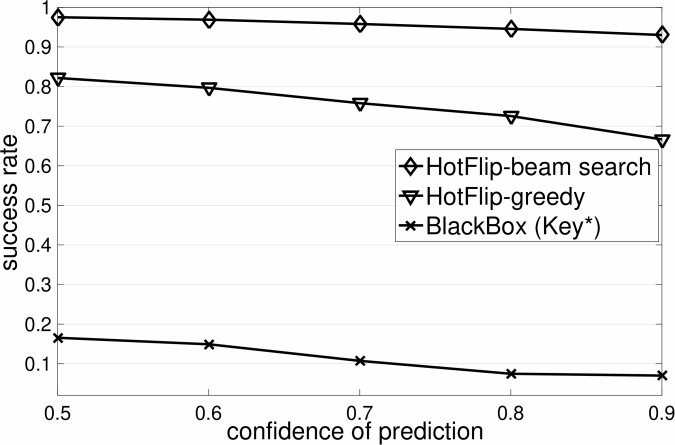

Figure 1: Adversary’s success as a function of confidence.

4.1 Robustness

For our adversarial training, we use only use the flip operation, and evaluate models’ robustness to this operation only. This is because insert and delete manipulations are times slower to generate, where is the number of maximum characters allowed for a word. For these experiments, we have no constraint on confidence score. We flip characters for each training sample, which was set to 20% of the characters in text after tuning, based on the accuracy on the development set. In addition, for faster generation of adversarial examples, we directly apply the top flips after the first backward pass, simultaneously444The adversary at test time would still use beam search..

We use the full test set for this experiment, and we compare HotFlip adversarial training with the white-box (supervised) adversarial training Miyato et al. (2017) that perturbs word embeddings, which we adapt to work with character embeddings. Specifically, the adversarial noise per character is constrained by the Frobenius norm of the embedding matrix composed of the sequence of characters in the word. We also create another baseline where instead of white-box adversarial examples, we add black-box adversarial examples () to the mini-batches. As shown in Table 2, our approach decreases misclassification error and dramatically decreases the adversary’s success rate. In particular, adversarial training on real adversarial examples generated by HotFlip, is more effective than training on pseudo-adversarial examples created by adding noise to the embeddings.

The current error of our adversarially trained model is still beyond an acceptable rate; this is mainly because the adversary that we use at test time, which uses beam search, is strictly stronger than our model’s internal adversary. This has been observed in computer vision where strongest adversaries are not efficient enough for adversarial training, but can break models trained with weaker adversaries

Carlini and Wagner (2017).

Method Misc. error Success rate
Baseline 8.27% 98.16%
Adv-tr Miyato et al. (2017) 8.03% 87.43%
Adv-tr (black-box) 8.60% 95.63%
Adv-tr (white-box) 7.65% 69.32%
Table 2: Comparison based on misclassification error on clean data and adversary’s success rate.

4.2 Human Perception

Our human evaluation experiment shows that our character-based adversarial examples rarely alter the meaning of a sentence. We conduct an experiment of annotating 600 randomly-picked instances annotated by at least three crowd workers in Amazon Mechanical Turk. This set contains 150 examples of each class of AG’s-news dataset, all of which are correctly classified by the classifier. We manipulate half of this set by our algorithm, which can successfully trick the classifier to misclassify these 300 adversarial examples. The median accuracy of our participants decreased by 1.78% from 87.49% on clean examples to 85.71% on adversarial examples. Similar small drops in human performance have been reported for image classification Papernot et al. (2016) and text comprehension Jia and Liang (2017).

5 HotFlip at Word-Level

one hour photo is an intriguing (interesting) snapshot of one man and his delusions it’s just too bad it doesn’t have more flashes of insight.
‘enigma’ is a good (terrific) name for a movie this deliberately obtuse and unapproachable.
an intermittently pleasing (satisfying) but mostly routine effort.
an atonal estrogen opera that demonizes feminism while gifting the most sympathetic male of the piece with a nice (wonderful) vomit bath at his wedding.
culkin exudes (infuses) none of the charm or charisma that might keep a more general audience even vaguely interested in his bratty character.
Table 3: Adversarial examples for sentiment classification. The bold words replace the words before them.
past pas!t Alps llps talk taln local loral you yoTu ships hips actor actr lowered owered
pasturing lips tall moral Tutu dips act powered
pasture laps tale Moral Hutu hops acting empowered
pastor legs tales coral Turku lips actress owed
Task slips talent morals Futurum hits acts overpowered
Table 4:

Nearest neighbor words (based on cosine similarity) of word representations from CharCNN-LSTM, picked at the output of the highway layers. A single adversarial change in the word often results in a big change in the embedding, which would make the word more similar to other words, rather than to the original word.

HotFlip can naturally be adapted to generate adversarial examples for word-level models, by computing derivatives with respect to one-hot word vectors. After a few character changes, the meaning of the text is very likely to be preserved or inferred by the reader Rawlinson (1976), which was also confirmed by our human subjects study. By contrast, word-level adversarial manipulations are much more likely to change the meaning of text, which makes the use of semantics-preserving constraints necessary. For example, changing the word good to bad changes the sentiment of the sentence “this was a good movie”. In fact, we expect the model to predict a different label after such a change.

To showcase the applicability of HotFlip to a word-level classifier, we use Kim’s CNN Kim (2014) trained for binary sentiment classification on the SST dataset Socher et al. (2013). In order to create adversarial examples, we add constraints so that the resulting sentence is likely to preserve the original meaning; we only flip a word to only if these constraints are satisfied:

  1. The cosine similarity between the embedding of words is bigger than a threshold (0.8).

  2. The two words have the same part-of-speech.

  3. We disallow replacing of stop-words, as for many of the stop-words, it is difficult to find cases where replacing them will still render the sentence grammatically correct. We also disallow changing a word to another word with the same lexeme for the same purpose.

Table 3 shows a few adversarial examples with only one word flip. In the second and the fourth examples, the adversary flips a positive word (i.e., good, nice) with highly positive words (i.e., terrific, wonderful) in an overall very negative review. These examples, albeit interesting and intuitive, are not abundant, and thus pose less threat to an NLP word-level model. Specifically, given the strict set of constraints, we were able to create only 41 examples (2% of the correctly-classified instances of the SST test set) with one or two flips.

For a qualitative analysis of relative brittleness of character-level models, we study the change in word embedding as an adversarial flip, insert, or delete operation occurs in Table 4. We use the output of the highway layer as the word representation, and report the embedding for a few adversarial words, for which the original word is not among their top 5 nearest neighbors.

In a character-level model, the lookup operation to pick a word from the vocabulary is replaced by a character-sequence feature extractor which gives an embedding for any input, including OOV words which would be mapped to an UNK token in a word-level model. This makes the embedding space induced in character-level representation more dense, which makes character-level models more likely to misbehave under small adversarial perturbations.

6 Conclusion and Future Work

White-box attacks are among the most serious forms of attacks an adversary can inflict on a machine learning model. We create white-box adversarial examples by computing derivatives with respect to a few character-edit operations (i.e., flip, insert, delete), which can be used in a beam-search optimization. While character-edit operations have little impact on human understanding, we found that character-level models are highly sensitive to adversarial perturbations. Employing these adversarial examples in adversarial training renders the models more robust to such attacks, as well as more robust to unseen clean data.

Contrasting and evaluating robustness of different character-level models for different tasks is an important future direction for adversarial NLP. In addition, the discrete nature of text makes it a more challenging task to understand the landscape of adversarial examples. Research in this direction can shed light on vulnerabilities of NLP models.

7 Acknowledgement

This work was funded by ARO grant W911NF-15-1-0265.

References

  • Belinkov and Bisk (2018) Yonatan Belinkov and Yonatan Bisk. 2018.

    Synthetic and natural noise both break neural machine translation.

    In Proceedings of ICLR.
  • Carlini and Wagner (2017) Nicholas Carlini and David Wagner. 2017.

    Towards evaluating the robustness of neural networks.

    In Security and Privacy (SP), 2017 IEEE Symposium on, pages 39–57. IEEE.
  • Conneau et al. (2017) Alexis Conneau, Holger Schwenk, Loïc Barrault, and Yann Lecun. 2017. Very deep convolutional networks for text classification. In Proceedings of EACL, volume 1, pages 1107–1116.
  • Dalvi et al. (2004) Nilesh Dalvi, Pedro Domingos, Sumit Sanghai, Deepak Verma, et al. 2004. Adversarial classification. In Proceedings of KDD, pages 99–108.
  • Goodfellow et al. (2015) Ian J Goodfellow, Jonathon Shlens, and Christian Szegedy. 2015. Explaining and harnessing adversarial examples. In Proceedings of ICLR.
  • Hosseini et al. (2017) Hossein Hosseini, Sreeram Kannan, Baosen Zhang, and Radha Poovendran. 2017. Deceiving google’s perspective api built for detecting toxic comments. arXiv preprint arXiv:1702.08138.
  • Iyyer et al. (2018) Mohit Iyyer, John Wieting, Kevin Gimpel, and Luke Zettlemoyer. 2018. Adversarial example generation with syntactically controlled paraphrase networks. arXiv preprint arXiv:1804.06059.
  • Jia and Liang (2017) Robin Jia and Percy Liang. 2017. Adversarial examples for evaluating reading comprehension systems. In Proceedings of EMNLP.
  • Kim (2014) Yoon Kim. 2014. Convolutional neural networks for sentence classification. In Proceedings of EMNLP.
  • Kim et al. (2016) Yoon Kim, Yacine Jernite, David Sontag, and Alexander M Rush. 2016. Character-aware neural language models. Proceedings of AAAI.
  • Lowd and Meek (2005) Daniel Lowd and Christopher Meek. 2005. Adversarial learning. In Proceedings of KDD, pages 641–647.
  • Madry et al. (2018) Aleksander Madry, Aleksandar Makelov, Ludwig Schmidt, Dimitris Tsipras, and Adrian Vladu. 2018. Towards deep learning models resistant to adversarial attacks. In Proceedings of ICLR.
  • Miyato et al. (2017) Takeru Miyato, Andrew M Dai, and Ian Goodfellow. 2017. Adversarial training methods for semi-supervised text classification. In Proceedings of ICLR.
  • Papernot et al. (2016) Nicolas Papernot, Patrick McDaniel, Somesh Jha, Matt Fredrikson, Z Berkay Celik, and Ananthram Swami. 2016. The limitations of deep learning in adversarial settings. In Security and Privacy (EuroS&P), 2016 IEEE European Symposium on, pages 372–387. IEEE.
  • Rawlinson (1976) Graham Ernest Rawlinson. 1976. The Significance of Letter Position in Word Recognition. Ph.D. thesis, University of Nottingham.
  • Socher et al. (2013) Richard Socher, Alex Perelygin, Jean Wu, Jason Chuang, Christopher D Manning, Andrew Ng, and Christopher Potts. 2013. Recursive deep models for semantic compositionality over a sentiment treebank. In Proceedings of EMNLP, pages 1631–1642.
  • Szegedy et al. (2014) Christian Szegedy, Wojciech Zaremba, Ilya Sutskever, Joan Bruna, Dumitru Erhan, Ian Goodfellow, and Rob Fergus. 2014. Intriguing properties of neural networks. In Proceedings of ICLR.
  • Zhao et al. (2018) Zhengli Zhao, Dheeru Dua, and Sameer Singh. 2018. Generating natural adversarial examples. In Proceedings of ICLR.
