1 Introduction

Deep generative models represent powerful approaches to modeling highly complex high-dimensional data. There has been a lot of recent research geared towards the advancement of deep generative modeling strategies, including Variational Autoencoders (VAE)

(Kingma & Welling, 2013)

, autoregressive models

(Oord et al., 2016a, b) and hybrid models (Gulrajani et al., 2016; Nguyen et al., 2016). However, Generative Adversarial Networks (GANs)  (Goodfellow et al., 2014)

have emerged as the learning paradigm of choice across a varied range of tasks, especially in computer vision

Zhu et al. (2017), simulation and robotics Finn et al. (2016) Shrivastava et al. (2016)

. GANs cast the learning of a generative network in the form of a game between the generative and discriminator networks. While the discriminator is trained to distinguish between the true and generated examples, the generative model is trained to fool the discriminator. Using a discriminator network in GANs avoids the need for an explicit reconstruction-based loss function. This allows this model class to generate visually sharper images than VAEs while simultaneously enjoying faster sampling than autoregressive models.

Recent work, known as either ALI (Dumoulin et al., 2016) or BiGAN (Donahue et al., 2016), has shown that the adversarial learning paradigm can be extended to incorporate the learning of an inference network. While the inference network, or encoder, maps training examples to a latent space variable , the decoder plays the role of the standard GAN generator mapping from space of the latent variables (that is typically sampled from some factorial distribution) into the data space. In ALI, the discriminator is trained to distinguish between the encoder and the decoder, while the encoder and decoder are trained to conspire together to fool the discriminator. Unlike some approaches that hybridize VAE-style inference with GAN-style generative learning (e.g. Larsen et al. (2015), Chen et al. (2016)), the encoder and decoder in ALI use a purely adversarial approach. One big advantage of adopting an adversarial-only formalism is demonstrated by the high-quality of the generated samples. Additionally, we are given a mechanism to infer the latent code associated with a true data example.

One interesting feature highlighted in the original ALI work (Dumoulin et al., 2016)

is that even though the encoder and decoder models are never explicitly trained to perform reconstruction, this can nevertheless be easily done by projecting data samples via the encoder into the latent space, copying these values across to the latent variable layer of the decoder and projecting them back to the data space. Doing this yields reconstructions that often preserve some semantic features of the original input data, but are perceptually relatively different from the original samples. These observations naturally lead to the question of the source of the discrepancy between the data samples and their ALI reconstructions. Is the discrepancy due to a failure of the adversarial training paradigm, or is it due to the more standard challenge of compressing the information from the data into a rather restrictive latent feature vector?

Ulyanov et al. (2017) show that an improvement in reconstructions is achievable when additional terms which explicitly minimize reconstruction error in the data space are added to the training objective. Li et al. (2017b) palliates to the non-identifiability issues pertaining to bidirectional adversarial training by augmenting the generator’s loss with an adversarial cycle consistency loss.

In this paper we explore issues surrounding the representation of complex, richly-structured data, such as natural images, in the context of a novel, hierarchical generative model, Hierarchical Adversarially Learned Inference (HALI), which represents a hierarchical extension of ALI. We show that within a purely adversarial training paradigm, and by exploiting the model’s hierarchical structure, we can modulate the perceptual fidelity of the reconstructions. We provide theoretical arguments for why HALI’s adversarial game should be sufficient to minimize the reconstruction cost and show empirical evidence supporting this perspective. Finally, we evaluate the usefulness of the learned representations on a semi-supervised task on MNIST and an attribution prediction task on the CelebA dataset.

2 Related work

Our work fits into the general trend of hybrid approaches to generative modeling that combine aspects of VAEs and GANs. For example, Adversarial Autoencoders (Makhzani et al., 2015)

replace the Kullback-Leibler divergence that appears in the training objective for VAEs with an adversarial discriminator that learns to distinguish between samples from the approximate posterior and the prior. A second line of research has been directed towards replacing the reconstruction penalty from the VAE objective with GANs or other kinds of auxiliary losses. Examples of this include

Larsen et al. (2015) that combines the GAN generator and the VAE decoder into one network and Lamb et al. (2016)

that uses the loss of a pre-trained classifier as an additional reconstruction loss in the VAE objective. Another research direction has been focused on augmenting GANs with inference machinery. One particular approach is given by

Dumoulin et al. (2016); Donahue et al. (2016), where, like in our approach, there is a separate inference network that is jointly trained with the usual GAN discriminator and generator. Karaletsos (2016) presents a theoretical framework to jointly train inference networks and generators defined on directed acyclic graphs by leverage multiple discriminators defined nodes and their parents. Another related work is that of Huang et al. (2016b) which takes advantage of the representational information coming from a pre-trained discriminator. Their model decomposes the data generating task into multiple subtasks, where each level outputs an intermediate representation conditioned on the representations from higher level. A stack of discriminators is employed to provide signals for these intermediate representations. The idea of stacking discriminator can be traced back to Denton et al. (2015) which used used a succession of convolutional networks within a Laplacian pyramid framework to progressively increase the resolution of the generated images.

3 Hierachical Adversarially Learned Inference

The goal of generative modeling is to capture the data-generating process with a probabilistic model. Most real-world data is highly complex and thus, the exact modeling of the underlying probability density function is usually computationally intractable. Motivated by this fact, GANs

(Goodfellow et al., 2014) model the data-generating distribution as a transformation of some fixed distribution over latent variables. In particular, the adversarial loss, through a discriminator network, forces the generator network to produce samples that are close to those of the data-generating distribution. While GANs are flexible and provide good approximations to the true data-generating mechanism, their original formulation does not permit inference on the latent variables. In order to mitigate this, Adversarially Learned Inference (ALI) (Dumoulin et al., 2016)

extends the GAN framework to include an inference network that encodes the data into the latent space. The discriminator is then trained to discriminate between the joint distribution of the data and latent causes coming from the generator and inference network. Thus, the ALI objective encourages a matching of the two joint distributions, which also results in all the marginals and conditional distributions being matched. This enables inference on the latent variables.

We endeavor to improve on ALI in two aspects. First, as reconstructions from ALI only loosely match the input on a perceptual level, we want to achieve better perceptual matching in the reconstructions. Second, we wish to be able to compress the observables, , using a sequence of composed features maps, leading to a distilled hierarchy of stochastic latent representations, denoted by to . Note that, as a consequence of the data processing inequality(Cover & Thomas, 2012)

, latent representations higher up in the hierarchy cannot contain more information than those situated lower in the hierarchy. In information-theoretic terms, the conditional entropy of the observables given a latent variable is non-increasing as we ascend the hierarchy. This loss of information can be seen as responsible for the perceptual discrepancy observed in ALI’s reconstructions. Thus, the question we seek to answer becomes: How can we achieve high perceptual fidelity of the data reconstructions while also having a compressed latent space that is strongly coupled with the observables? In this paper, we propose to answer this using a novel model, Hierarchical Adversarially Learned Inference (HALI), that uses a simple hierarchical Markovian inference network that is matched through adversarial training to a similarly constructed generator network. Furthermore, we discuss the hierarchy of reconstructions induced by the HALI’s hierarchical inference network and show that the resulting reconstruction errors are implicitly minimized during adversarial training. Also, we leverage HALI’s hierarchial inference network to offer a novel approach to semi-supervised learning in generative adversarial models.

3.1 A Model for Hierarchical Features

Denote by the set of all probability measures on some set . Let be a Markov kernel associating to each element a probability measure . Given two Markov kernels and , a further Markov kernel can be defined by composing these two and then marginalizing over , i.e.

. Consider a set of random variables

. Using the composition operation, we can construct a hierarchy of Markov kernels or feature transitions as

(1)

A desirable property for these feature transitions is to have some form of inverses. Motivated by this, we define the adjoint feature transition as . From this, we see that

(2)

This can be interpreted as the generative mechanism of the latent variables given the data being the "inverse" of the data-generating mechanism given the latent variables. Let denote the distribution of the data and be the prior on the latent variables. Typically the prior will be a simple distribution, e.g. a standard Gaussian .

The composition of Markov kernels in Eq. missing, mapping data samples to samples of the latent variables using constitutes the encoder. Similarly, the composition of kernels in Eq. missing mapping prior samples of to data samples through constitutes the decoder. Thus, the joint distribution of the encoder can be written as

(3)

while the joint distribution of the decoder is given by

(4)

The encoder and decoder distributions can be visualized graphically as

Having constructed the joint distributions of the encoder and decoder, we can now match these distributions through adversarial training. It can be shown that, under an ideal (non-parametric) discriminator, this is equivalent to minimizing the Jensen-Shanon divergence between the joint Eq. missing and Eq. missing, see  (Dumoulin et al., 2016). Algorithm 1 details the training procedure.

repeat
     for  do
          Sample from the dataset
          Sample from the prior
         for  do
               Sample from each level in the encoder’s hierarchy
         end for
         for  do
               Sample from each level in the decoder’s hierarchy
         end for
          Get discriminator predictions on encoder’s distribution
          Get discriminator predictions on decoder’s distribution
     end for
      Compute discriminator loss
      Compute generator loss
      Gradient update on discriminator network
      Gradient update on generator networks
until convergence
Algorithm 1 HALI training procedure.

3.2 A hierarchy of reconstructions

The Markovian character of both the encoder and decoder implies a hierarchy of reconstructions in the decoder. In particular, for a given observation , the model yields different reconstructions for with the reconstruction of the at the -th level of the hierarchy. Here, we can think of as projecting to the -th intermediate representation and as projecting it back to the input space. Then, the reconstruction error for a given input at the -th hierarchical level is given by

(5)

Contrary to models that try to merge autoencoders and adversarial models, e.g.  Rosca et al. (2017); Larsen et al. (2015), HALI does not require any additional terms in its loss function in order to minimize the above reconstruction error. Indeed, the reconstruction errors at the different levels of HALI are minimized down to the amount of information about that a given level of the hierarchy is able to encode as training proceeds. Furthermore, under an optimal discriminator, training in HALI minimizes the Jensen-Shanon divergence between and as formalized in Proposition 1 below. Furthermore, the interaction between the reconstruction error and training dynamics is captured in Proposition 1.

Proposition 1.

Assuming is bounded away for zero for all , we have that

(6)

where is computed under the encoder’s distribution and is as defined in Lemma 2 in the appendix.

On the other hand, proposition  2 below relates the intermediate representations in the hierarchy to the corresponding induced reconstruction error.

Proposition 2.

For any given latent variable ,

(7)

i.e. the reconstruction error is an upper bound on .

In summary, Propositions 1 and  2 establish the dynamics between the hierarchical representation learned by the inference network, the reconstruction errors and the adversarial matching of the joint distributions Eq. missing and Eq. missing. The proofs on the two propositions above are deferred to the appendix. Having theoretically established the interplay between layer-wise reconstructions and the training mechanics, we now move to the empirical evaluation of HALI.

4 Empirical Analysis: Setup

We designed our experiments with the objective of addressing the following questions: Is HALI successful in improving the fidelity perceptual reconstructions? Does HALI induces a semantically meaningful representation of the observed data? Are the learned representations useful for downstream classification tasks? All of these questions are considered in turn in the following sections.

We evaluated HALI on four datasets, CIFAR10 (Krizhevsky & Hinton, 2009), SVHN (Netzer et al., 2011)

, ImageNet 128x128

(Russakovsky et al., 2015) and CelebA (Liu et al., 2015). We used two conditional hierarchies in all experiments with the Markov kernels parametrized by conditional isotropic Gaussians. For SVHN, CIFAR10 and CelebA the resolutions of two level latent variables are and . For ImageNet, the resolutions is and .

For both the encoder and decoder, we use residual blocks(He et al., 2015)

with skip connections between the blocks in conjunction with batch normalization

(Ioffe & Szegedy, 2015)

. We use convolution with stride 2 for downsampling in the encoder and bilinear upsampling in the decoder. In the discriminator, we use consecutive stride 1 and stride 2 convolutions and weight normalization

(Salimans & Kingma, 2016)

. To regularize the discriminator, we apply dropout every 3 layers with a probability of retention of 0.2. We also add Gaussian noise with standard deviation of 0.2 at the inputs of the discriminator and the encoder.

5 Empirical Analysis I: Reconstructions

One of the desired objectives of a generative model is to reconstruct the input images from the latent representation. We show that HALI offers improved perceptual reconstructions relative to the (non-hierarchical) ALI model.

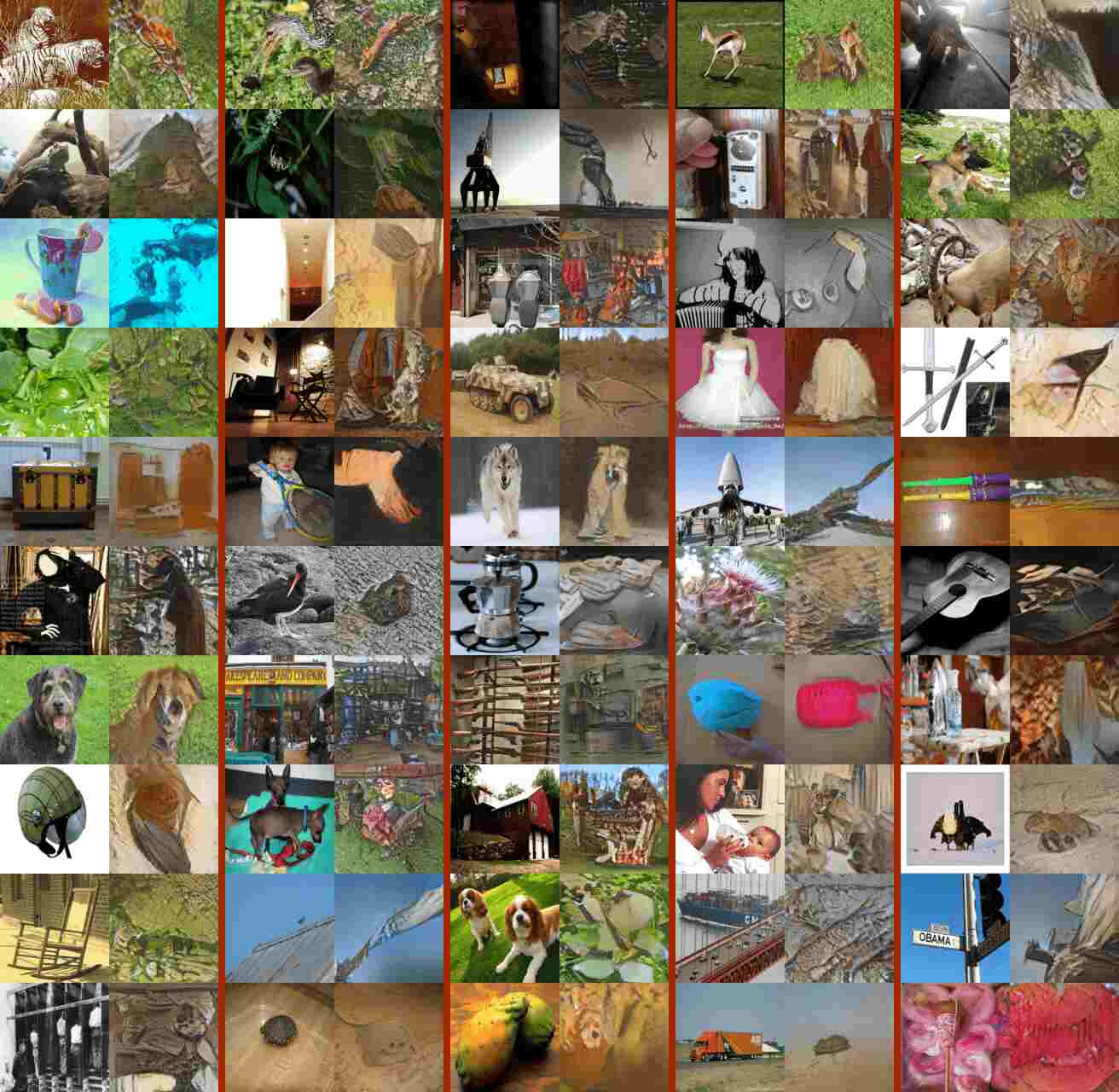

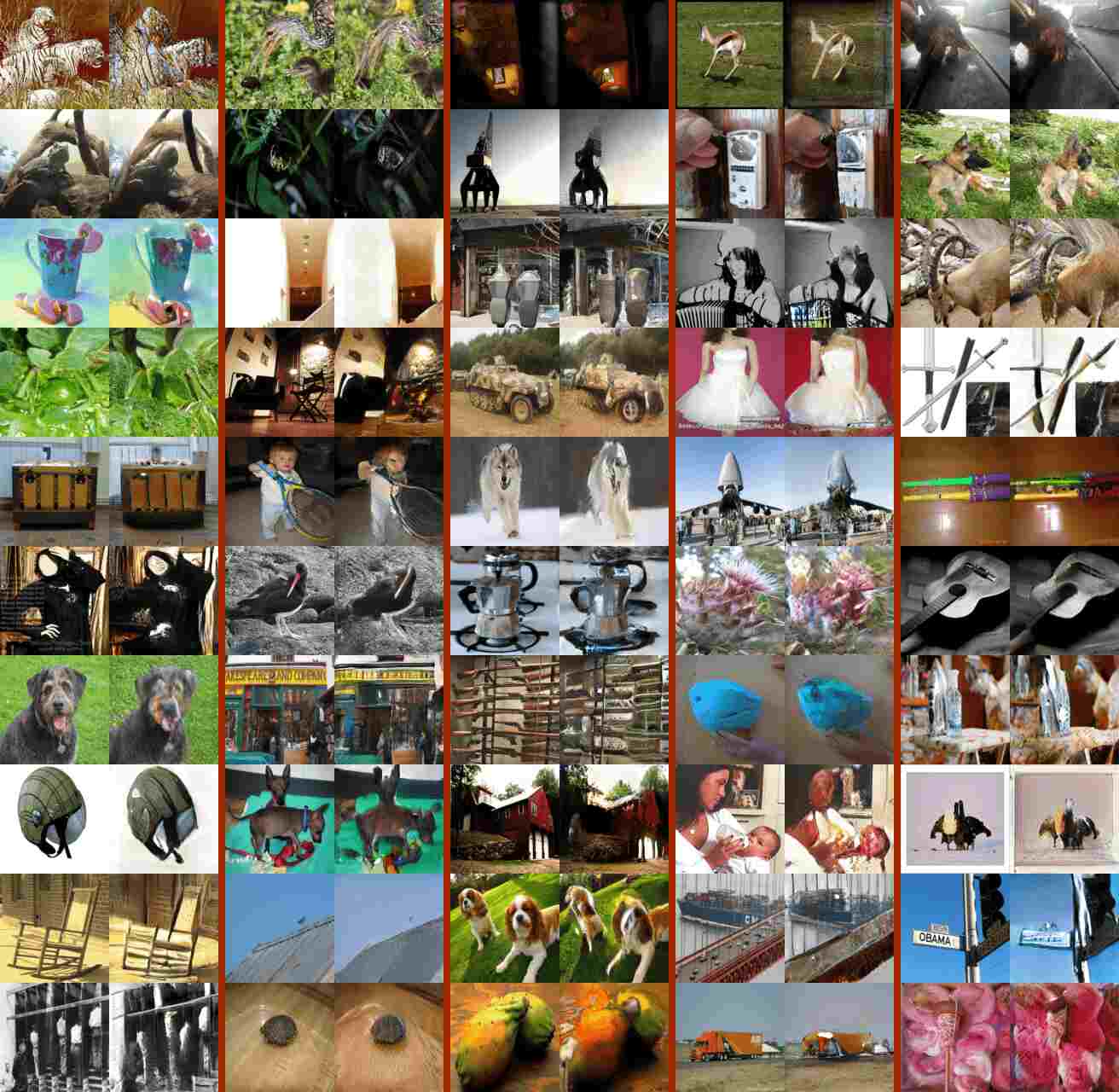

(a) ImageNet128 from (b) ImageNet128 from
Figure 1: ImageNet128 reconstructions from and

. Odd columns corresponds to examples from the validation set while even columns are the model’s reconstructions

5.1 Qualitative analysis

First, we present reconstructions obtained on ImageNet. Reconstructions from SVHN and CIFAR10 can be seen in Fig. missing in the appendix. Fig. missing highlights HALI’s ability to reconstruct the input samples with high fidelity. We observe that reconstructions from the first level of the hierarchy exhibit local differences in the natural images, while reconstructions from the second level of the hierarchy displays global change. Higher conditional reconstructions are more often than not reconstructed as a different member of the same class. Moreover, we show in Fig. missing that this increase in reconstruction fidelity does not impact the quality of the generative samples from HALI’s decoder.

(a) CelebA
(b) ImageNet128
Figure 2: Samples from CelebA and ImageNet128 datasets

5.2 Quantitative analysis

We further investigate the quality of the reconstructions with a quantitative assessment of the preservation of perceptual features in the input sample. For this evaluation task, we use the CelebA dataset where each image comes with a 40 dimensional binary attributes vector. A VGG-16 classifier(Simonyan & Zisserman, 2014) was trained on the CelebA training set to classify the individual attributes. This trained model is then used to classify the attributes of the reconstructions from the validation set. We consider a reconstruction as being good if it preserves – as measured by the trained classifier – the attributes possessed by the original sample.

We report a summary of the statistics of the classifier’s accuracies in Table 1. We do this for three different models, VAE, ALI and HALI. An inspection of the table reveals that the proportion of attributes where HALI’s reconstructions outperforms the other models is clearly dominant. Therefore, the encoder-decoder relationship of HALI better preserves the identifiable attributes compared to other models leveraging such relationships. Please refer to Table 5 in the appendix for the full table of attributes score.

Mean Std # Best
Data
VAE
ALI
HALI
HALI
Table 1: Summary of CelebA attributes classification from reconstructions for VAE, ALI and the two levels of HALI. The data row is the summary for the VGG classifier and the other scores have been normalized by it. Mean and standard deviation are expressed as percentages. # best represents the count of when a model has the best score on a single attribute. Note that it does not sum to 40 as there were ties.

5.3 Perceptual Reconstructions

In the same spirit as Larsen et al. (2015), we construct a metric by computing the Euclidean distance between the input images and their various reconstructions in the discriminator’s feature space. More precisely, let be the embedding of the input to the pen-ultimate layer of the discriminator. We compute the discriminator embedded distance

(8)

where is the Euclidean norm. We then compute the average distances and over the ImageNet validation set. (a) shows that under , the average reconstruction errors for both and decrease steadily as training advances. Furthermore, the reconstruction error under of the reconstructions from the first level of the hierarchy are uniformly bounded by above by those of the second. We note that while the VAEGAN model of Larsen et al. (2015) explicitly minimizes the perceptual reconstruction error by adding this term to their loss function, HALI implicitly minimizes it during adversarial training, as shown in subsection 3.2.

(a)
(b)
Figure 3: Comparison of average reconstruction error over the validation set for each level of reconstructions using the Euclidean (a) and discriminator embedded (b) distances. Using both distances, reconstructions errors for are uniformly below those for . The reconstruction error using the Euclidean distance eventually stalls showing that the Euclidean metric poorly approximates the manifold of natural images.

6 Empirical Analysis II: Learned Representations

We now move on to assessing the quality of our learned representation through inpainting, visualizing the hierarchy and innovation vectors.

6.1 Inpainting

Inpainting is the task of reconstructing the missing or lost parts of an image. It is a challenging task since sufficient prior information is needed to meaningfully replace the missing parts of an image. While it is common to incorporate inpainting-specific training Yeh et al. (2016); Pérez et al. (2003); Pathak et al. (2016), in our case we simply use the standard HALI adversarial loss during training and reconstruct incomplete images during inference time.

Figure 4: Inpainting on center cropped images on CelebA, SVHN and MS-COCO datasets (left to right).

We first predict the missing portions from the higher level reconstructions followed by iteratively using the lower level reconstructions that are pixel-wise closer to the original image. Fig. missing shows the inpaintings on center-cropped SVHN, CelebA and MS-COCO (Lin et al., 2014) datasets without any blending post-processing or explicit supervision. The effectiveness of our model at this task is due the hierarchy – we can extract semantically consistent reconstructions from the higher levels of the hierarchy, then leverage pixel-wise reconstructions from the lower levels.

Figure 5:

Real CelebA faces (right) and their corresponding innovation tensor (IT) updates (left). For instance, the third row in the figure features Christina Hendricks followed by hair-color IT updates. Similarly, the first two rows depicts usage of smile-IT and the 4th row glasses-plus-hair-color-IT.

6.2 Hierarchical latent representations

To qualitatively show that higher levels of the hierarchy encode increasingly abstract representation of the data, we individually vary the latent variables and observe the effect.

The process is as follow: we sample a latent code from the prior distribution . We then multiply individual components of the vector by scalars ranging from to . For , we fix and multiply each feature map independently by scalars ranging from to . In all cases these modified latent vectors are then decoded back to input data space. Fig. missing (a) and (b) exhibit some of those decodings for , while (c) and (d) do the same for the lower conditional . The last column contain the decodings obtained from the originally sampled latent codes. We see that the representations learned in the conditional are responsible for high level variations like gender, while codes imply local/pixel-wise changes such as saturation or lip color.

(a) CelebA orientation variation
(b) CelebA gender variation
(c) CelebA lipstick feature map variation
(d) CelebA saturation feature map variation
Figure 6: (a) and (b) showcase vector variation. We sample a set of vectors from the prior. We repeatedly replace a single relevant entry in each vector by a scalar ranging from to and decode. (c) and (d) follows the same process using the latent space.

6.3 Latent semantic Innovation

With HALI, we can exploit the jointly learned hierarchical inference mechanism to modify actual data samples by manipulating their latent codes. We refer to these sorts of manipulations as latent semantic innovations.

Consider a given instance from a dataset . Encoding yields and . We modify by multiplying a specific entry by a scalar . We denote the resulting vector by . We decode the latter and get . We decode the unmodified encoding vector and get . We then form the innovation tensor . Finally, we subtract the innovation vector from the initial encoding, thus getting , and sample . This method provides explicit control and allows us to carry out these variations on real samples in a completely unsupervised way. The results are shown in Fig. missing. These were done on the CelebA validation set and were not used for training.

7 Empirical Evaluations III: Learning Predictive Representations

We evaluate the usefulness of our learned representation for downstream tasks by quantifying the performance of HALI on attribute classification in CelebA and on a semi-supervised variant of the MNIST digit classification task.

7.1 Unsupervised classification

Following the protocol established by  Berg & Belhumeur (2013); Liu et al. (2015), we train 40 linear SVMs on HALI encoder representations (i.e. we utilize the inference network) on the CelebA validation set and subsequently measure performance on the test set. As in  Berg & Belhumeur (2013); Huang et al. (2016a); Kalayeh et al. (2017), we report the balanced accuracy in order to evaluate the attribute prediction performance. We emphasize that, for this experiment, the HALI encoder and decoder were trained in on entirely unsupervised data. Attribute labels were only used to train the linear SVM classifiers.

A summary of the results are reported in Table 2. HALI’s unsupervised features surpass those of VAE and ALI, but more remarkably, they outperform the best handcrafted features by a wide margin (Zhang et al., 2014). Furthermore, our approach outperforms a number of supervised  (Huang et al., 2016a) and deeply supervised (Liu et al., 2015) features. Table 6 in the appendix arrays the results per attribute.

Mean Std # Best

Triplet-kNN

(Schroff et al., 2015)
PANDA (Zhang et al., 2014)
Anet (Liu et al., 2015)
LMLE-kNN (Huang et al., 2016a)
VAE
ALI
HALI
Table 2: Summary of statistics for CelebA attributes mean per-class balanced accuracy given in percentage points. # best represents the count of when a model has the best score on a single attribute. Note that it does not sum to 40 as there were ties.

7.2 Semi-supervised learning within HALI

The HALI hierarchy can also be used in a more integrated semi-supervised setting, where the encoder also receives a training signal from the supervised objective. The currently most successful approach to semi-supervised in adversarially trained generative models are built on the approach introduced by Salimans et al. (2016). This formalism relies on exploiting the discriminator’s feature to differentiate between the individual classes present in the labeled data as well as the generated samples. Taking inspiration from (Makhzani et al., 2015; Makhzani & Frey, 2017), we adopt a different approach that leverages the Markovian hierarchical inference network made available by HALI,

(9)

Where , with , and is a categorical random variable. In practice, we characterize the conditional distribution of given by a softmax. The cost of the generator is then augmented by a supervised cost. Let us write as the set of pairs all labeled instance along with their label, the supervised cost reads

(10)

We showcased this approach on a semi-supervised variant of MNIST(LeCun et al., 1998) digit classification task with 100 labeled examples evenly distributed across classes.

Table 3 shows that HALI achieves a new state-of-the-art result for this setting. Note that unlike  Dai et al. (2017), HALI uses no additional regularization.

MNIST (# errors)
VAE (M1+M2) (Kingma et al., 2014)
VAT (Miyato et al., 2017)
CatGAN (Springenberg, 2015)
Adversarial Autoencoder (Makhzani et al., 2015)
PixelGAN (Makhzani & Frey, 2017)
ADGM (Maaløe et al., 2016)
Feature-Matching GAN (Salimans et al., 2016)
Triple GAN (Li et al., 2017a)
GSSLTRABG (Dai et al., 2017)
HALI (ours) 73
Table 3: Comparison on semi-supervised learning with state-of-the-art methods on MNIST with 100 labels instance per class. Only methods without data augmentation are included.

8 Conclusion and future work

In this paper, we introduced HALI, a novel adversarially trained generative model. HALI learns a hierarchy of latent variables with a simple Markovian structure in both the generator and inference networks. We have shown both theoretically and empirically the advantages gained by extending the ALI framework to a hierarchy.

While there are many potential applications of HALI, one important future direction of research is to explore ways to render the training process more stable and straightforward. GANs are well-known to be challenging to train and the introduction of a hierarchy of latent variables only adds to this.

References

Appendix A Appendix

a.1 Architecture Details

Operation Kernel Strides Feature maps BN/WN? Dropout Nonlinearity
input
Convolution 0.0

Leaky ReLU

Convolution BN 0.0 Leaky ReLU
Resnet Block BN 0.0 Leaky ReLU
Resnet Block BN 0.0 Leaky ReLU
Convolution BN 0.0 Leaky ReLU
Resnet Block BN 0.0 Leaky ReLU
Convolution 0.0 Leaky ReLU
Gaussian Layer
input
Convolution BN 0.0 Leaky ReLU
Convolution BN 0.0 Leaky ReLU
Convolution BN 0.0 Leaky ReLU
Resnet Block BN 0.0 Leaky ReLU
Convolution BN 0.0 Leaky ReLU
Convolution 0.0 Linear
input
Convolution BN 0.0 Leaky ReLU
Bilinear Upsampling
Resnet Block BN 0.0 Leaky ReLU
Bilinear Upsampling
Convolution BN 0.0 Leaky ReLU
Convolution BN 0.0 Leaky ReLU
Bilinear Upsampling
Convolution 0.0 Leaky ReLU
Gaussian Layer
input
Convolution BN 0.0 Leaky ReLU
Resnet Block BN 0.0 Leaky ReLU
Bilinear Upsampling
Resnet Block BN 0.0 Leaky ReLU
Bilinear Upsampling
Convolution BN 0.0 Leaky ReLU
Convolution BN 0.0 Leaky ReLU
Convolution 0.0 Tanh
input
Convolution WN 0.2 Leaky ReLU
Convolution WN 0.5 Leaky ReLU
Convolution WN 0.5 Leaky ReLU
Convolution WN 0.5 Leaky ReLU
input
Concatenate and along the channel axis
Convolution WN 0.2 Leaky ReLU
Convolution WN 0.5 Leaky ReLU
Convolution WN 0.5 Leaky ReLU
Convolution WN 0.5 Leaky ReLU
Convolution WN 0.2 Leaky ReLU
input
Concatenate and along the channel axis
Convolution 0.5 Leaky ReLU
Convolution 0.5 Leaky ReLU
Convolution 0.5 Sigmoid
Table 4: Architecture detail for HALI(unsupervised) on the Imagenet 128 and CelebA 128 Datasets.

a.2 Proofs

Lemma 1.

Let be a valid f-divergence generator. Let and be joint distributions over a random vector . Let be any strict subset of and its complement, then

(11)
Proof.

By definition, we have

Using that is convex, Jensen’s inequality yields

Simplifying the inner expectation on the right hand side, we conclude that

Lemma 2 (Kullback-Leibler’s upper bound by Jensen-Shannon).

Assume that and

are two probability distribution absolutely continuous with respect to each other. Moreover, assume that

is bounded away from zero. Then, there exist a positive scalar such that

(12)
Proof.

We start by bounding the Kullblack-Leibler divergence by the -distance. We have

(13)

The first inequality follows by Jensen’s inequality. The third inequality follows by the Taylor expansion. Recall that both the -distance and the Jensen-Shanon divergences are f-divergences with generators given by and , respectively. We form the function . is strictly increasing on . Since we are assuming to be bounded away from zero, we know that there is a constant such that for all . Subsequently for all , we have that . Thus, for all we have and hence. Intergrating with respect to , we conclude

Proposition 3.

Assuming and are positive for any . We have

(14)

Where is computed under the encoder’s distribution

Proof.

By elementary manipulations we have.

Where the conditional entropy is computed . By the non-negativity of the KL-divergence we obtain

Using lemma 2, we have

The Jensen-Shanon divergence being f-divergence, using Lemma 1, we conclude

Proposition 4.

For any given latent variable , the reconstruction likelihood is an upper bound on .

Proof.

By the non-negativity of the Kullback-Leibler divergence, we have that

. Integrating over the marginal and applying Fubini’s theorem yields

where the conditional entropy is computed under the encoder distribution. ∎

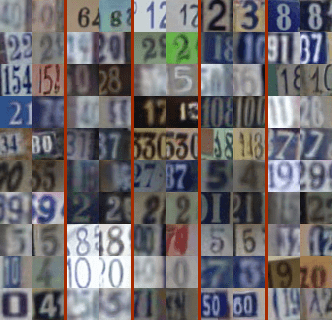

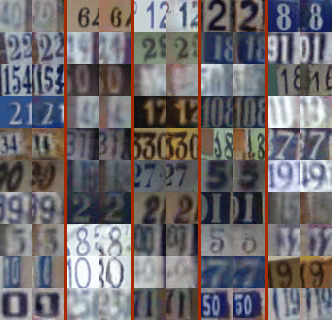

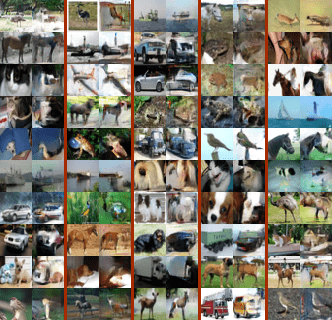

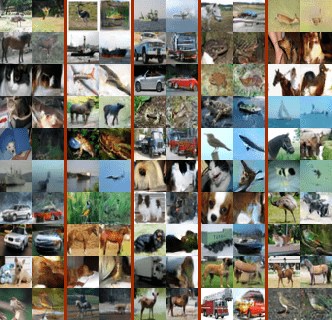

(a) SVHN from (b) CIFAR10 from (c) SVHN from (d) CIFAR10 from
Figure 7: Reconstructions for SVHN and CIFAR10 from and reconstructions from . Odd columns corresponds to examples from the validation set while even columns are the model’s reconstructions

Sideburns

Black Hair

Wavy Hair

Young

Makeup

Blond

Attractive

withShadow

withNecktie

Blurry

DoubleChin

BrownHair

Mouth Open

Goatee

Bald

PointyNose

Gray Hair

Pale Skin

ArchedBrows

With Hat

Data 86 81 69 91 90 88 81 80 80 60 70 74 92 88 77 60 84 72 69 86
VAE 80 96 60 98 79 74 83 74 93 96 73 77 83 77 89 86 69 86 80 84
ALI 72 90 83 94 88 81 91 77 83 83 89 76 77 72 83 87 84 79 92 92
HALI (z1) 92 93 93 98 91 95 95 92 89 92 81 95 92 89 94 98 88 90 95 99
HALI (z2) 80 78 91 96 89 94 92 78 90 83 88 80 83 78 88 89 87 91 87 84

Balding

StraightHair

Big Nose

Rosy Cheeks

Oval Face

Bangs

Male

Mustache

HighCheeks

No Beard

Eyeglasses

BaggyEyes

WithNecklace

WithLipstick

Big Lips

NarrowEyes

Chubby

Smiling

BushyBrows

WithEarrings

Data 72 60 69 71 56 89 97 80 85 96 94 69 54 94 54 58 71 92 72 74
VAE 89 94 69 67 83 78 93 82 91 98 73 65 92 86 82 78 73 95 64 62
ALI 86 87 89 82 89 76 90 77 86 92 81 87 93 88 83 85 90 85 82 83
HALI (z1) 96 91 90 71 91 94 97 84 96 98 90 94 93 94 83 88 82 97 91 83
HALI (z2) 88 88 89 75 90 84 90 80 89 95 75 86 99 90 88 87 87 89 85 81
Table 5: CelebA attributes accuracies of reconstructions by different models. The data row displays the raw average of positive accuracies, predicting true 1, and negative accuracies, predicting a true 0 by our VGG classifier. Other rows show the same average accuracies where each individual accuracy is normalized by its corresponding data score. The numbers are all percentages.

5 o Clock Shadow

Arched Eyebrows

Attractive

Bags Under Eyes

Bald

Bangs

Big Lips

Big Nose

Black Hair

Blond Hair

Blurry

Brown Hair

Bushy Eyebrows

Chubby

Double Chin

Eyeglasses

Goatee

Gray Hair

Heavy Makeup

High Cheekbones

Triplet-kNN 66 73 83 63 75 81 55 68 82 81 43 76 68 64 60 82 73 72 88 86
PANDA 76 77 85 67 74 92 56 72 84 91 50 85 74 65 64 88 84 79 95 89
Anet 81 76 87 70 73 90 57 78 90 90 56 83 82 70 68 95 86 85 96 89
LMLE-kNN 82 79 88 73 90 98 60 80 92 99 59 87 82 79 74 98 95 91 98 92
VAE 78 65 62 68 87 86 58 67 75 83 64 62 72 77 80 81 80 88 75 75
ALI 78 70 69 68 89 87 57 69 75 88 65 64 71 78 78 85 79 89 79 64
HALI(Unsup) 86 77 80 78 94 93 62 74 85 92 78 77 82 85 86 96 92 93 89 85

Male

Mouth Slightly Open

Mustache

Narrow Eyes

No Beard

Oval Face

Pale Skin

Pointy Nose

Receding Hairline

Rosy Cheeks

Sideburns

Smiling

Straight Hair

Wavy Hair

Wearing Earrings

Wearing Hat

Wearing Lipstick

Wearing Necklace

Wearing Necktie

Young

Triplet-kNN 91 92 57 47 82 61 63 61 60 64 71 92 63 77 69 84 91 50 73 75
PANDA 99 93 63 51 87 66 69 67 67 68 81 98 66 78 77 90 97 51 85 78
Anet 99 96 61 57 93 67 77 69 70 76 79 97 69 81 83 90 95 59 79 84
LMLE-kNN 99 96 73 59 96 68 80 72 76 78 88 99 73 83 83 99 99 59 90 87
VAE 78 67 81 60 79 51 86 59 79 79 79 81 55 69 65 84 78 67 83 69
ALI 83 52 82 62 79 54 85 61 78 80 77 68 60 72 67 91 82 67 82 71
HALI(Unsup) 96 88 90 72 90 65 89 69 84 89 91 91 70 77 78 95 92 71 89 80
Table 6: Mean per-class balanced accuracy in percentage points of each of the 40 face attributes on CelebA.
