Heterogeneous porous scaffold generation in trivariate B-spline solid with triply periodic minimal surface in the parametric domain

08/06/2019 ∙ by Chuanfeng Hu, et al. ∙ 0

A porous scaffold is a three-dimensional network structure composed of a large number of pores, and triply periodic minimal surfaces (TPMSs) are one of conventional tools for designing porous scaffolds. However, discontinuity, incompleteness, and high storage space requirements are the three main shortcomings of TPMSs for porous scaffold design. In this study, we developed an effective method for heterogeneous porous scaffold generation to overcome the abovementioned shortcomings of TPMSs. The input of the proposed method is a trivariate B-spline solid (TBSS) with a cubic parameter domain. The proposed method first constructs a threshold distribution field (TDF) in the cubic parameter domain, and then produces a continuous and complete TPMS within it. Moreover, by mapping the TPMS in the parametric domain to the TBSS, a continuous and complete porous scaffold is generated in the TBSS. In addition, if the TBSS does not satisfy engineering requirements, the TDF can be locally modified in the parameter domain, and the porous scaffold in the TBSS can be rebuilt. We also defined a new storage space-saving file format based on the TDF to store porous scaffolds. The experimental results presented in this paper demonstrate the effectiveness and efficiency of the method using a TBSS as well as the superior space-saving of the proposed storage format.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 4

page 5

page 6

page 8

page 9

page 10

page 11

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Porous structures are widely found in natural objects, such as trabecular bones, wood, and cork, which have many appealing properties, such as low weight and large internal surface area. In the field of tissue engineering, which aims to repair damaged tissues and organs, porous scaffolds play a critical role in the formation of new functional tissues for medical purposes, i.e., they provide an optimum biological microenvironment for cell attachment, migration, nutrient delivery and product expression [10]. To facilitate cell growth and diffusion of both cells and nutrients throughout the whole structure, high porosity, adequate pore size and connectivity are key requirements in the design of porous scaffolds [20]. Therefore, it is important to be able to control the pore size and porosity when designing heterogenous tissue scaffolds.

Recently, triply periodic minimal surfaces (TPMSs) have been widely employed in the design of porous scaffolds [22]. A TPMS is a type of minimal surface with periodicity in three independent directions in three-dimensional Euclidean space and is represented by an implicit equation [18]

. Generally speaking, porous scaffold design methods based on TPMS can be classified into two categories. In the first class of methods, a volume mesh model is embedded in an ambient TPMS, and the intersection of them is taken as the porous scaffold

[26, 27, 24, 5]. In the second class of methods, a regular TPMS unit is transformed into each hexahedron of a hexahedron mesh model, thus generating a porous scaffold [25, 2, 19]. However, the first class of methods can generate incomplete TPMS units near the boundary of a volume mesh model, and the second class of methods may cause discontinuities between two adjacent TPMS units. Moreover, in both method classes, porosity and pore size are difficult to control.

In this study, we developed a method for generating heterogenous porous scaffolds in a trivariate B-spline solid (TBSS) with TPMS designed in the parametric domain of the TBSS. We also developed a porous scaffold storage format that saves significant storage space. Specifically, given a TBSS, a threshold distribution field (TDF) is first constructed in the cubic parameter domain of the TBSS. Based on the TDF, a TPMS is generated in the parameter domain. Finally, by mapping the TPMS in the parameter domain to the TBSS, a porous scaffold is produced in the TBSS. In addition, the TDF can be modified locally in the parameter domain to improve the engineering performance of the porous scaffold. All of the TPMS units generated in the porous scaffold is complete, and adjacent TPMS units are continuously stitched. To summarize, the main contributions of this study are as follows:

  • A TBSS is employed to generate porous scaffolds, which ensures completeness of TPMS units, and continuity between adjacent TPMS units.

  • Porosity is easy to control using the TDF defined in the parametric domain of the TBSS.

  • A storage format for porous scaffolds is designed based on the TDF in the parametric domain, which saves significantly storage space.

The remainder of this paper is organized as follows. In Section 1.1, we review related work on porous scaffold design and TBSS generation methods. In Section 2, preliminaries on TBSS and TPMS are introduced. Moreover, the heterogeneous porous scaffold generation method using a TBSS and TDF in its parameter domain is presented in detail in Section 3. In Section 4, some experimental examples are presented to demonstrate the effectiveness and efficiency of the developed method. Finally, Section 5 concludes the paper.

1.1 Related work

In this section, we review some related work on porous scaffold design and TBSS generation methods.

Porous scaffold design: In recent years, TPMS has been of special interest to the porous scaffold design community owing to its excellent properties, and many scaffold design methods have been developed based on TPMS. Rajagopalan and Robb [17] made the first attempt to design tissue scaffolds based on Schwarz’s primitive minimal surface, which is a type of TPMS. Moreover, the other two typical TPMSs (Schwarz’s diamond surface and Schoen’s gyroid surface) are constructed by employing K3DSurf software to design tissue scaffolds [14], which achieve a gradient change of gyroid structure in terms of pore size by adding a linear equation in into the TPMS function.

Yoo [25]

developed a method for generating porous scaffolds in a hexahedral mesh model, where the coordinate interpolation algorithm and shape function method are employed to map TPMS units to hexahedron elements to generate tissue scaffolds. To reduce the time consume in trimming and re-meshing process of Boolean operations, a tissue scaffold design method based on a hybrid method of distance field and TPMS was further proposed in

[26]. Moreover, to make the porosity easier to control in the design a heterogeneous porous scaffold, Yoo [27]

introduced a method based on an implicit interpolation algorithm that uses the thin-plate radial basis function. Similar to the method of Yoo

[27], Yang et al. [24]

introduced the sigmoid function and Gaussian radial basis function to design tissue scaffolds. However, the hexahedral mesh based porous scaffold generation methods cannot ensure continuity between adjacent TPMS units.

Recently, in consideration of the increasing attention towards gradient porous scaffolds, Shi et al. [19] utilized the TPMS and sigmoid function to generate functional gradient bionic porous scaffolds from Micro-CT data reconstruction. Feng et al. [5] proposed a method to design porous scaffold based on solid T-splines and TPMS, and analyzed the parameter influences on the volume specific surface area and porosity. In addition, a heterogenous methodology for modeling porous scaffolds using a parameterized hexahedral mesh and TPMS was developed by Chen et al. [2].

TBSS generation: TBSS modeling methods are developed mainly for producing three dimensional physical domain in isogeometric analysis [9]. Specifically, to analyze arterial blood flow through isogeometric analysis, Zhang et al. [28] introduced a skeleton-based method of generating trivariate non-uniform rational basis spline (NURBS) solids. In [13], a tetrahedral mesh model is parameterized through discrete volumetric harmonic functions and a cylinder-like TBSS is generated. Aigner et al. [1] proposed a variational framework for generating NURBS parameterizations of swept volumes using the given boundary conditions and guiding curves. Optimization approaches have been developed for filling boundary-represented models to produce TBSSs with positive Jacobian values [21]. Moreover, a discrete volume parameterization method for tetrahedral mesh models and an iterative fitting algorithm have been presented for TBSS generation [11].

2 Preliminaries

Preliminaries on TBSS and TPMS are introduced in this section.

2.1 Tbss

A B-spline curve of order is formed by several piecewise polynomial curves of degree , and a B-spline curve has continuity at its breakpoints [16]

. A knot vector

is defined by a set of breakpoints . The associated B-spline basis functions of degree are defined as follows:

(1)

A TBSS of degree

is a tensor product volume defined as

(2)

where are control points in the , and directions and

are the B-spline basis functions of degree in the direction, degree in the direction, and degree in the direction.

In this study, the input to our porous scaffold generation algorithm is a TBSS that represents geometry at a macro-structural scale. The TBSS can be generated either by fitting the mesh vertices of a tetrahedral mesh model [11], or filling a closed triangular mesh model [21].

2.2 Tpms

A TPMS is an implicit surface that is infinite and periodic in three independent directions. There are several ways to evaluate a TPMS, and the most frequently employed approach is to approximate the TPMS using a periodic nodal surface defined by a Fourier series [7],

(3)

where is the location vector in Euclidean space, is amplitude, is the lattice vector in reciprocal space, is the wavelength of the period, is phase shift, and is a threshold constant. Please refer to [23] for more details on the abovementioned parameters. The nodal approximations of P, D, G, and I-WP types of TPMSs, which were presented in  [18], are listed in Table 1. The valid range of guarantees that the implicit surface is complete.

TPMS Nodal approximations Valid range of
Schwarz’s P Surface
Schwarz’s D Surface
Schoen’s G Surface
Schoen’s I-WP Surface
Table 1: Nodal approximations of typical TPMS units.

In TPMS-based porous scaffold design methods, the threshold value  (3) controls the porosity, and the coefficients , , and (refer to Table 1) which affect the period of the TPMS, are called period coefficients. The effects of the two types of parameters in porous scaffold design have been discussed in detail in the literature [5]. Additionally, in this study, the marching tetrahedra (MT) algorithm [4] is employed to extract the TPMS (shown in Fig. 1).

Figure 1: Four types of TPMS units. (a) P-type. (b) D-type. (c) G-type. (d) I-WP-type.

3 Methodology of porous scaffold design

The whole procedure of the heterogenous porous scaffold generation method based on TBSS and TPMS in its parametric domain is illustrated in Fig.2. Specifically, given a TBSS as input, we design a method for constructing the TDF in its cubic parameter domain. Based on the TDF, a TPMS is generated in the parameter domain using MT algorithm [4]. Moreover, by mapping the TPMS in the parameter domain to the TBSS by the TBSS function (2), a porous scaffold with compeleteness and continuity is produced in the TBSS. If the porous scaffold in the TBSS does not meet the engineering requirements, the TDF can be locally modified in the parameter domain, and the porous scaffold in the TBSS can be rebuilt. Finally, we develop a storage format for the porous scaffold based on the TDF in the parametric domain, which saves significant storage space. The details of the porous scaffold design method are elucidated in the following sections.

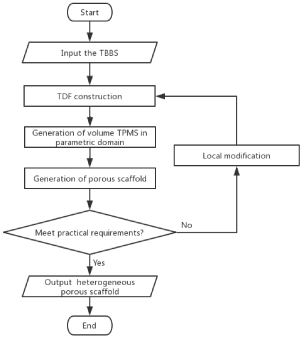

Figure 2: The procedure of the heterogenous porous scaffold generation method.

3.1 Generation of TPMS and volume TPMS structures

After the TDF is constructed in the parameter domain, and the period coefficients are assigned, the TPMS in the parameter domain can be defined such that it is polygonized into a triangular mesh. As a type of iso-surface, a TPMS can be polygonized by many algorithms such as iterative refinement [17], Delaunay triangulation [8], marching cubes [12] and MT [4]. To avoid ambiguous connection problems [15] and simplify the intersection types, the MT algorithm is adopted to polygonize the TPMS in the parametric domain of a TBSS. For this purpose, the cubic parameter domain is uniformly divided into a grid. In our implementation, to balance the accuracy and storage cost of the porous scaffold, the parametric domain is divided into a grid.

Moreover, we define three types of volume TPMS structures (refer to Fig. 3):

  • pore structure represented by ,

  • rod structure represented by ,

  • sheet structure represented by .

However, the triangular meshes of the three types of volume TPMS structures, generated by the polygonization, are open on the six boundary faces of the parameter domain, but they should be closed to form a solid. Take the pore structure () as an example. In the polygonization procedure of the TPMS by the MT algorithm, the triangles on the boundary faces of the parameter domain are categorized into two classes by the iso-value curve on the boundary faces: outside triangles, where the values of at the vertices of these triangles are larger than or equal to , and inside triangles, where the values of at the vertices of these triangles are smaller than or equal to , Therefore, the pore structure can be closed by adding the outside triangles into the triangular mesh generated by polygonizing . The other two types of volume TPMS structures can be closed in similar ways. In Fig. 3, the three types of volume TPMS structures are illustrated.

Figure 3: Three types of volume TPMS structures for the four types of TPMS units. (a)(b)(c)(d) Pore structures for the P-type, D-type, G-type and I-WP-type TPMSs. (e)(f)(g)(h) Rod structures for the P-type, D-type, G-type and I-WP-type TPMSs. (i)(j)(k)(l) Sheet structures for the P-type, D-type, G-type and I-WP-type TPMSs.

3.2 TDF construction

The porosity is an important parameter in porous scaffold design because it has direct influences on the transport of nutrition and waste. The porosity and pore size of porous scaffolds designed by TPMS units can be controlled by adjusting the threshold (see Table 1). Moreover, the relationship between the porosity and the threshold is illustrated in Figs.4-6. We can see that, for the three types of volume TPMS structures, i.e., pore, rod, and sheet, each has valid threshold range and they are listed in Table 1.

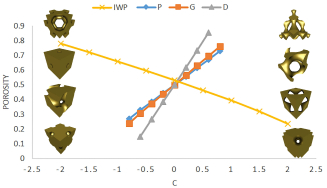

Figure 4: Relationship between the threshold and the porosity of the four types of TPMSs based on pore structures.

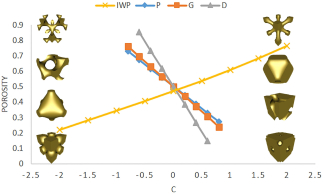

Figure 5: Relationship between the threshold and the porosity of the four types of TPMSs based on rod structures.

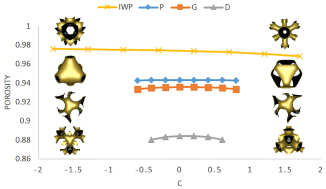

Figure 6: Relationship between the threshold and the porosity of the four types of TPMSs based on sheet structures.

To design heterogeneous porous scaffolds, we change the threshold to a trivariate function defined on the parametric domain of a TBSS, which is called threshold distribution field (TDF). Then, the TPMS in the parameter domain is represented by the zero-level surface of,

(4)

Therefore, the TDF plays a critical role in the heterogeneous porous scaffold generation, and designing the TDF becomes a key problem in porous scaffold design.

In this study, we developed some convenient techniques for generating a TDF in the cubic parameter domain of a TBSS. In brief, the cubic parameter domain of a TBSS is first discretized into a dense grid (in our implementation, it is discretized into a grid with a resolution of ), called a parametric grid. Then, the threshold values at the grid vertices are assigned using the techniques presented later in this paper, which constitute a discrete TDF. Finally, to save storage space, the discrete TDF is fitted by a trivariate B-spline function, i.e.,

(5)

where the scales are the control points of the trivariate B-spline function.

Now, we elucidate the techniques for generating the discrete TDF.

Filling method. Initially, all of the values at the parameter grid vertices are set to . Then, the geometric quantities at points of the boundary surface of TBSS, such as mean curvature, Gauss curvature, are calculated and mapped to the boundary vertices of the parametric grid. Furthermore, the quantities at the boundary vertices are diffused into the inner parametric grid vertices by the Laplace smoothing operation [6]. Thus, the entire parametric grid is filled, and a discrete TDF is constructed. In Fig. 7, the mean curvature distribution of the TBSS boundary surface is first calculated (Fig. 7) and then is mapped to the boundary vertices of the parametric grid (Fig. 7).

Figure 7: Filling method. (a) Mean curvature distribution on the TBSS boundary surface. (b) Mean curvature distribution on the boundary vertices of the parametric grid.

Layer method. The parametric grid vertices are classified into layers according to their coordinates . For example, the vertices with the same coordinates can be classified into the same layer. Vertices of the same layer are assigned the same threshold values. The TDFs in Figs. 8 and  9 were generated using the layer method. In Fig. 8, the vertices of the four side surfaces are taken as the first layer, the vertices adjacent to the first layer are taken being in the second layer, , and so on. In Fig. 9, the vertices with the same coordinates are taken as the same layer.

Prescribed function method. The threshold values at the parametric grid vertices can be assigned by a function prescribed by users. For example, in Fig. 17, the threshold value at the vertex with coordinates is assigned by the function,

After the discrete TDF is generated, the values at the grid vertices are linearly transformed into the valid threshold range according to the type of volume TPMS structure being produced. Then, we fit the discrete TDF with a trivariate B-spline function (

5), using the least squares progressive-iteration approximation (LSPIA) method [3]. The subscripts of the grid vertices, i.e., , are the natural parametrization of the vertices. For the purpose of B-spline fitting, they are normalized into the interval . The knot vectors of the B-spline function (5) is uniformly defined under the Bézier end condition. In our implementation, the resolution of the control grid of the trivariate B-spline function is taken as . Additionally, the initial values for LSPIA iteration at the control grid of the B-spline function (5) are produced by linear interpolation of the discrete TDF.

Suppose the LSPIA iteration has been performed for steps, and the B-spline function is constructed:

(6)

to generate the B-spline function , the difference vector for each parametric grid vertex is calculated,

(7)

where is the threshold value at the vertex , and are its parameters. Each difference vector is distributed to the control points if the corresponding basis functions are non-zero. Moreover, a weighted average of all the difference vectors distributed to a control point is taken, leading to the difference vector for the control point,

(8)

where is the set of indices such that

Next, the control points are formed by adding the difference vectors to the control points,

(9)

Thus, the B-spline function is produced:

(10)

The convergence of LSPIA iteration has been proved in [3]. After the LSPIA iterations stop, the iteration result is taken as the TDF in the parametric domain.

Local modification. With the TDF in the parametric domain, the TPMS in the parametric domain (4) can be generated. By mapping the TPMS into the TBSS, a porous scaffold is produced in the TBSS. However, if the generated porous scaffold does not satisfy the practical engineering requirements, the TDF can be locally modified in the parametric domain, and then the porous scaffold can be rebuilt to meet the practical requirements.

To locally modify the TDF, users first choose some vertices of the parameter grid, and change their threshold values to their desirable values. Then, a local LSPIA iteration is invoked to fit the changed values at the chosen vertices. In the local LSPIA iteration, the difference vector  (7) is calculated only at the chosen vertices, and just the control points to which the difference vectors are distributed are adjusted. The other control points without distributed difference vectors remain unchanged. By locally modifying the TDF in Fig. 8 using the method presented above, the TDF is changed as illustrated in Fig. 8.

Figure 8: Local modification of TDF. (a) TDF generated by the layer method. (b) TDF after local modification.

3.3 Generation of heterogeneous porous scaffold in TBSS

Until now, there was only one unknown in the heterogeneous porous scaffold generation: the period coefficients (Table 1). It is worth noting that the internal connectivity of the scaffold is crucial to the transferring performance of the scaffold. For a TPMS unit, the smaller the unit volume, the worse the internal connectivity of the micro-holes, and the larger the unit volume, the better the internal connectivity of the micro-holes. The period coefficients (Table 1) can be employed to adjust the number of TPMS units, as well as the size of TPMS units in the three parametric directions. The values of the period coefficients used in the examples in this paper are listed in Table 2.

After the TDF in the parametric domain and the period coefficients are both determined (refer to Table 1), the TPMS in the parametric domain (Eq. (4)), i.e.,

can be calculated. For examples, the TPMSs (sheet structure) calculated based on the TDFs in Figs. 9- 9 are illustrated in Figs. 9-  9. It can be seen clearly from Figs. 9-  9 that, the porosity is controlled by the TDF in Figs. 9- 9.

Finally, the heterogeneous porous scaffold (Fig. 10) in the TBSS can be generated by mapping the TPMS in the parametric domain (volume TPMS structures) (Fig. 10) into the TBSS, using the TBSS function. It should be noted that, to avoid fold-up, the Jacobian value of the TBSS should be positive. Because the TPMS in the parametric domain is unitary (Fig. 10), it has completeness and continuity between adjacent TPMS units. Therefore, the heterogeneous porous scaffold in the TBSS is ensured to be complete and continuous (Fig.10).

Figure 9: Generation of the TPMSs (with their three-view drawing) (a,b,c,d) based on the corresponding TDF in the parametric domain (e,f,g,h). Note that the porosity of the TPMS is controlled by the TDF.
Figure 10: Generation of heterogeneous porous scaffold. (a) TPMS in the parametric domain. (b) Heterogeneous porous scaffold in the TBSS.

3.4 Storage format based on TDF

Owing to their complicated geometric and topological structure, the storage costs for porous scaffolds are very large, usually requiring hundreds of megabytes (MB) (refer to Table 2). Therefore, the large storage cost becomes the bottleneck in porous scaffold generation and processing. In this study, we developed a new porous scaffold storage format that reduces the storage cost of porous scaffolds significantly. Using the new storage format, the space required to store the porous scaffold models presented in this paper ranges from MB to MB, while the storage space using the traditional STL file format ranges from MB to MB. Thus, the new storage format reduces the storage requirement by at least compared with the traditional STL file format. Moreover, the generation of heterogenous porous scaffolds from the new file format costs a few seconds to a dozen seconds (Table 2).

Specifically, because the TDF in the parametric domain and the period coefficients (Table 1) entirely determine the heterogenous porous scaffold in a TBSS, the new storage format must only store the following information:

  • period coefficients ,

  • control points of the TDF ,

  • knot vectors of the TDF ,

  • control points of the TBSS ,

  • knot vectors of the TBSS .

Therefore, the new storage format is called the TDF format, and is summarized in Appendix for clarity.

4 Implementation, results and discussions

The developed heterogeneous porous scaffold generation method is implemented in the C++ programming language and tested on a PC with a 3.60 GHz i7-4790 CPU and 16 GB RAM. In this section, some examples are presented, and some implementation details are discussed. Moreover, the developed method is compared with classical scaffold generation methods.

4.1 Influence of threshold on heterogeneity of scaffold

The heterogeneity of a porous scaffold, i.e., its pore size and shape, is controlled by the TDF  (4). The larger the value of , the larger the pore size. In Fig. 11, the TDF is generated by the layer method, which takes the parametric grid vertices with the same coordinates as the same layer. The small to large TDF values are visualized by blue to red colors. Fig. 11 illustrates the heterogeneous porous scaffold (P-type, pore structure) generated based on the TDF in Fig. 11. We can see that, with the TDF values varying from large to small (Fig. 11), the pore size of the porous scaffold also changes from large to small (Fig. 11).

Figure 11: Influence of threshold on the heterogeneity of scaffold. (a) TDF generated by the layer method. (b) Heterogenous porous scaffold (P-type, pore structure), produced based on the TDF in (a).

4.2 Comparison with classical porous scaffold generation methods

The heterogenous porous scaffold generation method developed in this study is compared here with two classical methods presented in Refs. [25, 5]. First, because the method proposed in [25] generates a porous scaffold by mapping a regular TPMS unit to each hexahedron of a hexahedral mesh model, it has the following shortcomings: (1) Continuity cannot be ensured between two adjacent TPMS units in the porous scaffold. (2) The threshold values of all TPMS units are the same. (3) The geometric quality of the porous scaffold is greatly influenced by the mesh quality of the hexahedral mesh model. As illustrated in Fig. 12, the boundary mesh quality is poor, with many slender triangles.

Secondly, the method presented in [5] produces a porous scaffold by first immersing a trivariate T-spline model in an ambient TPMS and then taking the intersection of them as the porous scaffold. Therefore, this method cannot guarantee completeness of the TPMS units. As demonstrated in Fig. 12, many boundary TPMS units are broken.

However, because our method generates a heterogeneous porous scaffold by mapping a unitary TPMS in the parametric domain to a TBSS, it avoids the shortcomings of the other two methods. The heterogeneous porous scaffold generated by our method has the following properties (Fig. 12):

  • Completeness of TPMS units and continuity between adjacent TPMS units are guaranteed.

  • The TDF can be designed by users to easily control the porosity.

  • Because the degree of a TBSS is relatively high, and a TBSS has high smoothness, the heterogenous porous scaffold generated by TBSS mapping is highly smooth.

  • The TDF file format saves significant storage space.

Figure 12: Comparison with classical porous scaffold generating methods. The left-most column is the models input to the corresponding methods. (a)Method in [25] with hexahedral mesh as input. (b)Method in [5] with T-spline solid as input. (c)Our method with TBSS as input.
Figure 13: Heterogeneous porous scaffold of Ball-joint. (a) TBSS. (b) TDF in the parametric domain. (c) P-type pore structure. (d) P-type rod structure. (e) P-type sheet structure.
Figure 14: Heterogeneous porous scaffold of Venus. (a) TBSS. (b) TDF in the parametric domain. (c) D-type pore structure. (d) D-type rod structure. (e) D-type sheet structure.
Figure 15: Heterogeneous porous scaffold of Moai. (a) TBSS. (b) TDF in the parametric domain. (c) I-WP-type pore structure. (d) I-WP-type rod structure. (e) I-WP-type sheet structure.
Figure 16: Heterogeneous porous scaffold of Tooth. (a) TBSS. (b) TDF in the parametric domain. (c) G-type pore structure. (d) G-type rod structure. (e) G-type sheet structure.
Figure 17: Heterogeneous porous scaffold of Isis. (a) TBSS. (b) TDF in the parametric domain. (c) P-type pore structure. (d) P-type rod structure. (e) P-type sheet structure.
Model Type Structure Period coefficients Run time(s)1 Storage space(MB)2
TDF TPMS Porous scaffold STL format TDF format
Ball joint P pore 2.745 0.326 3.194 741.367 0.810
rod 0.319 3.109 721.599
sheet 0.658 6.651 1449.71
Venus D pore 2.728 0.293 3.024 701.682 0.947
rod 0.286 3.007 695.564
sheet 0.528 6.581 1399.55
Moai I-WP pore 2.736 0.290 2.554 557.324 0.824
rod 0.284 2.555 554.906
sheet 0.583 5.530 1105.41
Tooth G pore 2.732 0.238 1.974 394.402 0.567
rod 0.237 1.956 394.422
sheet 0.499 4.156 773.741
Isis P pore 2.754 0.238 2.089 473.401 1.355
rod 0.234 1.994 454.359
sheet 0.521 4.236 908.205
  • Run time (in second) for TDF construction, generation of volume TPMS in parametric domain and generation of heterogenous porous scaffold.

  • Storage space (in megabyte) of heterogenous porous scaffolds using the traditional STL file format and the TDF file format developed in this paper.

Table 2: Statistical data of the heterogenous porous scaffold generation method developed in this paper.

4.3 Results

In this section, some heterogenous porous scaffold results generated by our method are presented (Figs. 13-17) to demonstrate the effectiveness and efficiency of the method. In Figs. 13-17, (a) is the input TBSS, (b) is the TDF in the parametric domain, and (c,d, and e) are the heterogeneous porous scaffolds of pore structure, rod structure, and sheet structure with different TPMS types. Moreover, statistical data are listed in Table 2, including, period coefficients , run times for generating the TDF, TPMS in parametric domain, and heterogenous porous scaffold in the TBSS, and storage costs of porous scaffolds with the traditional STL file format and new TDF file format.

4.4 TDF file format

In Table 2, the storage spaces required to store the porous scaffold using the traditional STL file format and the new TDF file format are listed. Using the TDF file format, storing the porous scaffolds costs to MB, while using the STL file format, it costs to MB. Therefore, at least of storage space is saved by using the new TDF file format. Moreover, in Table 2, the time cost for generating the heterogeneous porous scaffold from the TDF file format is also listed, including the run time for generating volume TPMS structures and porous scaffolds. We can see that the time costs range from to seconds, which is acceptable for user interaction.

Finally, the TDF file format brings some extra benefits. Traditionally, heterogeneous porous scaffolds have been stored as linear mesh models. However, the TDF file format stores a trivariate B-spline function. Therefore, in theory, a porous scaffold can be generated to any prescribed precision using the TDF file format. In addition, the period coefficients and control points of the trivariate B-spline function, stored in the TDF file format, can be taken as some types of parameters

. Therefore, a heterogeneous porous scaffold can be changed by altering these parameters, just like in the parametric modeling technique.

5 Conclusion

In this study, we developed a method for generating a heterogeneous porous scaffold in a TBSS by the TDF designed in the parametric domain of the TBSS. First, the TDF is easy to be designed in the cubic parameter domain, and is represented as a trivariate B-spline function. The TDF can be employed to control the porosity of the porous scaffold. Then, a TPMS can be generated in the parameter domain based on the TDF and the period coefficients. Finally, by mapping the TPMS into the TBSS, a heterogeneous porous scaffold is produced. Moreover, we presented a new file format (TDF) for storing the porous scaffold that saves significant storage space. By the method developed in this study, both completeness of the TPMS units and continuity between adjacent TPMS units can be guaranteed. Moreover, the porosity of the porous scaffold can be controlled easily by designing a suitable TDF. More importantly, the TDF file format not only saves significant storage space, but it can also be used to generate a porous scaffold to any prescribed precision. In terms of future work, determining how to change the shape of a porous scaffold using the parameters stored in the TDF file format is a promising research direction.

Acknowledgements

This work is supported by the National Natural Science Foundation of China under Grant No.61872316.

References

  • [1] M. Aigner, C. Heinrich, B. J ttler, E. Pilgerstorfer, B. Simeon, and A. V. Vuong (2009-09) Swept volume parameterization for isogeometric analysis. In Mathematics of Surfaces XIII, Berlin, Heidelberg, pp. 19–44. Cited by: §1.1.
  • [2] H. Chen, Y. Guo, R. Rostami, S. Fan, K. Tang, and Z. Yu (2018-06) Porous structure design using parameterized hexahedral meshes and triply periodic minimal surfaces. In Proceedings of Computer Graphics International 2018, CGI 2018, Bintan Island, Indonesia, June 11-14, 2018, pp. 117–128. Cited by: §1.1, §1.
  • [3] C. Deng and H. Lin (2014) Progressive and iterative approximation for least squares b-spline curve and surface fitting. Computer-Aided Design 47 (1), pp. 32–44. Cited by: §3.2, §3.2.
  • [4] A. Doi and A. Koide (1991) An efficient method of triangulating equivalued surfaces by using tetrahedral cells. Ieice Trans 74 (1), pp. 214–224. Cited by: §2.2, §3.1, §3.
  • [5] J. Feng, J. Fu, C. Shang, Z. Lin, and B. Li (2018) Porous scaffold design by solid t-splines and triply periodic minimal surfaces. Computer Methods in Applied Mechanics & Engineering 336, pp. 333–352. Cited by: §1.1, §1, §2.2, Figure 12, §4.2, §4.2.
  • [6] D. A. Field (1988) Laplacian smoothing and delaunay triangulations. Communications in Applied Numerical Methods 4 (6), pp. 709–712. Cited by: §3.2.
  • [7] P. J. F. Gandy, S. Bardhan, A. L. Mackay, and J. Klinowski (2001) Nodal surface approximations to the ja:math and i-wp triply periodic minimal surfaces. Chemical Physics Letters 336 (3), pp. 187–195. Cited by: §2.2.
  • [8] P. L. George and H. Borouchaki (1998) Delaunay triangulation and meshing. Paris: Édition Hermès. Cited by: §3.1.
  • [9] T. J. R. Hughes, J. A. Cottrell, and Y. Bazilevs (2005) Isogeometric analysis: cad, finite elements, nurbs, exact geometry and mesh refinement. Computer Methods in Applied Mechanics & Engineering 194 (39), pp. 4135–4195. Cited by: §1.1.
  • [10] D. W. Hutmacher (2000) Scaffolds in tissue engineering bone and cartilage.. Biomaterials 21 (24), pp. 2529–2543. Cited by: §1.
  • [11] H. Lin, S. Jin, Q. Hu, and Z. Liu (2015) Constructing b-spline solids from tetrahedral meshes for isogeometric analysis. Computer Aided Geometric Design 35-36, pp. 109–120. Cited by: §1.1, §2.1.
  • [12] W. E. Lorensen and H. E. Cline (1987) Marching cubes: a high resolution 3d surface construction algorithm. Acm Siggraph Computer Graphics 21 (4), pp. 163–169. Cited by: §3.1.
  • [13] T. Martin, E. Cohen, and R. M. Kirby (2009) Volumetric parameterization and trivariate b-spline fitting using harmonic functions. Computer Aided Geometric Design 26 (6), pp. 648–664. Cited by: §1.1.
  • [14] F. P. Melchels, K. Bertoldi, R. Gabbrielli, A. H. Velders, J. Feijen, and D. W. Grijpma (2010) Mathematically defined tissue engineering scaffold architectures prepared by stereolithography.. Biomaterials 31 (27), pp. 6909–6916. Cited by: §1.1.
  • [15] T. S. Newman and H. Yi (2006) A survey of the marching cubes algorithm. Computers & Graphics 30 (5), pp. 854–879. Cited by: §3.1.
  • [16] A. Piegl and W. Tiller (1997) The nurbs book. Springer Berlin Heidelberg, Berlin, Heidelberg. Cited by: §2.1.
  • [17] S. Rajagopalan and R. A. Robb (2006) Schwarz meets schwann: design and fabrication of biomorphic tissue engineering scaffolds.. Medical Image Analysis 10 (5), pp. 693–712. Cited by: §1.1, §3.1.
  • [18] H. G. V. Schnering and R. Nesper (1991) Nodal surfaces of fourier series: fundamental invariants of structured matter. Zeitschrift F r Physik B Condensed Matter 83 (3), pp. 407–412. Cited by: §1, §2.2.
  • [19] J. Shi, L. Zhu, L. Li, Z. Li, J. Yang, and X. Wang (2018) A tpms-based method for modeling porous scaffolds for bionic bone tissue engineering. Scientific Reports 8 (1), pp. 7395. Cited by: §1.1, §1.
  • [20] B. Starly, C. Gomez, A. Darling, Z. Fang, A. Lau, W. Sun, W. Lau, T. Bradbury, A. Youssef, and C. Gaylo (2003-03) Computer-aided bone scaffold design: a biomimetic approach. In 2003 IEEE 29th Annual Proceedings of Bioengineering Conference, pp. 172–173. Cited by: §1.
  • [21] X. Wang and X. Qian (2014) An optimization approach for constructing trivariate b-spline solids. Computer-Aided Design 46 (1), pp. 179–191. Cited by: §1.1, §2.1.
  • [22] A. Y nez, A. Cuadrado, O. Martel, H. Afonso, and D. Monopoli (2018) Gyroid porous titanium structures: a versatile solution to be used as scaffolds in bone defect reconstruction. Materials & Design 140, pp. 21–29. Cited by: §1.
  • [23] W. Yan (2007) Periodic surface modeling for computer aided nano design. Computer-Aided Design 39 (3), pp. 179–189. Cited by: §2.2.
  • [24] N. Yang and K. Zhou (2014) Effective method for multi-scale gradient porous scaffold design and fabrication.. Materials Science & Engineering C 43, pp. 502–505. Cited by: §1.1, §1.
  • [25] D. Yoo (2011) Computer-aided porous scaffold design for tissue engineering using triply periodic minimal surfaces. International Journal of Precision Engineering & Manufacturing 12 (1), pp. 61–71. Cited by: §1.1, §1, Figure 12, §4.2.
  • [26] D. Yoo (2011) Porous scaffold design using the distance field and triply periodic minimal surface models. Biomaterials 32 (31), pp. 7741–7754. Cited by: §1.1, §1.
  • [27] D. Yoo (2012) Heterogeneous minimal surface porous scaffold design using the distance field and radial basis functions. Medical Engineering & Physics 34 (5), pp. 625–639. Cited by: §1.1, §1.
  • [28] Y. Zhang, Y. Bazilevs, S. Goswami, C. L. Bajaj, and T. J. Hughes (2007) Patient-specific vascular NURBS modeling for isogeometric analysis of blood flow. Computer methods in applied mechanics and engineering 196 (29), pp. 2943–2959. Cited by: §1.1.

Appendix: TDF file format

#period coefficients()

#resolution of control grid of TDF

#control points of TDF




#knot vector in -direction of TDF

#knot vector in -direction of TDF

#knot vector in -direction of TDF

#resolution of control grid of TBSS

#control points of TBSS


⋮   ⋮   ⋮

#knot vector in -direction of TBSS

#knot vector in -direction of TBSS

#knot vector in -direction of TBSS
