# Herding an Adversarial Swarm in Three-dimensional Spaces

This paper presents a defense approach to safeguard a protected area against an attack by a swarm of adversarial agents in three-dimensional (3D) space. We extend our 2D `StringNet Herding' approach, in which a closed formation of string-barriers is established around the adversarial swarm to confine their motion and herd them to a safe area, to 3D spaces by introducing 3D-StringNet. 3D-StringNet is a closed 3D formation of triangular net-like barriers. We provide a systematic approach to generate three types of 3D formations that are used in the 3D herding process and modifications to the finite-time convergent control laws developed in <cit.> that are required for a 3D environment. Furthermore, for given initial positions of the defenders, we provide conditions on the initial positions of the attackers for which the defenders are guaranteed to gather as a specified formation at a position on the shortest path of the attackers to the protected area before attackers reach there.

## Authors

• 1 publication
• 4 publications
• 9 publications
07/08/2020

### Multi-Swarm Herding: Protecting against Adversarial Swarms

This paper studies a defense approach against one or more swarms of adve...
06/30/2014

### Dispersion and Line Formation in Artificial Swarm Intelligence

One of the major motifs in collective or swarm intelligence is that, eve...
12/22/2021

### IDCAIS: Inter-Defender Collision-Aware Interception Strategy against Multiple Attackers

This paper presents an Inter-Defender Collision-Aware Interception Strat...
10/29/2020

### Dynamic Formation Reshaping Based on Point Set Registration in a Swarm of Drones

This work focuses on the formation reshaping in an optimized manner in a...
11/08/2020

### Swarm Formation Morphing for Congestion Aware Collision Avoidance

The focus of this work is to present a novel methodology for optimal dis...
06/28/2021

### SwarmPaint: Human-Swarm Interaction for Trajectory Generation and Formation Control by DNN-based Gesture Interface

Teleoperation tasks with multi-agent systems have a high potential in su...
08/24/2017

### Area Protection in Adversarial Path-Finding Scenarios with Multiple Mobile Agents on Graphs: a theoretical and experimental study of target-allocation strategies for defense co

We address a problem of area protection in graph-based scenarios with mu...
##### This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

## I Introduction

A swarm of multiple robots can perform certain tasks more effectively than one individual robot [bayindir2016review]. However, the fast advancement of swarm technology raises concerns with respect to safety. For instance, there may be cases where a group of adversarial robots is deployed nearby some safety-critical infrastructure (protected area) and considered as a threat. In our prior work [chipade2019herding, chipade2020swarmherding], we developed a method called ’StringNet Herding’ in which a group of defending agents (defenders) herds the adversarial swarm away from the protected area by enclosing it in a closed formation of string-like barriers, called StringNet. We assumed that the risk-averse agents of the adversarial swarm tend to move away from the 2D StringNet formation formed by defending agents, and that the motion of all the agents is constrained to a plane of a fixed altitude. However, in practice, the motion of the attacking UAVs swarm does not have to be restricted to a plane. Therefore, in this paper, we extend the StringNet approach to 3D environments.

#### I-1 Related work

Although most of the herding algorithms are developed for 2D scenarios, there are several approaches for 3D herding as well. The herding approaches, namely: n-wavefront herding [paranjape2018robotic], potential field approach [pierson2015bio], potential cage approach [varava2017herding], switched system approach [licitra2017single] that are cited in [chipade2020swarmherding] also provide extensions to 3D environments or some hint to extend the 2D laws to the 3D environment. However, the 3D extensions also suffer from the same issues listed in [chipade2020swarmherding].

In [kim2018three], a group of aerial robots tows a capture net to herd a maneuvering UAV in a 3D environment. It is proved that the 3D team is able to capture its target in a finite time. However, the capture net is an open surface in 3D space, so the target UAV still has a chance to skip away during the herding process.

#### I-2 Overview

In this paper, we build on the 2D StringNet herding approach [chipade2020swarmherding] under the similar assumption of risk-averse adversarial attackers, i.e., attackers that adjust their course to avoid any obstacle. Similar to 2D StringNet herding, we propose 3D-StringNet herding. 3D-StringNet is a formation of expandable, triangular net-like barriers formed by a group of defenders (Fig. 1). Similar to 2D-Stringnet herding, 3D-StringNet herding also consists of four phases: 1) gathering, 2) seeking, 3) enclosing and 4) herding. We design three 3D formations of the defenders namely planar, hemispherical, spherical that are required to be achieved in the phases discussed above in order to effectively enclose the attackers and herd them to a safe area. The control laws designed in [chipade2020swarmherding] are extended to 3D by considering 3D rigid body dynamics. We provide conditions on the initial positions of the attackers for which the defenders are able to achieve a specified formation at a point on the expected path (shortest path to the protected area) of the attackers before the attackers could reach that point. We provide a convex optimization formulation to quickly find these conditions for a given direction from which the attackers are approaching.

In summary, the design of three 3D formations, appropriate modifications to the 2D herding control laws and the conditions on the initial positions of the attackers for defenders’ guaranteed gathering are the main contributions of this paper.

#### I-3 Structure of the paper

Section II describes the mathematical modeling and the problems studied. The details of the 3D herding formations are discussed in Section III, while the modifications to the 2D herding approach are provided in Section IV. Conditions on the attackers’ initial positions for guaranteed gathering are provided in Section V. Simulation results and conclusions are reported in Section VI and VII.

## Ii Modeling and Problem Statement

Notation: Euclidean norm is denoted by . Absolute value is denoted by .

There are attackers , and defenders , . The protected area is defined as , and the safe area is defined as , where and are the centers and radii of the corresponding areas, respectively. The agents and are modeled as discs of radii and , respectively and move under Double Integrator (DI) dynamics with quadratic drag:

 ˙rai=vai,˙vai=uai−CD∥∥vai∥∥vai; (1a) ˙rdj=vdj,˙vdj=udj−CD∥∥vdj∥∥vdj; (1b) (1c)

where is the drag coefficient, and

are the position vectors of

and , respectively; , are the velocity vectors, respectively, and , are the accelerations (the control inputs), respectively. The defenders are assumed to be faster than the attackers, i.e., . This model poses a speed bound on each player with limited acceleration control, i.e., and . We assume that every defender senses the position and velocity when is inside a sensing-zone around . Each attacker has a similar local sensing zone .

Attackers aim to reach the protected area . To demonstrate the proposed 3D herding approach, we model the motion of the attackers using a leader-follower control strategy [8360424] that uses potential functions, which however is not known to the defenders. We consider the following problems in this paper.

###### Problem 1

Design 3D formations of the defenders to enclose the attackers and to herd them to .

###### Problem 2

Given the initial positions of the defenders , for all , provide conditions on the initial positions of the attackers for which the defenders are able to gather as a specified formation centered at a point on the expected path of the attackers before any attacker reaches the center of the formation.

## Iii 3D-StringNet and 3D Formations

In this section, we formally define 3D-StringNet and provide a systematic approach to obtain formations of the defenders to generate 3D-StringNets.

###### Definition 1 (3D-StringNet)

The StringNet is a graph consisting of: 1) the defenders as the vertices, ; 2) a set of edges, , where denotes an impenetrable and extendable string-barrier between the defenders; 3) a set of triangular, expandable, net-like barrier faces, . The union of the set of faces is a single component, orientable triangle mesh with zero genus (holes) (Fig. 1).

A 3D-StringNet is called closed-3D-StringNet when the union of the face set is a closed manifold and we denote the underlying graph as otherwise it is called as open-3D-StringNet and the graph is denoted as .

One example of these triangular net-like barriers can be found in [ritz2012cooperative]. In practice this triangular net-like barriers can only have finite size. We consider the following practical constraints on the edges and the faces in a 3D-StringNet.

###### Condition 1 (Practical Constraint on 3D-StringNet)

A 3D-StringNet should satisfy:

(a) ,

(b) , where represents the area of triangle that is formed by defenders and , and is the practical constraint on the area of a triangle net.

In the next two subsections, we design three 3D formations for the 3D-StringNet that satisfy Condition 1 with the minimum number of defenders required to herd a given a swarm of attackers.

### Iii-a Optimal 3D formation for 3D-StringNet herding

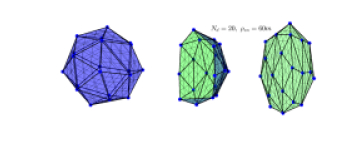

We want to design a closed 3D-StringNet formation that encloses the connectivity region of the attackers. Since a triangular mesh generated by connecting uniformly distributed points on a sphere contains the largest spatial volume with a given number of points, we choose the locations of the defenders on a sphere by uniformly distributing them.

The uniform distribution of the defenders on a spherical surface is generated by a solution to the Thomson problem. The Thomson problem is to find the minimum electrostatic potential energy configuration of N electrons constrained on the surface of the unit sphere [koay2014distributing]. Let denote the spherical coordinates of -electron on the sphere of radius . The electrostatic potential energy of electrons is expressed as:

 ΦC=Nd∑i=1Nd∑j≠i1ρsn√2(1−Λ(ϕij,θi,θj)), (2)

where , , , and . is the radius of the sphere on which the defenders are distribute. Denote . Then, the problem of finding an uniform distribution of electrons is formulated as an unconstrained optimization problem:

 p∗=argminpΦC (3)

We use gradient flow to find . Starting with some initial locations, the motion of the electrons under gradient flow is governed by:

 ˙p=−∇ΦC (4)

We choose the optimal locations of the electrons in the uniform distribution from (3) as the desired locations , for , for the defenders to obtain a closed-3D-StringNet . Let denote the formation of defenders uniformly distributed on the sphere of radius centered at the origin characterized by , for all . The uniform formation is shown in Fig. 1.

We choose such that even if all the triangular net-like barriers have sides with length , the volume enclosed by the formation contains a sphere of radius . This requires . Additionally, we require where is tracking the error [chipade2020swarmherding]. Due to practical limit of on the edge length, to obtain a formation with minimal number of defenders, should be equal to its minimal value so we choose .

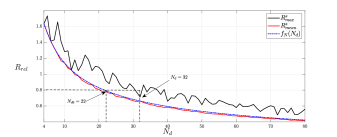

Given the radius of formation we want to find the minimum number of defenders on the formation that satisfy the practical constraints on the maximum edge length on the underlying closed-3D-StringNet (Condition 1 (a)). This requires maximum edge length on be smaller than . However, finding an explicit function that maps to on is extremely difficult, see the black curve in Fig. 2, where represents the edge length in relative to . The reason is that unlike circular formation, the symmetry is relatively rare in three-dimensional spherical formation. To remedy this, we find the minimum by numerically enumerating the formations. We start with an initial guess for , find the distribution and corresponding maximum edge length . Check if satisfies Condition 1 (a), if not then increment by one and repeat. Given the uncertain dependence of maximum edge length on , one may be tempted to use minimum choice of as an initial guess. However, this may require longer time to determine best for larger . We notice that the average length of edges can be well fitted by a function :

 fN(Nd)=  ⎷2(1−2cos(Ndπ3Nd−6))(1−cos(Ndπ3Nd−6)). (5)

We have that the maximum length satisfies: . So we can safely choose as the initial guess to the iterative scheme mentioned earlier to find minimum satisfying Condition 1 (a). By doing so, we start closer to the desired minimum value of and the computational time to find this can be greatly reduced, as shown in Fig. 3, where represents enumerated times.

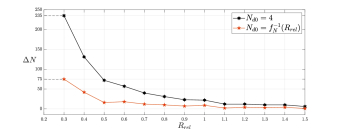

In reality, since the number of defenders is finite, the data of for different values of can be pre-calculated. Then the problem of finding the minimum simply reduces to a simple search over the stored information which can be significantly faster.

### Iii-B Maintaining 3D-StringNet

Following the similar idea as in our 2D herding approach [chipade2020swarmherding], the defenders achieve the closed-3D-StringNet around the attackers in order to enclose them through a sequence of intermediate 3D-StringNet formations. We design two open-3D-StringNet formations for this purpose: 1) open-3D-StringNet with Hemispherical formation , and 2) open-3D-StringNet with planar formation . These formations are obtained by transforming the uniform spherical formation by using mappings that respect the Condition 1 (a). These mappings are discussed in the following subsections.

#### Iii-B1 Mapping between hemispherical and spherical Formation

Let denote the desired position in in spherical coordinates and denote the desired position in in spherical coordinates. We consider the mapping given by

 rhl=hhs(rsl)=[ρsn,θsl,0.5ϕsl]T. (6)

By mapping , the spherical formation is cut by the half plane and then two sides of the cut rotate towards the plane where they form a great circle (Fig. 1). The underlying open-3D-StringNet graph

We claim that all the edges in on the hemispherical formation obtain through the mapping satisfy the Condition 1 (a). To see why, consider the length of the edge : . Similarly, the length of the edge : . The only difference between and is that and it is easy to see that . In addition, the Condition 1 (b) on the area of the triangular nets is satisfied by virtue of Condition 1 (a). These desired positions are represented in Cartesian coordinates by , for all .

#### Iii-B2 Mapping between planar and hemispherical formation

For a given constraint on the edge length, a planar formation will create a larger blockage in the path of the attackers as compared to the hemispherical one. Therefore, an open-3D-StringNet with planar formation is chosen as the desired formation to be achieved at the end of the gathering phase.

The planar formation is obtained from . To ease out the mathematics, is first rotated about the cartesian -axis by to obtain a rotated formation . Let be the position corresponding to after the aforementioned rotation. Let be the desired position in the planar formation . We consider a mapping given by

 rpl=hph′(rh′l)=[kpρsnsin(θh′j),ϕh′j]T, (7)

where is a scaling factor. The lengths of the edges in and corresponding to the formations and , respectively, are given by

 sh′ij=ρsn√2−2Λ(Δϕh′ij,θh′i,θh′j) (8)
 spij=√(ρpi)2+(ρpj)2−2(ρpi)(ρpj)C(Δϕij)=kpρsn√S2(θh′i)+S2(θh′j)−2S(θh′i)S(θh′j)C(Δϕij)≤kpρsn√2−2Λ(Δϕhij′,θhi′,θhj′)=kpshij′ (9)

Therefore, by mapping , every edge is bounded by the scaling factor and its original length. A sufficient condition to satisfy the Condition 1 on with planar formation is that . In fact, Condition 1 holds even when is greater than one:

 max kp=RmaxsnRhmax=RmaxsnRsmaxRsmaxRhmax>1 (10)

where is the length of the longest edge on the hemispherical formation, which cannot be larger than the longest edge on the spherical formation. With proper selection of , the mapping is able to generate a circular planar formation with radius that satisfies Condition 1. These desired positions

are represented in Cartesian coordinate system by

, for all . We call the local body-fixed -axis as the orientation vector of the formation .

## Iv Modifications to 2D StringNet Herding

The defenders aim to herd the adversarial attackers, which are attempting to reach the protected area , to the safe area . The defenders follow the same overall structure as that of the 2D-StrinNet herding [chipade2020swarmherding] while utilizing the 3D-StringNet formations generated in the previous section and with appropriate modifications to the corresponding parts from the 2D approach. Thus, the 3D StringNet herding consists of four phases [chipade2020swarmherding]: 1) Gathering and forming a planner formation, 2) Seeking the attackers, 3) Enclosing the attackers by forming a spherical formation, and 4) herding the enclosed attackers to . These phases are discussed in the following subsections.

### Iv-a Gathering

In the gathering phase, the defenders first converge to the planar formation centered at the gathering center in the expected path of the attackers (shortest path to the protected area). is the rotation matrix corresponding to the orientation represented by the quaternion , where denote the orientation when body -axis points toward the attackers’ center . The gathering center of the gathering formation is obtained by solving a mixed integer quadratic program (MIQP) iteratively [chipade2020swarmherding]. The defender converges to its assigned desired (goal) position on , where is the defender-goal assignment obtained from the MIQP [chipade2020swarmherding]. After the defenders arrive at their desired positions they establish nets with the neighboring defenders as per . Next, the defending swarm enters the seeking phase and starts moving towards attackers as discussed in the next subsection.

### Iv-B Seeking

In the seeking phase, we consider the desired formation of the defenders as a virtual rigid body with center of mass at , where is the quaternion that represents the orientation of the formation . The virtual body’s translational motion is governed by the same dynamics as in (1b) and the rotational dynamics are governed by Euler equations and quaternion kinematics:

 ˙~qdfs =12ωdfs~qdfs+12q4ωdfs,˙q4=12ωTdfs~qdfs; (11a) ˙ωdfs =urotdfs. (11b)

To ensure that the desired formation gets closer to the attackers and the orientation of the formation faces the attackers, we apply the following translational and rotational feedback accelerations to the virtual rigid body [wie1989quaternion]:

 utransdfs=σds(−k1(rdfs−rac)), (12a) urotdfs=σds(−Dωdfs−Kqe) (12b)

where is the angular velocity of the rigid body (subscripts , , and denote the body-fixed axes). , and are gain matrix which are diagonal matrices with non-negative scalars [wie1989quaternion]. The quaternion represents the desired orientation where the local -axis points toward the center of attackers . is the attitude error between the current quaternion and . The initial quaternion and initial angular velocity .

The desired position for on the desired formation satisfies:

 ˙ξsl= ηsl=˙rdfs+ωdfs×ξp0l, ˙ηsl= utransdfs−Cd∥∥vdfs∥∥vdfs+˙ωdfs×ξp0l +ωdfs×(ωdfs×ξp0l); ξsl= rdfs+R(qdfs)ξp0l.

The defenders track their assigned desired position using the 3D extension of the 2D finite-time convergent controllers as in [chipade2020swarmherding]. Seeking is completed when and , where and are user defined small thresholds.

### Iv-C Enclosing

After the defenders come close to the attackers as an open-3D-StringNet with at the end of seeking, the enclosing phase is initiated. In the enclosing phase, defenders aim to enclose the attackers in the closed-3D-StringNet with formation , where is the quaternion at the end of the seeking phase. Starting from the planar formation , the defenders first achieve an open-StringNet with hemispherical formation , and then the closed-3D-StringNet with formation . The reason to choose an intermediate open-3D-StrinNet formation is to avoid that the defenders unnecessarily come close to each other while converging to allowing the attackers to disperse. The control actions for the defenders to track their desired positions on the respective formations during this phase cam be obtained from [chipade2020swarmherding]. The desired formation is switched to when the defenders come within a distance of from their desired positions on . The closed-3D-StringNet is achieved when all defenders converge to their desired locations, i.e., for all .

### Iv-D Herding

Once the defenders form the closed-3D-StringNet around the attackers, they move towards the safe area while tracking a rigid spherical formation centered at a virtual agent , where . The virtual agent is moving towards the safe area as discussed in [chipade2020swarmherding] and defenders use the tracking controllers similar to that in [chipade2020swarmherding] to track their desired positions on . The herding phase ends when every enclosed attacker is successfully herded into the safe area.

## V Dominance Region for the Defenders

The success of the defenders depends on whether the defenders are able to achieve the open-3D-StringNet with planar formation in the expected path of the attackers well before the attackers could reach the gathering center. To answer this, for a given initial conditions of all the agents, the defenders require to solve the problem of finding the best gathering center and the corresponding defender-goal assignment a, which requires the MIQP [chipade2020swarmherding] to be solved iteratively demanding huge computation. In this section, we characterize the conditions on the initial positions of the attackers for which the defenders are able to achieve the formation at a location on the attackers’ shortest path to the protected area well before them. We call this set of initial conditions of the attackers as the dominance region for the given initial positions of the defenders. Let be the minimum time required by an attacker at to reach within distance from the point . Let denote the positions of the defenders for all . Let be the maximum time required by all the defenders to achieve the gathering formation centered at . The dominance region is then formally defined as:

###### Definition 2 (Defenders’ Dominance Region)

such that .

We provide the following approximation function based, computationally less intensive formulation that finds an estimate

of the dominance region that is completely contained inside .

Consider defenders and attackers located at given positions as shown in Fig.4. Let the largest radius of the attackers’ formation be . Consider the protected area located at the origin (). Let the center of mass of the attackers have spherical coordinates (). Consider the gathering center at . The distance of the defender from the center of the gathering formation (Fig. 4) is:

 ϱj=√R2+R2j−2RRjΛ(ϕac−ϕdj,θac,θdj). (14)

We have the following proposition using the approximation of minimum function as in [stipanovic2012monotone].

###### Proposition 1

The maximum value among , for all , satisfies: and .

The maximum distance any defender would have to travel in the best defender-goal assignment can be upper bounded by , where is the radius of the planar gathering formation . The maximum time for any defender to reach the gathering location assigned to it as per the best defender-goal assignment under time-optimal control [chipade2020swarmherding] can be bounded by:

 ¯Td=τ(¯ϱd,0,0)=1λ0(tanh−1(vsw¯vd)+tan−1(vsw¯vd)) (15)

where , , . The difference between the time needed for the attackers to reach the gathering location and the time required by the defenders to reach there can be bounded from below by:

 ΔT=Ra−¯ρac−R¯va−¯Td(R) (16)

Defenders want to be able to gather well before the attackers reach the gathering center. We are interested in the limiting condition when for which we have:

 Ra=f(R)=¯ρac+R+¯va(¯Td(R)+ΔT––––). (17)

We want to find the smallest value of for which , i.e.,

 R––a=minR>ρpf(R). (18)
###### Lemma 1

Given that not all the defenders are co-located, as given in Eq. (17) is a locally convex function of .

Sum of two convex functions is always a convex function [boyd2004convex], so it is sufficient to show that is a locally convex function to show that is a locally convex function. Let . The double derivative of is:

 ∂2g∂R2=∂2¯Td∂¯ϱd2(∂¯ϱd∂R)2+∂¯Td∂¯ϱd∂2¯ϱd∂R2. (19)

We have

 ∂¯Td∂¯ϱd=Cdλ0√λ+1λ−1≥0; (20)
 ∂2¯Td∂¯ϱd2=1λ0((2Cd)2λ1−λ2√λ+1λ−1)≤0; (21)
 ∂¯ϱ
