1 Introduction
Deep learning algorithms have evolved to a stage where they have surpassed human accuracies in a variety of cognitive tasks including image classification image_stateofart and conversational speech recognition speech_stateofart . Motivated by the recent breakthroughs in deep learning based speech recognition technologies, speech is increasingly becoming a more natural way to interact with consumer electronic devices, for example, Amazon Echo, Google Home and smart phones. However, alwayson speech recognition is not energyefficient and may also cause network congestion to transmit continuous audio stream from billions of these devices to the cloud. Furthermore, such a cloud based solution adds latency to the application, which hurts user experience. There are also privacy concerns when audio is continuously transmitted to the cloud. To mitigate these concerns, the devices first detect predefined keyword(s) such as "Alexa", "Ok Google", "Hey Siri", etc., which is commonly known as keyword spotting (KWS). Detection of keyword wakes up the device and then activates the full scale speech recognition either on device speech_on_mobile or in the cloud. In some applications, the sequence of keywords can be used as voice commands to a smart device such as a voiceenabled light bulb. Since KWS system is alwayson, it should have very low power consumption to maximize battery life. On the other hand, the KWS system should detect the keywords with high accuracy and low latency, for best user experience. These conflicting system requirements make KWS an active area of research ever since its inception over 50 years ago kws_1967 . Recently, with the renaissance of artificial neural networks in the form of deep learning algorithms, neural network (NN) based KWS has become very popular dnn ; cnn ; cnn_gru ; lstm .
Low power consumption requirement for keyword spotting systems make microcontrollers an obvious choice for deploying KWS in an alwayson system. Microcontrollers are lowcost energyefficient processors that are ubiquitous in our everyday life with their presence in a variety of devices ranging from home appliances, automobiles and consumer electronics to wearables. However, deployment of neural network based KWS on microcontrollers comes with following challenges:
Limited memory footprint: Typical microcontroller systems have only tens to few hundred KB of memory available. The entire neural network model, including input/output, weights and activations, has to fit within this small memory budget.
Limited compute resources: Since KWS is alwayson, the realtime requirement limits the total number of operations per neural network inference.
These microcontroller resource constraints in conjunction with the high accuracy and low latency requirements of KWS call for a resourceconstrained neural network architecture exploration to find lean neural network structures suitable for KWS, which is the primary focus of our work. The main contributions of this work are as follows:

We first train the popular KWS neural net models from the literature dnn ; cnn ; cnn_gru ; lstm on Google speech commands dataset google_dataset and compare them in terms of accuracy, memory footprint and number of operations per inference.

In addition, we implement a new KWS model using depthwise separable convolutions and pointwise convolutions, inspired by the success of resourceefficient MobileNet mobilenet
in computer vision. This model outperforms the other prior models in all aspects of accuracy, model size and number of operations.

Finally, we perform resourceconstrained neural network architecture exploration and present comprehensive comparison of different network architectures within a set of compute and memory constraints of typical microcontrollers. The code, model definitions and pretrained models are available at https://github.com/ARMsoftware/MLKWSforMCU.
2 Background
2.1 Keyword Spotting (KWS) System
A typical KWS system consists of a feature extractor and a neural network based classifier as shown in Fig.

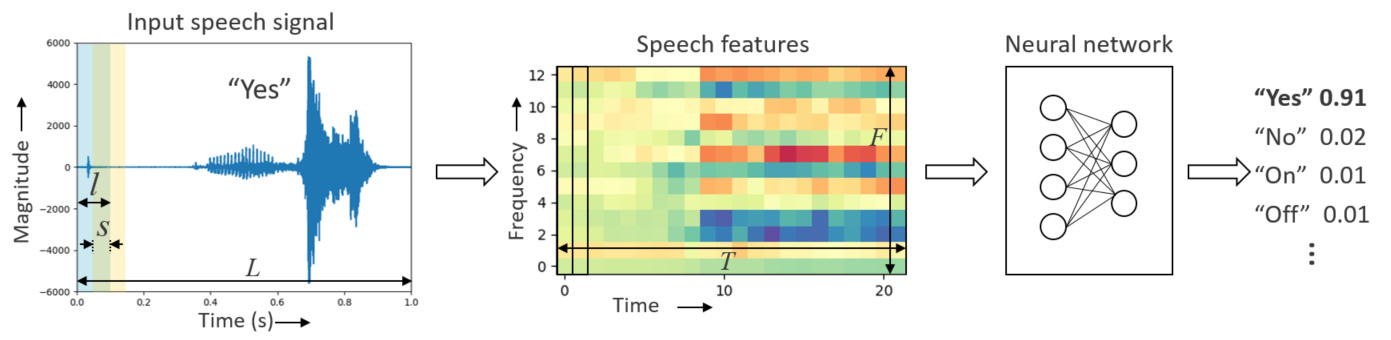

1. First, the input speech signal of length is framed into overlapping frames of lengthwith a stride
, giving a total of frames. From each frame, speech features are extracted, generating a total of features for the entire input speech signal of length. Logmel filter bank energies (LFBE) and Melfrequency cepstral coefficients (MFCC) are the commonly used humanengineered speech features in deep learning based speechrecognition, that are adapted from traditional speech processing techniques. Feature extraction using LFBE or MFCC involves translating the timedomain speech signal into a set of frequencydomain spectral coefficients, which enables dimensionality compression of the input signal. The extracted speech feature matrix is fed into a classifier module, which generates the probabilities for the output classes. In a realworld scenario where keywords need to be identified from a continuous audio stream, a posterior handling module averages the output probabilities of each output class over a period of time, improving the overall confidence of the prediction.
Traditional speech recognition technologies for KWS use Hidden Markov Models (HMMs) and Viterbi decoding
wilpon1990automatic ; rose1990hidden . While these approaches achieve reasonable accuracies, they are hard to train and are computationally expensive during inference. Other techniques explored for KWS include discriminative models adopting a largemargin problem formulation discriminative_kwsor recurrent neural networks (RNN)
discriminative_rnn. Although these methods significantly outperform HMM based KWS in terms of accuracy, they suffer from large detection latency. KWS models using deep neural networks (DNN) based on fullyconnected layers with rectified linear unit (ReLU) activation functions are introduced in
dnn , which outperforms the HMM models with a very small detection latency. Furthermore, lowrank approximation techniques are used to compress the DNN model weights achieving similar accuracy with less hardware resources tucker2016model ; nakkiran2015compressing . The main drawback of DNNs is that they ignore the local temporal and spectral correlation in the input speech features. In order to exploit these correlations, different variants of convolutional neural network (CNN) based KWS are explored in cnn , which demonstrate higher accuracy than DNNs. The drawback of CNNs in modeling time varying signals (e.g. speech) is that they ignore long term temporal dependencies. Combining the strengths of CNNs and RNNs, convolutional recurrent neural network based KWS is investigated in cnn_gruand demonstrate the robustness of the model to noise. While all the prior KWS neural networks are trained with cross entropy loss function, a maxpooling based loss function for training KWS model with long shortterm memory (LSTM) is proposed in
lstm , which achieves better accuracy than the DNNs and LSTMs trained with cross entropy loss.Although many neural network models for KWS are presented in literature, it is difficult to make a fair comparison between them as they are all trained and evaluated on different proprietary datasets (e.g. "TalkType" dataset in cnn_gru , "Alexa" dataset in lstm , etc.) with different input speech features and audio duration. Also, the primary focus of prior research has been to maximize the accuracy with a small memory footprint model, without explicit constraints of underlying hardware, such as limits on number of operations per inference. In contrast, this work is more hardwarecentric and targeted towards neural network architectures that maximize accuracy on microcontroller devices. The constraints on memory and compute significantly limit the neural network parameters and the number of operations.
2.2 Microcontroller Systems
A typical microcontroller system consists of a processor core, an onchip SRAM block and an onchip embedded flash. Table 1 shows some commercially available microcontroller development boards with Arm CortexM processor cores with different compute capabilities running at different frequencies (16 MHz to 216 MHz), consisting of a wide range of onchip memory (SRAM: 8 KB to 320 KB; Flash: 128 KB to 1 MB). The program binary, usually preloaded into the nonvolatile flash, is loaded into the SRAM at startup and the processor runs the program with the SRAM as the main data memory. Therefore, the size of the SRAM limits the size of memory that the software can use.
Arm Mbed^{TM} platform  Processor  Frequency  SRAM  Flash
Mbed LPC11U24  CortexM0  48 MHz  8 KB  32 KB
Nordic nRF51DK  CortexM0  16 MHz  32 KB  256 KB
Mbed LPC1768  CortexM3  96 MHz  32 KB  512 KB
Nucleo F103RB  CortexM3  72 MHz  20 KB  128 KB
Nucleo L476RG  CortexM4  80 MHz  128 KB  1 MB
Nucleo F411RE  CortexM4  100 MHz  128 KB  512 KB
FRDMK64F  CortexM4  120 MHz  256 KB  1 MB
Nucleo F746ZG  Cortex M7  216 MHz  320 KB  1 MB
Other than the memory footprint, performance (i.e., operations per second) is also a constraining factor for running neural networks on microcontrollers. Most microcontrollers are designed for embedded applications with low cost and high energyefficiency as the primary targets, and do not have high throughput for computeintensive workloads such as neural networks. Some microcontrollers have integrated DSP instructions that can be useful for running neural network workloads. For example, CortexM4 and CortexM7 have integrated SIMD and MAC instructions that can be used to accelerate lowprecision computation in neural networks.
3 Neural Network Architectures for KWS
This section gives an overview of all the different neural network architectures explored in this work including the deep neural network (DNN), convolutional neural network (CNN), recurrent neural network (RNN), convolutional recurrent neural network (CRNN) and depthwise separable convolutional neural network (DSCNN).
3.1 Deep Neural Network (DNN)
The DNN is a standard feedforward neural network made of a stack of fullyconnected layers and nonlinear activation layers. The input to the DNN is the flattened feature matrix, which feeds into a stack of
hidden fullyconnected layers each with neurons. Typically, each fullyconnected layer is followed by a rectified linear unit (ReLU) based activation function. At the output is a linear layer followed by a softmax layer generating the output probabilities of the keywords, which are used for further posterior handling.3.2 Convolutional Neural Network (CNN)
One main drawback of DNN based KWS is that they fail to efficiently model the local temporal and spectral correlation in the speech features. CNNs exploit this correlation by treating the input timedomain and spectraldomain features as an image and performing 2D convolution operations over it. The convolution layers are typically followed by batch normalization
ioffe2015batch , ReLU based activation functions and optional max/average pooling layers, which reduce the dimensionality of the features. During inference, the parameters of batch normalization can be folded into the weights of the convolution layers. In some cases, a linear lowrank layer, which is simply a fullyconnected layer without nonlinear activation, is added in between the convolution layers and dense layers for the purpose of reducing parameters and accelerating training ba2014deep ; sainath2013low .3.3 Recurrent Neural Network (RNN)
RNNs have shown superior performance in many sequence modeling tasks, especially speech recognition sak2014long , language modeling mikolov2010recurrent , translation sutskever2014sequence , etc. RNNs not only exploit the temporal relation between the input signal, but also capture the longterm dependencies using "gating" mechanism. Unlike CNNs where input features are treated as 2D image, RNNs operate for time steps, where at each time step
the corresponding spectral feature vector

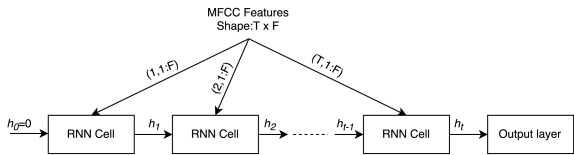

concatenated with the previous time step output is used as input to the RNN. Figure 2 shows the model architecture of a typical RNN model, where the RNN cell could be an LSTM cell hochreiter1997long ; gers2002learningor a gated recurrent unit (GRU) cell
cho2014learning ; chung2014empirical . Since the weights are reused across all the time steps, the RNN models tend to have less number of parameters compared to the CNNs. Similar to batch normalization in CNNs, research show that applying layer normalization can be beneficial for training RNNs ba2016layer , in which the hidden states are normalized during each time step.3.4 Convolutional Recurrent Neural Network (CRNN)

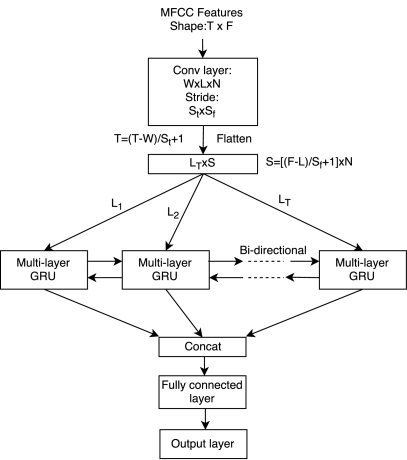

Convolution recurrent neural network cnn_gru is a hybrid of CNN and RNN, which takes advantages of both. It exploits the local temporal/spatial correlation using convolution layers and global temporal dependencies in the speech features using recurrent layers. As shown in Fig. 3, a CRNN model starts with a convolution layer, followed by an RNN to encode the signal and a dense fullyconnected layer to map the information. Here, the recurrent layer is bidirectional schuster1997bidirectional and has multiple stages, increasing the network learning capability. Gated recurrent units (GRU) cho2014learning is used as the base cell for recurrent layers, as it uses fewer parameters than LSTMs and gave better convergence in our experiments.
3.5 Depthwise Separable Convolutional Neural Network (DSCNN)

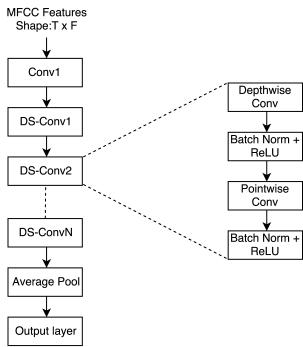

Recently, depthwise separable convolution has been proposed as an efficient alternative to the standard 3D convolution operation chollet2016xception and has been used to achieve compact network architectures in the area of computer vision mobilenet ; shufflenet . DSCNN first convolves each channel in the input feature map with a separate 2D filter and then uses pointwise convolutions (i.e. ) to combine the outputs in the depth dimension. By decomposing the standard 3D convolutions into 2D convolutions followed by 1D convolutions, depthwise separable convolutions are more efficient both in number of parameters and operations, which makes deeper and wider architecture possible even in the resourceconstrained microcontroller devices. In this work, we adopt a depthwise separable CNN based on the implementation of MobileNet mobilenet as shown in Fig. 4. An average pooling followed by a fullyconnected layer is used at the end to provide global interaction and reduce the total number of parameters in the final layer.
4 Experiments and Results
We use the Google speech commands dataset google_dataset
for the neural network architecture exploration experiments. The dataset consists of 65K 1second long audio clips of 30 keywords, by thousands of different people, with each clip consisting of only one keyword. The neural network models are trained to classify the incoming audio into one of the 10 keywords  "Yes", "No", "Up", "Down", "Left", "Right", "On", "Off", "Stop", "Go", along with "silence" (i.e. no word spoken) and "unknown" word, which is the remaining 20 keywords from the dataset. The dataset is split into training, validation and test set in the ratio of 80:10:10 while making sure that the audio clips from the same person stays in the same set. All models are trained in Google Tensorflow framework
abadi2016tensorflow using the standard crossentropy loss and Adam optimizer kingma2014adam . With a batch size of 100, the models are trained for 20K iterations with initial learning rate of , and reduced to after first 10K iterations. The training data is augmented with background noise and random time shift of up to 100ms. The trained models are evaluated based on the classification accuracy on the test set.4.1 Training Results
Table 2 summarizes the accuracy, memory requirement and operations per inference for the network architectures for KWS from literature dnn ; cnn ; cnn_gru ; lstm trained on Google speech commands dataset google_dataset . For all the models, we use 40 MFCC features extracted from a speech frame of length 40ms with a stride of 20ms, which gives 1960 (4940) features for 1 second of audio. The accuracy shown in the table is the accuracy on test set. The memory shown in the table assumes 8bit weights and activations, which is sufficient to achieve same accuracy as that from a fullprecision network.
NN Architecture  Accuracy  Memory  Operations
DNN dnn  84.3%  288 KB  0.57 MOps
CNN1 cnn  90.7%  556 KB  76.02 MOps
CNN2 cnn  84.6%  149 KB  1.46 MOps
LSTM lstm  88.8%  26 KB  2.06 MOps
CRNN cnn_gru  87.8%  298 KB  5.85 MOps
Also, we assume that the memory for activations is reused across different layers and hence memory requirement for the activations uses the maximum of two consecutive layers. The operations in the table counts the total number of multiplications and additions in the matrixmultiplication operations in each layer in the network, which is representative of the execution time of the entire network. The models from the existing literature are optimized for different datasets and use different memory/compute resources, hence a direct comparison of accuracy is unfair. That said, these results still provide useful insights on the different neural network architectures for KWS:

Although DNNs do not achieve the best accuracy and tend to be memory intensive, they have less number of operations/inference and hence suit well to systems that have limited compute capability (e.g. systems running at low operating frequencies for energyefficiency).

CNNs, on the other hand, achieve higher accuracy than DNNs but at the cost of large number of operations and/or memory requirement.

LSTMs and CRNNs achieve a balance between memory and operations while still achieving good accuracy.
4.2 Classifying Neural Networks for KWS based on Resource Requirements
As discussed in section 2.2, memory footprint and execution time are the two important considerations in being able to run keyword spotting on microcontrollers. These should be considered when designing and optimizing neural networks for running keyword spotting. Based on typical microcontroller system configurations (as described in Table 1), we derive three sets of constraints for the neural networks in Table 3, targeting small, medium and large microcontroller systems. Both memory and compute limit are derived with assumptions that some amount of resources will be allocated for running other tasks such as OS, I/O, network communication, etc. The operations per inference limit assumes that the system is running 10 inferences per second.
NN size  NN memory limit  Ops/inference limit
Small (S)  80 KB  6 MOps
Medium (M)  200 KB  20 MOps
Large (L)  500 KB  80 MOps
4.3 Resource Constrained Neural Network Architecture Exploration
Figure 5 shows the number of operations per inference, memory requirement and test accuracy of neural network models from prior work dnn ; cnn ; cnn_gru ; lstm trained on Google speech commands dataset overlayed with the memory and compute bounding boxes for the neural network classes from section 4.2. An ideal model would have high accuracy, small memory footprint and lower number of computations, i.e., close to the origin in Fig. 5. Apart from the LSTM model, the other models are too memory/compute resource heavy and do not fit into the bounding box S with 80KB/6MOps memory/compute limits. CNN2, CRNN and DNN models fit in the M and L
bounding boxes, but have lower accuracies as compared to the CNN1 model, which does not fit in any of the boxes at all. The rest of this section discusses different hyperparameters of the feature extraction and neural network architectures that can be tuned in order to bring the models close to the origin and still achieve high accuracy.
As shown in Fig. 1, from each input speech signal, features are extracted and the number of these features impact the model size, number of operations and accuracy. The key parameters in the feature extraction step that impact the model size, number of operations and accuracy are (1) number of MFCC features per frame (F) and (2) the frame stride (S). The number of MFCC features per audio frame (F) impacts the number of weights in fullyconnected and recurrent layers, but not in convolution layers as weights are reused in convolution layers. The frame stride (S), which determines the number of frames to be processed per inference (i.e. T), impacts the number of weights in fullyconnected layers but not in recurrent and convolution layers because of the weight reuse. Both and impact the number of operations per inference. An efficient model would maximize accuracy using small , i.e., small and/or large .
The neural network architectures and the corresponding hyperparameters explored in this work are summarized in Table 4. The LSTM model mentioned in the table includes peephole connections and output projection layer similar to that in lstm , whereas basic LSTM model does not include those. CRNN uses one convolution layer followed by multilayer GRU for the recurrent layers. We also use batch normalization for convolutional/fullyconnected layers and layer normalization for recurrent layers. During inference, the parameters of batch normalization and layer normalization can be folded into the weights of the convolution or recurrent layers and hence these layers are ignored in memory/Ops computation.
NN model  Model hyperparameters
DNN  Number of fullyconnected (FC) layers and size of each FC layer
CNN  Number of Conv layers: features/kernel size/stride, linear layer dim., FC layer size
Basic LSTM  Number of memory cells
LSTM  Number of memory cells, projection layer size
GRU  Number of memory cells
CRNN  Conv features/kernel size/stride, Number of GRU and memory cells, FC layer size
DSCNN  Number of DSConv layers, DSConv features/kernel size/stride
We iteratively perform exhaustive search of feature extraction hyperparameters and NN model hyperparameters followed by manual selection to narrow down the search space. The final best performing models for each neural network architecture along with their memory requirements and operations are summarized in Table 5 and Fig. 6. The hyperparameters of these networks are summarized in Appendix A. From the results we can see that DNNs are memorybound and achieve less accuracies and saturate at ~87% even when the model is scaled up. CNNs achieve better accuracies than DNN, but are limited by the weights in the final fullyconnected layers. RNN models (i.e. Basic LSTM, LSTM and GRU) achieve better accuracies than CNNs and yield even smaller models with less Ops in some cases, demonstrating that exploiting temporal dependencies maximizes accuracy within the same resource budget. CRNN models, which combine the best properties of CNNs and RNNs, achieve better accuracies than both CNNs and RNNs, even with less Ops. CRNN architecture also scales up well when more memory/compute resources are available. DSCNN achieves the best accuracies and demonstrate good scalability owing to their deeper architecture enabled by depthwise separable convolution layers, which are less compute/memory intensive.
NN model  S(80KB, 6MOps)  M(200KB, 20MOps)  L(500KB, 80MOps)
Acc.  Mem.  Ops  Acc.  Mem.  Ops  Acc.  Mem.  Ops
DNN  84.6%  80.0KB  158.8K  86.4%  199.4KB  397.0K  86.7%  496.6KB  990.2K
CNN  91.6%  79.0KB  5.0M  92.2%  199.4KB  17.3M  92.7%  497.8KB  25.3M
Basic LSTM  92.0%  63.3KB  5.9M  93.0%  196.5KB  18.9M  93.4%  494.5KB  47.9M
LSTM  92.9%  79.5KB  3.9M  93.9%  198.6KB  19.2M  94.8%  498.8KB  48.4M
GRU  93.5%  78.8KB  3.8M  94.2%  200.0KB  19.2M  94.7%  499.7KB  48.4M
CRNN  94.0%  79.7KB  3.0M  94.4%  199.8KB  7.6M  95.0%  499.5KB  19.3M
DSCNN  94.4%  38.6KB  5.4M  94.9%  189.2KB  19.8M  95.4%  497.6KB  56.9M
To study the scalability of the models for smaller microcontroller systems with memory as low as 8KB, we expand the search space for DSCNN models. Figure 7 shows the accuracy, memory/Ops requirements of the DSCNN models targeted for such constrained devices. It shows that scaleddown DSCNN models achieve better accuracies than DNN models with similar number of Ops, but with >10x reduction in memory requirement.
4.4 Neural Network Quantization
Neural networks are typically trained with floating point weights and activations. Previous research fpga_paper ; dyn_quant ; lai2017deep have shown that fixedpoint weights is sufficient to run neural networks with minimal loss in accuracy. Microcontroller systems have limited memory, which motivates the quantization of 32bit floating point weights to 8bit fixed point weights for deployment, thus reducing the model size by 4. Moreover, fixedpoint integer operations run much faster than floating point operations in typical microcontrollers, which is another reason for executing quantized model during deployment.
In this work, we use the quantization flow described in dyn_quant using 8bits to represent all the weights and activations. For a given signed 2’s complement 8bit fixedpoint number, its value () can be expressed as , where is the fractional length, which can also be negative. is fixed for a given layer, but can be different in other layers. For example, can represent the range with a step of 1, can represent the range with a step of and can represent the range with a step of .
The weights are quantized to 8bits progressively one layer at a time by finding the optimal for each layer that minimizes the loss in accuracy because of quantization. After all the weights are quantized, the activations are also quantized in a similar way to find the appropriate fractional length for each layer. Table 6 shows the accuracies of representative 8bit networks quantized using this method and compared with those of the original fullprecision networks. The table shows that the accuracy of the quantized network is either same or marginally better than the fullprecision network, possibly due to better regularization because of quantization. We believe that the same conclusion will hold for the other neural network models explored in this work.
NN model  32bit floating point model accuracy  8bit quantized model accuracy
Train  Val.  Test  Train  Val.  Test
DNN  97.77%  88.04%  86.66%  97.99%  88.91%  87.60%
Basic LSTM  98.38%  92.69%  93.41%  98.21%  92.53%  93.51%
GRU  99.23%  93.92%  94.68%  99.21%  93.66%  94.68%
CRNN  98.34%  93.99%  95.00%  98.43%  94.08%  95.03%
4.5 KWS Deployment on Microcontroller

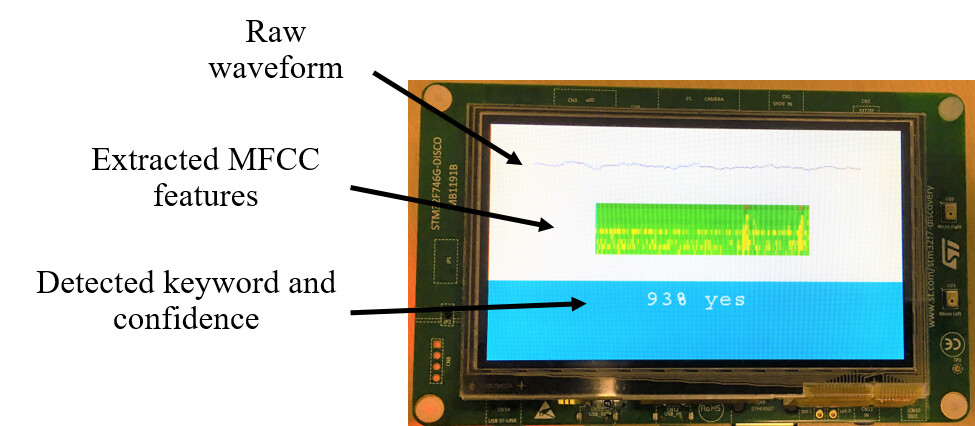

We deployed the KWS application on CortexM7 based STM32F746GDISCO development board using CMSISNN kernels lai2018cmsis . A picture of the board performing KWS is shown in Fig. 8. The deployed model is a DNN model with 8bit weights and 8bit activations and KWS is running at 10 inferences per second. Each inference, including memory copying, MFCC feature extraction and DNN execution, takes about 12 ms. The microcontroller can be put into WaitforInterrupt (WFI) mode for the remaining time for power saving. The entire KWS application occupies ~70 KB memory, including ~66 KB for weights, ~1 KB for activations and ~ 2 KB for audio I/O and MFCC features.
5 Conclusions
Hardware optimized neural network architecture is key to get efficient results on memory and compute constrained microcontrollers. We trained various neural network architectures for keyword spotting published in literature on Google speech commands dataset to compare their accuracy and memory requirements vs. operations per inference, from the perspective of deployment on microcontroller systems. We quantized representative trained 32bit floatingpoint KWS models into 8bit fixedpoint versions demonstrating that these models can easily be quantized for deployment without any loss in accuracy, even without retraining. Furthermore, we trained a new KWS model using depthwise separable convolution layers, inspired from MobileNet. Based on typical microcontroller systems, we derived three sets of memory/compute constraints for the neural networks and performed resource constrained neural network architecture exploration to find the best networks achieving maximum accuracy within these constraints. In all three sets of memory/compute constraints, depthwise separable CNN model (DSCNN) achieves the best accuracies of 94.4%, 94.9% and 95.4% compared to the other model architectures within those constraints, which shows good scalability of the DSCNN model. The code, model definitions and pretrained models are available at https://github.com/ARMsoftware/MLKWSforMCU.
Acknowledgements
We would like to thank Matt Mattina from Arm Research and Ian Bratt from Arm ML technology group for their help and support. We would also like to thank Pete Warden from Google’s TensorFlow team for his valuable inputs and feedback on this project.
