I Introduction

Pointing on a two-dimensional display has been a fundamental operation in graphical user interface in the past three decades and will continue to remain important in the foreseeable future. Pointing devices on a two-dimensional screen may have involved from desktop mouse and track balls to track pads and touch screens. However, for patients suffering from amputation or paralysis, alternative mechanisms must be used to enable their operation with computers.

Assistive technologies developed for enabling hands-free cursor control are mainly divided into eye trackers [2], head trackers, tongue trackers [3], brainwave (EEG) sensors [5], and muscle tension sensors (EMG) [6]. These techniques target users with a wide range of motor disabilities, and they have all been shown to be effective in their own specific ways. However, they all come at a relatively high cost. Camera-based systems require continuous image processing, which requires nontrivial computation power and can operate for at most hours on a battery. This makes them unsuitable for portable long-term usage in the range of weeks or months [1]. Tongue trackers may require special sensors to be placed in the mouth and may be considered intrusive even if not invasive. In addition to a poor performance in terms of speed and accuracy, EEG electrodes are extremely complex and uncomfortable due to the large number of electrodes and wires [4]

. Although voice recognition can handle text input for verbal commands and dictation with out any body mounted extra device, it has a low degree of freedom. In addition, the computational load due to voice processing unit makes it power consuming and slow.

We envision a low-cost system that is comfortable to wear, intuitive to use, and require little or no training or calibration. To achieve these goals, we propose a simple mechanism that requires minimal processing based on infra-red LED (IR LED) and photo detector pair. IR LED and photo detector pair can be an effective mechanism for precise short-range distance measurement. The novelty with our work is the adaptation of the active IR-based mechanism to measuring distance from the collar area to the sides of the chin as our way of tracking head tilt to control the mouse cursor. The IR LED and photo diodes are among the lowest-cost sensors, and the rest of the functionality including the ADC, processor, and wireless communication can all be done in commodity Bluetooth Low Energy (BLE) microcontrollers on the order of $2-3 in low-volume quantities. Due to the simplicity of algorithms and calculations, they can be implemented on the MCU to eliminate the need for a third party software on the host system. As a result, the device can be directly connected to the host system using generic HID drivers. It can also drives the cursor in two different modes for the ease of use. Both modes, the joystick and direct mapping, are explained in the further sections. We have built a prototype of the proposed “head mouse” system and tested it on a number of users. Experimental results show that our system to be intuitive to use, comfortable to wear, low power, and low cost.

Ii System Design

Fig. 1 shows the block diagram of the proposed system. The wearable system is centered around a microcontroller unit (MCU), sensors, a power source, and a wireless communication interface. The wearable system transmits either raw or processed data to the host computer where the cursor is displayed.

Ii-a MCU and Wireless Communication

We suggest an MCU-based embedded system. On one side, it reads the signal from the sensor for detecting the head position. The MCU is programmable and can process data. On the other side, the MCU is connected to a wireless communicating module to transfer the raw or processed data to the host system. Many conventional MCUs can be used. To be suitable for a wearable device, we choose one with more integrated features, including on-chip analog-to-digital converter (ADC) for interfacing with the optical sensors, and low power consumption, rather than one with high performance.

The choice of wireless communication enables ease of use and mobility of device. The device and the host need to support a compatible protocol. We chose Bluetooth Low Energy Technology (BLE), suitable for low-data-rate communication. It consumes considerably less power compared to convectional Bluetooth modules. Moreover, BLE is also integrated on a number of popular MCUs, making it low cost and compact.

Our choice of MCU is the TI CC2541, although many other MCUs in the similar class can also be used. The processor is an 8051-compatible core surrounded by 8-KB SRAM, 256 KB flash, 8-channel ADC, timers, UARTs, I2C, and SPI on the chip. It also includes a BLE transceiver that enables connection to any Bluetooth device including the users’s computer. We used this SoC to transmit data to the host system.

Ii-B Optical Sensor

Our proposed system consists of two pairs of IR LED and photodiodes to estimate the distance of the LED from the edges of user’s chin. The collected data is digitized using an embedded analog-to-digital converter and sent through the BLE module to the host computer. This subsection describes the sensors in detail.

The IR transmitters and receivers work on 940 nm wavelength and are available commercially off-the-shelf. For simplicity, the transmitter is set to be voltage-driven rather than current-driven using a 220  shunt resistor to control the current and IR brightness as shown in Fig. 1. The receiver is an IR photo-detector, modeled as a variable resistor. The resistance is determined by the amount of IR that the photo-detector receives. A shunt resistor of 22 K is used to bias the output. The output voltage changes approximately linearly with respect to the intensity of the IR light. The IR intensity itself is a function of the distance between the sensor board and the reflective surface (chin). Each sensor can detect the chin distance in the range of 0.2 to 4 inches.

In order to make the device power efficient, pulse-width modulation (PWM) is used. Sensors are powered on once every 50 ms for a period of 1 ms; in other words, 20 Hz sampling frequency and 5% duty cycle. This reduces power usage considerably and increases battery endurance without significantly affecting the device’s performance. Since the output signal is analog, it can have any value in the range of VCC=3.3 volts and GND. The signal is converted using the on-chip ADC on the MCU. The ADC samples each photo diode once every 50 ms at 8-bit resolution using a time-multiplexing scheme.

Ii-C Power Subsystem

The power subsystem consists of a battery and a power regulator. We chose a rechargeable lithium ion battery as the source of power. The battery power is fed to a buck converter, the TPS62740DSS, to reduce 3.8 V to 2.5 V to be used by the MCU. Note that IR transmitters are directly connected to 3.8 V from the battery (and GPIO pins control the path to ground), rather than the regulated 2.5 V, as the higher voltage results in more accurate distance measurement. The battery can be charged by wired connectors using off-the-shelf chargers. Wireless charging can be considered for future work.

Ii-D Mechanical Design

All of the components including the sensors, main board, and the battery are placed on a curved-shaped deck that can easily be mounted on the neck as in Fig. 2. The overall size of the device is  cm. To make the device compatible for different neck sizes, two fabric straps are mounted on either side of the deck.

Ii-E Host Computer

Depending on the mode of operation, further processing on the raw data may be performed before transmission to the host. For now, raw data is being sent directly and all the processing and algorithms are implemented on the host system for easier exploration and better reproducibility, as we can run a variety of algorithms on the same recorded data. We have developed a Python-based Graphical User Interface (GUI) for PC to receive data and draw the correspond position on the screen. We have also implemented the human interface device (HID) profile over BLE. The HID profile enables our device to work as a wireless mouse over BLE and enables plug-and-play operation without requiring driver installation. A later version will process the data on the device and send mouse movement data to the host just as a mouse would.

Fig. 1: The system block diagram.

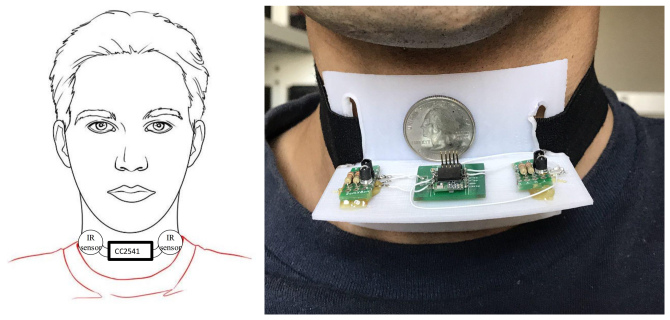

Fig. 2: The location of the optical sensors and the CC2541 module including the BLE, ADC, and the battery. A US quarter coin is placed for size comparison but is not part of the system

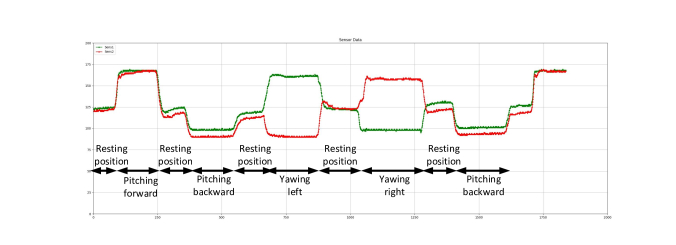

Fig. 3: The signal changes during the pitching and yawing movement.

Iii Methods

The proposed algorithm for controlling a cursor on a screen is based on the distance between the IR sensor and the user’s head (chin). In resting position, two sensors approximately receive the same amount of IR signal due to symmetry. Tilting down the user’s head brings both sensors closer to the surface of reflection, resulting in a stronger signal. Likewise, tilting up the head weakens the reflection received by both sensors due to the longer distance. When the head turns to the right, the left sensor sees a weak reflection from the left side of the chin, but the right sensor sees little change in the reflection since the chin is still above the receiver. Thus, a weak signal on the left sensor and a strong signal on the right sensor indicates a cursor movement to right. The same is applied to yawing to the left. Fig. 3 shows the signal values for different movements of pitching up and down and turning to the left and right.

The input data is filtered using moving average window method in which the input data is the average of last 15 data samples from the sensors. Averaging eliminates the ambient noise and helps the cursor to move smoothly on the screen, preventing it from unwanted jumps. Also, due to the nature of IR radiation, input noise level can vastly change. For example, the IR level in the day or under the sunlight is significantly higher than indoor spaces. To address this issue, we used dynamic thresholds to eliminate the problem of noise level changes. The signals go through a series of simple processing to map the head movement to cursor movement. Two different modes of joystick and direct mapping are implemented.

Iii-a Joystick Mode

In joystick mode, the cursor moves only horizontally and vertically with a predefined constant speed. The data is used to recognizes the direction of the movement. For each sensor, a lower and an upper threshold are adopted during calibration time at the initial 0.1 second of performance where user maintains the resting head position. These thresholds are denoted by , , , , where the superscripts 1 and 2 represent the values for sensors 1 and 2. Algorithm 1 shows the pseudo code for adjusting the upper and lower thresholds for both the sensors. The average of the raw data from the sensors in the calibration mode is denoted by and .

Collect the samples during the calibration phase. Denote the average of the samples by and

Set

Algorithm 1 Joystick calibration: Adjusting the thresholds.

This calibration helps us adjust the thresholds based on the ambient light and IR noise in different situations. Once the thresholds are learned, the cursor moves based on the algorithm described in algorithm 2.
We tried to follow a pre-drawn pattern on the screen and reach a target as depicted in Fig. 4. The path traveled by the cursor which is controlled by the user is drawn in a black line. In Fig. 4 (a), the user is following the path in red, while in Fig. 4 (b), the user tries to move the cursor inside the target depicted with a square. To qualify the test scenario as successful, the cursor should stay inside the target region for two seconds.

If  (  and  )

  Y is the vertical cursor coordinate. Move the cursor one pixel downward.

If  (  and  )

   Move the cursor one pixel downward.

If  (  and  )

  X is the horizontal cursor coordinate. Move the cursor one pixel to the left.

If  (  and  )

   Move the cursor one pixel to the right.

Algorithm 2 Joystick mode.
(a)
(b)
(c)
(d)
Fig. 4: The testing platforms, (a) User tries to follow a predefined path in the joystick mode. (b) User tries to guide the cursor into a target in the joystick mode. (c) Following the path in direct mapping mode. (d) Guiding the cursor to the target in direct mapping mode.

Iii-B Direct-Mapping Mode

In direct-mapping mode, the absolute value of the sensor data is directly mapped to the cursor location on the GUI. If the user tilts the head up to the maximum extend, the cursor touches the upper border. Similarly, the extreme positions of the user’s head in tilting down and yawing to the right and left are mapped to the borders of the GUI screen. Thus, we need to define the range of head movement so that we can map it to the pointer location. A set of training movements should be conducted in the calibration phase at the first 4 seconds of the performance. The user is required to maximally move his head to up, down, left, and right at startup. During this time, sensors data is being constantly checked to update the thresholds. In this mode, four thresholds are adopted for each sensor. , , , and are specifically adopted for sensor1 in moving up, down, left, and right directions respectively. Likewise , , , and are learned for sensor 2. Algorithm 3 shows the pseudo code for learning the thresholds in direct mapping calibration phase.

While in Calibration do:

If  (  and  )

Update

If  (  and  )

Update

If  (  and  )

Update

If  (  and  )

Update

Algorithm 3 Direct mapping mode, calibration phase.

After 4 seconds, thresholds are fixed and put in to the equations. There are three equations, one governs the changes in Y coordinate of the cursor and the other two are used to determine X coordinate. For Y we have:

(1)

where is the number of pixels in direction and finds the average its inputs. For X coordinate, we had to use two equations. One controls the position in the left half of the screen and the other one controls it in the right half of the screen.

(2)
(3)

Iii-C Performance Metrics

According to Fitt’s law, there is an inherent trade-off between the speed and accuracy. We will resort to the performance metrics mostly used in the state-of-art literature to quantify the performance. These metrics including, the index of difficulty, path efficiency, throughput, and overshoot are defined as follows:
Index of Difficulty (ID): ID is defined as

(4)

where is the distance between the original location of the cursor and the center of the target, and is the width of the target.
Path Efficiency (PE): Path efficiency is a measure of straightness of the path the cursor is traveling and is defined as the ratio of the total distance between the original location of the cursor and target to the path length traveled by the cursor to :

(5)

where is the length of the path traveled by the cursor.
Throughput (TP): Throughput is a metric for measuring how fast the cursor is moving and is defined as:

(6)

where is the time it takes for the user to move the cursor to the target zone.

Iv Results

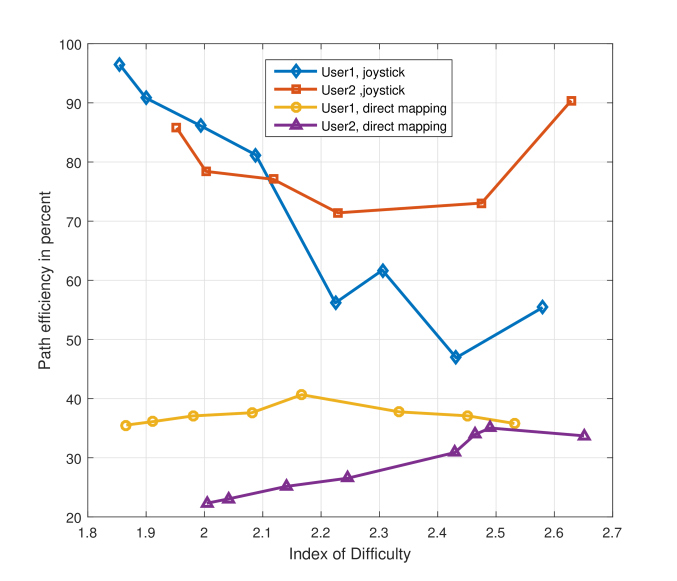

Fig. 5: Path efficiency with respect to index of difficulty for two modes of joystick and direct mapping.

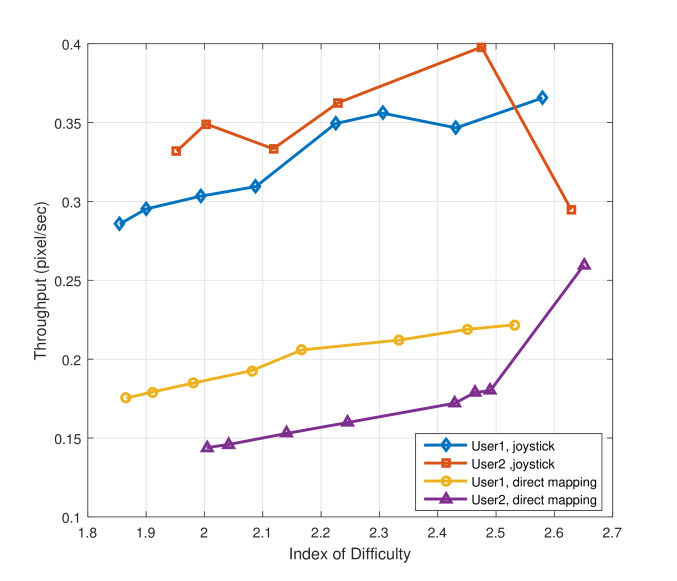

Fig. 6: Throughput with respect to index of difficulty for two modes of joystick and direct mapping.

Two different users volunteered to test the implemented system in the two modes. The task requires the users to move the cursor into a target. The location of the target on the screen and its width is randomly chosen, and the task is repeated. In fact, the index of difficult is a function of the location and the size of the target. The GUI automatically keeps the records of the moving time () and the path length . The number of trials for both joystick mode and direct mapping mode is 50 each.

Fig. 6 shows the path efficiency of the users for both the joystick and direct mapping modes, while Fig. 6 demonstrates the throughput. It is observed in the path efficiency and throughput are significantly better in the joystick mode compared to the direct mapping mode. This is observable from Fig. 4 where the user has a better controllability in joystick mode compared to direct mapping.

V Conclusions

We have presented a new wireless wearable device for controlling a pointing device by head movements. It uses conventional IR sensors to sense head movements, and a commodity MCU to map the sensor data to either relative movement (joystick mode) or absolute location (direct mapping mode) on the screen. While the principle of operation is relatively straightforward, in practice, the system must address several challenges, including optical noises from different sources, the wide range of head movement on different users, accuracy, and power consumption. We solve these problems by using adaptive calibration for sensors, algorithm for coordinate generation, and PWM control. Several directions for future development remain. We plan to continue improving accuracy by better filtering of input signals and more tuning of threshold. For now, the head needs to have a considerable rotation to detect movement that causes a feeling of tiredness. By increasing the accuracy, we can reduce the range of head movement, resulting in a better and more comfortable user experience. Adding a clicking procedure based on a specific pattern of movement is also considered. For technical aspects, we aim to improve power efficiency and enable plug-and-play by performing calculations on the device and communicating with the host computer directly using HID profile. It will enable the user not only to control a general-purpose PC but also embedded devices that can assist the user with a variety of tasks, including navigating a wheel chair, a robot arm, and many other assistive technologies to be invented.

Acknowledgment

The authors would like to thank Cho-An Lin and Hsun-Fa Zhou at National Tsing Hua University for their help with the BLE communication between the device and the host.
