1 Background & Summary

Accurate, timely, and representative in-situ observations across large areas have always been needed to report statistics on land use, land cover, and the environment. The Land Use/Cover Area frame Survey (LUCAS) in the European Union (EU) was set-up for this purpose [gallego2010european, LUCAS:online]

. Precise geo-localized in-situ information is also indispensable to train and validate algorithms that characterize the Earth’s surface based on remotely sensed observations. Comprehensive and thematically rich in-situ data can lead to better classifiers and more accurate multi-temporal land surface mapping. This is especially true since increasingly frequent and detailed Earth Observations are being made, for instance by the fleet of Sentinel satellites of the EU’s Copernicus space program. These developments are opening avenues to better combine classical statistical surveying and Earth Observation (EO) derived products in the domains of land use and land cover change and environmental monitoring (e.g.

[johnson2019using]).

The Land Use/Cover Area frame Survey (LUCAS) is a 3-yearly in-situ land cover and land use data collection exercise that extends over the whole of the EU’s territory [gallego2010european, LUCAS:online]

. Here we present a harmonised, consolidated, user-friendly database to structure the wealth of observations and data collected during five LUCAS surveys with slightly different collection protocols in 2006, 2009, 2012, 2015 and 2018. LUCAS collects information on land cover and land use, agro-environmental variables, soil, and grassland. The surveys also provide territorial information to analyse the interactions between agriculture, environment, and countryside, such as irrigation and land management. LUCAS is based on a systematic sampling plan that allows for unbiased statistical land cover and land use area estimators throughout the EU territory. It uses a well documented harmonized classification with separate land cover and land use codes. Data quality is assured by a regular two-level quality control, in which all points are evaluated by quality controllers.

The LUCAS project was implemented following Decision 1445/2000/EC of the European Parliament and of the Council of 22 May 2000 “On the application of area-frame survey and remote-sensing techniques to the agricultural statistics for 1999 to 2003” and has continued since. While the LUCAS survey concept was initiated and tested in 2001 and 2003 [bettio2002area], it has been restructured in 2006 [gallego2005stratified] and then slightly modified to result in the actual survey design [scarno2018lucas]. In 2006, Eurostat, the statistical office of the EU, launched a pilot survey project in 11 countries to test the stratified sampling design. The primary focus was on agricultural areas with more emphasis given to easily accessible points. Since then Eurostat has carried out LUCAS surveys every three years with the survey design ever evolving, however the LUCAS core component (i.e. the identification of the point, and the surveying of specific variables on different aspects of land cover, land use, and land and water management [c12018]), has remained comparable for all five surveys. At each LUCAS point, standard variables are collected including land cover, land use, environmental parameters, as well as one downward facing photo of the point (P) and four landscape photos in the cardinal compass directions (N, E, S, W). From the LUCAS survey data collection, different types of information are available:

  • The micro data provides land cover, land use, and environmental variables associated to each surveyed point.

  • The full-resolution point and landscape photos taken in the four cardinal directions at each point.

Additionally to the core variables collected, other specific modules were carried out on demand such as (i) the transect of 250 m to assess transitions of land cover and existing linear features (2009, 2012, 2015), (ii) the topsoil module (2009, 2012 (partly), 2015 and 2018), (iii) the grassland (2018), and (iv) the Copernicus module collecting the homogeneous extent of land cover on a 50-m radius (2018). Due to the specificity of these modules, their corresponding collected data are not included in the data harmonisation presented in this paper. The topsoil module datasets for 2009, 2012 and 2015 were harmonised resulting in the largest harmonised open‐access dataset of topsoil properties in the EU [orgiazzi2018lucas].

LUCAS is a two phase sample survey. The LUCAS first phase sample is a systematic selection of points on a grid with a 2 km spacing in Eastings and Northings covering the whole of the EU’s territory [gallego2008using]. Currently, it includes around 1.1 million points (Figure 1),and is referred to as the master sample. Each point of the first phase sample is classified in one of ten land‐cover classes via photo interpretation of ortho-photos or satellite images [LUCAS-StratificationGuidelines:online].

While the core sampling and survey methods have remained the same throughout the five surveys, evolving goals of the surveys have lead to slightly different sample allocations for different land covers. In 2006, the main objective was to ’make early estimates of the main crop areas’, along with the ability to collect information on agri-environmental indicators in the context of the monitoring of the Common Agriculture Policy (CAP) [bettio2002area]. In 2009, the main objective was to estimate areas, especially in conjunction with other data sources such as Corine Land Cover (CLC) [gallego2008using]. In 2018, the main objective was to ’monitor social and economic use of land as well as ecosystems and biodiversity’ [scarno2018lucas]

. Additionally, in 2018, a linear logistic regression model based on LUCAS 2015 and 16 additional variables where used as co-variates to forecast the most probable land cover for each of these points

[scarno2018lucas]. From this stratified first phase sample, the second phase sample of points is selected to obtain the desired statistically representative spatial distribution of sampled land cover classes. With LUCAS 2018 this amounts to points, out of which approximately points are visited in the field by surveyors to collect additional information that cannot be assessed remotely.

The in-situ nature of the survey implies that the majority of the data (73% over the five surveys, for details see Table 2 below) are gathered through direct observations made by surveyors on the ground. However, points unlikely to change and points too difficult to access are assigned by photo-interpretation in the office (16% over the five surveys), using the latest available ortho-photos or Very High Resolution (VHR) images. Although most of the points assigned for in-situ assessment can be visited in the field, about 11% of the points cannot be reached (e.g. no access, point is at more than 30 minutes walking distance) and are photo-interpreted on ortho-photos or Very High Resolution (VHR) images in the field. Furthermore, while the observations are associated to the location of the theoretical LUCAS point, the actual geo-location of the point from which the photos were taken needs to be derived from the GPS information collected by the surveyor.

In the scientific literature, LUCAS land cover and land use survey data have been used to derive statistical estimates [gallego2010european], to describe land cover/use diversity at regional level [palmieri2011land], and its sampling frame was used as a basis for various applications including assessing the availability of crowd-sourced photos potentially relevant for crop monitoring across the EU [d2018crowdsourced]. LUCAS was designed to derive statistics for area estimation (e.g. [bettio2002area] and [gallego2008using]). Recently, several researchers have started to use LUCAS data in large scale land cover mapping processes, especially as a source of training and/or validation data for supervised classification approaches at regional/national scale [karydas2015use, mack2017semi, close2018use, pflugmacher2019mapping, leinenkugel2019potential, d2020detecting, weigand2020spatial].

Several drawbacks become apparent when working with the original LUCAS datasets. While the inconsistencies could be due to the enumerators’ subjectivity in interpretation of the legends and the legend itself, it is also related to the complexity of the field survey: large number of surveyors ( 700), complex documentation for the enumerators (

400 pages combining all the documents), translated to 20 languages. These drawbacks hinder the further use of the LUCAS data by the scientific community as a whole and in particular those active in emerging fields of big data analytics, data fusion, and computer vision. They include:

  • Inconsistencies and errors between legends and labels from one LUCAS survey to the next which is hampering temporal analysis.

  • Missing internal cross-references in the datasets that would facilitate computation and linking observed variables, photos, etc.

  • The original full resolution photos taken at each surveyed point are not available for download.

  • The lack of a single-entry point or consolidated database hampering automated processing and big data analysis.

Therefore, we have gone through an extensive process of cleaning, semantic and topological harmonisation, along with connecting the originally disjoint LUCAS datasets in one consolidated database with hard-coded links to the full-resolution photos, openly accessible along with this paper.

2 Methods

Having contextualized the LUCAS survey, we proceed with describing the full methodological workflow to harmonize the data, as schematically shown in Figure 1. The Sampling and Survey sub-figures provide an overview of the methodological framework of the LUCAS data collection itself (see previous section 1). The Data aggregation and Results sub-figures illustrate the work carried out in this study. The datasets collected during the five surveys (in 2006, 2009, 2012, 2015, 2018) are the main LUCAS products available (more in section 2.1). These datasets and their respective data documentation were used to create the multi-year harmonised database. The harmonisation process is described below and in Table 1. The results are consolidated in one unique consistent and legend-explicit table along with hard-coded links to the full resolution photos (stored on the GISCO Platform, https://gisco-services.ec.europa.eu/lucas/photos/). The LUCAS primary data includes alpha-numerical variables and photographs linked to the geo-referenced points.

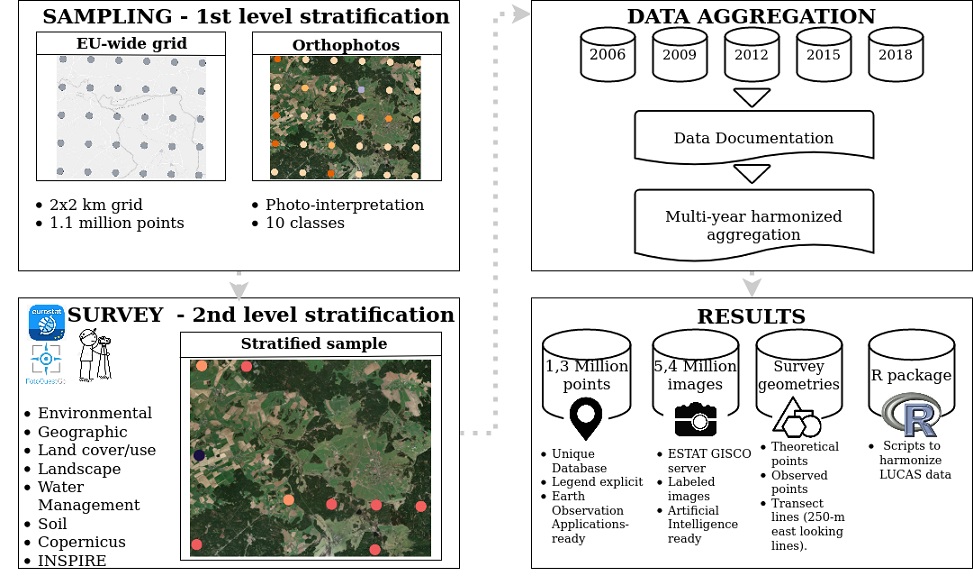

Figure 1: Schematic overview of the LUCAS and harmonisation methodologies. The left side illustrates the sampling at the basis of the production of the LUCAS primary data. The top right side shows the raw base data (micro data). The process of harmonising is contained within the multi-year harmonised aggregation block and is the subject of the following two sections. The bottom right presents the two outputs of this study (more in section 3) - a harmonised, legend-explicit, multi-year, user-friendly, version of the LUCAS micro data (section 3.2), and a database with all cardinal-direction landscape and point photos collected during the surveys, including their respective EXIF attributes (section 3.3).
Source Survey Points (n) Year Protocol 1 Protocol 2 Data
[l2006BE, l2006CZ, l2006DE, l2006ES, l2006FR, l2006IT, l2006LU, l2006HU, l2006NL, l2006PL, l2006SK] Micro data survey 2006 2006 Data download, Data documentation [cd2006, c12006], Preparation (year aggregation), Generate mapping files Column renaming (Table 6) , Missing column adding (Table 7), New column adding (Table 8), Character case uniformity, Variable re-coding (Table 9), Column order Data 2006
[l2009] Micro data survey 2009 2009 Data download, Data documentation [cd2009, c12009], Preparation, Generate mapping files Column renaming (Table 6), Missing column adding (Table 7), New column adding (Table 8), Character case uniformity, Variable re-coding (Table 9), Column order Data 2009
[l2012] Micro data survey 2012 2012 Data download, Data documentation [cd2012, c12012], Preparation, Generate mapping files Column renaming (Table 6), Missing column adding (Table 7), New column adding (Table 8), Character case uniformity, Variable re-coding (Table 9), Column order Data 2012
[l2015] Micro data survey 2015 2015 Data download, Data documentation [rd2015], Preparation, Generate mapping files Column renaming (Table 6), Missing column adding (Table 7), New column adding (Table 8), Character case uniformity, Variable re-coding (Table 9), Column order Data 2015
[l2018] Micro data survey 2018 2018 Data download, Data documentation [rd2018], Preparation, Generate mapping files Missing column adding (Table 7), New column adding (Table 8), Character case uniformity Data 2018
Table 1: Aggregation of micro data - summarizing the different steps applied to harmonise the data.

2.1 Micro data collection and documentation (Protocol 1)

The first step is to collect the data from the source for each survey year (see Table 1 Source). The raw micro data for the harmonised database presented here are the five LUCAS campaigns, which can be downloaded from the official Eurostat website [estatLucasSite]. The LUCAS micro data for 2006 is divided into a separate file for each of the 11 surveyed countries (Belgium [l2006BE], Czechia [l2006CZ], Germany [l2006DE], Spain [l2006ES], France [l2006FR], Italy [l2006IT], Luxembourg [l2006LU], Hungary [l2006HU], Netherlands [l2006NL], Poland [l2006PL], and Slovakia [l2006SK]). The LUCAS micro data from the other survey years is served in a yearly aggregated form, whereby the data from all participating countries can be downloaded separately (2009 [l2009], 2012 [l2012], 2015 [l2015]) in CSV format and 2018 [l2018] in 7z zipped format.

The second step is to collect the documentation that facilitates translating the alpha-numerical class-description in the original datasets into explicit information. For 2006, 2009 and 2012, the survey data comes with a content descriptor (2006 [cd2006], 2009 [cd2009], 2012 [cd2012]), though the content descriptor doesn’t necessarily have the same number of variables as the data; and the variables themselves sometimes have a slightly different name. These inconsistencies were resolved with assistance from the technical documents (LC1 (Instructions, 2006 [c12006], 2009 [c12009], 2012 [c12012]) and LC3 (Classification, 2006 [c32006], 2009 [c32009], 2012 [c32012]). From 2015 and 2018, the data is served with a record descriptor (2015 [rd2015], 2018 [rd2018]), which provides information on variable name, data type and description, in a more consolidated fashion, making it easier to find information about the relevant variable.
The final step in Protocol 1 is the generation of the mapping files, i.e. the schema mapping used in database design and architecture. Due to the nature of the task, instead of performing schema-level matchers, the study fit more within the semantic scope of instance-level matchers, whereby more importance is placed on the contents and meaning of the schema elements. The workflow thus mapped the ascertained relationship between variables that have changed in name or alpha-coding between the surveys. These mappings serve as a blueprint for the transformation and data integration described in Protocol 2.

2.2 Yearly micro data harmonisation (Protocol 2)

The harmonisation workflow, alongside the performed database consistency checks, are schematically shown in Figure 2 and the code is described in code section (Section 5.1). The general principle of the harmonisation workflow was to convert all the field legends to fit with the latest i.e. the 2018 database layout (the next LUCAS is currently planned for 2022).

Some notable changes in the source tables had to be made in order to make the harmonisation and subsequent merger into one complete table possible. This was accomplished with the above-mentioned instance-mapping files (Section (2.1)). All manipulations executed over the separate tables prior to the merger are listed in Table 1 under heading ’Protocol 2’:

  • Column renaming - iteratively renaming columns to align them with the last (in this case 2018) survey. Performed on all tables but 2018 by using the Rename_cols() function from the package.

  • Missing column adding - iteratively adding all columns that are present in one table and not present in the others. Performed on all tables by using the Add_missing_cols() function.

  • New column adding - iteratively adding all newly created columns. These include the variables ’letter group’, ’year’, and ’file_path_gisco_n/s/e/w/p’ (for more information check Table 10). Performed on all tables using the Add_new_cols() function.

  • Character case uniformity - iteratively converting all characters of selected fields to upper case. Performed on all tables using the Upper_case() function.

  • Variable re-coding - iteratively re-coding selected variables according to created mapping CSV files, designed by consultation with reference documents. Performed on all tables but 2018 by using the Recode_vars() function.

  • Column order - iteratively ordering all columns according to the template from the 2018 survey. Performed on all tables but 2018 by using the Column_order() function.

The full workflow is dependent on two software prerequisites. Firstly, one must have a running PostgreSQL server, and secondly, an installation of R (more about the versions used in section 5.1). The pipeline is provided as a R package for ease of reproducability and transparency (section 5.1).

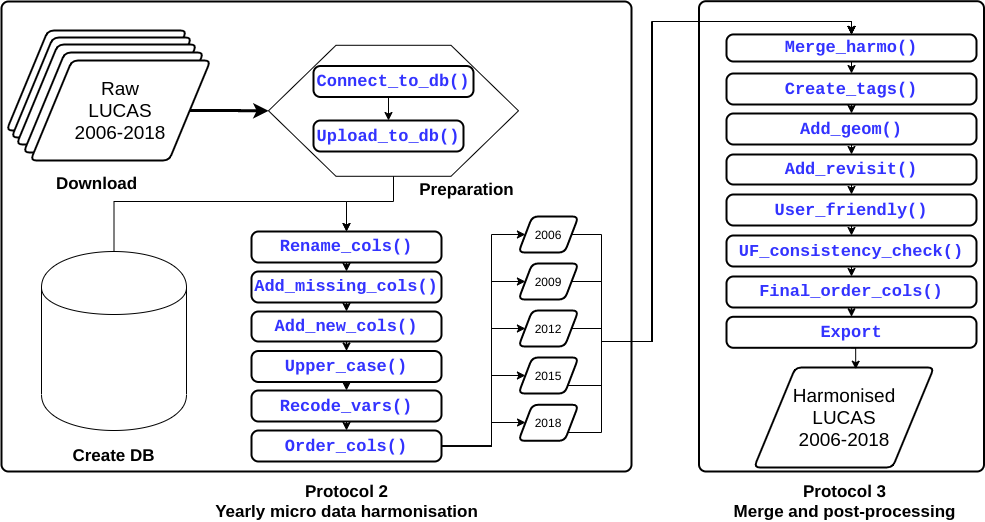

Figure 2: Processing workflow to harmonise the survey data.

2.3 Merge and post-processing (Protocol 3)

The third part of the harmonisation process includes the merging of the yearly harmonised tables plus additional steps listed below before exporting the final data outputs.

  • Merge yearly harmonised table - merge the 5 harmonised tables to one unique table via Merge_harmo() function.

  • Create database primary key, index, and spatial index via the Create_tags() function.

  • Add geometries and calculated distances - location of theoretical point(th_geom), location of lucas survey (gps_geom), lucas transect geometries (trans_geom) and distance between theoretical and survey point (th_gps_dist). Done by the Add_geom() function.

  • Add revisit column to lucas harmonized table to show the number of times between the years when the point was revisited thanks to the Add_revisit() function.

  • Create columns with labels for coded variables and decodes all variables where possible to explicit labels. Performed with User_friendly() function.

  • Perform consistency checks on newly created fields to ensure conformity in terms of column order and data types via the UF_Consistency_check() function.

  • Re-order columns of final tables with the Final_order_cols() function.

  • Export the outputs. The table is exported as CSV and the geometries as shapefiles.

2.4 Full resolution LUCAS photos

In addition to the alphanumerical and geometry information of the survey, a complete database with full-resolution point and landscape photos was designed with photos retrieved from Eurostat. This archive was organized as a table with all the exchangeable image file (EXIF) variables for each of the images, among which a unique file path, as stored on the Eurostat GISCO cloud service for easy retrieval by other researchers. Besides the EXIF attributes, each photo is also hard-coded with the respective point ID of the LUCAS point and the year of survey. The photos’ metadata were extracted with ExifTool (v 10.8) [harvey2013exiftool] resulting in a database of photos that was compared for completeness with the survey data records. The hard-coded HTTPS links to each photo in the consolidated database allow for massive query and selection tasks.

3 Data Records

3.1 Storage

  • Multi-year harmonised LUCAS survey data. The harmonised database (available here https://figshare.com/s/4a2e5d119ee0a98bec6e [lucasHarmoFigshare]) contains 117 variables and 1,351,293 records corresponding to a unique combination of year and location. The same dataset is also available for each year with a different file for users interested only in one specific survey. The database is served with a Record descriptor (Table 10 presents a summary, the complete table is available here in CSV format [lucasHarmoFigshare]). This record descriptor specifies variable name, data type, range of possible values and meanings. In the documentation one can find more information about the variable and a short description, along with comments concerning the variable that the authors have deemed important. Additionally, the tables in LUCAS-Variable and Classification Changes provide documentation for users to quickly identify the differences between yearly LUCAS campaigns and the harmonised database. The file contains four tables:

    1) “References” : Description and a legend of the used colors of the different tables;

    2) “Harmonised DB”: a comparison of all the collected variables of the 2018 survey with the variables of the harmonised database and an overview of the actions to harmonize the data;

    3) “Variable changes”: an overview/ comparison of all collected variables between all campaigns from 2009 to 2018 highlighting the changes;

    4) “LC (LU) changes” an overview of the possible LC and LU codes of each campaign highlighting the changes.

  • High resolution LUCAS photo archive. The 5.4 millions of photos collected during the five surveys are available here: https://gisco-services.ec.europa.eu/lucas/photos/. For each in-situ point, landscape (N, E, S, W), and point (P) photos are available.

  • LUCAS survey geometries/point locations. To facilitate spatial analysis and usability, three types of geometries are provided as distinct shapefiles (https://figshare.com/s/4a2e5d119ee0a98bec6e) :

    (i) LUCAS theoretical points (th_long, th_lat),

    (ii) LUCAS observed points (gps_lon, gps_lat) and

    (iii) LUCAS transect lines (250-m east looking lines).

  • A R package.

    The scripts to harmonise the LUCAS data is provided as an open source R package (downloadable here for review

    https://www.dropbox.com/sh/dwhoj1p4izds9bh/AABckSM_zNLZxzy613Yc5lIFa?dl=0)

3.2 Overview of multi-year harmonised LUCAS survey database

During five LUCAS surveys, a total of observations have been made at unique locations (Table 2). The total number of surveyed points has increased significantly from the 2006 pilot study () to 2015 () (Table 2). This rise is mainly due to the increase in terms of thematic richness, scope, and scale of the study from what was primarily an evaluation of agricultural areas (2006) to a more holistic and exhaustive inspection of the EU territory. Additional, the total number of countries surveyed increased from 11 in 2006 to 28 in 2018 (Table 2). Over the five surveys, observations (73%) were done in-situ, i.e. either ’In situ < 100 m’, ’In situ > 100 m’). The proportion of points where actual in-situ data was collected has decreased from 92% in 2006 to 60% in 2018. Furthermore 11% of the points (i.e. ) that were visited in-situ turned out not be accessible in practice and are photo-interpreted in the field. The number of points surveyed per country and per year ranged between 79 (Malta) to (France). Finally, over the five surveys, 1677 points were out of national territory, i.e. "NOT EU" corresponding to water outside national border or countries including Russia, Turkey, Albania and Switzerland).

2006 2009 2012 2015 2018 Total # records
AT
BE
BG
CY
CZ
DE
DK
EE
EL
ES
FI
FR
HR
HU
IE
IT
LT
LU
LV
MT
NL
PL
PT
RO
SE
SI
SK
UK
NOT EU
Total # records
Total # countries
In-situ #
In-situ [%]
In-situ PI #
In-situ PI [%]
Office PI #
Office PI [%]
Table 2: LUCAS points per country and per year. The total number of records is provided by year and also split according to the type of observation: In-situ (direct observation), In-situ PI (In-situ Photo-Interpreted if point is not accessible) or Office PI (Photo-interpreted in the office and thus not in-situ)

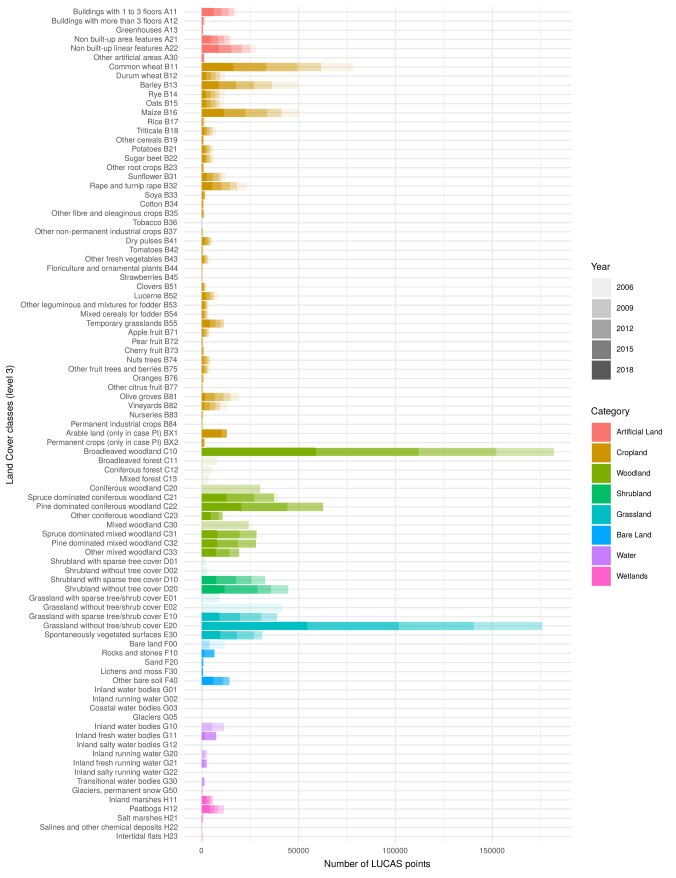

Figure 3 shows the distribution of the surveyed points in 77 detailed legend level-3 classes by year. Land Cover/Land Use (LC/LU) classification specifications can be found in reference document C3 ([c32018]

). The classification system follows rules on spatial and temporal consistency - it can be applied and compared both between locations in the EU, and years. Additionally, it is compatible with other existing LC/LU systems (e.g. Food and Agriculture Organization (FAO), statistical classification of economic activities in the European Community (NACE)) and fulfills the specifications of the European Infrastructure for Spatial Information in Europe (INSPIRE) standardization initiative on LC/LU. To inform about changes in two consecutive surveys, the data providers describe the adjustments to the terminology in the documentation. The 3-level legend system is stored hierarchically, whereby the first level (letter group) corresponds to the eight main classes obtained by ortho-photo-interpretation during the second level stratification phase (figure

1); the second and third level, representing subcategories of these main classes are indicated by a combination of the letter group and further digits.

Figure 3: Distribution of land cover classes in the multi-year harmonised LUCAS survey.

The number of point revisits is shown in Table 3. Some LUCAS points were visited once in 15 years (n=) while others were visited each time, thus totaling five revisits (n=). This means that locations were at least visited once. Figure 7 shows a map with the revisit frequency for each point over Europe.

Revisit
Number of points
Table 3: Number of LUCAS points and revisits

3.3 Overview of EXIF photos database

The available photos (N, E, S, P) were cataloged totaling photos for the 5 surveys (see Table 4 for detailed distribution). While the observation location is recorded by the surveyor in the LUCAS survey (gps_lon, gps_lat), the digital cameras with GPS could also capture the location where the photos were taken as well as the direction, i.e. the azimuth angle. In the first surveys, the digital camera and the GPS were separate devices. The direction was determined with a traditional compass. The data were used to cross-validate the geo-location reported during the survey. To assess the availability of this information, the EXIF information of the photos was retrieved. As summarised in the two last columns of Table 4, the photos with geo-location information have increased considerably through time, i.e. 0% in 2006, 5.4 % in 2009, 34.2.8% in 2012, 68.5% in 2015 and finally 72.9% in 2018. For azimuth angle, there is no information on orientation for the photos taken in 2006 and 2009. However, respectively 15.3%, 22%,and 6.7% of the photos have EXIF direction information for 2012, 2015, and 2018.

Year East North Point South West TOTAL Location [%] Orientation [%]
2006 0 0
2009 5.4 0
2012 34.2 15.3
2015 68.5 22
2018 72.9 6.7
Total
Table 4: Number of LUCAS photos per year, per type (N, E, S, W, P) proportions that have EXIF geo-location (Location [%]) and orientation information (Orientation [%])

Each point surveyed has potentially five photos (N, E, S, W, P) per surveyed year (Figure 4 (a)). This part of the database is represented by a table of records, corresponding to the photos taken in the cardinal directions plus the point for each one of the points for the five surveys. The table holds information on the point ID, year of survey, path to the full resolution image and an wide variety of EXIF extracted attributes, among which are coordinates, orientation, camera model, date, Eurostat metadata, etc.

Figure 4: Overview of the data available for a LUCAS point that was revisited five times: (a) Point, North, East, South and West photos for 2006, 2009, 2012, 2015 and 2018, (b) Location of the point in the EU, (c) Zoom showing the point (3-m diameter in green, 50-m diameter in dashed red, (d) Revisit frequency on a 20 by 20 km square centered on the point, and (e) In-situ land cover observation of the point for the different years.

It was decided that having this information in a separate table is more sensible in terms of storage and accessibility, whereby cross-table checks can easily be performed by executing joins between the tables based on point ID and year of survey. As such, by combining this information from the two tables together one arrives at a significantly large set of labeled examples, corresponding to images of the 77 different types of recorded land cover - an until-now-untapped resource for e.g. deep learning aided computer vision exercises.

4 Technical Validation

Observations are subject to detailed quality checks (see LUCAS metadata [LUCASmetadata] and the data quality control documents available for 2009 [c42009], 2012 [c42012], 2015 [c42015]). First, an automated quality check verifies the completeness and consistency after field collection. Second, all surveyed points are checked visually at the offices responsible for collection. Third, an independent quality controller interactively checks 33% of the points for accuracy and compliance against pre-defined quality requirements, including the first 20% observations for each surveyor, to prevent systematic errors during the early collection phase.

The present data consolidation effort seeks to enhance the quality of an already existing product. Ensuring data quality while harmonising through years is thus essential. Data quality was ensured by taking account of validity, accuracy, completeness, consistency, and uniformity throughout data processing (Figure 2). In the first step, the surveys were harmonised, in a second step the resulting database was made user-friendly by incorporating legend-explicit values.

Validity was ensured via data type (for which information can be found in the record descriptor) and a unique constraint of a composite key (consisting of the point ID and year of survey). The accuracy of the data relies on the source data. Completeness checking reveals that since several variables have been added over the years, many missing values exist. In such cases, fields were populated with null values. Consistency across surveys has been greatly enhanced. All surveys were harmonised towards the 2018 survey. Internal data consistency of the presented data set was ensured through running checks at various stages of processing. Uniformity checks revealed that the geographical coordinates in columns th_long and th_lat show different locations between some years. In the interest of complete uniformity, it was decided to have the values of these variables hard coded from the LUCAS grid. Because the LUCAS grid is a non-changing and set in stone feature of the LUCAS survey, the locations of each point remains the same throughout the years. Thus any discrepancy between the recorded theoretical location of a LUCAS point in the micro data and the grid must be corrected. This was done for all but 64 points from 2006 which are not in the grid.

To further asses spatial accuracy of the data, the distance between the theoretical point from the LUCAS grid (th_long, th_lat), and the actual GPS measurement of the survey observation point (gps_lon,gps_lat) were compared. This is important for several reasons - firstly, it allows to ascertain the real distance between the point actually surveyed and the point supposed to be surveyed, which is, in a sense, a proxy for the quality of the surveyed observation itself; secondly, it is an accuracy check of the surveyed distance between the theoretical point and the survey observation point, as collected by the surveyor, "as provided by the GPS (in m)" (column obs_dist), and the distance between the same points as calculated from the data (column th_gps_dist). It must be noted that for the 2006 survey the variable obs_dist was recorded as a range, whereas for the other years it represents the actual value of the distance. For this reason it was decided to hard code the values for 2006 to match exactly with the calculated distance. In this way we ensure consistency in the data type of the column, yet sacrifice the nuances from changing the original data. Table 5 gives a breakdown of this, whereby in 2006 we see the 100% match between recorded and calculated distance because of the reason just explained, for 2009 a match of 96.3%, meaning that for only 3.7% of the cases did the value not match.

In carrying out this comparison it became apparent that the percent of matching distances has increased through years probably due to better precision of positioning sensors; the total amount of error in 2018 is reduced to a negligible 0.31%; and lastly, that there were flagged and removed a number of records that have inaccurate GPS coordinates most probably due to sensor malfunction. Cross-checking with the source data, we found that the error is indeed present in the source data, rather than introduced during processing - something which would have been hard to spot otherwise.

2006 2009 2012 2015 2018
Match 100.00 96.32 97.92 99.08 99.77
No match 0.00 3.68 2.08 0.92 0.23
Table 5: Percentage (%) of points for which the distances between the theoretical point from LUCAS grid (th_long, th_lat) and the actual GPS observation measurement (gps_lon,gps_lat) taken during surveying and calculated post factum match or not.

The distribution of these calculated distances, alongside an equivalent distribution of the surveyed distances, can be found in Figure 5

. The distance between 75% of the points (1-3 quantile) is between 1.1 and 21.2 meters, meaning that only a fourth of the points have a distance greater than this. For the surveyed distances the ranges are similar - 75% of the values fall between 1.0 and 30.0 meters. From the distributions we see that there is a lot more nuance in the values of the calculated distances, which makes sense as they are represented by numbers with decimals, which have a lower frequency than the integers, representing the surveyed distances. The values shown in the red part of the histogram of surveyed distances represents the values from 2006, which are copied from the calculated distance in order to hard code a numerical in the place of the otherwise categorical value of the variable in the source data.

(a) Calculated distances
(b) Surveyed distances
Figure 5: Comparison of distributions between calculated and surveyed distances between LUCAS Theoretical Points and Observation Points. The red-colored part of the distribution in subfigure b) represents the data from 2006, which is copied from the calculated distances (th_gps_dist).

The theoretical grid of LUCAS point location is stable in time, however, according to the survey conditions and the terrain and accuracy of the GPS positioning, the surveyor may not be able to reach the point. This results in effective variations of the position of the observer though time (Figure 6 ).

(a) Example of a surveyed point (id 40402278) at close distance (< 2m)
(b) Example of a surveyed point (id 63861648) at large distance (1938m)
Figure 6: The theoretical grid of LUCAS point location is stable in time, however, the observed location may vary according to the survey conditions, the terrain, and accuracy of the GPS positioning.

5 Usage Notes

To summarize, the work documented in this data descriptor consists of: 1) Multi-year harmonised LUCAS database, 2) Archive with high resolution LUCAS photos, 3) LUCAS survey geometries and point locations, 4) R package, 5) Data descriptor of resulting database and 6) a Documentation table for users to quickly identify the differences of collected data between LUCAS campaigns micro-data and harmonised database.

The harmonized LUCAS product greatly reduces the complexity and layered nature of the original LUCAS datasets. In doing so, it valorizes the effort of many surveyors, data cleaners, statisticians, and database maintainers. The database’s novelty lies in the fact that for the first time, users can query the whole LUCAS archive concurrently, allowing for comparisons and combinations between all variables collected for the relevant years. This homogeneity of the product facilitates the unearthing of temporal and spatial relations that were otherwise obscured by the physical separation between survey results. Moreover, by avoiding the burden of combing through the cumbersome documentation, the user is now free to concentrate on the research, thereby facilitating scientific discovery and analysis. The user-friendly nature of the database should make LUCAS data more usable as it enables easier access to ready-to-use information. This should enhance LUCAS data use and uptake by research institutes that support policy and decision making, educational organizations, NGOs, and (civil) society.

Naturally, the product suffers from the shortcomings inherent in the source data, such as possibly inadequate surveying, surveyor or technology-related errors of precision while taking coordinates or measurements, etc. The harmonisation process itself also reveals some inconsistencies in the source data. For instance, certain variables could not be harmonised between years. These are mostly related to measurements of percentage or extent of coverage, where in the early stages of LUCAS surveyors were asked to fill in a multiple choice question, listing a range of values, whereas in subsequent surveys the surveyor was asked to fill in the actual value in quantified units. This problem exists mostly, though not exclusively, for the 2006 survey. This makes it impossible for these variables to be translated into the user friendly version and these must thus remain in their original coding. For ease of identification we have marked them with a red asterisk (*) in the record descriptor (Table 10). Additional information can be found in the comments section of the record descriptor.

Another shortcoming is the change of classification legends between the different surveys, mainly concerning LC/LU, as well as LC species and LU types. To document this shortcoming, a table is provided, see special remarks in the Table (“LC (LU) changes” in the file LUCAS-Variable_and_Classification_Changes.xlsx, https://figshare.com/s/4a2e5d119ee0a98bec6e).

5.1 Code availability

To guarantee transparency and reproducibility, the harmonisation workflow was carried out with open-source tools, namely PostgreSQL (9.5.17)/PostGIS (2.1.8 r13775)) and R (3.4.3) [team2013r]). The code is provided as a R package containing 17 functions (downloadable here for the review https://www.dropbox.com/sh/dwhoj1p4izds9bh/AABckSM_zNLZxzy613Yc5lIFa?dl=0 ). The lucas package includes all the scripts and documentation (also provided in pdf). Additionally, along with the package, a script (main.R) builds the harmonised data based step by step. The workflow is schematically shown in Figure 2 with all the functions in blue. All the processing is done with SQL with only column reordering and consistency checks being done in R. The code is freely available under GPL (>= 3) license.

6 Acknowledgements

The authors would like to acknowledge the many surveyors, quality controllers, and support personal who have been carrying out the LUCAS survey. Additionally, we would like to thank past and current members of the Eurostat LUCAS team (M. Kasanko, M. Fritz, H. Ramos, P. Jaques, C. Wirtz, L. Martino, …) who have been instrumental over the years in implementing LUCAS at various stages. The authors would also like to thank N. Elvekjaer for her precious comments on the manuscript.

7 Author contributions

B. E., A. P., P. D. are responsible of the LUCAS data collection. M.Y., R.D., G. L., L. M.-S. and M. v.d.V. processed and analyzed the data. H. I. R. provides a storage solution to distribute the photos. C. J. reviewed the DB and made the documentation table. R.D., M.Y., G. L., B. E, A. P., P.D., J. G., H. I. R., L. M.-S., M. v.d.V. wrote the paper, provided comments and suggestions on the manuscript.

8 Competing interests

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

9 Figures and figures legends

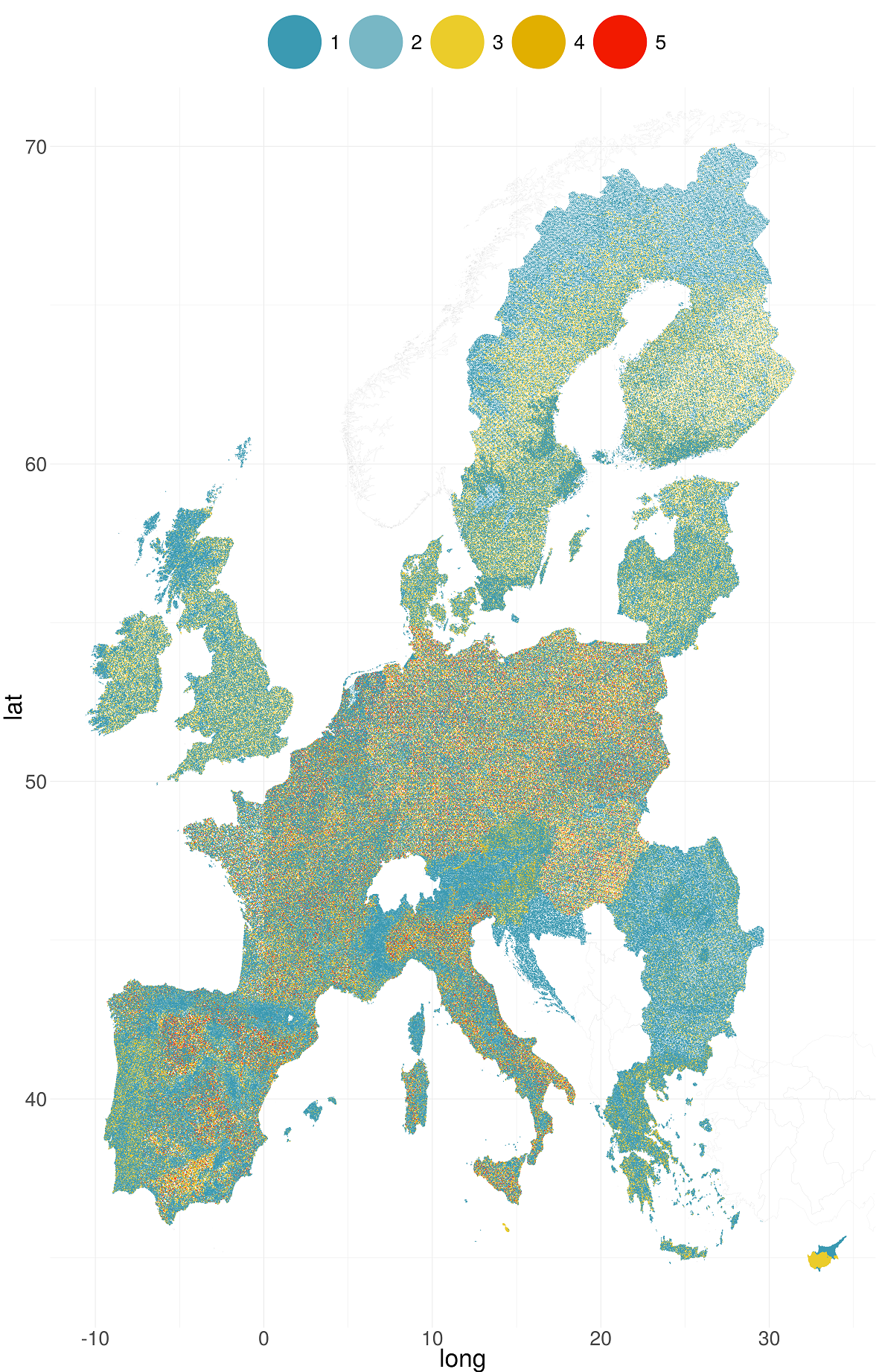

Figure 7: Over the five surveys between 2006 and 2018, points were at least surveyed once. Revisit ranges from one to five.

10 Tables

year.added.to old.name new.name
2006 surv_date surveydate
2006 x_laea th_lat
2006 y_laea th_long
2009, 2012, 2015 area_size parcel_area_ha
2009, 2012, 2015 date surveydate
2009, 2012, 2015 lc1_pct lc1_perc
2009, 2012, 2015 lc2_pct lc2_perc
2009, 2012, 2015 lc1_species lc1_spec
2009, 2012, 2015 lc2_species lc2_spec
2009, 2012, 2015 land_mngt grazing
2009, 2012, 2015 obs_dir obs_direct
2009, 2012, 2015 photo_e photo_east
2009, 2012, 2015 photo_w photo_west
2009, 2012, 2015 photo_n photo_north
2009, 2012, 2015 photo_s photo_south
2009, 2012, 2015 photo_p photo_point
2009, 2012, 2015 tree_height_surv tree_height_survey
2009, 2012, 2015 soil_stones soil_stones_perc
2012, 2015 tree_height_mat tree_height_maturity
2015 lu1_pct lu1_perc
2015 lu2_pct lu2_perc
2015 protected_area special_status
2015 pi_extension office_pi
Table 6: Table of renamed variables
Years added to Variable
2006 gps_altitude
2006, 2009, 2012 lu1_type
2006, 2009, 2012 lu1_perc
2006, 2009, 2012 lu2_type
2006, 2009, 2012 lu2_perc
2006, 2009, 2012 inspire_plcc1
2006, 2009, 2012 inspire_plcc2
2006, 2009, 2012 inspire_plcc3
2006, 2009, 2012 inspire_plcc4
2006, 2009, 2012 inspire_plcc5
2006, 2009, 2012 inspire_plcc6
2006, 2009, 2012 inspire_plcc7
2006, 2009, 2012 inspire_plcc8
2006, 2009, 2012, 2015 nuts3
2006, 2009, 2012 office_pi
2006, 2009, 2012, 2015 ex_ante
2006, 2009, 2012, 2015 car_latitude
2006, 2009, 2012, 2015 car_ew
2006, 2009, 2012, 2015 car_longitude
2009, 2012, 2015 gps_ew
2006, 2009 tree_height_maturity
2006, 2009, 2012, 2015 lm_stone_walls
2006, 2009, 2012, 2015 lm_grass_margins
2006, 2009 special_status
2006, 2009 lc_lu_special_remark
2006, 2009, 2012, 2015 cprn_cando
2006, 2009, 2012, 2015 cprn_lc
2006, 2009, 2012, 2015 cprn_lc1n
2006, 2009, 2012, 2015 cprnc_lc1e
2006, 2009, 2012, 2015 cprnc_lc1s
2006, 2009, 2012, 2015 cprnc_lc1w
2006, 2009, 2012, 2015 cprn_lc1n_brdth
2006, 2009, 2012, 2015 cprn_lc1e_brdth
2006, 2009, 2012, 2015 cprn_lc1s_brdth
2006, 2009, 2012, 2015 cprn_lc1w_brdth
2006, 2009, 2012, 2015 cprn_lc1n_next
2006, 2009, 2012, 2015 cprn_lc1e_next
2006, 2009, 2012, 2015 cprn_lc1s_next
2006, 2009, 2012, 2015 cprn_lc1w_next
2006, 2009, 2012, 2015 cprn_urban
2006, 2009, 2012, 2015 cprn_impervious_perc
2006, 2009, 2012, 2015 eunis_complex
2006, 2009, 2012, 2015 grassland_sample
2006, 2009, 2012, 2015 grass_cando
2006, 2009, 2012, 2015 erosion_cando
2006, 2009, 2012, 2015 bio_sample
2006, 2009, 2012, 2015 soil_bio_taken
2006, 2009, 2012, 2015 bulk0_10_sample
2006, 2009, 2012, 2015 soil_blk_0_10_taken
2006, 2009, 2012, 2015 bulk10_20_sample
2006, 2009, 2012, 2015 soil_blk_10_20_taken
2006, 2009, 2012, 2015 bulk20_30_sample
2006, 2009, 2012, 2015 soil_blk_20_30_taken
2006, 2009, 2012, 2015 standard_sample
2006, 2009, 2012, 2015 soil_std_taken
2006, 2009, 2012, 2015 organic_sample
2006, 2009, 2012, 2015 soil_org_depth_cando
2006, 2009, 2012, 2015 crop_residues
2018 obs_radius
2018 soil_taken
2018 soil_crop
2006, 2018 transect
ALL letter_group
ALL file_path_thumb_n
ALL file_path_thumb_s
ALL file_path_thumb_w
ALL file_path_thumb_e
ALL file_path_thumb_p
ALL year
Table 7: Table of added columns
Column name Description
letter_group First level of LUCAS LC1/2 classification
year Year of the survey
file_path_gisco_n/s/e/w/p Path to cardinal or point photo on GISCO cloud
th_geom Geometry of theoretical LUCAS point according to grid
gps_geom Geomtery at the point the surveyor reached
th_gps_dist Calculated distance between the two points
revisit Numbers of years of revisit for the LUCAS point
Table 8: Table of newly added columns
Variable Year Old coding Value Interim       Harmo Value
soil_taken 2009 3 Point not in soil sample - 4 No sample required
lc1/2_perc 2012 2 5 – 10; - 1 10;
lc1/2_perc 2012 3 10 – 25; - 2 10 – 25;
lc1/2_perc 2012 4 25 – 50; - 3 25 – 50;
lc1/2_perc 2012 5 50 – 75; - 4 50 – 75;
lc1/2_perc 2012 6 75; - 5 75;
lc_lu_ special_remark 2012 1 Tilled/Sowed 100 2 Tilled/sowed
lc_lu_ special_remark 2012 2 Harvested field 200 1 Harvested field
lc_lu_ special_remark 2012 7 No remark 700 10 No remark
lc_lu_ special_remark 2012 8 Not relevant 800 88 Not relevant
obs_type 2015 5 Marine sea - 8 Marine sea
obs_type 2015 6 Out of national territory - 5 Out of national territory
lc_lu_ special_remark 2015 1 Tilled/Sowed 100 2 Tilled/Showed
lc_lu_ special_remark 2015 2 Harvested field 200 1 Harvested field
lc_lu_ special_remark 2015 7 No remark 700 10 No remark
lc_lu_ special_remark 2015 8 Not relevant 800 88 Not relevant
lc_lu_ special_remark 2015 9 Temporarily dry 900 8 Temporarily dry
lc_lu_ special_remark 2015 10 Temp flooded 1000 9 Temp flooded
lc1/2_perc 2015 2 5 – 10; - 1 10;
lc1/2_perc 2015 3 10 – 25; - 2 10 – 25;
lc1/2_perc 2015 4 25 – 50; - 3 25 – 50;
lc1/2_perc 2015 5 50 – 75; - 4 50 – 75;
lc1/2_perc 2015 6 75 – 90; - 5 75;
lc1/2_perc 2015 7 90; - 5 75;
osb_type 2018 6 Out of EU28 - 5 Out of national territory
parcel_area_ha 2018 2 0.1 – 0.5; - 1 0.5;
parcel_area_ha 2018 3 0.5 – 1; - 2 0.5 – 1;
parcel_area_ha 2018 4 1 – 10; - 3 1 – 10;
parcel_area_ha 2018 5 10; - 4 10;
Table 9: Table of re-coded variables
Variable Values Description Collection year
1 id - Table identifier all
2 point_id - Unique point identifier all
3 year - Which year the point was surveyed all
4 nuts0 - NUTS 2016 Level 0 all
5 nuts1 - NUTS 2016 Level 1 all
6 nuts2 - NUTS 2016 Level 2 all
7 nuts3 - NUTS 2016 Level 3 2018
8 th_lat - Theoretical latitude (WGS84) of the LUCAS point according to the LUCAS grid all
9 th_long - Theoretical longitude (WGS84) of the LUCAS point according to the LUCAS grid all
10 office_pi 0 - No; 1 - Yes; Indication of whether photo-interpretation has happened in the office for this LUCAS point 2015 2018
11 ex_ante 0 - No; 1 - Yes; 2018
12 survey_date - Date on which the survey was carried out all
13 car_latitude - Latitude (WGS84) on which the car was parked 2018
14 car_ew 1 - East; 2 - West; 8 - Not relevant; GPS Car parking East/West 2018
15 car_longitude - Longitude (WGS84) on which the car was parked 2018
16 gps_proj 1 - WGS84; 2 - No GPS signal; 8 - Not relevant; Normal functioning of GPS using “WGS 84” as coordinate system. all
17 gps_prec - Indication of average location error as given by GPS receiver (in meters) all
18 gps_altitude - Elevation in m above sea level 2009 2012 2015 2018
19 gps_lat - GPS latitude of the location from which observation is actually done (WGS84) all
20 gps_ew 1 - East; 2 – West; 8 – Not relevant; East-west encoding setting for GPS. all
21 gps_long - GPS longitude of the location from which observation is actually done (WGS84) all
22 obs_dist - Indication of the distance between observation location and the LUCAS point as provided by the GPS receiver (in meters). all
23 obs_direct 1 - On the point; 2 - Look to the North; 3 - Look to the East; 8 - Not relevant; 1 - On the point Point regularly observed. 2 – To North “Look to the North” rule is applied if the point is located on a boundary/ edge or a small linear feature (3 m wide). 3 – To East "Look to the East" rule is applied if the point is located on a boundary/edge or a small linear feature (3 m wide) directed. 8 – Not relevant all
24 obs_type 1 - In situ 100 m; 2 - In situ 100 m; 3 - In situ PI; 4 - In situ PI not possible; 5 - Out of national territory; 7 - In office PI; 8 – Marine Sea; (only 2015) The method of observation for the relevant point. all
25 obs_radius 1 – 1.5; 2 - 20; 8 - Not relevant; The radius of observation – whether the immediate or the extended window of observation is taken under consideration. 2006 2009 2012 2015
26 letter_group - Which letter group (top tier classification) from C3 does the point belong to all
27 lc1 - Coding of land cover according to LUCAS 2018 classification. all
28 lc1_label - Label of field lc1 all
29 lc1_spec - Coding of land cover species according to LUCAS 2018 classification. 2009 2012 2015 2018
30 lc1_spec_label - Label of field lc1_spec all
31 lc1_perc * 1 - 10; 2 - 10 - 25; 3 - 25 - 50; 4 - 50 - 75; 5 - 75; 8 – Not relevant; The percentage that the land cover (lc1) takes on the ground. 2009 2012 2015 2018
32 lc2 - Coding of land cover according to LUCAS 2018 classification. all
33 lc2_label - Label of field lc2 all
34 lc2_spec - Coding of land cover species according to LUCAS 2018 classification. 2009 2012 2015 2018
35 lc2_spec_label - Label of field lc2_spec all
36 lc2_perc * 1 - 10; 2 - 10 - 25; 3 - 25 - 50; 4 - 50 - 75; 5 - 75; 8 – Not relevant; The percentage that the land cover (lc2) takes on the ground. 2009 2012 2015 2018
37 lu1 - Coding of the land use according to LUCAS LU 2018 classification all
38 lu1_label - Label of field lu1 all
39 lu1_type - Coding of the land use types according to LUCAS LU 2018 classification 2015 2018
40 lu1_type_label - Label of field lu1_type all
41 lu1_perc * 1 - 5; 2 - 5 – 10; 3 - 10 – 25; 4 - 25 – 50; 5 - 50 – 75; 6 - 75 – 90; 7 - 90; 8 – Not Relevant; The percentage that the land use (lu1) takes on the ground. 2015 2018
42 lu2 - Coding of the land use according to LUCAS LU 2018 classification all
43 lu2_label - Label of field lu2
44 lu2_type - Coding of the land use types according to LUCAS LU 2018 classification 2015 2018
45 lu2_type_label - Label of field lu2_type all
46 lu2_perc * 1 - 5; 2 - 5 – 10; 3 - 10 – 25; 4 - 25 – 50; 5 - 50 – 75; 6 - 75 – 90; 7 - 90; 8 - Not Relevant; The percentage that the land use (lu2) takes on the ground. 2015 2018
47 parcel_area_ha 1 - 0.5; 2 - 0.5 – 1; 3 - 1 – 10; 4 - 10; 8 – Not Relevant; Size of the surveyed parcel in hectares. 2009 2012 2015 2018
48 tree_height_ maturity 1 - 5 m ; 2 - 5 m; 8 - Not relevant; 255 – Not identifiable; Height of trees at maturity 2012 2015 2018
49 tree_height_ survey 1 - 5 m ; 2 - 5 m; 8 - Not relevant; 255 – Not identifiable;

Height of trees at the moment of survey

2009 2012 2015 2018
50 feature_width 1 - 20 m; 2 - 20 m; 8 - Not relevant; 255 – Not identifiable; Width of the feature 2009 2012 2015 2018
51 lm_stone_walls 1 - No; 2 - Stone wall not maintained; 3 - Stone wall well maintained; 8 - Not relevant; Presence of stone walls on the plot. 2018
52 crop_residues 1 - Yes; 2 - No; 8 - Not relevant; Presence of crop residues on the plot 2018
53 lm_grass_ margins 1 - No; 2 - 1 m width; 3 - 1 m width; 8 - Not relevant; Presence of grass margins on the plot. 2018
54 grazing 1 - Signs of grazing; 2 - No signs of grazing; 8 - Not relevant; Signs of grazing on the plot. 2009 2012 2015 2018
55 special_status 1 - Protected; 2 - Hunting; 3 - Protected and hunting; 4 - No special status; 8 - Not relevant; Whether the plot is part of any specially regulated area. 2012 2015 2018
56 lc_lu_ special_remark 1 - Harvested field; 2 - Tilled/sowed; 3 - Clear cut; 4 - Burnt area; 5 - Fire break; 6 - Nursery; 7 - Dump site; 8 - Temporary dry; 9 - Temporary flooded; 10 - No remark; 88 - Not Relevant; Any special remarks on the land cover / land use. 2012 2015 2018
57 cprn_cando 1 - Yes; 2 - No; 8 - Not relevant; Can you do a Copernicus survey on this point? 2018
58 cprn_lc - The land cover on the Copernicus points according to the classification scheme at level2 2018
59 cprn_lc_label - Label of field cprn_lc all
60 cprn_lc1n - The extent (in meters) to which the land cover of the Copernicus point stays the same in direction North 2018
61 cprnc_lc1e - The extent (in meters) to which the land cover of the Copernicus point stays the same in direction East 2018
62 cprnc_lc1s - The extent (in meters) to which the land cover of the Copernicus point stays the same in direction South 2018
63 cprnc_lc1w - The extent (in meters) to which the land cover of the Copernicus point stays the same in direction West 2018
64 cprn_lc1n_ brdth - The breath (in %) to the next Copernicus land cover in direction North 2018
65 cprn_lc1e_ brdth - The breath (in %) to the next Copernicus land cover in direction East 2018
66 cprn_lc1s_ brdth - The breath (in %) to the next Copernicus land cover in direction South 2018
67 cprn_lc1w_ brdth - The breath (in %) to the next Copernicus land cover in direction West 2018
68 cprn_lc1n_next - The next Copernicus land cover (level2) in direction North 2018
69 cprn_lc1s_next - The next Copernicus land cover (level2) in direction South 2018
70 cprn_lc1e_next - The next Copernicus land cover (level2) in direction East 2018
71 cprn_lc1w_next - The next Copernicus land cover (level2) in direction West 2018
72 cprn_urban 1 - Yes; 2 - No; 8 - Not relevant Is the Copernicus point located in an urban area. 2018
73 cprn_impervious_ perc - Assess the percentage of impervious surfaces 2018
74 inspire_plcc1 - Assess the percentage of coniferous trees 2015 2018
75 inspire_plcc2 - Assess the percentage of broadleaved trees 2015 2018
76 inspire_plcc3 - Assess the percentage of shrubs 2015 2018
77 inspire_plcc4 - Assess the percentage of herbaceous plants 2015 2018
78 inspire_plcc5 - Assess the percentage of lichens and mosses 2015 2018
79 inspire_plcc6 - Assess the percentage of consolidated (bare) surface (e.g. rock outcrops) 2015 2018
80 inspire_plcc7 - Assess the percentage of unconsolidated (bare) surface (e.g. sand) 2015 2018
81 inspire_plcc8 - Sum of all classes must be 100%. This field covers for the difference, if it exists. 2015 2018
82 eunis_complex 6 - X06; 9 - X09; 10 - Other; 11 - Unknown; 88 - Not relevant EUNIS habitat classification 2018
83 grassland_ sample 0 - TRUE; 1 - False; Whether or not the point is part of the grassland module 2018
84 grass_cando 1 - Yes; 2 - No; 8 - Not relevant; Is a grassland survey possible? 2018
85 wm 1 - Irrigation; 2 - Potential irrigation; 3 - Drainage; 4 - Irrigation and drainage; 5 - No visible water management; 8 - Not relevant; What type of water management is present at the point 2009 2012 2015 2018
86 wm_source 1 - Well; 2 - Pond/Lake/Reservoir; 3 - Stream/Canal/Ditch; 4 - Lagoon/Wastewater; 5 - Other/Not Identifiable; 6 - Combo - Pond/Lake/Reservoir + Stream/Canal/Ditch; 8 - Not relevant; 16 - Other/Not Identifiable; 17 - Combo - Other/Not Identifiable + Well; 18 - Combo - Other/Not Identifiable + Pond/Lake/Reservoir; 20 - Combo - Other/Not Identifiable + Stream/Canal/Ditch; 24 - Combo - Other/Not Identifiable + Lagoon/Wastewater; What is the source of the irrigation at the point 2009 2012 2015 2018
87 wm_type 1 - Gravity; 2 - Pressure: Sprinkle irrigation; 3 - Pressure: Micro-irrigation; 4 - Gravity/Pressure; 5 - Other/Non identifiable; 6 - Combo - Pressure: Sprinkle irrigation + Pressure: Micro-irrigation; 8 - Not relevant; 9 - Combo - Gravity/Pressure + Gravity; 10 - Combo - Pressure: Sprinkle irrigation + Gravity/Pressure; 12 - Combo - Pressure: Micro-irrigation + Gravity/Pressure; 16 - Other/not identifiable; 17 - Combo - Other/Non identifiable + Gravity; 18 - Combo - Other/Non identifiable + Gravity/Pressure; 24 - Combo - Other/Non identifiable + Gravity/Pressure + Pressure: Micro-irrigation; The type of irrigation present at the point 2009 2012 2015 2018
88 wm_delivery 1 - Canal; 2 - Ditch; 3 - Pipeline; 4 - Other/Non identifiable; 5 - Other/Non identifiable + Canal; 6 - Combo - Pipeline + Ditch; 8 - Not relevant; 10 - Combo - Other/Non identifiable + Ditch; 12 - Combo - Other/Non identifiable + Pipeline; The irrigation delivery system at the point 2009 2012 2015 2018
89 erosion_cando 1 - Yes; 2 - No; 8 - Not relevant; Indicates whether a point is to be considered for assessing erosion (Yes) or not (No) 2018
90 soil_stones_ perc * 1 - 10; 2 - 10 - 25; 3 - 25 - 50; 4 - 50; 8 – Not relevant; Indicate the percentage of stones on the surface (does not include stones covered by soil) 2009 2012 2015 2018
91 bio_sample 0 - True; 1 - False Is the point a biodiversity sample point? 2018
92 soil_bio_taken 0 - True; 1 - False; 8 - Not relevant; Was a soil-biodiversity sample taken? 2018
93 bulk0_10_ sample 0 - True; 1 - False Indicates whether a point is to be considered for collecting the bulk density between the given range 2018
94 soil_blk_ 0_10_taken 1 - Yes; 2 – No; 8 - Not relevant; Has the soil sample between the given range been taken? 2018
95 bulk10_ 20_sample 0 - True; 1 - False Indicates whether a point is to be considered for collecting the bulk density between the given range 2018
96 soil_blk_ 10_20_taken 1 - Yes; 2 – No; 8 - Not relevant; Has the soil sample between the given range been taken? 2018
97 bulk20_ 30_sample 0 - True; 1 - False Indicates whether a point is to be considered for collecting the bulk density between the given range 2018
98 soil_blk_ 20_30_taken 1 - Yes; 2 – No; 8 - Not relevant; Has the soil sample between the given range been taken? 2018
99 standard_ sample 0 - True; 1 - False Is the point is a standard soil point? 2018
100 soil_std_taken 1 - Yes; 2 – No; 8 - Not relevant; Is the standard soil sample was taken? 2018
101 organic_sample 0 - True; 1 - False Is the point the point an organic sample point? 2018
102 soil_org_ depth_cando 1 - Yes; 2 – No; 8 - Not relevant; Can depth be evaluated? 2018
103 soil_taken 1 – Yes 2 – Not possible 3 – No, already taken 4 – No sample required 8 – Not Relevant Has a soil sample been taken (before 2018) 2009 2012 2015
104 soil_crop 1 - 10; 2 - 10 - 25; 3 - 25 - 50; 4 - 50; 8 - Not relevant; Percentage of residual crop (only 2015) 2009 2012 2015
105 photo_point 1 - Yes; 2 – No; 8 - Not relevant; Has a photo on the point been taken? all
106 photo_north 1 - Yes; 2 – No; 8 - Not relevant; Has a photo looking north been taken? all
107 photo_south 1 - Yes; 2 – No; 8 - Not relevant; Has a photo looking south been taken? all
108 photo_east 1 - Yes; 2 – No; 8 - Not relevant; Has a photo looking east been taken? all
109 photo_west 1 - Yes; 2 – No; 8 - Not relevant; Has a photo looking west been taken? all
110 transect - The changes in landcover as recorded by the 250 m east-facing transect line 2009 2012 2015
111 revisit - Number of years for which the point has been revisited all
112 th_gps_dist - Calculated distance between the theoretical location of the LUCAS point according to the grid and the actual recorded GPS location all
113 file_path_ gisco_north - File path to north-facing image as stored on ESTAT GISCO sever. all
114 file_path_ gisco_south - File path to south-facing image as stored on ESTAT GISCO sever. all
115 file_path_ gisco_east - File path to east-facing image as stored on ESTAT GISCO sever. all
116 file_path_ gisco_west - File path to west-facing image as stored on ESTAT GISCO sever. all
117 file_path_ gisco_point - File path to point-facing image as stored on ESTAT GISCO sever. all
Table 10: Data descriptor of the resulting database

References
