1 Introduction

Data in dynamic real world environments are characterized by non-stationarity. The changes in the data distribution, called concept drift, can cause the learned model to drop in predictive performance, over time (Gama et al., 2004; Žliobaitė, 2010). It is therefore essential to detect and handle drifts swiftly, to continue using the predictive capabilities of the model. Adversarial drift is a special kind of concept drift, where the changes in the data distribution are targeted towards affecting the characteristics of one class of samples (i.e., the Malicious class). The adversary starts by learning the behavior of the defender’s classifier model, using crafted probes, and then exploits this information to generate attack samples, to evade classification (Barreno et al., 2010; Sethi et al., 2017; Sethi and Kantardzic, 2017a; Biggio et al., 2013). These attacks leads to a change in the distribution of the data, at test time, and also leads to a drop in the prediction capabilities of the defender’s model. From the perspective of streaming data mining, we refer to such changes in the data distribution at test time, as Adversarial Drifts (Kantchelian et al., 2013). For a classifier operating in an adversarial environment, it is essential to be able to deal with such data dynamics, and to adapt the model, so as to be of any practical long term use.

Figure 1: Illustration of adversarial drift, as a function of the defender’s classifier model .

Adversarial drift is a special type of concept drift. The main characteristics of adversarial drift which distinguishes it from traditional concept drift are: a) The drift is a result of changes to the malicious class samples only, b) The drift is a function of the deployed classifier model, as the adversary learns and gains information about it, before trying to evade it (Barreno et al., 2006), and c) The drift is always targeted towards subverting the deployed classifier (i.e., it is relevant only if it leads to a drop in the performance of the deployed model) (Sethi et al., 2017). The dependent nature of adversarial drift is shown in Figure 1, where the deployed classifier dictates the possibility of adversarial drifts in the data space. The figures b) and c) demonstrate adversarial drifts, which are caused by an attacker trying to subvert . The two scenarios are a result of the different defender models, which the adversary is trying to learn and circumvent. The nature of the drift is dependent on the choice for , and as such the model designer has a certain degree of control over the possible space of drifts, at test time.

The detection of drifts is often carried out by supervised approaches, which continuously monitor the predictive performance of the stream of data, flowing into the system (Goncalves et al., 2014). However, this is not a practical solution in a streaming environment, as human expertise in the form of labeled data, is often expensive and time taking to obtain (Masud et al., 2012; Sethi and Kantardzic, 2017b). There have been proposed unsupervised drift detection methodologies (Spinosa et al., 2007; Masud et al., 2011; Lee and Magoules, 2012; Ryu et al., 2012; Lindstrom et al., 2013; Sethi et al., 2016b), which directly monitor the feature distribution of the data, to indicate drifts. These approaches suffer from excessive pessimism, as they cannot differentiate between drifts which affect the classifier’s performance and those which do not. This problem of reliability of the drift detection, was addressed in the recent works of (Sethi and Kantardzic, 2017b), where the Margin Density Drift Detection (MD3) approach was developed. By including the context of classification, to the drift detection task, the MD3 approach was shown to provide domain independent and reliable indication of drift, from unlabeled data. Like most approaches in the area of concept drift detection (Goncalves et al., 2014), the domain agnostic nature of the MD3 approach was shown to be an advantage in (Sethi and Kantardzic, 2017b). However, in an adversarial environment, disregarding of domain characteristics, leads to missed opportunity and can make the detection process vulnerable to adversarial evasion. The drift is characterized by an attacker continuously trying to hide its trail, by learning about the behavior of the detection system first. As such, the drift detection can itself be vulnerable to adversarial manipulation at test time. Most drift detection methodologies are designed as adversarial agnostic approaches, where they consider drift to be independent of the deployed classifier. In an adversarial domain, the relation between the type of drift and the choice of the classifier , is strongly coupled (Barreno et al., 2006). It is necessary to understand and incorporate the specific characteristics of adversarial drift, to make unsupervised drift detection applicable in such a domain.

An adversarial-aware, unsupervised drift detection approach, will take preemptive steps at the design of the classifier model, to ensure that future detection and retraining is made easier. In this paper, the Predict-Detect framework is proposed, as an adversarial-aware unsupervised drift detection methodology, capable of signaling adversarial activity, with high reliability. The framework incorporates the ideas of reliability, which makes the MD3 (Sethi and Kantardzic, 2017b) methodology effective, and presents a novel streaming data system, capable of providing life-long learning in adversarial environments. The developed methodology incorporates attack foresight into a preemptive design, to provide long term benefits for reactive security. The framework is developed as an ensemble based, application and classifier type independent approach, capable of working on streaming data with limited labeling. To the best of our knowledge, this is the first work which directly addresses the problem of adversarial concept drift in streaming data. The main contributions of the proposed work are as follows:

  • Analyzing the characteristics of adversarial concept drift, and the impact of the deployed classifier on the drifts generated at test time.

  • Developing the Predict-Detect classifier framework, as a novel approach to dealing with adversarial concept drift, in streaming data with limited labeling.

  • Extending the Predict-Detect framework, to work with imbalanced data streams, by using active learning for labeling adversarial samples.

  • An novel simulation framework, for introducing systematic adversarial concept drift into real world datasets. This simulation framework allows for reusable testing, for better experimentation and analysis of the drift detection methodologies.

  • Empirical evaluation of popular cybersecurity datasets, which provides avenues for further extension of the proposed methodology, to meet domain specific needs.

The rest of the paper is organized as follows: Section 2 presents background work in the area of unsupervised concept drift detection and adversarial machine learning. In Section 3, the proposed Predict-Detect classifier framework is described. Experimental evaluation and results are presented in Section 4. Extension of the Predict-Detect framework, to work with imbalanced adversarial drifting streams, is presented in Section 5. Additional discussion and ideas for extension are provided in Section 6, followed by conclusions in Section 7.

2 Background and related work

In this section, the related research in the domain of concept drift and adversarial machine learning, is presented. Existing work on unsupervised concept drift detection, is presented in Section 2.1. The specific nature of adversarial activity, making it a special type of concept drift, is highlighted by recent works in the area of attacks on classifier systems, and is discussed in Section 2.2. Recent works incorporating adversarial awareness, in the design of dynamic systems, is presented in Section 2.3.

2.1 Concept drift detection from unlabeled streaming data

Detection of concept drift is essential to dynamic classification systems, to provide high predictive performance throughout the progression of the data stream. Supervised classification techniques (Goncalves et al., 2014), are widely used in literature. These techniques rely on the continuous availability of labeled data, to compute performance (accuracy or f-measure), to monitor deviations from expected behavior. The over-dependence on labeled data, makes these techniques impractical for usage in a streaming data milieu, as labeling is an expensive and time consuming activity (Masud et al., 2012; Lindstrom et al., 2010; Kim and Park, 2016). To account for these limitations of supervised drift detection techniques, several unsupervised and semi-supervised drift detection methodologies have been proposed (Kim and Park, 2016; Sethi et al., 2016b; Masud et al., 2011; Lee and Magoules, 2012; Ditzler and Polikar, 2011; Ryu et al., 2012; Lindstrom et al., 2013; Qahtan et al., 2015). These techniques rely on monitoring the distribution characteristics of the unlabeled data, to detect drifts. These are essentially change detection methodologies, which track deviations in the feature space distribution of the data, using statistical or clustering based techniques. As such, they are sensitive to any change in the data distribution, irrespective of its impact on the classification task. Not all changes in data result in a drop in the predictive performance of the classifier at test time, and as such the unsupervised techniques are prone to excessive paranoia which leads to false alarms. False alarms leads to wasted labeling effort, for validating drifts(Sethi and Kantardzic, 2015), and also leads to loss of trust in the drift detection system.

To make unsupervised drift detection more reliable, the margin density drift detection algorithm (MD3) was proposed in (Sethi and Kantardzic, 2017b)

. The developed algorithm tracks the expected number of samples falling in the uncertain regions of a robust classifier (i.e. its margin), to detect changes which can affect the classifier’s performance. For classifiers with explicit notion of margins, such as support vector machines (SVM), the margin is naturally defined and it’s density can be tracked in a streaming environment

(Sethi and Kantardzic, 2015)

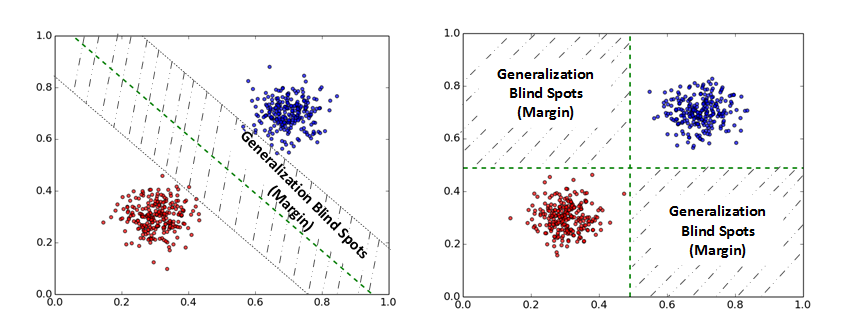

. For classifiers with no explicit notion of margin, such as C4.5 decision trees, the concept of a pseudo margin was introduced. By using a feature bagged ensemble, the margin was defined as the blindspot region, given by the region of high disagreement between the ensemble models (Figure

2) (Sethi et al., 2016a). Both the margin and the blindspot representation, were shown to provide similar benefits to unsupervised drift detection, making the MD3 methodology an effective classifier independent algorithm. Experimental evaluation demonstrated that the MD3 methodology is able to provide similar performance as a fully labeled approach (the Expert Weighted Moving Average approach EWMA (Ross et al., 2012)), and at the same time leads to lesser false alarm compared to unsupervised drift detectors (compared with the Hellinger Distance Drift Detection methodology (Ditzler and Polikar, 2011)), making it more reliable and label efficient, for usage in a streaming data environment.

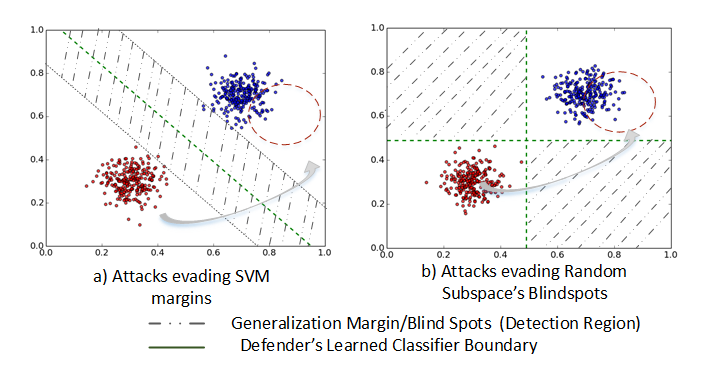

Figure 2: In MD3, the density of margin is tracked, to detect drifts from unlabeled data. left- the margin region for SVM based classifier. right- pseudo margin for classifier with no real notion of margin, defined as the disagreement region for a feature bagged ensemble.(Sethi and Kantardzic, 2017b)

The efficacy of the MD3 methodology, is a result of its ability to add the context of classification, to the task of drift detection. This is done by the inclusion of the margin characteristics, to discern if changes are relevant from the perspective of classifier performance. However, while the MD3 methodology includes the context of the learning task, it does not include any context about the nature of drifts that can occur at test time. This was seen as a strength of the methodology in (Sethi and Kantardzic, 2017b), making it more domain independent. However, in an adversarial domain, the drifts are more sophisticated, and can lead to evasion or misleading of the drift detection mechanism. Also, by not including the context of adversarial activity, the MD3 methodology misses out on preemptive design of classifiers, which can provide benefits post deployment.

2.2 Adversarial manipulation of test time data

The security of machine learning has garnered recent interest from the research community, with several works demonstrating the vulnerabilities of classifiers to probing based attacks (Biggio et al., 2014a; Tramèr et al., 2016; Biggio et al., 2013; Papernot et al., 2016a; Biggio et al., 2014b; Sethi et al., 2017). These attacks are themselves data driven, and are caused by adversaries crafting samples at test time, which evade the deployed classifier of the defender, causing it to drop in predictive performance (accuracy). These attacks begin by the adversaries performing reconnaissance (exploration) on the classifier, to understand its behavior, and as such are referred to as exploratory attacks (Barreno et al., 2006). The information accumulated is then used to craft attack samples, leading to a drift at test time. These attacks are commonplace and pervasive, as they do not require any domain specific information or details about the internal workings of the defender’s classifier model. The adversary, like any other client user of the system, accesses the system as black box system, to which it can submit samples and observe the response (Sethi et al., 2017). Such a setting was inspired from the design of cloud based machine learning services (such as Amazon AWS Machine Learning111 and Google Cloud, which provide APIs for accessing predictive analytics as a service. These services were also seen to be vulnerable to exploratory attacks, where the adversary uses the client API to evade the black box model (Tramèr et al., 2016; Sethi and Kantardzic, 2017a).

The Anchor Points (AP) attacks of (Sethi et al., 2017; Sethi and Kantardzic, 2017a), is one such algorithm for simulating exploratory attacks on black box classifiers. The AP attacks uses an exploration-exploitation framework, to perform evasion on classifiers, as shown in Figure 3. The adversary starts with a seed sample, and then performs exploration by using a radius based incremental search approach. Each generated sample is submitted to the black box classifier of the defender, and its response is observed. Samples which are classified as Legitimate, by the defender, are considered as ground truth values for the subsequent exploitation phase, and are referred to as the Anchor Points. In the exploitation phase, the anchor points obtained in the exploration phase are used to generate additional attack points. The generation is based on a convex combination of the exploration points, and a perturbation operation, to add diversity to the final attack set of samples. The final set of attack points (red), as seen in Figure 3, are submitted to the defender. These samples will cause the performance of the defender to drop, leading to a concept drift.

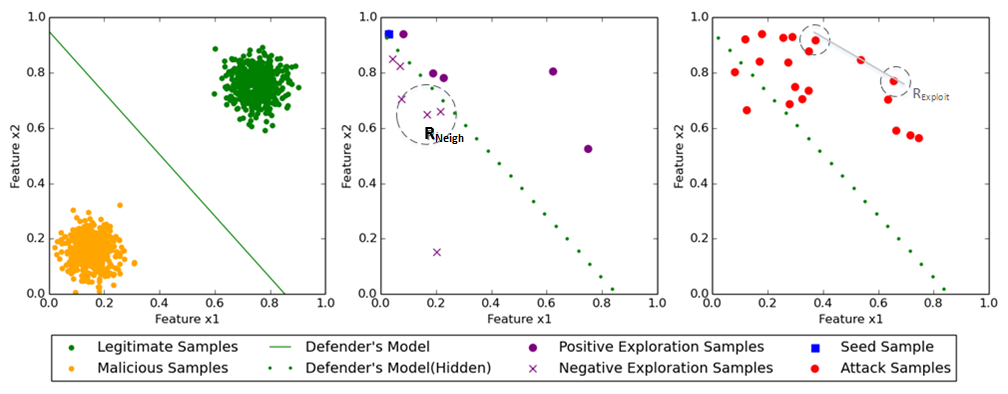

Figure 3: Illustration of AP attacks.(Left - Right): The defender’s model from its training data. The Exploration phase depicting the seed (blue) and the anchor points samples (purple). The Exploitation attack phase samples (red) generated based on the anchor points.(Sethi and Kantardzic, 2017a)

The Anchor Points (AP) attacks, was developed as a methodology to analyze the vulnerability of machine learning systems, in (Sethi and Kantardzic, 2017a). It was presented from a static perspective, as batches of samples were submitted for exploration and exploitation. However, its analysis as a concept drift generation framework, has hitherto been ignored. Not only does the AP attack framework provide a way to generate adversarial concept drift, it also highlights an important characteristic of such drifts - the dependence of the generated drift on the initial trained classifier, which is explored and being evaded by the adversary. The extension of exploratory attacks to the domain of concept drift, has not been proposed elsewhere, to the best of our knowledge.

2.3 Dealing with adversarial activity at test time

Adversarial activity causes the performance of the deployed classifier to degrade over time. Most works in adversarial machine learning, concentrate on making classifiers harder to evade. They do so by resorting to Complex learning strategies (Papernot et al., 2016b; Rndic and Laskov, 2014; Wang, 2015; Biggio et al., 2010a, b; Woźniak et al., 2014; Stevens and Lowd, 2013), which advocates integrating maximum informative features into the classifier models, or by integrating Randomness into the prediction process (Biggio et al., 2014a; Xu et al., 2014; Colbaugh and Glass, 2012; Vorobeychik and Li, 2014; Papernot et al., 2016b). The emphasis of these two strategies, is to make attacks harder/expensive to carry out. However, these methodologies approach the problem of security from a static perspective. They focus on the ability to ward of attacks, but fail to provide insights or directions regarding measures to be taken after an attack commences. This is illustrated in Figure 4, where the predictive performance of a classifier faced with an attack, and subsequent recovery, is shown. Static measures of Complex learning and Randomness, concentrate only on the portion of the attack-defense cycle before the attack starts. Any practical and usable system, also needs reactive dynamic measures, which can deal with attacks after it has affected the system’s performance. Dynamic approaches are developed in the domain of concept drift research, where the aim is to detect and adapt to changes in the data distribution over time. One such methodology for reliable drift handling was developed in (Sethi and Kantardzic, 2017b), as the Margin Density Drift Detection framework (MD3). However, this approach, like the other works on concept drift detection (Žliobaitė, 2010; Gama et al., 2014; Ditzler et al., 2015; Goncalves et al., 2014), considers an adversarial agnostic view of the system. Concept drift detection considers any change in data equally, without regard into the domain specific nature of the change. This makes it ineffective in an adversarial setting, where drifts are a result of attacks, which are in turn a function of the model deployed by the defender.

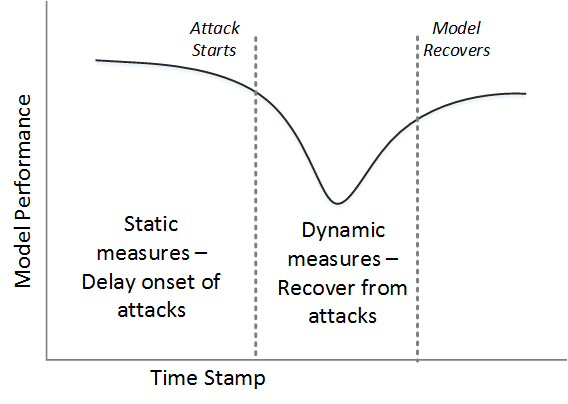

Figure 4: Illustration of model performance over time, indicating onset of attack and recovery from it. Static measures of security focus on delaying onset of attacks. Dynamic measure focus on detection and recover only.
Figure 5: Illustration of Data Nullification attacks. These attacks leads to corruption of the training data, and the inability to function in a streaming environment. blue- legitimate training data, red- malicious training data, and test time attack samples.

Ideas and motivation regarding the dynamics of the machine learning security, were proposed in (Kantchelian et al., 2013). It was proposed that for a system to be of any practical use, it should evolve over time, and engage with human experts beyond feature engineering and labeling. A new taxonomy of exploratory attacks was presented in (Kantchelian et al., 2013), based on their effects on a dynamic data mining process. The idea of Data Nullification attacks, was introduced. These attacks are a result of an adversary gaining excessive information about the training data samples, which it then uses to mimic benign samples perfectly. This causes attacks to overlap with the legitimate training data samples, leading to inseparability, and the inability of classifiers to distinguish between the two classes of samples (Figure 5). In such a case, the classifier cannot be retrained using the existing set of features, and new analysis and data collection is needed to redesign the system, which requires tedious examination of samples, to detect attacks and generate new set of features. From a dynamic machine learning perspective, the task of the defender should be to ensure that such type of attacks are avoided, even though evasion might be made slightly easier. This ensures that drifts will be detect-able and recover-able from. Works in the detection of adversarial activity were proposed in (Chinavle et al., 2009; Kuncheva, 2008; Smutz and Stavrou, 2016), which demonstrate that malicious activity can be detected by tracking disagreement scores from ensemble of models. However, these methods were not analyzed in a streaming environment, and also did not account for adversarial evasion capabilities at test time.

The idea of data leakage and data nullification attacks, present a new dimension in the evaluation of machine learning security, beyond the traditional established metrics of hardness of evasion (Lowd and Meek, 2005). These ideas are a result of a more widespread and practical understanding of the vulnerabilities of classifiers, resulting from black box and indiscriminate attacks at test time. Existing work on concept drift approaches this problem as a cyclic one, where data distribution changes are detected and handled over time (Žliobaitė, 2010). However, concept drift research has hitherto taken a domain agnostic approach to dealing with distribution shifts. Adversarial characteristics of the drift, and preemptive strategies to mitigate and manage drift, have not been analyzed or discussed before, to the best of our knowledge. The only mention we found was in (Barreno et al., 2006; Kantchelian et al., 2013), where adversarial drift was understood to be a special type of drift, being a function of the deployed classifier itself. Since the attacks are targeted towards evading the deployed classifier, the choice of the deployed classifier directs the gamut of possible attack on the system, to a large extent. We analyze this specific aspect of the attacks, and design a preemptive strategy which benefits the dynamic handling of the attacks at test time.

3 Proposed methodology

In this section, the Predict-Detect classifier framework is proposed. Section 3.1 presents motivation and intuition for the development of the framework. Development of the framework, as suitable for a streaming data environment, is presented in Section 3.2.

3.1 Motivation - Misrepresenting feature importance

In the security of machine learning, robustness of classifiers is given by the effort needed by an adversary, to evade the model (Barreno et al., 2010; Lowd and Meek, 2005). This has motivated the development and adoption of Complex Learning methodologies, which incorporate maximum feature information from the training data, as a standard approach to securing classifier against probing based exploratory attacks. The intuition behind this strategy is as such: the inclusion of several informative features into the trained model makes the classifier more restrictive, as an adversary now has to simultaneously reverse engineer and mimic a majority of the benign data characteristics. While this intuition holds good from a static perspective, where we are trying to measure security in terms of the delay in the onset of attacks, it does not hold in a dynamic environment. In a dynamic environment, it is paramount for adversarial activity to be detect-able and recover-able from, so that a model is usable over time. Using the advocated Complex Learning strategies, excessive information is presented to the adversary, who over time can probe and learn the specific characteristics of the training data features. Such an adversary can accumulate the reconnaissance information, and then generate high confidence attacks, which avoid the uncertainty regions of the defender’s model (Sethi and Kantardzic, 2017b). Such drifts are harder to detect and retrain from, as they overlap with the training - benign class data, and as such lead to a total compromise of the machine learning based system (Figure 5). Figure 6 illustrates one such adversary, which evades the MD3 approach of (Sethi and Kantardzic, 2017b). In MD3, it was proposed that margin density tracking over time can be used as a reliable indicator of concept drift from unlabeled data. This was shown to perform well over several concept drift detection tasks from different domains. However, the MD3 approach disregards the adversarial nature of drifts and as such could be fooled by an adversary, who avoids the uncertain regions of the deployed classifiers.

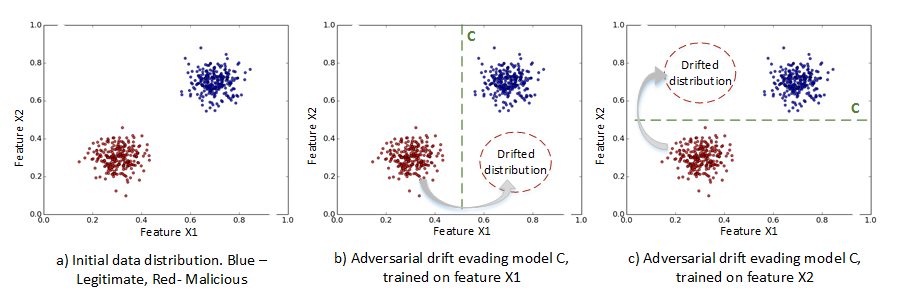

Figure 6: Drifts in adversarial environments will avoid low confidence regions, to avoid detection.

The use of excessive information in the trained model, leads to leakage of information to the adversary, who uses carefully crafted probes to understand the behavior of the classifier model. For concept drift detection methodologies to function in adversarial domains, it is necessary for the test time adversarial samples to be separable from the benign training data samples. To ensure that the separability is maintained, it is necessary to limit the information available to be probed by an adversary. As an example of this requirement, consider the following toy example: a 2-dimensional binary dataset, where the sample L(X1=1, X2=1) represents the Legitimate class training sample and M(X1=0, X2=0) represents the Malicious class sample. We evaluate two strategies for designing the defender’s classifier : a) A Complex Learning approach, which incorporates the information of both features X1 and X2, into , and b) A simpler model, which uses only the minimal amount of information necessary (i.e., one which uses either X1 or X2, only). In case of the Complex Learning approach, the defender could either use a restrictive or a generalized strategy: or . In either case, an adversary is able to understand the impact of the two features on , and can generate an attack sample (1,1), to simultaneously evade both informative features. This attack sample is indistinguishable from the training data sample , causing unlabeled attack detection and handling, to fail. In the case of a simple model (here, ), the attacker is able to evade the system by successfully mimicking . However, it is not completely certain about , as no amount of probing will provide information about the specific impact of (both (1,0) and (1,1) are accepted by as Legitimate). This example illustrates the advantages of a simpler model in adversarial domains, as a counter intuitive but effective strategy to ensure dynamic functioning of classifiers.

3.1.1 The Predict-Detect classifier design

The nature of adversarial drifts makes it dependent on the characteristics of the deployed classifier model, which it is trying to evade (Barreno et al., 2006). As such, preemptive measures taken during the training of a classifier model, can benefit dynamic test time detection and handling of such drifts. The Predict-Detect design uses this intuition, to develop classifier models which are able to detect adversarial activity at test time; reliably and with limited labeled data. By intentionally misrepresenting the un-informativeness of a subset of data features, this design is able to track adversarial activity.

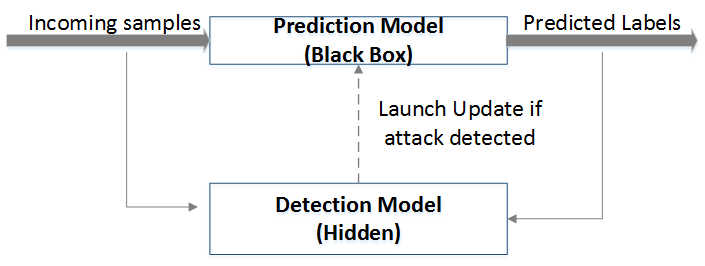

Figure 7: The Predict-Detect classifier design. The Prediction Model is deployed as the de-facto classifier of the system, and is prone to adversarial activity. The Detection Model is used to track adversarial activity and detects when the system is compromised.

The Predict-Detect design uses two orthogonal classifier, each trained on a disjoint subset of features of the training data, as shown in Figure 7. The first subset of features is used to form the defender’s black box model, to perform prediction on the input samples. This classifier is called the Prediction or the Defender model, as its primary purpose is to perform prediction on the input samples, submitted by either the benign users or the adversary. Since this forms the black box model, it is vulnerable to probing based attacks by an adversary. The Prediction model is expected to get attacked at some point, after deployment, due to the nature of the adversarial environment. The second subset of features is used to train a classifier, called the Detection or the Hidden model. This classifier is not used for any of the prediction task, and as such is shielded from external adversarial probes. This model represents information known by the defender, based on the original training data, but not accessible via probing to an adversary. The purpose of the Detection model is to indicate adversarial activity, based on disagreement with the Prediction model. Since an adversary launches an attack based on information learned from the black box, an attack is characterized by evasion of the Prediction model, but only partial evasion of the Detection model. This is illustrated in Figure 8, where a 2D synthetic training data is shown. Attacks on the black box Defender’s model are detected by an increase in the number of sample falling with the region of disagreement, called the Detection Region. The two orthogonal models form a self monitoring scheme for detecting suspicious deviations in the data distribution, at test time.

It should be noted that this division of features in Figure 7 is opaque to the adversary, who still submits probes on the entire feature set. The division of features is done internally by the framework. Thus no additional information is leaked to an adversary. Also, this framework does not advocate feature hiding, in accordance with the Kerchkoff’s principles of information security (Kerckhoffs, 1883; Mrdovic and Perunicic, 2008), but instead relies on misrepresentation of the importance of the features, to the classification task. In case of Figure 8, an adversary will know that the system consists of features X1 and X2, but will not be able to ascertain the informativeness of feature X1, no matter how long it probes the system.

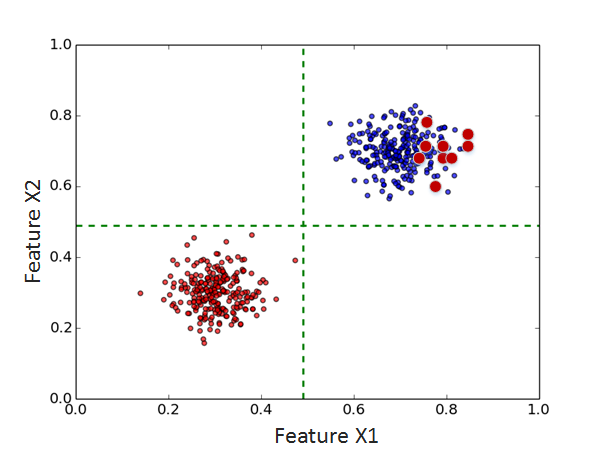

Figure 8: Illustration of the Predict-Detect classifier on 2D synthetic data. Significant portion of adversarial samples are captured by the Detection Region.

There proposed Predict-Detect classifier design, aims to provide the following benefits: a) The misrepresentation of feature importance, will prevent drifts which overlap with the training data, preventing data nullification (Figure 5), b) The uncertainty on the adversary’s part will lead to samples falling in the Detection Region at test time, enabling reliable unsupervised detection of adversarial drifts, c) In case of imbalanced data streams, where the attacks is a minority class, the Detection Region provides a natural reserve for sampling the adversarial class data, enabling effective active learning over imbalanced data.

3.2 The Predict-Detect streaming classification framework for dynamic-adversarial environments

The proposed Predict-Detect framework is developed as a streaming incremental framework for detecting and handling adversarial drifts. The overview of the framework is presented in Section 3.2.1. Detailed design of the framework and its major components is presented in Sections 3.2.2, 3.2.3 and 3.2.4.

3.2.1 The Predict-Detect streaming classification framework

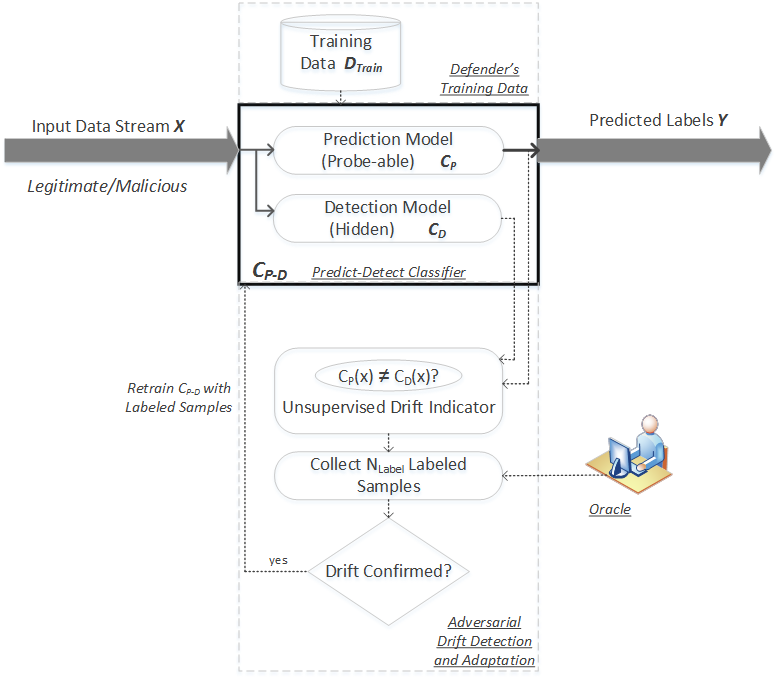

Figure 9: Overview of the Predict-Detect stream classification framework.

The overview of the Predict-Detect streaming framework is presented in Figure 9. The input stream of unlabeled data samples is processed, leading to the output predicted label stream . In this setup, the framework has an unsupervised drift indication component, which processes to detect if there is any significant drifts, which could cause the predictive performance to drop. Upon signaling a drift, the framework requests additional labels (), from an external oracle, often at a price (cost and time resources). These labeled samples are used for confirmation of the earlier signaled drift (by the unsupervised component). If a significant drop in the predictive performance (accuracy/f-measure) is seen over the labeled samples, the framework confirms the occurrence of an adversarial drift. In the event of a confirmed drift, the labeled samples are used to retrain the predictive model, to ensure the continued efficacy of predictive performance of the system. Since the labeled samples are requested only when a drift is first suspected, using unlabeled data, this framework prevents wastage of labeling effort, which results from continuous monitoring of the stream (Sethi and Kantardzic, 2015). In the event of infrequent drifts and long periods of stationarity, the framework will not indicate drifts, and thereby no labeling will be wasted.

The core design aspect of the framework, which makes it effective in an adversarial environment, is the development of the Predict-Detect classifier model, as seen in Figure 9 as the model. The framework leverages the benefits of the Predict-Detect design of Section 3.1.1, as a novel mechanism to hide feature importance information from the adversary, and extends it to be applicable in a streaming data domain. The classifier relies on a coupled model strategy, where two orthogonal models are trained from the training data . The first model is called the Prediction model (), and it is trained on one disjoint subset of features of the original training dataset. The other subset of features, not used in (), is used to train the Detection model (). The Prediction model is the defacto model of the framework, used for classifying the input unlabeled stream , to produce output labels . Since this is the prediction model facing the input stream of data, this model is susceptible to adversarial activity, at test time. This forward facing model is expected to be attacked, by an adversary using probing based exploratory attacks, and observing the feedback provided by the framework. As such, the model’s performance is expected to drop over time. The Detection model is shielded from the probes of the adversary, as it is kept hidden and away from the prediction process. As seen in Figure 9, the feedback of the model is not presented to the outside world. This model is used for the detection of adversarial activity. An adversary, using probes to understand the behavior of the black box model , will fail to successfully reverse engineer , which is trained on an orthogonal subset of features. As such, the adversary will not be able to exactly mimic the training data characteristics. This will enable the tracking of adversarial activity, indicated as an increase in the disagreement between the predictions of the two models. Input data stream is split between the two models, vertically based on the features used to train the respective model, and the prediction by , is presented as the output of the framework. No amount of probing will enable the adversary to understand the significance of features held by , as they are not a part of the prediction process of the framework. The misrepresentation of these feature importance, in an adversarial domain, is the core of what makes this framework effective.

3.2.2 Generating the Prediction and the Detection models from the training data

The training dataset, containing features, is divided into two subsets (vertically based on features), to train the Prediction and the Detection models. Such splits of training data are possible on most cybersecurity datasets, due to the presence of multi-modal and orthogonal informative features, in high dimensional datasets. We intend to define a division of the feature space, such that each of the trained models has high predictive performance. Such divisions are naturally defined when the training dataset is aggregated from multiple sources, with clearly defined boundaries. An example of such a system is a multi-modal biometric system (Joshi et al., 2009)

, which uses both face recognition and fingerprint scanners to provide the final authentication. In such a system, it is easy to split the features into two disjoint subsets, one for the face recognition, and the other for fingerprint data.

Input : Training data () with features , Number of splits (For the classifier, =2.)
Output : Trained models
1 = [[]] = [] = RankByFeatureImportance() for  i = 1 ..  do
2       [i%N].add([i])
3       Round robin split of ranked features
4for  i = 1 ..  do
5       = for feature in  do
6             if feature not in [i]  then
7                   Blank out , by replacing with default value
8                   ‘blanking-out’ non associated features
10       Train model on
Algorithm 1 Generating multiple models from training data, by splitting features.

In the absence of domain specific knowledge of the features, random partitioning is usually resorted to. However, this is not optimal, as a majority of the informative features can end up clumped together in the same partition. We propose a feature ranking based approach, which considers dividing the features uniformly based on their importance to the classification task. We use feature ranking to rank the initial set of features, based on the training data. We then distribute the features in a round robin fashion, to form the two subsets: , used to train the Prediction model, and , for training the Detection model. While several feature ranking approaches are available, the F-value from ANOVA is considered here for experimentation purposes, as the methodology for measuring feature importance333Using scikit-learn’s (Pedregosa and et al, 2011) sklearn.feature_selection.SelectKBest function, to score all features using sklearn.feature_selection.f_classif., without loss of generality.

The splitting of features and generation of orthogonal trained models, is done according to Algorithm 1. The set of features , is divided to form multiple disjoint subsets, based on their informativeness to the prediction task, obtained from the training data. For the Predict-Detect classifier, two subsets are needed: for the Prediction model (), and for the Detection model () (). As such each model has an associated subset of features, which it deems important. The original training data is modified, such that only the associated features are used in training a model. This is done by the ‘blank-out’ process, given in Line 11. This process takes the original training dataset, and replaces all non model associated features with a predefined default value. An example of this process is depicted in Figure 10. The original set of 5 features is divided into 2 disjoint subsets. The Prediction model is associated with Features 1,3 and 5 (). As such, these features are retained in the training data, and the remaining are filled with default values, for all data samples. This process nullifies the discriminatory information of the Features 2 and 4, thereby barring them from being included in the Prediction model. Similarly, for the Detection model, Features 2 and 4 are included in the model (), while Features 1,3 and 5 are blanked out. Once the two models are trained on the modified training data, they can each receive unlabeled stream samples of features. The ability to disregard features is built into the training of the two models. The advantage of this ‘blank-out’ process, as opposed to splitting each incoming sample into two subsets based on features, is that now each of these models operate on the entire feature space and can receive the same input sample . The training of the models has equipped it with the ability to assign importance to their required feature set only. The Algorithm 1 is general in its presentation, as it allows the training of disjoint models. For the Predict-Detect classifier, we take =2, and use one of the trained models for prediction, while the other for detection.

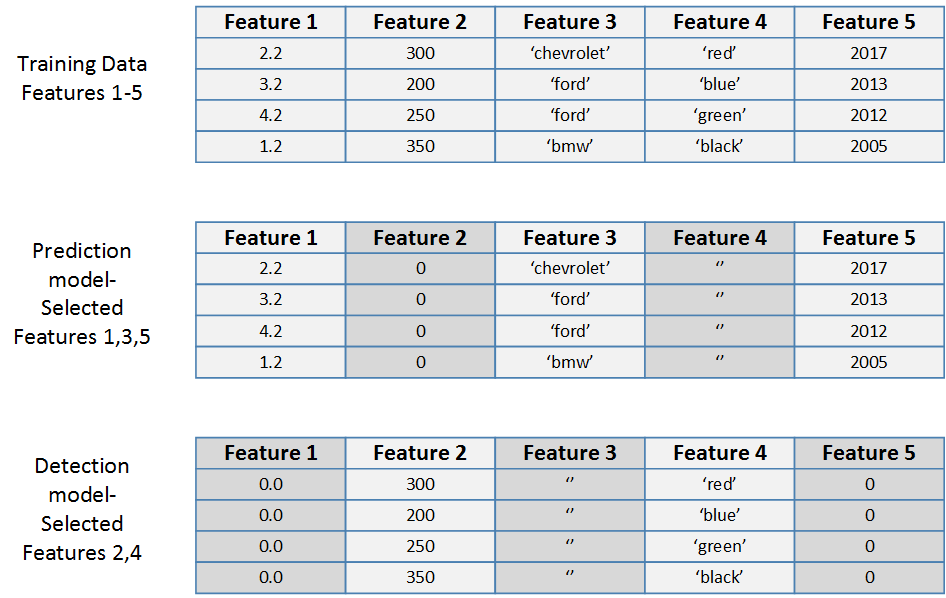

Figure 10: Illustration of feature splitting between the Prediction and the Detection model. The blanked out features of each model are highlighted.

In the absence of domain specific knowledge and correlation information, we can ensure that important features are evenly distributed among the two sets of models, using Algorithm 1. In real world systems, where correlation between features can cause attributes to change in tandem, more sophisticated feature splitting techniques can be employed. The feature subset ensemble techniques of (Kons et al., 2014) combined with the cluster based feature splitting of (Aly and Atiya, 2006), could be used to form multiple classifiers with uncorrelated features within them. For the effective usage of the Predict-Detect framework, we only need to ensure that the generated splits of features are disjoint and result in good predictive performance for each of the models.

3.2.3 Detecting adversarial drift reliably from unlabeled data

The proposed framework relies on detection of drifts from the unlabeled data stream, to save expenditure of labeling budget on validation of the prediction model. This is made possible by the coupled setup of the Prediction and the Detection models. An increased disagreement between the predictions of the two models, on new incoming samples, is suspicious and indicates a possible drift. The tracking of this disagreement, over time, in a streaming environment is used for unsupervised adversarial drift detection. This is presented in Algorithm LABEL:algo:ad_detect, which is motivated in setup by the margin density drift detection algorithm (MD3) of (Sethi and Kantardzic, 2017b). The MD3 algorithm tracks the number of samples falling in a robust classifier’s margin, in a streaming environment, to indicate the possibility of a drift. The Predict-Detect framework provides an adversarial aware drift detection mechanism over unsupervised streams, by causing attacks to be detected based on disagreement with the hiddenDetection classifier model.

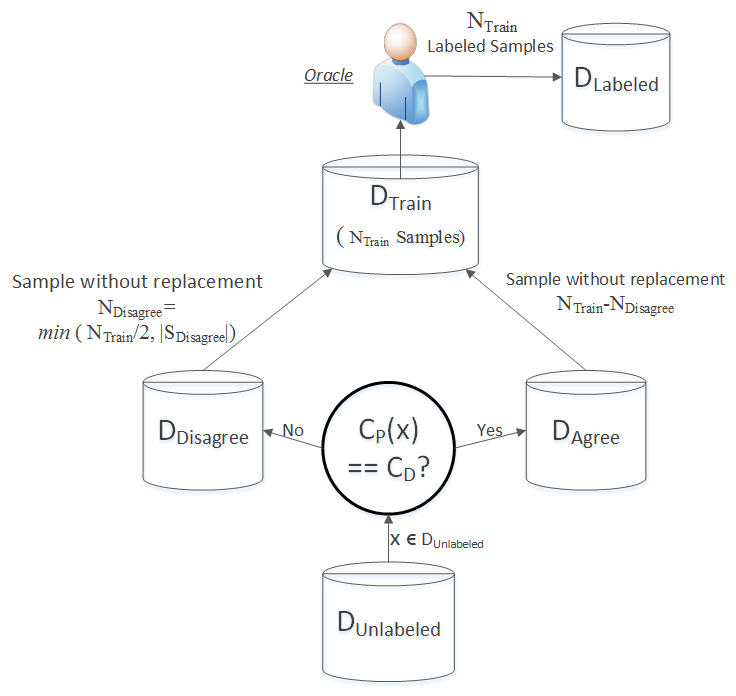

The unsupervised drift detection mechanism is presented in Algorithm LABEL:algo:ad_detect. The Prediction and the Detection models ( and ), generated from the initial training data, are used for the detection of drifts from the unlabeled data stream . Also, the training data is used to learn the expected disagreement and acceptable deviation ( and ), along with the expected prediction performance (measured in accuracy for balanced streams), given by and . This information is learned via 10-fold cross validation, and is used to characterize the normal behavior of the stream. This is done by dividing the training data into 10 bands, and generating the and models on 9 bands at a time, and then computing the disagreement on the 10th band. This value is obtained 10 times, and the reference distribution is learned from it. This serves as a basis for establishing normal expected behavior, from which drift can be detected based on deviation. Sensitivity is controlled using the parameter , which provides a user friendly way to specify acceptable deviation of the stream, in terms of reference characteristics learned from the initial training data. As such, the framework allows specifying data independent parameters, making it more intuitive to the end user.

For each incoming samples , the disagreement in predictions between the and the , is computed as the signal . This disagreement is aggregated over time, to form the metric, as computed in Line 5. The computation uses a time decaying incremental tracking of the metric PD, dictated by the chunk size . A sudden increase in the disagreement metric , is indicative of an adversarial drift. This indication is controlled by the sensitivity parameter , specified by the user based on its tolerance for deviation. The initial indication of drift given by Line 6, is the unsupervised drift indicator component of the framework. It goads the system administrator to examine the data for potential attacks. Attacks are confirmed by collecting samples and labeling them to form the labeled dataset (). This set of labeled samples is used to confirm drifts, and to retrain the models of the framework in case a drift is confirmed. A drift is confirmed if the predictive performance (measured as accuracy here) on the labeled samples is seen to fall significantly. This fall is measured in terms of deviation from the reference accuracy (), which was obtained from the training data.

Once a drift is confirmed, by testing the predictive performance on the obtained labeled data, the models (i.e., the Prediction and theDetection models) need to be retrained, to represent the new distribution of the stream. Relearning is performed using the obtained labeled samples , by querying the Oracle. Querying the Oracle is expensive as it requires time/effort to obtain expert feedback on the unlabeled samples. Since the proposed algorithm request labels only for drift confirmation and relearning, it provides a cost effective and practical methodology for application in streaming data domains, as it does not waste any labeling for constantly checking for drifts in every time period. In the Algorithm LABEL:algo:ad_detect, the labeling of samples follows a naive strategy, where the subsequent samples after a drift indication are requested to be labeled by the Oracle, to form the labeled set . The modular design of the framework leaves it open to extension with other active learning techniques, which can further dictate how the samples are labeled after a drift is indicated.

The entire drift handling process is kept internal to the black box system, and the end user/adversary is agnostic to the adaptive mechanism of the framework. The end user/adversary is provided prediction on the input samples , using the prediction model . Since additional labels are only requested when an attack is suspected, the framework works in an unsupervised manner for the majority of the stream, without the need for constant labeled validation. Only when drifts are suspected and retraining may be needed, are labeled samples requested. This makes the framework attractive for usage in dynamic adversarial drifting environments, where labeling is expensive and time taking.

3.2.4 Retraining the Predict-Detect models - Drift Recovery

In order to recover from the effects of an adversarial drift, the classifier models of the framework need to be retrained, using the obtained labeled data. The following strategies and their impact on the dynamic learning process are discussed, as potential retraining options.

  • Using the existing feature split (PD-NoShuffle): In this strategy, the existing feature splits of the Prediction and the Detection models, are retained. The models are trained on the new labeled data, based on the same set of features already assigned to them. This strategy has the advantage to keep features in the Detection model hidden from an adversary, throughout the progression of the stream. However, this strategy does not account for the changes in the feature ranking and can lead to poorly trained classifier models, which are a result of changes in the importance of features over time, following drifts in data.

  • Re-splitting features (PD-Shuffle): Here, the framework uses the labeled data to regenerate feature splits based on Algorithm 1. The newly split models are then used for deploying the Prediction and the Detection models. This strategy assumes every drift recovery to be an independent start of a new attack-defense cycle. This is especially true when a system is faced with multiple independent adversaries, over time. This strategy is assumed to provide better trained models than the PD-NoShuffle, as it has the opportunity to re-calibrate feature ranking and generate new splits of the features, after every attack cycle.

While both strategies have their shortcomings and advantages, a defender can also resort to a combined approach while applying this framework. First the defender can check to see if it is able to use the existing feature splits to retrain the model and receive sufficient predictive performance, using cross validation on the training dataset. If the features are rendered unusable due to a sophisticated attack, the features can be re-split. Delaying the shuffling of features is advantageous, as shuffling transfers information about the hidden features onto the prediction forefront. An adversary could use this information over time to generate a potent temporal attack, by aggregating information from multiple cycles of attacks. While we have not found any documentation for such a category of attacks, it is a possibility, and as such we should avoid shuffling of features whenever possible.

In either case, the adversary is devoid of complete information, which makes it unable to launch a data nullification attack (Kantchelian et al., 2013). This ensures that adversarial activity will be detected and that retraining will be possible, for continued operation in streaming domains. By constantly gaming the adversary and responding quickly to attacks, the attacks are rendered expensive and futile, making this reactive system an attractive defense strategy for securing against adversarial data drifts.

4 Experimental evaluation

Experimental evaluation and comparison of the proposed framework, is presented in this section. Section 4.1 presents a framework for simulating adversarial concept drift in real world datasets. Setup and methods used for comparative analysis, is presented in Section 4.2. Results on data streams with single adversarial drift is presented in Section 4.3, and those with multiple adversarial drifts is presented in Section 4.4.

4.1 Generating adversarial concept drifts on real world datasets

Adversarial concept drift is a special type of concept drift, as the data distribution changes are introduced by an adversary aiming to subvert the performance of the deployed classifier. As such, these distribution changes are dependent on the classifier trained and deployed by the defender. An adversary begins the attack cycle by probing the deployed black box model of the defender, and then uses this information to generate samples which evade detection. This characteristic of adversarial drift makes it a special category of concept drifts, which needs to be analyzed and dealt with differently, than regular concept drift. It is not possible to evaluate these drifts on existing datasets (which are popularly used for concept drift research), as adversarial drifts are dependent on the deployed classifier model, which they are trying to evade. As such, we present here, a strategy for simulating adversarial drifts on real world datasets. We do this by extending the Anchor Points (AP) attack framework of (Sethi et al., 2017). The AP framework was developed for simulating data driven exploratory attacks, on black box classifier models. The framework was developed for static evaluation, as the attack samples were only evaluated for the purposes of demonstrating the possibility of classifier evasion, by an adversary. We extend the AP framework, to be used in a streaming environment, under the AP-Stream framework, presented here.

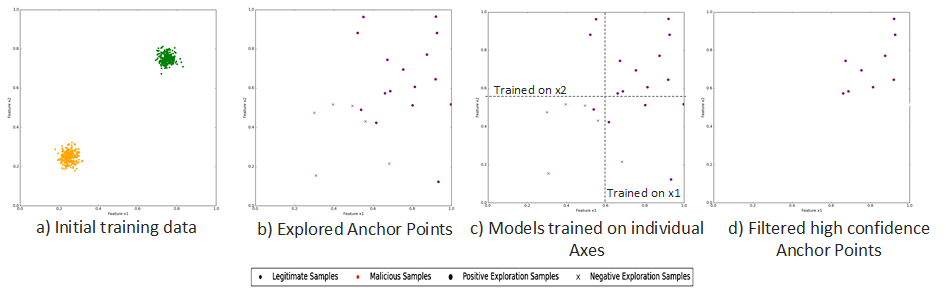

Figure 11: Reducing adversarial uncertainty via filtering, in Anchor Points attacks (Sethi et al., 2017). After the exploration phase in b), the adversary trains models on individual feature subspaces (X1 and X2). It then aggregates this information to clean out samples in low confidence areas (X1 X2). The final set of filtered high confidence samples are shown in d).

There are two considerations in the extension of the Anchor Points attacks framework for the simulation of adversarial concept drift: a) Accounting for sophisticated adversarial activity, aiming to evade drift detection by uncertainty tracking unsupervised approaches, and b) Converting the static attack framework to a streaming data representation. For the former, we take into account adversaries who first perform exploration of the black box classifier, and then filters out low confidence attack samples. The confidence is determined on the adversary’s side, by training a random subspace ensemble on the exploration samples, and then filtering out samples of high disagreement between the component models of the ensemble. This is demonstrated in Figure 11. The adversary first uses the Anchor Points (AP) attack framework to generate the exploration samples of Figure 11 b). It then proceeds to train a feature bagged (random subspace) ensemble model on the samples in b), and then eliminates samples of high disagreement. The resulting high confidence exploration samples are shown in Figure 11 d). These exploration samples represent the most confident and best reverse engineered samples by the adversary, and it uses these samples to exploit and generate the attack campaign.

To extend the Anchor Points (AP) attacks to a streaming environment, the AP-Stream framework is developed as a wrapper over the already developed AP framework. The AP-Stream framework receives samples from the attack simulation on the defender’s black box, and it converts these samples into a stream of data, for adversarial analysis, as shown in Figure 12. The initial training data, from the real world dataset, is split into two parts: the Legitimate class samples and the Malicious class samples. These splits are used to form the initial distribution of the stream, before the drift starts. The training dataset is also used to train the defender’s model (). The defender’s model is then attacked using the AP framework, and the resulting exploration and exploitation samples are stored in the corresponding buffers ( and , respectively), as shown in Figure 12.

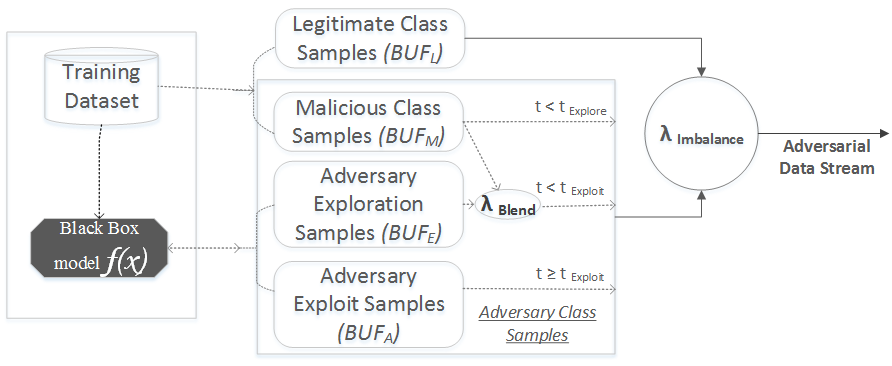

Figure 12: The AP-Stream framework for simulating adversarial concept drift.

Data stream samples are generated by random sampling from the 4 different data buffers of Figure 12. At any given time, the legitimate class samples are obtained from sampling the buffer , and the adversary’s samples are sampled from one of , or . The parameter , is used to control the amount of imbalance between the legitimate and adversarial class samples, in the stream. Since, we assume that the legitimate class does not drift over the course of the stream, we draw the regular class samples by always sampling from the initial pool of legitimate class data () obtained from the training dataset. However, for the adversarial class samples, the samples are drawn from the three different buffers, over the course of the stream. Initially, till time , samples are drawn from the original pool of the malicious class training samples (). This is the time period where an adversary has not yet started the attack process. After , we draw samples from both the Malicious class training samples () and the pool of exploration samples (). The rate at which the samples are drawn from each of these buffers is controlled by the parameter , called the blending rate. By blending exploration samples with the original set of malicious samples, an adversary avoids detection in the exploration phase. After the adversary obtains enough information about the black box model (upto the exploration budget ), it starts the exploitation phase, which is the attack payload for this adversarial cycle. This is done after time , by sampling from the pool of exploitation samples (). The time values and , enable the user to set up and control the profile of the stream, that they want to simulate.

The simulation of adversarial drift on the phishing dataset (Lichman, 2013), is shown in Figure 13. The stream demonstrates an exploration phase till =10,000 samples, and the attack phase starts at =30,000 samples. The data is taken to be balanced () and the blend rate is taken to be (i.e., 5% of the sample in the exploration phase are drawn from the exploration buffer). From the figure, the effects of adversarial drift can be seen starting at =30,000, as the accuracy starts to rapidly drop. This is a result of the adversarial manipulation of samples, to evade the deployed black box model. In order for a model to be usable, it is necessary to detect and fix the effects of such adversarial drifts. The drop in accuracy at the exploration phase is minimal, and can go undetected, as is intended by an adversary. In case of an overly sensitive detection system, the adversary over time can learn to use a lower blend ratio, to cover its tracks.

Using the proposed AP-Stream framework, we can simulate the AP framework to work in a temporal environment, and can adjust the characteristics of the stream, to analyze particular aspects of different security measures.

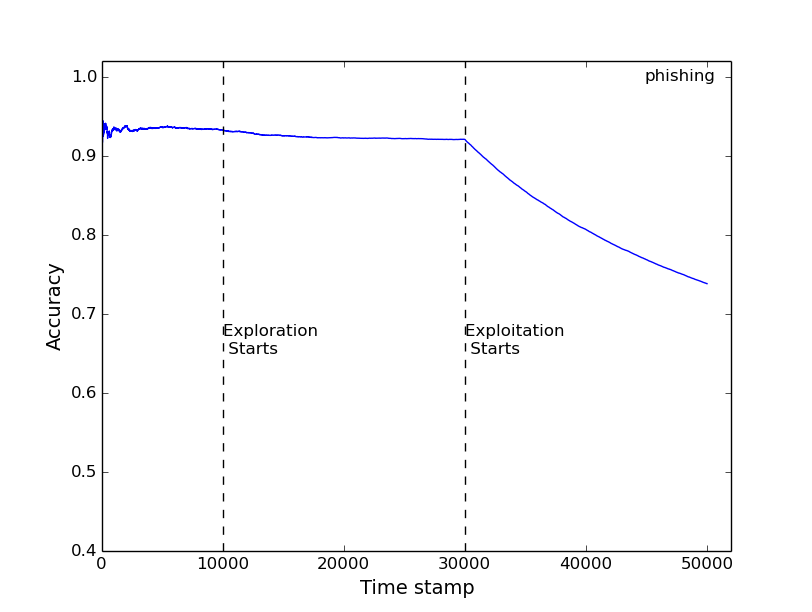

Figure 13: Simulation of adversarial concept drift on the phishing dataset (Lichman, 2013).

4.2 Experimental methods and setup

This section presents the experimental methods and parameters, used for the analysis of the proposed framework. Methodologies used for comparative analysis are presented in Section 4.2.1. Description of datasets and experimental setup, are presented in Section 4.2.2.

4.2.1 Methodologies used for comparative analysis

The effects of adversarial drifts, on the classification performance over time, is demonstrated by experimentally comparing the following drift handling methodologies.

  • Static baseline model (NoChange): This methodology is overly optimistic, as it assumes that the data will never drift ,and that the initial trained model is sufficient to retain performance over time. This is an unrealistic assumption, but this serves as a lower baseline for evaluating other drift handling strategies. Any proposed methodology should be atleast as good as this strategy, to be of any real use.

  • Fully labeled accuracy tracking (AccTr): This serves as an upper baseline for our evaluations, as it represents an optimal case, where all the data is labeled, and the labels are immediately available after the prediction is made on an input sample. This model tracks the classifier’s predictive performance (e.g., Accuracy), to signal drift. An unsupervised technique is considered effective, if it provides performance close to the AccTr approach, while reducing labeling requirements. For this methodology, the accuracy is tracked incrementally by using the EWMA (Ross et al., 2012) formulation of change tracking.

  • Margin density drift detection (MD3-RS): The MD3 methodology was proposed in (Sethi and Kantardzic, 2017b), as an alternate to traditional unsupervised drift detectors. MD3 was shown to be more reliable than traditional distribution tracking methodologies, as it tacitly involves the classifier’s notion of uncertainty into the drift detection process. The MD3-RS methodology uses a random subspace ensemble for the detection purposes. A sudden increase in the number of samples in the ensemble’s margin (i.e., region of disagreement), is considered to be indicative of a drift. Comparing with MD3 provides us with insights into the need for adversarial awareness in drift detection. In our experiments, we consider a random subspace ensemble of 50 linear SVMs, with 50% of the features in each base model. The threshold for the certainty margin is taken to be as 0.5.

  • The Predict-Detect framework without feature shuffling for retraining (PD-NoShuffle): This is the proposed Predict-Detect classifier framework, with 50% of the features belonging to the Prediction model, and the other 50% belonging to the hidden Detection model. The drift is detected based on tracking the disagreement between the two models. Upon drift confirmation, the individual models are retrained without regenerating the feature splits. This methodology evaluates the ability and effects of continuing to use the same set of initially split features, so as to ensure feature importance hiding, for a longer period of time.

  • The Predict-Detect framework with feature shuffling for retraining (PD-Shuffle): This is the proposed framework similar to PD-NoShuffle, except for the fact that retraining involves reshuffling all features, and then regenerating the two separate prediction and detection models. This model evaluates the impact of ignoring temporal information gained by an adversary, and focuses on impact against multiple independent adversaries over time.

The Prediction and the Detection model in the proposed methodology, are comprised of a random subspace ensemble of 50 linear SVMs (L1 penalty, regularization constant c=1), each with 50% of the features randomly allocated to them. We use the same ensemble framework for the MD3 classification model, as well as for the prediction model for the AccTr and the NoChange model, to ensure consistency in evaluating the methods.

4.2.2 Description of datasets and experimental setup

The datasets of Table 1, are used for the generation of the adversarial drifts. All data was normalized to the range of [0,1], and the data was converted to numeric/binary features type only. The synthetic datasets is a 10 dimensional dataset, with two classes. The Legitimate

class is normally distributed with a

-0.75 and =0.05, and the Malicious class is centered at -0.25 and =0.05, across all 10 dimensions. The CAPTCHA dataset is taken from (D Souza, 2014), and it represents an application concerned with the classification of mouse movement data for humans and bots, for the task of behavioral authentication. The phishing dataset is taken from (Lichman, 2013), and it represents classification between malicious and benign web pages. The digits dataset (Lichman, 2013), was taken to represent a standard classification task. Only classes 0 and 8 were considered, so as to convert it to a binary classification task. In all datasets, the class 0 was considered to be the Legitimate class. After the dataset is prepared, it is used in the AP-Stream framework, to generate the adversarial stream. The data stream is considered balanced with a =0.5 and the blending ratio is taken as 0.05, to avoid triggering drifts in the exploration phase. Detection uses a threshold of =3 (based on analysis in (Sethi and Kantardzic, 2017b)). The parameters of labeling and retraining , and the profile of the stream are discussed at the beginning of each of the following subsections.

Dataset #Instances #Attributes
Synthetic 500 10
CAPTCHA 1886 26
Phishing 11055 46
Digits08 1499 16
Table 1: Description of datasets used for adversarial drift evaluation.

The generation of adversarial drift is based on real world datasets, which are used in the AP-Stream framework to simulate a streaming environment. The AP attacks are filtered as described in Figure 11, to remove the low confidence samples. This filtering is done by using a random subspace model (50 Linear SVM, 50% of features in each model), with a high regularization constant c=10, to ensure robustness against stray probes. Samples with confidence less than the confidence threshold of =0.8 are eliminated, before exploitation starts. In all experiments in this section, averages are reported over 10 runs of the experiments. The experiments are performed using python and the scikit-learn machine learning library (Pedregosa and et al, 2011).

4.3 Analysis on data streams with a single simulated adversarial drift

(a) synthetic
(c) phishing
(d) digits08
Figure 14: Accuracy over time for streams with single adversarial drift.
(a) synthetic
(c) phishing
(d) digits08
Figure 15: Metrics being tracked by the different drift handling techniques. AccTr tracks error rate based on fully labeled data. MD3 tracks margin density from unlabeled data. The PD-Shuffle and the PD-NoShuffle track the disagreement between the prediction model and the hidden detection model.

In this section, we evaluate the performance of the different drift handling methodologies, on a data stream with a single adversarial drift. Drift is simulated using the AP-Stream framework, with a stream length of 20,000 samples, a =1000, and a =10000. The chunk size is taken to be =500, and retraining/confirmation is performed by considering additional labeled samples, after drift indication.

The results of the Anchor Points (AP) attacks are shown in Figure 14. It can be seen that the AP attacks, when used in the AP-Stream simulator, leads to a concept drift which causes the performance to drop after =10,000. This is visible from the sudden drop in accuracy in the performance of the NoChange methodology, which assumes that the data will be static throughout. The drop in accuracy during the exploration phase (t=1,000-10,000) is minimal, in accordance with out simulation goals, as an adversary tries to hide its tracks while performing reconnaissance of the system. The need for drift detection and retraining is highlighted by the decreasing performance of the NoChange model, which rapidly becomes unusable after the drift. The fully labeled AccTr approach is able to effectively and quickly detect changes in the stream, allowing it to fix itself and maintain high accuracy, in all cases. This however comes at an unrealistic assumption of all labels being available immediately. Nevertheless, these two methodologies provide the upper and the lower baseline for our comparative analysis.

Dataset Methodology Accuracy Labeling% Drift Detected
synthetic NoChange 74.2 0 No
AccTr 95.7 100 Yes
MD3 74.2 0 No
PD-NoShuffle 85.4 5 Yes
PD-Shuffle 93.7 2.5 Yes
CAPTCHA NoChange 74.3 0 No
AccTr 97.7 100 Yes
MD3 73.9 0 No
PD-NoShuffle 97.4 2.5 Yes
PD-Shuffle 96.5 2.5 Yes
phishing NoChange 68.9 0 No
AccTr 93.8 100 Yes
MD3 68.5 0 No
PD-NoShuffle 90.1 4.18 Yes
PD-Shuffle 91.3 2.5 Yes
digits08 NoChange 71.9 0 No
AccTr 95.6 100 Yes
MD3 71.7 0 No
PD-NoShuffle 91.8 2.5 Yes
PD-Shuffle 92.9 2.5 Yes
Table 2: Accuracy, Drift detected and Labeling% of the NoChange, AccTr, MD3, PD-NoShuffle and PD-Shuffle methodologies, over streams with a single adversarial drift.

The results of Figure 14 and Table 2, demonstrate that the MD3 approach fails to detect adversarial drifts, as the accuracy of the MD3 approach is seen to be no better than the NoChange approach. Both approaches fail to detect drift. The filtered AP attack samples, evade several of the features simultaneously, causing the margin density based detection, to be circumvented. Margin density relies on having a few informative features drifting, while the other remain static (Sethi and Kantardzic, 2017b). This condition is intentionally violated by an adversary seeking to go undetected for a long time (Figure 6). As such, the generated drift samples fall outside the regions of uncertainty (margins), of the defender, leading to failed unsupervised attack detection. The PD approach was developed to address this issue, by using an adversarial aware design. It does so by hiding feature importance, thereby shielding them from probing based attacks. This ensures that the adversary will have a misguided notion of confidence, as it will not be able to obtain information about the exact influence of a subset of feature, no matter how high its exploration probing budget gets. By tracking the successful reverse engineering and evasion of a subset of exposed features, with an increased uncertainty over the other set of hidden features, the PD methodology aims to better detect adversarial activity.

The Predict-Detect framework is able to detect and recover from the adversarial drifts, shown by high performance after attacks, in Figure 14. The drift detection is prompt and close to the AccTr approaches (, on average). The difference in performance, between the two PD approaches, is seen in case of the final accuracy, due to the different retraining approaches used. The PD-Shuffle outperforms PD-NoShuffle, due to the reassessment and re-splitting of feature importance, possible in the retraining phase. However, the PD-NoShuffle approach provides security against possible temporal attacks, in which an adversary might be able to collect information about different features over time, to cause a more potent data nullification attack. It does so with a compromise in the accuracy (2.5%, on average), compared to the PD-Shuffle methodology, which is a reasonable trade off. In either case, the PD methodologies are able to detect drifts with 5% labeling, and are able to maintain classifier performance over time, as seen in Table 2. The higher labeling budget for the PD-NoShuffle case is due to the increase in false alarms, which leads to requesting of additional labeled data that are eventually discarded as they indicate no significant drop in the accuracy.

The progression of the metrics tracked by the different drift detectors is shown in Figure 15. AccTr tracks the error rate (or accuracy), MD3 tracks the margin density, and the PD track the disagreement between the Prediction and the Detection models. It can be seen that the metrics of accuracy and the PD disagreement depict a significant jump at the attack exploitation phase, and remain relatively stable before and after the drift. This indicates a high signal-to-noise ratio for these information metrics, and their effectiveness in detecting drifts, which are caused by adversarial attacks. It is also seen that the margin density metric is unable to detect any changes in the face of an attack, leading to its inefficacy. The adversarial aware PD approaches, are able to detect attacks similar to the AccTr approach. This demonstrates the importance of accounting for an adversarial aware design, in the training phase of a classifier, and the effectiveness of simple solutions implemented in the design of a classifier, leading to long term security benefits. The preemptive strategy of hiding feature importance, leads to benefits in terms of better attack detection, lower dependence on labeled data, and effective responsiveness to attacks, for higher availability and security, of the machine learning based system.

4.3.1 Effects of varying the number of hidden features

In the experiments so far, the available set of features are considered to be split equally split between the Prediction and the Detection model, based on the feature importance based splitting methodology of Section 3.2.2. This was motivated by the intuition to consider prediction on incoming samples and detection of adversarial drifts, as equally important tasks, over the course of the stream. The main reason for the effectiveness of the Predict-Detect design, is its ability to hide the feature importance of some of the features, from being probed and reverse engineered by an adversary. As such, it should be sufficient to hide fewer important features, in case they are sufficient to represent a high accuracy orthogonal representation of the training data. Generally, it is expected to have more features in the Prediction model, as this will enable better predictive performance for normal functioning of the ML based service, and at the same time delay the onset of attacks. Here, we evaluate the effects of reducing the number of features included in the hidden detection classifier, and its impact on the detection and prediction capabilities of the framework.

Dataset /
% of hidden features
PD-NoShuffle PD-Shuffle
10% 25% 50% 10% 25% 50%
synthetic 0.96 0.91 0.88 0.96 0.95 0.95
CAPTCHA 0.98 0.97 0.97 0.98 0.97 0.97
phishing 0.92 0.92 0.91 0.93 0.92 0.91
digits08 0.96 0.95 0.94 0.96 0.95 0.94
Table 3: Effects of varying the percentage of important hidden features, on the accuracy over the adversarial data stream.
Dataset /
% of hidden features
PD-NoShuffle PD-Shuffle
10% 25% 50% 10% 25% 50%
synthetic 1 1 1 1 1 1
CAPTCHA 1 1 1 1 1 1
phishing 2 1 1 2 1 1
digits08 3 1 1 3 1 1
Table 4: Effects of varying the percentage of important hidden features, on the number of drifts signaled.

Table 3 and Table 4, present the effects of reducing the number of hidden features from 50% to 10% and 25%. Reducing features in the hidden model is done by blanking out additional features, in accordance to the methodology of Section 3.2.2. The features are still distributed round robin, based on their informativeness to the classification task. From Table 3, it can be seen that the accuracy of the stream is not significantly affected by reduction in the number of the hidden features, for both the PD-Shuffle and the PD-NoShuffle scenarios. The number of drifts detected are also seen to be similar, as seen in Table 4. Additional false alarms are seen in case of 10% hidden features. However, the effects of these false alarms are minimal, compared to the savings in the labeling obtained by using this unsupervised drift detector. As a guideline, 25%-50% is suggested for the number of important features in the hidden model.

An important consideration for the applicability of the Predict-Detect framework, is the presence of multiple orthogonal features in the training dataset, which can result in disjoint classifiers each with high accuracy of prediction. In such a scenario, the prediction and the detection models form a self monitoring scheme, for detecting adversarial activity. So long as the two models can be made disjoint (feature wise) and have high prediction performance; the number of hidden features, the type of the individual models, and the training mechanism used, does not have a significant impact on the effectiveness of the framework.

4.4 Analysis on data streams with a multiple subsequent adversarial drifts

In this section, we evaluate the performance of the different drift handling techniques in a streaming environment with multiple subsequent adversarial drifts. This stream represents a scenario where the system gets attacked, the defender adapts, and then the adversary relaunches an attack on the newly deployed system. This represents a real world scenario, where protecting against the onset of attacks is not sufficient, and security is a cyclic process. Instead, the ability to detect attacks, fix them, and continue to provide services, is paramount. This emphasizes a reactive approach to security, with an understanding of the adversarial nature of the problem, leading to long term benefits.

Multiple adversarial drifts are simulated using the AP-Stream framework. We generate 5 subsequent adversarial drifts, to simulate 5 attack-defense cycles, each of 20,000 samples. Exploration occurs from to samples, where represents the cycle number. In each cycle, the adversary learns about the defender, using probes, and then launches a evasion attack on the defender’s classifier. The defender is responsible for detecting the onset of the attacks, and retraining in the event of a confirmed attack. After 10,000 samples (of the previous attack exploitation step), the adversary is perceptive of the inefficacy of its attacks, due to the updated defender’s model, and as such it relaunches its attack on the defender. This launch starts the new adversarial cycle, by probing the updated defender model, and launching evasion attacks against it. We do not emphasize details about how an adversary detects that the defender has retrained itself. Instead, it is assumed that an adversary gets perceptive of this change, as it receives Accept/Reject feedback on its submitted probe samples. The focus of experimentation is on the defender’s ability to detect and retrain in the face of multiple subsequent adversarial drifts.

(a) synthetic
(c) phishing
(d) digits08
Figure 16: Accuracy over time for streams with multiple subsequent adversarial drifts.
Dataset Methodology Accuracy Labeling% Drifts Detected
synthetic NoChange 55.10 0 0
AccTr 94.80 100 5
MD3 54.90 0 0
PD-NoShuffle 87.68 5 5
PD-Shuffle 90.54 5 5
CAPTCHA NoChange 54.78 0 0
AccTr 97.57 100 4
MD3 54.88 0 0
PD-NoShuffle 96.48 6 6
PD-Shuffle 96.77 5 5
phishing NoChange 50.70 0 0
AccTr 95.66 100 5
MD3 62.41 2 2
PD-NoShuffle 93.08 6 6
PD-Shuffle 94.65 5 5
digits08 NoChange 52.89 0 0
AccTr 95.03 100 5
MD3 72.99 2 2
PD-NoShuffle 91.49 7 7
PD-Shuffle 93.53 5 5
Table 5: Results of drift handling, on data streams with multiple adversarial drifts.

The results over 5 cycles of the attack-defense cycle are presented in Table 5, and the accuracy over the stream is depicted in Figure 16. We consider a chunk size of =1000, for all streams here, due to the increased size of the stream and the need for smoother analysis of the drift detection behavior. The progression of the streams in Figure 16, indicates that the drift detection behavior of the methodologies is consistent with our observation for the single drift case. The MD3 approach fails to effectively detect and adapt to drifts, this is seen by the reduced accuracy of this approach when compared to the fully labeled drift detector AccTr ( lower accuracy on average). This is a result of the inefficacy of the MD3 approach to track drifts caused by adversarial activity. This results in the MD3 approach being similar in performance to the NoChange methodology (=7.9%).

(a) synthetic
(c) phishing
(d) digits08
Figure 17: Metrics being tracked by the different drift handling techniques, for the data streams with multiple subsequent adversarial drifts. AccTr tracks error rate based on fully labeled data. MD3 tracks margin density from unlabeled data. The PD-Shuffle and the PD-NoShuffle track the disagreement between the prediction model and the hidden detection model.

The PD methods provide performance similar to the fully labeled AccTr approach (=1.9 for PD-Shuffle and =3.6 for PD-NoShuffle), as it is able to effectively detect and recover from attacks in all cases. This is achieved at a low labeling rate of 6% for the PD-NoShuffle and 5% for the PD-Shuffle. This is because the Predict-Detect framework provides a natural, adversarial-aware, unsupervised mechanism for detecting drifts. This minimum required labeling is needed, for drift confirmation and retraining. The drift detection metrics are depicted in Figure 17. It is seen that the disagreement score for the PD serves as an effective surrogate to the fully labeled AccTr approach, as both the signals changes concurrently and with minimal lag, in the event of an attack. The high peak at the exploitation stage of attacks indicates the high signal-to-noise ratio of the disagreement tracking signal, and its effectiveness in detecting attacks. This makes the detectors resilient to stray changes, reserving labeling budget and model retraining only for cases where the adversarial attack can lead to serious degradation in the performance. The margin density signal is seen to be ineffective for detecting attacks, as it misses a majority of the drift scenarios in these experiments. This further highlights the need for an adversarial aware design when implementing streaming data algorithms for security applications.

The PD-Shuffle performs marginally better than the PD-NoShuffle methodology, with an average improvement of 2% in the accuracy of the stream. However, the PD-NoShuffle provides better protection by hiding features importance from an adversary, over time. The drift detection and retraining lag is similar for the PD and the AccTr cases, indicating the effectiveness of the detection capabilities of the proposed framework. This makes the Predict-Detect framework effective for usage in an unsupervised, adversarial-aware, and streaming environment. The preemptive design of the framework makes it better prepared for dealing with adversarial activity, by enabling reliable unsupervised detection, and ensuring that recovering from drifts is a possibility.

5 Disagreement based active learning on imbalanced adversarial data streams

The analysis thus far, has focused on the ability of the Predict-Detect framework to detect drifts from unlabeled data, and subsequently recover from them. After a drift is indicated by the framework, labeling additional samples for drift confirmation and for retraining of models, is considered to follow naive strategies. More specifically, 100% of samples from a chunk of

subsequent samples are requested to be labeled, and these samples are then used to confirm drifts and retrain the model. Although this approach is effective for a balanced stream, i.e., with near equal probability of occurrence of the

Legitimate and the Malicious class samples, it is not an efficient strategy for imbalanced data streams. This is especially pertinent in adversarial environments, as the adversarial attacks are expected to be a smaller minority class, in comparison to the majority of benign traffic entering the system. To improve the labeling process, we analyze the effect of selecting samples () to label, for drift confirmation and retraining, after the framework indicates a drift from the unlabeled data. In our proposed active learning strategy, we use the motivation that samples falling in the disagreement region of the two classifiers have higher probability of belonging to the adversarial class. Section 5.1 presents the proposed active learning methodology, based on the disagreement information between the Prediction and the Detection models. Experimental analysis is presented in Section 5.2.

5.1 Active learning using disagreement information - Disagreement Sampling

Adversarial drifts are detected by the Predict-Detect framework, by tracking the disagreement between the two component models, over time. The efficacy of the detection mechanism relies on the inability of an adversary to successfully reverse engineer all of the feature information, due to the hidden inaccessible detection model. This causes adversarial samples to fall in the disagreement regions of the two classifier models. Here, the disagreement region serves as a honeypot, to capture adversarial samples. We extend this motivation to the domain of active learning, for selecting samples for labeling, after a drift is indicated.

The active learning based on disagreement is performed on the collected samples, after the drift is indicated by the PD model. The proposed active learning process is shown in Figure 18. The initial set of collected unlabeled samples, after drift indication, are processed, and samples are selected () to be labeled by the Oracle. The active learning methodology aims to embody maximum informativeness into the selected samples, about the newly drifted stream distribution. A large number of adversarial class samples are aimed to be selected, as this is the drifting class and is often the minority in most real world applications. A good number of adversarial class samples selected, will lead to more balanced datasets, for better drift confirmation and retraining of models.

Figure 18: Disagreement based active learning methodology.

The active learning methodology is presented in Figure 18. The set of unlabeled data samples , collected after drift is indicated, is split into two pools: and , based on the predicted class labels of the Prediction model () and the Detection model (). Samples to be labeled are first obtained by random sampling on the pool of disagreeing samples , until the samples in this pool are exhausted, or we reach 50% of our labeling budget (). This ensures that we allocate more priority to the disagreement region, where we have a higher chance of obtaining the samples of the adversary class. The remaining samples are obtained by random selection on the samples which fall outside the disagreement region (i.e., by sampling from ). Since the data is predominantly assumed to be of the Legitimate class, this sampling will allow us to receive balanced samples for better retraining on the attack samples, while providing secondary validation on the static nature of the legitimate class samples. The final set of samples is sent to the Oracle for labeling. By integrating the disagreement information into the labeling process, this methodology aims to achieve a more representative set of samples, for better detection and retraining over imbalanced adversarial streams.

5.2 Experimental analysis on imbalanced data streams with limited labeling

/ Imbalance
100% 10% 5%
f-measure Malicious% f-measure Malicious% f-measure Malicious%
0.5 0.93 51.20% 0.92 52% 0.89 36%
0.1 0.91 11.40% 0.72 10% 0.65 8%
0.05 0.89 6.20% 0.78 4% 0.66 4%
Table 6: Effects of Random Sampling, on the classifier performance and the balance of the obtained re-training set, on the synthetic dataset. Italicized values indicate critical regions of evaluation – imbalanced stream with low labeling ratio.
/ Imbalance
100% 10% 5%
f-measure Malicious% f-measure Malicious% f-measure Malicious%
0.5 0.92 51.60% 0.89 56% 0.91 61%
0.1 0.90 9.00% 0.86 43% 0.86 48%
0.05 0.94 5.20% 0.88 33% 0.84 48%
Table 7: Effects of Disagreement Sampling, on the classifier performance and the balance of the obtained re-training set, on the synthetic dataset. Italicized values indicate critical regions of evaluation – imbalanced stream with low labeling ratio.

Identifying and labeling samples of the adversarial class, in a streaming environment, is an important concern especially when the data stream is imbalanced. This is because, in a streaming data with drift in the minority class, the changes are harder to track and detect in the data space (Arabmakki et al., 2014). In an adversarial environment, the attack class is often the minority class (Sculley et al., 2011), as opposed to the vast majority of legitimate samples being submitted to the system. As such, the adversarial class’s impact could be shadowed by the legitimate class, causing the attacks to go unnoticed. We present experiments in this section, to provide an initial motivation into the usage of the disagreement samples, for better labeling and retraining of the models.

(a) Effect of sampling, on f-measure of stream.
(b) Effect of sampling, on the percentage of malicious samples obtained for retraining.
Figure 19: : Effect of Random Sampling and Disagreement Sampling, at an imbalance rate of =0.1 and a labeling rate of 10% (i.e., =0.1 * ).

To demonstrate the effects of the proposed disagreement based active learning methodology, we first perform experiments on the synthetic dataset, using the same parameters and stream profile as in Section 4.3 (20,000 samples, exploration starts at 1000 and exploitation starts at 10,000), and by using the AP-Stream framework. The detection model is taken to be the PD model with shuffling of features for retraining (PD-Shuffle). The focus of this analysis is on the efficacy of the active learning approach based on the disagreement information, on the model retrain-ability, and the overall quality following the drift detection. Since the data stream is considered to be imbalanced, we update the Algorithm LABEL:algo:ad_detect, to use f-measure for the confirmation of the drift, instead of accuracy. The size of the samples after drift detection is taken to be 500, and the detection threshold is kept at 1.5, to account for imbalance in the data stream. The simulation of adversarial drifts in imbalanced streams is possible in the AP-Stream framework, by usage of the parameter. The effect of varying the stream imbalance rate and the labeling rate, is analyzed. Labeling rate is the fraction of samples in the set of samples (buffered after drift indication), which will be labeled to form the set of samples, which are ultimately used for drift confirmation and retraining.

The effect of varying the labeling rate and the imbalance in the data stream is shown in Table 7. The f-measure of the final stream, and the percentage of malicious samples in the labeled samples, is shown in the table. High values on both metrics are desirable. As a baseline, the result of using random sampling (without replacement) is also presented in Table 6. From Table 6 and Table 7, we can observe that for imbalanced stream with limited labeling, the disagreement based active learning leads to a more balanced dataset for retraining. This results in a better f-measure for the stream, as more malicious samples are detected and retrained on. This is more pertinent in the case of reduced labeling (shown by emphasized values in both tables). Even for a 95% imbalanced stream, and a budget of only 5% of the samples (=25 samples in this case), a f-measure of 0.84 is seen across the stream for the Disagreement Sampling. This is beneficial, as the inability to detect the adversarial samples and train from them effectively, leads the random sampling approach to fall drastically in performance after attacks (with f-measure= 0.66). The proposed PD model can detect drifts from imbalanced stream, and innately provides an active learning mechanism to further improve on labeling and retraining. This makes it attractive for usage in imbalanced streaming environments, where labeling is time consuming and expensive.

The results of the proposed active learning methodology, on imbalanced streams with of 0.1, and at a labeling budget of 10% on the set of unlabeled training data, is shown in Figure 19. Across the 4 datasets, it can be seen that the active learning method outperforms the random labeling strategy by providing better f-measure and a more balanced labeled training dataset. While several active learning algorithms have been proposed in literature for streaming data (Zliobaite et al., 2014), the focus here is on the innate availability of information, due to the disagreement between the two model of the defender. This information is leveraged for drift detection from unlabeled data, and also for the task of active learning. The hidden classifier serves as a honeypot to capture adversarial samples, for our task of active learning and retraining. This design embodies the principle of dynamic adversarial learning, where forethought and adversarial awareness, leads to advantages in the detection and the subsequent retraining process.

6 Discussion and extension of proposed framework

The developed Predict-Detect framework, is used to demonstrate the benefits of feature importance hiding, in a streaming adversarial environment. The information leverage on the defender’s part, allows for advantages in reactive security, mainly for better attack detect-ability and recovery. In the design of the framework, it was assumed that the provided training dataset can be split into two orthogonal subsets, with each set providing sufficient predictive capabilities. In this section, we empirically evaluate this assumption on popular cybersecurity datasets, and also provide initial ideas for extensibility and customize-ability of the framework.

Dataset CAPTCHA Phishing Spam Spamassassin Nsl-Kdd
Instances 1885 11055 6213 9324 37041
Attributes 26 46 499 499 122
Monolithic Model
Accuracy% (K=1)
99.9 96.3 96.2 97.5 98.1
Min Accuracy% at K = 2 99.8 92.1 95.9 96.7 97.1
Min Accuracy% at K = 3 99.6 88.2 95.4 96.2 92.1
Max Partitions within
5% accuracy drop (K@5%)
5 2 6 7 2
Model performance at K@5%
(Mean Accuracy, Min Accuracy)
Max Partitions within
10% accuracy drop (K@10%)
9 3 10 10 4
Model performance at,K@10%
(Mean Accuracy, Min Accuracy)
Table 8: Results of splitting datasets, vertically, into orthogonal feature subsets. Number of splits is given as . Splits possible within 5% and 10% accuracy loss, are italicized.

Effects of splitting popular cybersecurity datasets is shown in Table 8. Experiments are performed on 5 datasets from the cybersecurity domain, namely: CAPTCHA (D Souza, 2014), phishing (Lichman, 2013), spam, spamassassin (Katakis et al., 2010, 2009) and nsl-kdd(Tavallaee et al., 2009) dataset. The datasets were split vertically (i.e., based on features, with each feature containing all instances of the dataset), based on the feature ranking criterion of Algorithm 1. Each model in the table is a Linear SVM. Accuracy was computed using 10-fold cross validation over the entire dataset.

In Table 8, effects of splitting a dataset, based on features, into orthogonal subsets, is demonstrated. For =1, there is no split in the feature space and the learned model is trained on the entire original dataset. For , the minimum accuracy of the trained models is reported. Additionally, the number of splits- possible at a 5% and 10% loss in the minimum accuracy, is also reported. From the results, it can be seen that it is reasonable to divide the dataset’s features into sets of independent disjoint subsets, such that the minimum accuracy over any feature subset is within an acceptable range (10%), when compared to a monolithic classifier trained on the entire set of features. For the high dimensional datasets of spam and spamassassin, it is seen that 10 partitions are possible within 10% accuracy of the monolithic classifier. We use minimum accuracy of the models for evaluation, as we are interested in feature set partitions, such that all splits have high information content. The results of Table 8, highlight the ability to split the high dimensional cybersecurity datasets into multiple orthogonal subsets of informative features. This evaluation also demonstrates that the split of the datasets in the Predict-Detect framework, into only two subsets, is conservative, as the datasets can be effectively split into a larger number of subsets.

The presence of orthogonal information, and the ability to train models on disjoint feature subsets, allows for extensibility of the Predict-Detect framework. The framework can be extended to be a modular multiple classifier system (MCS) (Woźniak et al., 2014; Farid et al., 2013; Gomes et al., 2017), which effectively leverages the orthogonal trained models. Instead of using two classifiers - one for the Prediction model and the other for the Detection model, the framework can use two sets of ensembles - the Prediction Ensemble and the Detection Ensemble, each comprised of individual orthogonal models (Table 8). This allows system designers to leverage the benefits of feature importance hiding, while still providing flexibility of using their existing model designs and system architectures. The Prediction Ensemble provides for the ability to apply existing robust learning methodologies of (Wang, 2015; Biggio et al., 2010a; Colbaugh and Glass, 2012; Alabdulmohsin et al., 2014). While the Detection Ensemble provides for the ability to maintain strategic advantages in a reactive environment. Presence of multiple models can provide better retraining and replacement policies, which are well designed for ensemble systems (Gomes et al., 2017).

The proposed framework can be made automated, where the feature splitting, retraining, and replacing models, can be done dynamically by the system, and the system is capable of requesting human intervention when it deems necessary. This would make it an intelligent dynamic system, which is capable of reacting to adversarial activity. The domain agnostic design of the framework, assumes a black box view of the defender, further allowing for application specific customization, by system designers.

7 Conclusion and future work

In this paper, the characteristic of adversarial drift, as a special category of concept drift, is presented and analyzed. Adversarial concept drift leads to non-stationarity in the data mining process, and causes deployed machine learning models to degrade over time. It is necessary to deal with these concept drift, in the presence of limited labeling, for practical and continued usage of machine learning, in adversarial domains. As such, we introduce the Predict-Detect streaming classification framework, which is capable of preemptively accounting for adversarial activity, thereby providing benefits at test time. By including considerations for unsupervised drift indication, selective labeling of samples, and misleading of attackers; the proposed framework provides for a generalized way for developers and data scientist, to design for long term security, in adversarial environments.

The developed Predict-Detect framework, was shown to outperform traditional unsupervised drift detection techniques (particularly MD3); in terms of drift detection, and recover-ability from the effects of an adversarial drift. Experimental evaluation was performed on data streams exhibiting adversarial concept drift, which were generated using a novel proposed simulation framework for adversarial drift. The adversarial agnostic design of MD3, was found to be vulnerable to evasion at test time, leading to its inability to detect and recover form drifts. On the other hand, the proposed Predict-Detect framework was seen to be able to perform well in such environments, by its ability to account for adversarial activity in the drift detection process. The proposed framework was also seen to provide a savings of 94% in the labeling budget, when compared to a fully labeled accuracy tracking concept drift handling approach, while maintaining similar accuracy over the stream (4%). In addition, the Predict-Detect design of classifiers, provides for an innate ability to drive active learning on imbalanced data streams, as it serves as a honeypot for capturing minority class adversarial samples. The addition of the adversarial context to the design of the classifiers, at training time, was seen to benefit the dynamic aspects of the system, a test time. This serves to motivate future work in the domain of adversarial drift handling, where forethought and appreciation of domain specific limitations, can provide for better designed systems.

This work primarily focused on the benefits of adding adversarial awareness to the drift detection and retraining component or stream classification systems. To account for a holistic view of the adversarial landscape in which machine learning models operate, it is necessary to integrate such awareness into various aspects of the dynamic system design. Effects of causative attacks (Barreno et al., 2006), to mislead the retraining of the streaming data models, warrants further research. Also, the ability of an adversary to influence the labeling component of the framework, needs analysis. Ideas along the work of adversarial drift (Kantchelian et al., 2013), and adversarial active learning (Miller et al., 2014), are initial steps towards a comprehensive solution.



  • Alabdulmohsin et al. (2014) Alabdulmohsin, I. M., Gao, X., Zhang, X., 2014. Adding robustness to support vector machines against adversarial reverse engineering. In: Proceedings of 23rd ACM CIKM. ACM, pp. 231–240.
  • Aly and Atiya (2006)

    Aly, M. A., Atiya, A. F., 2006. Novel methods for the feature subset ensembles approach. International Journal of Artificial Intelligence and Machine Learning 6 (4).

  • Arabmakki et al. (2014) Arabmakki, E., Kantardzic, M., Sethi, T. S., 2014. Rls-a reduced labeled samples approach for streaming imbalanced data with concept drift. In: 15th International Conference on Information Reuse and Integration (IRI). IEEE, pp. 779–786.
  • Barreno et al. (2010) Barreno, M., Nelson, B., Joseph, A. D., Tygar, J., 2010. The security of machine learning. Machine Learning 81 (2), 121–148.
  • Barreno et al. (2006) Barreno, M., Nelson, B., Sears, R., Joseph, A. D., Tygar, J. D., 2006. Can machine learning be secure? In: Proceedings of the 2006 ACM Symposium on Information, computer and communications security. ACM, pp. 16–25.
  • Biggio et al. (2013) Biggio, B., Corona, I., Maiorca, D., Nelson, B., Šrndić, N., Laskov, P., Giacinto, G., Roli, F., 2013. Evasion attacks against machine learning at test time. In: Machine Learning and Knowledge Discovery in Databases. Springer, pp. 387–402.
  • Biggio et al. (2010a) Biggio, B., Fumera, G., Roli, F., 2010a. Multiple classifier systems for robust classifier design in adversarial environments. International Journal of Machine Learning and Cybernetics 1 (1-4), 27–41.
  • Biggio et al. (2010b) Biggio, B., Fumera, G., Roli, F., 2010b. Multiple classifier systems under attack. In: Multiple Classifier Systems. Springer, pp. 74–83.
  • Biggio et al. (2014a)

    Biggio, B., Fumera, G., Roli, F., 2014a. Pattern recognition systems under attack: Design issues and research challenges. International Journal of Pattern Recognition and Artificial Intelligence 28 (07), 1460002.

  • Biggio et al. (2014b) Biggio, B., Fumera, G., Roli, F., 2014b. Security evaluation of pattern classifiers under attack. IEEE transactions on knowledge and data engineering 26 (4), 984–996.
  • Chinavle et al. (2009) Chinavle, D., Kolari, P., Oates, T., Finin, T., 2009. Ensembles in adversarial classification for spam. In: Proceedings of the 18th ACM conference on Information and knowledge management. ACM, pp. 2015–2018.
  • Colbaugh and Glass (2012) Colbaugh, R., Glass, K., 2012. Predictability-oriented defense against adaptive adversaries. In: IEEE International Conference on Systems, Man, and Cybernetics (SMC). IEEE, pp. 2721–2727.
  • Ditzler and Polikar (2011) Ditzler, G., Polikar, R., 2011. Hellinger distance based drift detection for nonstationary environments. In: IEEE Symposium on Computational Intelligence in Dynamic and Uncertain Environments (CIDUE). IEEE, pp. 41–48.
  • Ditzler et al. (2015) Ditzler, G., Roveri, M., Alippi, C., Polikar, R., 2015. Learning in nonstationary environments: a survey. IEEE Computational Intelligence Magazine 10 (4), 12–25.
  • D Souza (2014) D Souza, D. F., 2014. Avatar captcha: telling computers and humans apart via face classification and mouse dynamics. Electronic Theses and Dissertations-1715.
  • Farid et al. (2013) Farid, D. M., Zhang, L., Hossain, A., Rahman, C. M., Strachan, R., Sexton, G., Dahal, K., 2013. An adaptive ensemble classifier for mining concept drifting data streams. Expert Systems with Applications 40 (15), 5895–5906.
  • Gama et al. (2004) Gama, J., Medas, P., Castillo, G., Rodrigues, P., 2004. Learning with drift detection. In: Advances in artificial intelligence–SBIA 2004. Springer, pp. 286–295.
  • Gama et al. (2014) Gama, J., Žliobaitė, I., Bifet, A., Pechenizkiy, M., Bouchachia, A., 2014. A survey on concept drift adaptation. ACM Computing Surveys (CSUR) 46 (4), 44.
  • Gomes et al. (2017) Gomes, H. M., Barddal, J. P., Enembreck, F., Bifet, A., 2017. A survey on ensemble learning for data stream classification. ACM Computing Surveys (CSUR) 50 (2), 23.
  • Goncalves et al. (2014) Goncalves, P. M., de Carvalho Santos, S. G., Barros, R. S., Vieira, D. C., 2014. A comparative study on concept drift detectors. Expert Systems with Applications 41 (18), 8144–8156.
  • Joshi et al. (2009) Joshi, T., Dey, S., Samanta, D., 2009. Multimodal biometrics: state of the art in fusion techniques. International Journal of Biometrics 1 (4), 393–417.
  • Kantchelian et al. (2013) Kantchelian, A., Afroz, S., Huang, L., Islam, A. C., Miller, B., Tschantz, M. C., Greenstadt, R., Joseph, A. D., Tygar, J., 2013. Approaches to adversarial drift. In: Proceedings of the 2013 ACM workshop on Artificial intelligence and security. ACM, pp. 99–110.
  • Katakis et al. (2009) Katakis, I., Tsoumakas, G., Banos, E., Bassiliades, N., Vlahavas, I., 2009. An adaptive personalized news dissemination system. Journal of Intelligent Information Systems 32 (2), 191–212.
  • Katakis et al. (2010) Katakis, I., Tsoumakas, G., Vlahavas, I., 2010. Tracking recurring contexts using ensemble classifiers: an application to email filtering. Knowledge and Information Systems 22 (3), 371–391.
  • Kerckhoffs (1883) Kerckhoffs, A., 1883. La cryptographie militaire (military cryptography),‖ j. Sciences Militaires (J. Military Science, in French).
  • Kim and Park (2016) Kim, Y. I., Park, C. H., 2016. Concept drift detection on streaming data under limited labeling. In: Computer and Information Technology (CIT), 2016 IEEE International Conference on. IEEE, pp. 273–280.
  • Kons et al. (2014) Kons, Z., et al., 2014. Enhancing decision-level fusion throughcluster-based partitioning of feature set. In: The MENDEL Soft Computing journal: International Conference on Soft Computing MENDEL. pp. 259–264.
  • Kuncheva (2008) Kuncheva, L. I., 2008. Classifier ensembles for detecting concept change in streaming data: Overview and perspectives. In: 2nd Workshop SUEMA. Vol. 2008. pp. 5–10.
  • Lee and Magoules (2012) Lee, J., Magoules, F., 2012. Detection of concept drift for learning from stream data. In: IEEE 14th International Conference on High Performance Computing and Communication & 2012 IEEE 9th International Conference on Embedded Software and Systems (HPCC-ICESS). IEEE, pp. 241–245.
  • Lichman (2013) Lichman, M., 2013. UCI machine learning repository.
  • Lindstrom et al. (2010) Lindstrom, P., Delany, S. J., Mac Namee, B., 2010. Handling concept drift in a text data stream constrained by high labelling cost. In: Twenty-Third International FLAIRS Conference.
  • Lindstrom et al. (2013) Lindstrom, P., Mac Namee, B., Delany, S. J., 2013. Drift detection using uncertainty distribution divergence. Evolving Systems 4 (1), 13–25.
  • Lowd and Meek (2005) Lowd, D., Meek, C., 2005. Adversarial learning. In: Proceedings of the 11th ACM SIGKDD. ACM, pp. 641–647.
  • Masud et al. (2011) Masud, M. M., Gao, J., Khan, L., Han, J., Thuraisingham, B., 2011. Classification and novel class detection in concept-drifting data streams under time constraints. IEEE TKDE 23 (6), 859–874.
  • Masud et al. (2012) Masud, M. M., Woolam, C., Gao, J., Khan, L., Han, J., Hamlen, K. W., Oza, N. C., 2012. Facing the reality of data stream classification: coping with scarcity of labeled data. Knowledge and information systems 33 (1), 213–244.
  • Miller et al. (2014) Miller, B., Kantchelian, A., Afroz, S., Bachwani, R., Dauber, E., Huang, L., Tschantz, M. C., Joseph, A. D., Tygar, J. D., 2014. Adversarial active learning. In: Proceedings of the 2014 Workshop on Artificial Intelligent and Security Workshop. ACM, pp. 3–14.
  • Mrdovic and Perunicic (2008) Mrdovic, S., Perunicic, B., 2008. Kerckhoffs’ principle for intrusion detection. In: The 13th International Telecommunications Network Strategy and Planning Symposium, 2008. IEEE, pp. 1–8.
  • Papernot et al. (2016a) Papernot, N., McDaniel, P., Goodfellow, I., 2016a. Transferability in machine learning: from phenomena to black-box attacks using adversarial samples. arXiv preprint arXiv:1605.07277.
  • Papernot et al. (2016b) Papernot, N., McDaniel, P., Sinha, A., Wellman, M., 2016b. Towards the science of security and privacy in machine learning. arXiv preprint arXiv:1611.03814.
  • Pedregosa and et al (2011) Pedregosa, F., et al, 2011. Scikit-learn: Machine learning in Python 12, 2825–2830.
  • Qahtan et al. (2015) Qahtan, A. A., Alharbi, B., Wang, S., Zhang, X., 2015. A pca-based change detection framework for multidimensional data streams: Change detection in multidimensional data streams. In: Proc. of the 21th ACM SIGKDD ICKDDM. ACM, pp. 935–944.
  • Rndic and Laskov (2014) Rndic, N., Laskov, P., 2014. Practical evasion of a learning-based classifier: A case study. In: IEEE Symposium on Security and Privacy (SP). IEEE, pp. 197–211.
  • Ross et al. (2012) Ross, G. J., Adams, N. M., Tasoulis, D. K., Hand, D. J., 2012. Exponentially weighted moving average charts for detecting concept drift. Pattern Recognition Letters 33 (2), 191–198.
  • Ryu et al. (2012) Ryu, J. W., Kantardzic, M. M., Kim, M.-W., Khil, A. R., 2012. An efficient method of building an ensemble of classifiers in streaming data. In: Big data analytics. Springer, pp. 122–133.
  • Sculley et al. (2011) Sculley, D., Otey, M. E., Pohl, M., Spitznagel, B., Hainsworth, J., Zhou, Y., 2011. Detecting adversarial advertisements in the wild. In: Proceedings of the 17th ACM SIGKDD international conference on Knowledge discovery and data mining. ACM, pp. 274–282.
  • Sethi and Kantardzic (2015) Sethi, T. S., Kantardzic, M., 2015. Don’t pay for validation: Detecting drifts from unlabeled data using margin density. Procedia Computer Science 53, 103–112.
  • Sethi and Kantardzic (2017a) Sethi, T. S., Kantardzic, M., 2017a. Data driven exploratory attacks on black box classifiers in adversarial domains. arXiv preprint arXiv:1703.07909.
  • Sethi and Kantardzic (2017b) Sethi, T. S., Kantardzic, M., 2017b. On the reliable detection of concept drift from streaming unlabeled data. Expert Systems with Applications 82, 77–99.
  • Sethi et al. (2016a) Sethi, T. S., Kantardzic, M., Arabmakki, E., 2016a. Monitoring classification blindspots to detect drifts from unlabeled data. In: 17th IEEE International Conference on Information Reuse and Integration (IRI). IEEE.
  • Sethi et al. (2016b) Sethi, T. S., Kantardzic, M., Hu, H., 2016b. A grid density based framework for classifying streaming data in the presence of concept drift. Journal of Intelligent Information Systems 46 (1), 179–211.
  • Sethi et al. (2017) Sethi, T. S., Kantardzic, M., Ryu, J. W., 2017. Security theater: On the vulnerability of classifiers to exploratory attacks. In: 12th Pacific Asia Workshop on Intelligence and Security Informatics. Springer.
  • Smutz and Stavrou (2016) Smutz, C., Stavrou, A., 2016. When a tree falls: Using diversity in ensemble classifiers to identify evasion in malware detectors. In: NDSS Symposium.
  • Spinosa et al. (2007) Spinosa, E. J., de Leon F de Carvalho, A. P., Gama, J., 2007. Olindda: A cluster-based approach for detecting novelty and concept drift in data streams. In: Proceedings of the 2007 ACM symposium on Applied computing. ACM, pp. 448–452.
  • Stevens and Lowd (2013) Stevens, D., Lowd, D., 2013. On the hardness of evading combinations of linear classifiers. In: Proceedings of the 2013 ACM workshop on Artificial intelligence and security. ACM, pp. 77–86.
  • Tavallaee et al. (2009) Tavallaee, M., Bagheri, E., Lu, W., Ghorbani, A.-A., 2009. A detailed analysis of the kdd cup 99 data set. In: Proceedings of the Second IEEE Symposium on Computational Intelligence for Security and Defence Applications 2009.
  • Tramèr et al. (2016) Tramèr, F., Zhang, F., Juels, A., Reiter, M. K., Ristenpart, T., 2016. Stealing machine learning models via prediction apis. arXiv preprint arXiv:1609.02943.
  • Vorobeychik and Li (2014) Vorobeychik, Y., Li, B., 2014. Optimal randomized classification in adversarial settings. In: Proceedings of the 2014 international conference on Autonomous agents and multi-agent systems. International Foundation for Autonomous Agents and Multiagent Systems, pp. 485–492.
  • Wang (2015) Wang, F., 2015. Robust and adversarial data mining. Sydney Digital Theses (Open Access).
  • Woźniak et al. (2014) Woźniak, M., Graña, M., Corchado, E., 2014. A survey of multiple classifier systems as hybrid systems. Information Fusion 16, 3–17.
  • Xu et al. (2014) Xu, J., Guo, P., Zhao, M., Erbacher, R. F., Zhu, M., Liu, P., 2014. Comparing different moving target defense techniques. In: Proceedings of the First ACM Workshop on Moving Target Defense. ACM, pp. 97–107.
  • Žliobaitė (2010) Žliobaitė, I., 2010. Learning under concept drift: an overview. arXiv preprint arXiv:1010.4784.
  • Zliobaite et al. (2014)

    Zliobaite, I., Bifet, A., Pfahringer, B., Holmes, G., 2014. Active learning with drifting streaming data. IEEE Transactions on Neural Networks and Learning Systems 25 (1), 27–39.
