1 Introduction

Traffic scene understanding is an active area in autonomous driving, where one emerging and challenging task is to perceive 3D attributes (including translation, rotation and shape) of vehicle instances in a dynamic environment as Figure 1 shows. Compared to other scene representations such as 2D/3D bounding boxes [5, 27, 37], semantic masks [7, 40] and depth maps [60], representing traffic scene with 6D object pose and detailed 3D shape is more informative for spatial reasoning and motion planning of self-driving cars.

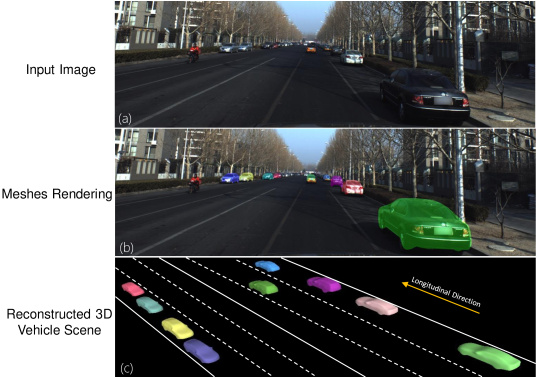

Figure 1: Joint vehicle pose and shape reconstruction results of our GSNet, where (a) is the input RGB image, (b) shows the reconstructed 3D car meshes projected onto the original image, (c) is a novel aerial view of the reconstructed 3D traffic scene. Corresponding car instances in (b) and (c) are depicted in the same color.

Due to the lack of depth information in monocular RGB images, many existing works resort to stereo camera rigs [27, 28] or expensive LiDAR [62, 63, 21]. However, they are limited by constrained perception range [27] or sparse 3D points for distant regions in the front view [48]

. When using only a single RGB image, works that jointly reconstruct vehicle pose and shape can be classified into two categories:

fitting-based and direct regression-based.  Fitting-based methods [3, 49, 48] use a two-stage strategy where they first extract 2D image cues such as bounding boxes and keypoints and then fit a 3D template vehicle to best match its 2D image observations. The second stage is a post-processing step that is usually time-consuming due to iterative non-linear optimization, making it less applicable for real-time autonomous driving. On the contrary, regression-based methods [22, 48] directly predict 3D pose/shape parameters with a single efficient forward pass of a deep network and is gaining increasing popularity with the growing scale of autonomous driving datasets.

Despite the recent regression-based methods having achieved remarkable performance for joint vehicle pose estimation and 3D shape reconstruction, we point out some unexplored yet valuable research questions: (1) Most regression-based networks [22, 48, 26] inherit classical 2D object detection architectures that solely use region of interest (ROI) features to regress 3D parameters. How other potential feature representation can improve network performance is less studied. (2) Deep networks require huge amounts of supervision [18], where useful supervisory signals other than manually annotated input-target pairs are favorable. Consistency brought by projective geometry is one possibility, yet the optimal design is still under-explored. Render-and-compare loss was used in [22] but it suffers from ambiguities where similar 2D projected masks can correspond to different 3D unknown parameters. For example, a mask similar to the ground truth mask is produced after changing the ground truth 3D pose by 180 degrees around the symmetry axis, i.e., the prediction is not penalized enough despite being incorrect. (3) Previous regression-based works only penalize prediction error for single car instance and separate it from its environmental context, but a traffic scene includes the interaction between multiple instances and the relationship between instances with the physical world. We argue that considering these extra information can improve the training of a deep network.

We investigate these above questions and propose GSNet (Geometric and Scene-aware Network), an end-to-end multi-task network that can estimate 6DoF car pose and reconstruct dense 3D shape simultaneously. We go beyond the ROI features and systematically study how other visual features that encode geometrical and visibility information can improve the network performance, where a simple yet effective four-way feature fusion scheme is adopted. Equipped with a dense 3D shape representation achieved by a divide-and-conquer strategy, we further design a multi-objective loss function to effectively improve network learning as validated by extensive experiments. This loss function considers geometric consistency using the projection of 66 semantic keypoints instead of masks which effectively reduces the ambiguity issue. It also incorporates a scene-aware term considering both inter-instance and instance-environment constraints.

In summary, our contributions are: (1) A novel end-to-end network that can jointly reconstruct 3D pose and dense shape of vehicles, achieving state-of-the-art performance on the largest multi-task ApolloCar3D benchmark [48]. (2) We propose an effective approach to extract and fuse diverse visual features, where systematic ablation study is shown to validate its effectiveness. (3) GSNet reconstructs fine-grained 3D meshes (1352 vertices) by our divide-and-conquer shape representation for vehicle instances rather than just 3D bounding boxes, wireframes [67] or retrieval [3, 48]. (4) We design a new hybrid loss function to promote network performance, which considers both geometric consistency and scene constraints. This loss is made possible by the dense shape reconstruction, which in turn promotes the 6D pose estimation precision and sheds light on the benefit of jointly performing both tasks.

2 Related Work

Monocular 6DoF pose estimation. Traditionally, 6D object pose estimation is handled by creating correspondences between the object’s known 3D model and 2D pixel locations, followed by Perspective-n-Point (PnP) algorithm [45, 54, 39]. For recent works, [2, 13] construct templates and calculate the similarity score to obtain the best matching position on the image. In [38, 45, 59], 2D regional image features are extracted and matched with the features on 3D model to establish 2D-3D relation which thus require sufficient textures for matching. A single-shot deep CNN is proposed in [51] which regresses 6D object pose in one stage while in [50] a two-stage method is used: 1) SSD [35]

for detecting bounding boxes and identities; 2) augmented autoencoder predicts object rotation using domain randomization

[52]. Most recently, Hu et al. [14] introduces a segmentation-based method by combining local pose prediction from each visible part of the objects. Comparing to the cases in self-driving scenarios, these methods [16, 59, 42]

are applied to indoor scenes with a small variance in translation especially along the longitudinal axis. Although using keypoints information, our model does

not treat pose estimation as a PnP problem and is trained end-to-end.

Monocular 3D shape reconstruction. With the advent of large-scale shape datasets [4]

and the progress of data-driven approaches, 3D shape reconstruction from a single image based on convolutional neural networks is drawing increasing interests. Most of these approaches

[43, 56, 66, 61, 47, 44, 19, 30] focus on general objects in the indoor scene or in the wild [15], where single object is shot in a close distance and occupies the majority of image area. Different from them, GSNet is targeted for more complicated traffic environment with far more vehicle instances to reconstruct per image, where some of them are even under occlusion at a long distance (over 50 meters away).

Joint vehicle pose and shape reconstruction. 3D traffic scene understanding from a single RGB image is drawing increasing interests in recent years. However, many of these approaches only predict object orientation with 3D bounding boxes [6, 29, 62, 33, 1, 46, 60]. When it comes to 3D vehicle shape reconstruction, since the KITTI dataset [11] labels cars using 3D bounding boxes with no detailed 3D shape annotation, existing works mainly use wireframes [67, 26, 55, 20] or retrieve from CAD objects [3, 48, 36, 57]. In [64], the authors utilize 3D wireframe vehicle models to jointly estimate multiple objects in a scene and find that more detailed representations of object shape are highly beneficial to 3D scene understanding. DeepMANTA [3] adopts a coarse-to-fine refinement strategy to first regress 2D bounding box positions and generate 3D bounding boxes and finally obtain pose estimation results via 3D template fitting [25] by using the matched skeleton template to best fit its 2D image observations, which requires no image with 3D ground truth. Most related to ours, 3D-RCNN [22] regresses 3D poses and deformable shape parameters in a single forward pass, but it uses coarse voxel shape representation and the proposed render-and-compare loss causes ambiguity during training. Direct-based [48] further augments 3D-RCNN by adding mask pooling and offset flow. In contrast to these prior works, GSNet produces a more fine-grained 3D shape representation of vehicles by effective four-way feature fusion and divide-and-conquer shape reconstruction, which further inspires a geometrical scene aware loss to regularize network training with rich supervisory signals.

3 Pose and Shape Representation

6DoF Pose. The 6DoF pose for each instance consists of the 3D translation and 3D rotation . is represented by the object center coordinate in the camera coordinate system . Rotation defines the rotation Euler angles about axes of the object coordinate system .

Divide-and-Conquer Shape Representation. We represent vehicle shape with dense mesh consisting of 1352 vertices and 2700 faces, which is much more fine-grained compared to the volume representation used in [22]. We start with the CAD meshes provided by the ApolloCar3D database [48], which has different topology and vertex number for each car type. We convert them into the same topology with a fixed number of vertices by deforming a sphere using the SoftRas [34] method.

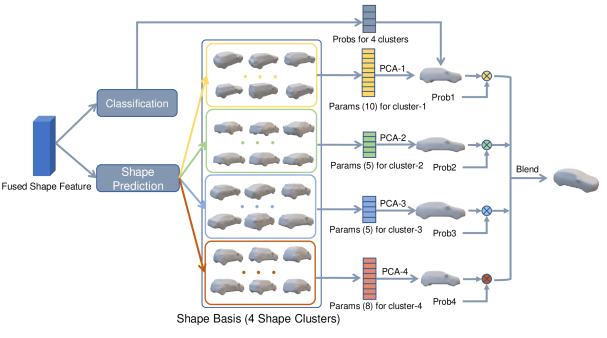

Figure 2:

Illustration of our divide-and-conquer 3D shape reconstruction module, where we obtain four independent PCA models for each shape cluster. Instance shape reconstruction is achieved by reconstructing shape in each cluster and blend them with the respective classification probabilities. This strategy achieves lower shape reconstruction error compared to other methods as shown in Table

5.

To ease the training of neural network for shape reconstruction, we reduce the shape representation dimension with principle component analysis (PCA) [41]. However, applying PCA to all available meshes directly [9, 24, 23] is sub-optimal due to the large variation of car types and shapes. We thus adopt a divide-and-conquer strategy as shown in Figure 2

. We first cluster a total of 79 CAD models into four subsets with K-Means algorithm utilizing the shape similarity between car meshes. For each subset, we separately learn a low dimensional shape basis with PCA. Denote a subset of

vehicle meshes as , we use PCA to find dimensional shape basis, , where . During inference, the network classifies the input instance into the 4 clusters and predicts the principle component coefficient for each cluster. The final shape is blended from the four meshes weighted by the classification score. With this strategy, we achieve lower shape reconstruction error than directly applying PCA to all meshes or retrieval which is detailed in our ablation study.

4 Network Architecture Design

Figure 3 shows the overall architecture of our GSNet for joint car pose and shape reconstruction. We design and extract four types of features from a complex traffic scene, after which a fusion scheme is proposed to aggregate them. Finally, multi-task prediction is done in parallel to estimate 3D translation, rotation and shape via the intermediate fused representations.

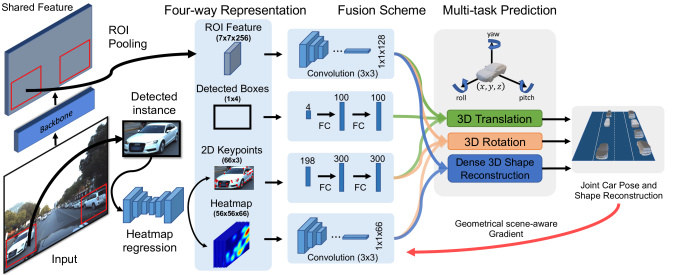

Figure 3: Overview of our GSNet for joint vehicle pose and shape reconstruction. We use region-based 2D object detector [12] and a built-in heatmap regression branch to obtain ROI features, detected boxes, keypoint coordinates (global locations in the whole image) and corresponding heatmap (local positions and visibility in sub-region). GSNet performs an effective fusion of four-way input representations and builds three parallel branches respectively for 3D translation, rotation and shape estimation. 3D shape reconstruction is detailed in Figure 2 and our hybrid loss function is illustrated in section 5.

Diverse Feature Extraction and Representation. Existing methods [22, 59] only use ROI features to regress 3D parameters, but we argue that using diverse features can better extract useful information in a complex traffic scene. Given an input image, we first use a region-based 2D object detector [12] to detect car instances and obtain its global location. Based on the bounding boxes, ROI pooling is used to extract appearance features for each instance. In a parallel branch, each detected instance is fed to a fully-convolutional sub-network to obtain 2D keypoint heatmaps and coordinates. The coordinates encode rich geometric information that can hardly be obtained with ROI features alone [65], while the heatmaps encode part visibility to help the network discriminate occluded instances.

Detected boxes are represented as 2D box center , width and height in pixel space. Camera intrinsic calibration matrix is where are focal lengths in pixel units and is the principal point at the image center. We transform from pixel space to the corresponding coordinates in the world frame:

(1)

where is the fixed scale factor. For keypoint localization, we use the 66 semantic keypoints for cars defined in [48]. A 2D keypoint is represented as , where are the image coordinates and denotes visibility. In implementation, we adapt [12] pre-trained for human pose estimation on COCO to initialize the keypoint localization branch. For extracting ROI features, we use FPN [31] as our backbone.

Fusion Scheme.

We convert the extracted four-way inputs into 1D representation separately and decide which features to use for completing each task by prior knowledge. For global keypoint positions and detected boxes, we apply two fully-connected layers to convert them into higher level feature. For ROI feature maps and heatmaps, we adopt sequential convolutional operations with stride 2 to reduce their spatial size to

while keeping the channel number unchanged.

Instead of blindly using all features for prediction, we fuse different feature types that are most informative for each prediction branch. The translation mainly affects the object location and scale during the imaging process, thus we concatenate the ROI feature, 2D keypoint feature and box position feature for translation regression. The rotation determines the image appearance of the object given its 3D shape and texture, thus we utilize the fusion of ROI feature, heatmap feature and the keypoint feature as input. For estimating shape parameters , we aggregate the ROI and heatmap features.

4.0.1 Multi-task Prediction

We design three parallel estimation branches (translation, rotation and shape reconstruction) as shown in Figure 3 since they are independent, where each branch directly regresses the targets with mutual benefits. Note that parts of input features such as ROI heatmap and keypoint positions are shared in different branches, which can be jointly optimized and is beneficial as shown by our experiments. In contrast to previous methods that predict translation or depth using a discretization policy [10]

, GSNet can directly regress the translation vector and achieve accurate result

without any post processing or further refinement. For the shape reconstruction branch, the network classify the input instance and estimates the low-dimensional parameters (less than 30) for four clusters as described in section 3.

5 Geometrical and Scene-aware Supervision

To provide GSNet with rich supervisory signals, we design a composite loss functions consisting of multiple terms. Apart from ordinary regression losses, it also strives for geometrical consistency and considers scene-level constraints in both inter- and intra-instance manners.

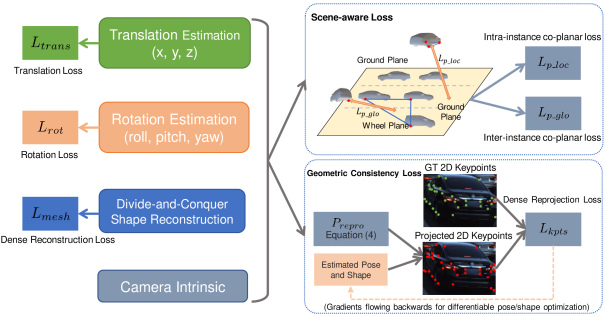

Figure 4: The hybrid loss function for optimizing the GSNet. The scene-aware loss consists of two parts, for multiple car instances resting on common ground and for each single car at a fine-grained level. For geometrical consistency, camera intrinsics are used to project the predicted 3D semantic vertices on a car mesh to image and compared with the 2D detections.

Achieve geometrical consistency by projecting keypoints. With the rich geometric details of the 3D vehicles as shown in Figure 4, we exploit the 2D-3D keypoints correspondence using a pinhole camera model to provide extra supervision signal. For a 3D semantic keypoint on the predicted mesh with translation and rotation , the reprojection equation is:

(2)

where is the camera intrinsic matrix and is the projection point in pixels units. For the th projected keypoint , the reprojection loss is

(3)

where is the corresponding image evidence given by our heatmap regression module. The total loss for semantic keypoints in a car instance is

(4)

where is a boolean value indicating the visibility of th keypoint in the image. This reprojection loss is differentiable and can be easily incorporated in the end-to-end training process. The correspondence of 2D keypoints and 3D mesh vertices is needed to compute the loss and we determine it by ourselves. We project each 3D vertex on the ground truth mesh to image plane and find its nearest neighboring 2D points. The 66 3D vertices whose 2D projections have the most 2D annotated neighbors are selected as the corresponding 3D landmarks. We also provide an ablation experiment on the influence of keypoints number in the supplementary file.

Scene-aware Loss. Observe that most of cars rest on a common ground plane and the height of different instances is similar, thus the car centers are nearly co-planar. For each image, we locate mesh centers for four randomly-selected instances. Three of the centers define a plane and denote the remaining car center coordinate as . As shown in Figure 4, we introduce the inter-instance co-planar loss for multiple cars as:

(5)

In addition, the centroids of the four wheels on a car should also lie in the same plane parallel to the ground. Thanks to the dense 3D mesh reconstructed by our multi-task network, we can readily obtain these four 3D coordinates. We thus propose the intra-instance co-planar loss to supplements . It is similar to Eq. 5 but the three points are chosen on the same instance.

Regression Losses. We use L2 loss to penalize inaccurate 3D shape reconstruction as:

(6)

where is total number of vertices, is the th predicted vertex and is the ground truth vertex. For regression of 6DoF pose, we find that L1 loss performs better than L2 loss.The loss for translation regression is

(7)

where and are ground-truth and predicted translation vector, respectively. For regressing rotation in Euler angles, we restrict the range around each axis . Since this is a unimodal task, we define the regression loss as

(8)

where and are the predicted and ground truth rotation vector.

Sub-type Classification Loss. We also classify the car instance into 34 sub-types (sedan, minivan, SUV, etc.) and denote the classification loss as .

Final Objective Function. The final loss function for training our GSNet is defined as:

(9)

where s balance the above loss components. As validated by our experiments in section 6.2, this hybrid loss function design significantly promotes the network’s performance compared to using only regression losses alone.

6 Experiments

6.1 Datasets and Experimental Settings

ApolloCar3D. We use the most recent and largest multi-task ApolloCar3D dataset [48] to train and evaluate GSNet. This dataset contains 5,277 high-resolution (2,7103384) images. We follow the official split where 4036 images are used for training, 200 for validation and the remaining 1041 for testing. Compared to KITTI [11], the instance count in ApolloCar3D is 20X larger with far more cars per image (11.7 vs 4.8) where distant instances over 50 meters are also annotated. In addition, ApolloCar3D provides 3D shape ground truth to evaluate shape reconstruction quantitatively, which is not available in KITTI.

Pascal3D+ We also train and evaluate GSNet on Pascal3D+ [58] dataset using its car category. There are totally 6704 in-the-wild images with 1.19 cars per image on average. It also provides both dense 3D shape and 6D pose annotation.

Evaluation Metrics.

We follow the evaluation metrics in

[48], which utilizes instance 3D average precision (A3DP) with 10 thresholds (criteria from loose to strict) for jointly measuring translation, rotation and 3D car shape reconstruction accuracy. The results on the loose and strict criterion are respectively denoted as c-l and c-s. During evaluation, Euclidean distance is used for 3D translation while arccos distance is used for 3D rotation. For 3D shape reconstruction, a predicted mesh is rendered into 100 views to compute IoU with the ground truth masks and the mean IoU is used. In addition to the absolute distance error, the relative error in translation is also evaluated to emphasize the model performance for nearby cars, which are more important for autonomous driving. We denote A3DP evaluated in relative and absolute version as A3DP-Rel and A3DP-Abs respectively.

Implementation Details. GSNet utilizes the Mask R-CNN [12] with ResNet-101 backbone pre-trained on the COCO 2017 dataset [32] for object detection and extracting ROI features (). We discard detected objects with confidence score less than 0.3. The in Eq. 9 are set to 5.0, 5.0, 0.01, 10.0, 0.5, 1.0, 0.5 to balance the loss components. During training, we use Adam optimizer [17]

with initial learning rate 0.0025 and reduce it by half every 10 epochs for total 30 epochs. The 2D keypoint localization branch is trained separately where we use 4,036 training images containing 40,000 labeled vehicles with 2D keypoints and set threshold 0.1 for deciding keypoint visibility. When building the dense shape representation, there are respectively 9, 24, 14, 32 meshes in the four clusters.

6.2 Ablation Study of Network Architecture and Loss Design

We conduct three ablation experiments on ApolloCar3D validation set to validate our network design, loss functions and dense shape representation strategy.

Is extracting more features beneficial? We validate our four-way feature extraction fusion design by varying the number of used branches as: 1) Baseline: only using instance ROI features; 2) fusing transformed bounding box feature with the ROI feature; 3) combining predicted heatmap feature to the input; 4) further adding the 2D keypoint feature. The quantitative comparison is shown in Table 1. Compared to using ROI features alone, the injection of transformed detected boxes (center position, width and height) help provide geometric information, which help reduce translation error by 35.2% while improves Rel-mAP from 6.8 to 12.5 and Abs-mAP from 7.0 to 11.4. The introduction of keypoint heatmaps is beneficial especially for rotation estimation. This extra visibility information for the 2D keypoints reduces rotation error by 25.0% and further promoting Rel-mAP from 12.5 to 13.7 and Abs-mAP from 11.4 to 12.4. Finally, the 2D keypoint position branch complements the other three branches and improves model performance consistently for different evaluation metrics.

Effectiveness of the hybrid loss function. Here we fix our network architecture while varying the components of loss function to validate our loss design. The experiments are designed as follows: 1) Baseline: adopt four-way feature fusion architecture, but only train the network with regression and classification losses without shape reconstruction; 2) adding 3D shape reconstruction loss; 3) incorporating geometrical consistency loss; 4) adding scene-aware loss but only use the inter-instance version; 5) adding the intra-instance scene-aware component to complete the multi-task loss function. As shown in Table 2, the reprojection consistency loss promotes 3D localization performance significantly, where the 3D translation error reduces over 10% and Rel-mAp increases from 15.1 to 17.6. The scene-aware loss brings obvious improvement compared to ignoring the traffic scene context, especially for the A3DP-Rel strict criterion c-s (increasing AP from 14.2 to 19.8). In addition, using both inter-instance and intra-instance loss components outperforms using inter-instance scene-aware loss alone. Compared to the baseline, our hybrid loss function significantly promotes the performance of Rel-mAp and Abs-mAp respectively to 20.2 and 18.9.

Is jointly performing both tasks helpful? We argue that jointly performing dense shape reconstruction can in turn help 6D pose estimation. Without the introduction of the dense shape reconstruction task, we do not have access to the reconstruction loss C1 as well as the geometrical and scene-aware losses (C2, C3 and C4). Note that C1-C4 significantly improves estimation accuracy for translation and rotation.

2D Input Representation A3DP-Rel A3DP-Abs 6DoF Error
ROI boxes heatmap kpts mean c-l c-s mean c-l c-s T R
6.8 20.1 3.2 7.0 17.7 5.1 2.41 0.33
12.5 30.1 8.9 11.4 26.6 8.8 1.56 0.32
13.7 32.5 9.2 12.4 29.2 9.2 1.53 0.24
14.1 32.9 10.5 12.8 29.3 9.9 1.50 0.24
Table 1: Ablation study for GSNet on four-way feature fusion, which shows the relevant contribution of each representation with only regression losses. Performance is evaluated in terms of A3DP (jointly measuring translation, rotation and 3D car shape reconstruction accuracy), where c-l indicates results on loose criterion and c-s indicates strict criterion. GSNet exhibits a significant improvement compared to the baseline (with only ROI features), which promotes A3DP-Rel item c-s from 3.2 to 10.5. T and R in 6DoF Error respectively represent 3D translation and rotation.
Loss Components A3DP-Rel A3DP-Abs 6DoF Error
C0 C1 C2 C3 C4 mean c-l c-s mean c-l c-s T R
14.1 32.9 10.5 12.8 29.3 9.9 1.50 0.24
15.1 34.8 11.3 15.0 32.0 13.0 1.44 0.23
17.6 37.3 14.2 16.7 34.1 15.4 1.30 0.20
18.8 39.0 16.3 17.6 35.3 16.7 1.27 0.20
20.2 40.5 19.8 18.9 37.4 18.3 1.23 0.18
Table 2: Ablation study for GSNet using different loss components of the hybrid loss function, which shows the relevant contribution of each component. C0, C1, C2, C3, C4 respectively denote pose regression loss, 3D shape reconstruction loss, geometrical consistency loss, inter-instance scene-aware loss and intra-instance scene-aware loss. GSNet exhibits a significant improvement compared to the baseline (with only regression losses), especially in estimating the surrounding car instances as shown by A3DP-Rel (item c-s has been significantly boosted from 10.5 to 19.8).

Effectiveness of the divide-and-conquer strategy. Table 5 compares model performance using different shape representations: retrieval, single PCA shape-space model and our divide-and-conquer strategy detailed in section 3. Observe that our divide-and-conquer strategy not only reduces shape reconstruction error for around 10%, but also boosts the overall performance for traffic instance understanding. Also, we present shape reconstruction error distribution across different vehicle categories in our supplementary file.

6.3 Comparison with state-of-the-art methods

6.3.1 Quantitative Comparison on ApolloCar3D

We compare GSNet with state-of-the-art approaches that jointly reconstruct vehicle pose and shape on ApolloCar3D dataset as shown in Table 3. The most recent regression-based approaches are: 1) 3D-RCNN [22], which regress 3D instances from ROI features and add geometrical consistency by designing a differentiable render-and-compare mask loss; 2) Direct-based method in  [48], which improves 3D-RCNN by adding mask pooling and offset flow. We can see that our GSNet achieves superior results among the existing regression-based methods across the evaluation metrics while being fast, nearly doubling the mAP performance of 3D-RCNN in A3DP-Rel entry. Compared to the fitting-based pose estimation methods using Epnp [25], which fit 3D template car model to 2D image observations in a time-consuming optimization process, GSNet performs comparably in A3DP-Rel and A3DP-Abs metrics with a high-resolution shape reconstruction output not constrained by the existing CAD templates. Note that  fitting-based methods consume long time and thus are not feasible for time-critical applications. Also note that A3DP-Rel is important since nearby cars are more relevant for self-driving car to make motion planning, where GSNet improves c-l AP performance by 15.75 compared to Kpts-based [48].

Model Shape Reconstruction Regression-based A3DP-Rel A3DP-Abs Times Time-efficient
mean c-l c-s mean c-l c-s
DeepMANTA (CVPR’17) [3] retrieval 16.04 23.76 19.80 20.10 30.69 23.76 3.38s
Kpts-based (CVPR’19) [48] retrieval 16.53 24.75 19.80 20.40 31.68 24.75 8.5s
3D-RCNN (CVPR’18) [22] TSDF volume [8] 10.79 17.82 11.88 16.44 29.70 19.80 0.29s
Direct-based (CVPR’19) [48] retrieval 11.49 17.82 11.88 15.15 28.71 17.82 0.34s
Ours: GSNet Detailed deformable mesh 20.21 40.50 19.85 18.91 37.42 18.36 0.45s
Table 3: Performance comparison with state-of-the-art 3D joint vehicle pose and shape reconstruction algorithms on ApolloCar3D dataset. Times is the average inference time for processing each image. GSNet achieves significantly better performance than state-of-the-art regression-based approaches (using a deep network to directly estimate the pose/shape from pixels) with both high precision and fast speed where inference time is critical in autonomous driving. * denotes fitting-based methods, which fits a 3D template car model to best match its 2D image observations (requires no image with 3D ground truth) and is time-consuming.
Shape-space Model Shape Reconstruction Error Rel-mAP
Retrieval 92.46 17.6
Single PCA 88.68 18.7
Divide-and-Conquer Shape Module 81.33 20.2
Table 5: Results on viewpoint estimation with annotated boxes on Pascal3D+ [58] for Car, where GSNet gets highest accuracy and lowest angular error.
Model
RenderForCNN [49] 0.88 6.0
Deep3DBox [37] 0.90 5.8
3D-RCNN [22] 0.96 3.0
Ours: GSNet 0.98 2.4
Table 4: Results comparison between GSNet adopting retrieval, single PCA model and our divide-and-conquer shape module on ApolloCar3D validation set.

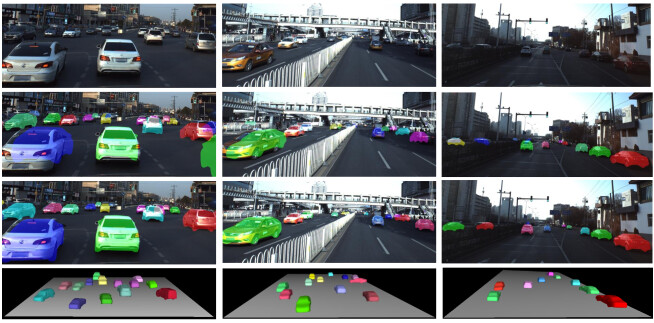

Figure 5: Qualitative comparison on the ApolloCar3D test set of different approaches by rendering 3D mesh output projected onto the input 2D image. The first row are the input images, the second row is the result of Direct-based [48] and the third row is predicted by our GSNet. The bottom row shows the reconstructed meshes in 3D space. Corresponding car instances are depicted in the same color.

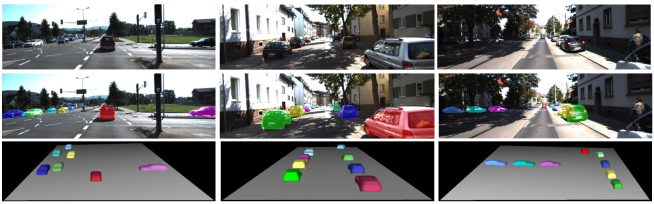

Figure 6: Cross-dataset generalization of GSNet on KITTI [11] dataset. The first row are the input images and the second row are our reconstructed 3D car meshes projected onto the original image. Additional results are shown in our supplementary material.

6.3.2 Quantitative Comparison on Pascal3D+

To further validate our network, we evaluate GSNet on the Pascal3D+ [58] dataset using its car category. We follow the setting in [22, 37] to evaluate the viewpoint and use and adopted in [37, 53] to report results in Table 5, where the median angular error improves by 20% from 3.0 to 2.4 compared to 3D-RCNN.

6.3.3 Qualitative Analysis

Figure 5 shows qualitative comparisons with other direct regression-based methods for joint vehicle pose and shape reconstruction. Compared with Direct-based [48], our GSNet produces more accurate 6DoF pose estimation and 3D shape reconstruction from monocular images due to the effective four-way feature fusion, the hybrid loss which considers both geometrical consistency and scene-level constraints and our divide-and-conquer shape reconstruction. Although directly regressing depth based on monocular images is considered as an ill-posed problem, our GSNet achieves high 3D estimation accuracy (our projected masks of car meshes on input images show an almost perfect match), particularly for instances in close proximity to the self-driving vehicle. The last column of the figure shows that the estimation of GSNet is still robust even in a relatively dark environment where the two left cars are heavily occluded. The last row visualizes the predicted 3D vehicle instances.

Figure 6 shows additional qualitative results on applying GSNet on KITTI [11]. Despite that GSNet is not trained on KITTI, the generalization ability of our model is validated as can be seen from the accurate 6D pose estimation and shape reconstruction of unseen vehicles. More results (including 3 temporally preceding frames of KITTI) are available in our supplementary material.

7 Conclusion

We present an end-to-end multi-task network GSNet, which jointly reconstructs 6DoF pose and 3D shape of vehicles from single urban street view. Compared to previous regression-based methods, GSNet not only explores more potential feature sources and uses an effective fusion scheme to supplement ROI features, but also provides richer supervisory signals from both geometric and scene-level perspectives. Vehicle pose estimation and shape reconstruction are tightly integrated in our system and benefit from each other, where 3D reconstruction delivers geometric scene context and greatly helps improve pose estimation precision. Extensive experiments conducted on ApolloCar3D and Pascal3D+ have demonstrated our state-of-the-art performance and validated the effectiveness of GSNet with both high accuracy and fast speed.

7.0.1 Acknowledgement:

This research is supported in part by the Research Grant Council of the Hong Kong SAR under grant no. 1620818.
