1 Introduction

The present world craves for optimization with respect to every possible aspects of the nature and its happenings due to the rapid depletion of easy energy sources and profit maximization. Hence a lot of focus has been made on optimization of different fields of engineering problems and management problems mainly which are multi-dimensional and mathematical based. However there remains another sector which requires considerable attention and has represented many real life and real time problems starting from path planning, social media interaction, diffusion and ranking, recommendation systems, constraint processes scheduling, multi-objective optimization etc. This field is not a new one but has changed the way of data representation and interaction. It is better known as discrete problems (as the elements are discrete events and the conditional sequence of them held immense importance) and constitutes all problems related to graph based problems and combinatorial optimization problems. This work is marked by the introduction and application of such a discrete multi-agent based algorithm called Green Heron Swarm Optimization (GHOSA) Algorithm. It suits the discrete problems because of its combination generation and optimization capability for the discrete problems.

The newly introduced GHOSA is inspired by the habit of the Green Heron bird for food acquisition through their artistic skills, senses and intelligence. The algorithm is marked by the three probabilistic multi-agent based combination generation steps and an adaptive mathematical variation exclusively only for the continuous numerical mathematical problems and the various system models. The algorithm is applied on Travelling Salesman problem, 0/1 Knapsack problem and the Quadratic Assignment problems and the results are compared with the optimum values. The extended algorithm (inclusive of LBNIV) is applied on the various multi-dimensional numerical benchmark equations and optimization is sought with respect to the optimum and is compared with real coded Genetic Algorithm and Particle Swarm Optimization. Green Heron Optimization Algorithm (GHOA) denotes the algorithm without LBNIV operator and Green Heron Swarm Optimization Algorithm (GHSOA) represents the whole lot. So GHSOA signifies that the algorithm is exclusively for continuous domain problems while GHOA can be used for both discrete and limited continuous problems.

The rest of the article is arranged as Section 2 for the related work in bio-inspired computation, Section 3 with the description of the bird, Section 4 with the illustration of the GHOSA, Section 5 with details of the algorithm for the various applications and results, Section 6 for benchmark performance evaluation and scope for hybridization and Section 7 concludes with future works.

2 Related work

There are several bio-inspired algorithms which are highly successful in achieving near optimal optimization of various problems of the nature both in continuous and discrete domain. Discrete Particle Swarm Optimization (Kennedy, 1997), discrete Genetic Algorithm (Pengfei, 2011) are specialized in generating discrete values but have limited applicability for combinatorial optimization which are handled well by Ant Colony Optimization (ACO) Algorithm (Dorigo, 1997), (Sur, 2012), Intelligent Water Drop (IWD) Algorithm (Hamed, 2008), Egyptian Vulture Optimization Algorithm (Sur, 2013a), (Sur, 2013b) etc like optimization algorithms. Other continuous domain algorithms like Particle Swarm Optimization (PSO) Algorithm (Kennedy, 1995) helps in social influenced multi-agent like swarm search operations, Genetic Algorithm (GA) is specialized in combination formation out of the existing solutions and prevents local stagnancy of agents, Bat Algorithm (Yang, 2010) is an enhanced multi-hierarchy based swarm intelligence, Bacteria Foraging Optimization Algorithm (Passino, 2002) operates on swarming like grouping movement and increases the level of local searches, Krill Herd (Gandomi, 2012) works on krill organism like movement and search for optimization peak, Artificial Bee Colony (ABC) (Karaboga, 2007) divides the agents for cooperative exploration and exploitations and the agents switches character, Honey Bee Swarm (Karaboga, 2005) works on reproduction and crossover of their breed for better agent generation, Firefly Algorithm (Yang, 2009) works on the cooperative influence of the better agents through light attraction like feature, Glowworm Swarm Optimization (Krishnanand, 2009) also works on light attraction like feature but the attracting agents are limited and within a range, Cuckoo Search (Yang, 2010) works on random placement and removal of solution variables and thus promotes mixing and opportunity, Artificial immune system (Farmer, 1986) develops detection and prevention factors for optimization, Differential evolution (Storn, 1997) works on the principle of genetic algorithm but employs functions for combination, crossover and mutation, Differential Search (Civicioglu, 2012) works on Brownian random walk movement search over the work-space, Harmony Search (Geem, 2001) combination of solution variable values from a bunch of values to generate optimized solution sets, Biogeographical based optimization (Simon, 2008) depends on mathematical relation based migration of variable values from solution set to another to promote enhancement in solution quality, Invasive Weed Optimization (Mehrabian, 2006) depends on random and deterministic variation like spreading of agent for optimization, Simulated Annealing (Kirkpatrick, 1983) is an extension of hill-climbing algorithm which have introduced probabilistic acceptance and adaptive step size phenomenon, Honey Bee Mating Optimization (Haddad, 2006) utilizes the crossover feature similar to GA between bee to produce enhancement in solution quality, League Championship Algorithm (Ali, 2009) employs tournament like situation to generate combinations as solutions, Teaching-Learning-Based Optimization (TLBO) (Rao, 2011) works on the teaching and learning principle where knowledge flow from the better agents towards other. Each of the algorithms are applied on mathematical representation of various kinds of applications and have been successful in achieving optimized solutions.

3 Nature of Green Heron Birds

The Green Heron bird (WikiPedia, ) (Butorides virescens) resides on the freshwater or brackish water swampy marshes or wetlands with clumps of trees mainly in low lying areas where there are abundant scope of availability of fishes as their prey. They are nocturnal in habit and prefer to stay back in sheltered areas during the daytime. But when hungry they feed during the daytime. Their main food consists of small fish, spider, frogs, grasshoppers, snakes, rodents, reptiles, aquatic arthropods, mollusks, crustaceans, insects, amphibians, vertebrate or invertebrate animals like leeches and mice, provided they can catch.

Figure 1: Preying Habit with Bait of Green Heron Bird

Usually the Green Heron bird forages from a perch and there it stands with its body stretched out horizontally and lowered further, to insert its bill inside water for any unsuspecting prey. Green Heron is one among the few birds who can use tools for doing their daily jobs, the Green Heron will attract prey, mainly swarm of fishes, with bait (feathers, earthworms, bread crusts, tiny stick piece, insects, or even berries) when it drops on the water surface. The bait is dropped onto the water surface in order to attract fishes and all other water organisms that hover over the bait to sense its kind and food value. When any fish takes or tries to take the bait, the green heron bird grab hold the fish and eat the prey. This prey catching feature is being exploited as a meta-heuristic for complex problem solving and most importantly achieving optimization. The next section will describe in details the steps of the algorithm and its resemblance with the natural phenomenon of the Green Heron bird.

4 Green Heron Optimization Algorithm Details

Overall the sequence of the Green Heron Optimization algorithm can be divided into the following basic operational steps which will perform different search based variations for a heuristic sequence or path generation and will thus establish a solution for the problems like graph based problems and combinatorial optimization problems, however this algorithm can be extended for discrete equations but with limited functionality of the algorithm. This is because in combinatorial optimization problem each of the individuals is a event whereas in equations each of the individuals are parameter values. However the individual constraints unique to each kind of problems are required to be established into the computation through implementation and the operations are just guidelines of what should be happening with the solution set individually or as a whole.

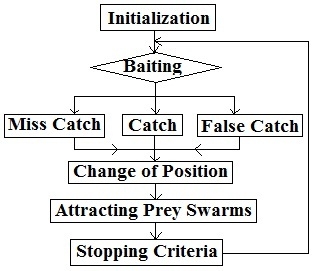

Figure 2: Flow Diagram for Green Heron Swarm Optimization Algorithm Figure 3: Baiting Operation

4.1 Baiting

The baiting process is analogous to holding bait in the beak by the Green Heron bird, as it does and will drop at the appropriate place where there is chance of a catch or there are organisms in form of aquatic animals or fishes nearby. Similarly in the computation the bait is a solution subset that is arbitrarily generated (from a pool of such events and in case of constraints try avoiding the generation of already generated or most often generated events) and is held by the bird before it finds a good position through local search throughout the whole solution set. The bait and the prey is assumed as two individual solution subset which takes part in the operation and there are three alternatives which the bait-prey pair will bring about altering the solution set and thus heuristically creating a new solution set or improving it. Now the three alternatives (the occurrences of which depends on the problem, its constraints, and the implementation and partly on the probability and local search) are:

  • MISS CATCH - In this case the bait gets settled at one of its preferred place where it finds continuity and the bird fails to catch any prey and hence the number of solutions in the solution set tend to increase. Depending on the problem, the situation must be tackled. Like in Travelling Salesman Problems, scheduling problems, etc the missing node must be restored (may be from last, or at random) to sustain the validity of the solutions.

  • CATCH - In this case the bait helps the Green Heron bird to catch a prey and thus the solution set elements remains constant and one appropriate element is added and one inappropriate element is eliminated.

  • FALSE CATCH - Here the bird gets hold of a prey without using bait as sometimes fishes come near the surface of the water. In this step an inappropriate element of the solution set is eliminated from the set. The depletion of a node in the form of a catch form the solution set, must be restored for establishment of validity for certain constraints of the problems or limitation on the part of the variables.

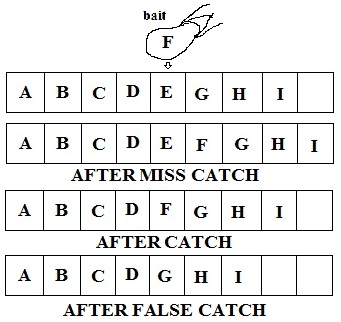

In the Figure 3, the baiting operation of the Green Heron Optimization algorithm is demonstrated only for a particular case though many other cases can appear. Here we have a solution string consisting of A,B,C,D,E,G,H,I (where each one of them is an events or nodes or individual solution) and F is the bait which can operate on any position of the string. However the position is derived probabilistically and according to miss catch, catch and false catch (which can also be decided randomly or through Change of Position operational step, if possible) the three cases are shown.

For the problems like Travelling Salesman Problem and the discussed Quadratic Assignment Problem (QAP) and 0/1 Knapsack Problem (KSP), as the numbers of nodes are fixed and none should be repeated in the solution string, hence there must be replacement and of the replaced and deletion of the excess due to this phenomenon to compensate for the variation and to maintain the acceptability and validation of the solution set.

4.2 Change of Position

The Local search operation can occur through checking all (for small solution sets) or part (for long enough solution sets) of the solution sets for positions before it finds a suitable one. This step is analogous to the nature of the bird where it finds a suitable place where it can sit very near the surface of the water such that it can at any point of time can insert its beak inside water and take hold of a fish or aquatic animal whenever it comes near the surface naturally or due to the influence or temptation of the bait(s). This local search operation should count and made sure that too much time is not spend on a solution set if there are a number of solution sets to be taken care of in the iteration. In case of huge number elements, intensive local search strategy can be implemented for a selected zone to be checked or the low secondary fitness valued elements can be checked or any constraint of the problem can be utilized for such search and decision makings. In intensive local search the selected node is placed just by the side of the node where continuity can be established.

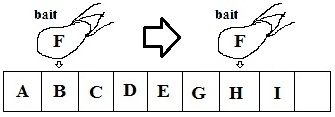

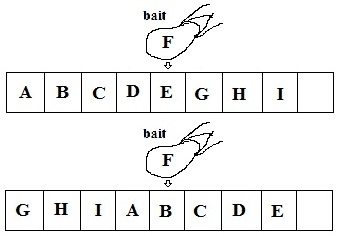

Figure 4: Change of Position Operation Figure 5: Attracting Prey Swarms Operation

In the Figure 4 the Change of Position of Green Heron Optimization algorithm is shown. Here also we have considered the same solution string consisting of A,B,C,D,E,G,H,I and F is the bait which can operate on any position of the string. But the position is decided by the local search through a fractional portion of a particular location of the solution string. The best position is taken as the point of application. The best position depends on the local heuristic value, like in Travelling Salesman Problem it can be the least distance.

4.3 Attracting Prey Swarms

This Attracting Prey Swarms is also an equivalence of the local search operations that makes the algorithm quick convergent for constrained discrete problems solving the precedence criteria. But the step is little bit different from the Change of Position operation described previously. In this step the position of the bird sitting with the bait remains same but the swarm of fishes actually moves towards the fish or rather the bait is released and the fishes are attracted towards it. So for the solution set the point of release of the bait will remain same but the whole set will shift to create position for the best agent to receive the bait and this will help in an evolution like step where a shift can change the solution specially when the positions of the solution hold immense meaning and the correct sequence is of utmost importance. The example shown in Figure 5 will make the operation more clear. However this operation should be rare and occurs selectively for the iterations, only when there is no attachment in the initial positions of the solution set. This operation can be useful for problems like Travelling Salesman Problem, Vehicle Routing Problem, scheduling problems etc where the numbers of constraints are not present, but in problems like sequence ordering problems, routing, path planning, etc it can be useful selectively. However this operation can be operated on a selective portion of the solution set which is yet to be arranged or have not yet been lucky to engage in any kind of attachments. These local search processes are followed by the Baiting operation. The number in solution subset participating in shift is to be determined randomly and also the number of shifts must be less than the number in solution subset.

In the Figure 5, Attracting Prey Swarms operation of Green Heron Optimization Algorithm is demonstrated. In this step the position of bait is constant and the whole solution string or a selected portion of the string (depending on requirement and implementation) revolve to place an arbitrary node under it. Considering the same solution string consisting of A,B,C,D,E,G,H,I and F as the bait, E was under F, but thrice revolve will bring B under F. For Quadrature Assignment Problem and 0/1 Knapsack Problem we have considered the whole string to revolve.

It is to be mentioned that though the operations are described separately for convenience of understanding of the implementation with respect to any problem, in reality the operational steps are interweave and cannot be operated separately unless some problems may be suited for and the key lies in proper studding the problem into the algorithm.

4.4 Brief Description of Fitness Function

The fitness function used for determination and estimation of partial solution is quite important when it comes for the decision making of the system and optimization selection. It will help in a temporary deciding how well the nodes are placed and connected in a very well manner, however is valid for only one dimensional problems. But it is noticed that in majority graph based problems, obsessed with multi-objective optimization, the complete path is reached after a huge number of iterations and by the mean time it is very difficult to clearly demarcate the better incomplete result from the others and it is in this case the act of probabilistic steps can worsen the solution. Also the acts of the operations need to be operated in proper places mainly on the node gaps where there is yet to make any linkage. Hence a brief description of the secondary fitness function needs to be addressed. This secondary fitness value can be of several types:


1) The technique used in the simulation finds the linked consecutive nodes and is numbered with a number which denotes how many nodes are linked together at that portion. Say for example this can be regarded as an example.

(1)

Then the secondary fitness is calculated as (summation of the node value)/(number of nodes) that is with number of nodes we have,

(2)

High secondary fitness denotes that more numbers of nodes are linked together as a unit than the other solution string. But for the TSP as there occurs a link between every node, the secondary fitness will always be constant and will be of no use. The solution with maximum secondary fitness will be the better solution. In the simulation this procedure is used.
2) Another partial solution fitness evaluation can be through the use of the number of partial solution that is linked portion are present in that string which can have high probability of being processed into a complete path than the isolated ones. Here on the count of the linked sections present in the solution string are kept as secondary fitness value. But contrary to the previous method, this method provides minimum as best result. Say in a solution string represented as and the lined portions are represented as where each and and

(3)

and with formation of linkages will constantly decrease. In this case we can use each of the subsets as nodes for link foundation.

4.5 Adaptiveness of GHSOA

The Green Heron Swarm Optimization Algorithm provides adaptive scheme for variable handling for each data set and can be used where the dimension is not constant like in path planning, adaptive clustering, unsupervised learning based clustering etc. It is good for experimentation for the problem which can be multi-variable during the initial positions and gradually varies with iterations. Also for constant length combinatorial optimization, it can be modified accordingly and can be regarded as a special case of the algorithm. There can be situations when the linkage between two path segments can be done through single or multiple numbers of nodes and this requires the need of adaptive flexibility in the operators. For adaptive clustering, this algorithm can be helpful for generation and maintenance of the cluster centroids.

4.6 Location Based Neighbour Influenced Variation (LBNIV)

Location Based Neighbour Influenced Variation (LBNIV) is the adaptive variation scheme for the continuous domain problems like the numerical benchmark equations and mathematical models of applications. It follows the habit of the bird to get influence by the different elements of the environment mainly water organisms and then act accordingly for better catching availability and better attraction of swarms of fishes. Hence this equation is called as being influenced by the neighbours who have better position or from where there can be availability of better opportunity. For each continuous variable of the fitness function of the problem that is where is the dimension of the problem and is the element in the iteration. We have the following equations governing the variation of the variable’s variation and is self-adaptive, previous iteration based and error sensitive based on the fitness function of the and iteration.

(4)

where we have , and given by and of Equation 5 and Equation 6 respectively of previous iteration as

(5)
(6)

for minimization problem with or where is the variable for iteration , is the fitness value at iteration , and are the front and rear neighbours respectively where ad , is the variations contributor with respect to the iteration generated from previous iteration , is the constantly changing adaptive contributor which denotes what percentage of the must be incorporated into the variable and depends on the bound restriction of the variable. For , the value of is same for all the increasing or decreasing variables, but if the boundary of varies then we have separate for different variables. It is better to keep set and set separately for each variable and thus in total for variables for each solution set. It is to be noticed here that the Equation 5 and Equation 6 always tries to drag the value of towards the best that is for minimum of for minimal optimization.

5 Performance Evaluation

Green Heron Swarm Optimization Algorithm was itself developed for discrete problems but is tested on continuous numerical benchmarks. The details of the algorithmic steps for GHSOA for the various problems are provided below.

5.1 GHOSA for Travelling Salesman Problem (TSP) / Quadrature Assignment Problem (QAP)

Table 1 and Table 2 have provided the results of datasets set (TSP-Dataset, ),(QAP-Dataset, ) for Travelling Salesman Problem and Quadrature Assignment Problem respectively and compared with optimum value. GHOSA was operated on each of them.

The Algorithm for GHSOA for Travelling Salesman Problem / Quadrature Assignment Problem is being provided.
Step 1: Initialize the Solution set all its n (n = dimension of problem) events .
Step 2: Generate N Solution set each consisting of where each element denote an event and the corresponding position in the array denotes a fixed positional significance.
Step 3: Evaluate the fitness of each string, Store the value of profit if constraint satisfied else make it zero. Update the Global best if better is found.
Step 4: (For each string) Perform ‘‘Baiting’’ (with Miss Catch, Catch, False Catch) where position is selected randomly (need to take care of the duplicates) or at selected points depending upon implementation on deterministic approach or probability.
Step 5: Perform ‘‘Change of Position’’ operation depending upon the requirement and initial search results. (Random positioning is done to see which combination yield best result) Here on selected or the whole string depending on the pseudo-random generation of the two operation parameters.
Step 6: Perform ‘‘Attracting Prey Swarms’’. Complete ‘‘Baiting’’ operation.
(End of For each string)
Step 7: Evaluate the fitness of each string. Store the value of profit if constraint satisfied else make it zero. Update the Global best if required. If New (derived out of combination of operation(s)) is better, then replace the old else don’t. The global best consists of the fitness value along with the string consisting of 1s and 0s.
Step 8: After each iteration replace X% worst solutions with random initialization. (X depends on N and according to the exploration requirement)
Step 9: If number of iteration is complete then stop else continue from Step 4.

Name Dim Optimum Mean SD Best Worst
Ulysses16.tsp 16 74.11 75.18 0.047 74.11 78.27
att48.tsp 48 3.3524e+004 3.5436e+004 12.1 3.3613e+004 4.2996e+004
st70.tsp 70 678.5975 711.676 115.9 694 746
pr76.tsp 76 1.0816e+005 1.3319e+005 125.7 1.0816e+005 1.3757e+005
gr96.tsp 96 512.3094 643.97 69.4 573.16 806.4
gr120.tsp 120 1.6665e+003 1.7963e+003 46.8 1.7112e+003 1.8753e+003
gr202.tsp 202 549.9981 839.19 178.2 610.8 1005.9
tsp225.tsp 225 3919 4151.8 213.7 4058.9 5034.8
a280.tsp 280 2.5868e+003 2.77913e+003 986.1 2.6772e+003 3.1463e+003
Table 1: Evaluation of EVSOA on TSP Datasets
Name Dim Optimum Mean SD Best Worst Error
chr15a 15 9552 9552 0 9552 9552 0
bur26a 26 5426670 5514119 8990.6 5426670 5512133 1.6115
chr12a 12 9552 9552 0 9552 9552 0
chr18a 18 11098 11098 0 11098 11098 0
chr20a 20 2192 2372.5 72.1 2192 2561 8.2345
chr22a 22 6156 6525.4 90.92 6156 6502 6.0006
chr25a 25 3796 4231.9 300.2 3796 7927 11.4831
els19 19 17212548 17212548 0 17212548 17212548 0
esc16a 16 68 68 0 68 68 0
esc32e 32 2 2 0 2 2 0
had14 14 2724 2724 0 2724 2724 0
nug24 24 3488 3795 92.98 3488 3729 8.8016
nug27 27 5234 5416.4 121.75 5234 5518 3.4849
esc16b 16 292 292 0 292 292 0
nug16a 16 1610 1610 0 1610 1610 0
nug20 20 2570 2570 0 2570 2570 0
Table 2: Evaluation of EVSOA on QAP Datasets

5.2 GHOSA for 0/1 Knapsack Problem (KSP)

In this part the dataset of 0/1 Knapsack Problem (Dorigo, 1997) is being operated with GHSOA for optimization with respect to optimum value.

The Algorithm for GHSOA for 0/1 Knapsack Problem .
Step 1: Consider a dataset of items and is the parameter to denote the inclusion or exclusion of the item for any bag, for number of bags where each bag is has maximum capacity .
Step 2: Generate solution strings for each type of bag m where each string has for consisting of n items and each is represent by a number from 1 to n without repetition of any of the numbers in the string.
Step 3: Now generate a threshold between 1 and n in integer values, so that the string of integer values can be converted to string of 0s and 1s and the random value of threshold will decide how many of them should be 0s and 1s and also the positional values will create combinations and due to the GHOA the integer values for each positions will change.
Step 4: For threshold) Make it 1, else Make it 0. So string of 0 & 1 represent set.
Step 5: Evaluate the fitness of each string, Store the value of profit if constraint satisfied else make it zero. Update the Global best if required. Convert the xvector from 0/1 values back to its previous form of numbers from 1 to n.
(For each string)
Step 6: Perform ‘‘Baiting’’ (with Miss Catch, Catch, False Catch) where position is selected randomly (need to take care of the duplicates) or at selected points depending upon implementation on deterministic approach or probability.
Step 7: Perform ‘‘Change of Position’’ operation depending upon the requirement and initial search results. (Random positioning is done to see which combination yield best result) Here on selected or the whole string depending on the pseudo-random generation of the two operation parameters.
Step 8: Perform ‘‘Attracting Prey Swarms’’. Complete ‘‘Baiting’’ operation.
(End of For each string)
Step 9: Repeat Step 3 and 4 to make the solution strings eligible for fitness evaluation. Now Evaluate the fitness of each string. Store the value of profit if constraint satisfied else make it zero. Update the Global best if required. If New (derived out of combination of operation(s)) is better, then replace the old else don’t. The global best consists of the fitness value along with the string consisting of 1s and 0s.
Step 10: After each iteration replace % worst solutions with random initialization. ( depends on and according to the exploration requirement)
Step 11: If number of iteration is complete then stop else continue from Step 3.

Name Dim Optimum Mean SD Best Worst Error
WEISH01 5,30 4554 4463.2 23.4789 4549 4423 1.9939
WEISH07 5,40 5567 5325.1 92.723 5493 5013 4.3452
WEISH10 5,50 6339 5865.842 184.8216 6309 5592 7.4642
WEISH15 5,60 7486 6918.92 213.202 7332 6819 7.5752
WEING8 2,105 624319 552021 4000.2 610322 529391 11.5803
WEING1 2,28 141278 141156.1 578.4875 141278 141010 0.0863
FLEI 10,20 2139 2139 0 2139 2139 0
HP1 4,28 3418 3406 45.02 3418 3293 0.3511
PB6 30,40 776 728.1 11.2038 756 701 6.1727
PET2 10,10 87061 87061 0 87061 87061 0
PET3 10,15 4015 4015 0 4015 4015 0
PET4 10,20 6120 6120 0 6120 6120 0
PET5 10,28 12400 12326.74 52.954 12400 12129 0.5908
PET6 5,39 10618 10499.87 32.982 10570 10446 1.1125
PET7 5,50 16537 16336 22.956 16393 16078 1.2155
Table 3: Evaluation of EVSOA on 0/1 Knapsack Datasets

5.3 GHOSA for Multi-Objective Road Network / Resource Constrained Shortest Path Problem (RCSP)

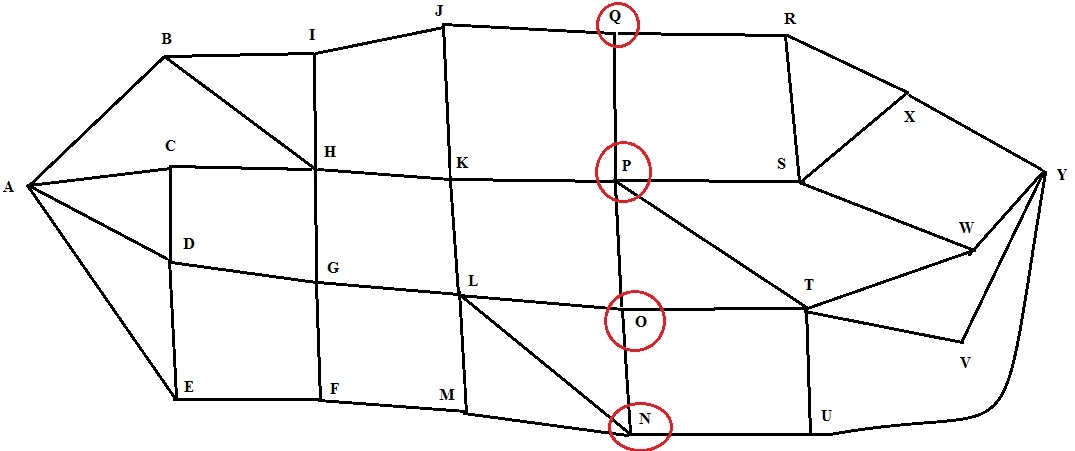

The road network considered here is shown in Figure 6 which is being measured to see approximately how the optimized vehicle route flow in the network. Each of the edges is provided with a distance and an average waiting time assumed to be calculated on the basis of the data collected independently by the sensor network present at that crossing. The equations for distance and waiting time for the road network which is required to be minimized are two summation based equation which depends on the path traversed by the agents on its way from the source A to destination Y.

(7)
(8)

where and are the two equations and is the distance and is the average waiting time for the path , is the graph network. The fitness function considered is . is the constant velocity for normalization of the distance and it makes same as in unit of time.

There are a few assumptions made on the behalf of the road model so as to make it simple and avoid unnecessary details and at the same time make it acceptable for the simulation and the algorithm. The vehicles considered here are uniform in size, speed and non-accelerating. The time taken for movement and waiting are crisp and other details like size of queue before the vehicle, width of the road etc are all discarded and an average of the all the happenings are considered. The model emphasis on the movement of the vehicles from the source to destination and in the meantime only these vehicles are considered or rather accounted for the simulation and conclusion generation. However other vehicles which are also present and are destined to move from other parts of the network graph to some other places are not considered in details but their presence is established through some random variation of the parameters like waiting time, queue length etc.

The Algorithm for GHSOA for road network and similar other problems like Resource Constrained Shortest Path Problem (RCSP) is given below.
Step 1: Initialize the equation and all its n (n = dimension) variables as
Step 2: Initialize strings each consisting of as coefficients having random numerical values. (evaluate the constraints and bounds of the variables and reinitialize the strings which are violating them). [positions are related to specific variables and are fixed]
Step 3: Initialize the fitness matrix and Evaluate the fitness of each string and set global best result.
Step 4: (For each string) Perform ‘‘Baiting’’ (with Miss Catch, Catch, False Catch) where position is selected with some intensive local search strategy where the nodes with least secondary fitness is searched (probability, random partial string, etc strategies can also be used).
Step 5: Perform ‘‘Change of Position’’ depending upon the requirement and initial search results.
Step 6: Perform ‘‘Attracting Prey Swarms’’.
Step 7: Complete ‘‘Baiting’’ operation.
Step 8: Perform ‘‘Location Based Neighbour Influenced Variation’’ for each of (with initially but gradually changes). (End of For each string)
Step 9: Evaluate the fitness of each string considering the validity (boundation and constraints) of each where .
Step 10: If New is better, then replace the old else don’t.
Step 11: Select the best result and compare with global best. If better then set it as global best.
Step 12: After each iteration replace X% worst solutions with random initialization.
Step 13: If number of iteration is complete then stop else continue from Step 4.

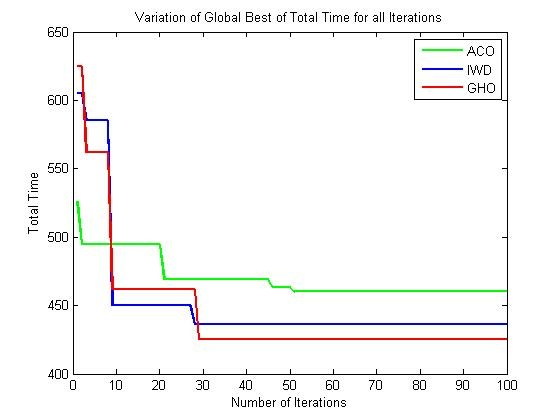

Figure 6: Road Graph Network Figure 7: Variation of Global Best of Total Time for all Iterations

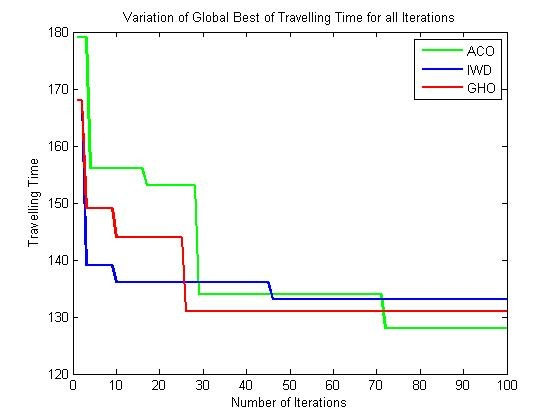

Figure 8: Variation of Global Best of Travelling Time for all Iterations Figure 9: Variation of Global Best of Waiting Time for all Iterations

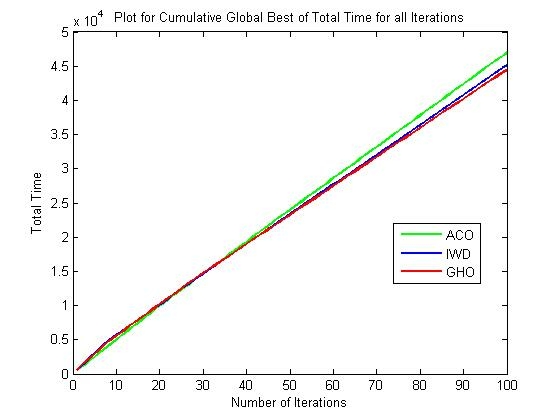

Figure 10: Plot for Cumulative Global Best of Total Time for all Iterations Figure 11: Plot for Cumulative Global Best of Travelling Time for all Iterations

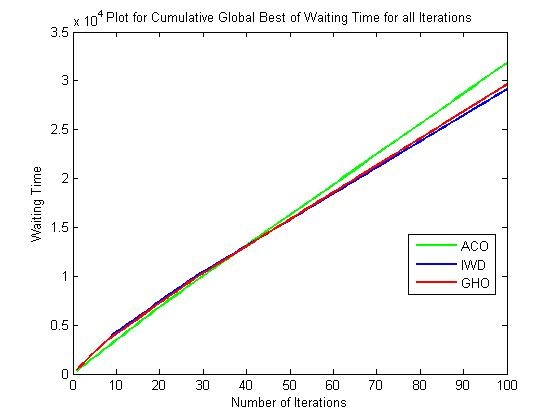

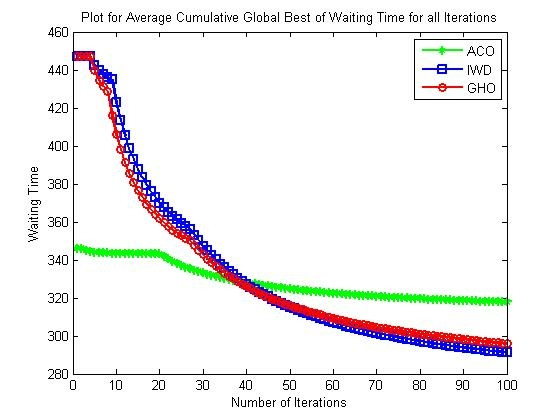

Figure 12: Plot for Cumulative Global Best of Waiting Time for all Iterations Figure 13: Plot for Average Cumulative Global Best of Total Time for all Iterations

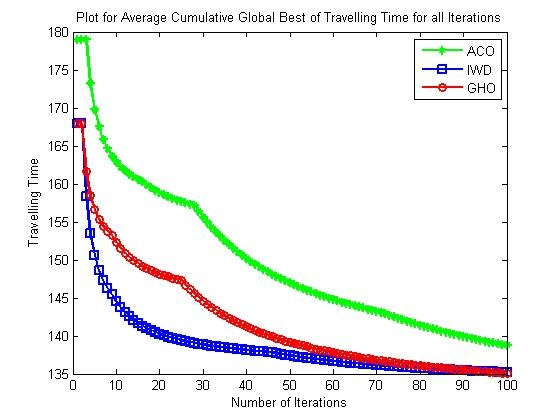

Figure 14: Plot for Average Cumulative Global Best of Travelling Time for all Iterations Figure 15: Plot for Average Cumulative Global Best of Waiting Time for all Iterations

5.4 GHOSA for Benchmark Equations

Numerical Benchmark Equations (along with dimension, optimized value) given in Table 4 is used for simulation of GHSOA and the corresponding results (in the form of mean, standard deviation, best, worst, error) are provided in Table 5. In this section we have described the details of implementation of the algorithm along with the addition of the location based neighbour influenced variation scheme in Step 8 and problem oriented variations of the GHSOA for the benchmark equations:


Step 1: Initialize the equation and all its n (n = dimension) variables as
Step 2: Initialize strings each consisting of as coefficients having random numerical values. (evaluate the constraints and bounds of the variables and reinitialize the strings which are violating them). [positions are related to specific variables and are fixed]
Step 3: Initialize the fitness matrix and Evaluate the fitness of each string and set global best result.
Step 4: (For each string) Perform ‘‘Baiting’’ (with Miss Catch, Catch, False Catch) where position is selected with some intensive local search strategy where the nodes with least secondary fitness is searched (probability, random partial string, etc strategies can also be used).
Step 5: Perform ‘‘Change of Position’’ depending upon the requirement and initial search results.
Step 6: Perform ‘‘Attracting Prey Swarms’’.
Step 7: Complete ‘‘Baiting’’ operation.
Step 8: Perform ‘‘Location Based Neighbour Influenced Variation’’ for each of (with initially but gradually changes). (End of For each string)
Step 9: Evaluate the fitness of each string considering the validity (boundation and constraints) of each where .
Step 10: If New is better, then replace the old else don’t.
Step 11: Select the best result and compare with global best. If better then set it as global best.
Step 12: After each iteration replace X% worst solutions with random initialization.
Step 13: If number of iteration is complete then stop else continue from Step 4.

5.5 Details of Benchmarks

Several famous benchmark equations and its description, constraints (in form of range values for each variable) and optimized values are being provided in Table 2 which are used for the simulation of the Egyptian Vulture Swarm Optimization Algorithm to see how it performs under various dimensions and range constraints of the benchmark equations. These equations are standardized famous mathematical representations that require optimization and are used as test-beds for analysis of the algorithms. The list of the benchmark equations are provided in Table X. They are Sphere Function , Rosenbrock Function , Hump Functions , Branin Function , Goldstein & Price Function , Power Sum Function , Beale Function , Colville Function , Sum Squares Function , Dekkar and Aarts , McCormick , Two Peak Trap , Central Two Peak Trap , Five uneven peak Trap , Equal Maxima , Decreasing Maxima , Uneven Maxima , Uneven Decreasing Maxima , Himmelblau’s function , Six-hump Camel Back function , Michalewics Function , Matyas Function .

The computational result of simulation of the Green Heron Swarm Optimization Algorithm on the benchmark problems is performed on Matlab R2011a (in a system with configuration of Core i3-2330M 2.20 GHz Intel 2nd Generation Processor and 4 GB RAM) and is provided in the Table 5 having the equation ID (corresponding to Table 4), dimension of the equations or considered dimension, mean, standard deviations (SD), best solution, worst solution and mean error. The computational results, compared with the traditional Genetic Algorithm (GA) and Particle Swarm Optimization (PSO), clearly revealed how the algorithm worked for the maximum 25000 iterations mark and has revealed great convergence for the solutions. Solution and convergence does not depend on the initial value of which is kept as usual quite low with 0.2 and k=2 and bias=0.001.

# Equation D Range Optimum
0
0
0
0
0
-1.03163
.398
3
0
0
0
0
-24777
-1.9133
0
0
0
0
0
0
0
0
-1.03163
0
0
Table 4: Details of Benchmark Equations
Name Mean SD Best Solution Worst Solution Error
EVO 0.49523 0.12854 0.2103 0.8719 0.49523
PSO 0.9394 0.2273 0.01728 1.23 0.9394
GA 1.93 1.121 1.15787 1.675 1.93
EVO 0.45852 0.014751 0.0141 0.7996 0.45852
PSO 0.3482 0.5245 0.124 0.6412 0.3482
GA 1.246 1.4223 0.97542 1.9465 1.246
EVO 0.39028 0.09812 0.0451 0.7992 0.39028
PSO 0.6273 0.2897 .02773 .8892 0.6273
GA 1.8283 0.9376 0.36532 2.1334 1.8283
EVO 0.23191 0.00456 0.0921 0.5012 0.23191
PSO 0.0876 0.087 0.0069 0.1834 0.0876
GA 0.6555 0.7964 0.0454 1.3793 0.6555
EVO 0.10234 0.0123 0.0019 0.3298 0.10234
PSO 0.1368 0.179 0.007 0.599 0.1368
GA 0.186 0.938 0.002 0.4380 0.186
EVO -1 0 -1 -1 0
PSO -1 0 -1 -1 0
GA -1 0 -1 -1 0
EVO 0.414 0.002 0.4 0.478 0.0250
PSO 0.419 0.003 0.4 0.443 0.419
GA 0.451 .0012 0.4 0.518 0.451
EVO 3.01777 0.06985 3.0008 3.0193 0.0059
PSO 3.1345 0.0865 3.0000 3.1202 0.045
GA 3.2976 0.6757 3.0000 3.3201 0.0992
EVO 0.4021 0.0092 0.101 0.8278 0.4021
PSO 1.2039 0.0203 0.202 1.02 1.2039
GA 0.9281 0.2823 0.23 1.0384 0.9281
EVO 0.005687 0.08952 0.00023 0.0362 0.005687
PSO 0.0175 0.012 0.00065 0.056 0.0175
GA 0.011 0.97 0.0081 0.1875 0.011
EVO 0.007894 0.001974 2.45E-05 0.014 0.007894
PSO 0.00419 0.0017 0.0024 0.093 0.00419
GA 0.00751 0.0340 0.0001 0.221 0.00751
EVO 0.2345 0.1291 0.01089 0.9212 0.2345
PSO 1.024 0.0512 0.000411 1.6354 1.024
GA 0.9756 0.9842 0.18753 1.3544 0.9756
EVO -24771.1 3.98730 -24776 -24765 2.4e-4
PSO -24776 0 -24776 -24776 0
GA -24776 0 -24776 -24776 0
EVO -1.9075 0.003255 -1.9133 -1.9021 0.0030
PSO -1.9058 0.0012 -1.9133 -1.8292 0.0039
GA -1.8974 0.0028 -1.9133 -1.7096 0.0083
EVO 0.0002024 0.000887 0 0.0029 .0002024
PSO 0.00057 0.0003 0 0.0128 0.00057
GA 0.0021 0.00098 0 0.011 0.0021
EVO .000523 0.000122 0 0.0082 0.000523
PSO 0.00399 0.02 0 0.0142 0.00399
GA 0.00022 0.001 0 0.0039 0.00022
EVO 0.001132 0.000787 0 0.0039 0.001132
PSO 0.07412 0.0025 0.0042 0.4722 0.07412
GA 0.01423 0.0412 0.00096 0.1452 0.01423
EVO 0 0 0 0 0
PSO 0 0 0 0 0
GA 0 0 0 0 0
EVO 0 0 0 0 0
PSO 0 0 0 0 0
GA 0 0 0 0 0
EVO 0 0 0 0 0
PSO 0 0 0 0 0
GA 0 0 0 0 0
EVO 0 0 0 0 0
PSO 0 0 0 0 0
GA 0 0 0 0 0
EVO 0.0895 0.0187 0 0.714 0.0895
PSO 0.0438 0.00156 0 0.112 0.0438
GA 0.0841 0.4753 0 0.9742 0.0841
EVO -1.0274 0.01456 -1.03158 -1.02497 0.0042
PSO -1.02942 0.0389 -1.03163 -1.0192 0.0021
GA -1.0212 0.1736 -1.03158 -1.0142 0.0198
EVO 0 0 0 0 0
PSO 0 0 0 0 0
GA 0 0 0 0 0
EVO 0.01582 0.011987 0 0.0812 0.01582
PSO 0.0554 0.12551 0 0.18455 0.0554
GA 0.018794 0.05424 0 0.1541 0.018794
Table 5: Evaluation of EVSOA on Benchmark Equations

6 Conclusions & Future Works

The work has been an extension for elaboration the GHOSA and its various operations both for the discrete and continuous optimization problems with the introduction of an enhanced and adaptive parameter variation factor (LBNIV) for only the continuous domain problems. The unique operations of the GHOSA naturally favour the discrete operations due to the natural behaviour of the algorithm for discrete event replacement in several schemes and varying the solutions and hence are very successful for most of the combinatorial optimization problems and other graph based challenges and optimization schemes. The result of application of the GHOSA has been compared with PSO, GA and ACO and has produced the potential of the algorithm for optimization in every sector of the problems. But yet a lot of performance analysis and convergence testing is required for the algorithm for other domains and other problem types like real time problems, dynamic and adaptive problems, etc. It is assumed that the algorithm can be applied to a lot of problems and analysis which require optimization. The main advantage of GHOSA is its adaptability for dimensionless (no proper dimension is there) problems like path planning and adaptive clustering (with unknown number of clusters). Also the GHOSA algorithm is compatible with both addition and removal of dimension(s) from the solution and this is the reason the algorithm will have a wide range of applicability in various domains of problems.

From the Table 1 to Table 5 and graphs of the result of various applications have revealed how the new meta-heuristics has delivered for optimization of the various dimensional benchmark datasets and its capability as discrete solution seeker and with the addition of the location based neighbour influenced variation scheme the algorithm has been capable to performed for the optimization of the continuous problems like numerical benchmark equations as well and can compete with traditional swarm intelligence algorithms. There awaits a lot of work on the new algorithm for the real world problems and its comparison with other algorithms.

References

  • Kennedy (1997) Kennedy, J.; Eberhart, R.C.; , ‘A discrete binary version of the particle swarm algorithm’, Systems, Man, and Cybernetics, 1997. Computational Cybernetics and Simulation, 1997 IEEE International Conference on, vol.5, no., pp.4104-4108 vol.5, 12-15 Oct 1997
  • Pengfei (2011) Pengfei Guo; Xuezhi Wang; Yingshi Han; , ‘A Hybrid Genetic Algorithm for Structural Optimization with Discrete Variables’, Internet Computing & Information Services (ICICIS), 2011 International Conference on, vol., no., pp.223-226, 17-18 Sept. 2011.
  • Dorigo (1997) M. Dorigo et L.M. Gambardella, ‘Ant Colony System : A Cooperative Learning Approach to the Traveling Salesman Problem’,

    IEEE Transactions on Evolutionary Computation

    , volume 1, numéro 1, pages 53-66, 1997.
  • Hamed (2008) S. H. Hamed, ‘Intelligent water drops algorithm: a new optimization method for solving the multiple knapsack problem’, International Journal of Intelligent Computing and Cybernetics, 2008, Vol. 1, No. 2, pp. 193- 212.
  • Kennedy (1995) Kennedy, J.; Eberhart, R.; , ‘Particle swarm optimization’, Neural Networks, 1995. Proceedings., IEEE International Conference on, vol.4, no., pp.1942-1948 vol.4, Nov/Dec 1995.
  • Yang (2010) X. S. Yang, ‘A New Metaheuristic Bat-Inspired Algorithm’, Nature Inspired Cooperative Strategies for Optimization (NISCO 2010) (Eds. J. R. Gonzalez et al.), Studies in Computational Intelligence, Springer Berlin, 284, Springer, pp. 65-74 (2010).
  • Yang (2010) Yang, X.-S.: 2011, ‘Bat algorithm for multi-objective optimization’, International Journal of Bio-Inspired Computation 3(5), 267-274.
  • Passino (2002) Passino KM, ‘Biomimicry of Bacterial Foraging’, IEEE Control System Magzine, Vol. 22, 2002, pp. 52-67.
  • Gandomi (2012) A. H. Gandomi and A. H. Alavi, ‘Krill Herd: a new bio-inspired optimization algorithm’, Communications in Nonlinear Science and Numerical Simulation, vol. 17, no. 12, pp. 4831?4845, 2012.
  • Karaboga (2007) Karaboga, D., Basturk, B., ‘A powerful and efficient algorithm for numerical function optimization: artificial bee colony (ABC) algorithm’, Journal of Global Optimization 39 (2007), pp. 459–471.
  • Karaboga (2005) D. Karaboga. ‘An idea based on honey bee swarm for numerical optimization’. Technical Report TR06, Erciyes University, October 2005.
  • Yang (2009) Yang, X.S, ‘Fire fly algorithm for multimodal optimization’, Proceedings of the stochastic Algorithms’, Foundations and Applications(SAGA 109), vol.5792, Lecture notes in Computer Sciences Springer,Oct.2009
  • Krishnanand (2009) Krishnanand, K.; Ghose, D. (2009). ‘Glowworm swarm optimization for simultaneous capture of multiple local optima of multimodal functions’. Swarm Intelligence , 3 (2): 87124.
  • Yang (2010) Yang, X.-S. and Deb, S.: 2010, ‘Engineering optimization by cuckoo search’, International Journal of Mathematical Modelling and Numerical Optimization, 1, pp. 21-32.
  • Farmer (1986)

    Farmer, J.D.; Packard, N.; Perelson, A. (1986). ‘The immune system, adaptation and machine learning’.

    Physica D, 22 (1-3): 187204.
  • Storn (1997) Storn, R.; Price, K. (1997). ‘Differential evolution - a simple and efficient heuristic for global optimization over continuous spaces’. Journal of Global Optimization, 11 (4): 341359.
  • Civicioglu (2012) Civicioglu, P. (2012). ‘Transforming geocentric cartesian coordinates to geodetic coordinates by using differential search algorithm’. Computers & Geosciences, 46: 229247.
  • Geem (2001) Geem, Z.W.; Kim, J.H.; Loganathan, G.V. (2001). ‘A new heuristic optimization algorithm: harmony search’. Simulation 76, (2): 6068.
  • Simon (2008) Simon, D., 2008. ‘Biogeography-based optimization’, IEEE Transactions on Evolutionary Computation, 12 (6), pp. 702–713.
  • Mehrabian (2006) Mehrabian, A. R. and Lucas, C. 2006. ‘A novel numerical optimization algorithm inspired from weed colonization’, Ecological Informatics 1 (2006), 355?366.
  • Kirkpatrick (1983) Kirkpatrick, S.; Gelatt Jr., C.D.; Vecchi, M.P. (1983). ‘Optimization by Simulated Annealing’. Science, 220 (4598): 671680.
  • Haddad (2006) Haddad, O. B. et al.; Afshar, Abbas; Mario, Miguel A. (2006). ‘Honeybees mating optimization (HBMO) algorithm: a new heuristic approach for water resources optimization’. Water Resources Management, 20 (5): 661680.
  • Ali (2009) Ali Husseinzadeh Kashan. 2009. ‘League Championship Algorithm: A New Algorithm for Numerical Function Optimization’.

    In Proceedings of the 2009 International Conference of Soft Computing and Pattern Recognition (SOCPAR ?09)

    , IEEE Computer Society, Washington, DC, USA, 43-48.
  • Rao (2011) Rao, R.V., Savsani, V.J., Vakharia, D.P., ‘Teaching-learning-based optimization: A novel method for constrained mechanical design optimization problems’, Computer-Aided Design, 43(3), pp. 303?315 (2011).
  • Liang (2011) Liang Y.-C.;Josue R. Cuevas, ‘Virus Optimization Algorithm for Curve Fitting Problems’, IIE Asian Conference 2011, 201106.
  • Tamura (2011) Tamura, K.; Yasuda, K. (2011). ‘Primary Study of Spiral Dynamics Inspired Optimization’, IEEJ Transactions on Electrical and Electronic Engineering, 6 (S1): S98–S100.
  • Kaveh (2010) Kaveh, A.; Talatahari, S. (2010). ‘A Novel Heuristic Optimization Method: Charged System Search’. Acta Mechanica 213 (3-4), pp. 267-289.
  • Sur (2012) Sur, C.; Sharma, S.; Shukla, A., ‘Analysis & modeling multi-breeded Mean-Minded ant colony optimization of agent based Road Vehicle Routing Management,’ Internet Technology And Secured Transactions, 2012 International Conferece For, vol., no., pp.634-641, 10-12 Dec. 2012.
  • Sur (2013a) C. Sur, S. Sharma, A. Shukla, ‘Egyptian Vulture Optimization Algorithm - A New Nature Inspired Meta-heuristics for Knapsack Problem,’ The 9th International Conference on Computing and Information Technology (IC2IT2013), vol. 209, pp. 227-237, 2013.
  • Sur (2013b) C. Sur, S. Sharma, A. Shukla, ‘Solving Travelling Salesman Problem Using Egyptian Vulture Optimization Algorithm - A New Approach,’ 20th International Conference on Intelligent Information Systems, (IIS 2013), vol. 7912, pp. 254-267, 2013.
  • Sur (2013a) C. Sur, A. Shukla, ‘Dealing QAP & KSP with Green Heron Optimization Algorithm - A New Bio-Inspired Meta-heuristic,’ 4th International Conference on Computing, Communication and Networking Technologies (ICCCNT 2013), 4-6 July 2013, Tiruchengode, Tamil Nadu, India. (IEEE) (Accepted)
  • Sur (2013b) C. Sur, A. Shukla, ‘New Bio-Inspired Meta-heuristics - Green Herons Optimization Algorithm - for Optimization of Travelling Salesman Problem & Road Network,’ 4th International Conference on Swarm, Evolutionary and Memetic Computing (SEMCCO - 2013), 19 - 21 December 2013, Chennai, Tamil Nadu, India. (Springer) (Accepted)
  • (33) WikiPedia - \(http://en.wikipedia.org/wiki/Green\_Heron\)
  • (34) TSP-Dataset - \(http://elib.zib.de/pub/mp-testdata/tsp/tsplib/tsplib.html\)
  • (35) QAP-Dataset - \(http://www.seas.upenn.edu/qaplib/\)
  • (36) KSP-Dataset - \(http://www.cs.cmu.edu/afs/cs/project/ai-repository/ai/areas/genetic/ga/test/% sac/0.html\)
