1 Introduction

Modern deep learning models are typically optimized using end-to-end backpropagation and a global, supervised loss function. Although empirically proven to be very successful

[Krizhevsky et al., 2012, Szegedy et al., 2015, He et al., 2016a], this approach is considered biologically implausible for a number of reasons. For one, the alternation between feedforward and backpropagation phases is implausible. Additionally, despite some evidence for top-down connections in the brain, there does not appear to be a global objective that is optimized by backpropagating error signals [Crick, 1989].

In addition to this lack of a natural counterpart, the supervised training of neural networks with end-to-end backpropagation suffers from practical disadvantages as well. Supervised learning requires labeled inputs, which are expensive to obtain. As a result, it is not applicable to the majority of available data and suffers from a higher risk of overfitting, as the number of parameters required for a deep model often exceeds the number of labeled datapoints at hand. At the same time, end-to-end backpropagation creates a substantial memory overhead in a naïve implementation, as the entire computational graph, including all parameters, activations and gradients, needs to fit in a processing unit’s working memory. Solutions to address this require recomputation of intermediate outputs

[Salimans and Bulatov, 2017] or expensive reversible layers [Jacobsen et al., 2018]. Since in a globally optimized network every layer needs to wait for its predecessors to provide its inputs, as well as for its successors to provide gradients, end-to-end training does not allow for an exact way of asynchronously optimizing individual layers [Jaderberg et al., 2017]. This prevents the application of deep learning models to large input data that surpasses current memory constraints and inhibits the efficiency of hardware accelerator design due to a lack of locality.

In this paper, we introduce a novel learning approach, Greedy InfoMax (GIM), that eliminates these problems by dividing a deep architecture into consecutive modules that we train greedily using a local, self-supervised loss per module. Given unlabeled high-dimensional sequential or spatial data, we encode it iteratively, module by module. By using a loss that enforces the individual modules to maximally preserve the information between consecutive inputs, we exploit the natural order of the data and enable the stacked model to collectively create compact representations that can be used for downstream tasks. Our contributions are as follows:111Our code is available at https://github.com/loeweX/Greedy_InfoMax.

  • The proposed Greedy InfoMax algorithm achieves strong performance on audio and image classification tasks despite greedy self-supervised training.

  • This enables asynchronous, decoupled training of neural networks, allowing for training arbitrarily deep networks on larger-than-memory input data.

  • We show that mutual information maximization is especially suitable for layer-by-layer greedy optimization, and argue that this reduces the problem of vanishing gradients.

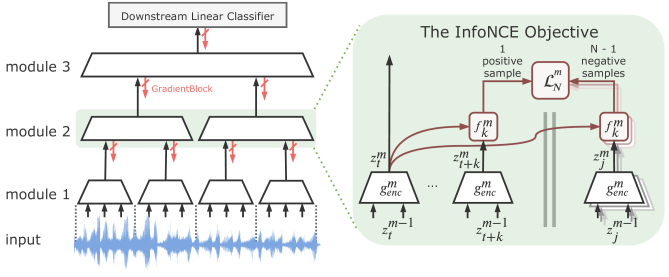

Figure 1: The Greedy InfoMax Learning Approach. (Left) For the self-supervised learning of representations, we stack a number of modules through which the input is forward-propagated in the usual way, but gradients do not propagate backward. Instead, every module is trained greedily using a local loss. (Right) Every encoding module maps its inputs at time-step to , which is used as the input for the following module. The InfoNCE objective is used for its greedy optimization. This loss is calculated by contrasting the predictions of a module for its future representations against negative samples , which enforces each module to maximally preserve the information of its inputs. We optionally employ an additional autoregressive module , which is not depicted here.

2 Background

In order to create compact representations from data that are useful for downstream tasks, we assume that natural data exhibits so-called slow features [Wiskott and Sejnowski, 2002]. It is theorized that such features are highly effective for downstream tasks such as object detection or speech recognition. To illustrate: a patch of a few milliseconds of raw speech utterances shares information with neighboring patches such as the speaker identity, emotion, and phonemes, while it does not share these with random patches drawn from other utterances. Similarly, a small patch from a natural image shares many aspects with neighboring patches such as the depicted object or lighting conditions.

Recent work [Oord et al., 2018, Hjelm et al., 2019] has proposed how we can exploit this to learn representations that maximize the mutual information shared among neighbors. In this work, we focus specifically on Contrastive Predictive Coding (CPC) [Oord et al., 2018]. This self-supervised end-to-end learning approach extracts useful representations from sequential inputs by maximizing the mutual information between the extracted representations of temporally nearby patches.

In order to achieve this, CPC first processes the sequential input signal using a deep encoding model , and additionally produces a representation that aggregates the information of all patches up to time-step

using an autoregressive model

. Then, the mutual information between the extracted representations and

of temporally nearby patches is maximized by employing a specifically designed global probabilistic loss: Following the principles of Noise Contrastive Estimation (NCE)

[Gutmann and Hyvärinen, 2010], CPC takes a bag for each delay , with one “positive sample” which is the encoding of the input that follows time-steps after , and “negative samples” which are uniformly drawn from all available encoded input sequences.

Each pair of encodings is scored using a function to predict how likely it is that the given is the positive sample . In practice, Oord et al. [2018] use a log-bilinear model with a unique weight-matrix for each -steps-ahead prediction. The scores from are used to predict which sample in the bag is correct, leading to the InfoNCE loss:

(1)

This loss is used to optimize both the encoding model and the auto-regressive model to extract the features that are consistent over neighboring patches but which diverge between random pairs of patches. At the same time, the scoring model

learns to use those features to correctly classify the matching pair. In practice, the loss is trained using stochastic gradient descent with mini-batches drawn from a large dataset of sequences, and negative samples drawn uniformly from all sequences in the minibatch. Note, that no min-max issues arise as found in adversarial training.

As a result of this configuration, one can derive that the optimal solution for is proportional to the following density ratio [Oord et al., 2018]:

(2)

This insight allows us to reformulate as a lower bound on the mutual information , as demonstrated in the appendix of Oord et al. [2018] and proven by Poole et al. [2018]. Minimizing the loss thus optimizes the mutual information between consecutive patch representations , which in itself lower bounds the mutual information between the future input and the current representation . Hyvarinen and Morioka [2016] show that a similar patch-contrastive setup leads to the extraction of a set of conditionally-independent components, such as Gabor-like filters found in the early biological vision system.

Layer-wise Information Preservation in Neuroscience

Linsker [1988] developed the InfoMax principle in 1988. It theorizes that the brain learns to process its perceptions by maximally preserving the information of the input activities in each layer. On top of this, neuroscience suggests that the brain predicts its future inputs and learns by minimizing this prediction error, i.e. its “surprise” [Friston, 2010]. Empirical evidence indicates, for example, that retinal cells carry significant mutual information between the current and the future state of their own activity [Palmer et al., 2015]. Rao and Ballard [1999] indicate that this process may happen at each layer within the brain. Our proposal draws motivation from these theories, resulting in a method that learns to preserve the information between the input and the output of each layer by learning representations that are predictive of future inputs.

Figure 2:

Groups of 4 image patches that excite a specific neuron, at

3 levels in the model (rows). Despite unsupervised greedy training, neurons appear to extract increasingly semantic features. Best viewed on screen.

3 Greedy InfoMax

In this paper, we pose the question if we can effectively optimize the mutual information between representations at each layer of a model in isolation, enjoying the many practical benefits that greedy training (decoupled, isolated training of parts of a model) provides. In doing so, we introduce a novel approach for self-supervised representation learning: Greedy InfoMax (GIM). As depicted on the left side of Figure 1, we take a conventional deep learning architecture and divide it by depth into a stack of modules. This decoupling can happen at the individual layer level or, for example, at the level of blocks found in residual networks [He et al., 2016b]. Rather than training this model end-to-end, we prevent gradients from flowing between modules and employ a local self-supervised loss instead, additionally reducing the issue of vanishing gradients.

As shown on the right side of Figure 1, each encoding module within our architecture maps the output from the previous module to an encoding . No gradients are flowing between modules, which is enforced using a gradient blocking operator defined as . Oord et al. [2018] propose to use the output of an autoregressive model to contrast against future predictions . However, our preliminary results showed that this did not improve results if applied at every module in the stack and optimizing it requires backpropagation through time, which is considered biologically implausible. Therefore, we train each module using the following module-local InfoNCE loss:

(3)
(4)

After convergence of all modules, the scoring functions

can be discarded, leaving a conventional feed-forward neural network architecture that extracts features

for downstream tasks:

(5)

For some downstream tasks, a broad context is essential. For example, in speech recognition, the receptive field of might not carry the full information required to distinguish phonetic structures. To provide this context, we reintroduce the autoregressive model as an independent module that we optionally append to the stack of encoding modules, resulting in a context-aggregate representation . In practice, a GRU or PixelCNN-style model can serve in this role. We train this module independently using the module-local InfoNCE loss with the following adjusted scoring function:

(6)

Iterative Mutual Information Maximization

Similarly to the InfoNCE loss in Equation 1, our module-local InfoNCE loss in Equation 4 maximizes a lower bound on the mutual information between nearby patch representations, encouraging the extraction of slow features.

Most importantly, it follows from Oord et al. [2018], that the module-local InfoNCE loss also maximizes the lower bound of the mutual information between the future input to a module and its current representation. This can be seen as a maximization of the mutual information between the input and the output of a module, subject to the constraint of temporal disparity. Thus, the InfoNCE loss can successfully enforce each module to preserve the information of its inputs, while providing the necessary regularization [Krause et al., 2010, Hu et al., 2017] for circumventing degenerate solutions. These factors contribute to ensuring that the greedily optimized modules provide meaningful inputs to their successors and that the network as a whole provides useful features for downstream tasks without the use of a global error signal.

Practical benefits

Applying GIM to high-dimensional inputs, we can optimize each module in sequence to decrease the memory costs during training. In the most memory constrained scenario, individual modules can be trained, frozen, and their outputs stored as a dataset for the next module, which effectively removes the depth of the network as a factor of the memory complexity.

Additionally, GIM allows for training models on larger-than-memory input data with architectures that would otherwise exceed memory limitations. Leveraging the conventional pooling and strided layers found in common network architectures, we can start with small patches of the input, greedily train the first module, extract the now compressed representation spanning larger windows of the input and train the following module using these.

Last but not least, GIM provides a highly flexible framework for the training of neural networks. It enables the training of individual parts of an architecture at varying update frequencies. When a higher level of abstraction is needed, GIM allows for adding new modules on top at any moment of the optimization process without having to fine-tune previous results.

4 Experiments

We test the applicability of the GIM approach to the visual and audio domain. In both settings, a feature-extraction model is divided by depth into modules and trained without labels using GIM. The representations created by the final (frozen) module are then used as the input for a linear classifier, whose accuracy scores provide us with a proxy for the quality and generalizability of the representations created by the self-supervised model.

4.1 Vision

To apply Greedy InfoMax to natural images, we impose a top-down ordering on 2D images. We follow Oord et al. [2018], Hénaff et al. [2019] by extracting a grid of partly-overlapping patches from the image to restrict the receptive fields of the representations. For each patch in row and column of this grid, we predict up to K patches in the rows underneath, skipping the first overlapping patch . Random contrastive samples are drawn with replacement from all samples available inside a batch, using 16 contrastive samples for each evaluation of the loss. No autoregressive module is used for GIM in this regime.

Experiment details

We focus on the STL-10 dataset [Coates et al., 2011] which provides an additional unlabeled training dataset. For data augmentation, we take random crops from the

images, flip horizontally with probability

and convert to grayscale. We divide each image of pixels into a total of local patches, each of size with 8 pixels overlap. The patches are encoded by a ResNet-50 v2 model [He et al., 2016b]

without batch normalization

[Ioffe and Szegedy, 2015]. For practical reasons, we train the gradient-isolated modules in sync and with a constant learning rate. After convergence, a linear classifier is trained – without finetuning the representations – using a conventional softmax activation and cross-entropy loss. This linear classifier accepts the patch representations

from the final module and first average-pools these, resulting in a single vector representation

. Remaining implementation details are presented in Section A.1.

[0.48] Method Accuracy Deep InfoMax [Hjelm et al., 2019] Predsim [Nøkland and Eidnes, 2019] Randomly initialized Supervised Greedy Supervised CPC Greedy InfoMax (GIM)

Figure 3: STL-10 classification results on the test set. The GIM model performs virtually the same as the CPC model, despite a lack of end-to-end backpropagation and without the use of a global objective.

[0.48] Method GPU memory Supervised 6.3 GB Greedy Supervised 1st module 2.5 GB CPC 7.7 GB GIM 1st module 2.5 GB GIM all modules 7.0 GB

Figure 4: GPU memory consumption during training. All compared models consist of the ResNet-50 architecture and only differ in their respective training approach. GIM allows efficient greedy training.

Results

As shown in Figure 4, Greedy InfoMax (GIM) performs as well as the end-to-end trained CPC counterpart, despite its unsupervised features being optimized greedily without any backpropagation between modules. An equivalent randomly initialized feature extraction model exhibits poor performance, showing that GIM extracts useful features. Training the feature extraction model end-to-end and fully supervised performs worse, likely due to the small size of the annotated dataset resulting in overfitting. Although this could potentially be circumvented through regularization techniques [DeVries and Taylor, 2017], the self-supervised methods do not appear to require regularization as they benefit from the full unlabeled dataset. Using a greedy supervised approach for training the feature model impedes performance, which suggests that mutual information maximisation is unique in its direct applicability to greedy optimization.

In comparison with the recently proposed Deep InfoMax model from Hjelm et al. [2019] which uses a slightly different end-to-end mutual information maximisation approach and an additional hidden layer in the supervised classification model, the InfoNCE-based methods come out favorably. Finally, we see that we outperform the state-of-the-art biologically inspired Predsim model from Nøkland and Eidnes [2019], which trains individual layers of a VGG like architecture [Simonyan and Zisserman, 2014] using two supervised loss functions. In Figure 2, we visualize patches that neurons in intermediate modules of the vision GIM model are sensitive to, which demonstrates that modules later in the model focus on increasingly abstract features. Overall, the results demonstrate that complicated visual tasks can be approached in part using greedy self-supervised optimization, which can utilize large-scale unlabeled datasets.

Asynchronous memory usage

GIM provides a significant practical advantage arising from the greedy nature of optimization: it can effectively remove the depth of the network as a factor of the memory complexity. Measuring the allocated GPU memory of the previously studied ResNet models during training as shown in Figure 4 indicates that this theoretical benefit holds in practice as well. Training all modules simultaneously exhibits a memory footprint spanning the sum of its individually trainable parts (here: 1st module).

4.2 Audio

Table 1: Results for classifying speaker identity and phone labels in the LibriSpeech dataset. All models use the same audio input sizes and the same architecture. GIM creates representations that are useful for audio classification tasks despite its greedy training and lack of a global objective. Method Phone Classification Accuracy Speaker Classification Accuracy MFCC features Randomly initialized Supervised Greedy Supervised CPC [Oord et al., 2018] 222In our reimplementation, we achieved for the phone and for the speaker classification task. Greedy InfoMax (GIM)

We evaluate GIM in the audio domain on the sequence-global task of speaker classification and the local task of phone classification (distinct phonetic sounds that makeup pronunciations of words). These two tasks are interesting for self-supervised representation learning as the former requires representations that discriminate speakers but are invariant to content, while the latter requires the opposite. Strong performance on both tasks thus suggests strong generalization and disentanglement.

Experimental Details

We follow the setup of Oord et al. [2018] unless specified otherwise, and use a 100-hour subset of the publicly available LibriSpeech dataset [Panayotov et al., 2015], which contains the utterances of 251 different speakers with aligned phone labels provided by Oord et al. [2018]

divided into 41 classes. We first train the self-supervised model consisting of five convolutional layers and one autoregressive module, a single-layer gated recurrent unit (GRU). After convergence, a linear multi-class classifier is trained on top of the context-aggregate representation

without fine-tuning the representations. Remaining implementation details are presented in Section A.2.

Results

Following Table 1, we analyse the performance of models on phone and speaker classification accuracy. Randomly initialized features perform poorly, demonstrating that both tasks require complex representations. The traditional, hand-engineered MFCC features are commonly used in speech recognition systems [Ganchev et al., 2005] and improve over the random features but provide limited linear separability on both tasks. Both CPC and GIM get close to supervised performance on speaker classification, despite their feature models having been trained without labels, and GIM without end-to-end backpropagation. Greedy supervised on this task performs poorly, suggesting that the InfoMax principle suits this task especially well. On phone classification, CPC does not reach the supervised performance ( versus ). GIM achieves , which still improves upon the hand-engineered MFCC features. This discrepancy between near-supervised performance on the speaker tasks and less-than-optimal performance on the phone task suggests that the features extracted by GIM and CPC are biased towards sequence-global tasks.

capbtabboxtable[][0.35]

Method Accuracy
Speaker Classification
Greedy InfoMax (GIM)
GIM without BPTT
GIM without
Phone Classification
Greedy InfoMax (GIM)
GIM without BPTT
GIM without
Figure 5: Ablation studies on the LibriSpeech dataset for removing the biologically implausible and memory-heavy backpropagation through time.

[0.59]

Figure 6: Speaker Classification error rates on log scale (lower is better) for intermediate representations (layers 1 to 5), as well as for the final representation created by the autoregressive layer (corresponding to the results in Table 1).

Ablation study

The local greedy training enabled by GIM provides a step towards biologically plausible optimization and improves memory efficiency. However, the autoregressive module aggregates over multiple patches and employs Backpropagation Through Time (BPTT), which puts a damper on both benefits. In Figure 6, we present results on the performance of ablated models that block gradients flowing between time-steps (GIM without BPTT) or remove the autoregressive module altogether (GIM without ).

Together, these two ablations indicate a crucial difference between the tested downstream tasks. For the phone classification task, we see a steady decline of performance when we reduce the modelling of temporal dependencies, indicating their importance for solving this task. When classifying the speaker identity, on the other hand, the GIM Encoder, which models temporal dependencies the least, performs the best of all GIM models. Together with the image classification results from Section 4.1, where no autoregressive module was employed either, this indicates that the GIM approach performs best on downstream tasks where temporal/context dependencies do not need to be modeled by an autoregressive module. In these settings, GIMs performance is on par with the CPC model which makes use of end-to-end backpropagation, a global objective, and BPTT.

Intermediate module representations

The greedy layer-wise training of GIM allows us to train arbitrarily deep models without ever running into a memory constraint. We investigate how the created representations develop in each individual module by training a linear classifier on top of each module and measuring their performance on the speaker identification task. With results presented in Figure 6, we first observe that each GIM module improves upon the representations of their predecessor. Interestingly, CPC exhibits similar performance in intermediate modules despite these modules relying solely on the error signal from the global loss function on the last module. This is in stark contrast with the supervised end-to-end model, whose intermediate layers lag behind their greedily trained counterparts. This suggests that, in contrast to the supervised loss, the InfoMax principle “stacks well”, such that the greedy, iterative application of the InfoNCE loss performs similar to its global application.

5 Related Work

We have studied the effectiveness of the self-supervised CPC approach [Oord et al., 2018, Hénaff et al., 2019] when applied to gradient-isolated modules, freeing the method from end-to-end backpropagation. There are a number of optimization algorithms that eliminate the need for backpropagation altogether [Scellier and Bengio, 2017, Lillicrap et al., 2016, Kohan et al., 2018, Balduzzi et al., 2015, Lee et al., 2015]. In contrast to our method, these methods employ a global supervised loss function and focus on finding more biologically plausible ways to assign credit to neurons.

A recently published work by Nøkland and Eidnes [2019] likewise demonstrates that backpropagation-free biologically plausible training is possible, with a focus on supervised local signals, and thorough results to back up their claims. In an attempt to validate information bottleneck theory, Elad et al. [2018] develop a supervised, layer-wise training method that maximizes the mutual information between the outputs of a layer and the target whilst minimizing the mutual information between the inputs and outputs. In contrast to our proposal, these methods rely on labeled data.

Jaderberg et al. [2017] develop decoupled neural interfaces, which enjoy the same asynchronous training benefits as Greedy InfoMax (GIM), but achieve this by taking an end-to-end supervised loss and locally predicting its gradients. Hinton et al. [2006] and Bengio et al. [2007]

focus on deep belief networks and propose a greedy layer-wise unsupervised pretraining method based on Restricted Boltzmann Machine principles, followed by optimizing globally using a supervised loss.

Lee et al. [2009] use convolutional deep belief networks for unsupervised pretraining on the TIMIT audio dataset and then evaluate their performance by training supervised classifiers on top. Gao et al. [2018], Ver Steeg and Galstyan [2015] explore total correlation explanation, which is related to mutual information maximisation, and show that this works on layer-by-layer training.

The maximization of the mutual information between the input and the output of a neural network was investigated by a number of recent works [McAllester, 2018, Oord et al., 2018, Hjelm et al., 2019, Belghazi et al., 2018]. Poole et al. [2018]

analyse these recent works under a common framework and highlight that InfoNCE exhibits low variance at a cost of high bias and propose new lower bounds that allow for balancing this bias/variance trade-off. However, the analysis of these improved bounds in the context of inter-patch mutual information optimization remains in order, and thus we focus on the original CPC InfoNCE loss to bias the learned representations towards slow features

[Wiskott and Sejnowski, 2002].

Outside the framework of InfoMax, context prediction methods have been explored for unsupervised representation learning. A prominent approach in language processing is Word2Vec [Mikolov et al., 2013], in which a word is directly predicted given its context (continuous skip-gram). Likewise, Doersch et al. [2015] study such an approach for the visual domain. Similarly, graph neural networks use contrastive principles to learn unsupervised node embeddings based on their neighbours [Nickel et al., 2011, Perozzi et al., 2014, Nickel et al., 2015, Kipf and Welling, 2016, Veličković et al., 2018]

. Noise contrastive estimation has also been explored for independent component analysis

[Hyvarinen et al., 2018, Hyvarinen and Morioka, 2016, 2017]. Inversely to InfoMax, Schmidhuber [1992] proposes a method where individual features are minimized such that they cannot be predicted from other features, forcing them to extract independent factors that carry statistical information, at the risk of neurons latching onto local independent noise sources in the input.

6 Conclusion

We presented Greedy InfoMax, a novel self-supervised greedy learning approach. The relatively strong performance demonstrates that deep neural networks do not necessarily require end-to-end backpropagation of a supervised loss on perceptual tasks. Our proposal enables greedy self-supervised training, which makes the model less vulnerable to overfitting, reduces the vanishing gradient problem and enables memory-efficient asynchronous distributed training. While the biological plausibility of our proposal is limited by the use of negative samples and within-module backpropagation, the results provide evidence that the theorized self-organisation in biological perceptual networks is at least feasible and effective in artificial networks, providing food for thought on the credit assignment discussion in perceptual networks

[Bengio et al., 2015, Linsker, 1988].

References

  • Balduzzi et al. [2015] David Balduzzi, Hastagiri Vanchinathan, and Joachim Buhmann. Kickback cuts backprop’s red-tape: biologically plausible credit assignment in neural networks. In

    Twenty-Ninth AAAI Conference on Artificial Intelligence

    , 2015.
  • Belghazi et al. [2018] Mohamed Ishmael Belghazi, Aristide Baratin, Sai Rajeshwar, Sherjil Ozair, Yoshua Bengio, Devon Hjelm, and Aaron Courville. Mutual information neural estimation. In

    International Conference on Machine Learning

    , pages 530–539, 2018.
  • Bengio et al. [2007] Yoshua Bengio, Pascal Lamblin, Dan Popovici, and Hugo Larochelle. Greedy layer-wise training of deep networks. In Advances in neural information processing systems, pages 153–160, 2007.
  • Bengio et al. [2015] Yoshua Bengio, Dong-Hyun Lee, Jorg Bornschein, Thomas Mesnard, and Zhouhan Lin. Towards biologically plausible deep learning. arXiv preprint arXiv:1502.04156, 2015.
  • Coates et al. [2011] Adam Coates, Andrew Ng, and Honglak Lee. An analysis of single-layer networks in unsupervised feature learning. In Proceedings of the fourteenth international conference on artificial intelligence and statistics, pages 215–223, 2011.
  • Crick [1989] Francis Crick. The recent excitement about neural networks. Nature, 337(6203):129–132, 1989.
  • DeVries and Taylor [2017] Terrance DeVries and Graham W Taylor. Improved regularization of convolutional neural networks with cutout. arXiv preprint arXiv:1708.04552, 2017.
  • Doersch et al. [2015] Carl Doersch, Abhinav Gupta, and Alexei A Efros. Unsupervised visual representation learning by context prediction. May 2015.
  • Elad et al. [2018] Adar Elad, Doron Haviv, Yochai Blau, and Tomer Michaeli. The effectiveness of layer-by-layer training using the information bottleneck principle. OpenReview, 2018.
  • Friston [2010] Karl Friston. The free-energy principle: a unified brain theory? Nature reviews neuroscience, 11(2):127, 2010.
  • Ganchev et al. [2005] Todor Ganchev, Nikos Fakotakis, and George Kokkinakis. Comparative evaluation of various mfcc implementations on the speaker verification task. In Proceedings of the SPECOM, volume 1, pages 191–194, 2005.
  • Gao et al. [2018] Shuyang Gao, Rob Brekelmans, Greg Ver Steeg, and Aram Galstyan. Auto-Encoding total correlation explanation. February 2018.
  • Gutmann and Hyvärinen [2010] Michael Gutmann and Aapo Hyvärinen. Noise-contrastive estimation: A new estimation principle for unnormalized statistical models. In Proceedings of the Thirteenth International Conference on Artificial Intelligence and Statistics, pages 297–304, 2010.
  • He et al. [2016a] Kaiming He, Xiangyu Zhang, Shaoqing Ren, and Jian Sun. Deep residual learning for image recognition. In

    Proceedings of the IEEE conference on computer vision and pattern recognition

    , pages 770–778, 2016a.
  • He et al. [2016b] Kaiming He, Xiangyu Zhang, Shaoqing Ren, and Jian Sun. Identity mappings in deep residual networks. In European conference on computer vision, pages 630–645. Springer, 2016b.
  • Hénaff et al. [2019] Olivier J Hénaff, Ali Razavi, Carl Doersch, S M Ali Eslami, and Aaron van den Oord. Data-Efficient image recognition with contrastive predictive coding. May 2019.
  • Hinton et al. [2006] Geoffrey E Hinton, Simon Osindero, and Yee-Whye Teh. A fast learning algorithm for deep belief nets. Neural computation, 18(7):1527–1554, 2006.
  • Hjelm et al. [2019] R Devon Hjelm, Alex Fedorov, Samuel Lavoie-Marchildon, Karan Grewal, Adam Trischler, and Yoshua Bengio. Learning deep representations by mutual information estimation and maximization. Proceedings of the 7th International Conference on Learning Representations, 2019.
  • Hu et al. [2017] Weihua Hu, Takeru Miyato, Seiya Tokui, Eiichi Matsumoto, and Masashi Sugiyama. Learning discrete representations via information maximizing self-augmented training. In Proceedings of the 34th International Conference on Machine Learning-Volume 70, pages 1558–1567. JMLR. org, 2017.
  • Hyvarinen and Morioka [2016] Aapo Hyvarinen and Hiroshi Morioka. Unsupervised feature extraction by time-contrastive learning and nonlinear ica. In Advances in Neural Information Processing Systems, pages 3765–3773, 2016.
  • Hyvarinen and Morioka [2017] Aapo Hyvarinen and Hiroshi Morioka. Nonlinear ICA of Temporally Dependent Stationary Sources. In Aarti Singh and Jerry Zhu, editors, Proceedings of the 20th International Conference on Artificial Intelligence and Statistics, volume 54 of Proceedings of Machine Learning Research, pages 460–469, Fort Lauderdale, FL, USA, 2017. PMLR.
  • Hyvarinen et al. [2018] Aapo Hyvarinen, Hiroaki Sasaki, and Richard E Turner. Nonlinear ICA using auxiliary variables and generalized contrastive learning. May 2018.
  • Ioffe and Szegedy [2015] Sergey Ioffe and Christian Szegedy. Batch normalization: Accelerating deep network training by reducing internal covariate shift. arXiv preprint arXiv:1502.03167, 2015.
  • Jacobsen et al. [2018] Jörn-Henrik Jacobsen, Arnold Smeulders, and Edouard Oyallon. i-RevNet: Deep invertible networks. February 2018.
  • Jaderberg et al. [2017] Max Jaderberg, Wojciech Marian Czarnecki, Simon Osindero, Oriol Vinyals, Alex Graves, David Silver, and Koray Kavukcuoglu. Decoupled neural interfaces using synthetic gradients. In Proceedings of the 34th International Conference on Machine Learning-Volume 70, pages 1627–1635, 2017.
  • Kingma and Ba [2014] Diederik P Kingma and Jimmy Ba. Adam: A method for stochastic optimization. arXiv preprint arXiv:1412.6980, 2014.
  • Kipf and Welling [2016] Thomas N Kipf and Max Welling. Variational graph Auto-Encoders. November 2016.
  • Kohan et al. [2018] Adam A Kohan, Edward A Rietman, and Hava T Siegelmann. Error forward-propagation: Reusing feedforward connections to propagate errors in deep learning. arXiv preprint arXiv:1808.03357, 2018.
  • Krause et al. [2010] Andreas Krause, Pietro Perona, and Ryan G Gomes. Discriminative clustering by regularized information maximization. In Advances in neural information processing systems, pages 775–783, 2010.
  • Krizhevsky et al. [2012] Alex Krizhevsky, Ilya Sutskever, and Geoffrey E Hinton. Imagenet classification with deep convolutional neural networks. In Advances in neural information processing systems, pages 1097–1105, 2012.
  • Lee et al. [2015] Dong-Hyun Lee, Saizheng Zhang, Asja Fischer, and Yoshua Bengio. Difference target propagation. In Joint european conference on machine learning and knowledge discovery in databases, pages 498–515. Springer, 2015.
  • Lee et al. [2009] Honglak Lee, Peter Pham, Yan Largman, and Andrew Y Ng. Unsupervised feature learning for audio classification using convolutional deep belief networks. In Advances in neural information processing systems, pages 1096–1104, 2009.
  • Lillicrap et al. [2016] Timothy P Lillicrap, Daniel Cownden, Douglas B Tweed, and Colin J Akerman. Random synaptic feedback weights support error backpropagation for deep learning. Nature communications, 7:13276, 2016.
  • Linsker [1988] Ralph Linsker. Self-organization in a perceptual network. Computer, 21(3):105–117, 1988.
  • McAllester [2018] David McAllester. Information theoretic co-training. arXiv preprint arXiv:1802.07572, 2018.
  • Mikolov et al. [2013] Tomas Mikolov, Ilya Sutskever, Kai Chen, Greg S Corrado, and Jeff Dean. Distributed representations of words and phrases and their compositionality. In C J C Burges, L Bottou, M Welling, Z Ghahramani, and K Q Weinberger, editors, Advances in Neural Information Processing Systems 26, pages 3111–3119. Curran Associates, Inc., 2013.
  • Nickel et al. [2011] Maximilian Nickel, Volker Tresp, and Hans-Peter Kriegel. A Three-Way model for collective learning on Multi-Relational data. In ICML, volume 11, pages 809–816, 2011.
  • Nickel et al. [2015] Maximilian Nickel, Kevin Murphy, Volker Tresp, and Evgeniy Gabrilovich.

    A review of relational machine learning for knowledge graphs.

    March 2015.
  • Nøkland and Eidnes [2019] Arild Nøkland and Lars Hiller Eidnes. Training neural networks with local error signals. In Proceedings of the 36th International Conference on Machine Learning, 2019.
  • Oord et al. [2018] Aaron van den Oord, Yazhe Li, and Oriol Vinyals. Representation learning with contrastive predictive coding. arXiv preprint arXiv:1807.03748, 2018.
  • Palmer et al. [2015] Stephanie E Palmer, Olivier Marre, Michael J Berry, and William Bialek. Predictive information in a sensory population. Proceedings of the National Academy of Sciences, 112(22):6908–6913, 2015.
  • Panayotov et al. [2015] Vassil Panayotov, Guoguo Chen, Daniel Povey, and Sanjeev Khudanpur. Librispeech: an asr corpus based on public domain audio books. In 2015 IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP), pages 5206–5210. IEEE, 2015.
  • Paszke et al. [2017] Adam Paszke, Sam Gross, Soumith Chintala, Gregory Chanan, Edward Yang, Zachary DeVito, Zeming Lin, Alban Desmaison, Luca Antiga, and Adam Lerer.

    Automatic differentiation in pytorch.

    2017.
  • Perozzi et al. [2014] Bryan Perozzi, Rami Al-Rfou, and Steven Skiena. DeepWalk: Online learning of social representations. March 2014.
  • Poole et al. [2018] Ben Poole, Sherjil Ozair, Aäron van den Oord, Alexander A Alemi, and George Tucker. On variational lower bounds of mutual information. In NeurIPS Workshop on Bayesian Deep Learning, 2018.
  • Rao and Ballard [1999] Rajesh PN Rao and Dana H Ballard. Predictive coding in the visual cortex: a functional interpretation of some extra-classical receptive-field effects. Nature neuroscience, 2(1):79, 1999.
  • Salimans and Bulatov [2017] Tim Salimans and Yaroslav Bulatov. Gradient checkpointing, 2017.
  • Scellier and Bengio [2017] Benjamin Scellier and Yoshua Bengio.

    Equilibrium propagation: bridging the gap between energy-based models and backpropagation.

    Frontiers in computational neuroscience, 11:24, 2017.
  • Schmidhuber [1992] Jürgen Schmidhuber. Learning factorial codes by predictability minimization. Neural Comput., 4(6):863–879, November 1992.
  • Simonyan and Zisserman [2014] Karen Simonyan and Andrew Zisserman. Very deep convolutional networks for large-scale image recognition. arXiv preprint arXiv:1409.1556, 2014.
  • Szegedy et al. [2015] Christian Szegedy, Wei Liu, Yangqing Jia, Pierre Sermanet, Scott Reed, Dragomir Anguelov, Dumitru Erhan, Vincent Vanhoucke, and Andrew Rabinovich. Going deeper with convolutions. In Proceedings of the IEEE conference on computer vision and pattern recognition, pages 1–9, 2015.
  • Veličković et al. [2018] Petar Veličković, William Fedus, William L Hamilton, Pietro Liò, Yoshua Bengio, and R Devon Hjelm. Deep graph infomax. September 2018.
  • Ver Steeg and Galstyan [2015] Greg Ver Steeg and Aram Galstyan.

    Maximally informative hierarchical representations of High-Dimensional data.

    In Artificial Intelligence and Statistics, pages 1004–1012. jmlr.org, February 2015.
  • Wiskott and Sejnowski [2002] Laurenz Wiskott and Terrence J Sejnowski.

    Slow feature analysis: unsupervised learning of invariances.

    Neural Comput., 14(4):715–770, April 2002.

Appendix A Experimental Setup

We use PyTorch [Paszke et al., 2017] for all our experiments.

a.1 Vision Experiments

In our vision experiments, we employ the ResNet-50 v2 architecture [He et al., 2016b]

, in which we remove the max-pooling layer and adjuste the first convolutional layer in such a way that the size of the feature map stays constant. Thus, the first convolutional layer uses a kernel size of 5, a stride of 1 and a padding of 2. Additionally, we do not employ batch normalization

[Ioffe and Szegedy, 2015].

We train our model on 8 GPUs (GeForce 1080 Ti) each with a minibatch of 16 images. We train it for 300 epochs using Adam and a learning rate of 1.5e-4 and use the same random seed in all our experiments.

For the self-supervised training using the InfoNCE objective, we need to contrast the predictions of the model for its future representations against negative samples. We draw these samples uniformly at random from across the input batch that is being evaluated. Thus, the negative samples can contain samples from the same image at different patch locations, as well as from different images. We found that including the positive sample (i.e. the future representation that is currently to be predicted) in the negative samples did not have a negative effect on the final performance. For each evaluation of the InfoNCE loss, we use 16 negative samples and predict up to rows into the future. For contrasting patches against one another, we spatially mean-pool the representations of each patch.

Before applying the linear logistic regression classifier on the output of the third residual block, we spatially mean-pool the created representations of size

again. Thus, the final representation from which we learn to predict class labels is a 1024-dimensional vector. We use the Adam optimizer for the training of the linear logistic regression classifier and set its learning rate to 1e-3. We optimized this hyperparameter by splitting the labelled training set provided by the STL-10 dataset into a validation set consisting of

of the images and a corresponding training set with the remaining images.

a.2 Audio Experiments

The detailed description of our employed architecture is given in Table 2. We train our model on 4 GPUs (GeForce 1080 Ti) each with a minibatch of 8 examples. Our model is optimized with Adam [Kingma and Ba, 2014] and a learning rate of 2e-4 for 300 epochs. We use the same random seed for all our experiments. Overall, our hyperparameters were chosen to be consistent with Oord et al. [2018].

Layer Output Size Parameters
(Sequence Length Channels) Kernel Stride Padding
Input
Conv1 10 5 2
Conv2 8 4 2
Conv3 4 2 2
Conv4 4 2 2
Conv5 1 2 1
GRU - - -
Table 2: General outline of our architecture for the audio experiments.

Similarly to the vision experiments, we take the negative samples uniformly at random from across the batch that is currently evaluated. Again this may include the positive sample. In our audio experiments, we use a total of 10 negative samples and predict up to time-steps into the future.

We train the linear logistic regression classifier using the representations of the top, autoregressive module without pooling. Again, we employ the Adam optimizer but select different learning rates than before. For this hyperparameter search, we split the training set provided by Oord et al. [2018] into two random subsets using of the samples as a validation set. In the speaker classification experiment, we used a learning rate of 1e-3, while we set it to 1e-4 for the phone classification experiment.
