Gray Level Image Threshold Using Neutrosophic Shannon Entropy

06/26/2019
by   Vasile Patrascu, et al.
2

This article presents a new method of segmenting grayscale images by minimizing Shannon's neutrosophic entropy. For the proposed segmentation method, the neutrosophic information components, i.e., the degree of truth, the degree of neutrality and the degree of falsity are defined taking into account the belonging to the segmented regions and at the same time to the separation threshold area. The principle of the method is simple and easy to understand and can lead to multiple thresholds. The efficacy of the method is illustrated using some test gray level images. The experimental results show that the proposed method has good performance for segmentation with optimal gray level thresholds.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 5

page 6

page 7

page 8

02/23/2015

Shannon, Tsallis and Kaniadakis entropies in bi-level image thresholding

The maximum entropy principle is often used for bi-level or multi-level ...
05/22/2013

A novel automatic thresholding segmentation method with local adaptive thresholds

A novel method for segmenting bright objects from dark background for gr...
11/01/2020

An efficient Harris hawks-inspired image segmentation method

Segmentation is a crucial phase in image processing because it simplifie...
12/18/2014

Gray Level Image Enhancement Using Polygonal Functions

This paper presents a method for enhancing the gray level images. This m...
10/18/2021

Color Image Segmentation Using Multi-Objective Swarm Optimizer and Multi-level Histogram Thresholding

Rapid developments in swarm intelligence optimizers and computer process...
02/14/2015

Gray-Level Image Transitions Driven by Tsallis Entropic Index

The maximum entropy principle is largely used in thresholding and segmen...
07/19/2019

Direct information transfer rate optimisation for SSVEP-based BCI

In this work, a classification method for SSVEP-based BCI is proposed. T...
This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Image segmentation is a process that divides the image into its component parts. One of the most used methods is the thresholding one. Recent advances in the neutrosophic representation of information allow different possibilities for the development of new image segmentation techniques. Neutrosophic models have the ability to work with data uncertainty and appear as an alternative to improving the threshold selection process so we get the right segmentation. In this paper we use as a thresholding function the Shannon entropy of neutrosophic information.

Next, the structure of the article is the following: Section 2 gives the neutrosophication procedure for the gray level images. The proposed neutrosophication is very specific to the thresholding technique; Section 3 shows how Shannon entropy can be calculated for the neutrosophic information; Section 4 shows the thresholding algorithm; Section 5 shows experimental results; Section 6 shows the conclusions while the last section is the references one.

2 The Neutrosophic Information Construction

Neutrosophic representation of information was proposed by Smarandache [2], [7], [8] and [9] as an extension of fuzzy representation proposed by Zadeh [12] and intuitionistic fuzzy representation proposed by Atanassov [1]. Primary neutrosophic information is defined by three parameters: degree of truth , degree of falsity and degree of neutrality . In the next, we will show, how can construct the neutrosophic information for a gray level image, in such a way to be useful for threshold methods.

Consider the gray levels in the range . We denote with the multiset [11] of the gray levels existing in the whole image and take a point . Also, we denote with the multiset of gray levels existing in the image from the interval and with the multiset of gray levels existing in the image from the interval , that is:

(1)
(2)

The threshold represents the neutrality point between the two multisets and . Then, we calculate the average for gray levels lower than and the average for gray levels larger than with formulas:

(3)
(4)

For calculation the dissimilarity between two gray levels we will use the following metric [5], [6]:

(5)

Using the metric , we calculate the dissimilarities between each gray level and the averages , and the threshold . It results , and .

(6)
(7)
(8)

We denote the minimum between the dissimilarities and with:

(9)

With these dissimilarities, we will construct the neutrosophic information associated with each gray level and related to the threshold : the degree of truth , the degree of falsity and the degree of neutrality .

The degree of truth:

(10)

The degree of falsity:

(11)

The degree of neutrality:

(12)

In figure 1, we can see the graphic of the functions , and for the particular case: , and

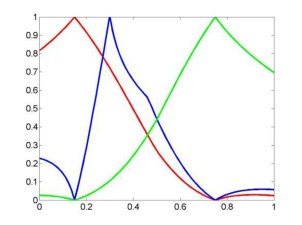

Figure 1: The graphic of the functions for , and .
