GraphNVP: An Invertible Flow Model for Generating Molecular Graphs

05/28/2019 ∙ by Kaushalya Madhawa, et al. ∙ IEEE 0

We propose GraphNVP, the first invertible, normalizing flow-based molecular graph generation model. We decompose the generation of a graph into two steps: generation of (i) an adjacency tensor and (ii) node attributes. This decomposition yields the exact likelihood maximization on graph-structured data, combined with two novel reversible flows. We empirically demonstrate that our model efficiently generates valid molecular graphs with almost no duplicated molecules. In addition, we observe that the learned latent space can be used to generate molecules with desired chemical properties.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 5

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Generation of molecules with certain desirable properties is a crucial problem in computational drug discovery. Recently, deep learning approaches are being actively studied for generating promising candidate molecules quickly. Earlier models

kusner2017gvae ; gomez2018automatic depend on a string-based representation of molecules. However, recent models jtvae2018 ; gcpn2018 ; de2018molgan

directly work on molecular graph representations and record impressive experimental results. In these studies, either variational autoencoder (VAE)

kingma2013vae or generative adversarial network (GAN) goodfellow2014gan ; dcgan2015

are used mainly to learn mappings between the graphs and their latent vector representations.

In this paper, we propose GraphNVP, yet another framework for molecular graph generation based on the invertible normalizing flow nice2015 ; realnvp2017 ; glow2018 , which was mainly adopted for image generation tasks. However, the sparse and discrete structure of molecular graphs is quite different from the regular grid image pixels. To capture distributions of such molecular graphs into a latent representation, we propose a novel two-step generation scheme. Specifically, GraphNVP is equipped with two latent representations for a molecular graph: first for the graph structure represented by an adjacency tensor, and second for node (atom) label assignments. During the generation process, Graph NVP first generates a graph structure. Then node attributes are generated according to the structure. This two-step generation enables us to generate valid molecular graphs efficiently.

A significant advantage of the invertible flow-based models is they perform precise likelihood maximization, unlike VAEs or GANs. We believe precise optimization is crucial in molecule generation for drugs, which are highly sensitive to a minor replacement of a single atom (node). For that purpose, we introduce two types of reversible flows that work for the aforementioned two latent representations.

Thanks to the reversibility of the flow models, new graph samples can be generated by simply feeding a latent vector into the same model but in the reverse order. In contrast, VAE models are made of a stochastic encoder and an imperfect decoder. The decoder learns to generate a sample from a given latent vector by minimizing a reconstruction loss. For graph data, calculating the reconstruction loss often involves computationally demanding graph matching simonovsky2018graphvae . VAE-based molecule generation models kusner2017gvae sidestep the stochasticity of the decoder by decoding the same latent vector multiple times and choosing the most common molecule as the output. Since flow-based models are invertible by design, perfect reconstruction is guaranteed and no time-consuming procedures are needed. Moreover, the lack of an encoder in GAN models makes it challenging to manipulate the sample generation. For example, it is not straightforward to use a GAN model to generate graph samples that are similar to a query graph (e.g., lead optimization for drug discovery), while it is easy for flow-based models.

In the experiments, we compare the proposed flow model with several existing graph generation models using two popular molecular datasets. Surprisingly, the proposed flow model generates molecular graphs with almost 100% uniqueness ratio: namely, the results contain almost no duplicated molecular graphs. Additionally, we show that the learned latent space can be utilized to generate molecular graphs with desired chemical properties, even though we do not encode domain expert knowledge into the model.

2 Related Work

2.1 Molecular Graph Generation

We can classify the existing molecular graph generation models based on how the data distribution is learned. Most current models belong to two categories. First, VAE-based models assume a simple variational distribution for latent representation vectors

jtvae2018 ; cgvae2018 ; ma2018constrained . Second, some models implicitly learn the empirical distribution, especially based on the GAN architecture (e.g., de2018molgan ; gcpn2018 ; Guimaraes17ORGAN

). Some may resort to reinforcement learning

gcpn2018

to alleviate the difficulty of direct optimization of the objective function. We also observe an application of autoregressive recurrent neural networks (RNN) for graphs

You18graphrnn . In this paper, we will add a new category to this list: namely, the invertible flow.

Additionally, we can classify the existing models based on the process they use for generating a graph. There are mainly two choices in the generation process. One is a sequential iterative process, which generates a molecule in a step-by-step fashion by adding nodes and edges one by one jtvae2018 ; gcpn2018 . The alternative is one-shot generation of molecular graphs, when the graph is generated in a single step. This process resembles commonly used image generation models (e.g., glow2018 ). The former process is advantageous in (i) dealing with large molecules and (ii) forcing validity constraints on the graph (e.g., a valency condition of molecule atoms). The latter approach has a major advantage: the model is simple to formulate and implement. This is because the one-shot approach does not have to consider arbitrary permutations of the sequential steps, which can grow exponentially with the number of nodes in the graph.

Combining these two types of classification, we summarize the current status of molecular graph generation in Table 1. In this paper, we propose the first graph generation model based on the invertible flow, with one-shot generation strategy.

Name Distribution Model Generation Process
VAE Adversarial RL RNN InvertibleFlow Iterative One-shot
RVAE ma2018constrained - - - - -
CGVAE cgvae2018 - - - - -
JT-VAE jtvae2018 - - - - -
MolGAN de2018molgan - - - - -
GCPN gcpn2018 - - - -
GraphRNN You18graphrnn - - - - -
GraphNVP - - - - -
Table 1: Existing models of molecular graph generation. We propose the first invertible flow-based graph generation model in the literature..

2.2 Invertible Flow Models

To the best of our knowledge, the normalizing flow (which is a typical invertible flow) was first introduced to the machine learning community by

Tabak_VandenEijnden10 ; Tabak_Turner13 . Later, Rezende et al. Rezende_Mohamed15ICML and Dinh et al. nice2015 leveraged deep neural networks in defining tractable invertible flows. Dinh et al.  nice2015 introduced reversible transformations for which the log-determinant calculation is tractable. These transformations, known as coupling layers, serve as the basis of recent flow-based image generation models  realnvp2017 ; glow2018 ; ffjord . Recently, Behrman et al. iresnet2019 introduced an invertible ResNet architecture based on numerical inversion computations.

So far, the application of flow-based models is mostly limited to the image domain. As an exception, Kumar et al. Kumar18grevnet proposed flow-based invertible transformations on graphs. However, their model is only capable of modeling the node assignments and it is used for improving the performance of node and graph classification. Their model cannot learn a latent representation of the adjacency tensor; therefore, it cannot generate graph structures. We overcome this issue by introducing two latent representations, one for node assignments and another for the adjacency tensor, to capture the unknown distributions of the graph structure and its node assignments. Thus, we consider our proposed model to be the first invertible flow model that can generate attributed graphs.

3 GraphNVP: Flow-based graph generation model

3.1 Formulation

We use the notation to represent a graph consisting of an adjacency tensor and a feature matrix . Let there be nodes in the graph. Let be the number of types of nodes and be the number of types of edges. Then and . In the case of molecular graphs, represents a molecule with types of bonds (single, double, etc.) and types of atoms (e.g., oxygen, carbon, etc.). Our objective is to learn an invertible model with parameters that maps into a latent point . We describe as a normalizing flow composed of multiple invertible functions.

Let be a latent vector drawn from a known prior distribution (e.g., Gaussian):

. With the change of variable formula, the log probability of a given graph

can be calculated as:

(1)

where is the Jacobian of at .

3.2 Graph Representation

Directly applying a continuous density model on discrete components may result in degenerate probability distributions. Therefore, we cannot directly employ the change of variable formula (Eq.

1) for these components. It is a standard practice to convert the discrete data distribution into a continuous distribution by adding real-valued noise theis2016note . This process is known as dequantization. Usually, dequantization is performed by adding uniform noise to the discrete data realnvp2017 ; glow2018 . We follow this process by adding uniform noise to components of ; , and , as shown in Eq. 2 and Eq. 3. The dequantized graph denoted as is used as the input in Eq. 1:

(2)
(3)

where

is a scaling hyperparameter. We adopted

for our experiment.

Note that the original discrete inputs and can be recovered by simply applying floor operation on each continuous value in and . Hereafter, all the transformations are performed on dequantized inputs and .

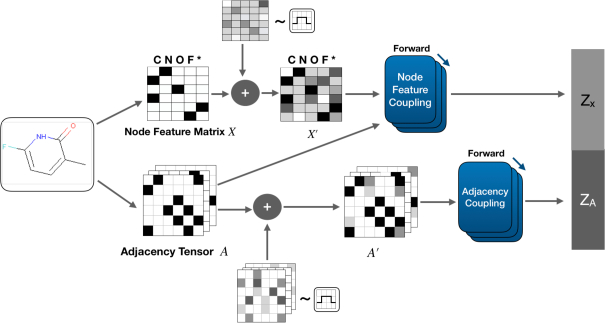

Figure 1: Forward transformation of the proposed GraphNVP.

3.3 Coupling layers

Based on real-valued non-volume preserving (real NVP) transformations introduced in  realnvp2017 , we propose two types of reversible affine coupling layers; adjacency coupling layers and node feature coupling layers that transform the adjacency tensor and the feature matrix into latent representations, and , respectively.

We apply layers of node feature coupling layers to a feature matrix to obtain . We denote an intermediate representation of the feature matrix after applying the th node feature coupling layer as . Starting from , we repeat updating rows of over layers. Each row of corresponds to a feature vector of a node in the graph. Finally, we obtain as the final latent representation of the feature matrix. The th node feature coupling layer updates a single row of the feature matrix while keeping the rest of the input intact:

(4)

where functions and stand for scale and translation operations, and denotes element-wise multiplication. We use to denote a latent representation matrix of excluding the th row (node). Rest of the rows of the feature matrix will stay the same as

(5)

Both and can be formulated with arbitrary nonlinear functions, as the reverse step of the model does not require inverting these functions. Therefore, we use the graph adjacency tensor when computing invertible transformations of the node feature matrix . So as functions and in a node feature coupling layer, we use a sequence of generic graph neural networks. It should be noted that we use the discrete adjacency tensor , as only the node feature matrix is updated in this step. In this paper, we use a variant of Relational GCN relgcn2018 architecture.

Likewise, we apply layers of transformations for the adjacency tensor to obtain the latent representation . We denote an intermediate representation of the adjacency tensor after applying the th adjacency coupling as . The th adjacency coupling layer updates only a single slice of with dimensions as:

(6)

The rest of the rows will stay as it is:

(7)

For the adjacency coupling layer, we adopt multi-layer perceptrons (MLPs) for

and functions. Starting from , we repeat updating the first axis slices of over layers. Finally, we obtain as the final latent representation of the adjacency tensor.

3.3.1 Masking Patterns and Permutation over Nodes

Eqs. (46) are implemented with masking patterns shown in Figure 2. Based on experimental evidence, we observe that masking and w.r.t. the node axis performs the best. Because a single coupling layer updates one single slice of and , we need a sequence of coupling layers at the minimum, each masking a different node, for each of the adjacency coupling and the node feature coupling layers.

We acknowledge that this choice of masking axis over and makes the transformations not invariant to permutations of the nodes. We can easily formulate permutation-invariant couplings by changing the slice indexing based on the non-node axes (the 3rd axis of the adjacency tensor, and the 2nd axis of the feature matrix). However, using such masking patterns results in dramatically worse performance due to the sparsity of molecular graphs. For example, organic compounds are mostly made of carbon atoms. Thus, masking the carbon column in (and ) results in feeding a nearly-empty matrix to the scale and the translation networks, which is almost non-informative to update the carbon column entries of and . We consider this permutation dependency as a limitation of the current model, and we intend to work on this issue as future work.

(a) Adjacency coupling layer: A single row of adjacency tensor is masked.
(b) Node feature coupling layer: All channels belonging to a single node are masked.
Figure 2: Masking schemes used in proposed affine coupling layers.

3.4 Training

During the training, we perform the forward computations shown in Figure 1 over minibatches of training data () and obtain latent representations . Our objective is maximizing the log likelihood (Eq. 1) of over minibatches of training data. This is implemented as minimization of the negative log likelihood using the Adam optimizer Kingma_Ba15ICLR .

3.5 Two-step Molecular Graph Generation

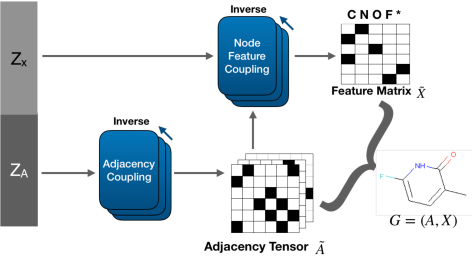

Figure 3: Generative process of the proposed GraphNVP. We apply the inverse of the coupling layers in the reverse order, so that the original input can be reconstructed.

Because our proposed model is invertible, graph generation is simply executing the process shown in Figure 1 in reverse. During the training, node feature coupling and adjacency coupling can be performed in either order, as the output of one coupling module does not depend on the output of the other coupling module. However, because the node feature coupling module requires a valid adjacency tensor as an input, we also need an adjacency tensor to perform the reverse step of node feature coupling. Therefore, we apply the reverse step of adjacency coupling module first, so we get an adjacency tensor as the output. Next, the adjacency tensor is fed into the reverse step of the node feature coupling. The generation process is shown in Figure 3. In section 4, we show that this 2-step generation process can efficiently generate chemically valid molecular graphs.

1st step: We draw a random sample from prior and split sampled into and . Next, we apply a sequence of inverted adjacency coupling layers on . As a result, we obtain a probabilistic adjacency tensor , from which we construct a discrete adjacency tensor by taking node-wise and edge-wise argmax.

2nd step: We generate a feature matrix given the sampled and the generated adjacency tensor . We input along with into a sequence of inverted node feature coupling layers to attain . Likewise, we take node-wise argmax of to get discrete feature matrix .

4 Experiments

4.1 Procedure

We use two popular chemical molecular datasets, QM9 ramakrishnan2014quantum and ZINC-250k irwin2012zinc . QM9 dataset contains 134k molecules, and ZINC-250k is made of 250k drug-like molecules randomly selected from the ZINC database. The maximum number of atoms in a molecule are 9 for the QM9 and 38 for the ZINC, respectively (excluding hydrogen). Following a standard procedure, we first kekulize molecules and then remove hydrogen atoms from them. The resulting molecules contain only single, double, and triple bonds.

We convert each molecule to an adjacency tensor and a feature matrix . N is the maximum number of atoms a molecule in a certain dataset can have. If a molecule has less than

atoms, we insert virtual nodes as padding to keep the dimensions of

and the same for all the molecules. Because the original adjacency tensors can be sparse, we add a virtual bond edge between the atoms that do not have a bond in the molecule. Thus, an adjacency tensor consists of adjacency matrices stacked together, each corresponding to the existence of a certain type of bond (single, double, triple, and virtual bonds) between the atoms. The feature matrix is used to represent the type of each atom (e.g., oxygen, fluorine, etc.).

We use a multivariate Gaussian distribution

as prior distribution

, where standard deviation

is learned simultaneously during the training. We present more details in the appendix.

4.2 Numerical Evaluation

Following glow2018

, we sample 1,000 latent vectors from a temperature-truncated normal distribution

and transform them into molecular graphs by performing the reverse step of our model. We compare the performance of the proposed model with baseline models in Table 2 using the following metrics. Validity (V) is the percentage of generated graphs corresponding to valid molecules. Novelty (N) is the percentage of generated valid molecules not present in the training set. Uniqueness (U) is the percentage of unique valid molecules out of all generated molecules. Reconstruction accuracy (R) is the percentage of molecules that can be reconstructed perfectly by the model: namely, the ratio of molecules s.t. .

We choose Regularizing-VAE (RVAE) ma2018constrained and MolGAN de2018molgan as state-of-the-art baseline models. We compare with two additional VAE models; grammar VAE(GVAE) kusner2017gvae and character VAE (CVAE)gomez2018automatic , which learn to generate string representations of molecules. In this paper, we do not conduct comparisons with some models that generate nodes and edges sequentiallyjtvae2018 ; cgvae2018 , because our model generates adjacency tensor in one shot.

Notably, proposed GraphNVP guarantees 100% reconstruction accuracy, attributed to the invertible function construction of normalizing flows. Also, it is notable that GraphNVP enjoys a significantly high uniqueness ratio. Although some baselines exhibit a higher validity on QM9 dataset, the set of generated molecules contains many duplicates. Additionally, we want to emphasize that our model generates a substantial number of valid molecules without explicitly incorporating the chemical knowledge as done in some baselines (e.g., valency checks for chemical graphs in MolGAN and RVAE). This is preferable because additional validity checks consume computational time, and may result in a low reconstruction accuracy (e.g., RVAE). As GraphNVP does not incorporate domain-specific procedures during learning, it can be easily used for learning generative models on general graph structures.

Method QM9 ZINC
% V % N % U % R % V % N % U % R
GraphNVP
83.1
( 0.5)
58.2
( 1.9)
99.2
( 0.3)
100.0
42.6
( 1.6)
100.0
( 0.0)
94.8
( 0.6)
100.0
RVAE ma2018constrained 96.6 97.5 - 61.8 34.9 100.0 - 54.7
MolGAN de2018molgan 98.1 94.2 10.4 - - - - -
GVAE kusner2017gvae 60.2 80.9 9.3 96.0 7.2 100.0 9.0 53.7
CVAE gomez2018automatic 10.3 90.0 67.5 3.6 0.7 100.0 67.5 44.6
Table 2: Performance of generative models with respect to quality metrics. Baseline scores are borrowed from the original papers. Scores of GraphNVP are averages over 5 runs. Standard deviations are presented below the average scores.

Remarkably, GraphNVP could achieve a high uniqueness score without incorporating domain expert knowledge as done in previous work ma2018constrained . Next, we provide a brief discussion of our findings.

The authors of MolGAN de2018molgan report that MolGAN is susceptible to mode collapse salimans2016improved resulting in a very small number of unique molecules among generated molecules. We found this as a reasonable observation, explaining the score in Table 2.

Usually we expect VAEs to find a latent space serving as a low-dimensional and smooth approximation of the true sample distribution. The VAE latent spaces are thus expected to omit some minor variations in samples to conform to a smooth low-dimensional latent distribution. In contrast, in the latent space of invertible flow models, no omissions of minor graph variations are allowed since all encodings (forwarding) must be analytically invertible. And the latent space of the invertible flows are not low-dimensional: basically, the dimensionality does not change during affine transformations. We conjecture that these distinctions of latent spaces may partially explain the observed difference of uniqueness among two types of models.

4.3 Smoothness of the Learned Latent Space

Next, we qualitatively examine the learned latent space by visualizing the latent points space. In this experiment, we randomly select a molecule from the training set and encode it into a latent vector using our proposed model. Then we choose two random axes which are orthogonal to each other. We decode latent points lying on a 2-dimensional grid spanned by those two axes and with as the origin. Figure 4 shows that the latent spaces learned from both QM9 (panel (a)) and ZINC dataset (panel (b)) vary smoothly such that neighboring latent points correspond to molecules with minor variations. This visualization indicates the smoothness of the learned latent space, similar to the results of existing VAE-based models (e.g., cgvae2018 ; ma2018constrained ). However, it should be noted that we decode each latent point only once unlike VAE-based models. For example, GVAE kusner2017gvae decodes each latent point 1000 times and selects the most common molecule as the representative molecule for that point. Because our decoding step is deterministic such a time-consuming measure is not needed. In practice, smoothness of the latent space is crucial for decorating a molecule: generating a slightly-modified graph by perturbing the latent representation of the source molecular graph.

(a) Learned latent space for QM9.
(b) Learned latent space for ZINC.
Figure 4: Visualization of the learned latent spaces along two randomly selected orthogonal axes. The red circled molecules are centers of the visualizations (not the origin of the latent spaces). An empty space in the grid indicates that an invalid molecule is generated.

4.4 Property-Targeted Molecule Optimization

(a) Molecule optimization for ZINC.
(b) Molecule optimization for QM9.
Figure 5:

Chemical property optimization. Given the left-most molecule, we interpolate its latent vector along the direction which maximizes its QED property.

Our last task is to find molecules similar to a given molecule, but possessing a better chemical property. This task is known as molecular optimization

in the field of chemo-informatics. We train a linear regressor on the latent space of molecules with quantitative estimate of drug-likeness (QED) of each molecule as the target chemical property. QED score quantifies how likely a molecule is to be a potential drug. We interpolate the latent vector of a randomly selected molecule along the direction of increasing QED score as learned by linear regression.

Figure 5 demonstrates the learned latent space and a simple linear regression yields successful molecular optimization. Here, we select a molecule with a low QED score and visualize its neighborhood. However, we note that the number of valid molecules that can be generated along a given direction varies depending on the query molecule. We show another property optimization example on QM9 dataset in the appendix.

Although we could perform molecular optimization with linear regression, we believe an extensive Bayesian optimization (e.g.,  jtvae2018 ; kusner2017gvae ) on the latent space may provide better results.

5 Conclusion

In this paper, we propose GraphNVP, an invertible flow-based model for generating molecular graphs, first in the literature. Our model can generate valid molecules with a high uniqueness score and guaranteed reconstruction ability. In addition, we demonstrate that the learned latent space can be used to search for molecules similar to a given molecule, which maximizes a desired chemical property. There is an important open problem: how to improve the permutation-invariance of the proposed model. Additionally, we believe more exploration of the reasons contributing to the high uniqueness ratio of the proposed model will contribute to the understanding of graph generation models in general.

References

  • (1) Jens Behrmann, Will Grathwohl, Ricky T. Q. Chem, David Duvenaud, and Jörn-Henrik Jacobsen. Invertible residual networks. arXiv preprint arXiv:1811.00995, 2019.
  • (2) Nicola De Cao and Thomas Kipf. Molgan: An implicit generative model for small molecular graphs. arXiv preprint arXiv:1805.11973, 2018.
  • (3) Laurent Dinh, David Krueger, and Yoshua Bengio. Nice: Non-linear independent components estimation. In Proceedings of the International Conference on Learning Representations (ICLR), 2015.
  • (4) Laurent Dinh, Jascha Sohl-Dickstein, and Samy Bengio. Density estimation using real nvp. In Proceedings of International Conference on Learning Representations (ICLR), 2017.
  • (5) Rafael Gómez-Bombarelli, Jennifer N Wei, David Duvenaud, José Miguel Hernández-Lobato, Benjamín Sánchez-Lengeling, Dennis Sheberla, Jorge Aguilera-Iparraguirre, Timothy D Hirzel, Ryan P Adams, and Alán Aspuru-Guzik. Automatic chemical design using a data-driven continuous representation of molecules. ACS central science, 4(2):268–276, 2018.
  • (6) Ian Goodfellow, Jean Pouget-Abadie, Mehdi Mirza, Bing Xu, David Warde-Farley, Sherjil Ozair, Aaron Courville, and Yoshua Bengio. Generative adversarial nets. In Advances in neural information processing systems, pages 2672–2680, 2014.
  • (7) Will Grathwohl, Ricky T. Q. Chen, Jesse Bettencourt, Ilya Sutskever, and David Duvenaud. FFJORD: Free-Form Continuous Dynamics for Scalable Reversible Generative Models. In Proceedings of ICLR, 2019.
  • (8) Gabriel Guimaraes, Carlos Sanchez-Lengeling, Outeiral, Pedro Luis Cunha Farias, and Alan Aupuru-Guzip. Object-reinforced generative adversarial networks (organ) for seuqnce generation models. arXiv, 18:1705.18043v2 [stat.ml], 2017.
  • (9) John J Irwin, Teague Sterling, Michael M Mysinger, Erin S Bolstad, and Ryan G Coleman. Zinc: a free tool to discover chemistry for biology. Journal of chemical information and modeling, 52(7):1757–1768, 2012.
  • (10) Wengong Jin, Regina Barzilay, and Tommi Jaakkola. Junction tree variational autoencoder for molecular graph generation. In Jennifer Dy and Andreas Krause, editors, Proceedings of the 35th International Conference on Machine Learning, volume 80 of Proceedings of Machine Learning Research, pages 2323–2332, Stockholmsmässan, Stockholm Sweden, 10–15 Jul 2018. PMLR.
  • (11) Diederik P. Kingma and Jimmy Lei Ba. Adam: a Method for Stochastic Optimization. In Proceedings of the International Conference on Learning Representations (ICLR), 2015.
  • (12) Diederik P Kingma and Max Welling. Auto-encoding variational bayes. In Proceedings of the 2nd International Conference on Learning Representations (ICLR), 2014.
  • (13) Durk P Kingma and Prafulla Dhariwal. Glow: Generative flow with invertible 1x1 convolutions. In Advances in Neural Information Processing Systems, pages 10236–10245. Curran Associates, Inc., 2018.
  • (14) Aviral Kumra, Jimmy Ba, Jamie Kiros, and Kevin Swersky. GRevnet: Improving Graph Neural Nets wiht Reversible Computation. In Proceedings of the Relational Representation Learning Workshop at NeurIPS 2018, 2018.
  • (15) Matt J Kusner, Brooks Paige, and José Miguel Hernández-Lobato. Grammar variational autoencoder. In Proceedings of the 34th International Conference on Machine Learning-Volume 70, pages 1945–1954. PMLR, 2017.
  • (16) Qi Liu, Miltiadis Allamanis, Marc Brockschmidt, and Alexander Gaunt. Constrained graph variational autoencoders for molecule design. In Advances in Neural Information Processing Systems, pages 7806–7815, 2018.
  • (17) Tengfei Ma, Jie Chen, and Cao Xiao. Constrained generation of semantically valid graphs via regularizing variational autoencoders. In Advances in Neural Information Processing Systems, pages 7113–7124, 2018.
  • (18) Alec Radford, Luke Metz, and Soumith Chintala. Unsupervised representation learning with deep convolutional generative adversarial networks. arXiv preprint arXiv:1511.06434, 2015.
  • (19) Raghunathan Ramakrishnan, Pavlo O Dral, Matthias Rupp, and O Anatole Von Lilienfeld. Quantum chemistry structures and properties of 134 kilo molecules. Scientific data, 1:140022, 2014.
  • (20) Danilo Rezende and Shakir Mohamed. Variational inference with normalizing flows. In Francis Bach and David Blei, editors, Proceedings of the 32nd International Conference on Machine Learning, volume 37 of Proceedings of Machine Learning Research, pages 1530–1538, Lille, France, 07–09 Jul 2015. PMLR.
  • (21) Tim Salimans, Ian Goodfellow, Wojciech Zaremba, Vicki Cheung, Alec Radford, and Xi Chen. Improved techniques for training gans. In Advances in neural information processing systems, pages 2234–2242, 2016.
  • (22) Michael Schlichtkrull, Thomas N Kipf, Peter Bloem, Rianne Van Den Berg, Ivan Titov, and Max Welling. Modeling relational data with graph convolutional networks. In European Semantic Web Conference, pages 593–607. Springer, 2018.
  • (23) Martin Simonovsky and Nikos Komodakis. Graphvae: Towards generation of small graphs using variational autoencoders. In International Conference on Artificial Neural Networks, pages 412–422. Springer, 2018.
  • (24) E G Tabak and Cristina V Turner. A Family of Nonparametric Density Estimation Algorithms. Communications on Pure and Applied Mathematics, 66(2):145–164, 2013.
  • (25) Esteban G. Tabak and Eric Vanden-Eijnden. Density estimation by dual ascent of the log-likelihood. Communications in Mathematical Sciences, 8(1):217–233, 3 2010.
  • (26) L Theis, A van den Oord, and M Bethge. A note on the evaluation of generative models. In International Conference on Learning Representations (ICLR 2016), pages 1–10, 2016.
  • (27) Jiaxuan You, Bowen Liu, Zhitao Ying, Vijay Pande, and Jure Leskovec. Graph convolutional policy network for goal-directed molecular graph generation. In Advances in Neural Information Processing Systems, pages 6412–6422, 2018.
  • (28) Jiaxuan You, Rex Ying, Xiang Ren, William Hamilton, and Jure Leskovec. GraphRNN: Generating realistic graphs with deep auto-regressive models. In Jennifer Dy and Andreas Krause, editors, Proceedings of the 35th International Conference on Machine Learning, volume 80 of Proceedings of Machine Learning Research, pages 5708–5717, Stockholmsmässan, Stockholm Sweden, 10–15 Jul 2018. PMLR.

Appendix A Network Architecture details

For QM9 dataset, we use a total of 27 adjacency coupling and 36 node feature coupling layers. For ZINC dataset, we keep the number of coupling layers equal to the maximum number of atoms a ZINC molecule can have, 38. We model affine transformation (both scale and translation) of an adjacency coupling layer with a multi-layer perceptron (MLP). As mentioned in the main text, we utilize both node assignments and adjacency information in defining node feature coupling layers. However, we found affine transformations can become unstable when used to update the feature matrix with Relational-GCN (RelGCN). Therefore, we use only additive transformations in node feature coupling layers.

We initialize the last layer of each RelGCN and MLP with zeros, such that each affine transformation initially performs an identity function.

We train the models using Adam optimizer with default parameters (

= 0.001) and minibatch sizes 256 and 128 for QM9 and ZINC datasets. We use batch normalization in both types of coupling layers.

Appendix B Training Details

For training data splits, we used the same train/test dataset splits used in [15]

. We train each model for 200 epochs. We did not employ early-stopping in the experiments. We chose the model snapshot of the last (200) epoch for evaluations and demonstrations. All models are implemented using Chainer-Chemistry

111https://github.com/pfnet-research/chainer-chemistry and RDKit222https://github.com/rdkit/rdkit libraries.

Appendix C Effect of temperature

Following previous work on likelihood-based generative models [13], we sampled latent vectors from a temperature-truncated normal distribution. Sampling with a lower temperature results in higher number of valid molecules at the cost of uniqueness among them. How temperature effects validity, uniqueness, and novelty of generated molecules is shown in Figure 6. Based on empirical results we chose 0.85 and 0.75 as the temperature values for QM9 and ZINC models respectively.

(a) Impact of temperature on sampling from latent space of QM9.
(b) Impact of temperature on sampling from latent space of ZINC.
Figure 6: Impact of temperature on the quality of graph generation. Sampling with a smaller temperature yields more valid molecules but with less diversity (uniqueness) among them. Each experiment is performed five times and the average is reported in this figure.

Appendix D Additional Visualizations

Figure 7: Chemical property optimization. We select a molecule from QM9 dataset randomly and then interpolate its latent vector along the axis which maximizes water-octanol partition coefficient (logP)

Fig. 7 illustrates an example of chemical property optimization for water-octanol partition coefficient (logP) on QM9 dataset.
